APPLICATION EXAMPLE

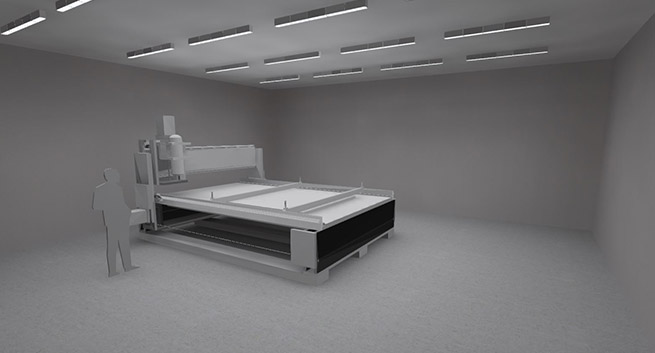

Industrial lighting (midbay) with FLORENCE-3R-IP
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Industrial lighting (midbay) |
| Optics: | FS15626_FLORENCE-3R-IP-Z90 |
| LED: | Mid-power 6030 LEDs |
| Number of luminaires: | 16 pcs |
| Number of optics in luminaire: | 5 pcs |
| Mounting height: | 4 m |
| Luminaire layout (center to center): | 2 x 2 m |
| Luminous flux (LEDs): | 5000 lm |
| Luminous flux (Luminaire): | 4455 lm |
| Luminous flux total (LEDs): | 80 000 lm |
| Luminous flux total (Luminaires): | 71 280 lm |
| Power (LEDs/Luminaire): | 38 W |
| Total load: | 608 W |
| Luminous efficacy: | 117 lm/W |
| Efficiency (Optics): | 89% |

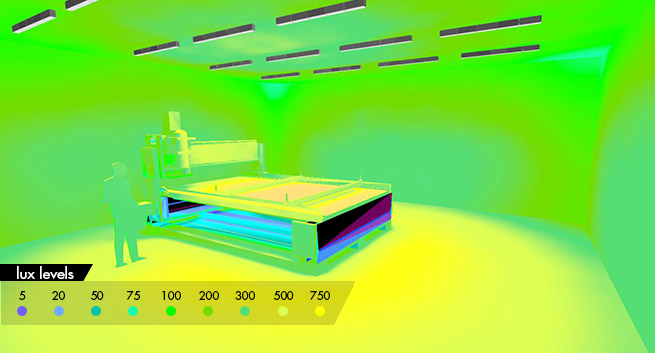

RESULTS:

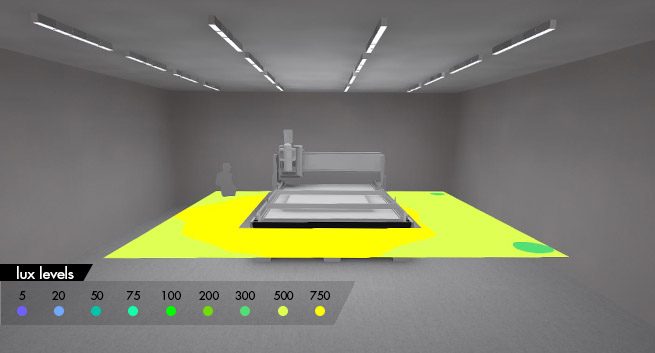

| On calculation area at 0.8 m height | |
| Average: | 708 lx |
| Min: | 482 lx |
| Max: | 859 lx |
| Uo: | 0.68 |
| FS15626_FLORENCE-3R-IP-Z90 |
