    FS15626_FLORENCE-3R-IP-Z90

    Print

    ~90° wide beam

    Specification
    • Dimensions:
      321 x  79 mm
    • Height:
      9.35 mm
    • Fastening:
      screw
    • Colour:
      clear
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      80 pcs
    • Box size:
      356 x 356 x 292 mm
    • Box weight:
      12.2 kg
    • MPQ:
      4 pcs
    • MOQ:
      80 pcs
    • MOQ size:
      356 x 356 x 292 mm
    • MOQ weight:
      12.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FS15626_FLORENCE-3R-IP-Z90

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR183 - Additional gasket material approved for LEDiL products

    Application example

    Industrial lighting (highbay) with FLORENCE-3R-IP

    Application example

    Industrial lighting (midbay) with FLORENCE-3R-IP

    Application guide

    LEDiL guide for horticultural lighting optics

    News

    PRODUCT NEWS - FLORENCE-3R-IP

    Application area

    Area and Car Park Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application area

    Horticultural Lighting

    Application guide

    LEDiL guide for retail lighting optics

    Article

    Illuminating supermarkets with LEDiL optics

    News

    Linear lighting solutions

    Article

    Understanding the standards but aiming higher

    Article

    Stylish yet functional LED office lighting

    Application area

    Retail Lighting

    Optical results

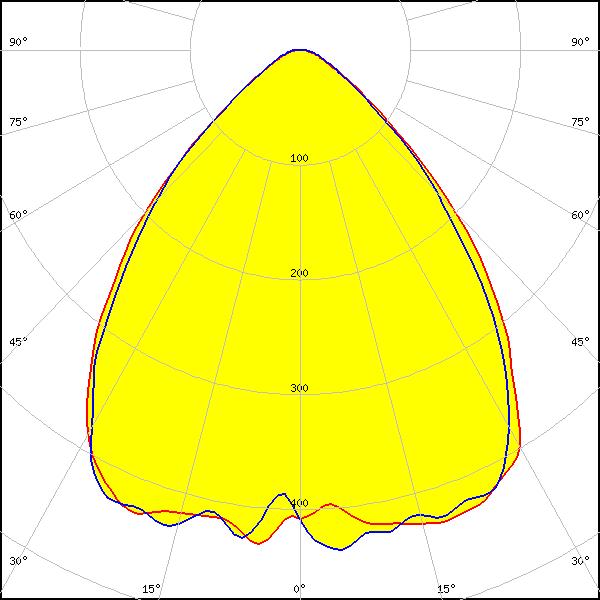

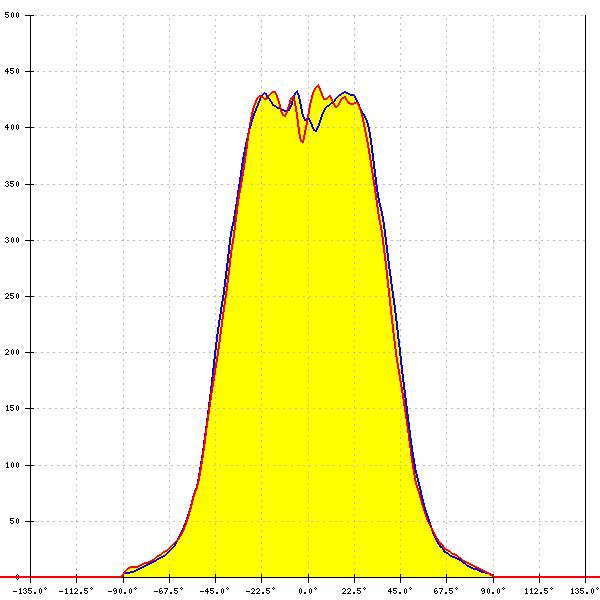

    LED: Bridgelux SMD 5050
    FWHM: 86°
    FWTM: 121°
    Peak intensity: 0.450 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

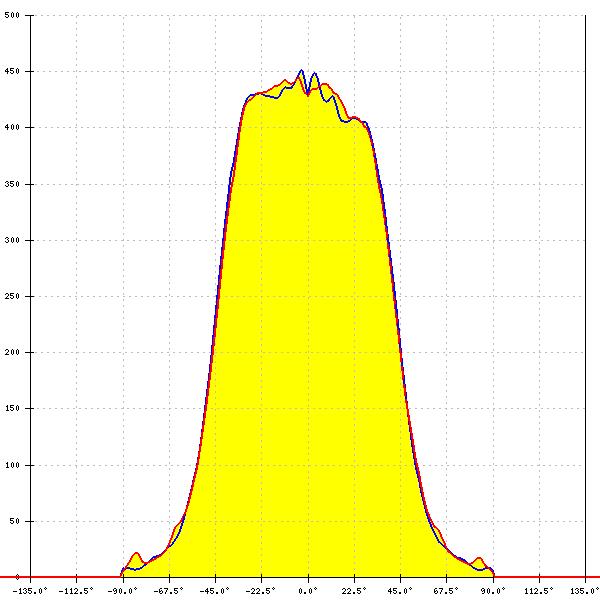

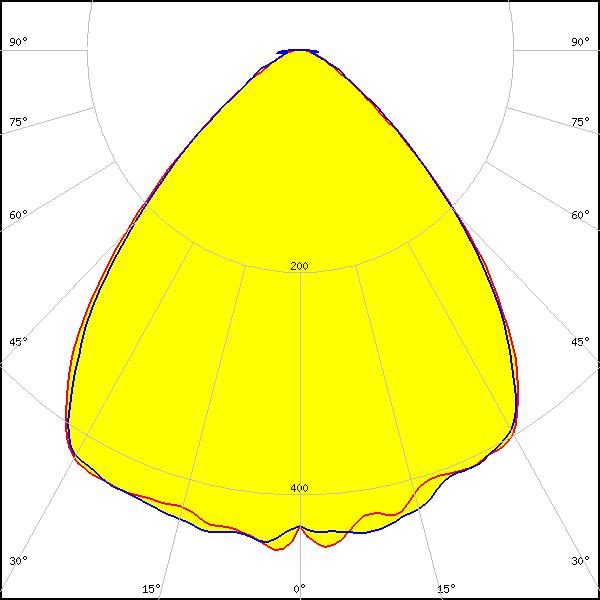

    LED: XP-E
    FWHM: 89°
    FWTM: 124°
    Peak intensity: 0.460 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

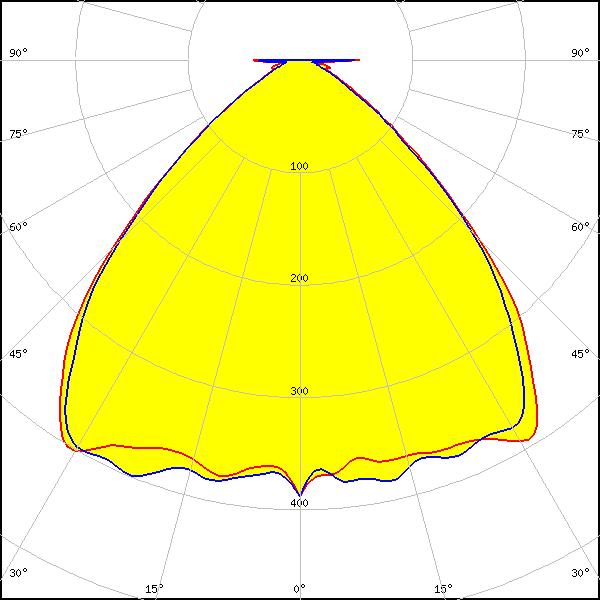

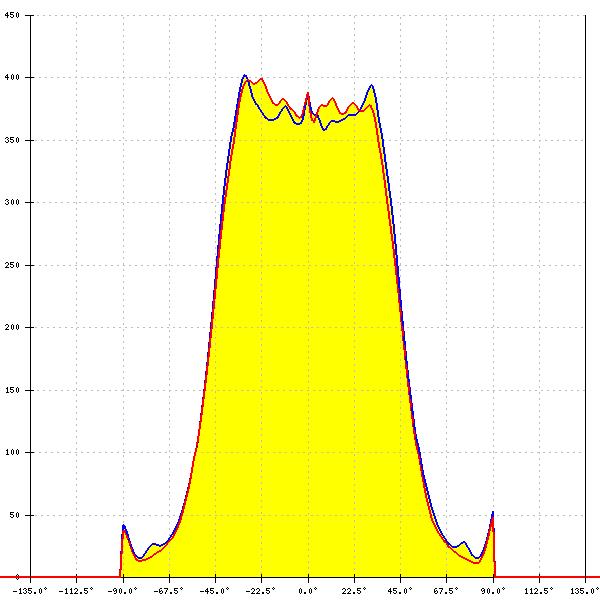

    LED: XP-G3
    FWHM: 95°
    FWTM: 124°
    Peak intensity: 0.410 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

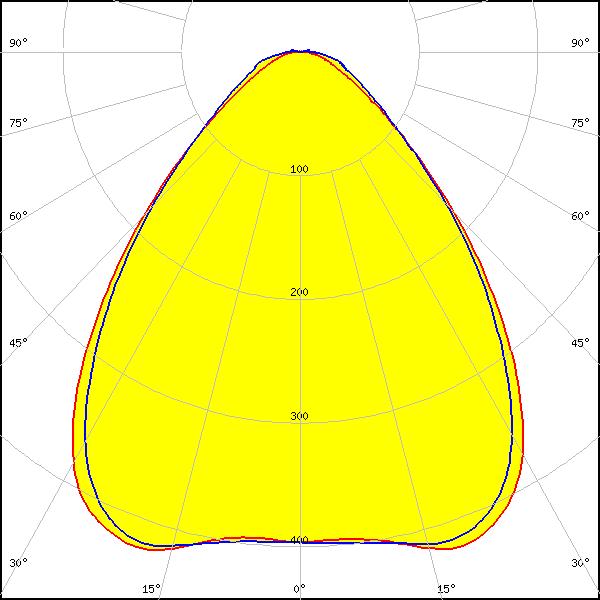

    LED: LUXEON 5050 Round LES
    FWHM: 87°
    FWTM: 136°
    Peak intensity: 0.430 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

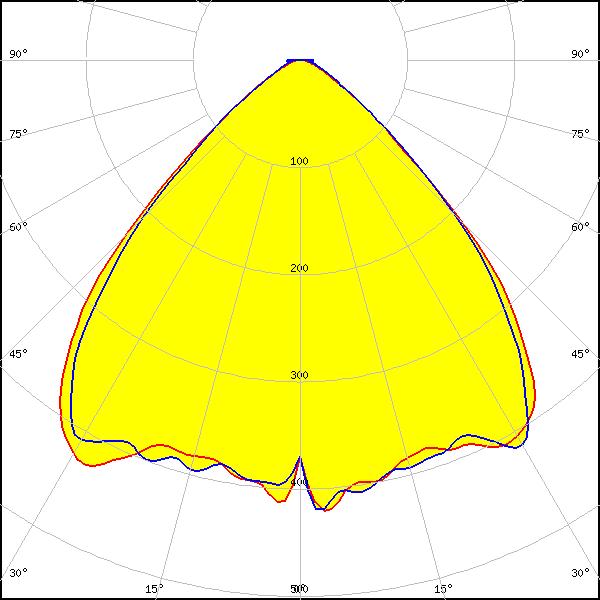

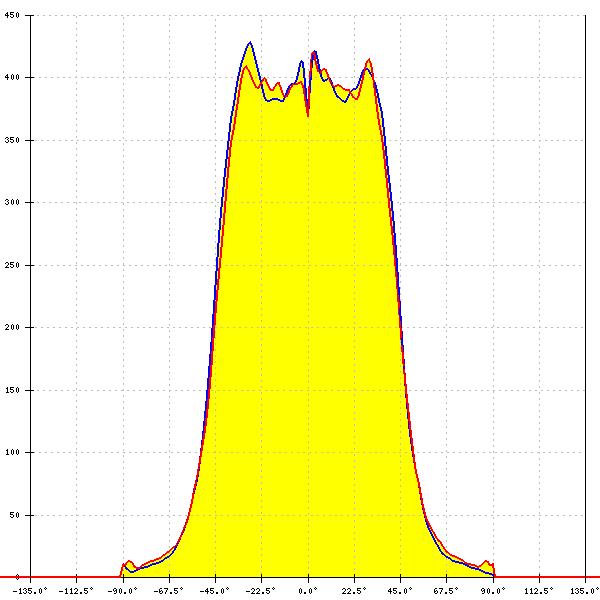

    LED: LUXEON CZ
    FWHM: 92°
    FWTM: 120°
    Peak intensity: 0.430 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-3535L (L202 - xxxx033C30001)
    LEDs/each optic: 1
    Light colour/type: White

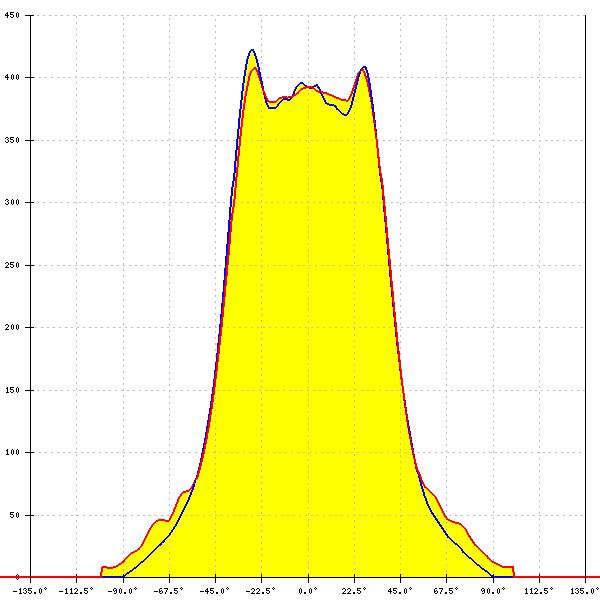

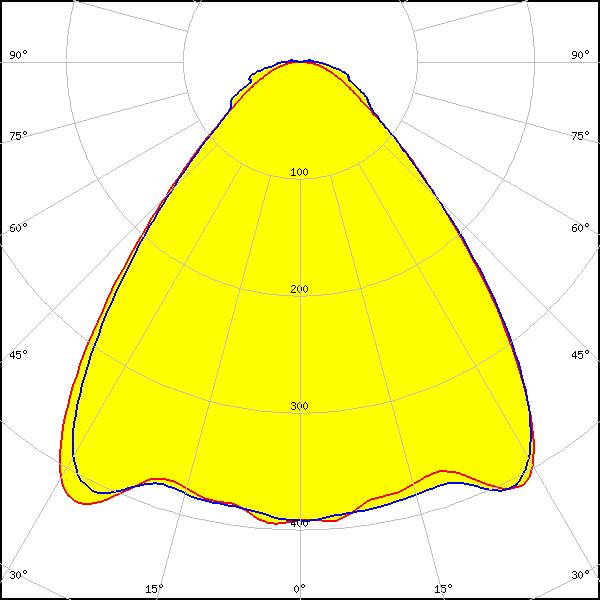

    LED: SST-10-B130
    FWHM: 84°
    FWTM: 129°
    Peak intensity: 0.428 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: Deep Red

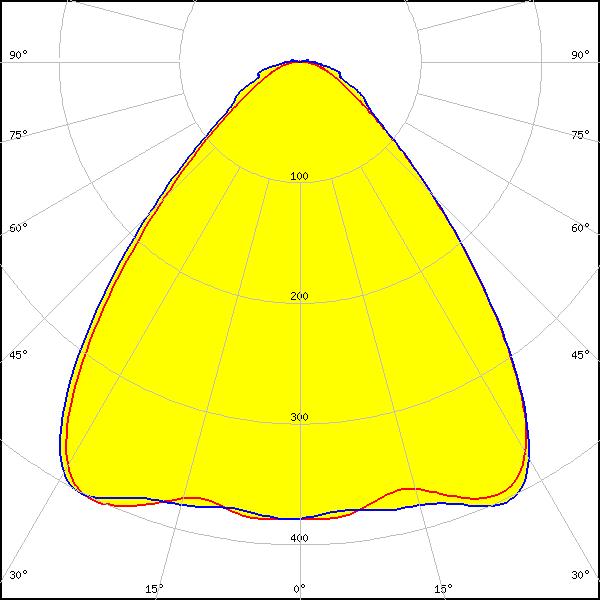

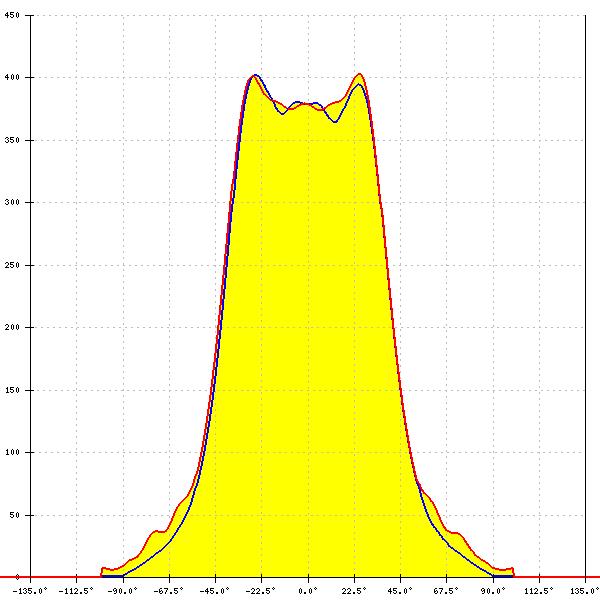

    LED: LinLED 280x55mm 1100lm 840 3x11 33V Opt G2
    FWHM: 84° + 85°
    FWTM: 124° + 134°
    Peak intensity: 0.409 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

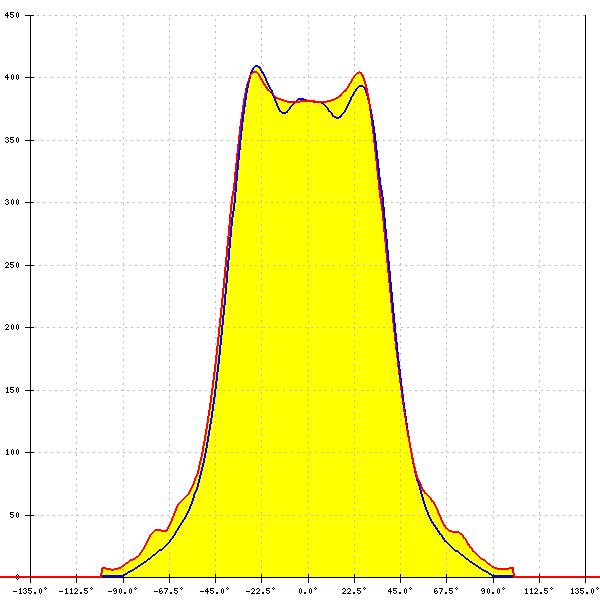

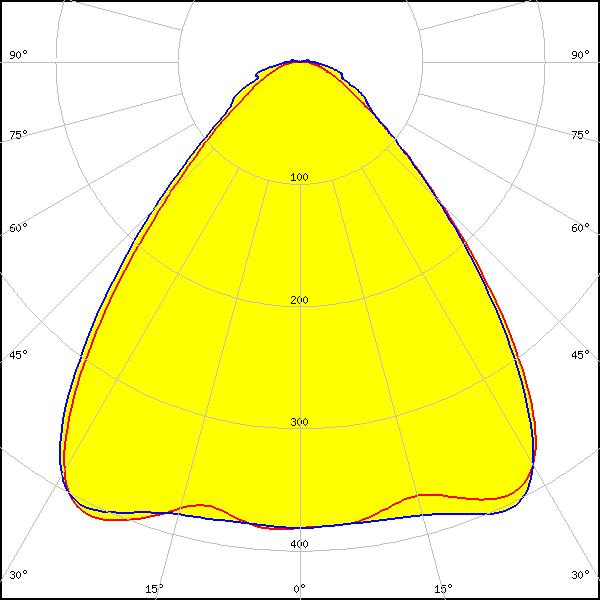

    LED: LinLED 280x55mm 2000lm 830 33V Opt G1
    FWHM: 83° + 85°
    FWTM: 124° + 135°
    Peak intensity: 0.415 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

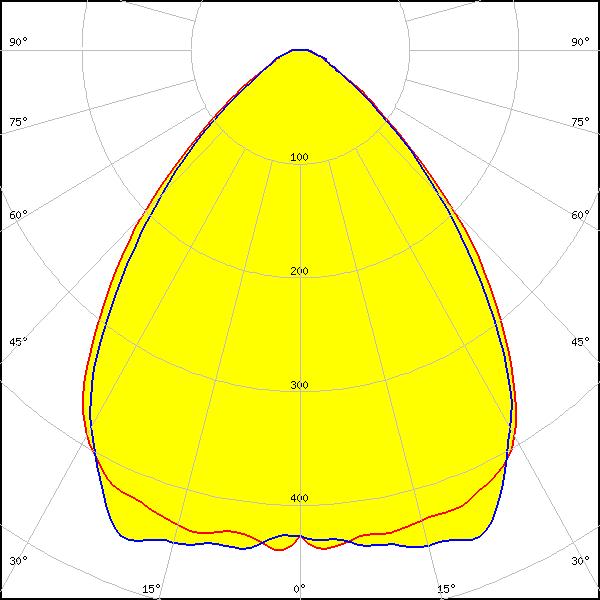

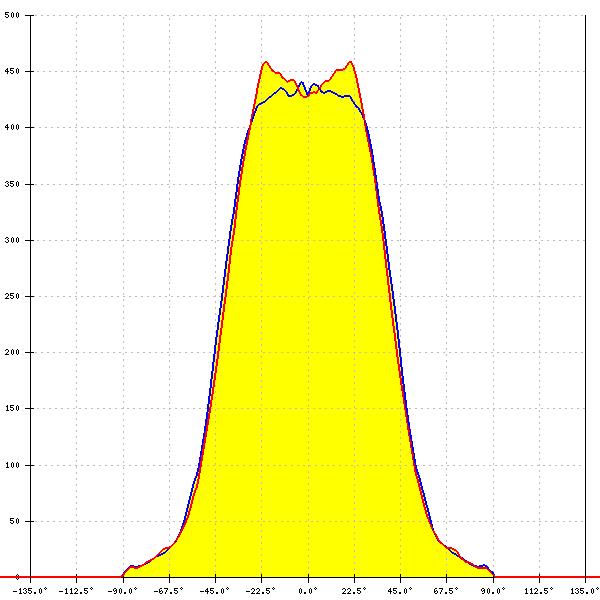

    LED: NF2x757G
    FWHM: 88° + 82°
    FWTM: 122° + 120°
    Peak intensity: 0.459 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

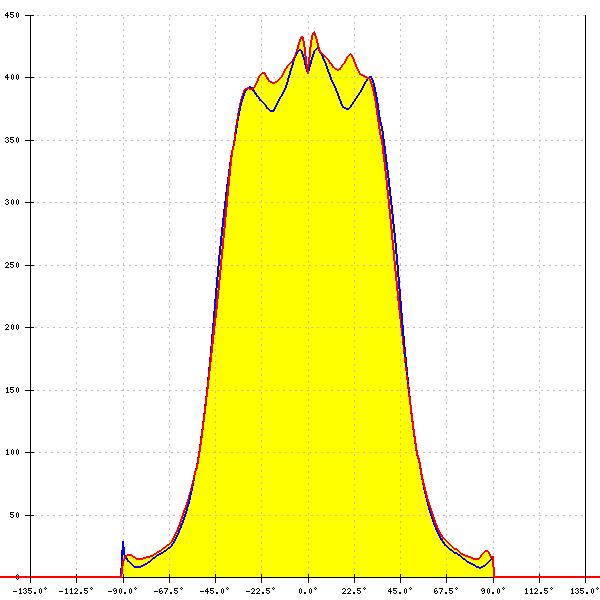

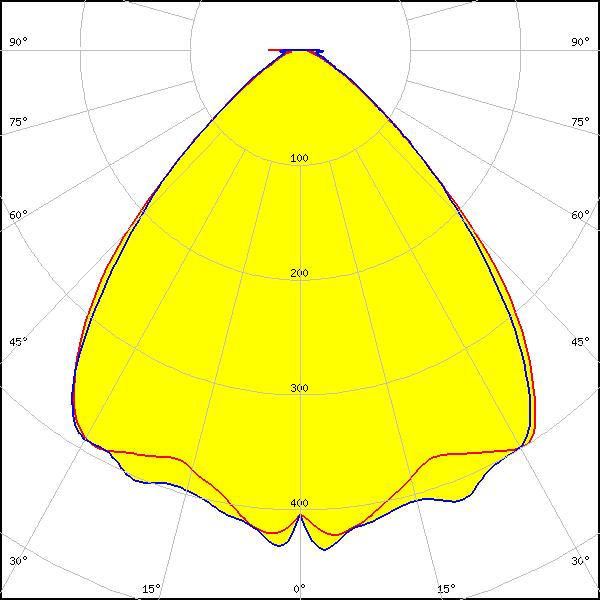

    LED: NVSxx19B/NVSxx19C
    FWHM: 89°
    FWTM: 123°
    Peak intensity: 0.440 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PLG2-BAR-1100-xxx-280x55-DC
    LEDs/each optic: 1
    Light colour/type: White

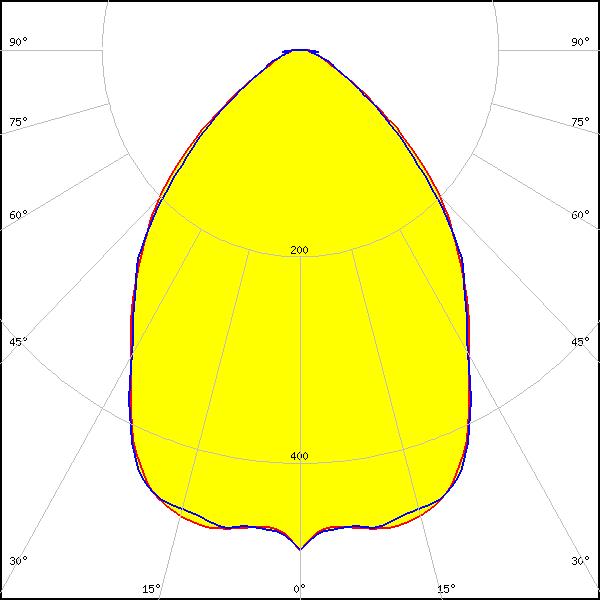

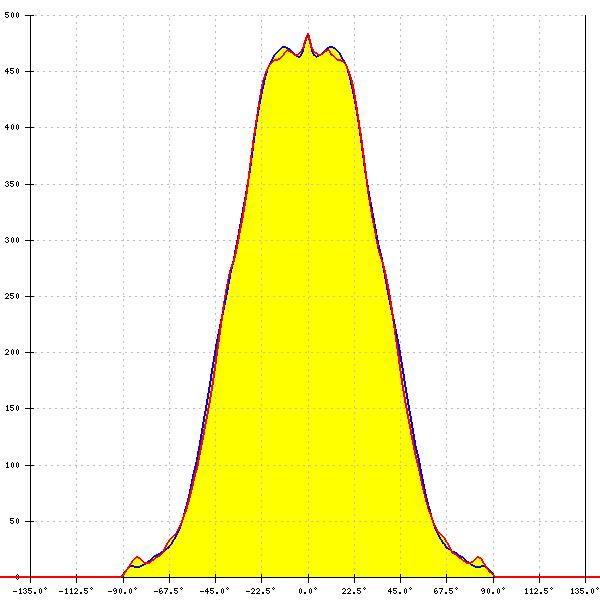

    LED: Duris E 2835
    FWHM: 81°
    FWTM: 122°
    Peak intensity: 0.484 cd/lm
    LEDs/each optic: 4
    Light colour/type: White

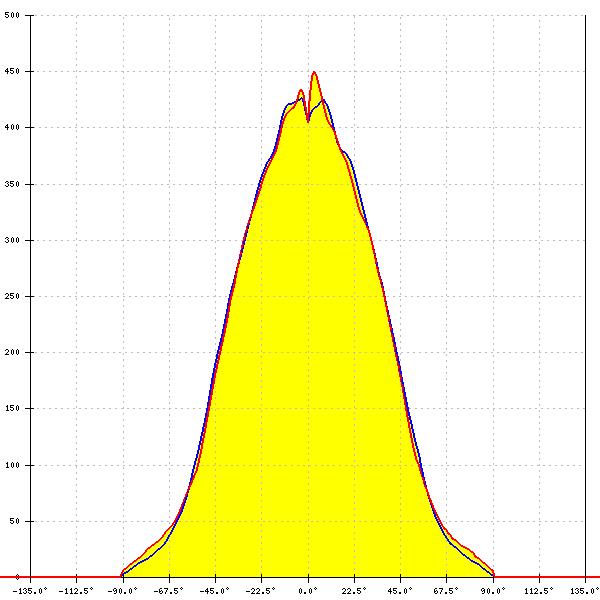

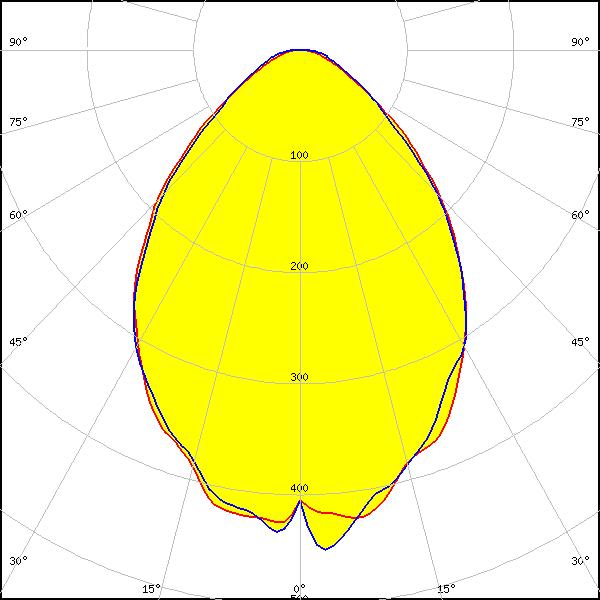

    LED: Duris S10
    FWHM: 82°
    FWTM: 132°
    Peak intensity: 0.456 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

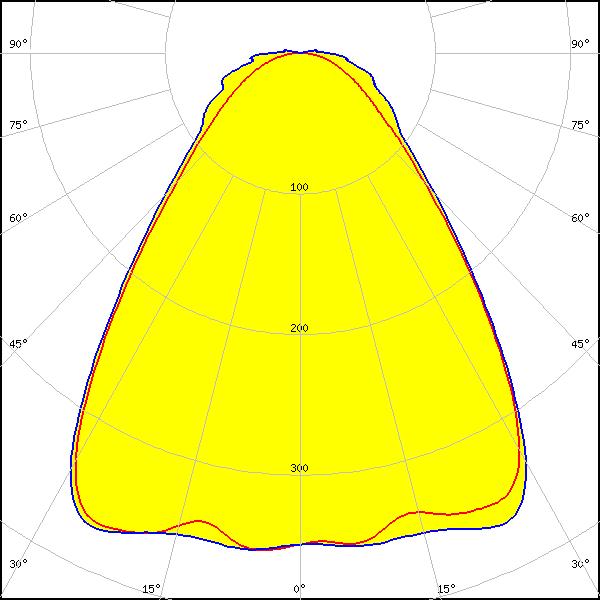

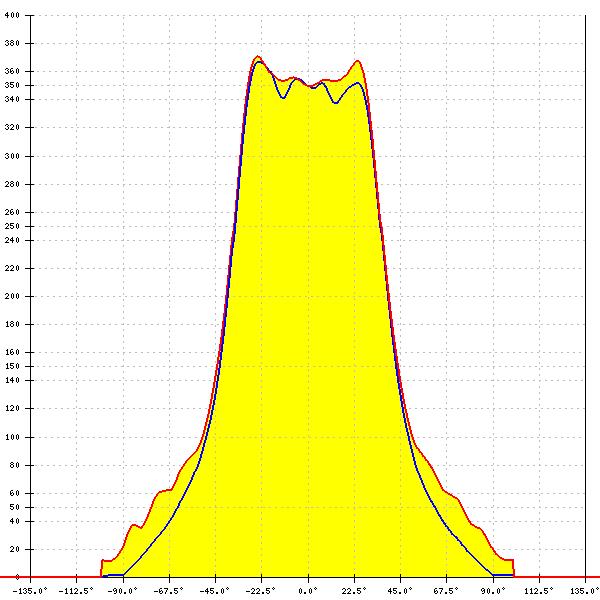

    LED: Duris S2
    FWHM: 82°
    FWTM: 154°
    Peak intensity: 0.379 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

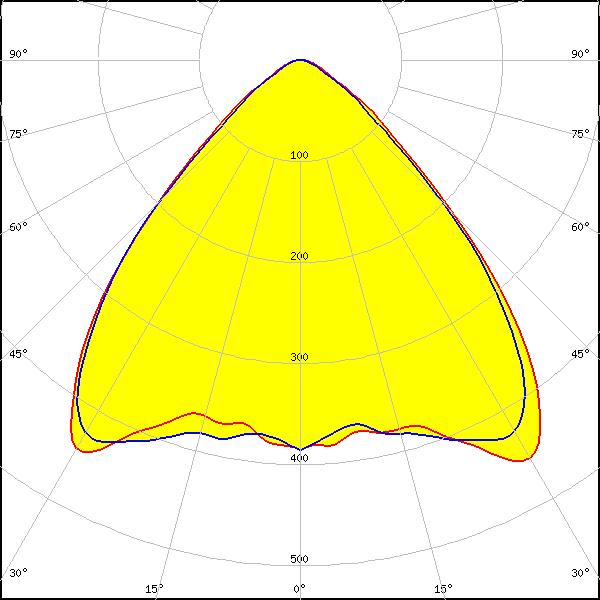

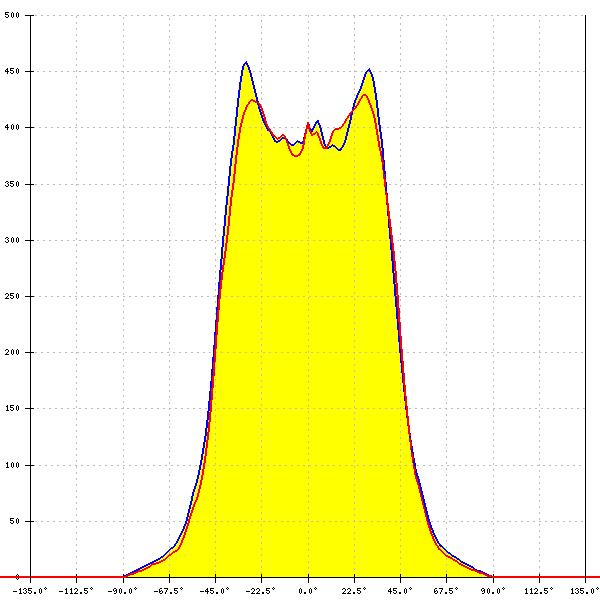

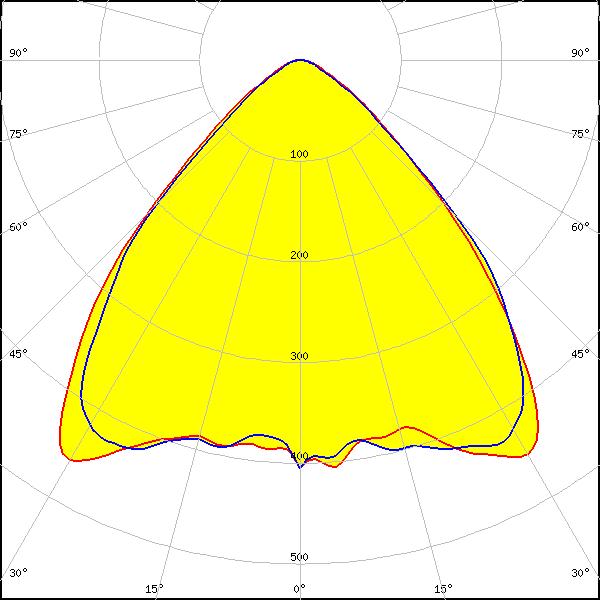

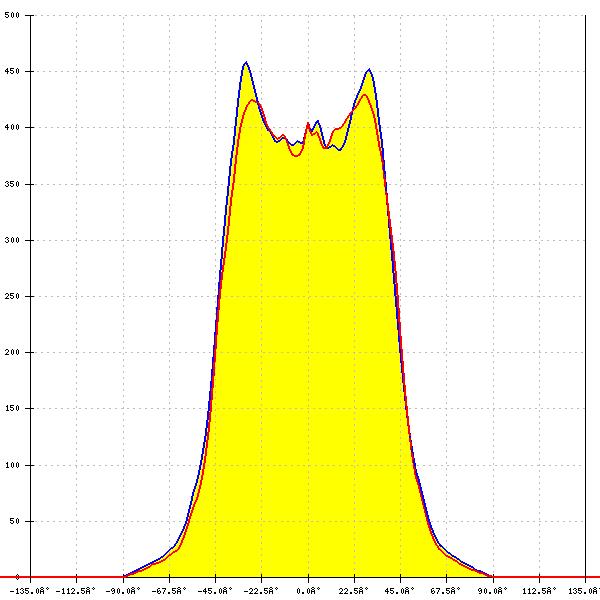

    LED: OSCONIQ P 3030
    FWHM: 89°
    FWTM: 118°
    Peak intensity: 0.463 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Hyper Red
    LED: OSCONIQ P 3030
    FWHM: 89°
    FWTM: 119°
    Peak intensity: 0.457 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

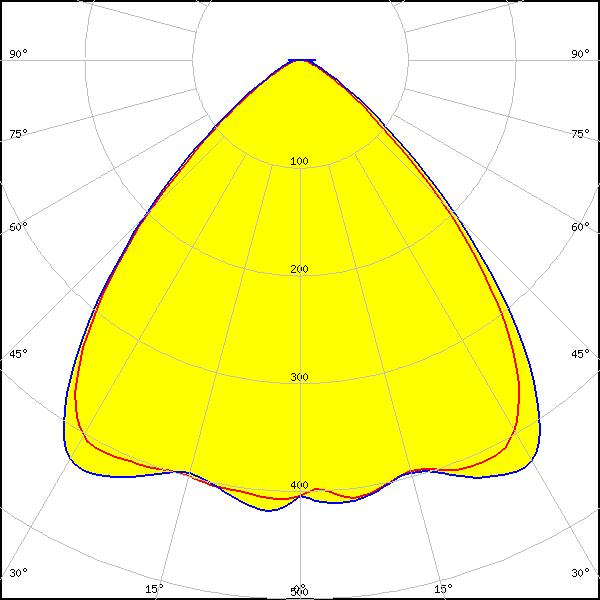

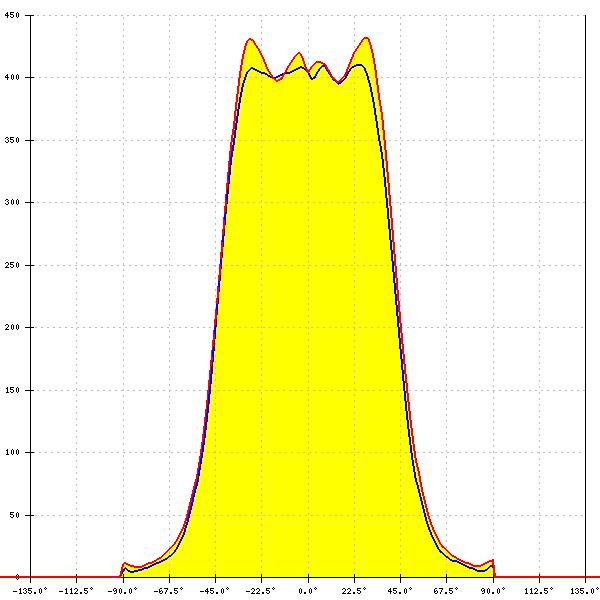

    LED: OSCONIQ P 3737 (2W version)
    FWHM: 90°
    FWTM: 121°
    Peak intensity: 0.430 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

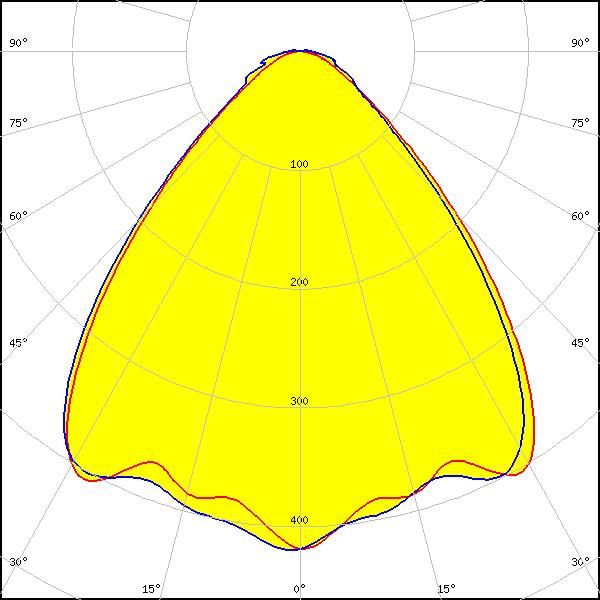

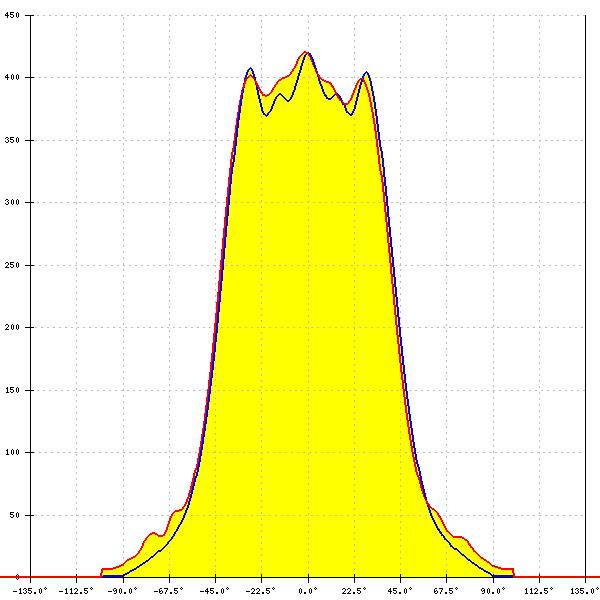

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 89°
    FWTM: 131°
    Peak intensity: 0.420 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

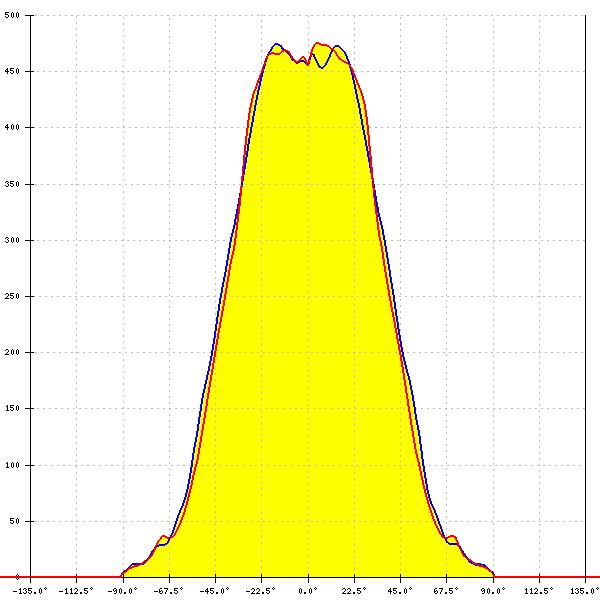

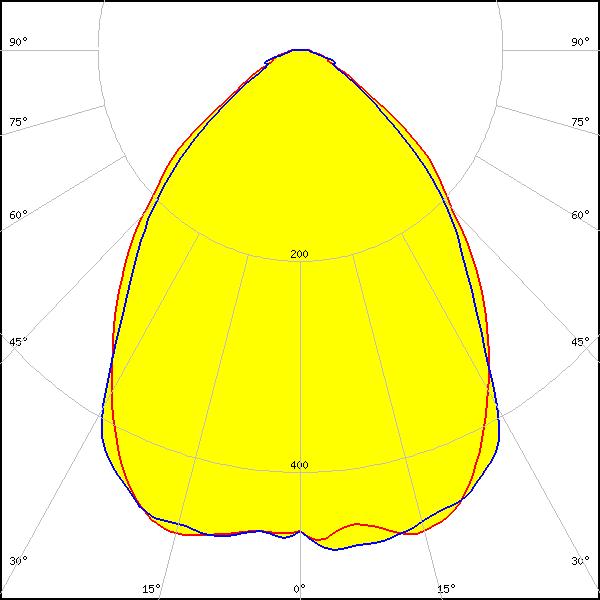

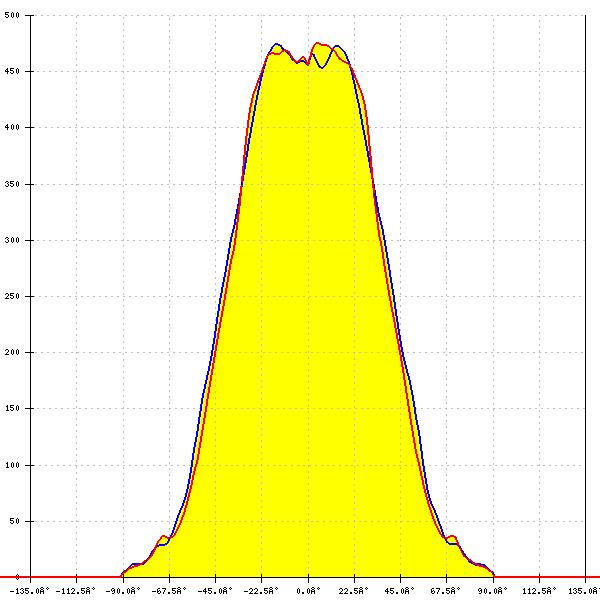

    LED: LM28xB Series
    FWHM: 84°
    FWTM: 126°
    Peak intensity: 0.479 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 4
    Light colour/type: White

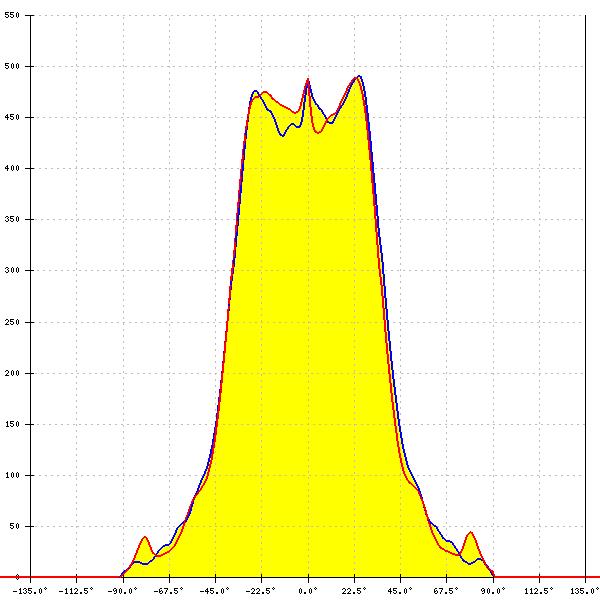

    LED: LM302Z
    FWHM: 78°
    FWTM: 123°
    Peak intensity: 0.493 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LT-R286A
    LEDs/each optic: 1
    Light colour/type: White

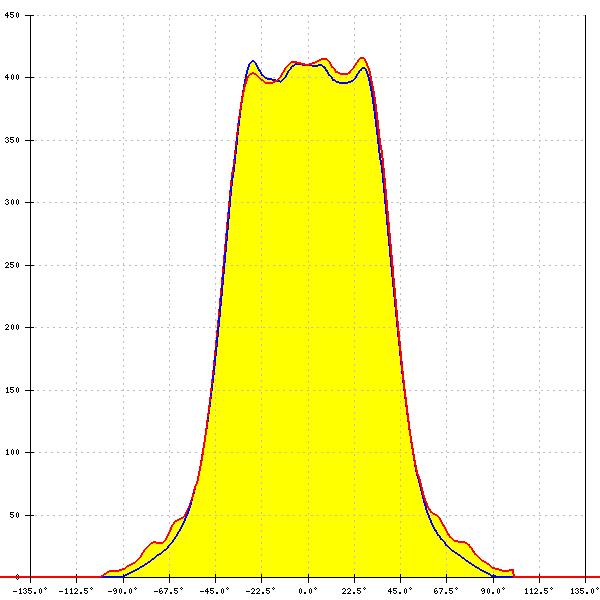

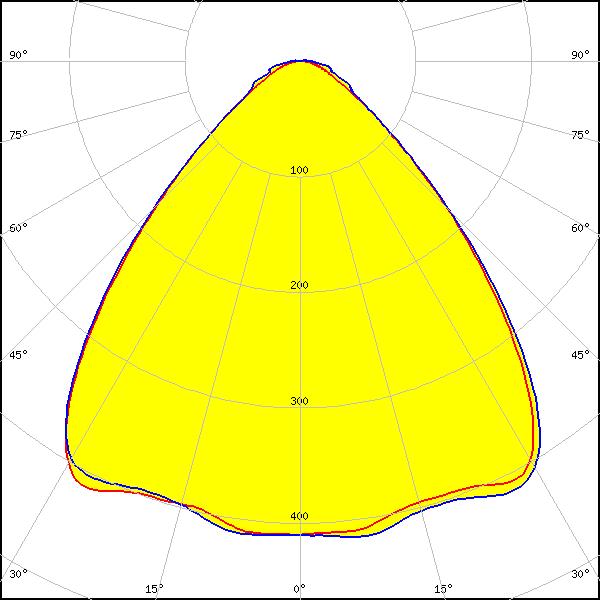

    LED: SEOUL 5630C
    FWHM: 87°
    FWTM: 127°
    Peak intensity: 0.420 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3030
    FWHM: 86°
    FWTM: 123°
    Peak intensity: 0.430 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

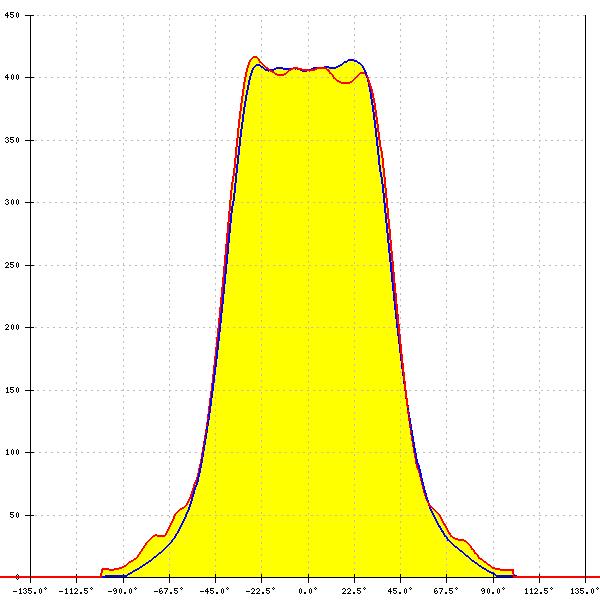

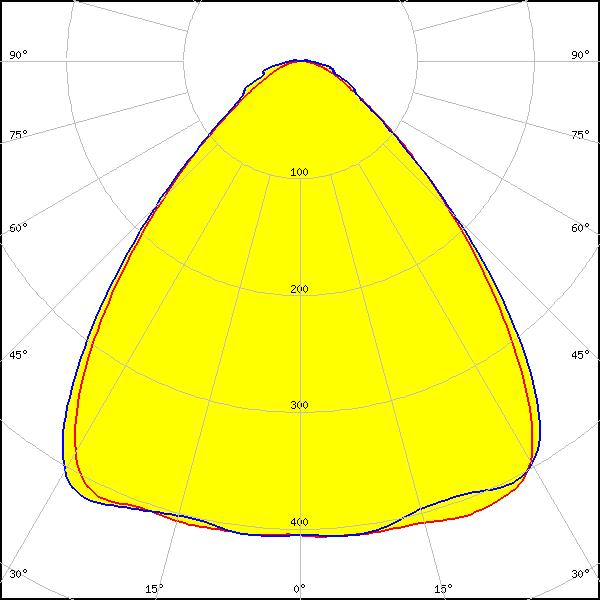

    LED: LLE G2 55x280mm 2000lm
    FWHM: 86°
    FWTM: 130°
    Peak intensity: 0.420 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
