APPLICATION EXAMPLE

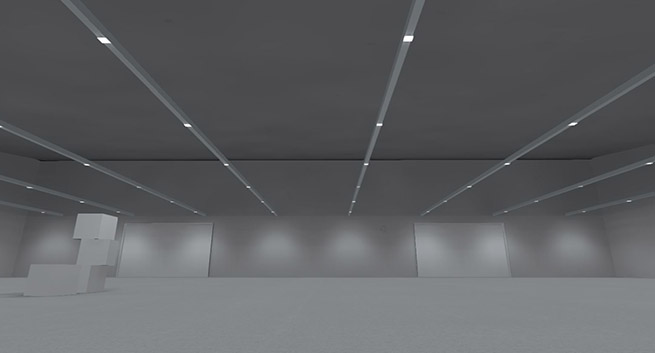

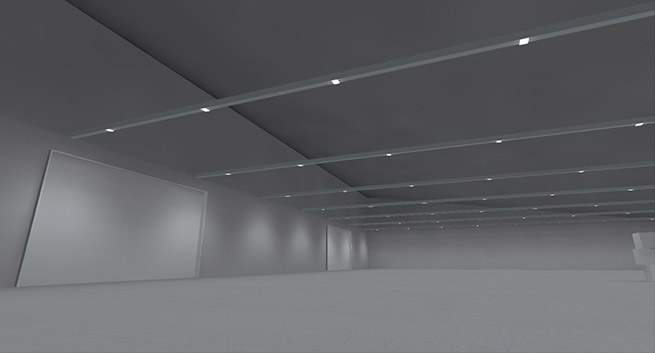

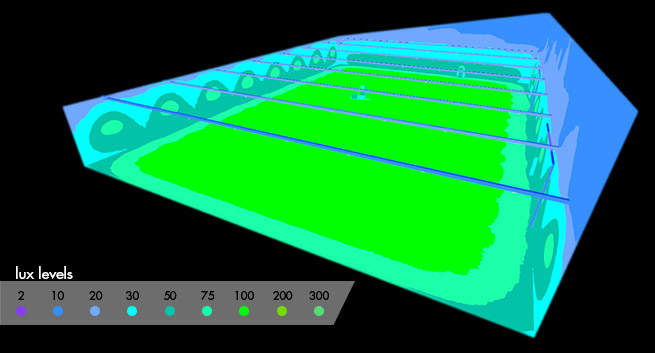

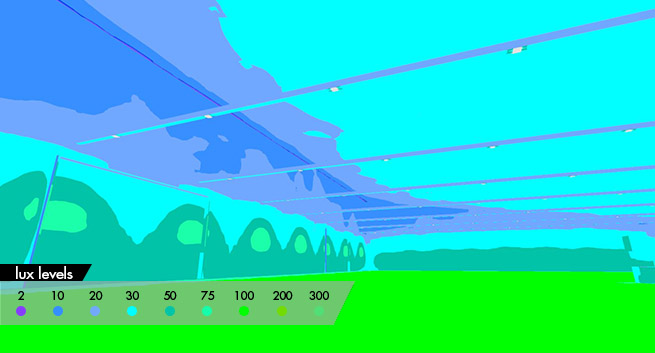

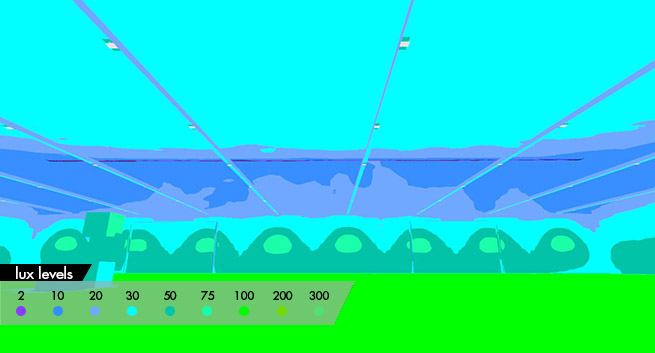

Industrial lighting (highbay) with FLORENCE-3R-IP
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Industrial lighting (highbay) |
| Optics: | FLORENCE-3R-IP-Z90 |
| LED: | High-power 3535 LED |
| Area size: | 52 x 79 m |
| Number of luminaires: | 64 pcs |
| Number of optics in luminaire: | 4 pcs |
| Number of luminaires in a row: | 8 pcs |
| Room height: | 16 m |
| Mounting height: | 8 m |
| Distance between luminaire rows: | 6.5 m |
| Distance between luminaire centers in a row: | 9.8 m |
| Luminous flux (LEDs): | 10 000 lm |
| Luminous flux (luminaire): | 8771 lm |
| Power (LEDs/Luminaire): | 60 W |
| Total load: | 3840 W |
| Luminous efficacy: | 146 lm/W |
| Efficiency (Optics): | 88% |
| Maintenance factor: | 0.8 |
| FS15626_FLORENCE-3R-IP-Z90 |
