Horticultural lighting with VIOLET-12X1-O
Horticultural lighting with VIOLET-12X1-O.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Grow tray area illumination for germination phase.
SETUP:
| Application: | Horticultural - top lighting |

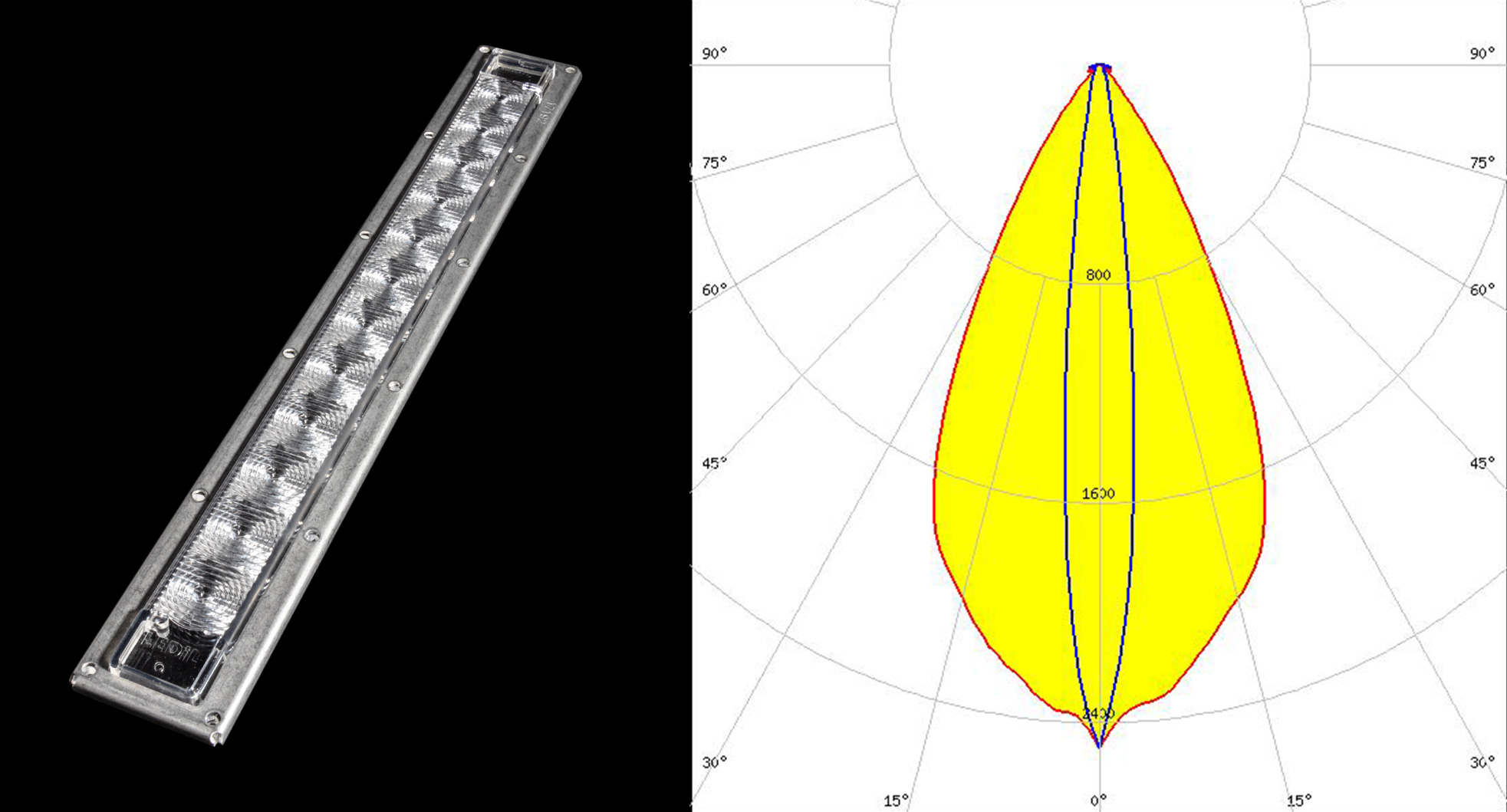

| Optics: | VIOLET-12X1-O |
| Luminaire spacing: | 23 x 50 cm |
| Distance to plant tray: | 49 cm |
| Power (module): | 12 W |
| Efficacy (module): | 2.42 µmol/J |
| PPF (module): | 29 µmol/s |

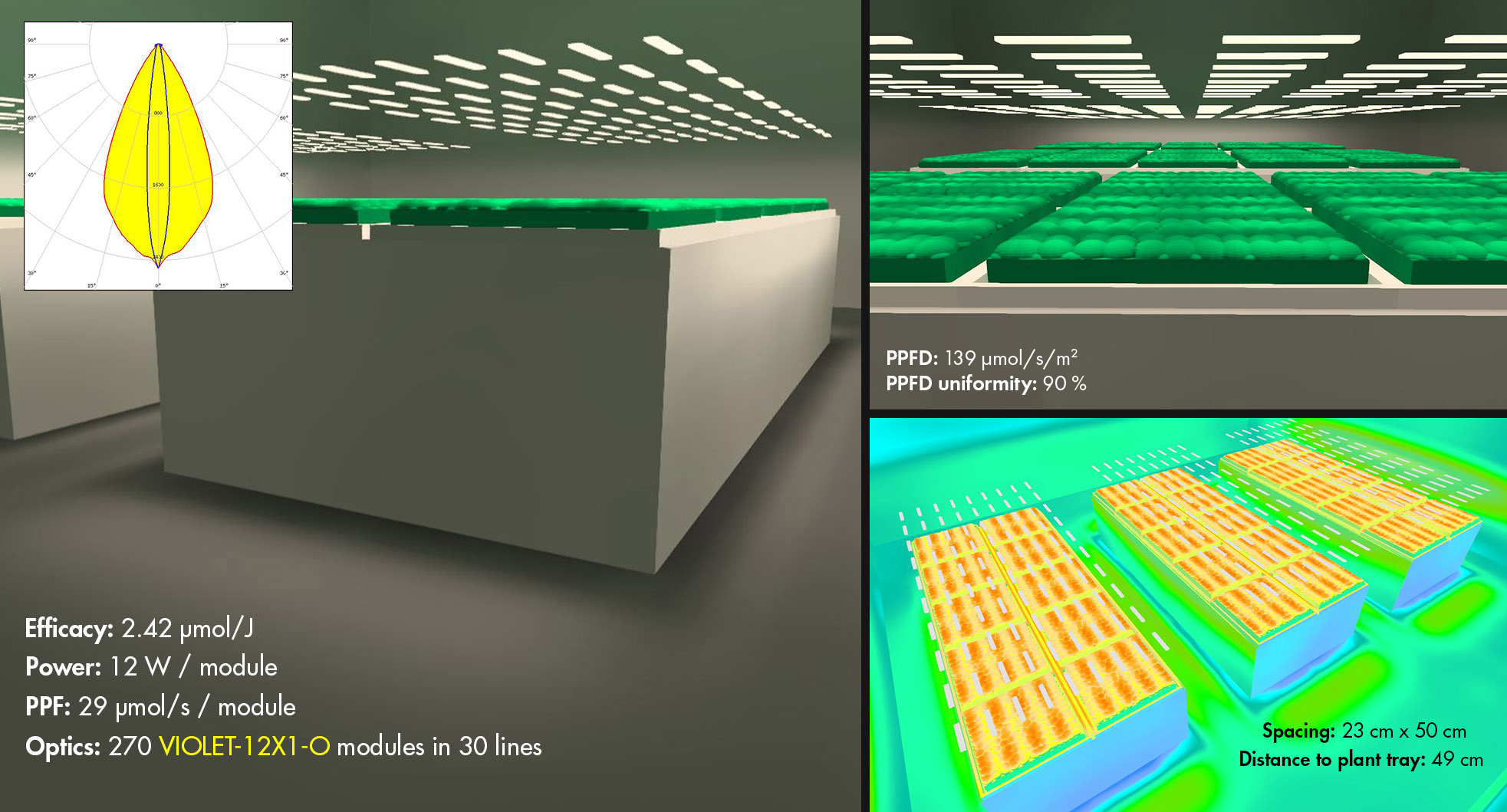

RESULTS:
| PPFD: | 139 µmol/s/m2 |
| PPFD uniformity: | 90 % |
Horticultural lighting with VIOLET-12X1-O.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland and is subject to change without notice. Please visit lediloptics.cn for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
