APPLICATION EXAMPLE

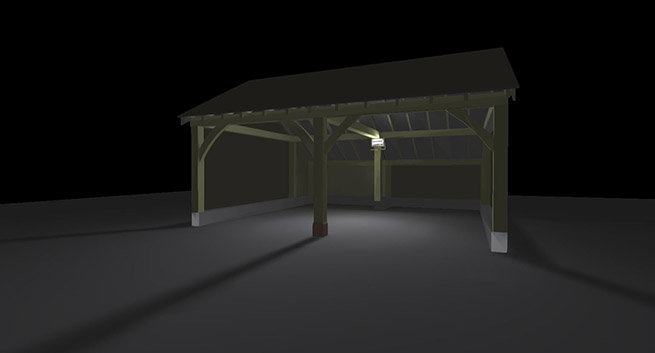

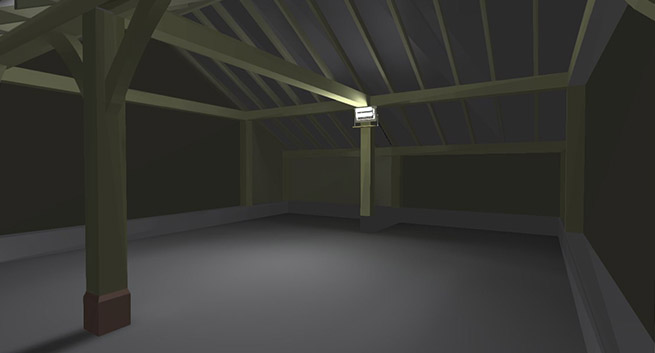

Garage floodlight with FLORENCE-3R-IP-Z60
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Floodlight |
| Optics: | FLORENCE-3R-IP-Z60 |
| LED: | Mid-power 5630 LED |
| Number of luminaires: | 1 pcs |
| Number of optics in a luminaire: | 2 pcs |
| Mounting height: | 1.9 m |
| Area size: | 5.5 x 5.5 m |
| Luminous flux (LEDs): | 1247 lm |
| Luminous flux (luminaire): | 1095 lm |
| Power (LEDs/Luminaire): | 7.4 W |
| Total load: | 14.8 W |
| Luminous efficacy: | 148 lm/W |
| Efficiency (Optics): | 88 % |
| FS15786_FLORENCE-3R-IP-Z60 |
