Luminaire example
Downlight luminaires with DAISY-7X1-CRV
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

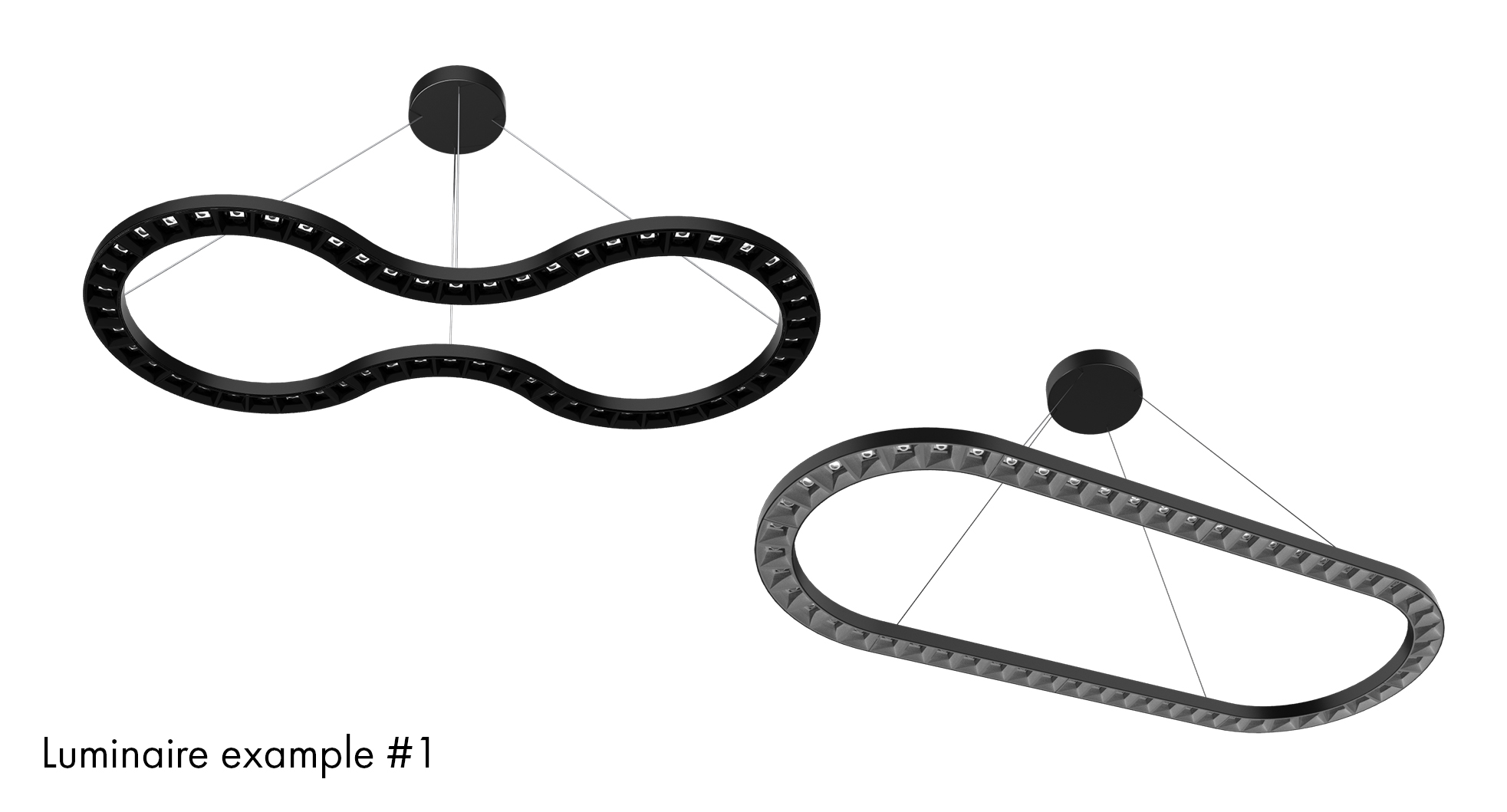

Luminaire example #1
| Optics: | DAISY-7X1-CRV, DAISY-7X1 |
| Number of optics: | 8 |
| Luminaire size: | 600/680 x 400 mm |
| LED: | 2835 Mid-power |
| LEDs/each optical element: | 2 |
| Luminous flux (luminaire): | 3600 lm (37.5 lm/LED) |

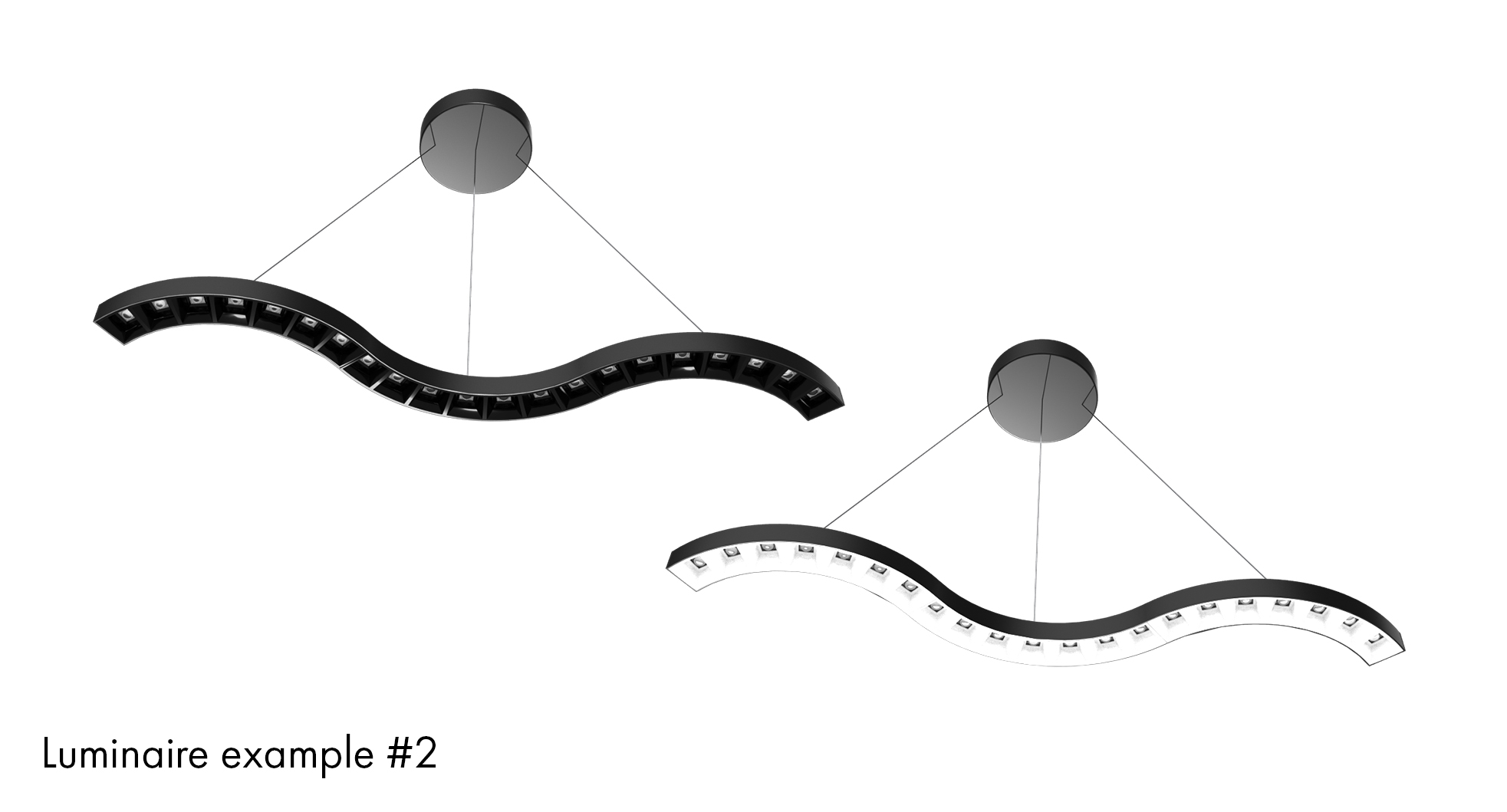

Luminaire example #2
| Optics: | DAISY-7X1-CRV |
| Number of optics: | 3 |
| Luminaire size: | 600 x 200 mm |
| LED: | 2835 Mid-power |
| LEDs/each optical element: | 4 |
| Luminous flux (luminaire): | 2700 lm (37.5 lm/LED) |

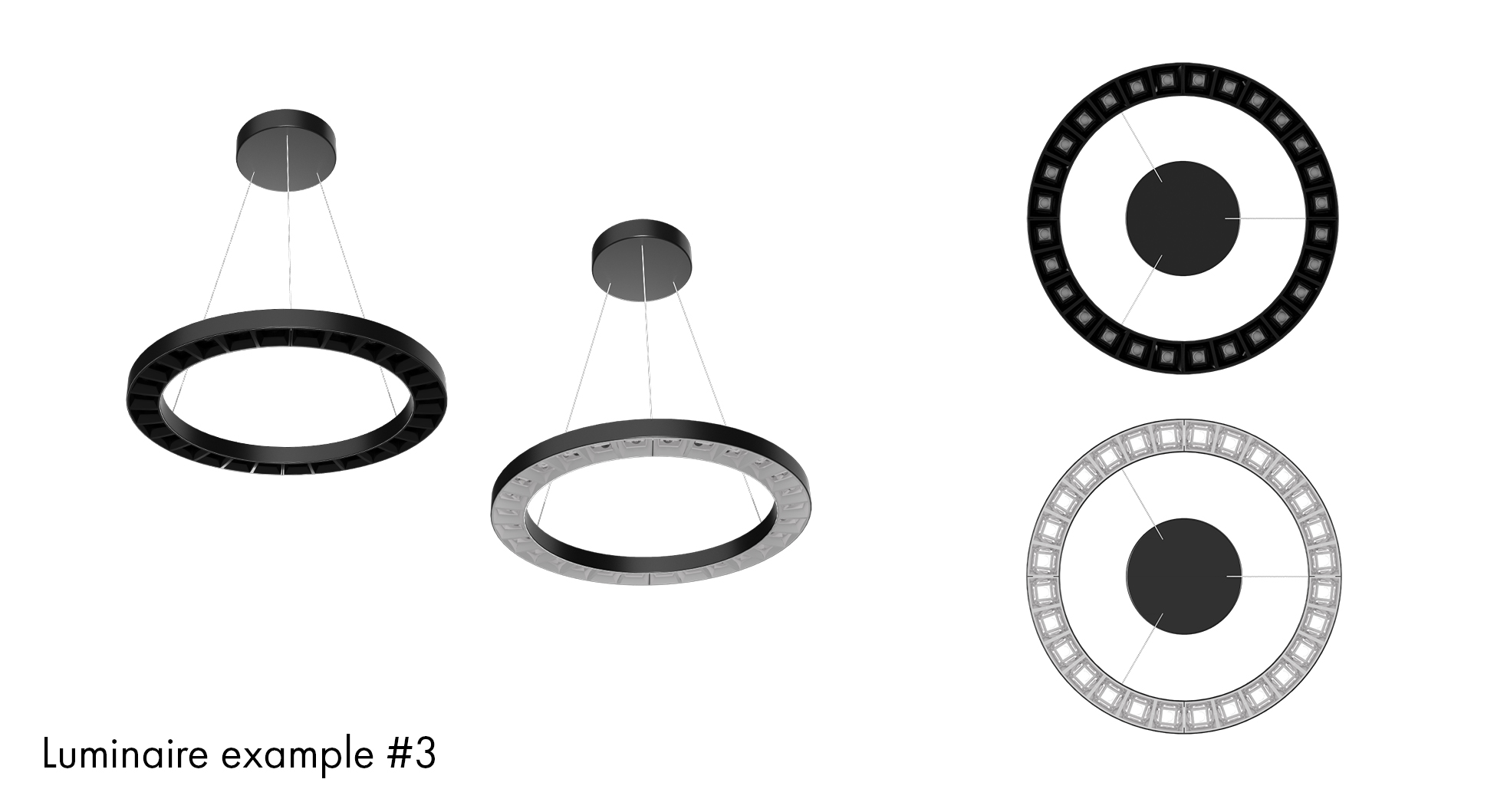

Luminaire example #3
| Optics: | DAISY-7X1-CRV |
| Number of optics: | 4 |
| Luminaire size: | 400 x 400 mm |
| LED: | 2835 Mid-power |
| LEDs/each optical element: | 4 |
| Luminous flux (luminaire): | 3600 lm (37.5 lm/LED) |
Downlight luminaires with DAISY-7X1-CRV
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
