APPLICATION EXAMPLE
DIY Store lighting with LINNEA-60-PMMA and WINNIE-O
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | DIY Store |
| General/Ambient lighting: | |
| LED: | Mid-power 5630 LED |
| Optics: | LINNEA-60-PMMA |
| Luminaire size: | L: 1200 mm / W: 70 mm / H: 50 mm |
| Mounting height: | 4 m |
| Number of optics in one luminaire: | 4 pcs |
| Number of luminaires: | 23 pcs |
| Luminous flux (Luminaire): | 4000 lm |
| Power (Luminaire): | 25 W |
| Luminaire efficiency: | 160 lm/W (Incl. optics 90 % and driver 95 %) |
| Shelf lighting | |
| LED: | Samsung LM561B Plus |
| Optics: | LINNEA-60-PMMA |
| Luminaire size: | L: 5700 mm / W: 70 mm / H: 50 mm |
| Mounting height: | 3 m |
| Number of optics in one luminaire: | 20 pcs |
| Number of luminaires: | 8 pcs |
| Luminous flux (Luminaire): | 4000 lm |
| Power (Luminaire): | 25 W |
| Luminaire efficiency: | 160 lm/W (Incl. optics 90 % and driver 95 %) |
| Accent lighting | |
| LED: | Citizen CLU028-1204 |
| Optics: | WINNIE-O |
| Luminaire size: | Ø60 mm / H: 150 mm |
| Mounting height: | 3.5 m |
| Number of optics in one luminaire: | 1 pcs |
| Number of luminaires: | 16 pcs |
| Luminous flux (Luminaire): | 1900 lm |
| Power (Luminaire): | 15 W |
| Luminaire efficiency: | 125 lm/W (Incl. optics 90 % and driver 95 %) |

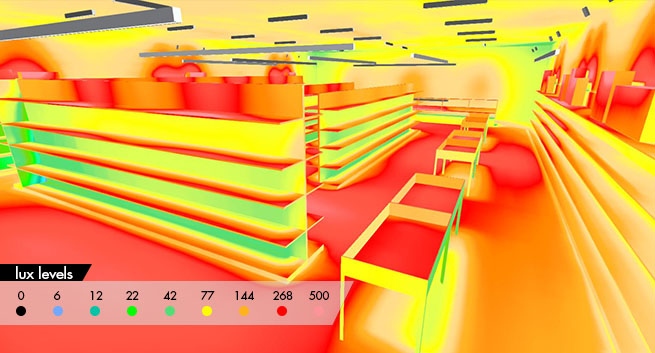

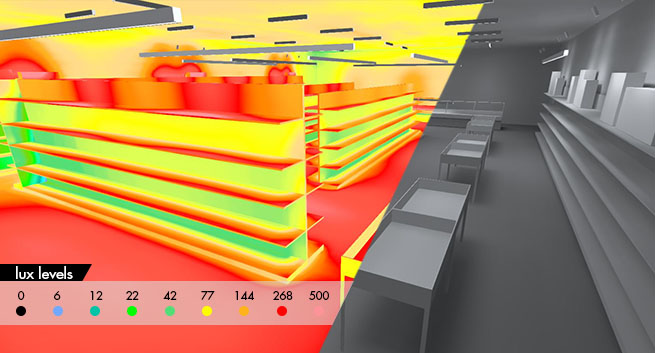

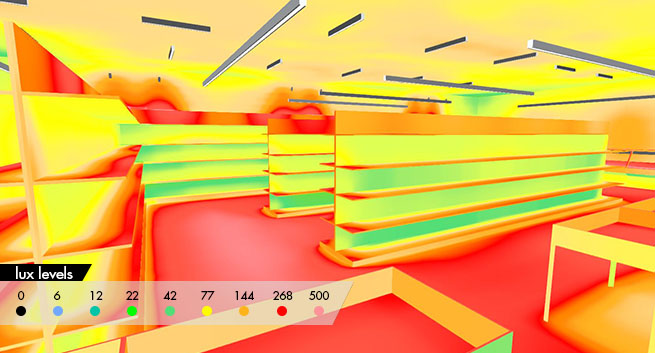

RESULTS:

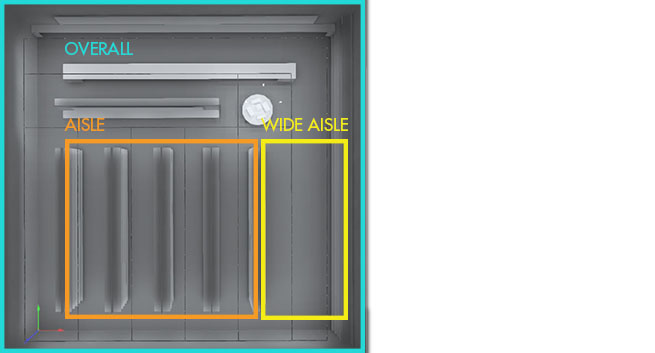

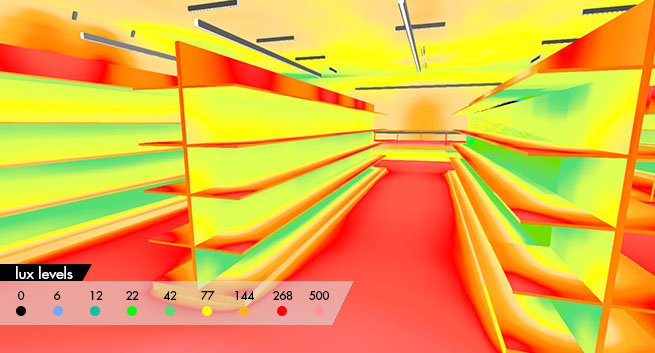

| Aisle | |
| Average (Floor): | 470 lx |
| Average (Shelves): | 200 lx |
| Uo (Floor): | 0.91 |
| Uo (Shelves): | 0.78 |
| UGR (Max): | 18 |
| Wide aisle | |
| Average (Floor): | 530 lx |
| Average (Shelves): | 230 lx |
| Uo (Floor): | 0.72 |
| Uo (Shelves): | 0.92 |
| UGR (Max): | 19 |

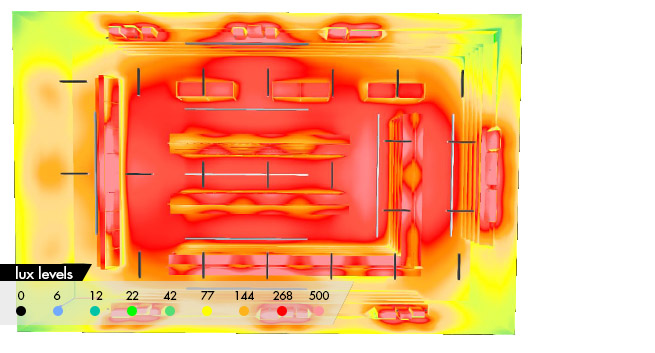

| Overall | |
| Average (Floor): | 610 lx |
| Uo (Floor): | 0.59 |
| UGR (Max): | 20 |
| F16813_LINNEA-60-PMMA | ||
| CN14811_WINNIE-O | ||
| CN15826_WINNIE-O-C |
