WINNIE-O-C
Print

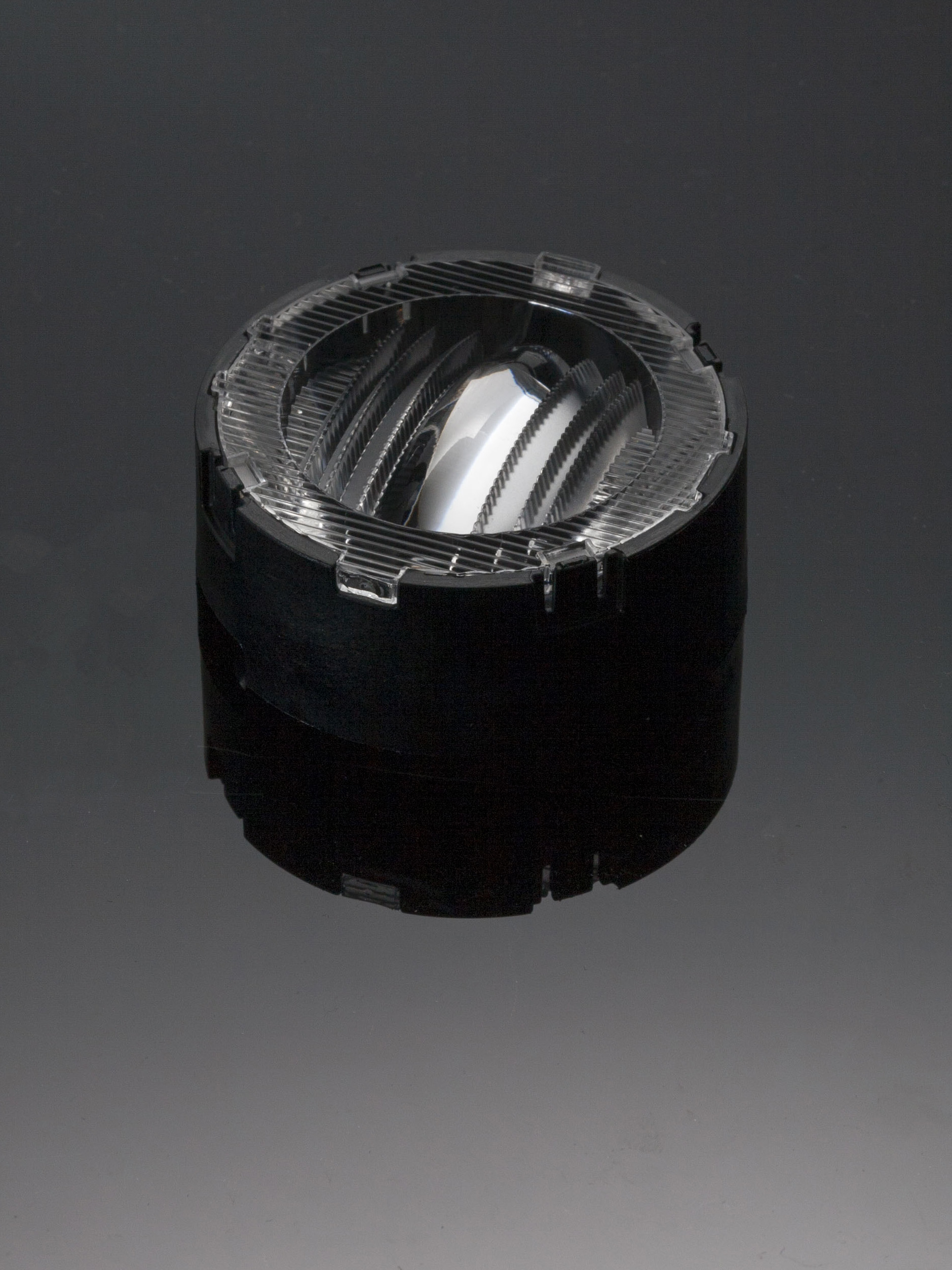

~60° + 20° oval beam with holder C compatible with LEDiL HEKLA
This product consists of multiple parts that need to be ordered separately. See ordering information.
Component Materials
- WINNIE-OSingle lensPMMA
- WINNIE-HLD-CHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:
V10 Gen6
LES size: 9.9 mm
Required components:
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen 8-9
LES size: 14.8 mm
Required components:
FWHM:
58° + 27°
FWTM:
83° + 58°
Peak intensity:
1.369 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen 8-9
LES size: 14.8 mm
Required components:
FWHM:
58° + 27°
FWTM:
83° + 58°
Peak intensity:
1.388 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM:
62° + 16°
FWTM:
77° + 40°
Peak intensity:
2.000 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 Gen6
LES size: 6.0 mm
Required components:
FWHM:
64° + 18°
FWTM:
79° + 43°
Peak intensity:
1.800 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM:
62° + 17°
FWTM:
78° + 43°
Peak intensity:
1.920 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V8 Gen6
LES size: 8.1 mm
Required components:
LEDs/each optic:
1
Light colour/type:
White
LED:
V9 HD Gen7
LES size: 9.2 mm
Required components:
FWHM:
60° + 19°
FWTM:
79° + 48°
Peak intensity:
1.800 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO10
LES size: 9.9 mm
Required components:
FWHM:
59° + 18°
FWTM:
78° + 45°
Peak intensity:
1.949 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO13
LES size: 13.4 mm
Required components:
FWHM:
58° + 25°
FWTM:
82° + 56°
Peak intensity:
1.400 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO18
LES size: 18.6 mm
Required components:
FWHM:
52° + 34°
FWTM:
85° + 69°
Peak intensity:
1.100 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
FWHM:
56° + 28°
FWTM:
82° + 59°
Peak intensity:
1.284 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 13mm (25W) CSP
LES size: 14.3 mm
Required components:
FWHM:
57° + 26°
FWTM:
81° + 57°
Peak intensity:
1.400 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
FWHM:
59° + 16°
FWTM:
77° + 42°
Peak intensity:
2.016 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 9mm (12W) CSP
LES size: 9.8 mm
Required components:
FWHM:
57° + 20°
FWTM:
78° + 49°
Peak intensity:
1.700 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLC020 Series (Dim-To-Warm)
LES size: 9.8 mm
Required components:
FWHM:
58° + 20°
FWTM:
78° + 49°
Peak intensity:
1.700 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLC030 Series (Dim-To-Warm)
LES size: 15.2 mm
Required components:
FWHM:
56° + 30°
FWTM:
83° + 61°
Peak intensity:
1.300 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
63° + 23°
FWTM:
81° + 52°
Peak intensity:
1.500 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU03x
LES size: 14.5 mm
Required components:
FWHM:
58° + 26°
FWTM:
82° + 57°
Peak intensity:
1.392 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
63° + 18°
FWTM:
79° + 43°
Peak intensity:
1.800 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
61° + 18°
FWTM:
78° + 42°
Peak intensity:
2.080 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7A2/7A3
LES size: 4.2 mm
Required components:
FWHM:
62° + 17°
FWTM:
78° + 37°
Peak intensity:
2.000 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LCN-C01B (Tunable White)
LES size: 10.9 mm
Required components:
FWHM:
58° + 20°
FWTM:
77° + 50°
Peak intensity:
1.700 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT14xx
LES size: 9.8 mm
Required components:
FWHM:
61° + 22°
FWTM:
81° + 52°
Peak intensity:
1.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT19xx
LES size: 14.5 mm
Required components:
FWHM:
57° + 29°
FWTM:
84° + 61°
Peak intensity:
1.287 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
64° + 19°
FWTM:
79° + 43°
Peak intensity:
1.800 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
59° + 17°
FWTM:
79° + 42°
Peak intensity:
2.100 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
56° + 13°
FWTM:
75° + 35°
Peak intensity:
2.700 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1830
LES size: 14.0 mm
Required components:
FWHM:
60° + 28°
FWTM:
84° + 60°
Peak intensity:
1.306 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
LES size: 0.0 mm
Required components:
FWHM:
58° + 14°
FWTM:
76° + 32°
Peak intensity:
2.434 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L08 (Gen2)
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
56° + 28°
FWTM:
83° + 61°
Peak intensity:
1.312 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202HD
LES size: 6.5 mm
Required components:
FWHM:
63° + 18°
FWTM:
78° + 43°
Peak intensity:
1.900 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
64° + 18°
FWTM:
79° + 43°
Peak intensity:
1.800 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
FWHM:
61° + 21°
FWTM:
80° + 49°
Peak intensity:
1.670 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
FWHM:
59° + 24°
FWTM:
81° + 54°
Peak intensity:
1.500 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
61° + 16°
FWTM:
77° + 40°
Peak intensity:
2.099 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
61° + 16°
FWTM:
77° + 41°
Peak intensity:
2.091 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
60° + 20°
FWTM:
80° + 50°
Peak intensity:
1.695 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
LES size: 12.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
58° + 23°
FWTM:
81° + 54°
Peak intensity:
1.521 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
FWHM:
58° + 19°
FWTM:
78° + 48°
Peak intensity:
1.792 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
60° + 16°
FWTM:
77° + 40°
Peak intensity:
2.127 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Fusion 12-up (20x24)
LES size: 7.3 mm
Required components:
FWHM:
59° + 17°
FWTM:
77° + 45°
Peak intensity:
1.861 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
58° + 29°
FWTM:
84° + 60°
Peak intensity:
1.300 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-4
LES size: 4.5 mm
Required components:
FWHM:
62° + 16°
FWTM:
78° + 39°
Peak intensity:
1.967 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
62° + 23°
FWTM:
81° + 52°
Peak intensity:
1.500 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB T-Type
LES size: 5.9 mm
Required components:
FWHM:
62° + 18°
FWTM:
78° + 38°
Peak intensity:
2.053 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NFSWE11A
LES size: 0.0 mm
FWHM:
58° + 18°
FWTM:
76° + 42°
Peak intensity:
1.860 cd/lm
Efficiency:
74 %
LEDs/each optic:
30
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
LES size: 0.0 mm
Required components:
FWHM:
58° + 14°
FWTM:
74° + 30°
Peak intensity:
2.743 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13 19x19
LES size: 13.0 mm
Required components:
FWHM:
57° + 24°
FWTM:
81° + 54°
Peak intensity:
1.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S9
LES size: 9.8 mm
Required components:
FWHM:
59° + 20°
FWTM:
80° + 48°
Peak intensity:
1.800 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L09 CoB
LES size: 9.0 mm
Required components:
FWHM:
60° + 20°
FWTM:
80° + 50°
Peak intensity:
1.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
27° + 55°
FWTM:
58° + 81°
Peak intensity:
1.400 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
FWHM:
54° + 30°
FWTM:
83° + 63°
Peak intensity:
1.300 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
FWHM:
62° + 22°
FWTM:
81° + 51°
Peak intensity:
1.500 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C
LES size: 6.0 mm
Required components:
FWHM:
65° + 20°
FWTM:
80° + 46°
Peak intensity:
1.600 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C G2
LES size: 6.0 mm
Required components:
FWHM:
62° + 17°
FWTM:
78° + 41°
Peak intensity:
1.900 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
58° + 29°
FWTM:
85° + 62°
Peak intensity:
1.200 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C
LES size: 8.0 mm
Required components:
FWHM:
63° + 21°
FWTM:
81° + 48°
Peak intensity:
1.600 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C G2
LES size: 8.5 mm
Required components:
FWHM:
61° + 20°
FWTM:
81° + 47°
Peak intensity:
1.700 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 14.5
LES size: 14.5 mm
Required components:
FWHM:
58° + 30°
FWTM:
84° + 62°
Peak intensity:
1.260 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 9.8
LES size: 9.8 mm
Required components:
FWHM:
60° + 22°
FWTM:
80° + 51°
Peak intensity:
1.673 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE 13mm 3000lm xxx R ADV8
LES size: 13.0 mm
Required components:
FWHM:
59° + 27°
FWTM:
83° + 58°
Peak intensity:
1.376 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM:
62° + 21°
FWTM:
81° + 49°
Peak intensity:
1.600 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES13
LES size: 13.0 mm
Required components:
FWHM:
59° + 27°
FWTM:
83° + 58°
Peak intensity:
1.300 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES15
LES size: 15.0 mm
Required components:
FWHM:
58° + 29°
FWTM:
85° + 62°
Peak intensity:
1.200 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 14.5 mm
LES size: 14.5 mm
Required components:
FWHM:
58° + 29°
FWTM:
84° + 61°
Peak intensity:
1.236 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM:
62° + 22°
FWTM:
81° + 51°
Peak intensity:
1.555 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
