Anti-panic lighting with EMERALD-AP1
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

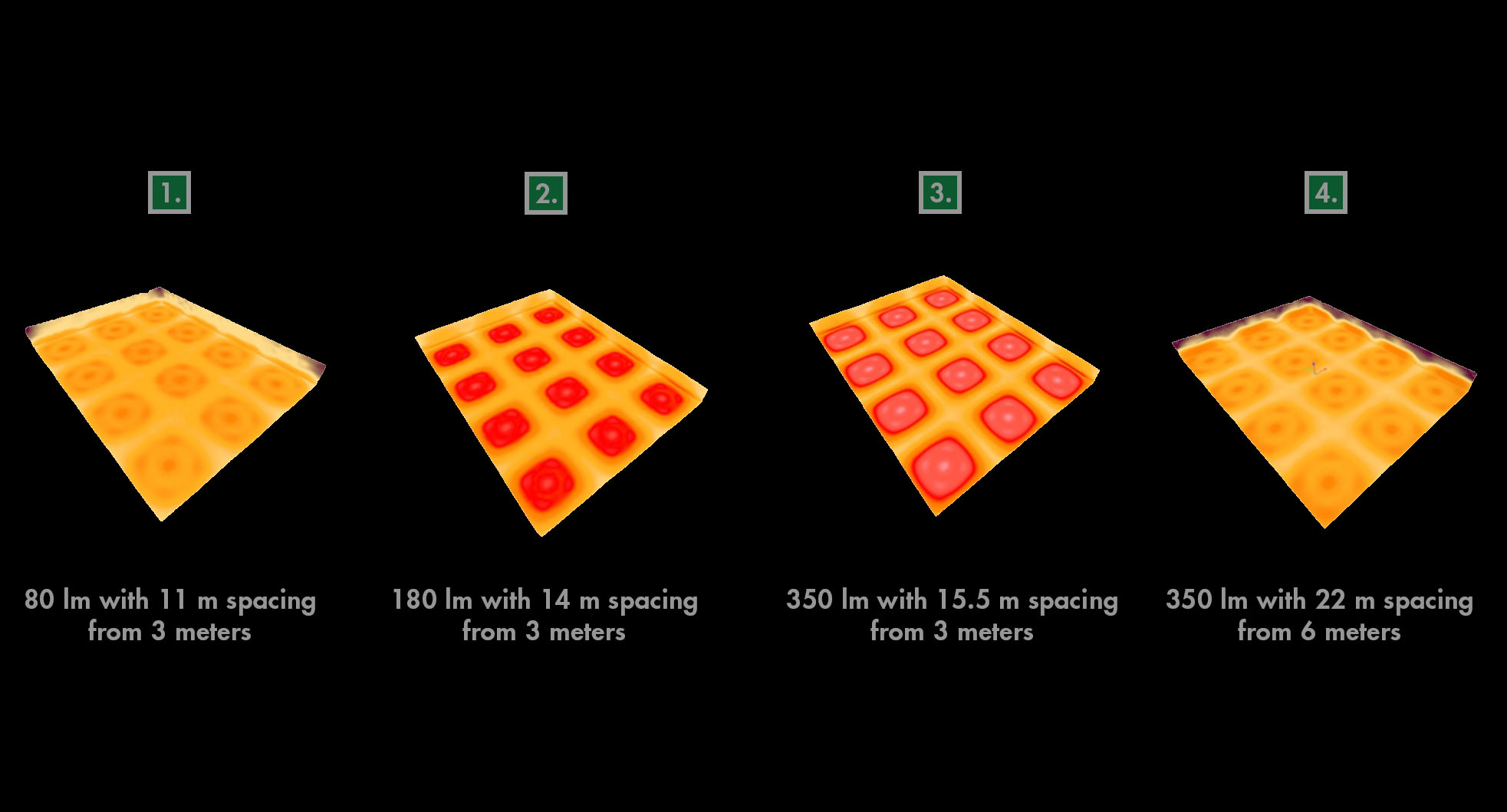

Four different setups using EMERALD-AP1 optics for escape route lighting.
| Setup: | 1. | 2. | 3. | 4. |
| Installation height: | 3 m | 3 m | 3 m | 6 m |
| Room size: | 31 x 42 m | 38 x 54 m | 42 x 58 m | 58 x 80 m |
| Luminous flux: | 80 lm | 180 lm | 350 lm | 350 lm |
| Luminaire array: | 3 x 4 (spacing 11 m) | 3 x 4 (spacing 14 m) | 3 x 4 (spacing 15.5 m) | 3 x 4 (spacing 22 m) |
| Average: | 0.73 lx | 1.11 lx | 1.52 lx | 0.70 lx |
| Min: | 0.50 lx | 0.50 lx | 0.51 lx | 0.50 lx |
| Uo (min/ave): | 0.68 | 0.45 | 0.34 | 0.71 |

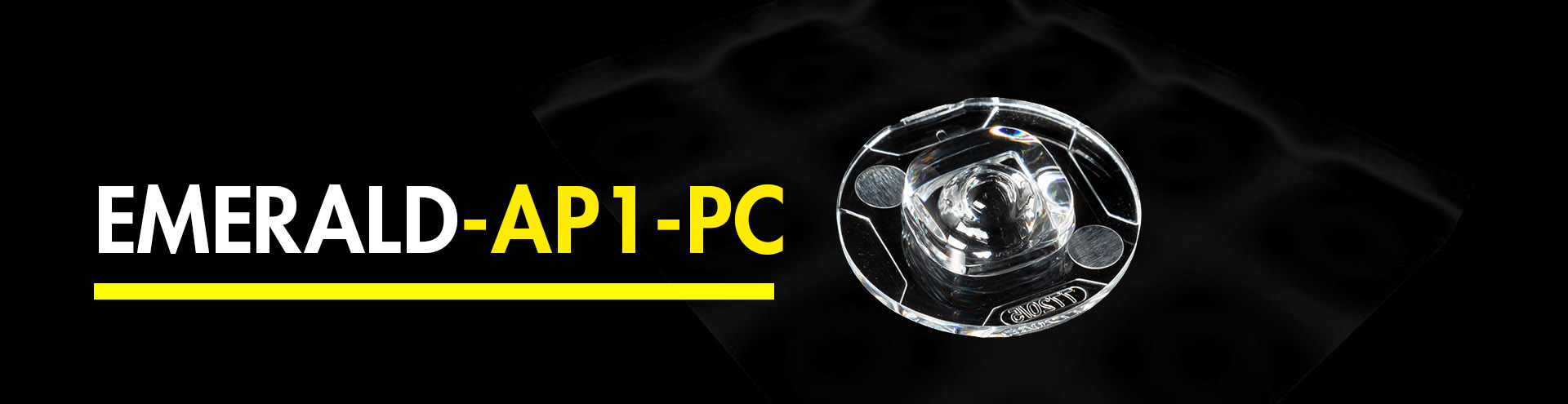

| C17720_EMERALD-AP1-PC | Symmetric beam for anti-panic lighting. | |
| CA17723_EMERALD-AP1-PC | Symmetric beam for anti-panic lighting. Assembly with installation tape. |
