LIANNA-2R-O
Print
~60° + 25° oval beam
This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.
Different lengths have different packaging information. Contact us for details.
Ordering information
- Linear lens
- C19498_LIANNA-2R-O-L4
- C19499_LIANNA-2R-O-L5
clear- C19500_LIANNA-2R-O-L6
clearQuantity in box:50 pcsBox size:1190 x 260 x 210 mmBox weight:10.30 kgMPQ:50 pcsMOQ:50 pcsMOQ Size:1190 x 260 x 210 mmMOQ Weight:10.30 kg
CONTACT US REQUEST SAMPLESWHERE TO BUYORDER ONLINERelated Content
Optical results

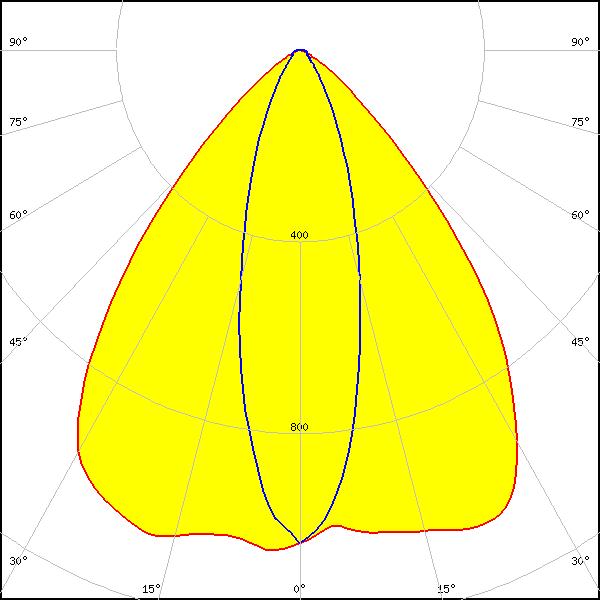

LED: J Series 2835FWHM: 82° + 30°FWTM: 109° + 66°Peak intensity: 1.068 cd/lmEfficiency: 90 %LEDs/each optic: 1Light colour/type: White

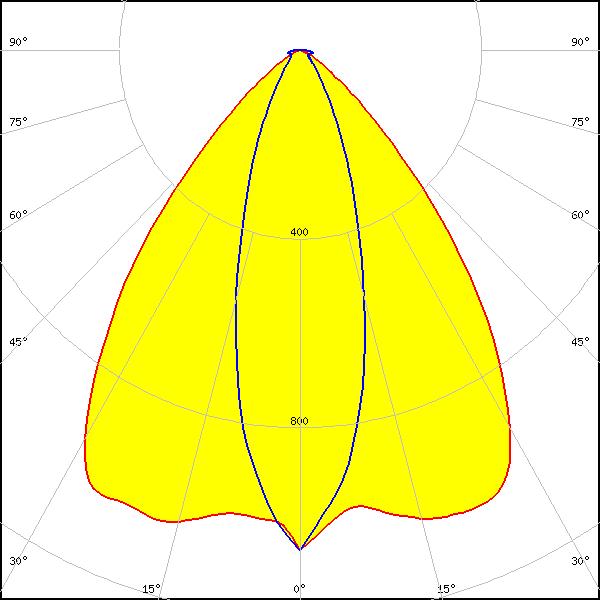

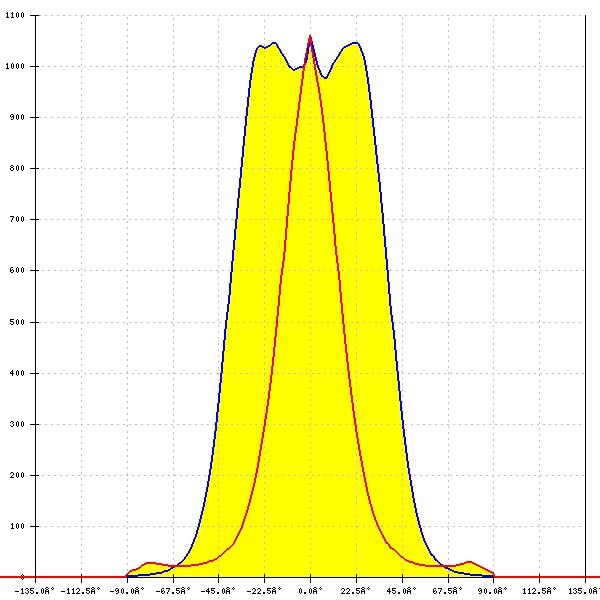

LED: JB3030 HE B ClassOrdering code: C19499_LIANNA-2R-O-L5FWHM: 80° + 30°FWTM: 108° + 66°Peak intensity: 1.060 cd/lmEfficiency: 92 %LEDs/each optic: 1Light colour/type: White

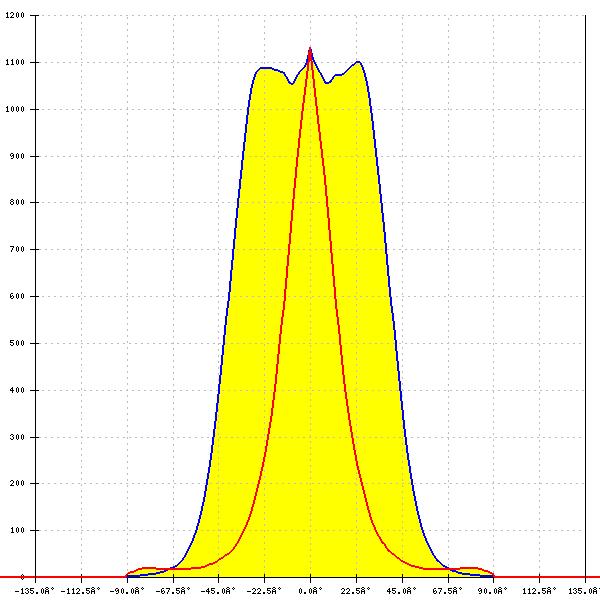

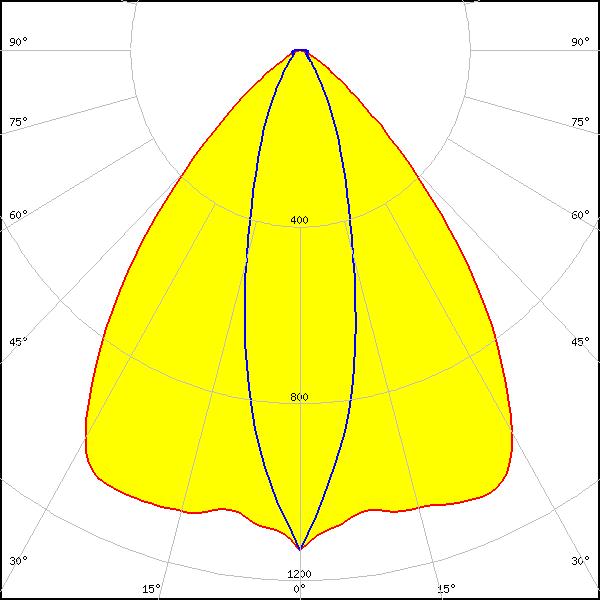

LED: LM301B EVOOrdering code: C19499_LIANNA-2R-O-L5FWHM: 81° + 26°FWTM: 109° + 62°Peak intensity: 1.132 cd/lmEfficiency: 93 %LEDs/each optic: 1Light colour/type: White - C19499_LIANNA-2R-O-L5
Are we missing optical results for a certain LED?
