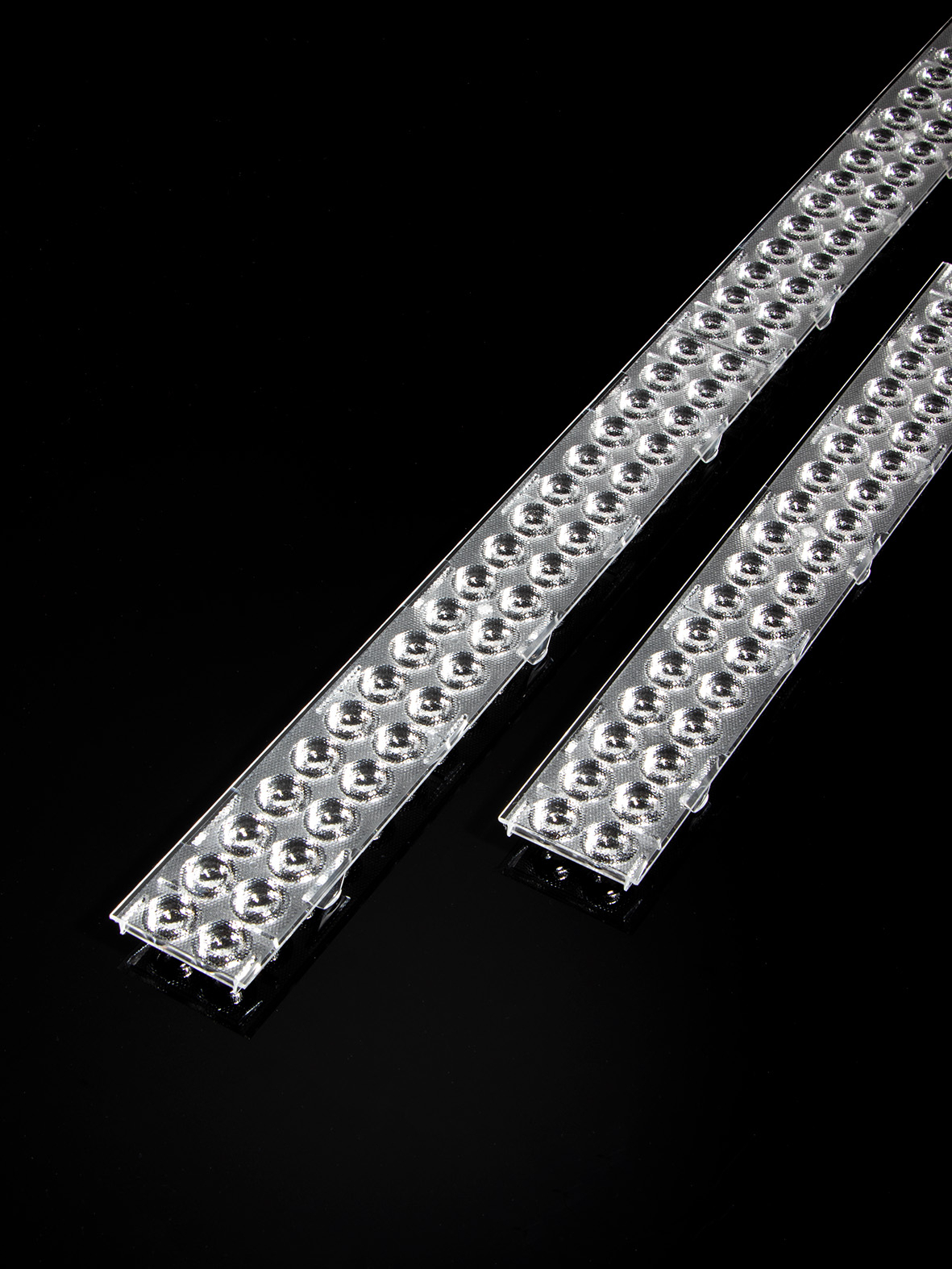

    LIANNA-2R-30

    Print

    ~30° wide beam

    Custom lengths available.

    This product consists of multiple buying options, and different options may have different packaging information. Contact us for details.

    Specification
    • Dimensions:
      40 x 1120 mm
      40 x 1400 mm
      40 x 1680 mm
    • Height:
      10.70 mm
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Linear lens
    • C19480_LIANNA-2R-30-L4
      clear, 1120mm
    • C19481_LIANNA-2R-30-L5
      clear, 1400mm
    • C19482_LIANNA-2R-30-L6
      clear, 1680mm
    • Quantity in box:
      50 pcs
    • Box size:
      1190 x 260 x 210 mm
    • Box weight:
      10.20 kg
    • MPQ:
      50 pcs
    • MOQ:
      50 pcs
    • MOQ Size:
      1190 x 260 x 210 mm
    • MOQ Weight:
      10.20 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C19480_LIANNA-2R-30-L4
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Catalogue

    LEDiL Latest products catalogue

    News

    LIANNA ‒ redefining linear lighting excellence

    News

    New beams and products - September 2024

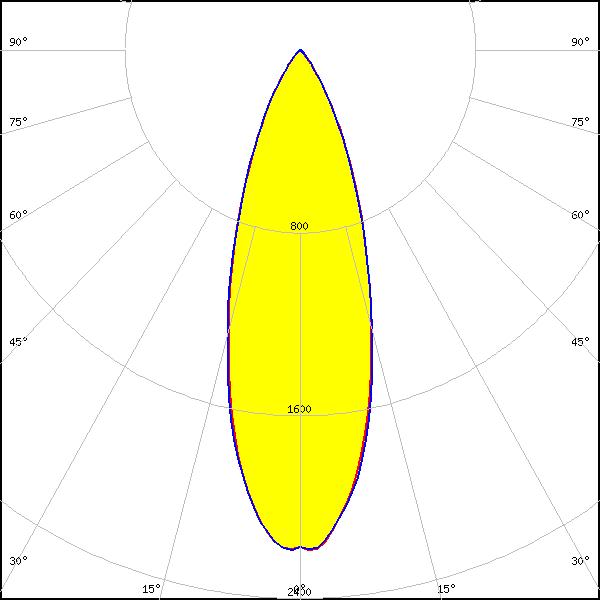

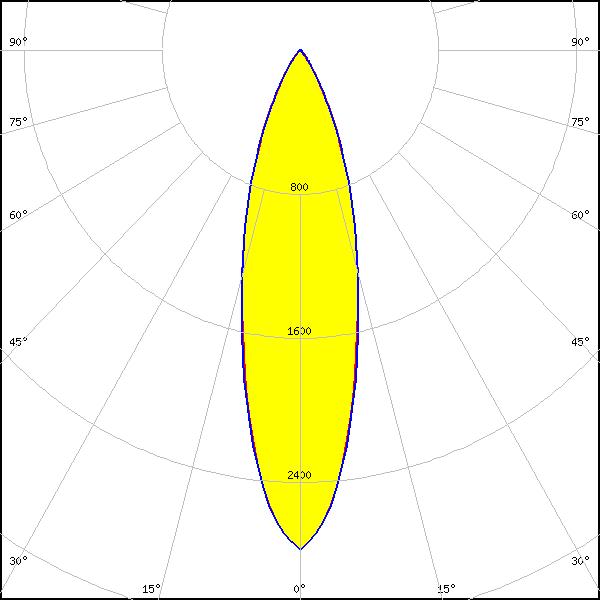

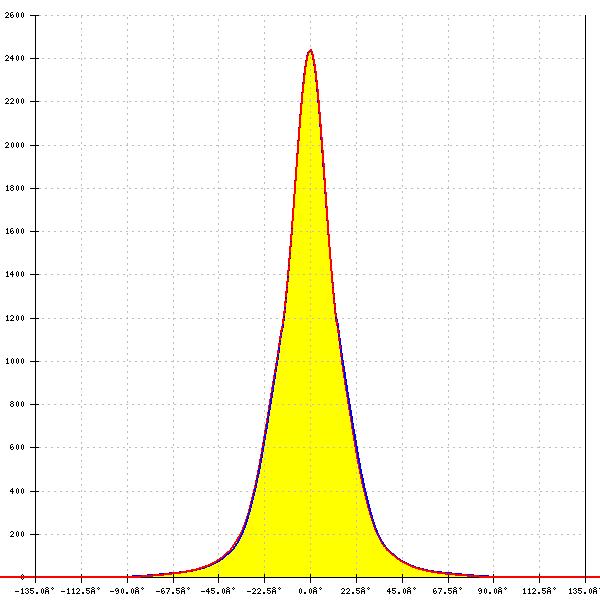

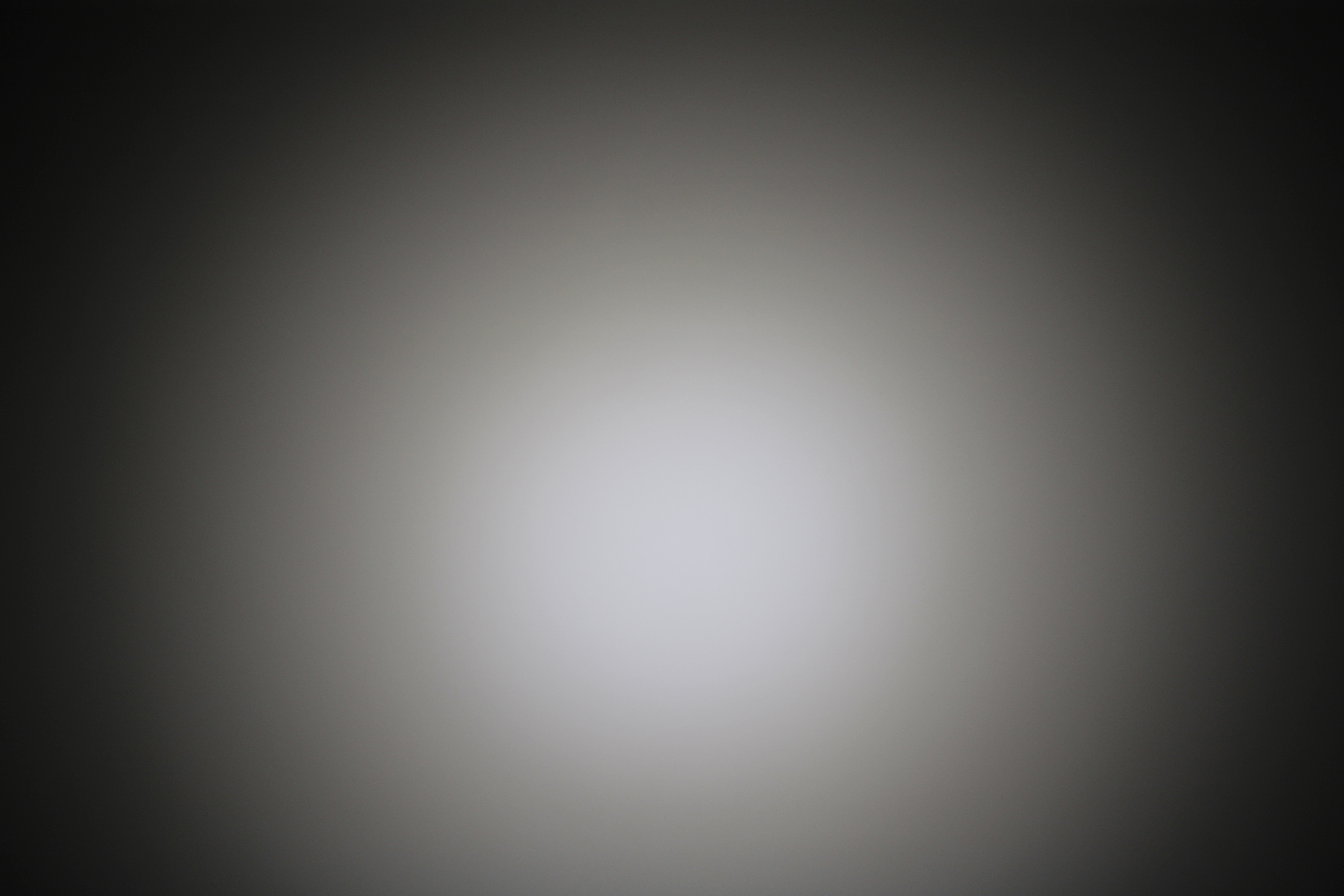

    Optical results

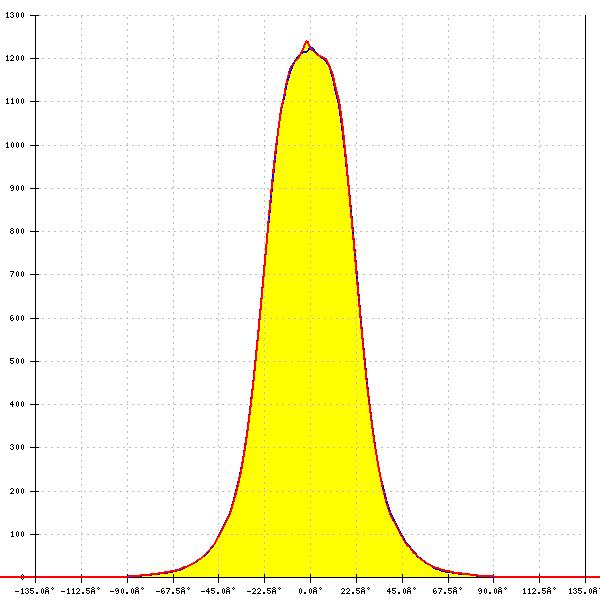

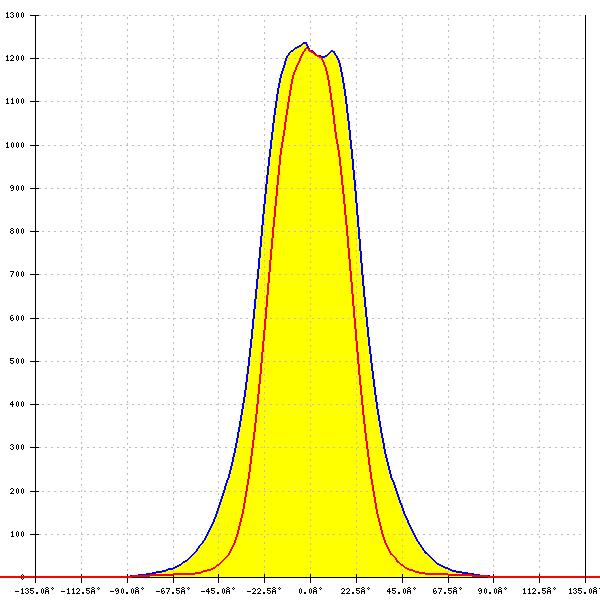

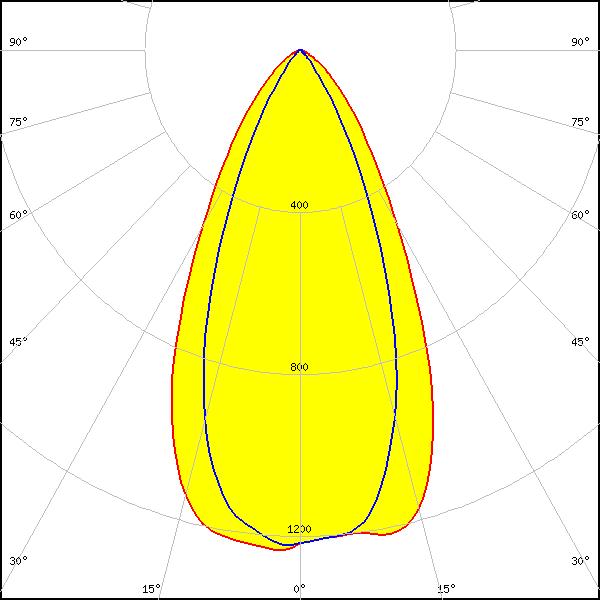

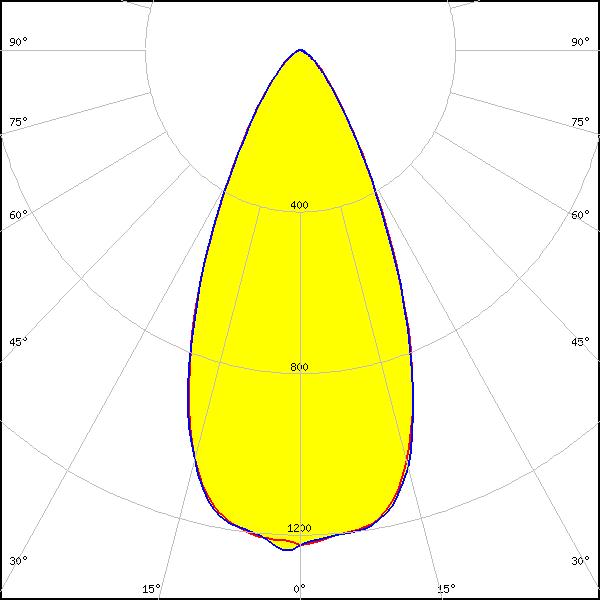

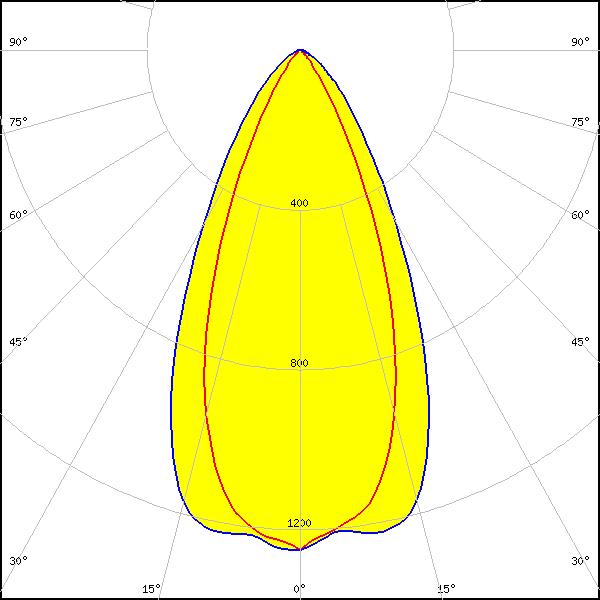

    LED: J Series 2835
    Ordering code: C19480_LIANNA-2R-30-L4
    FWHM: 54° + 44°
    FWTM: 97° + 69°
    Peak intensity: 1.240 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 2
    Light colour/type: White

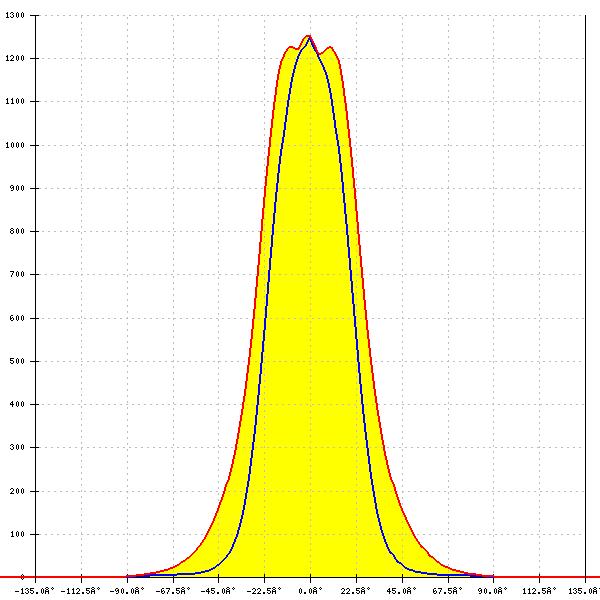

    LED: J Series 2835
    Ordering code: C19480_LIANNA-2R-30-L4
    FWHM: 42° + 54°
    FWTM: 68° + 96°
    Peak intensity: 1.252 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: J Series 2835
    Ordering code: C19480_LIANNA-2R-30-L4
    FWHM: 49°
    FWTM: 84°
    Peak intensity: 1.250 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 2
    Light colour/type: White

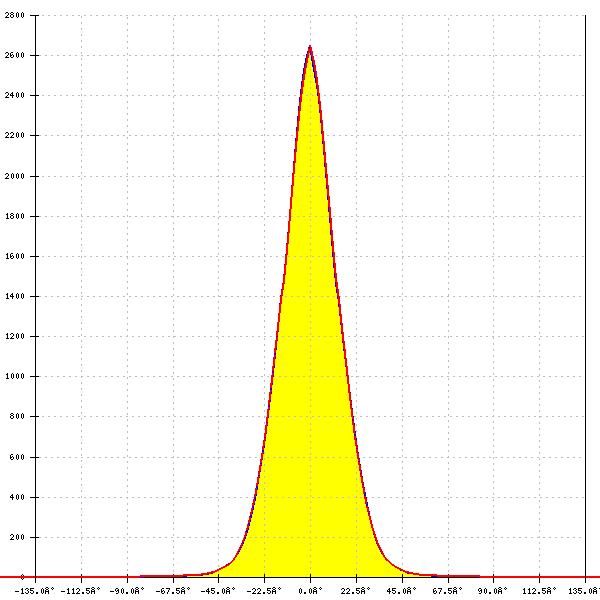

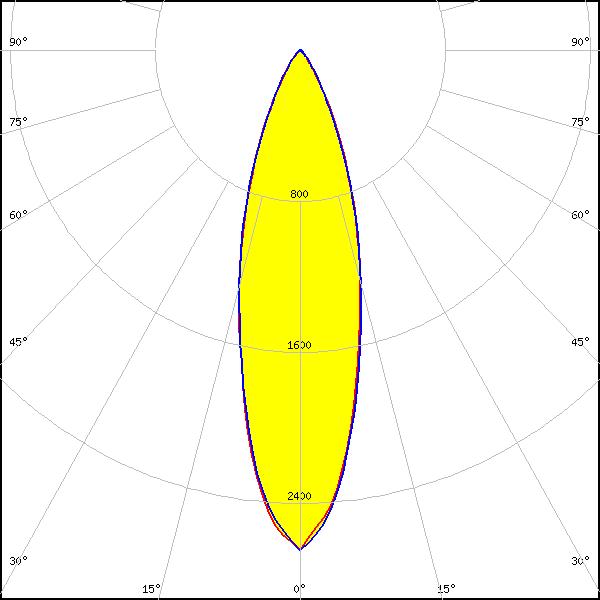

    LED: J Series 2835
    Ordering code: C19480_LIANNA-2R-30-L4
    FWHM: 30°
    FWTM: 60°
    Peak intensity: 2.649 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

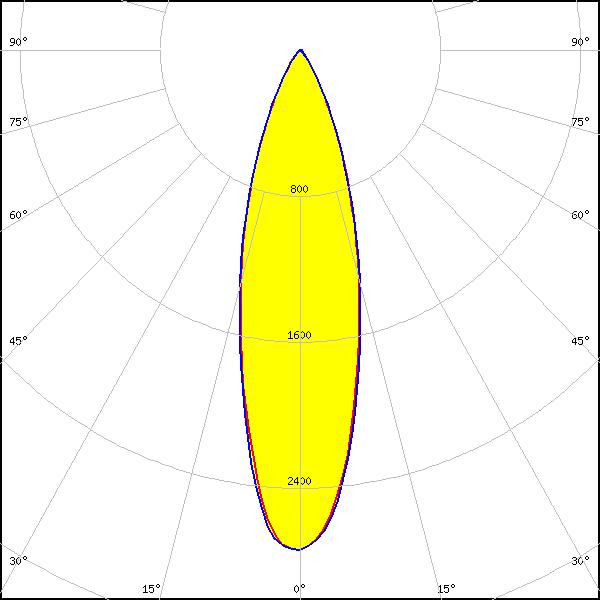

    LED: J Series 3030
    Ordering code: C19481_LIANNA-2R-30-L5
    FWHM: 29°
    FWTM: 58°
    Peak intensity: 2.764 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

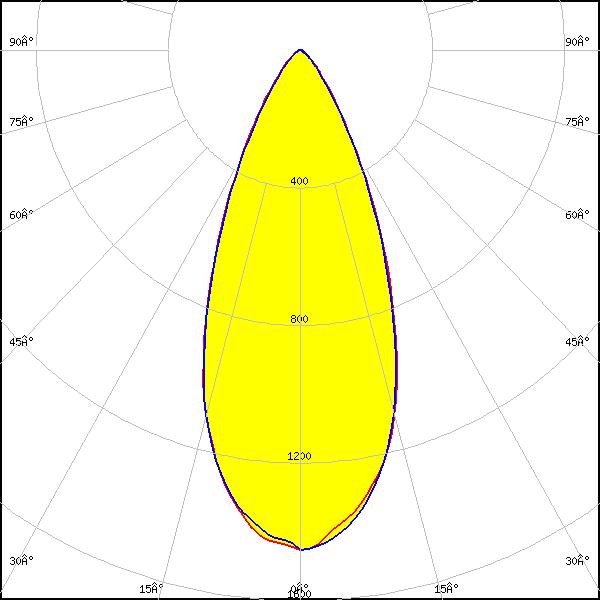

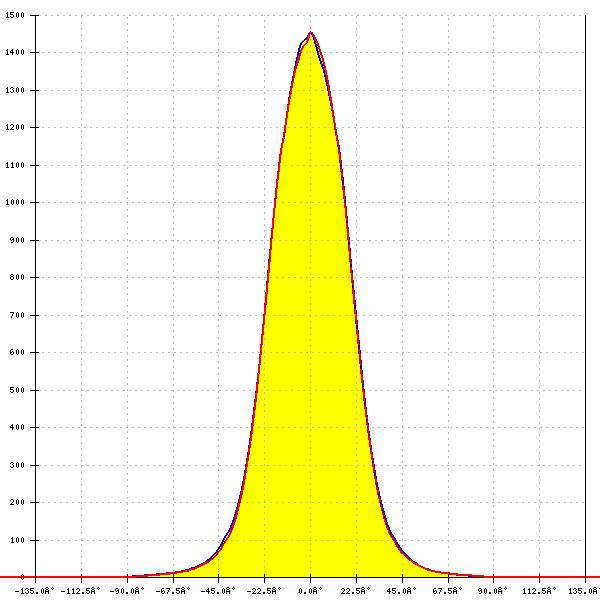

    LED: LH502D
    Ordering code: C19477_LIANNA-2R-30-L1
    FWHM: 44°
    FWTM: 75°
    Peak intensity: 1.454 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM28xB Series
    Ordering code: C19477_LIANNA-2R-30-L1
    FWHM: 28°
    FWTM: 58°
    Peak intensity: 2.893 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM28xB Series
    Ordering code: C19477_LIANNA-2R-30-L1
    FWHM: 61° + 48°
    FWTM: 106° + 72°
    Peak intensity: 1.155 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LM28xB Series
    Ordering code: C19477_LIANNA-2R-30-L1
    FWHM: 56° + 44°
    FWTM: 96° + 68°
    Peak intensity: 1.238 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 2
    Light colour/type: White

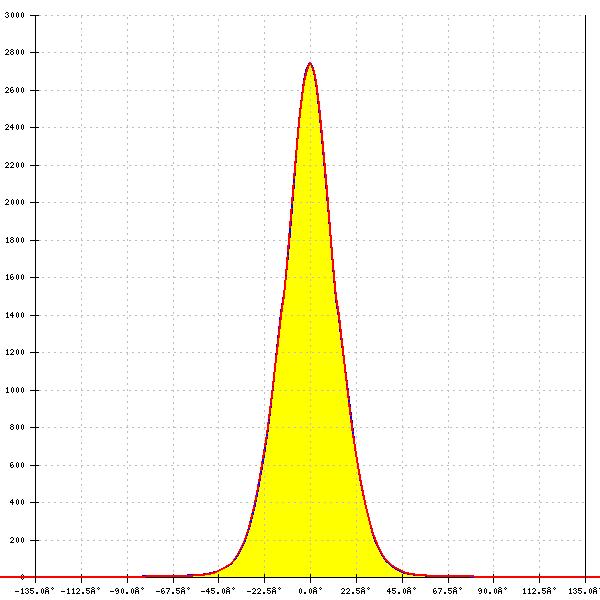

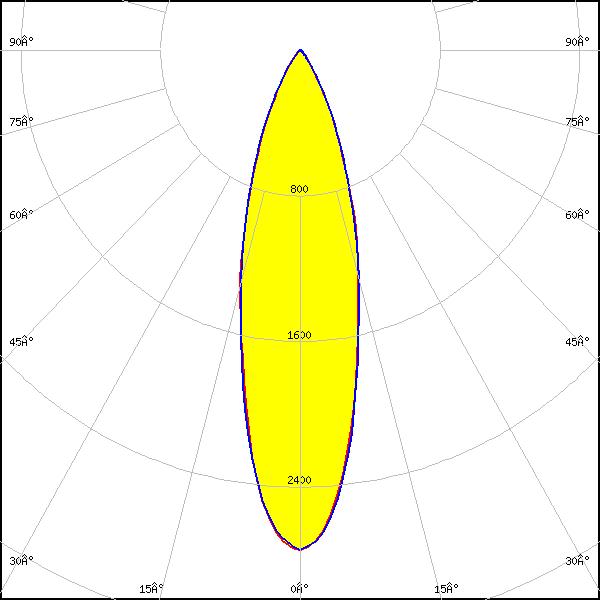

    LED: LM301B EVO
    Ordering code: C19477_LIANNA-2R-30-L1
    FWHM: 28°
    FWTM: 60°
    Peak intensity: 2.748 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

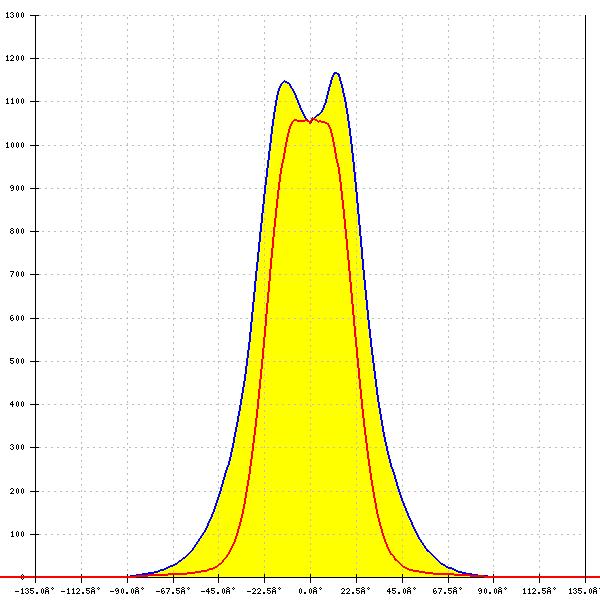

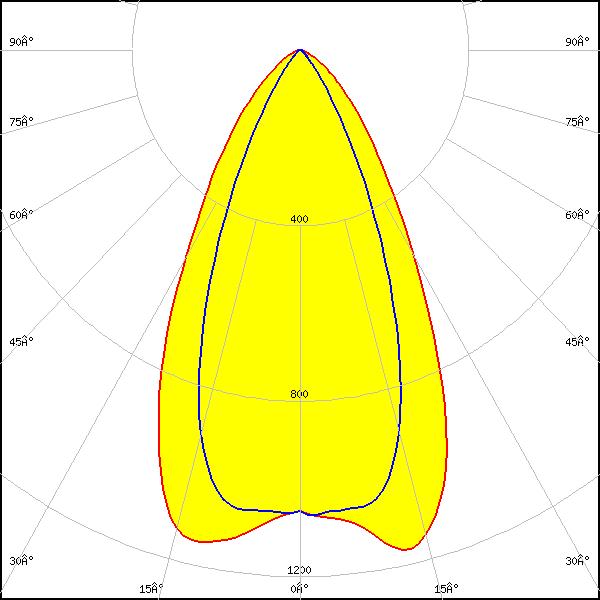

    LED: LM301B EVO
    Ordering code: C19477_LIANNA-2R-30-L1
    FWHM: 58° + 46°
    FWTM: 102° + 72°
    Peak intensity: 1.167 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 2
    Light colour/type: White

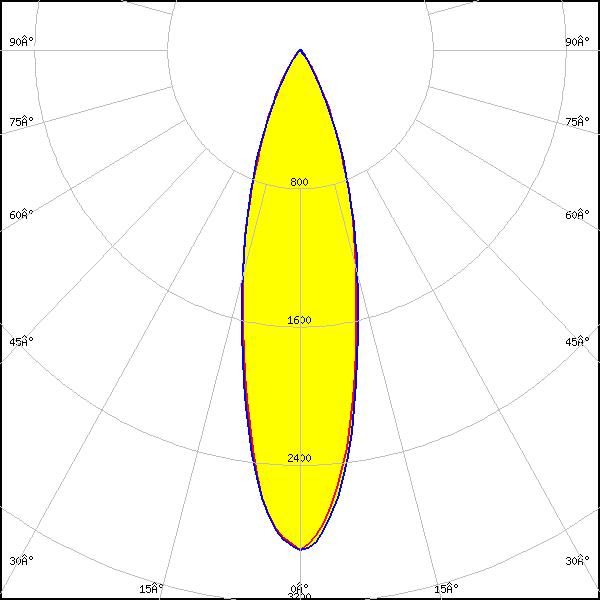

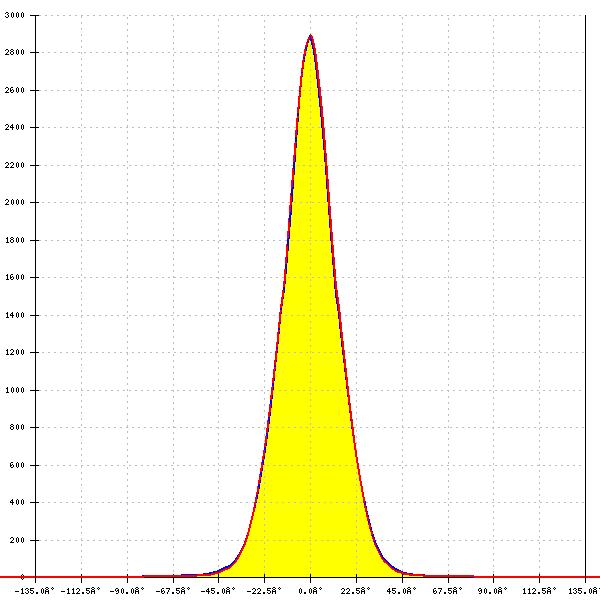

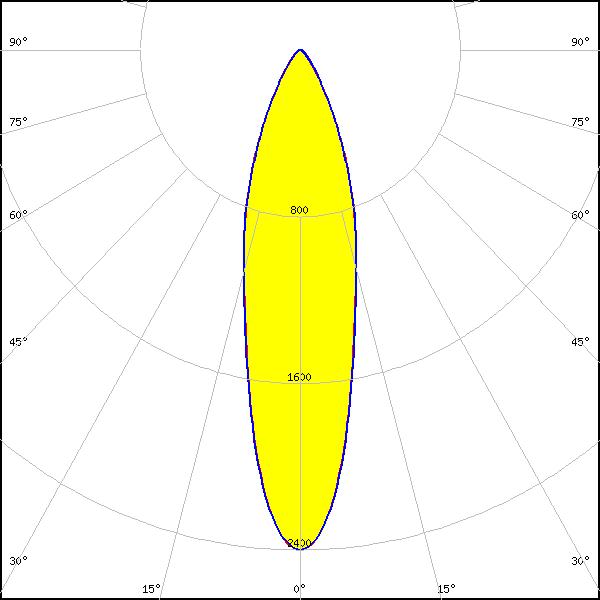

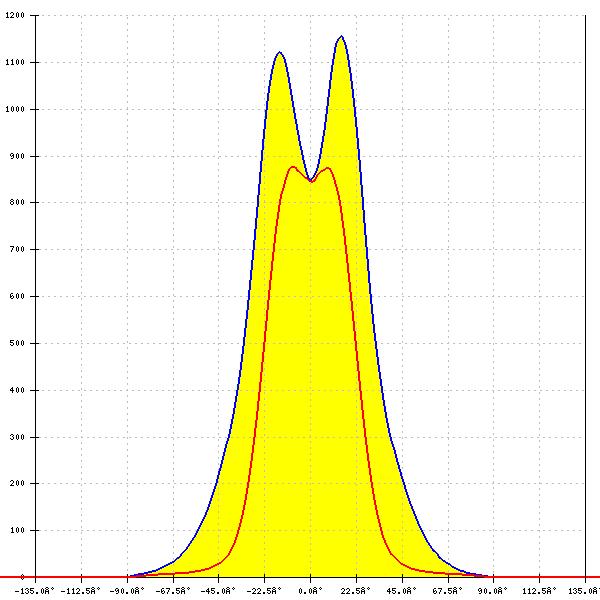

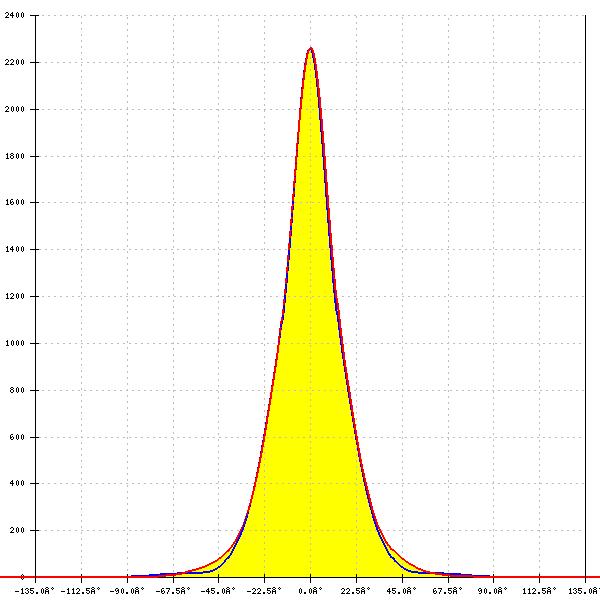

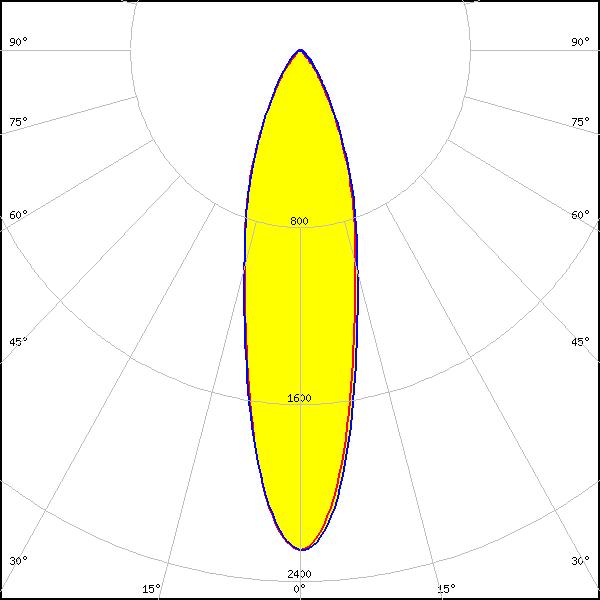

    LED: LM281B Plus
    Ordering code: C19477_LIANNA-2R-30-L1
    FWHM: 27°
    FWTM: 63°
    Peak intensity: 2.407 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
