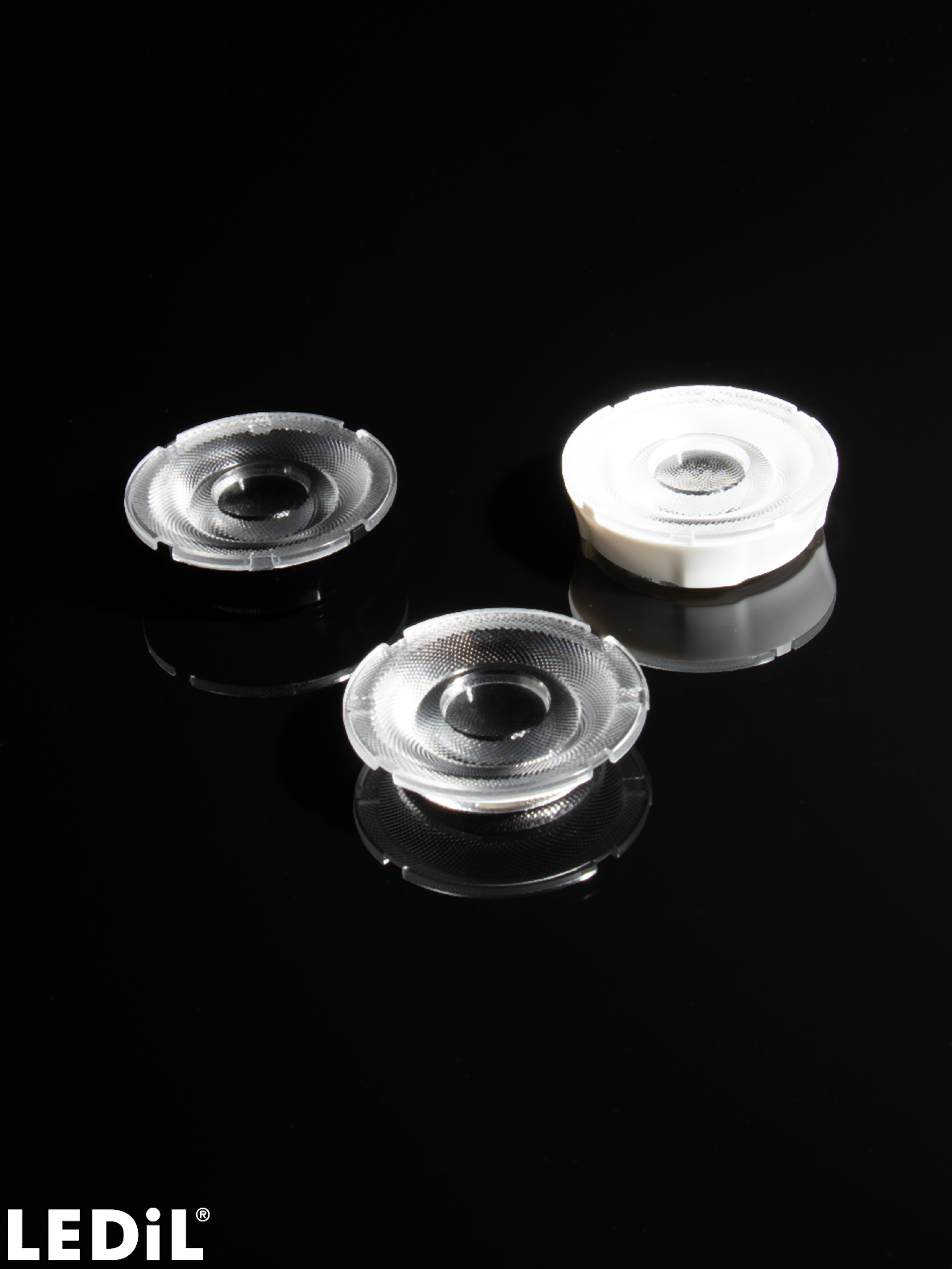

    AMY-45-WW

    Print

    ~60° wide beam

    This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

    Specification
    • Dimensions:
      0 mm
    • Fastening:
      screw
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C17793_AMY-45-WW
    • Quantity in box:
      1035 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.80 kg
    • MPQ:
      45 pcs
    • MOQ:
      180 pcs
    • MOQ Size:
      480 x 280 x 80 mm
    • MOQ Weight:
      1.70 kg
    • Assembly

      (single lens, holder)

    • CP19626_AMY-45-WW-B
      black,Holder B
    • CP19631_AMY-45-WW-B-WHT
      white,Holder B
    • Quantity in box:
      900 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.20 kg
    • MPQ:
      45 pcs
    • MOQ:
      180 pcs
    • MOQ Size:
      480 x 280 x 80 mm
    • MOQ Weight:
      2.20 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C17793_AMY-45-WW
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Catalogue

    LEDiL Latest products catalogue

    Compatibility guide

    LEDiL connector and socket compatibility

    News

    Illuminate with elegance – discover the versatility of AMY

    News

    New products – February 2024

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Luminaire, example

    Track light luminaire with AMY family

    News

    LEDiL AMY, the perfect choice for slim, elegant luminaire designs

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Architectural lighting optics

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    Optical results

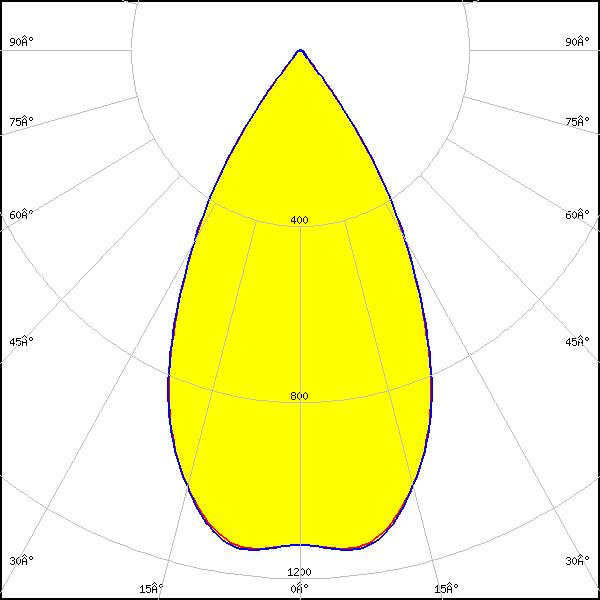

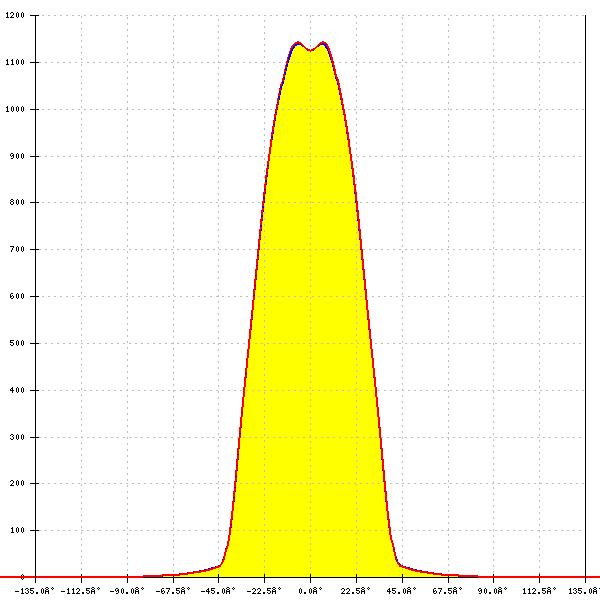

    LED: V11 HD Gen 8
    Ordering code: C17793_AMY-45-WW
    LES size: 11.3 mm
    Required components:
    Bender Wirth: 633d Hekla
    FWHM: 56°
    FWTM: 78°
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

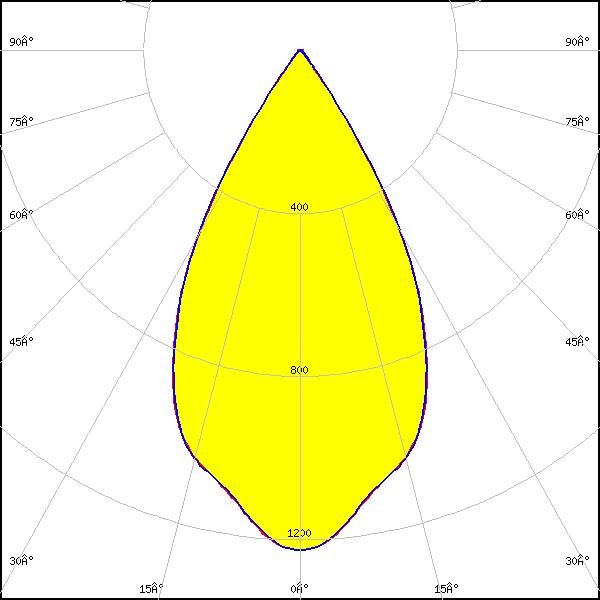

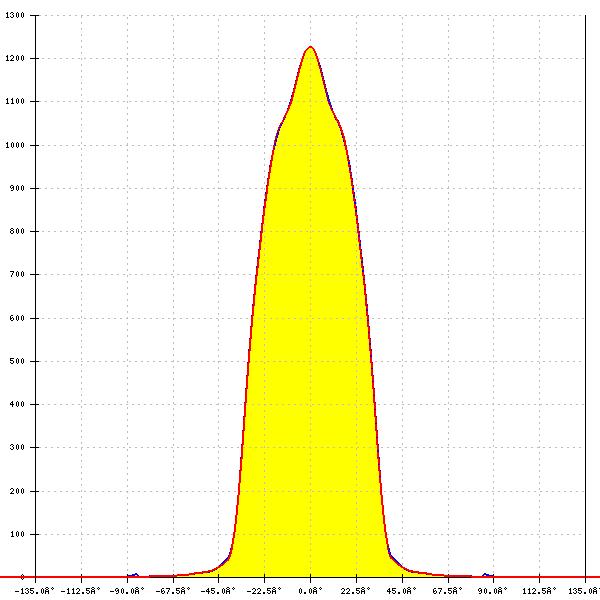

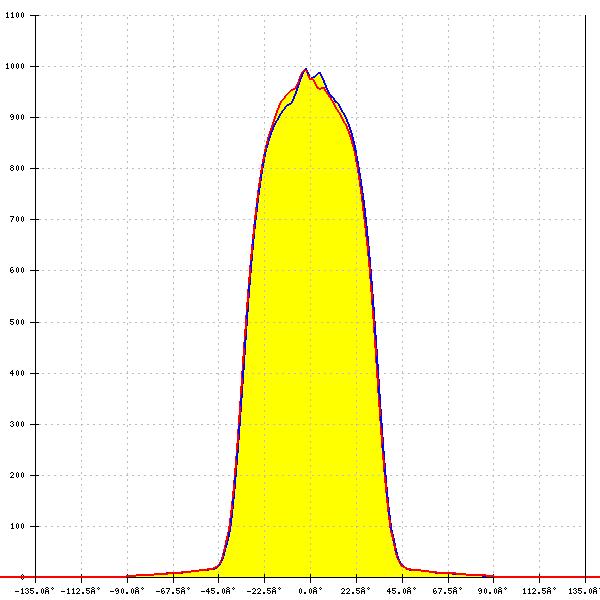

    LED: V6 HD Gen 7
    Ordering code: C17793_AMY-45-WW
    LES size: 7.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 56°
    FWTM: 74°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

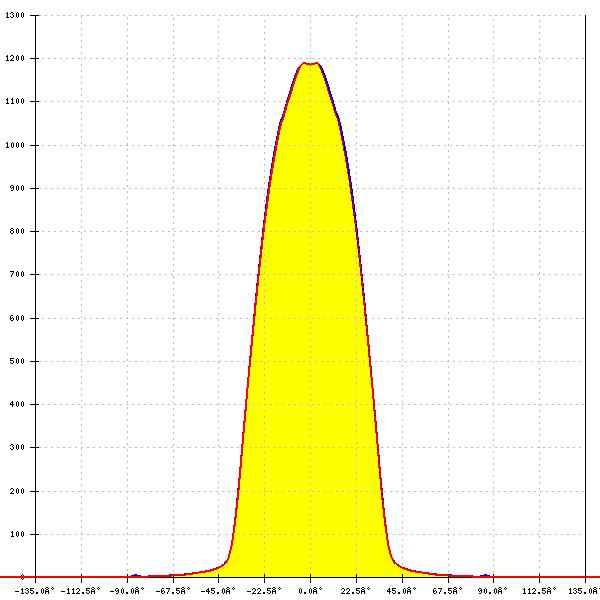

    LED: V9 HD Gen7
    Ordering code: C17793_AMY-45-WW
    LES size: 9.2 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 55°
    FWTM: 75°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

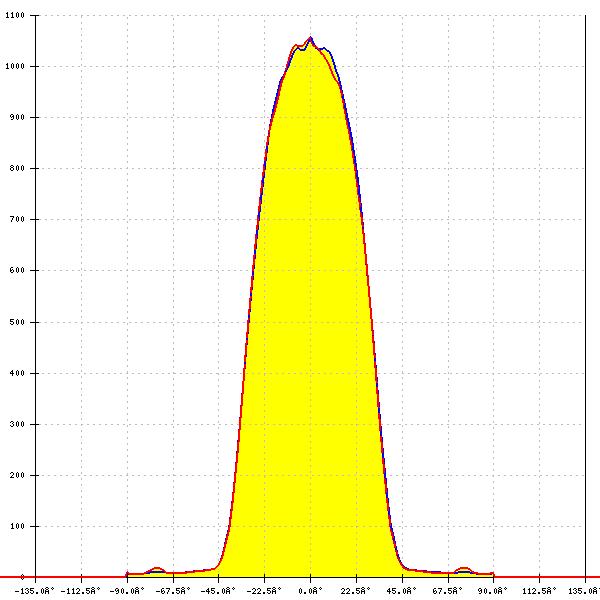

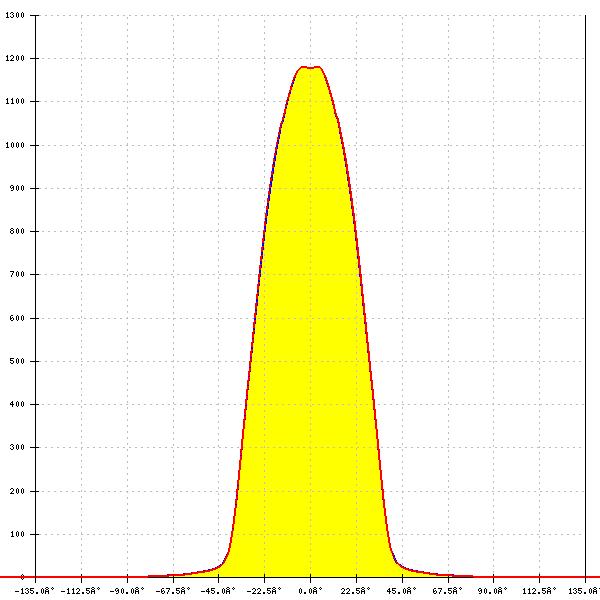

    LED: CLU02x (LES10)
    Ordering code: C17793_AMY-45-WW
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 54°
    FWTM: 76°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

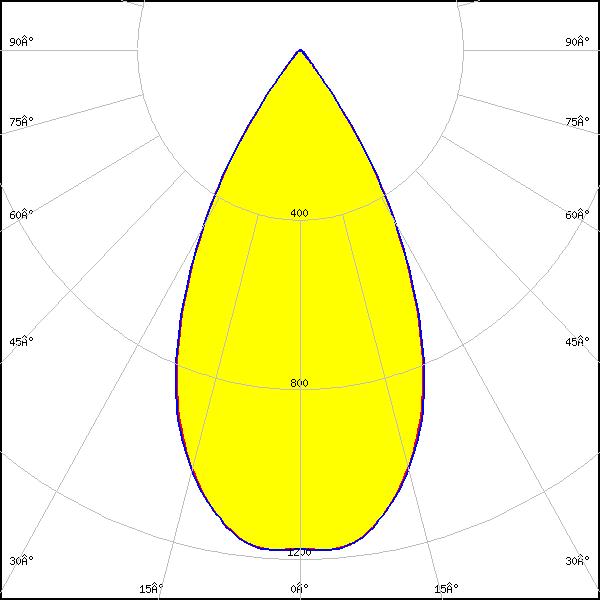

    LED: CLU02x (LES10)
    Ordering code: C17793_AMY-45-WW
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.195 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

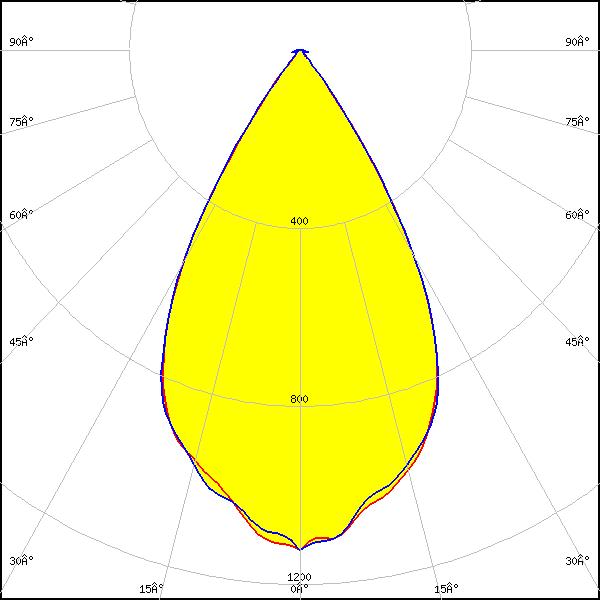

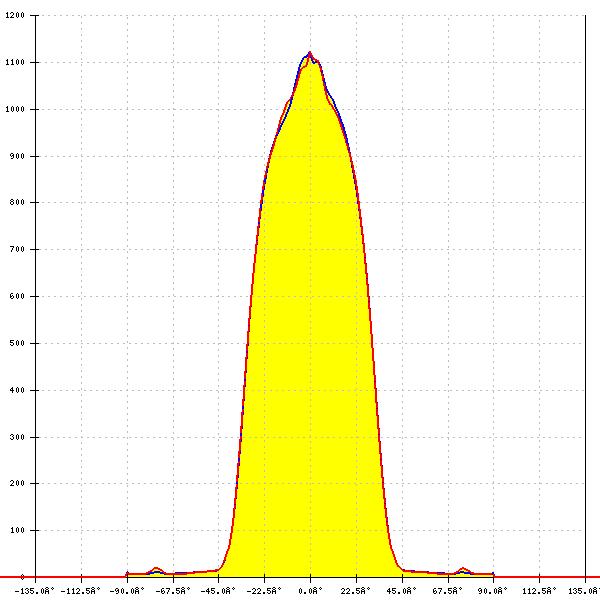

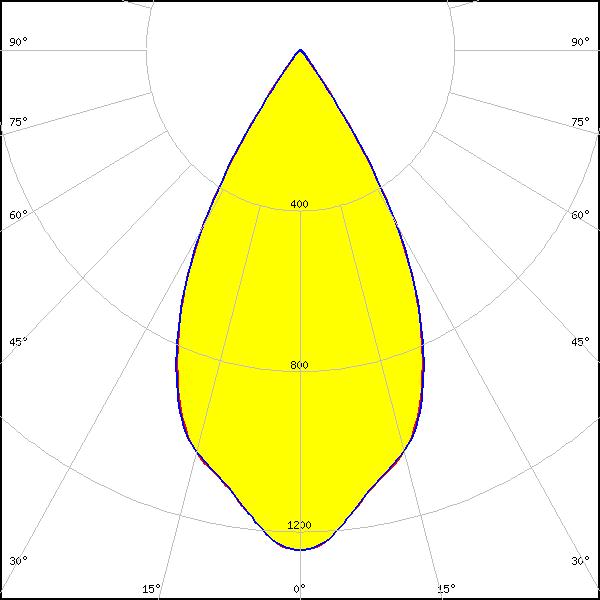

    LED: CLU700/701/702/703
    Ordering code: C17793_AMY-45-WW
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 56°
    FWTM: 73°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    Ordering code: C17793_AMY-45-WW
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 56°
    FWTM: 73°
    Peak intensity: 1.247 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU712/713
    Ordering code: C17793_AMY-45-WW
    LES size: 8.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 58°
    FWTM: 78°
    Peak intensity: 1.124 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

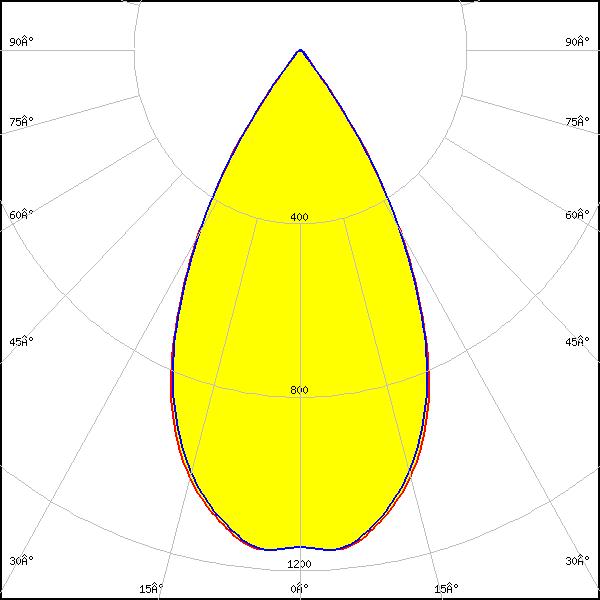

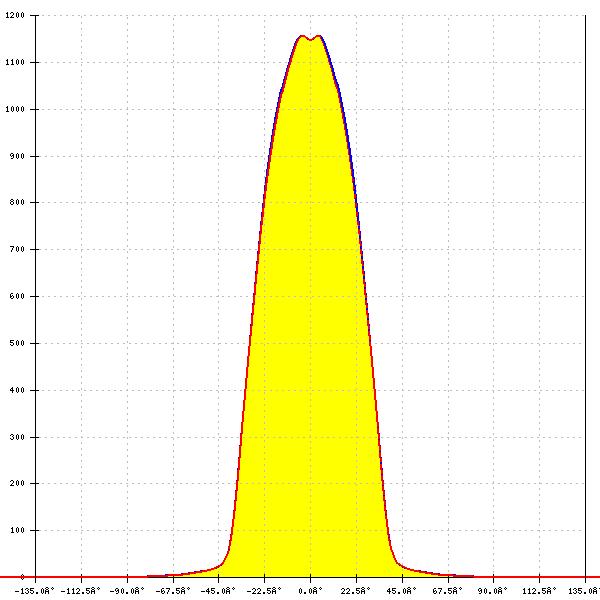

    LED: CMA1516
    Ordering code: C17793_AMY-45-WW
    LES size: 9.0 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 56°
    FWTM: 76°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

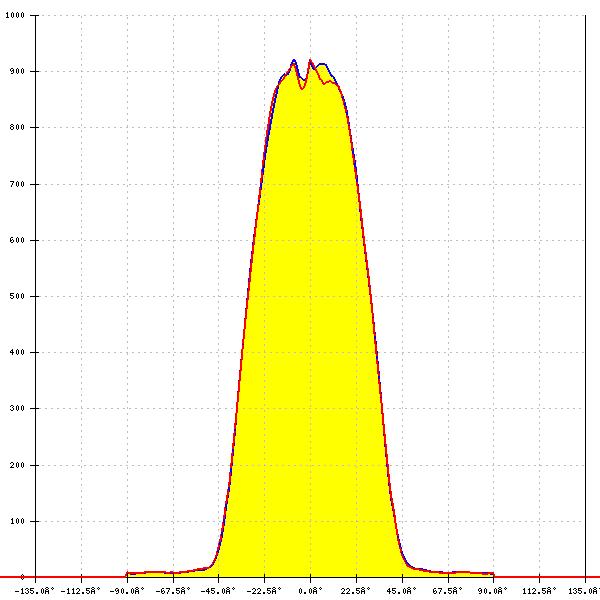

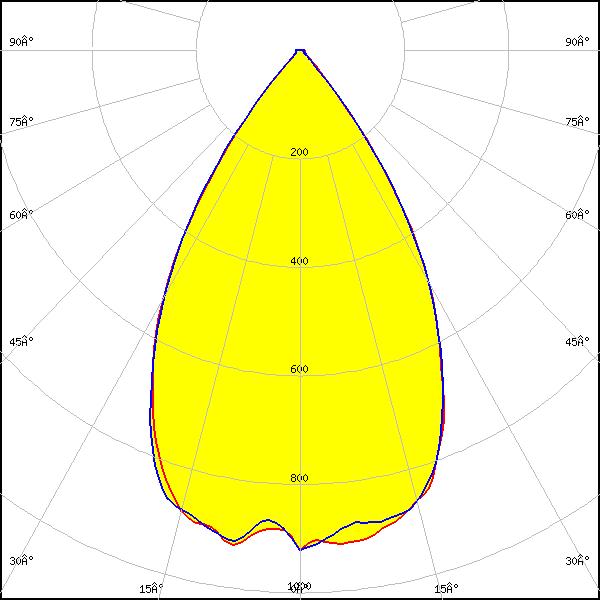

    LED: CMA1825
    Ordering code: C17793_AMY-45-WW
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 63°
    FWTM: 85°
    Peak intensity: 0.956 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

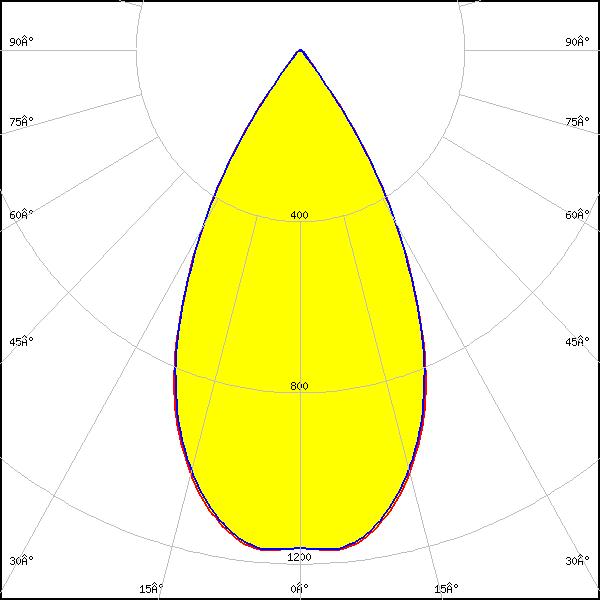

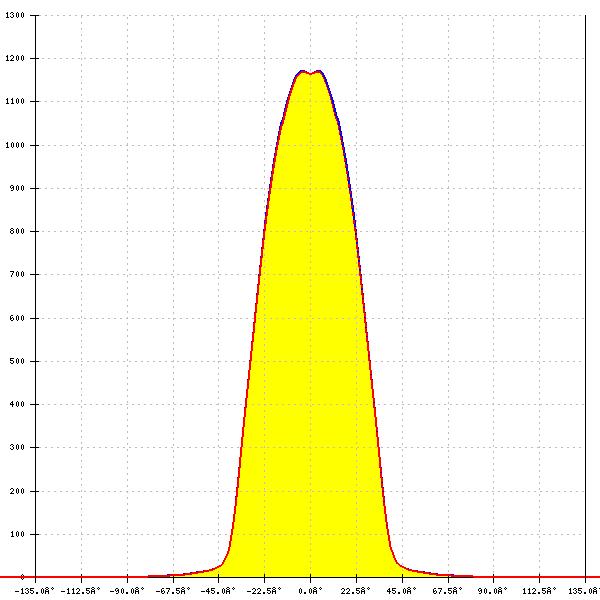

    LED: CMT14xx
    Ordering code: C17793_AMY-45-WW
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 76°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

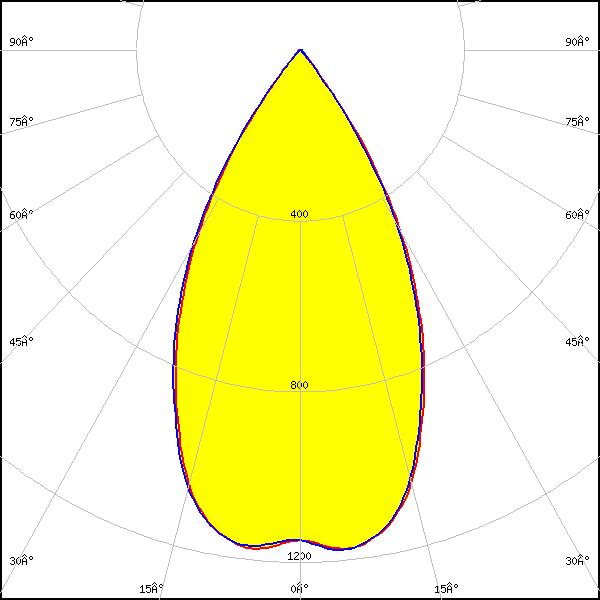

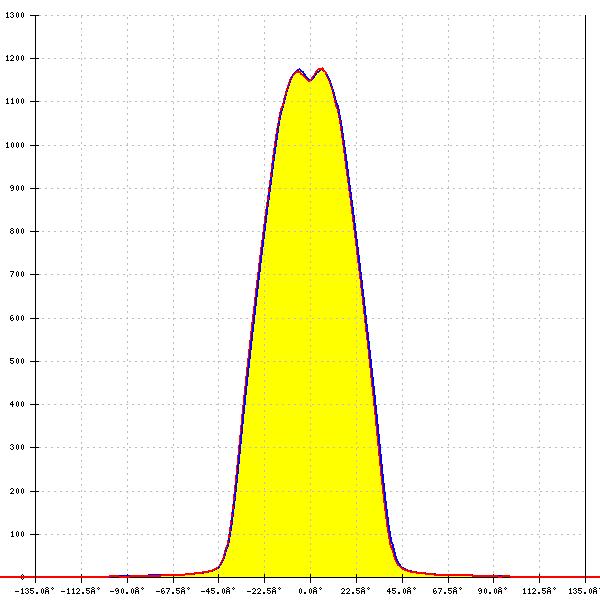

    LED: CMU10xx
    Ordering code: C17793_AMY-45-WW
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 56°
    FWTM: 78°
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

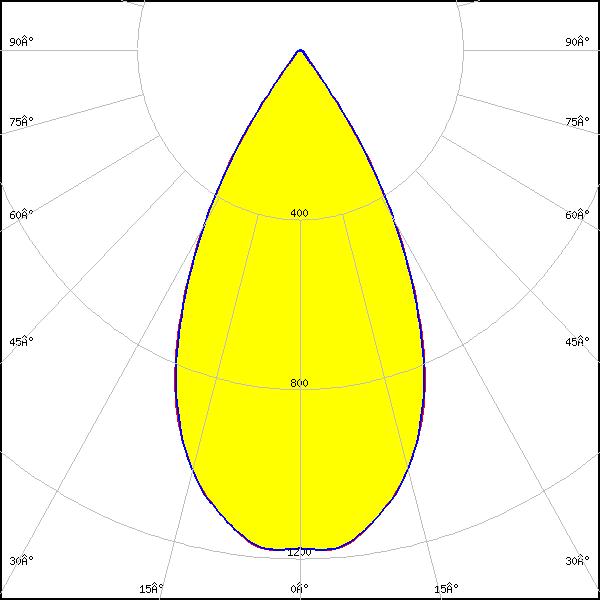

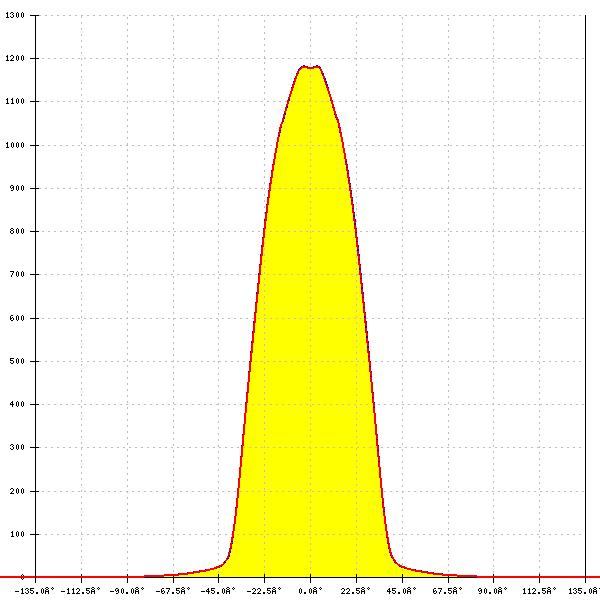

    LED: LUXEON CoB 1202/1203
    Ordering code: C17793_AMY-45-WW
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 54°
    FWTM: 75°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

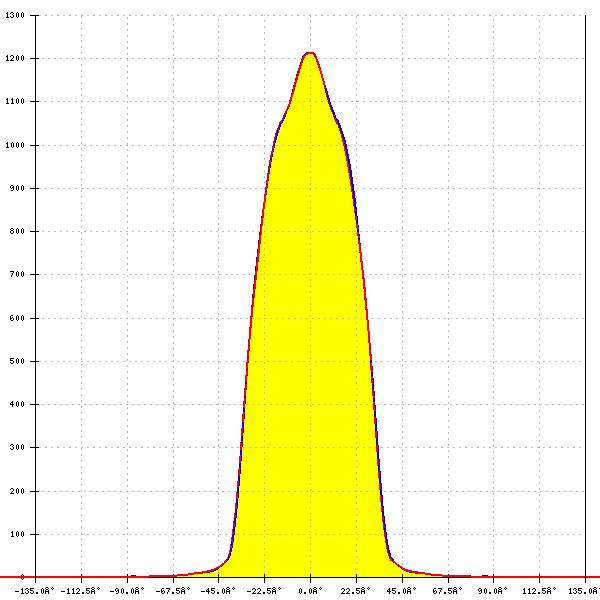

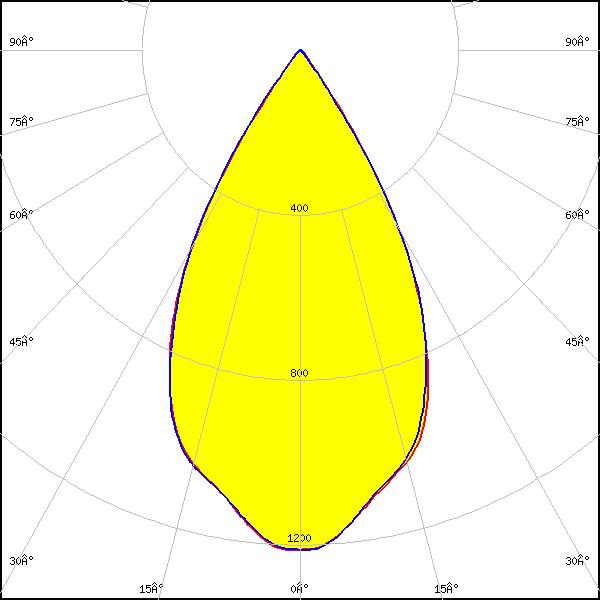

    LED: LUXEON CoB 1202s
    Ordering code: C17793_AMY-45-WW
    LES size: 6.5 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 57°
    FWTM: 74°
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

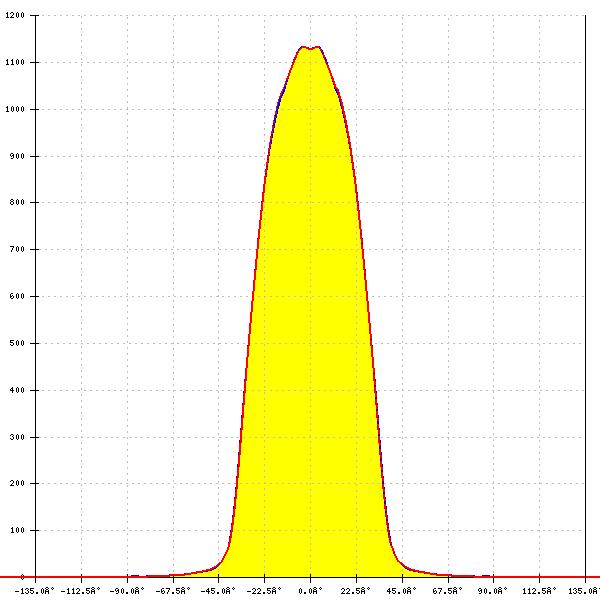

    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    Ordering code: C17793_AMY-45-WW
    LES size: 9.0 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 58°
    FWTM: 76°
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

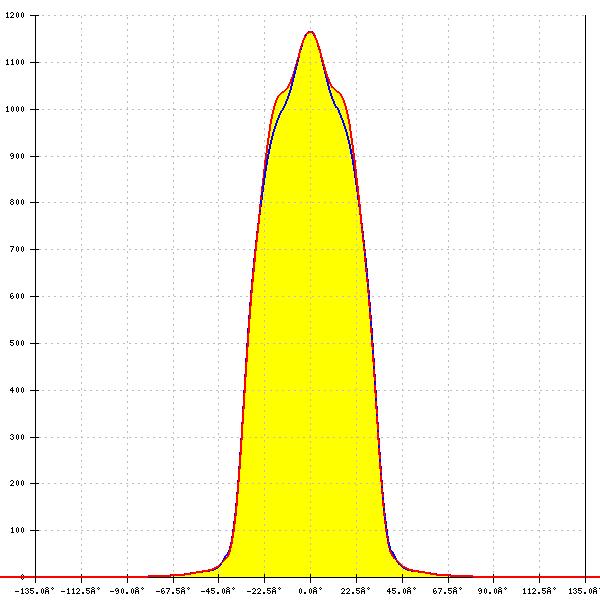

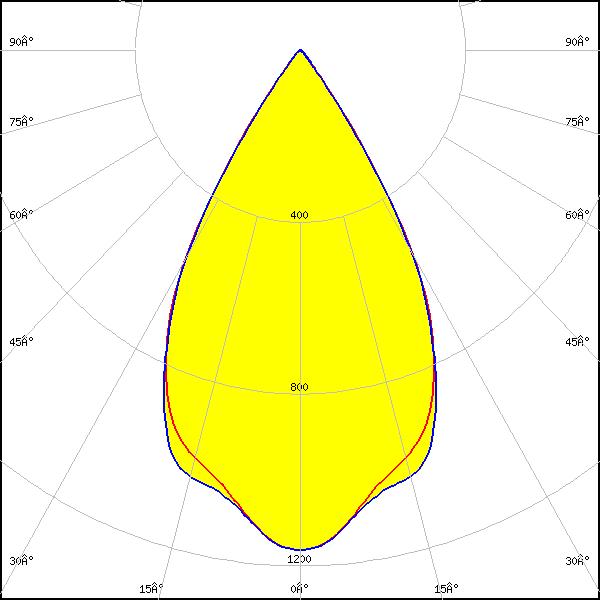

    LED: LUXEON CX Plus CoB S01 (Gen2)
    Ordering code: C17793_AMY-45-WW
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: 59°
    FWTM: 75°
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

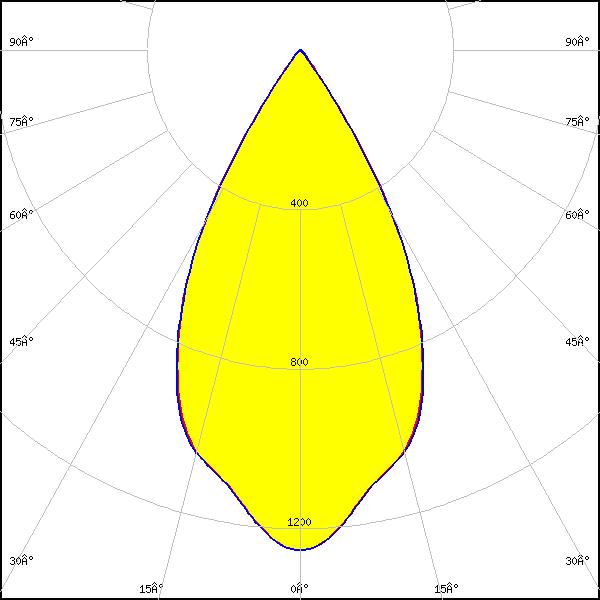

    LED: CxM-6 (13.5x13.5)
    Ordering code: C17793_AMY-45-WW
    LES size: 6.3 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 73°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-9 (13.5x13.5)
    Ordering code: C17793_AMY-45-WW
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 54°
    FWTM: 76°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

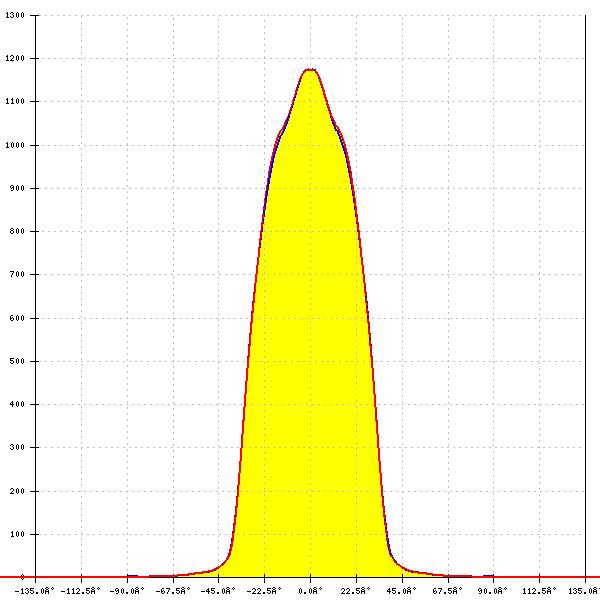

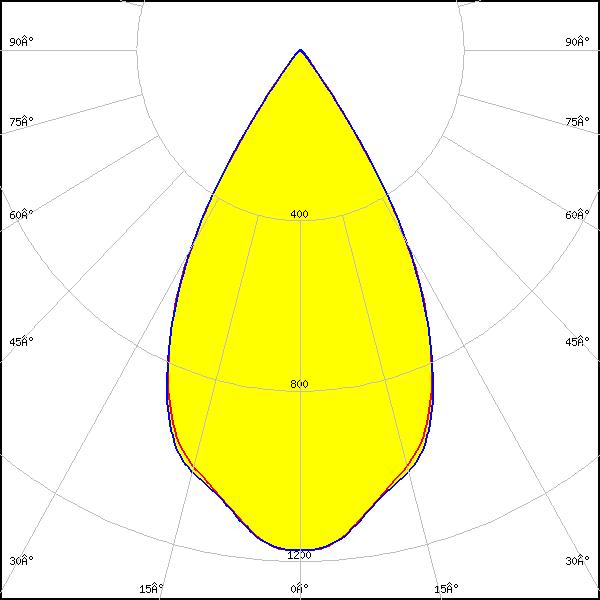

    LED: COB S-Type (LES 7)
    Ordering code: C17793_AMY-45-WW
    LES size: 6.7 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 58°
    FWTM: 75°
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

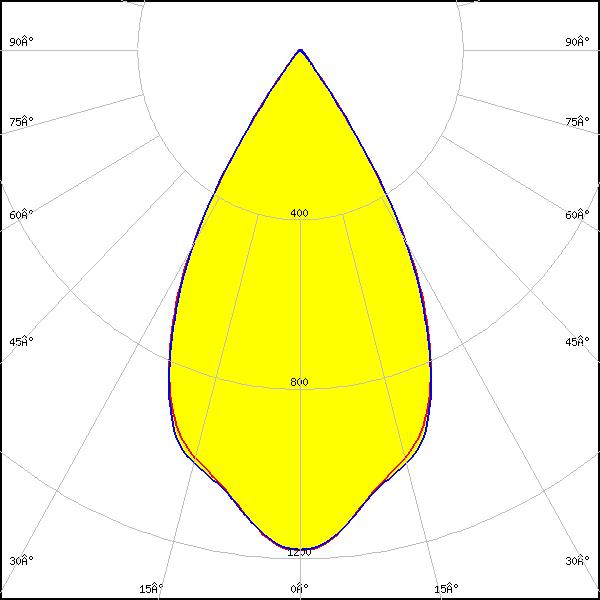

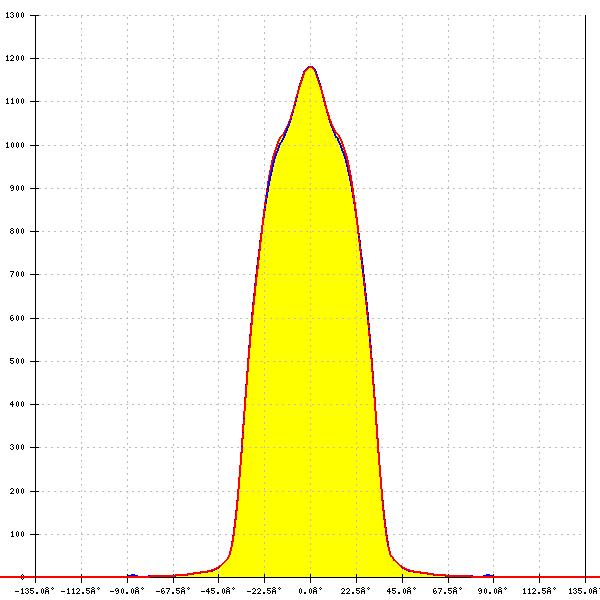

    LED: COB T-Type
    Ordering code: C17793_AMY-45-WW
    LES size: 5.9 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 58°
    FWTM: 74°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: C17793_AMY-45-WW
    LES size: 9.8 mm
    FWHM: 56°
    FWTM: 78°
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

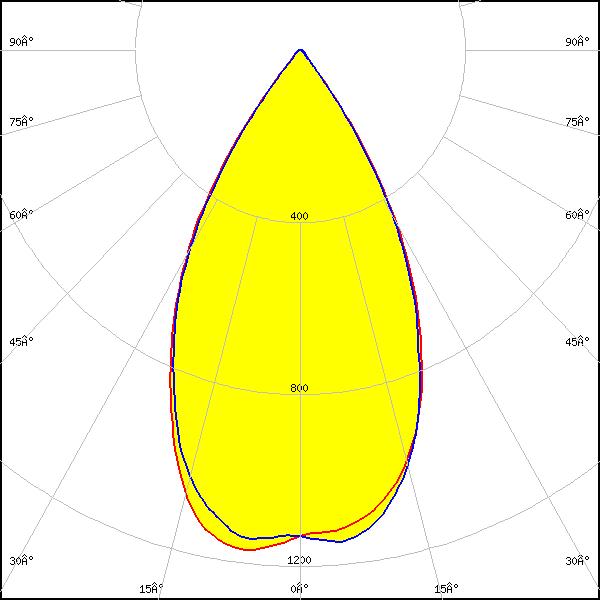

    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: C17793_AMY-45-WW
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.169 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

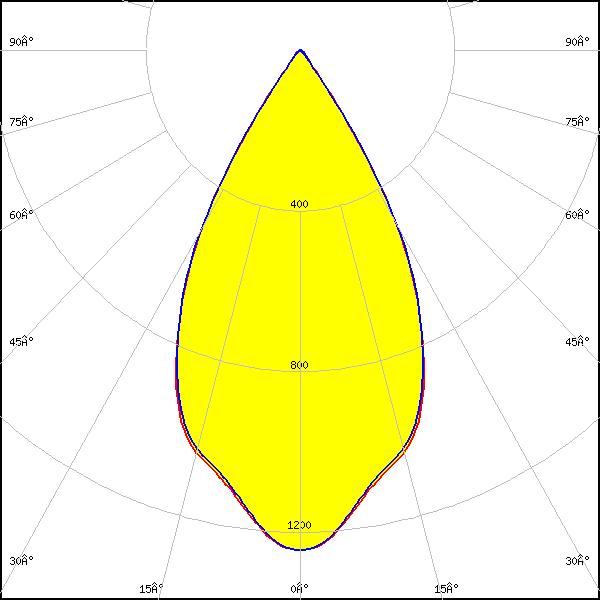

    LED: MJT COB LES 6
    Ordering code: C17793_AMY-45-WW
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 56°
    FWTM: 73°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

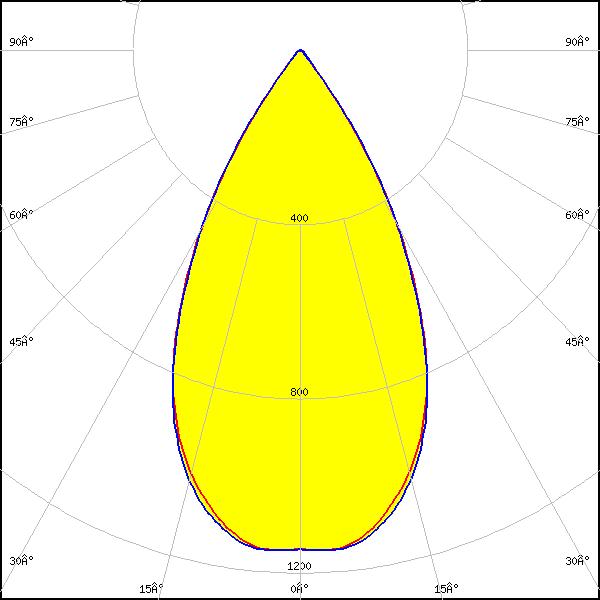

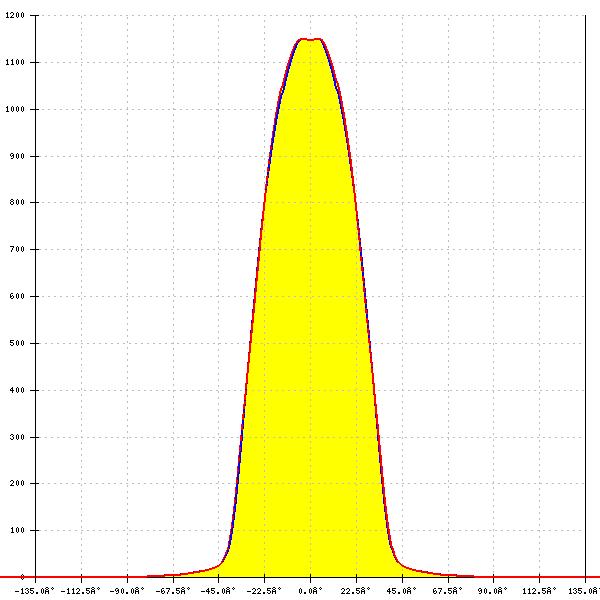

    LED: MJT COB LES 9.8
    Ordering code: C17793_AMY-45-WW
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 76°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
