    AMY-35-WW

    Print

    ~60° wide beam

    This product consists of multiple buying options. See ordering information

    Specification
    • Dimensions:
      35 mm
    • Height:
      8.52 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • AMY-35-WW
      PMMA
    • AMY-35-HLD2-B-WHT
      PC
    • AMY-35-HLD2-B
      PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C17797_AMY-35-WW
      clear
    • Quantity in box:
      1650 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.90 kg
    • MPQ:
      66 pcs
    • MOQ:
      132 pcs
    • MOQ Size:
      480 x 280 x 50 mm
    • MOQ Weight:
      1.00 kg
    • Assembly
    • CP19164_AMY-35-WW-B2
      black,Holder B
    • CP19170_AMY-35-WW-B2-WHT
      white,Holder B
    • Quantity in box:
      1320 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.70 kg
    • MPQ:
      66 pcs
    • MOQ:
      132 pcs
    • MOQ Size:
      480 x 280 x 60 mm
    • MOQ Weight:
      1.20 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C17797_AMY-35-WW
      CP19164_AMY-35-WW-B2

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR194 - Change of AMY-35-50 and -70 holder design

    Compatible product

    B+W 630 Bayonet35 datasheet

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Luminaire, example

    Track light luminaire with AMY family

    News

    LEDiL AMY, the perfect choice for slim, elegant luminaire designs

    Application guide

    LEDiL guide for retail lighting optics

    News

    AMY oval – the smart choice for aisle lighting

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

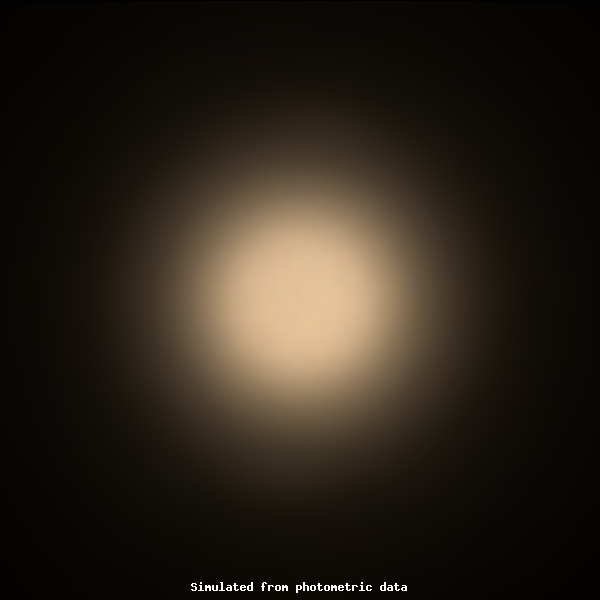

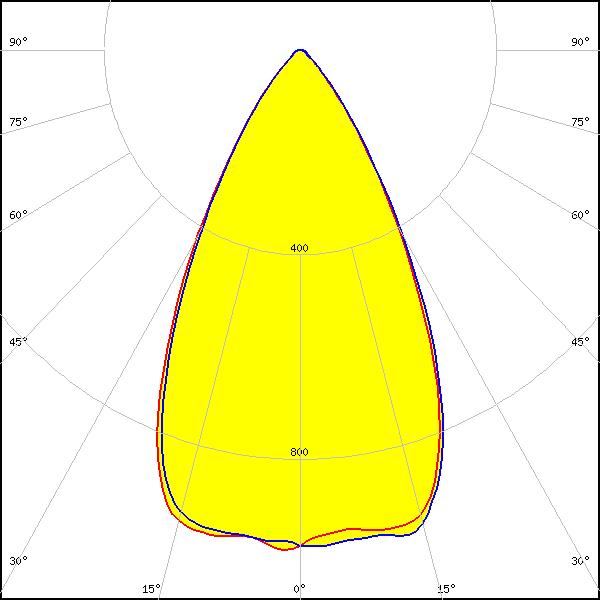

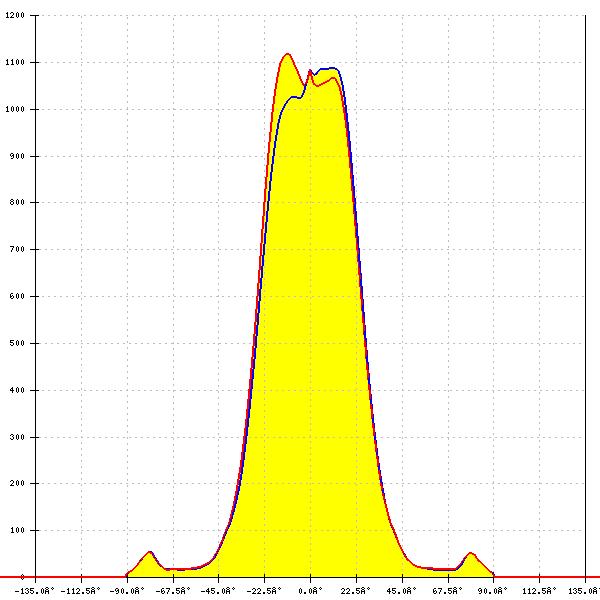

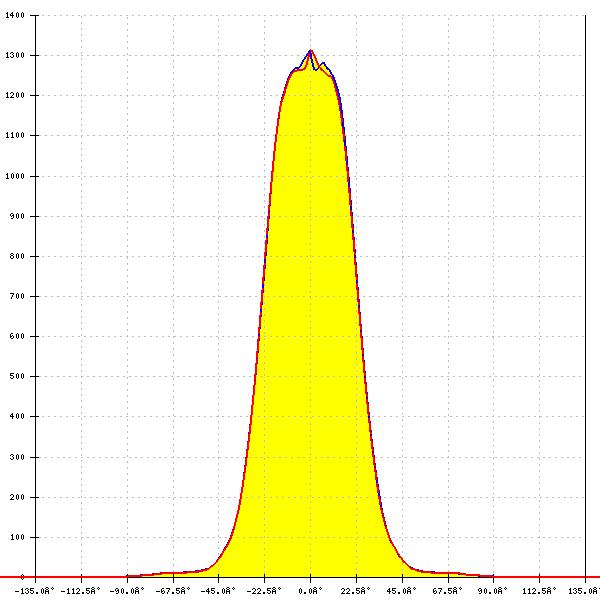

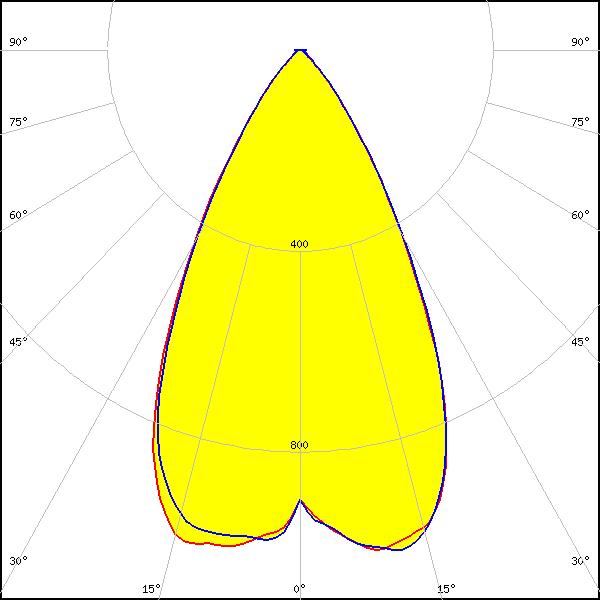

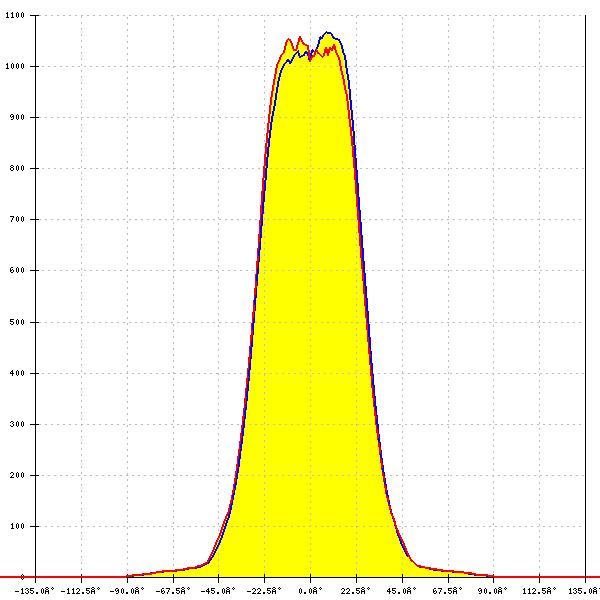

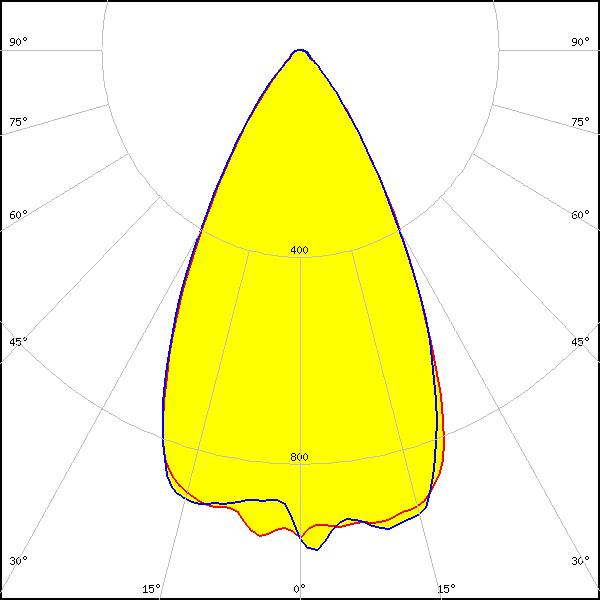

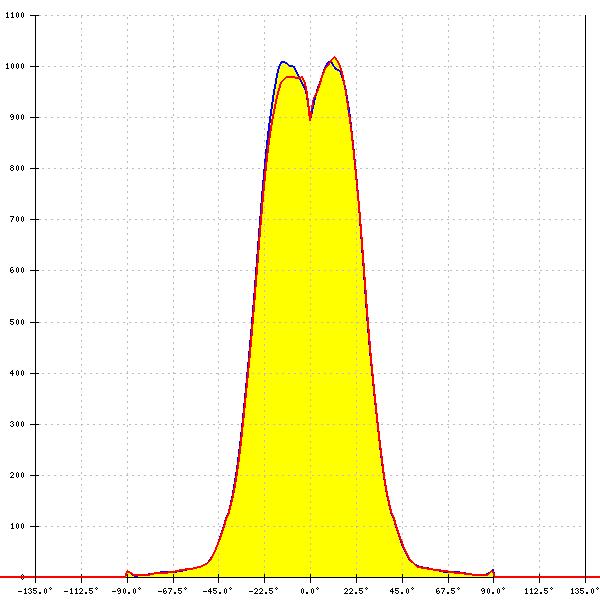

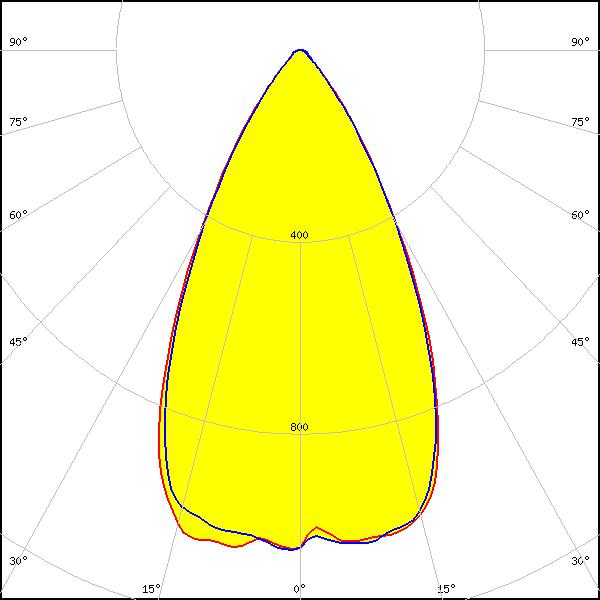

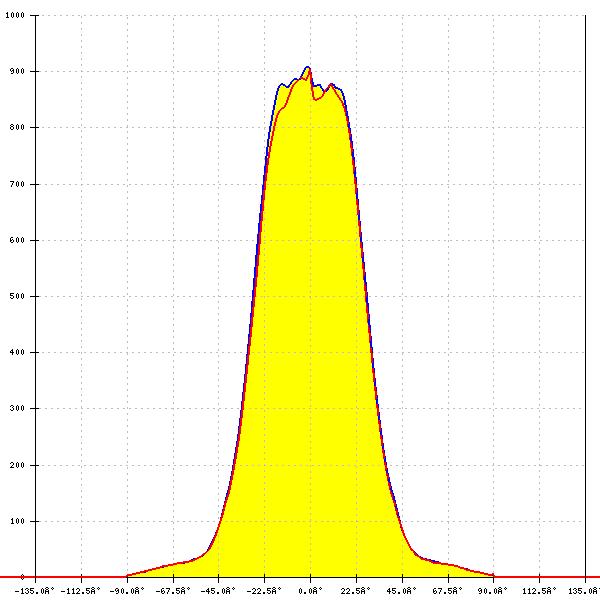

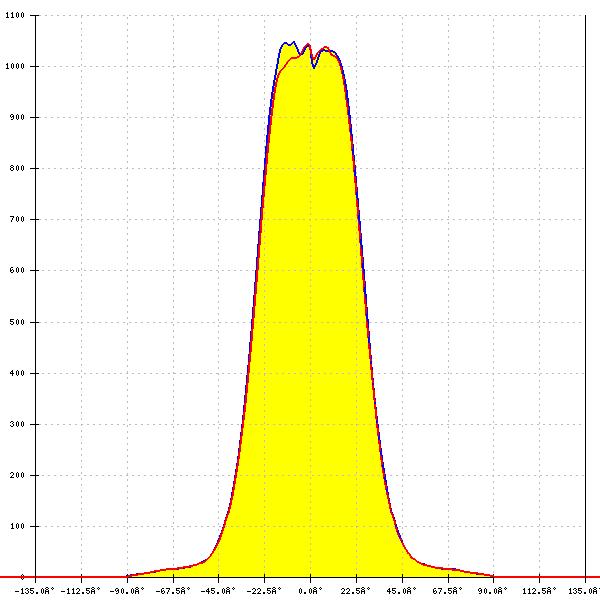

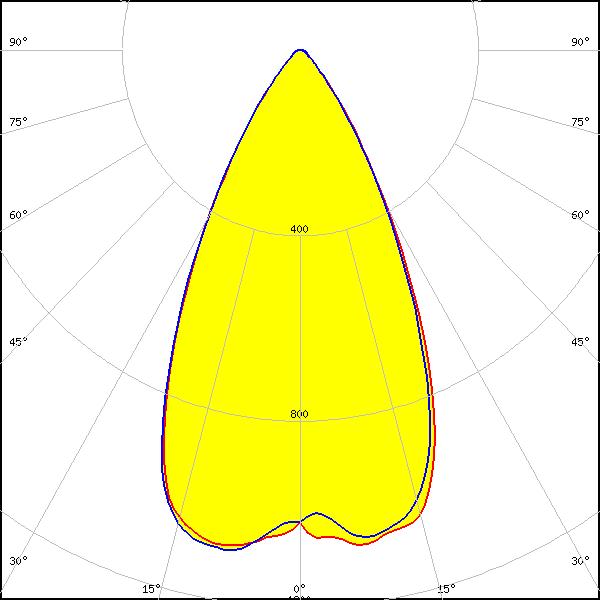

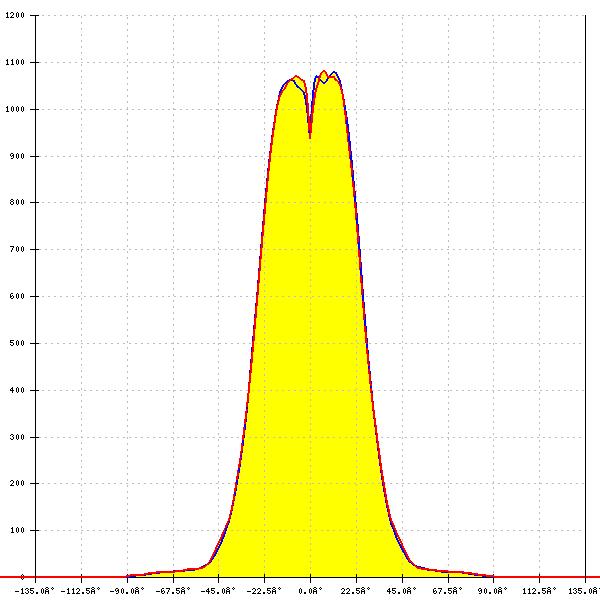

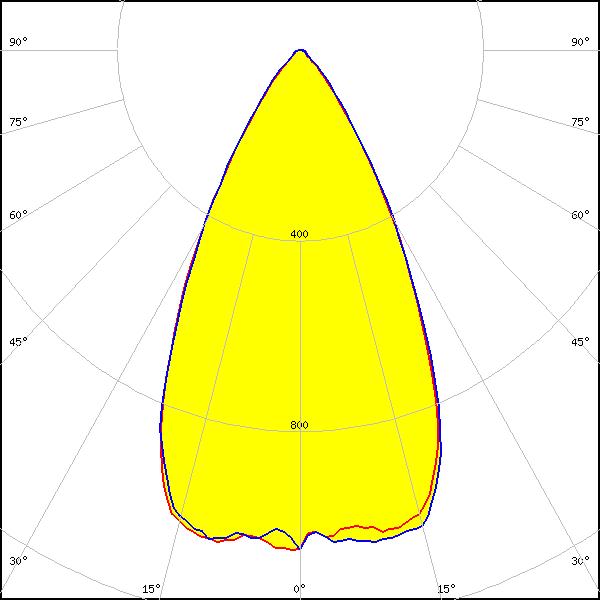

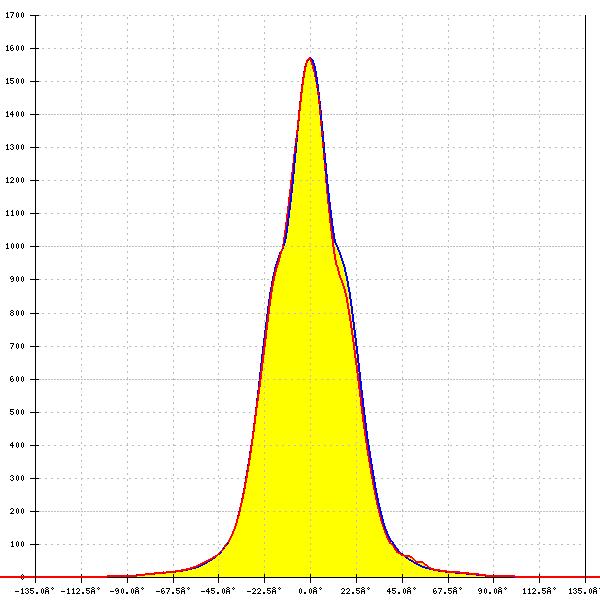

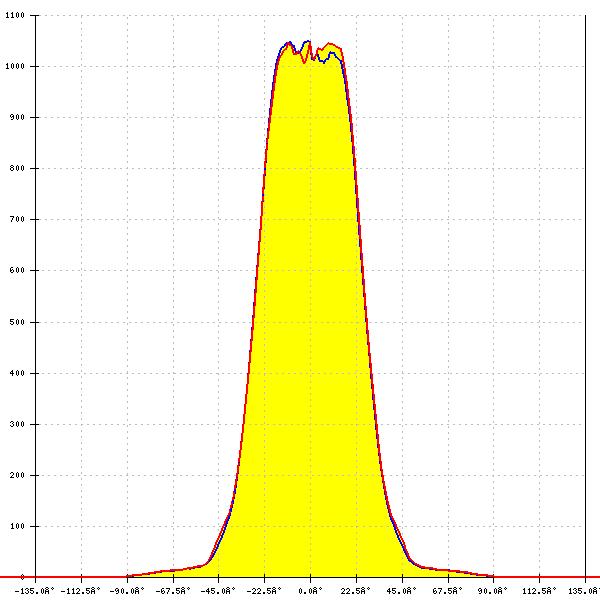

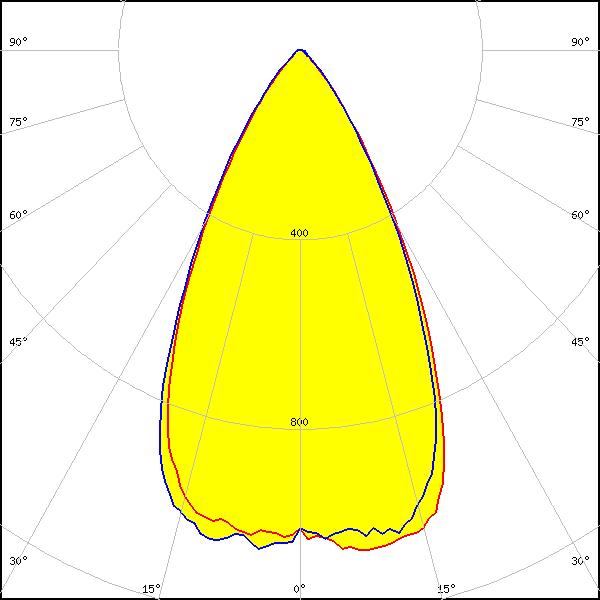

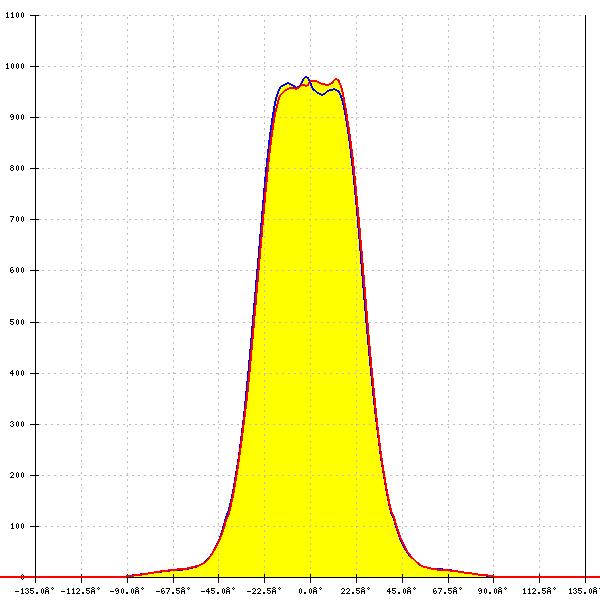

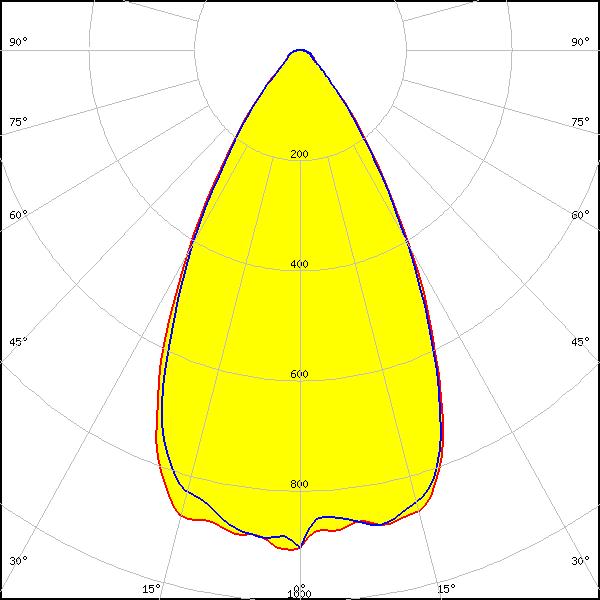

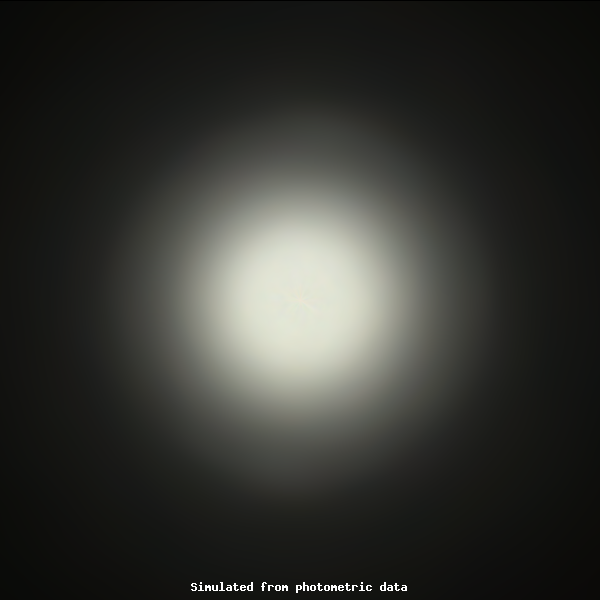

    Optical results

    LED: V10 Gen 8-9
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 10.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 58°
    FWTM: 89°
    Peak intensity: 0.914 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V10 Gen 8-9
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 10.0 mm
    Required components:
    Bender Wirth: 634b Bayonet35L
    FWHM: 58°
    FWTM: 89°
    Peak intensity: 0.934 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V10 Gen7
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 10.2 mm
    Required components:
    Bender Wirth: 634b Bayonet35L
    FWHM: 59°
    FWTM: 90°
    Peak intensity: 0.894 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V3 HD Gen 8 FC
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 2.9 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 53°
    FWTM: 80°
    Peak intensity: 1.187 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V6 HD Gen 8
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 6.6 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 55°
    FWTM: 82°
    Peak intensity: 1.081 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 6mm
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 6.8 mm
    Required components:
    Bender Wirth: 652b Bayonet35L
    FWHM: 54°
    FWTM: 82°
    Peak intensity: 1.090 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 9mm (4W/6W/12W)
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 9.3 mm
    Required components:
    Bender Wirth: 652b Bayonet35L
    FWHM: 55°
    FWTM: 85°
    Peak intensity: 1.037 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 6mm DP
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 6.3 mm
    Required components:
    Bender Wirth: 504 Typ B35L
    FWHM: 50°
    FWTM: 83°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL02x/CLU02x (LES10)
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 58°
    FWTM: 88°
    Peak intensity: 0.895 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

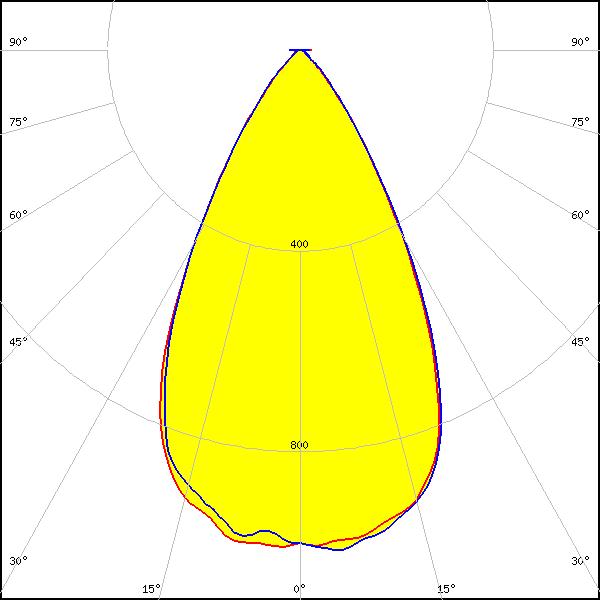

    LED: CLU700/701/702/703
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 52°
    FWTM: 83°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 51°
    FWTM: 82°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    Ordering code: C17797_AMY-35-WW
    LES size: 6.0 mm
    FWHM: 52°
    FWTM: 83°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7A2/7A3
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 4.2 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 52°
    FWTM: 78°
    Peak intensity: 1.175 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7B2
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 3.3 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 53°
    FWTM: 79°
    Peak intensity: 1.178 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7L3
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 2.4 mm
    Required components:
    Bender Wirth: 667a Bayonet35
    FWHM: 48°
    FWTM: 80°
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7L3
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 2.4 mm
    Required components:
    C19425_SOCKET-B-35-N
    FWHM: 41°
    FWTM: 73°
    Peak intensity: 1.589 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7R3
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 4.2 mm
    Required components:
    C19424_SOCKET-B-35-M
    FWHM: 48°
    FWTM: 79°
    Peak intensity: 1.301 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7S3
    Ordering code: CP17973_AMY-35-WW-B
    LES size: 3.5 mm
    Required components:
    C19425_SOCKET-B-35-N
    FWHM: 49°
    FWTM: 81°
    Peak intensity: 1.204 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7S3
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 3.5 mm
    Required components:
    Bender Wirth: 667a Bayonet35
    FWHM: 45°
    FWTM: 76°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

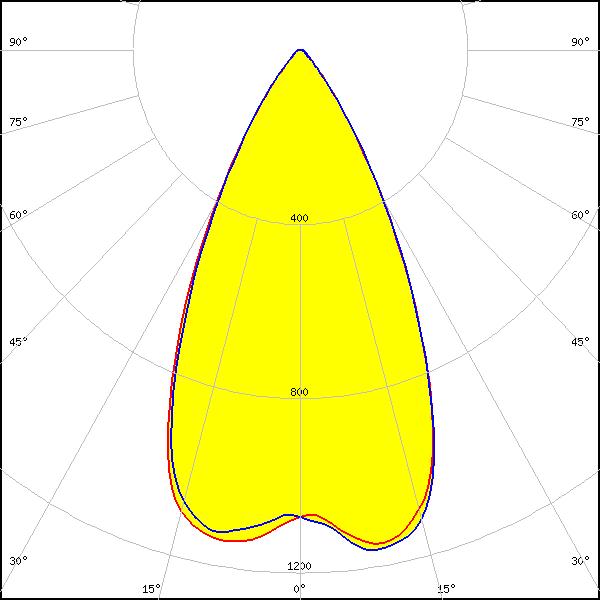

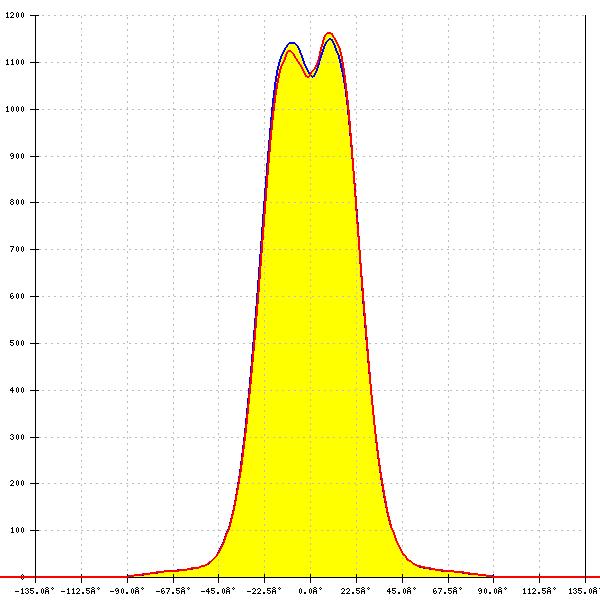

    LED: CMA1306
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 55°
    FWTM: 82°
    Peak intensity: 1.129 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMU10xx
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 58°
    FWTM: 95°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

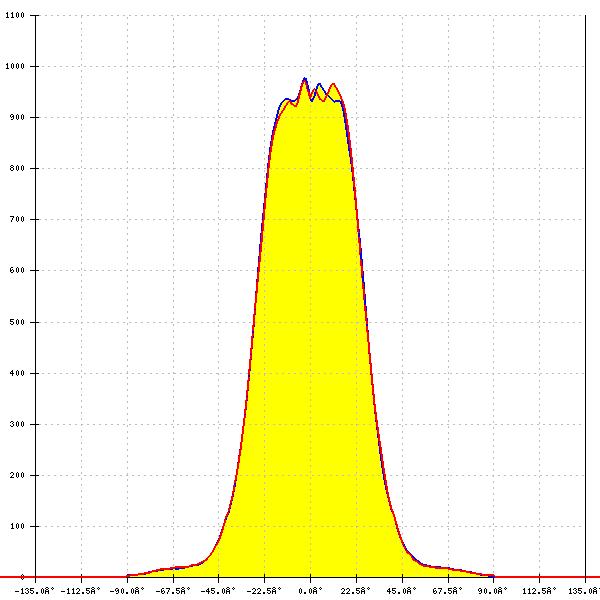

    LED: CXA/B 15xx
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 8.9 mm
    Required components:
    BJB: 47.360.1030
    FWHM: 56°
    FWTM: 85°
    Peak intensity: 0.993 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

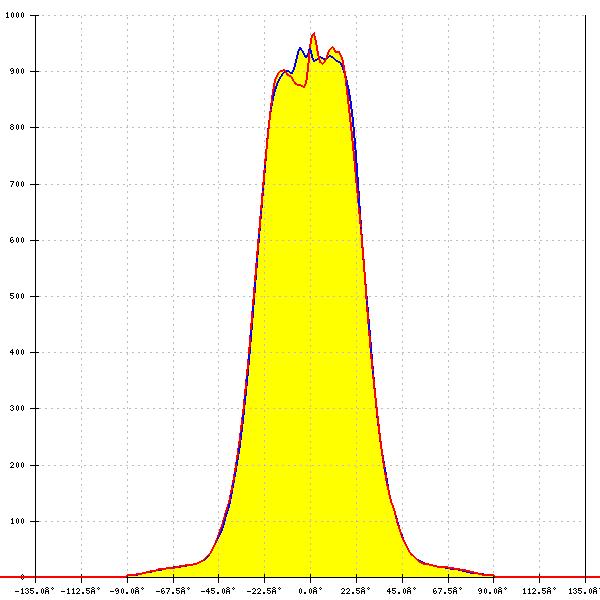

    LED: CXA/B 15xx
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 8.9 mm
    Required components:
    BJB: 47.360.1030
    FWHM: 56°
    FWTM: 86°
    Peak intensity: 0.973 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 7070
    LES size: 0.0 mm
    FWHM: 53°
    FWTM: 80°
    Peak intensity: 1.133 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 7070
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 0.0 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 55°
    FWTM: 90°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202/1203
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 9.0 mm
    Required components:
    BJB: 47.360.1110
    FWHM: 54°
    FWTM: 84°
    Peak intensity: 1.095 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202HD
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 6.5 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 54°
    FWTM: 82°
    Peak intensity: 1.092 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S01H4
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 53°
    FWTM: 80°
    Peak intensity: 1.169 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S02H6
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 54°
    FWTM: 82°
    Peak intensity: 1.102 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 58°
    FWTM: 89°
    Peak intensity: 0.949 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB S01 (Gen2)
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 54°
    FWTM: 81°
    Peak intensity: 1.132 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-6 (Tunable White) Gen2
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 6.8 mm
    Required components:
    Bender Wirth: 495 Typ B35L
    FWHM: 54°
    FWTM: 85°
    Peak intensity: 1.054 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CTM-9 (Tunable White)
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 9.5 mm
    Required components:
    Bender Wirth: 495 Typ B35L
    FWHM: 57°
    FWTM: 93°
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-9 (Tunable White) Gen2
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 9.5 mm
    Required components:
    Bender Wirth: 495 Typ B35L
    FWHM: 57°
    FWTM: 92°
    Peak intensity: 0.938 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CXM-3
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 3.5 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 51°
    FWTM: 76°
    Peak intensity: 1.298 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXM-4
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 50°
    FWTM: 77°
    Peak intensity: 1.257 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

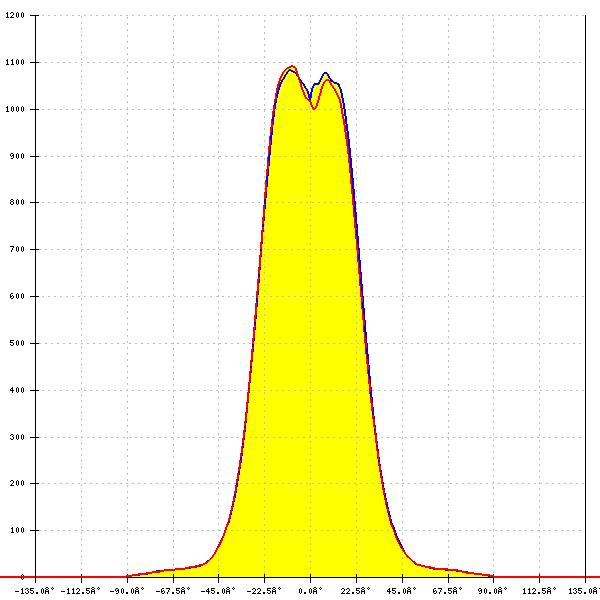

    LED: CxM-6 (13.5x13.5)
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 6.3 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 52°
    FWTM: 79°
    Peak intensity: 1.223 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 6)
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 54°
    FWTM: 80°
    Peak intensity: 1.147 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 6.7 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 54°
    FWTM: 83°
    Peak intensity: 1.096 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB T-Type
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 54°
    FWTM: 82°
    Peak intensity: 1.095 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 9.8 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 58°
    FWTM: 88°
    Peak intensity: 0.867 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 57°
    FWTM: 88°
    Peak intensity: 0.993 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010C G2
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 52°
    FWTM: 78°
    Peak intensity: 1.205 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502D
    LES size: 0.0 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 48°
    FWTM: 74°
    Peak intensity: 1.314 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 6
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 53°
    FWTM: 79°
    Peak intensity: 1.240 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 9.8
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 56°
    FWTM: 88°
    Peak intensity: 1.016 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE 06mm 1600lm xxx R ADV8
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 6.5 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 54°
    FWTM: 82°
    Peak intensity: 1.081 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE SNC8 LES06
    Ordering code: CP19164_AMY-35-WW-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 52°
    FWTM: 78°
    Peak intensity: 1.191 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XOB 6 mm
    Ordering code: C17797_AMY-35-WW
    LES size: 6.0 mm
    FWHM: 49°
    FWTM: 76°
    Peak intensity: 1.291 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XOB 9.8 mm
    Ordering code: C17797_AMY-35-WW
    LES size: 9.8 mm
    FWHM: 56°
    FWTM: 85°
    Peak intensity: 0.985 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
