    AMY-50-ZOOM

    Print

    Infinitely adjustable beam from 20 to 50 degrees

    This product consists of multiple buying options. See ordering information.

    The sublens is a mandatory component that must be ordered separately. In addition to the sublens, you must choose either a single lens or an assembly.

    Specification
    • Dimensions:
      50 mm
    • Height:
      13.60 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • AMY-50-ZOOM
      PMMA
    • AMY-50-HLD2-C-WHT
      PC
    • AMY-50-HLD2-C
      PC
    • AMY-50-HLD2-B-WHT
      PC
    • AMY-50-HLD2-B
      PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Sublens
    • C18647_AMY-50-ZOOM-SUB
      clear
    • Quantity in box:
      420 pcs
    • Box size:
      400 x 300 x 160 mm
    • Box weight:
      4.40 kg
    • MPQ:
      30 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 60 mm
    • MOQ Weight:
      1.30 kg
    • Single lens
    • C18646_AMY-50-ZOOM
      clear
    • Quantity in box:
      420 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      7.60 kg
    • MPQ:
      30 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 80 mm
    • MOQ Weight:
      2.30 kg
    • Assembly
    • CP19130_AMY-50-ZOOM-C2
      black,Holder C
    • CP19139_AMY-50-ZOOM-B2
      black,Holder B
    • CP19148_AMY-50-ZOOM-C2-WHT
      white,Holder C
    • CP19159_AMY-50-ZOOM-B2-WHT
      white,Holder B
    • Quantity in box:
      420 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.70 kg
    • MPQ:
      30 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 100 mm
    • MOQ Weight:
      2.50 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18646_AMY-50-ZOOM
      C18647_AMY-50-ZOOM-SUB
      CP19130_AMY-50-ZOOM-C2

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application example

    Track light luminaire with AMY-50-ZOOM

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR194 - Change of AMY-35-50 and -70 holder design

    Compatible product

    B+W 630 Bayonet35 datasheet

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Luminaire, example

    Track light luminaire with AMY family

    News

    LEDiL AMY, the perfect choice for slim, elegant luminaire designs

    News

    AMY-50 – low profile COB lens for compact luminaires

    Luminaire, example

    Track light luminaire with AMY-50

    Application guide

    LEDiL guide for retail lighting optics

    News

    AMY oval – the smart choice for aisle lighting

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA-SOCKETS and HEKLA-G2 connectors

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

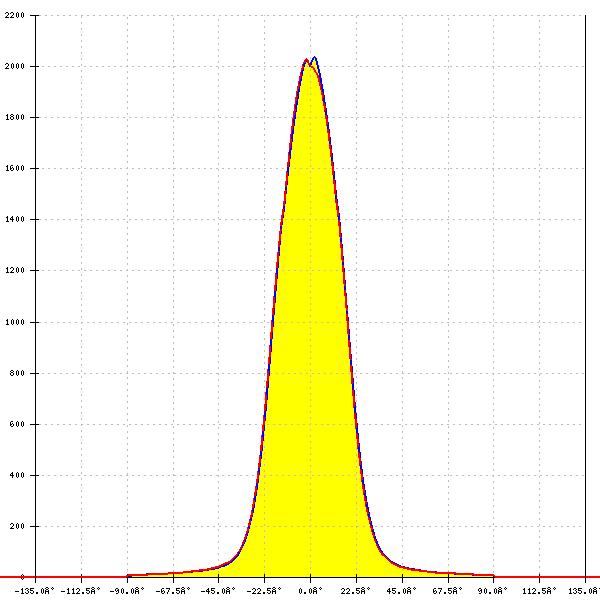

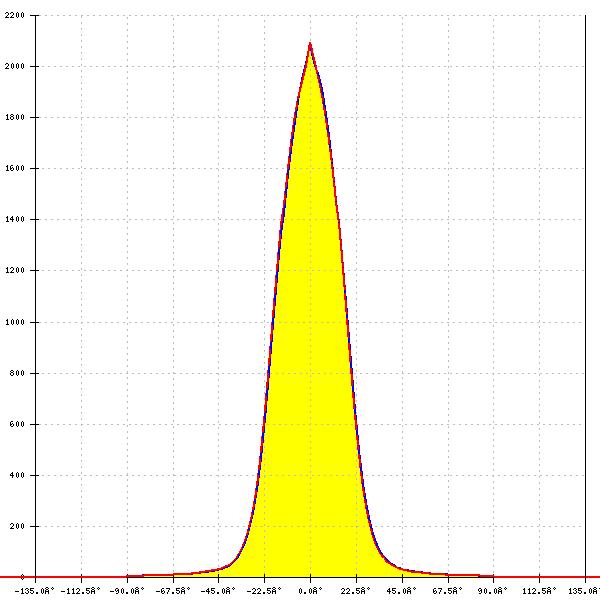

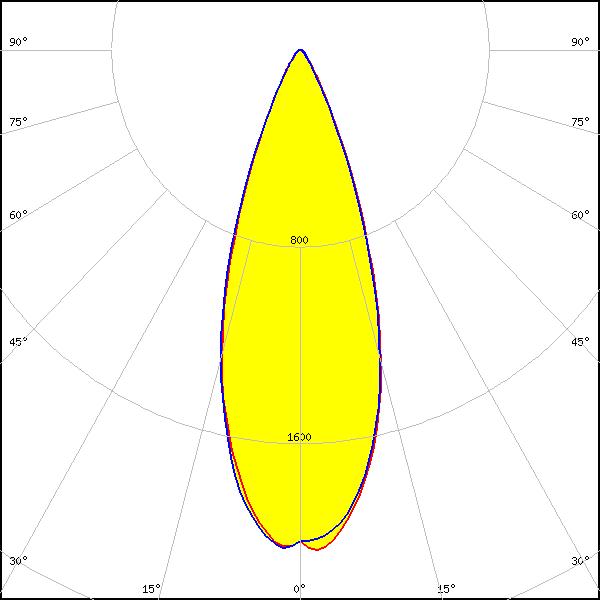

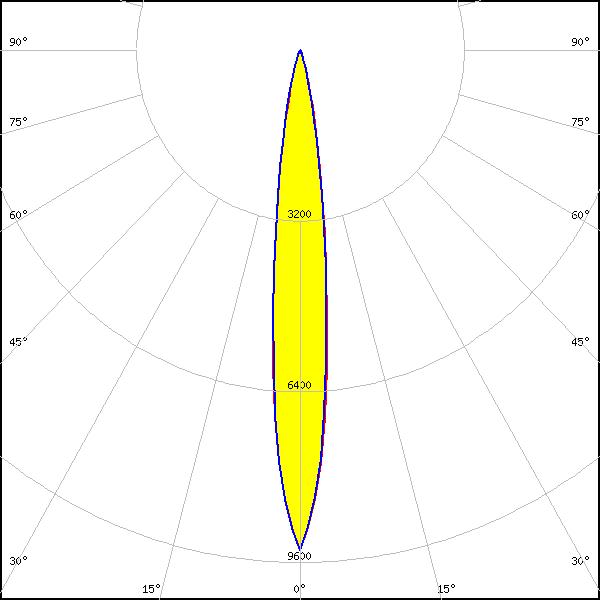

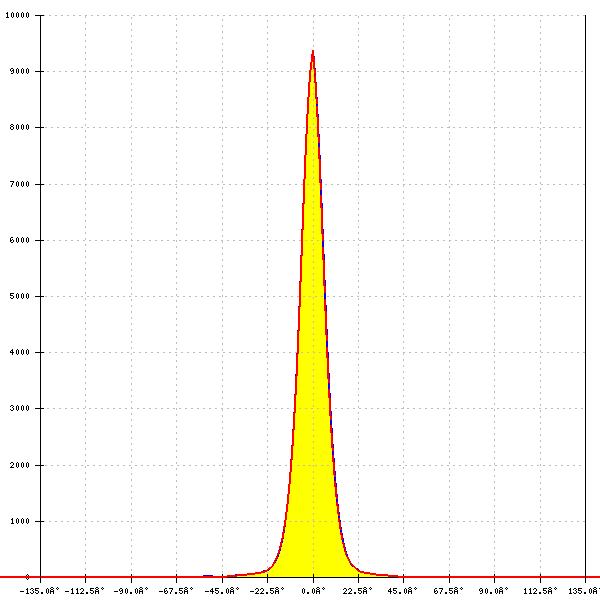

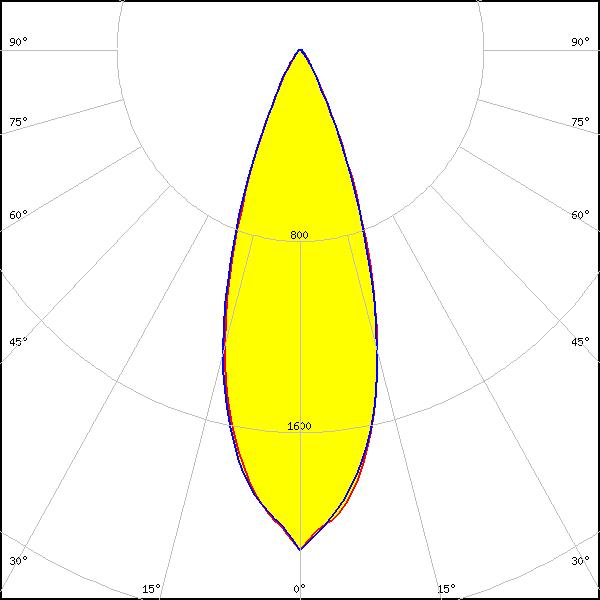

    Optical results

    LED: Vesta SE 13mm TW
    Ordering code: CP19130_AMY-50-ZOOM-C2
    LES size: 14.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    C18647_AMY-50-ZOOM-SUB
    FWHM: 26° - 48°
    FWTM: 50° - 83°
    Peak intensity: 2.544 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CTM-14 (Tunable White) Gen2
    Ordering code: CP19130_AMY-50-ZOOM-C2
    LES size: 13.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    C18647_AMY-50-ZOOM-SUB
    FWHM: 28° - 52°
    FWTM: 62° - 87°
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    Ordering code: CP19130_AMY-50-ZOOM-C2
    LES size: 0.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    C18647_AMY-50-ZOOM-SUB
    FWHM: 13° - 43°
    FWTM: 28° - 68°
    Peak intensity: 9.695 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
