    AMY-70-WW

    Print

    ~60° wide beam

    This product consists of multiple buying options. See ordering information

    Specification
    • Dimensions:
      70 mm
    • Height:
      12.79 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • AMY-70-WW
      PMMA
    • AMY-70-HLD2-C-WHT
      PC
    • AMY-70-HLD2-C
      PC
    • AMY-70-HLD2-B-WHT
      PC
    • AMY-70-HLD2-B
      PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C17779_AMY-70-WW
    • Quantity in box:
      285 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.40 kg
    • MPQ:
      15 pcs
    • MOQ:
      285 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      7.40 kg
    • Assembly
    • CP19040_AMY-70-WW-C2
      black,Holder C
    • CP19103_AMY-70-WW-B2
      black,Holder B
    • CP19114_AMY-70-WW-C2-WHT
      white,Holder C
    • CP19118_AMY-70-WW-B2-WHT
      white,Holder B
    • Quantity in box:
      210 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.00 kg
    • MPQ:
      15 pcs
    • MOQ:
      210 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      7.00 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C17779_AMY-70-WW
      CP19040_AMY-70-WW-C2

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    Case story

    Alteme Lior luminaire

    PCN

    Product change notification NR194 - Change of AMY-35-50 and -70 holder design

    Compatible product

    B+W 630 Bayonet35 datasheet

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Luminaire, example

    Track light luminaire with AMY family

    News

    LEDiL AMY, the perfect choice for slim, elegant luminaire designs

    Application guide

    LEDiL guide for retail lighting optics

    News

    AMY oval – the smart choice for aisle lighting

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA-SOCKETS and HEKLA-G2 connectors

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

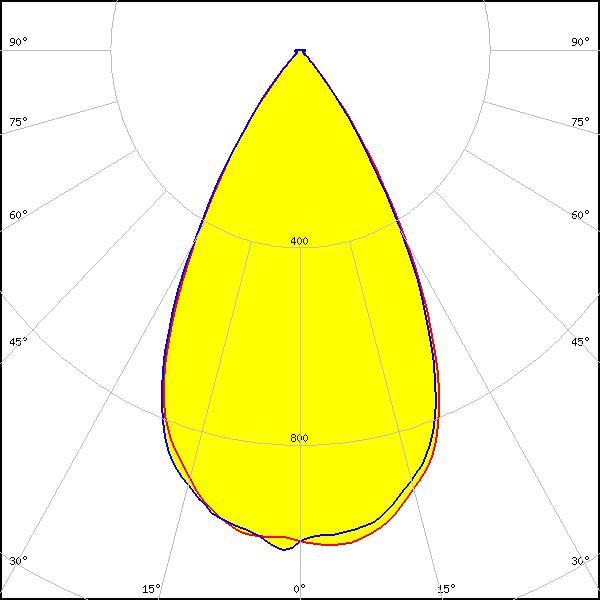

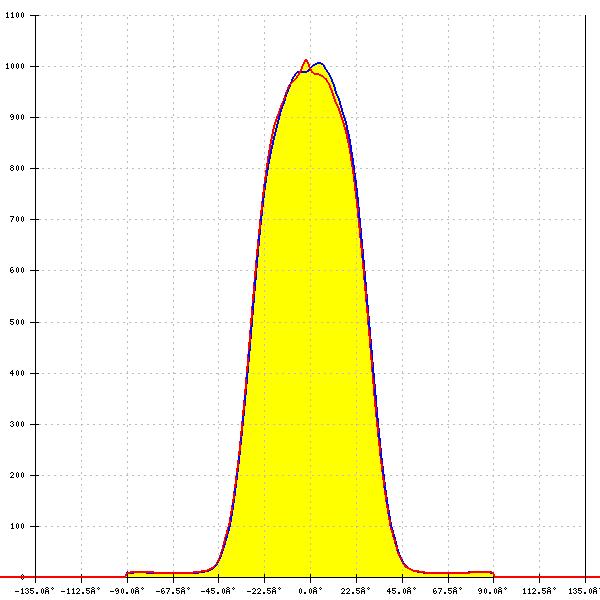

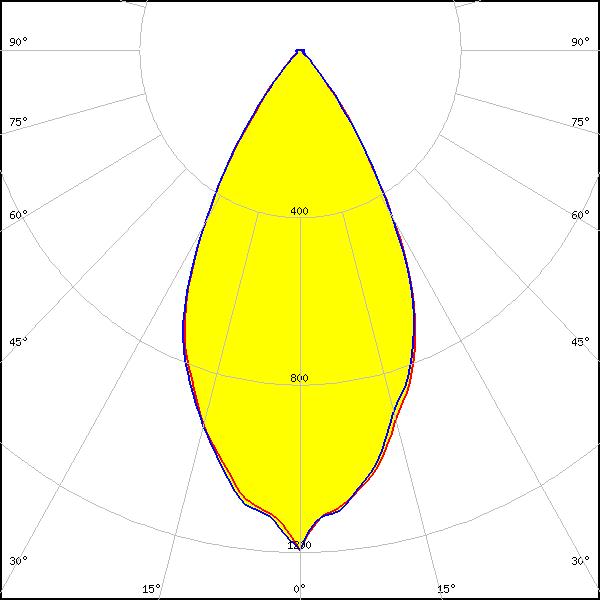

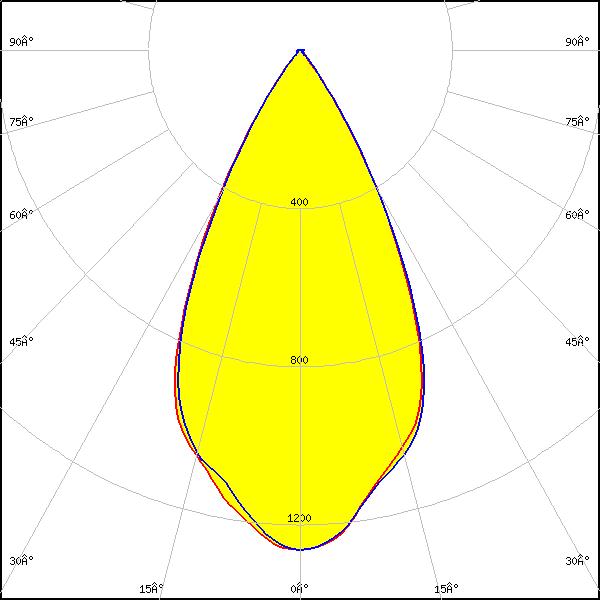

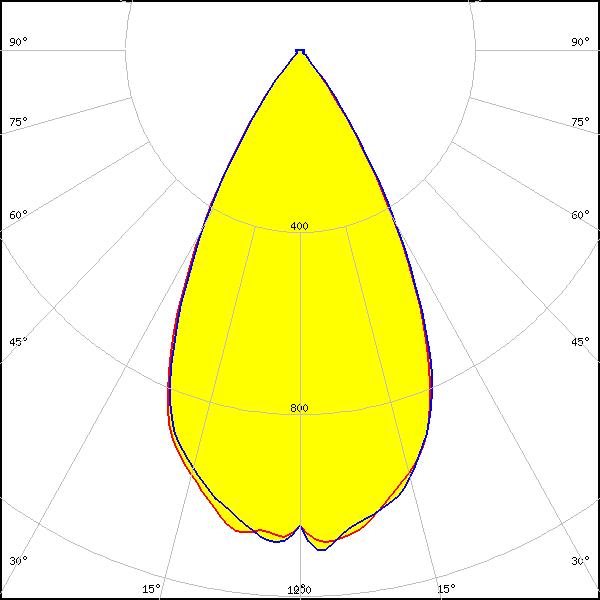

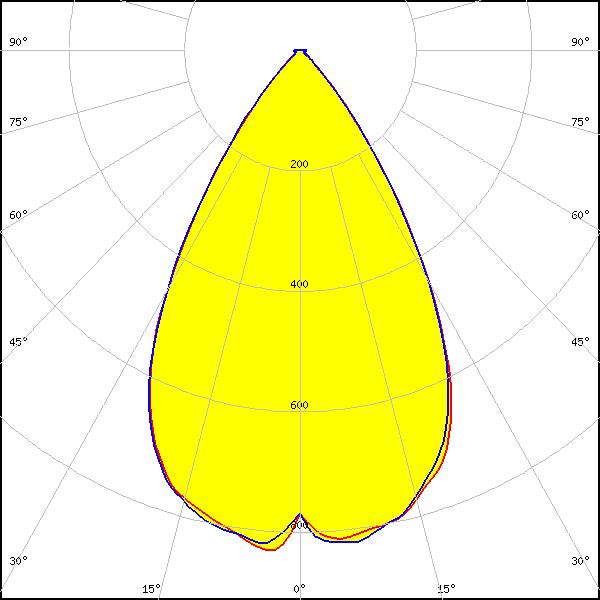

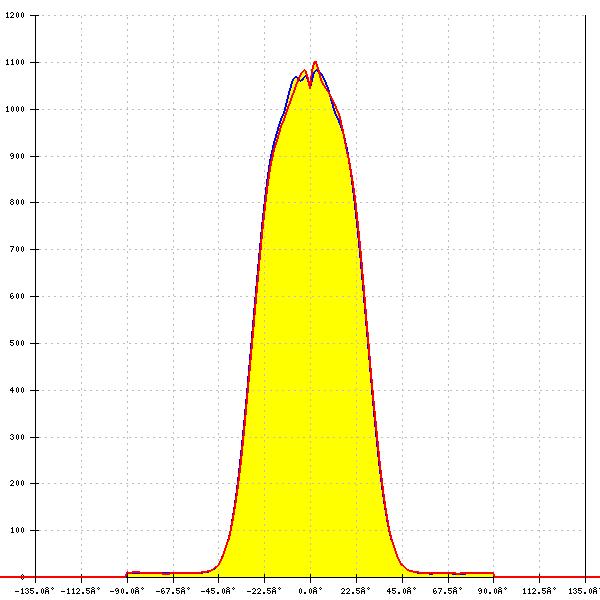

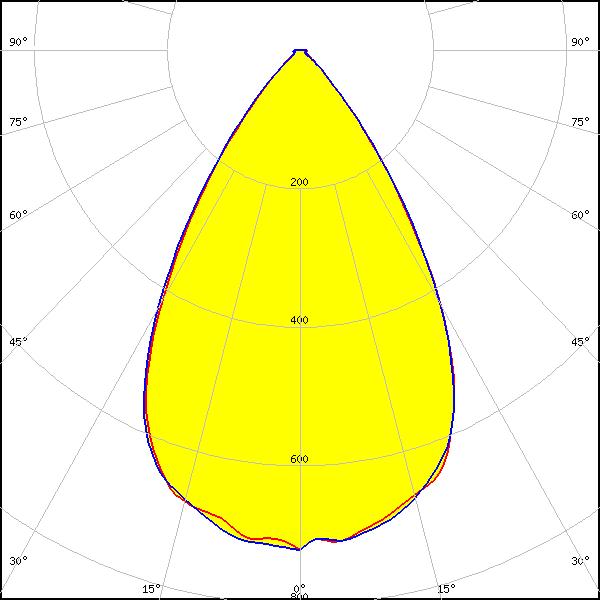

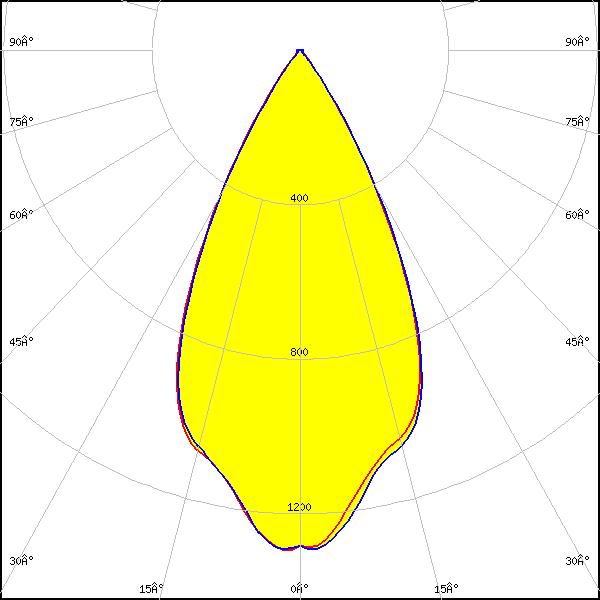

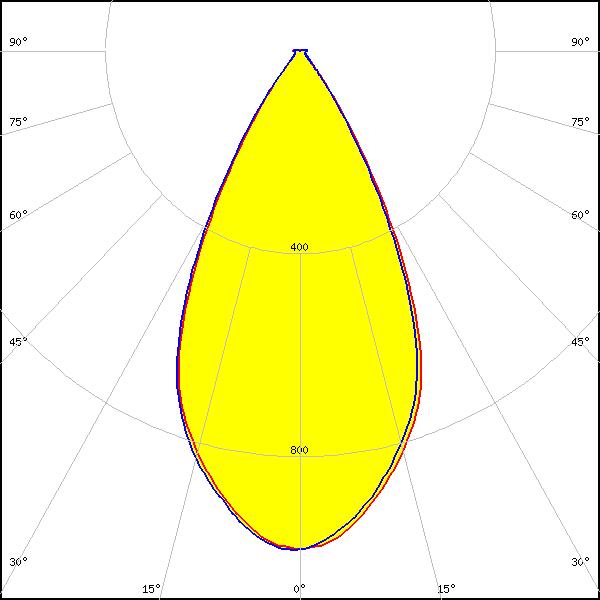

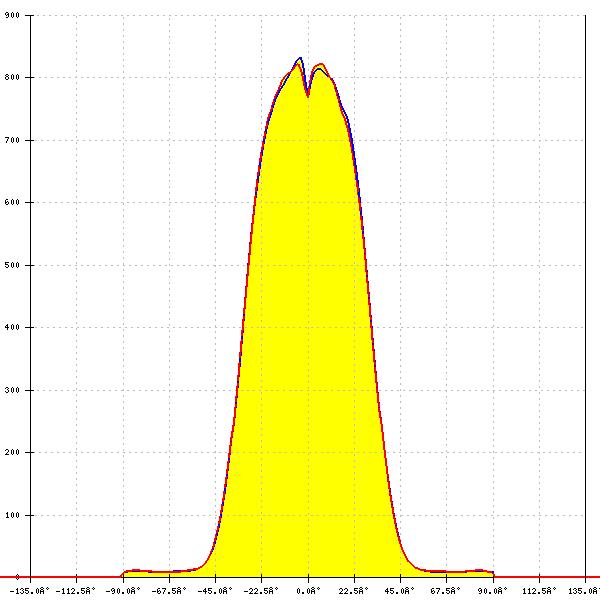

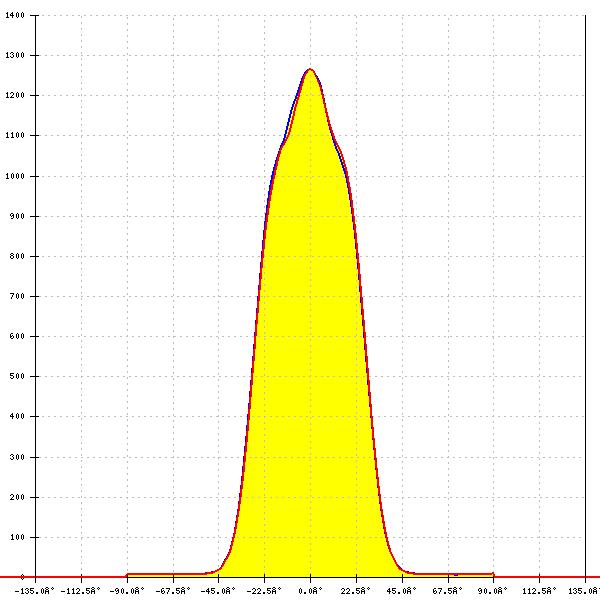

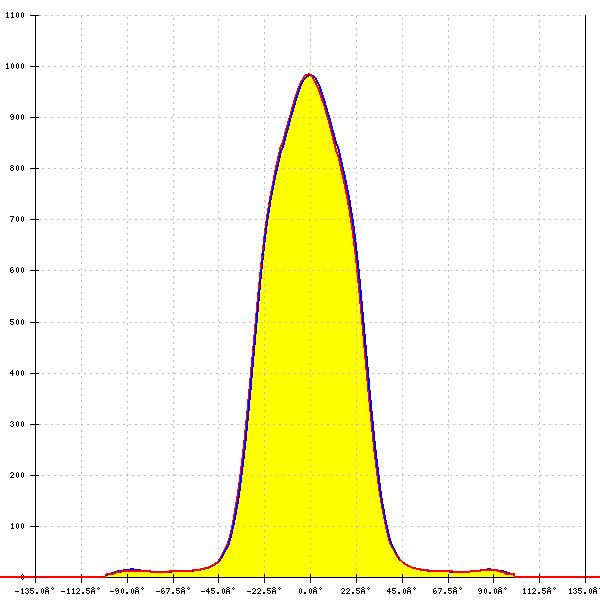

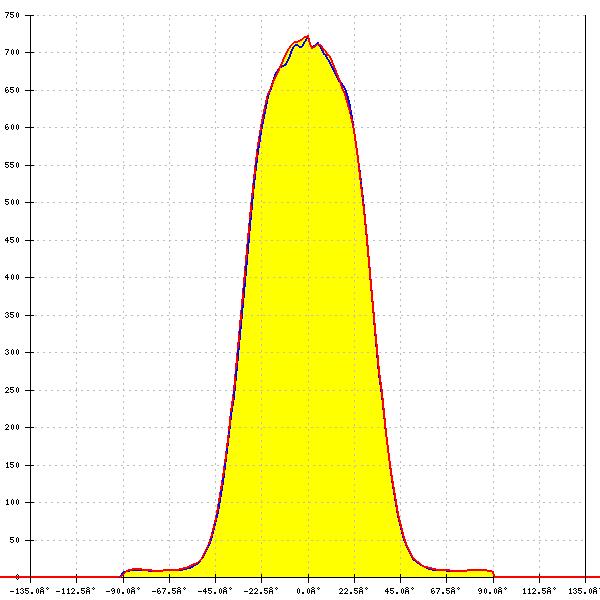

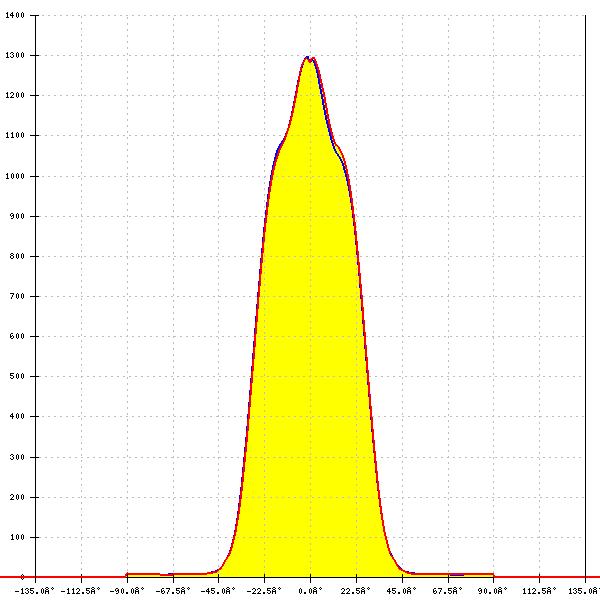

    Optical results

    LED: V10 Gen 8-9
    Ordering code: CP19103_AMY-70-WW-B2
    LES size: 10.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 55°
    FWTM: 76°
    Peak intensity: 1.167 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V10 Gen 8-9
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 10.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 55°
    FWTM: 75°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V11 HD Gen 8
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 11.3 mm
    Required components:
    Bender Wirth: 633d Hekla
    FWHM: 54°
    FWTM: 76°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V13 Gen 8-9
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 14.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 58°
    FWTM: 80°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V18 Gen 8-9
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 19.6 mm
    Required components:
    Bender Wirth: 639b Hekla XL
    FWHM: 62°
    FWTM: 86°
    Peak intensity: 0.847 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V3 HD Gen 8
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 3.8 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 52°
    FWTM: 72°
    Peak intensity: 1.343 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V3 HD Gen 8 FC
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 2.9 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 52°
    FWTM: 72°
    Peak intensity: 1.394 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V4 HD Gen 8
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 4.8 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 54°
    FWTM: 72°
    Peak intensity: 1.288 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V6 Gen 8-9
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 6.3 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 55°
    FWTM: 74°
    Peak intensity: 1.207 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V6 Gen 8-9
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 6.3 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 55°
    FWTM: 74°
    Peak intensity: 1.205 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V6 HD Gen 8
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 6.6 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 52°
    FWTM: 74°
    Peak intensity: 1.298 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V6 HD Gen 8
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 6.6 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 52°
    FWTM: 73°
    Peak intensity: 1.292 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V8 Gen 8-9
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 8.5 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 55°
    FWTM: 75°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V8 Gen7
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 8.1 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 55°
    FWTM: 74°
    Peak intensity: 1.193 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V9 HD Gen 8
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 8.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 54°
    FWTM: 74°
    Peak intensity: 1.220 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO10
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 9.9 mm
    Required components:
    F15616_HEKLA-SOCKET-F
    FWHM: 54°
    FWTM: 74°
    Peak intensity: 1.156 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO13
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 13.4 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.067 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO18
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 18.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 62°
    FWTM: 88°
    Peak intensity: 0.868 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 13mm (21W)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 53°
    FWTM: 74°
    Peak intensity: 1.269 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 15mm (33W)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 16.2 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 55°
    FWTM: 79°
    Peak intensity: 1.119 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 6mm
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 6.8 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: 54°
    FWTM: 74°
    Peak intensity: 1.246 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 9mm (4W/6W/12W)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 9.3 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: 53°
    FWTM: 74°
    Peak intensity: 1.237 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta SE 13mm TW
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 14.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 55°
    FWTM: 77°
    Peak intensity: 1.062 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 9mm (9W) DP
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 10.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 489 Typ L8
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 1.212 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL02x/CLU02x (LES10)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 54°
    FWTM: 75°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL03x/CLU03x
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.024 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL04x/CLU04x
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 631a Hekla XL
    FWHM: 64°
    FWTM: 90°
    Peak intensity: 0.729 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03Q Type-F
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 58° + 57°
    FWTM: 82° + 82°
    Peak intensity: 1.084 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 52°
    FWTM: 72°
    Peak intensity: 1.283 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 52°
    FWTM: 72°
    Peak intensity: 1.267 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    Ordering code: CP19103_AMY-70-WW-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 53°
    FWTM: 73°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

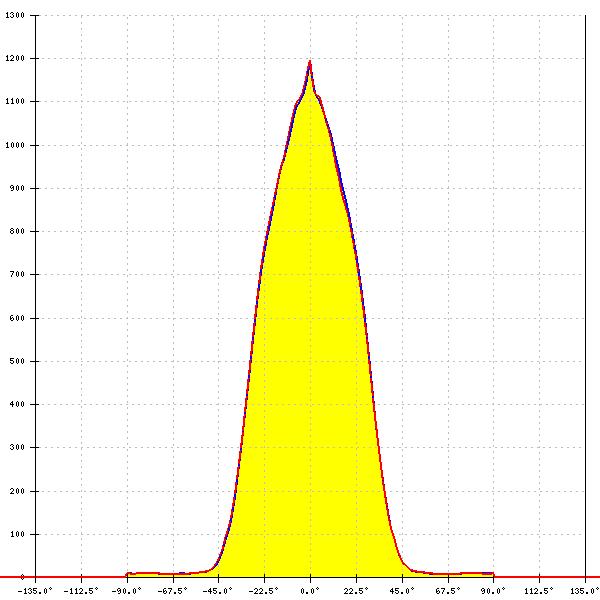

    LED: CLU7S3
    Ordering code: CP19103_AMY-70-WW-B2
    LES size: 3.5 mm
    Required components:
    Bender Wirth: 667a Bayonet35
    FWHM: 55°
    FWTM: 73°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1825
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.098 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT14xx
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 54°
    FWTM: 75°
    Peak intensity: 1.173 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMU10xx
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 76°
    Peak intensity: 1.146 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMU10xx
    Ordering code: CP19103_AMY-70-WW-B2
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 55°
    FWTM: 76°
    Peak intensity: 1.155 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMU15xx
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 57°
    FWTM: 80°
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 15xx
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 8.9 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 55°
    FWTM: 74°
    Peak intensity: 1.136 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 1830
    Ordering code: C17779_AMY-70-WW
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637b Hekla
    FWHM: 56°
    FWTM: 80°
    Peak intensity: 1.070 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 1830
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637b Hekla
    FWHM: 56°
    FWTM: 79°
    Peak intensity: 1.056 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L08 (Gen2)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 54°
    FWTM: 79°
    Peak intensity: 1.191 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 7070
    LES size: 0.0 mm
    FWHM: 51°
    FWTM: 72°
    Peak intensity: 1.282 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204/1205
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 13.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.135 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204HD
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 9.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 54°
    FWTM: 75°
    Peak intensity: 1.214 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1205HD
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 11.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.137 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1208
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 56°
    FWTM: 79°
    Peak intensity: 1.117 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S02H6
    Ordering code: CP19103_AMY-70-WW-B2
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 52°
    FWTM: 73°
    Peak intensity: 1.380 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 9.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.151 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: CP19103_AMY-70-WW-B2
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 53°
    FWTM: 75°
    Peak intensity: 1.294 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 55°
    FWTM: 77°
    Peak intensity: 1.161 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 9.0 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.215 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB S01 (Gen2)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: 54°
    FWTM: 74°
    Peak intensity: 1.274 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Fusion 12-up (20x24)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 7.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    F18158_HEKLA-RZ-LENS
    FWHM: 53°
    FWTM: 76°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Fusion 21-up (20x24)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 7.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    F18158_HEKLA-RZ-LENS
    FWHM: 53°
    FWTM: 76°
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Fusion 27-up (20x24)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 10.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    F18158_HEKLA-RZ-LENS
    FWHM: 54°
    FWTM: 78°
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHM-9 XH (19x19)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 9.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 52°
    FWTM: 74°
    Peak intensity: 1.302 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHM-9 XH (19x19)
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.017 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-14 (Tunable White) Gen2
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 13.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: 56°
    FWTM: 78°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-6 (Tunable White) Gen2
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 6.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 50°
    FWTM: 72°
    Peak intensity: 1.423 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CTM-9 (Tunable White) Gen2
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 9.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 52°
    FWTM: 74°
    Peak intensity: 1.319 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CxM-14 (19x19)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 58°
    FWTM: 81°
    Peak intensity: 0.970 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXM-3
    Ordering code: CP19103_AMY-70-WW-B2
    LES size: 3.5 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 51°
    FWTM: 70°
    Peak intensity: 1.454 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXM-4
    Ordering code: CP19103_AMY-70-WW-B2
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 51°
    FWTM: 72°
    Peak intensity: 1.404 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-6 (13.5x13.5)
    Ordering code: CP19103_AMY-70-WW-B2
    LES size: 6.3 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 54°
    FWTM: 72°
    Peak intensity: 1.292 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB J-Type
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 14.6 mm
    Required components:
    Bender Wirth: 663a Hekla XL
    FWHM: 54°
    FWTM: 79°
    Peak intensity: 1.182 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 11)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 11.5 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 56°
    FWTM: 77°
    Peak intensity: 1.101 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 6)
    Ordering code: CP19103_AMY-70-WW-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 52°
    FWTM: 72°
    Peak intensity: 1.357 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    Ordering code: CP19103_AMY-70-WW-B2
    LES size: 6.7 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 52°
    FWTM: 73°
    Peak intensity: 1.391 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB T-Type
    Ordering code: CP19103_AMY-70-WW-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 52°
    FWTM: 72°
    Peak intensity: 1.354 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NJCWL024Z-V1MT: COB L-Type Tunable White
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 7.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 497 Typ L8 HV
    FWHM: 52°
    FWTM: 74°
    Peak intensity: 1.355 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NJNWS012Z-V1MT: COB S-Type Tunable White
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 5.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8 HV
    FWHM: 50°
    FWTM: 72°
    Peak intensity: 1.378 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 10.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 498 Typ L8 HV
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.211 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: PrevaLED Core G7 LES15 CoB
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 58°
    FWTM: 80°
    Peak intensity: 0.993 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.154 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010C G2
    Ordering code: CP19103_AMY-70-WW-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 53°
    FWTM: 72°
    Peak intensity: 1.349 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010T (Tunable White)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 9.8 mm
    Required components:
    Bender Wirth: 501 Typ L8
    FWHM: 50°
    FWTM: 72°
    Peak intensity: 1.381 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 58°
    FWTM: 79°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: C17779_AMY-70-WW
    LES size: 14.5 mm
    FWHM: 58°
    FWTM: 79°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020C G2
    Ordering code: CP19103_AMY-70-WW-B2
    LES size: 8.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 54°
    FWTM: 74°
    Peak intensity: 1.249 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020T (Tunable white)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.190 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LC020T (Tunable white)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 13.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.123 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020T (Tunable white)
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 13.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.093 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC030C/040C G2
    Ordering code: CP19103_AMY-70-WW-B2
    LES size: 11.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.146 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 58°
    FWTM: 80°
    Peak intensity: 1.065 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 6
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 51°
    FWTM: 73°
    Peak intensity: 1.426 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 9.8
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 53°
    FWTM: 75°
    Peak intensity: 1.259 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES13
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 13.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.046 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES13
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 13.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.104 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XOB 14.5 mm
    Ordering code: CP19040_AMY-70-WW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 55°
    FWTM: 76°
    Peak intensity: 1.011 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
