    AMY-110-WW

    Print

    ~60° wide beam

    B variants fit ∅50 mm B+W and BJB connectors.

    This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

    Specification
    • Dimensions:
      110 mm
    • Height:
      17.10 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C18570_AMY-110-WW
      clear
    • Quantity in box:
      128 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      12.10 kg
    • MPQ:
      8 pcs
    • MOQ:
      128 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      12.10 kg
    • Assembly

      (single lens, holder)

    • CP18578_AMY-110-WW-B
      black,Holder B
    • CP19035_AMY-110-WW-B-WHT
      white,Holder B
    • CP18574_AMY-110-WW-C
      black,Holder C
    • CP19031_AMY-110-WW-C-WHT
      white,Holder C
    • Quantity in box:
      77 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.40 kg
    • MPQ:
      7 pcs
    • MOQ:
      77 pcs
    • MOQ Size:
      480 x 280 x 30 mm
    • MOQ Weight:
      9.40 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18570_AMY-110-WW
      CP18574_AMY-110-WW-C
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Catalogue

    LEDiL Latest products catalogue

    Compatibility guide

    LEDiL connector and socket compatibility

    News

    Illuminate with elegance – discover the versatility of AMY

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    News

    New products – December 13, 2022

    News

    AMY-110 – for slim and elegant wide diameter downlights

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Architectural lighting optics

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA sockets and HEKLA-G2 and -G2B connectors

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    VERO29SE-ADAPTER

    Adapter for ADELIA-110 and AMY-110. Compatible with Bridgelux VERO 29 SE interface.

    HEKLA-G2B-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2B-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-I2

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-I3

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-TW1

    Version compatible with tunable white COBs of 15.8 x 15.8 mm packages

    HEKLA-G2B-TW2

    Version compatible with tunable white COBs of 18.8 x 18.8 mm packages

    HEKLA-SOCKET-RZ

    Version with integrated RZ mixing dome for RGBW LEDs

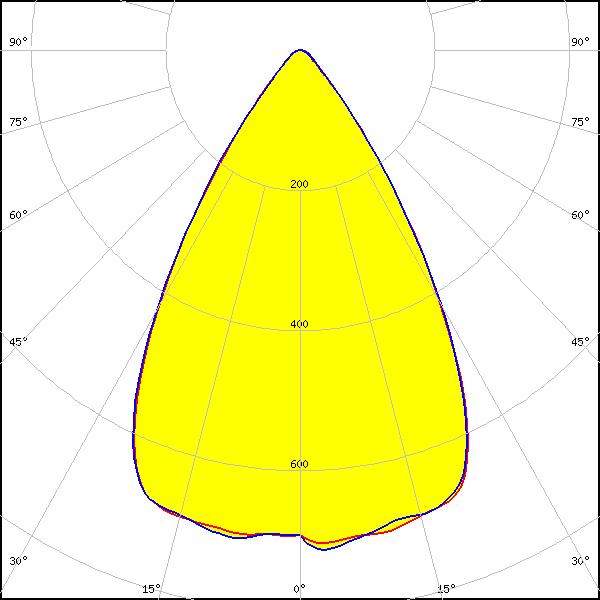

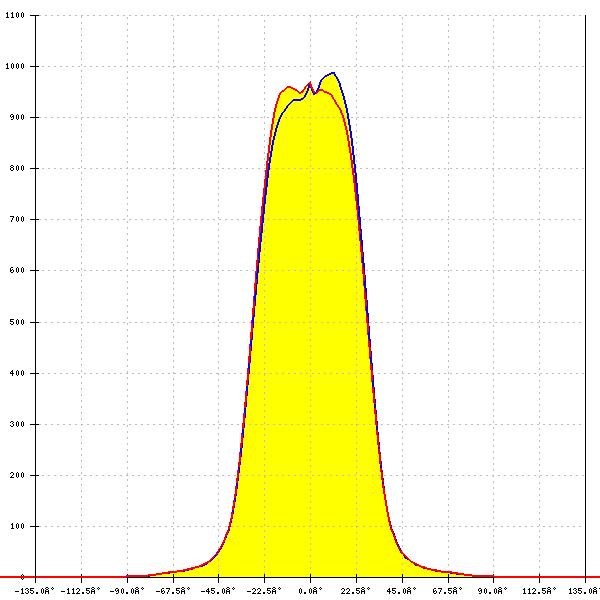

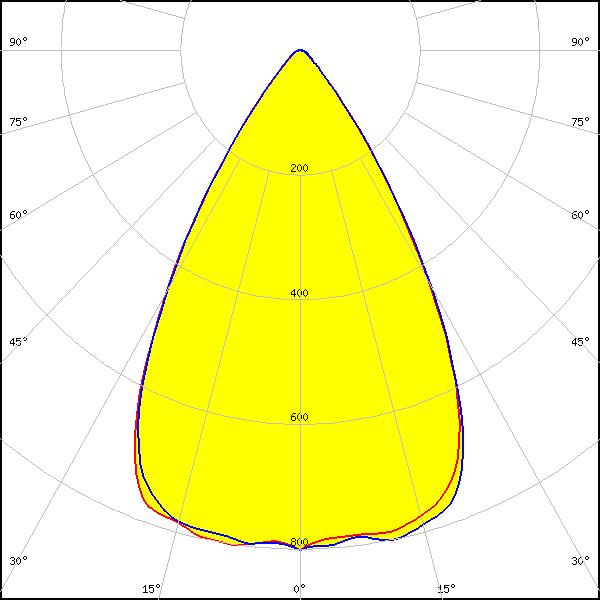

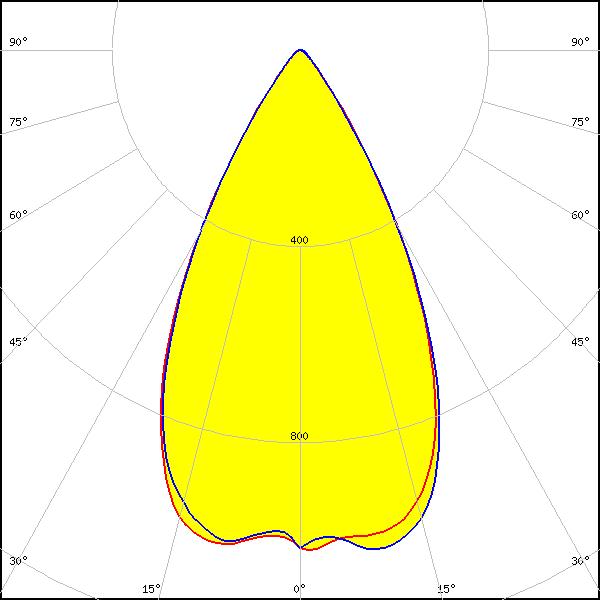

    Optical results

    LED: V10 Gen 8-9
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 10.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 53°
    FWTM: 78°
    Peak intensity: 1.178 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V11 HD Gen 8
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 11.3 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 55°
    FWTM: 78°
    Peak intensity: 1.092 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V13 Gen 8-9
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 14.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 57°
    FWTM: 80°
    Peak intensity: 1.012 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V18 Gen 8-9
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 19.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 462 Typ L8
    FWHM: 60°
    FWTM: 84°
    Peak intensity: 0.870 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

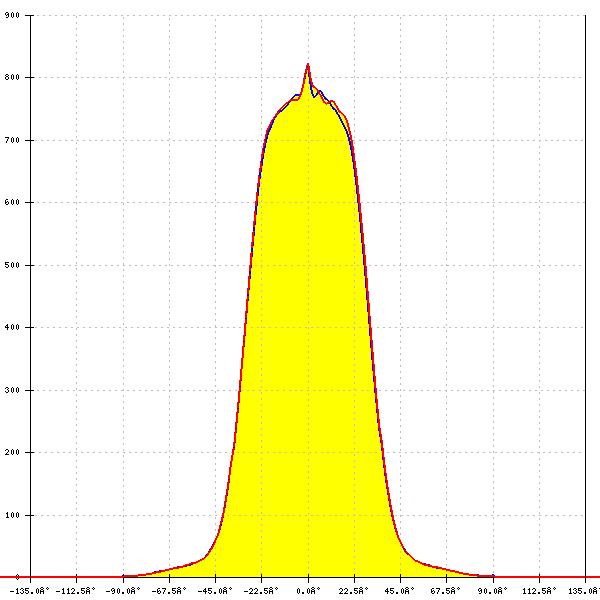

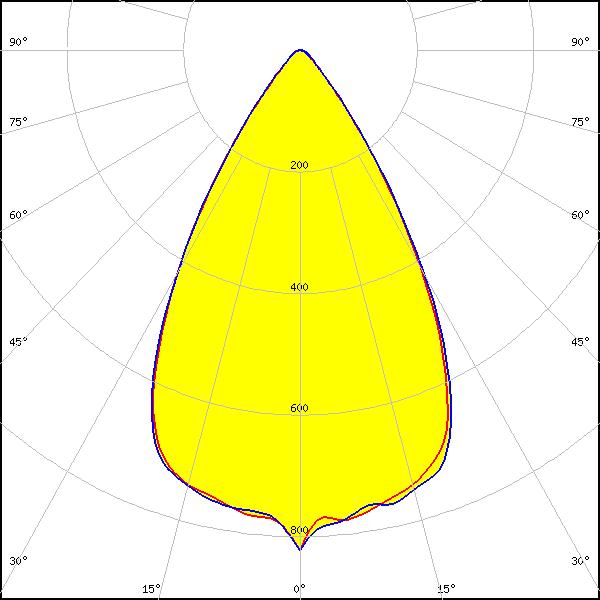

    LED: V22 Gen 8-9
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 23.3 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    FWHM: 60°
    FWTM: 85°
    Peak intensity: 0.823 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V8 Gen 8-9
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 8.5 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 50°
    FWTM: 75°
    Peak intensity: 1.267 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V9 HD Gen 8
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 8.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 53°
    FWTM: 77°
    Peak intensity: 1.197 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vero SE 29
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 29.2 mm
    FWHM: 62°
    FWTM: 88°
    Peak intensity: 0.670 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vero SE 29
    Ordering code: CP19031_AMY-110-WW-C-WHT
    LES size: 29.2 mm
    FWHM: 63°
    FWTM: 95°
    Peak intensity: 0.710 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO13
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 13.4 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 58°
    FWTM: 82°
    Peak intensity: 1.001 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO18
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 18.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 64°
    FWTM: 86°
    Peak intensity: 0.836 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 13mm (21W)
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 51°
    FWTM: 76°
    Peak intensity: 1.246 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 9mm (4W/6W/12W)
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 9.3 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: 51°
    FWTM: 76°
    Peak intensity: 1.232 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

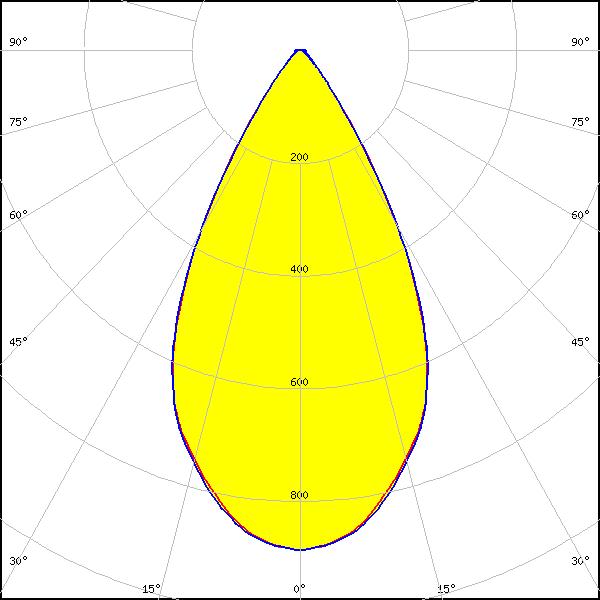

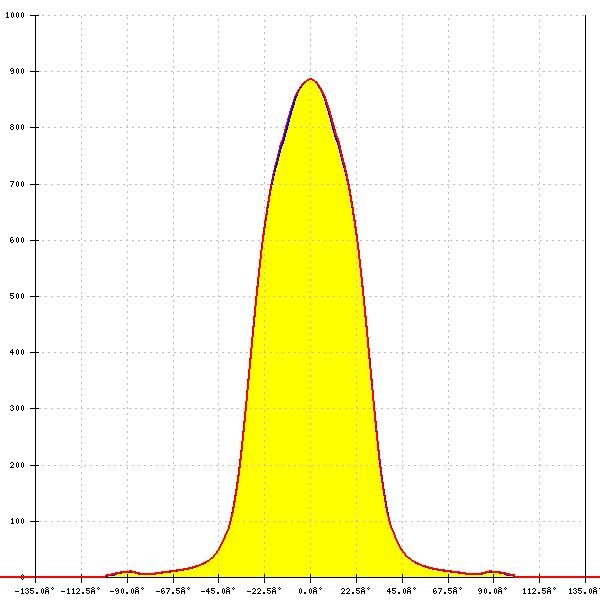

    LED: Vesta RGBW 10mm CSP
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 10.0 mm
    Required components:
    C19950_HEKLA-SOCKET-RZ
    FWHM: 56°
    FWTM: 80°
    Peak intensity: 0.887 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 28
    Light colour/type: RGBW
    LED: Vesta SE 13mm TW
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 14.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 50°
    FWTM: 74°
    Peak intensity: 1.192 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 18mm (31W) DP
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 19.7 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 483 Typ L8
    FWHM: 59°
    FWTM: 82°
    Peak intensity: 0.886 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 9mm (9W) DP
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 10.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 489 Typ L8
    FWHM: 58°
    FWTM: 82°
    Peak intensity: 1.044 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 56°
    FWTM: 80°
    Peak intensity: 1.111 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    Ordering code: CP18578_AMY-110-WW-B
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.114 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    Ordering code: CP19031_AMY-110-WW-C-WHT
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 57°
    FWTM: 81°
    Peak intensity: 1.123 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    Ordering code: CP19035_AMY-110-WW-B-WHT
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 56°
    FWTM: 80°
    Peak intensity: 1.178 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    Ordering code: C18570_AMY-110-WW
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 56°
    FWTM: 80°
    Peak intensity: 1.111 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU04x
    Ordering code: CP18578_AMY-110-WW-B
    LES size: 22.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: 60°
    FWTM: 83°
    Peak intensity: 0.909 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU04x
    Ordering code: CP19035_AMY-110-WW-B-WHT
    LES size: 22.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: 60°
    FWTM: 85°
    Peak intensity: 0.958 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU04x
    Ordering code: C18570_AMY-110-WW
    LES size: 22.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: 60°
    FWTM: 83°
    Peak intensity: 0.909 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

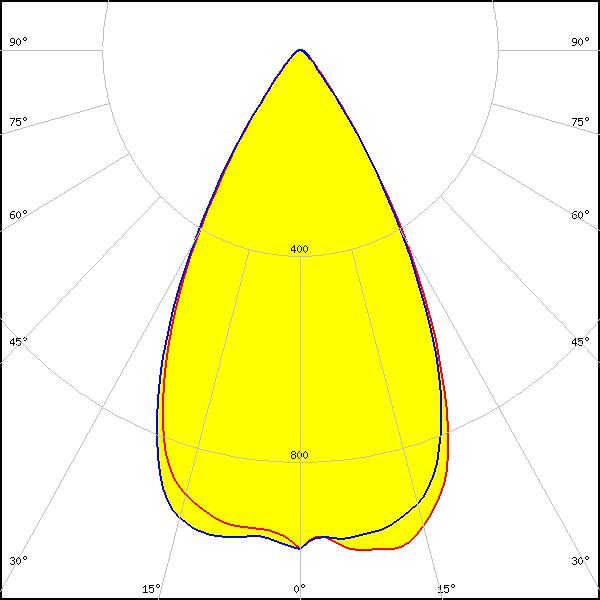

    LED: CMA1840
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 58°
    FWTM: 80°
    Peak intensity: 0.990 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA2550
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 19.0 mm
    Required components:
    Bender Wirth: 639a Hekla XL
    FWHM: 62°
    FWTM: 85°
    Peak intensity: 0.816 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

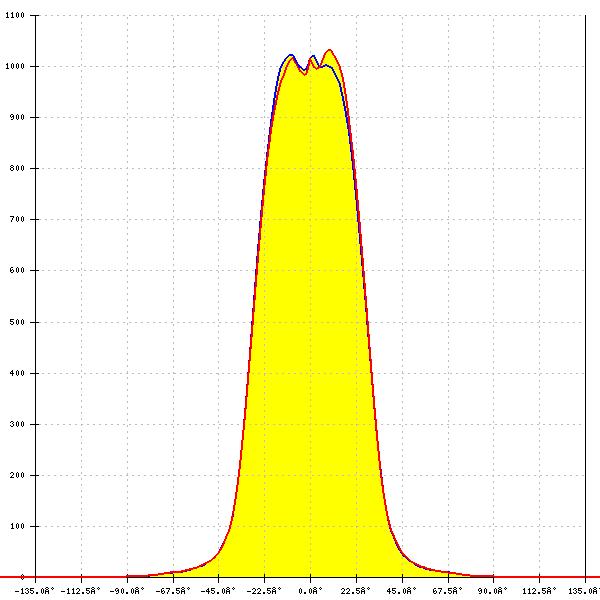

    LED: CMB1818-25
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 12.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.035 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

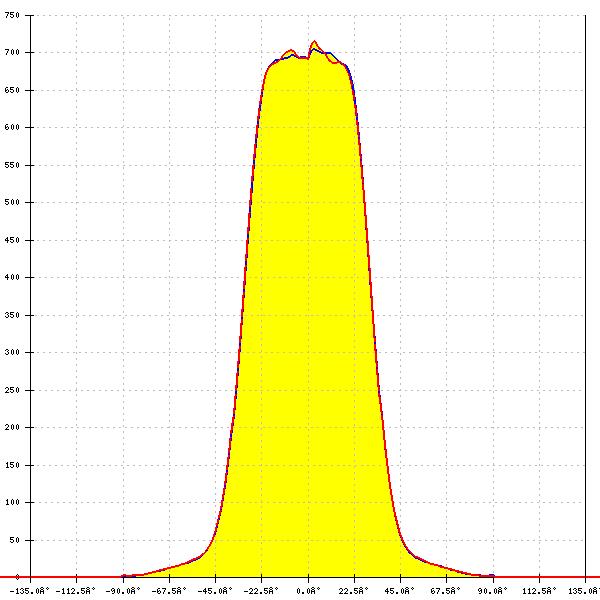

    LED: CMU22xx
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    FWHM: 64°
    FWTM: 88°
    Peak intensity: 0.721 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L08 (Gen2)
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 56°
    FWTM: 80°
    Peak intensity: 1.066 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204/1205
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 13.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.109 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1208
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 56°
    FWTM: 80°
    Peak intensity: 1.077 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1211
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 18.5 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    FWHM: 62°
    FWTM: 86°
    Peak intensity: 0.891 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1213/1216/1812
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 23.0 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    FWHM: 68°
    FWTM: 92°
    Peak intensity: 0.658 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 55°
    FWTM: 78°
    Peak intensity: 1.085 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-14 (Tunable White) Gen2
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 13.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: 57°
    FWTM: 81°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB J-Type
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 14.6 mm
    Required components:
    Bender Wirth: 663a Hekla XL
    FWHM: 55°
    FWTM: 80°
    Peak intensity: 1.089 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP18578_AMY-110-WW-B
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 56°
    FWTM: 79°
    Peak intensity: 1.085 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP19035_AMY-110-WW-B-WHT
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 56°
    FWTM: 80°
    Peak intensity: 1.124 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 60°
    FWTM: 84°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020T (Tunable white)
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 1.143 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LC040D / LC060D / LC080D
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    FWHM: 66°
    FWTM: 90°
    Peak intensity: 0.697 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 56°
    FWTM: 80°
    Peak intensity: 1.048 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 22
    Ordering code: CP18578_AMY-110-WW-B
    LES size: 22.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: 61°
    FWTM: 84°
    Peak intensity: 0.881 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

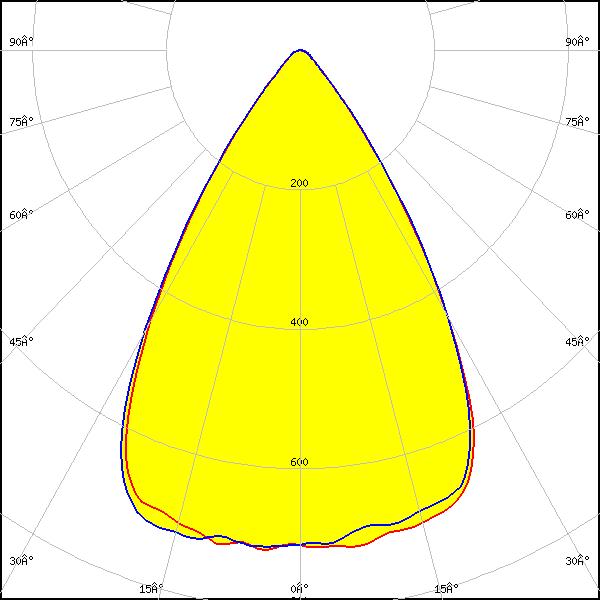

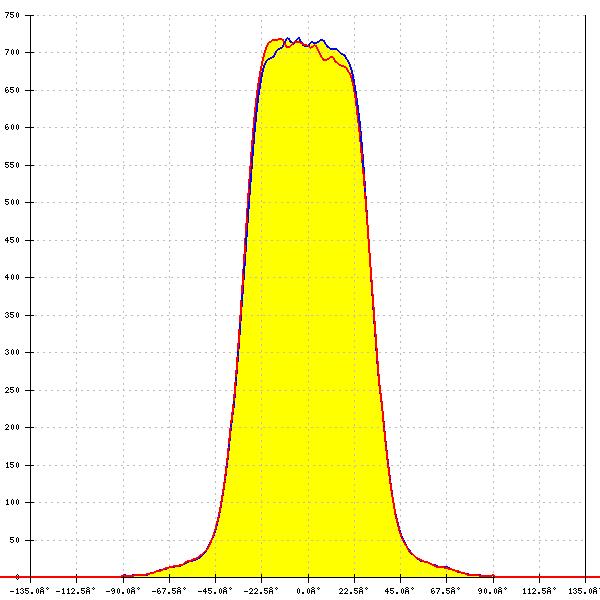

    LED: SLE 21mm 6000lm xxx R ADV8
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 20.5 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    FWHM: 65°
    FWTM: 88°
    Peak intensity: 0.738 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES13
    Ordering code: CP18574_AMY-110-WW-C
    LES size: 13.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 57°
    FWTM: 79°
    Peak intensity: 1.009 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES13 H
    Ordering code: CP18578_AMY-110-WW-B
    FWHM: 51°
    FWTM: 72°
    Peak intensity: 1.208 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
