YASMEEN-35-W
Print
~36° spot beam
This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.
Component Materials
- YASMEEN-35-WSingle lensPMMA
- YASMEEN-35-HLD-B-WHTHolderPC
- YASMEEN-35-HLD-BHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:
V10 Gen 8-9
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 10.0 mm
Required components:
Bender Wirth: 634b Bayonet35L
FWHM:
38°
FWTM:
61°
Peak intensity:
2.016 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 HD Gen 8
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 6.6 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
37°
FWTM:
56°
Peak intensity:
2.365 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta DTW 6mm
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 6.8 mm
Required components:
Bender Wirth: 652b Bayonet35L
FWHM:
36°
FWTM:
56°
Peak intensity:
2.344 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Bayonet35L
FWHM:
35°
FWTM:
58°
Peak intensity:
2.377 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

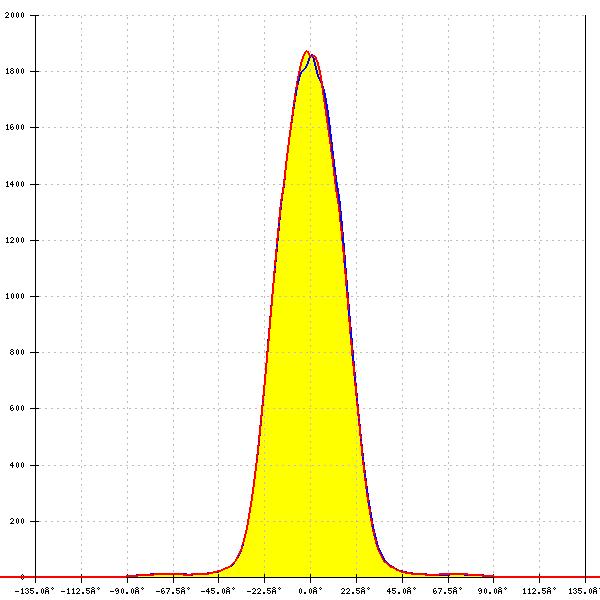

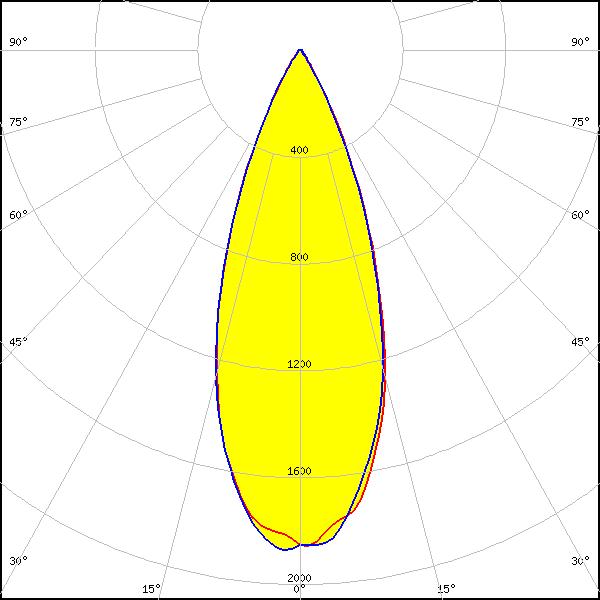

LED:
CLU02x (LES10)
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
36°
FWTM:
59°
Peak intensity:
2.110 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

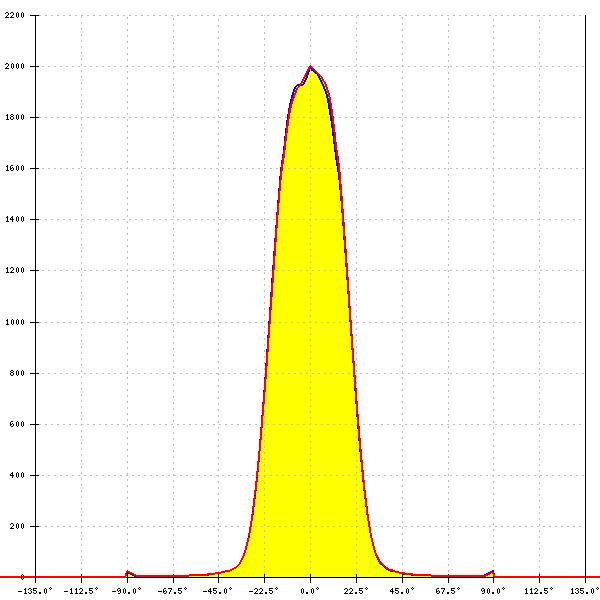

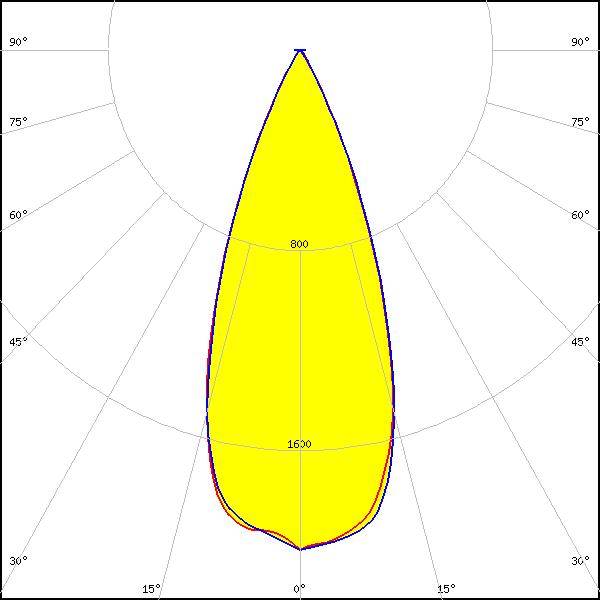

LED:
CLU700/701/702/703
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
36°
FWTM:
54°
Peak intensity:
2.443 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

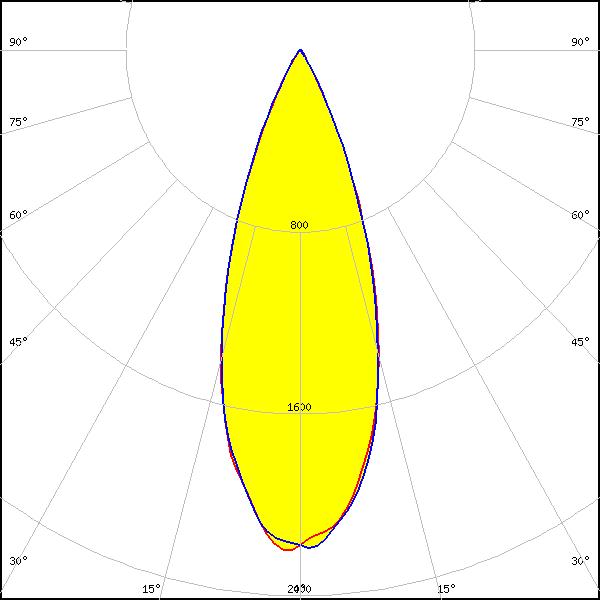

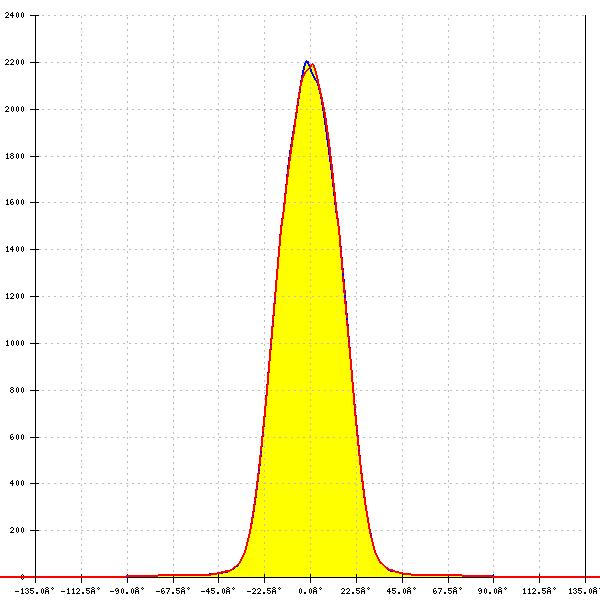

LED:
CLU703 Type-F
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
40°
FWTM:
58°
Peak intensity:
1.999 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7A2/7A3
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 4.2 mm
Required components:
BJB: 47.360.1020
FWHM:
34°
FWTM:
48°
Peak intensity:
2.951 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

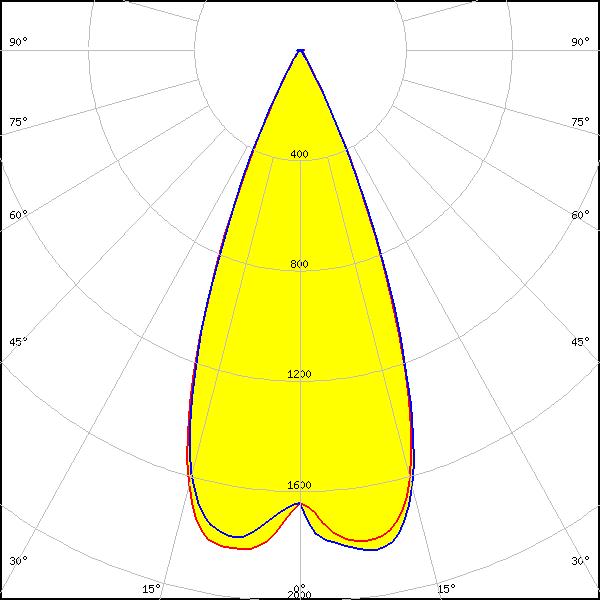

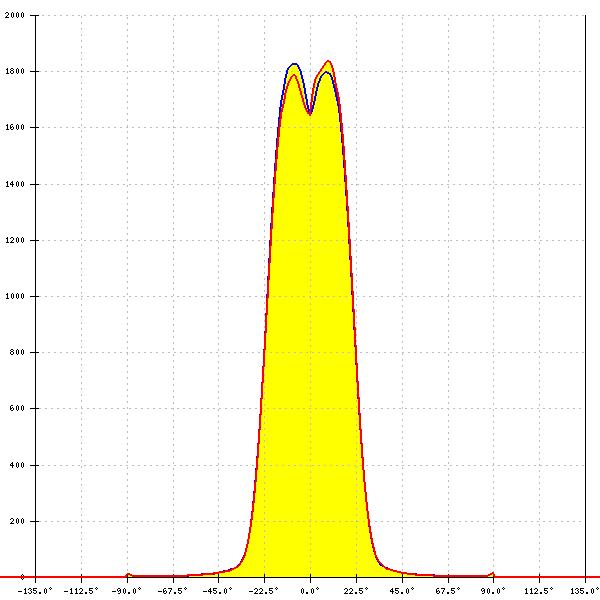

LED:
CLU7A3 Type-F
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 4.2 mm
Required components:
BJB: 47.360.1020
FWHM:
42° + 43°
FWTM:
58° + 58°
Peak intensity:
1.846 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7B2
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 3.3 mm
Required components:
BJB: 47.360.1020
FWHM:
34°
FWTM:
48°
Peak intensity:
2.929 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7L3
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 2.4 mm
Required components:
FWHM:
32°
FWTM:
46°
Peak intensity:
3.195 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7R3
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 4.2 mm
Required components:
FWHM:
34°
FWTM:
52°
Peak intensity:
2.622 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7S3
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 3.5 mm
Required components:
FWHM:
34°
FWTM:
50°
Peak intensity:
2.722 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHA0304
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 3.3 mm
Required components:
BJB: 47.360.1020
FWHM:
34°
FWTM:
48°
Peak intensity:
2.924 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHA0410
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 4.2 mm
Required components:
BJB: 47.360.1020
FWHM:
33°
FWTM:
48°
Peak intensity:
2.967 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHA0612
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
34°
FWTM:
52°
Peak intensity:
2.774 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L RGBW (XMLDCL HD)
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 0.0 mm
Required components:
BJB: 47.360.1010
FWHM:
26°
FWTM:
45°
Peak intensity:
4.079 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S01H4
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
36°
FWTM:
52°
Peak intensity:
2.468 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S02H6
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
37°
FWTM:
56°
Peak intensity:
2.367 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S04H9
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 9.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
36°
FWTM:
60°
Peak intensity:
2.163 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

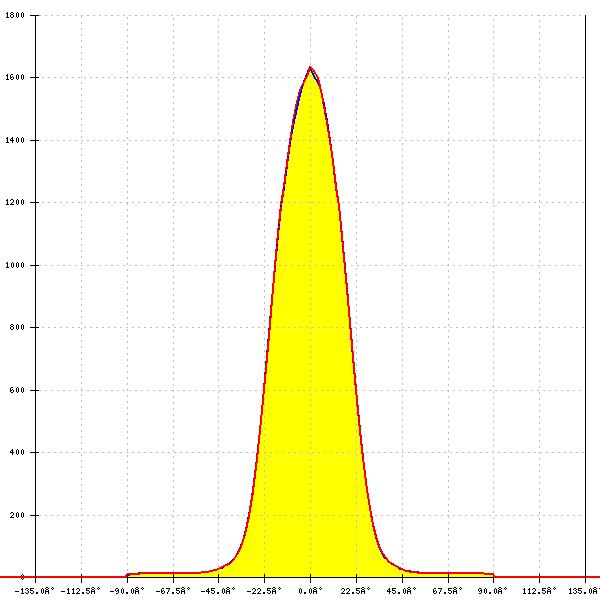

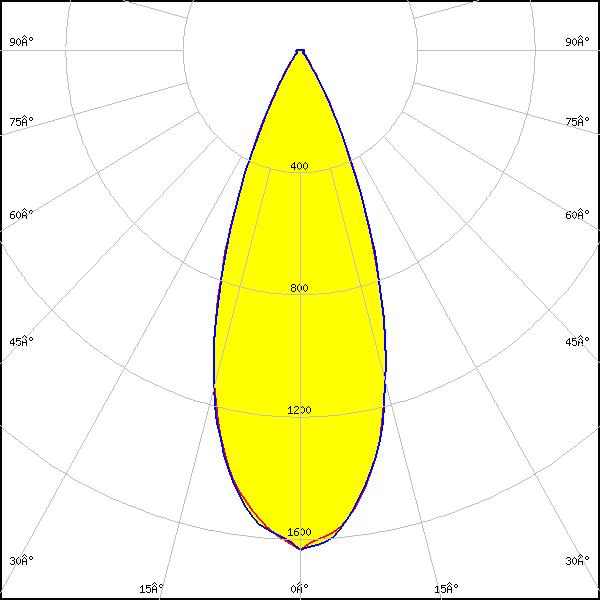

LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 12.0 mm
Required components:
BJB: 47.360.1040
FWHM:
39°
FWTM:
62°
Peak intensity:
1.644 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB S01 (Gen2)
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
36°
FWTM:
54°
Peak intensity:
2.472 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-3
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 3.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
35°
FWTM:
48°
Peak intensity:
2.870 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-3
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 3.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
35°
FWTM:
48°
Peak intensity:
2.870 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-4
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 4.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
34°
FWTM:
50°
Peak intensity:
2.786 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-6 (13.5x13.5)
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
FWHM:
32°
FWTM:
50°
Peak intensity:
2.926 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

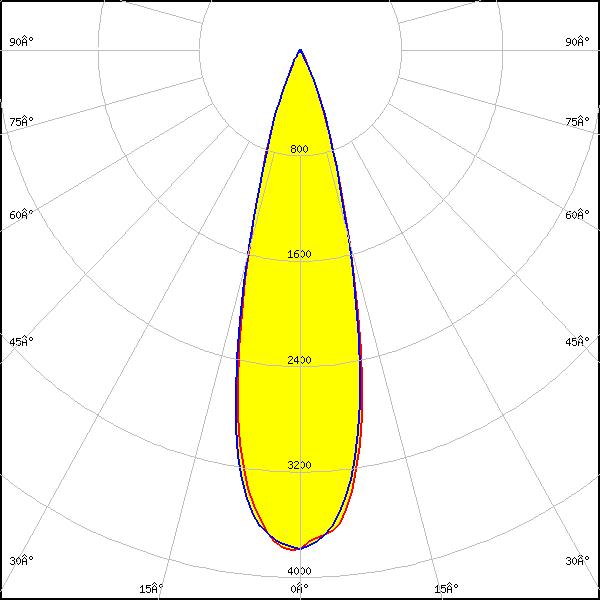

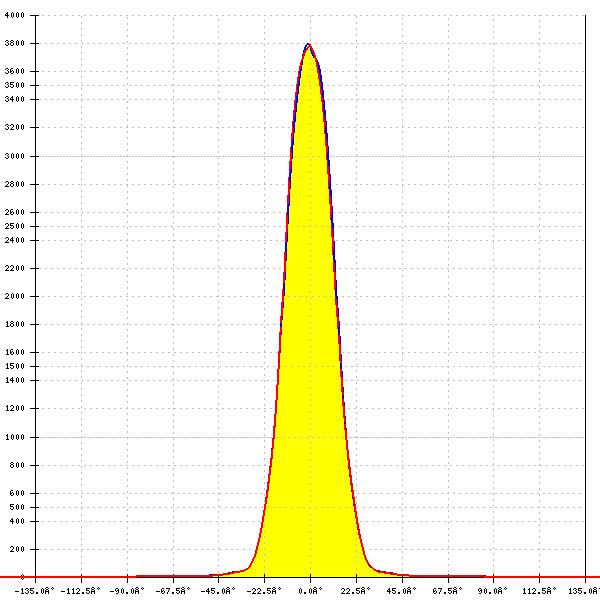

LED:
CxM-6 (13.5x13.5)
Ordering code: CP19222_YASMEEN-35-W-B-WHT
LES size: 6.3 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
28°
FWTM:
46°
Peak intensity:
3.843 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 6)
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
36°
FWTM:
54°
Peak intensity:
2.414 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
36°
FWTM:
56°
Peak intensity:
2.414 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB T-Type
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
36°
FWTM:
54°
Peak intensity:
2.412 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

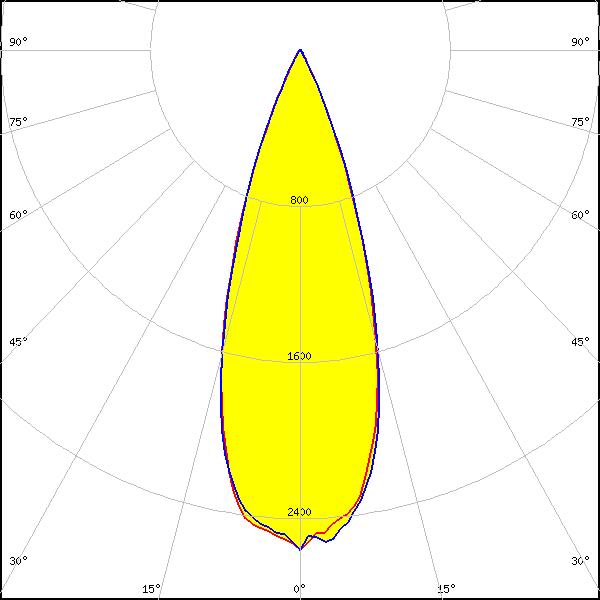

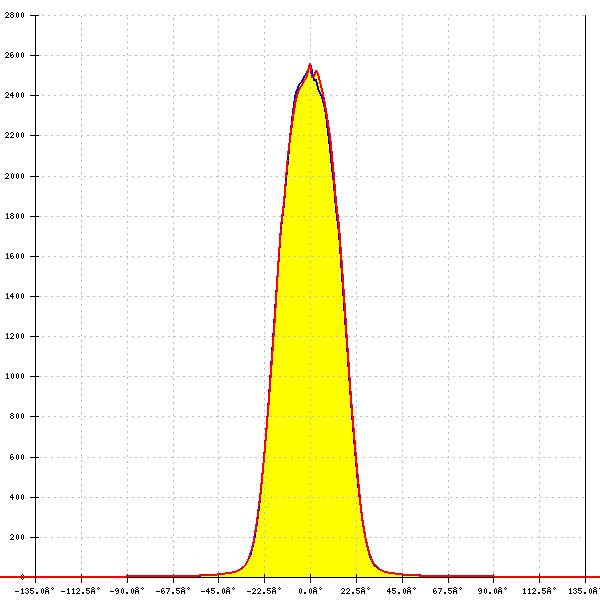

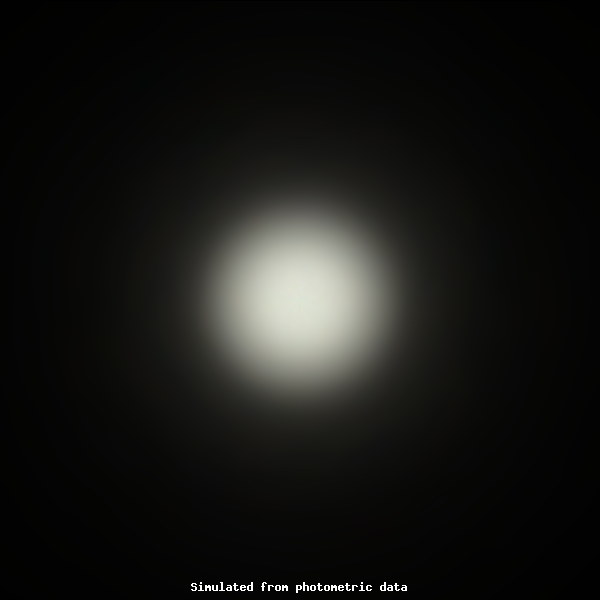

LED:
NF1202EFC-V5
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
34°
FWTM:
52°
Peak intensity:
2.604 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
36°
FWTM:
58°
Peak intensity:
2.253 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C G2
Ordering code: CP18525_YASMEEN-35-W-B
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
29°
FWTM:
49°
Peak intensity:
2.926 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
