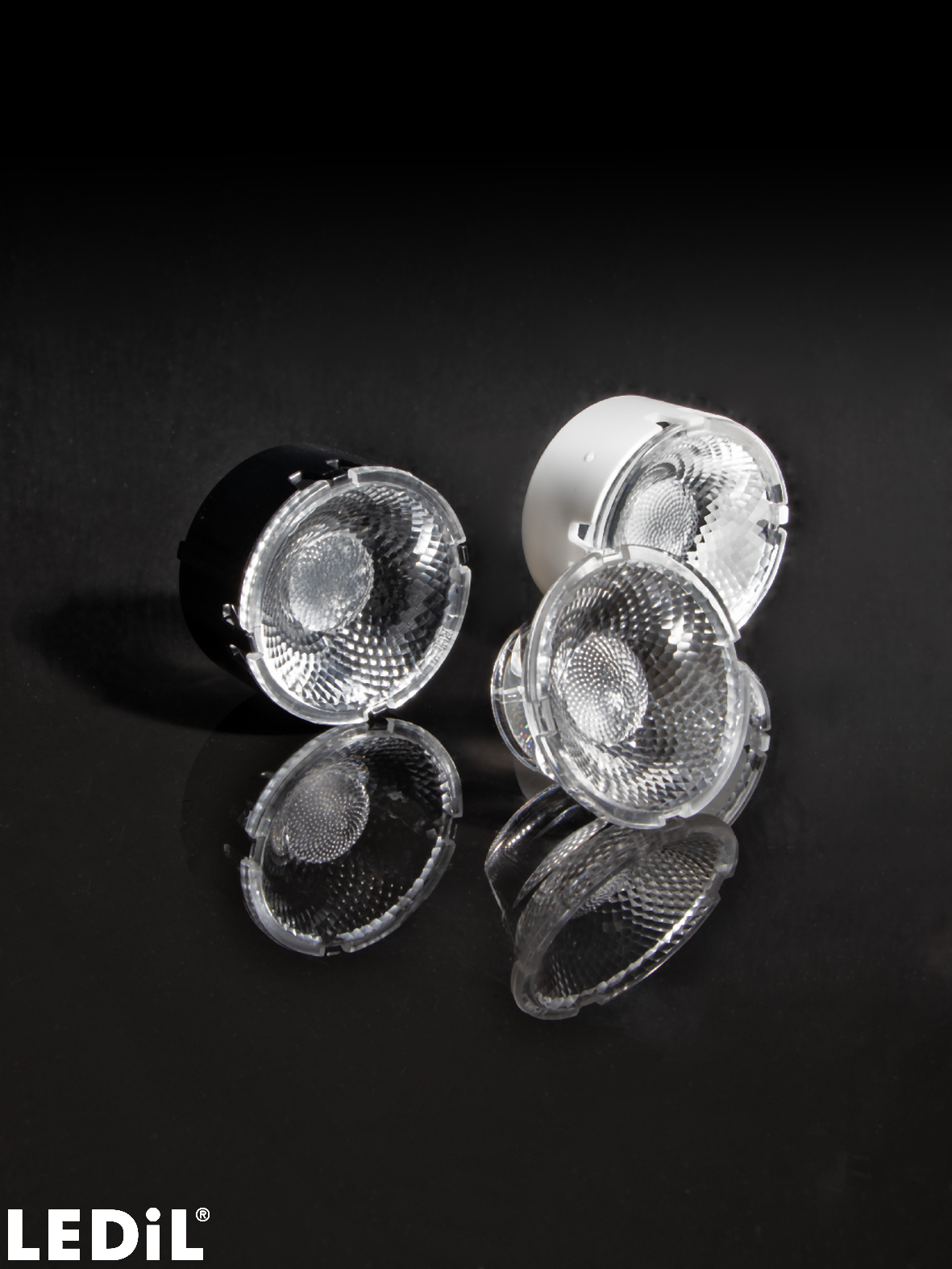

YASMEEN-35-M

Print

~26° spot beam

This product consists of multiple buying options. See ordering information.

Specification
  • Dimensions:
    35 mm
  • Height:
    18.00 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials
  • YASMEEN-35-M
    PMMA
  • YASMEEN-35-HLD-B-WHT
    PC
  • YASMEEN-35-HLD-B
    PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Single lens
  • C18519_YASMEEN-35-M
    clear
  • Quantity in box:
    840 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.30 kg
  • MPQ:
    60 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 60 mm
  • MOQ Weight:
    1.30 kg
  • Assembly
  • CP18524_YASMEEN-35-M-B
    black,Holder B
  • CP19221_YASMEEN-35-M-B-WHT
    white,Holder B
  • Quantity in box:
    780 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    9.90 kg
  • MPQ:
    60 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 70 mm
  • MOQ Weight:
    1.60 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C18519_YASMEEN-35-M
    CP18524_YASMEEN-35-M-B

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

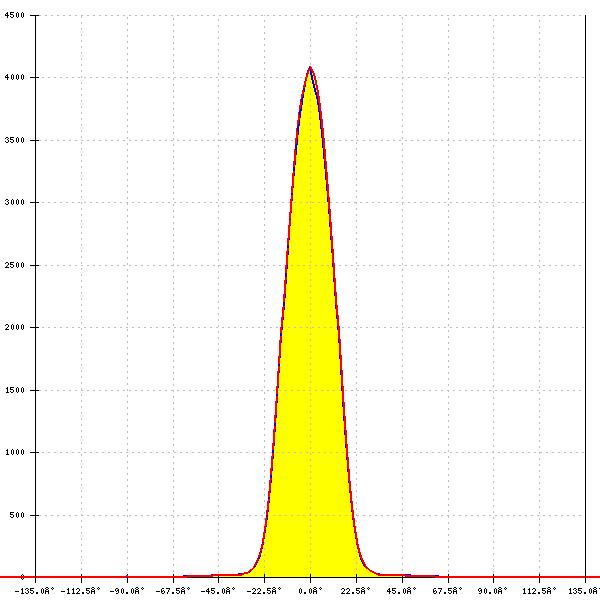

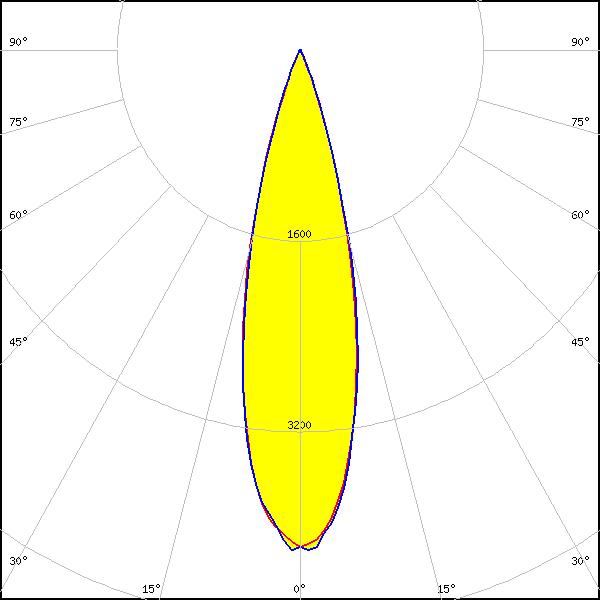

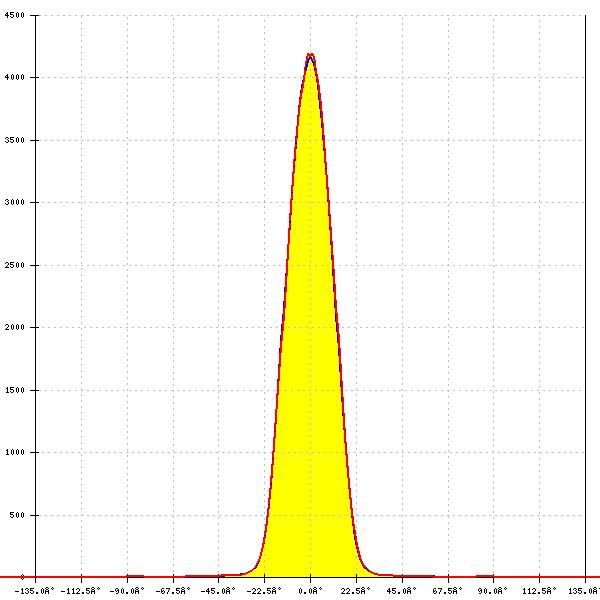

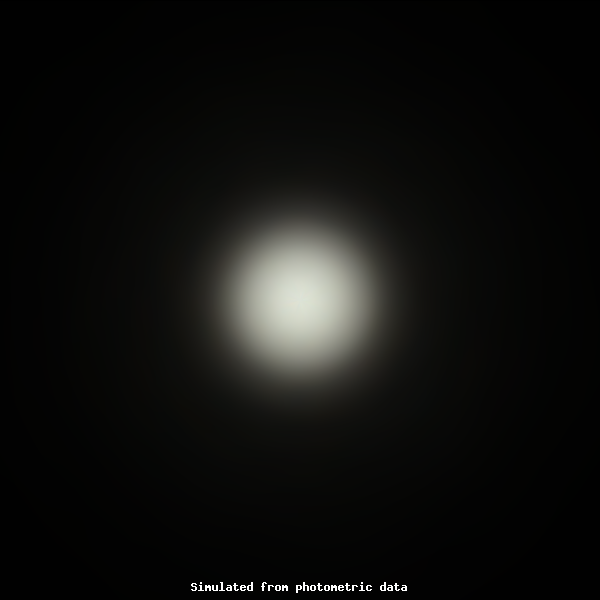

Optical results

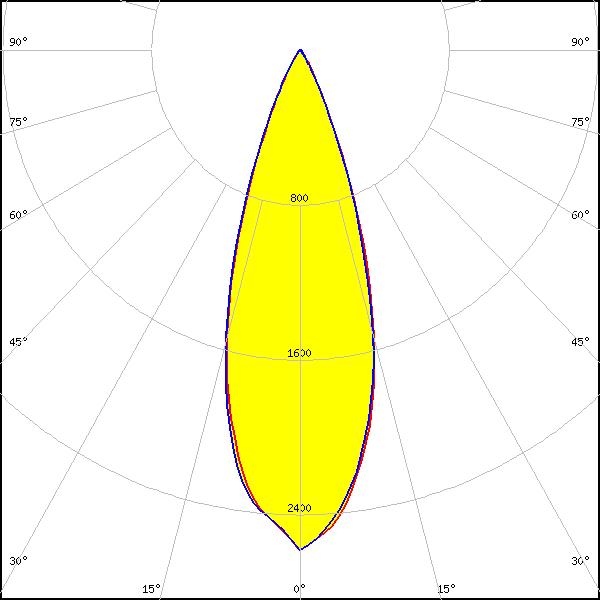

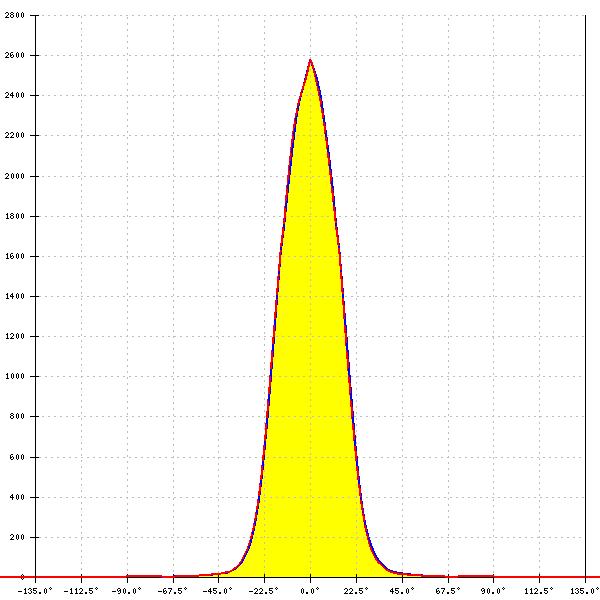

LED: V10 Gen 8-9
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 10.0 mm
Required components:
Bender Wirth: 634b Bayonet35L
FWHM: 34°
FWTM: 55°
Peak intensity: 2.583 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: V4 HD Gen 7
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 5.2 mm
Required components:
BJB: 47.360.1020
FWHM: 26°
FWTM: 38°
Peak intensity: 4.984 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

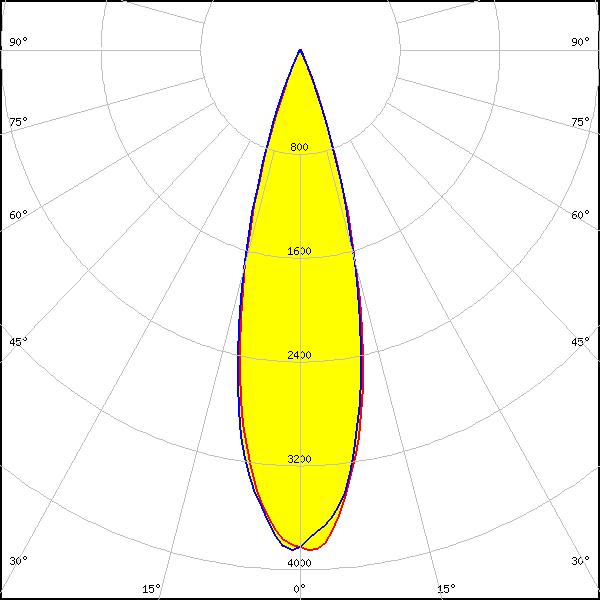

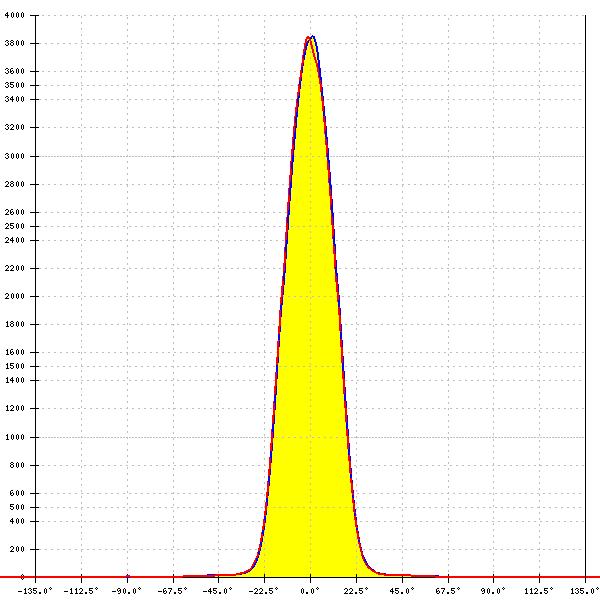

LED: V6 HD Gen 8
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 6.6 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 28°
FWTM: 45°
Peak intensity: 3.873 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

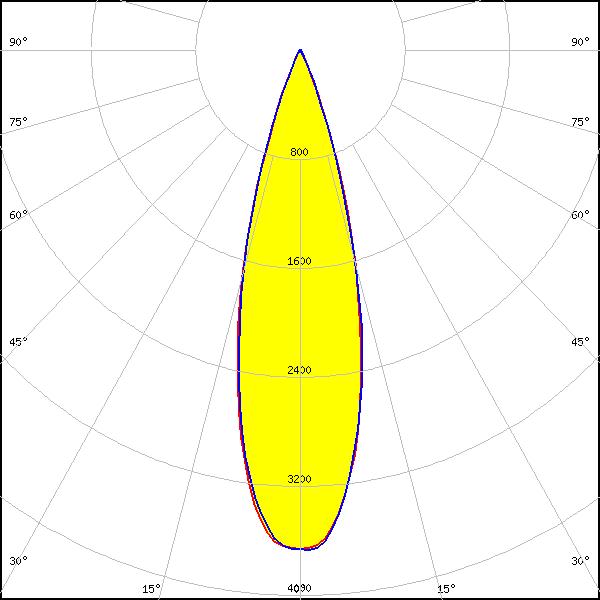

LED: Vesta DTW 6mm
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 6.8 mm
Required components:
Bender Wirth: 652b Bayonet35L
FWHM: 28°
FWTM: 46°
Peak intensity: 3.713 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Bayonet35L
FWHM: 31°
FWTM: 50°
Peak intensity: 3.198 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

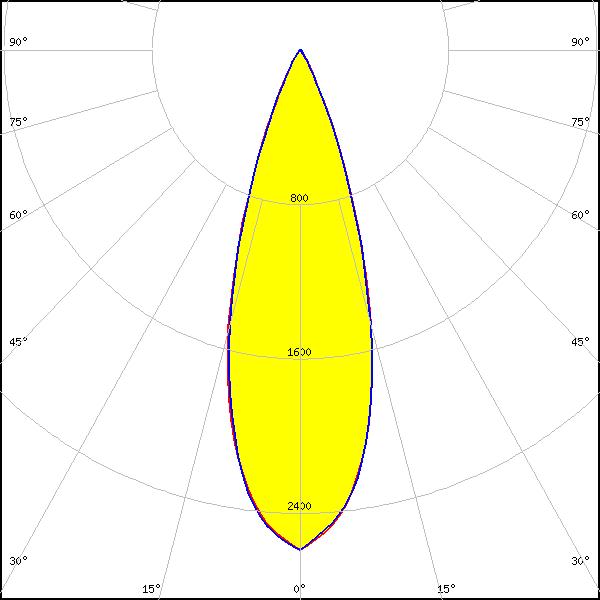

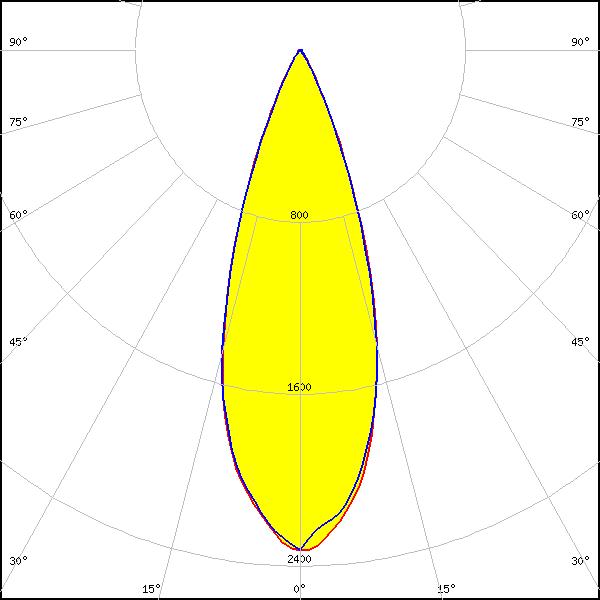

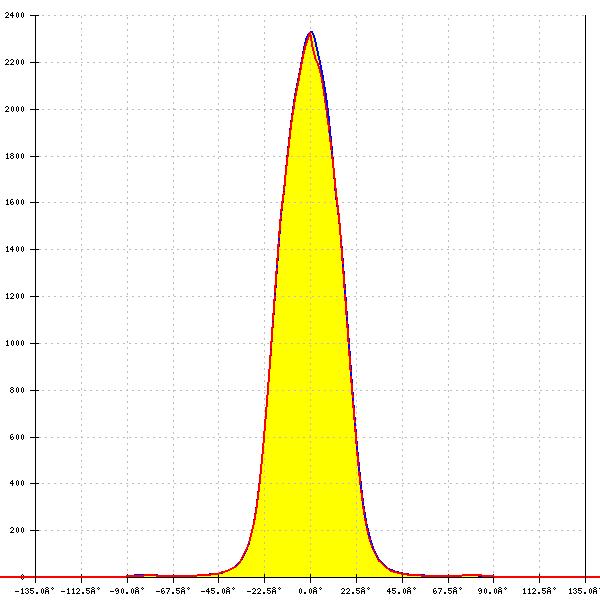

LED: CLL02x/CLU02x (LES10)
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM: 32°
FWTM: 53°
Peak intensity: 2.613 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

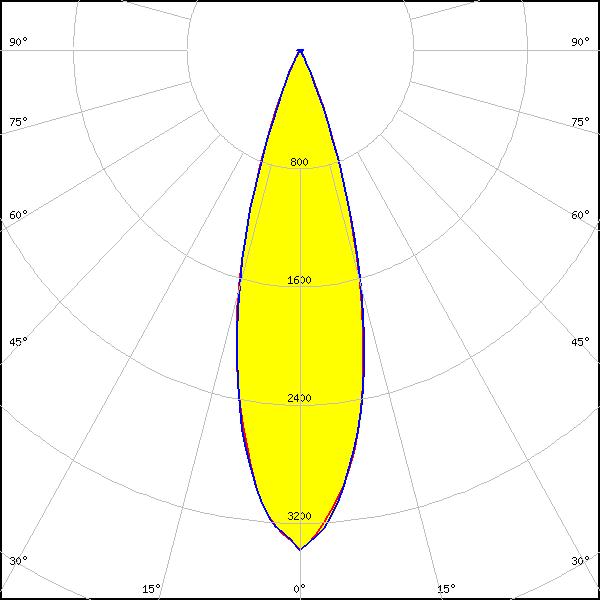

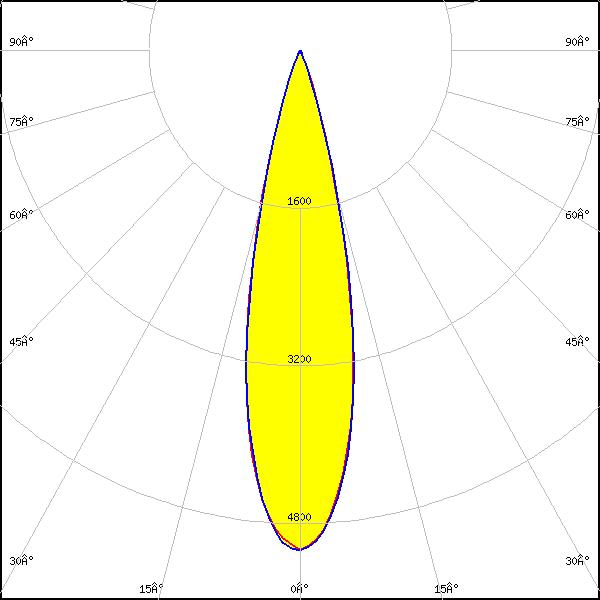

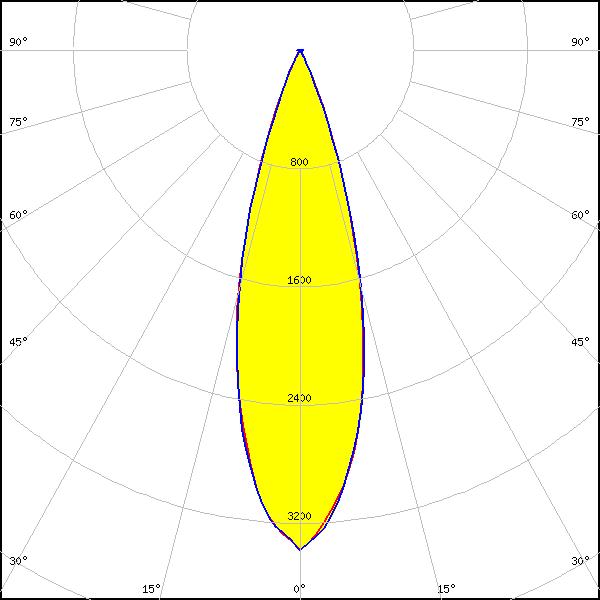

LED: CLU700/701/702/703
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM: 24°
FWTM: 39°
Peak intensity: 5.098 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

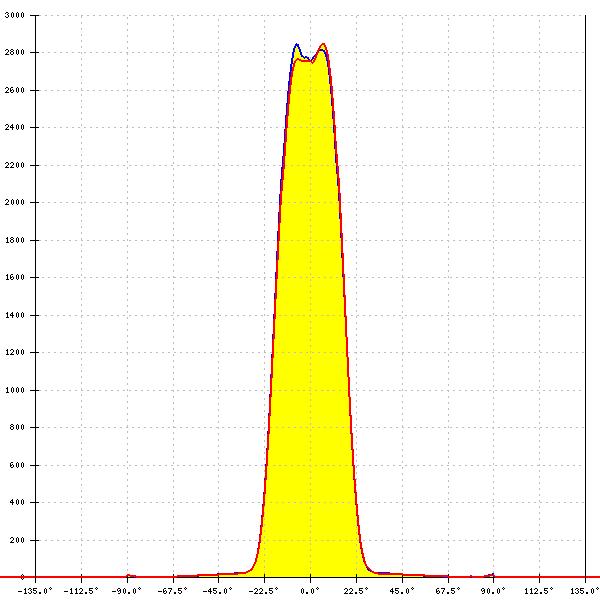

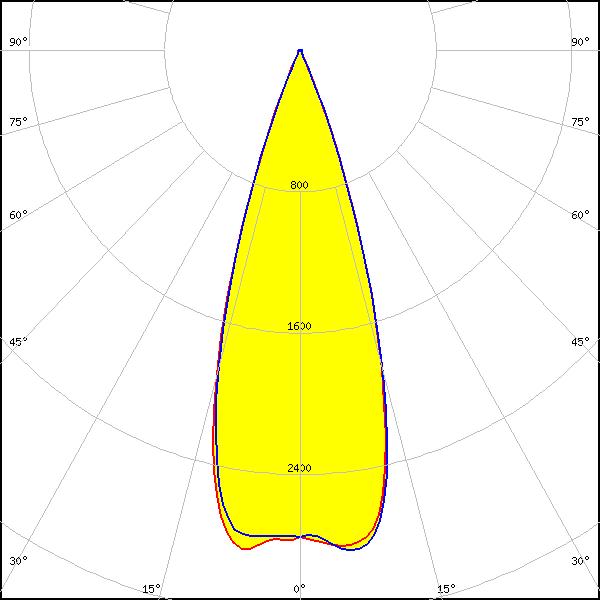

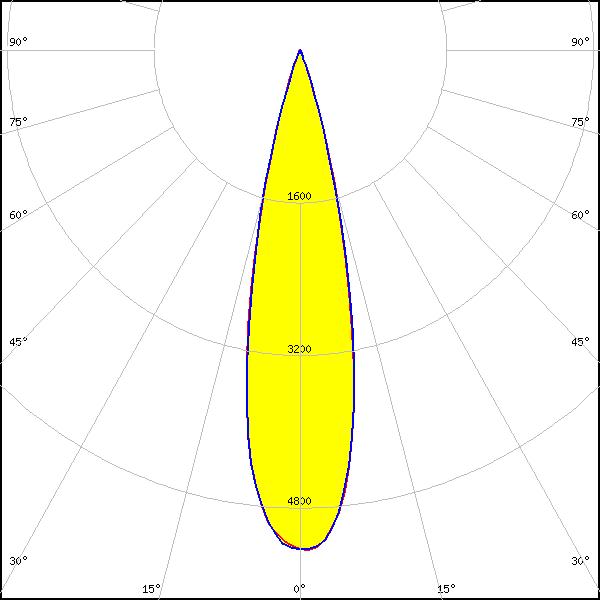

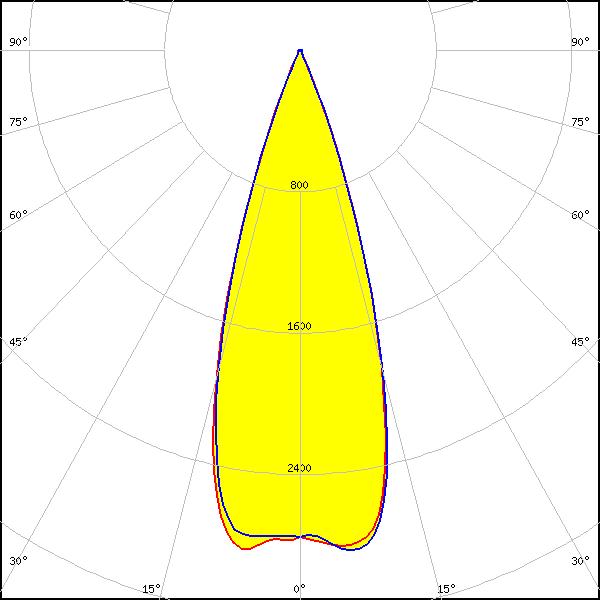

LED: CLU7A2/7A3
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 4.2 mm
Required components:
BJB: 47.360.1020
FWHM: 24°
FWTM: 38°
Peak intensity: 5.288 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

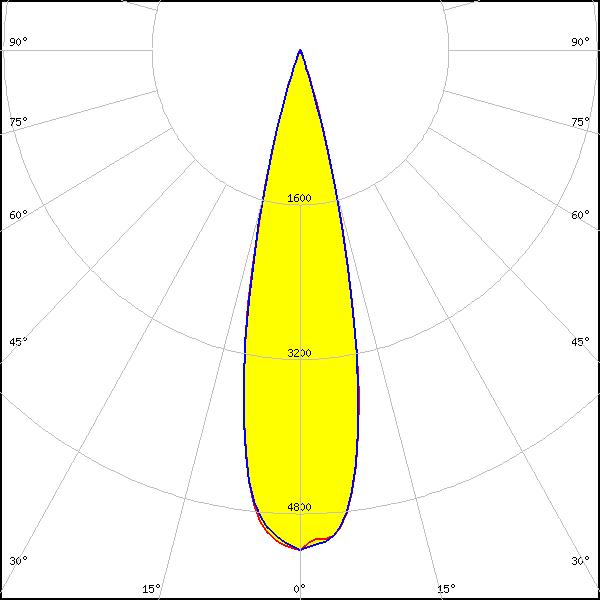

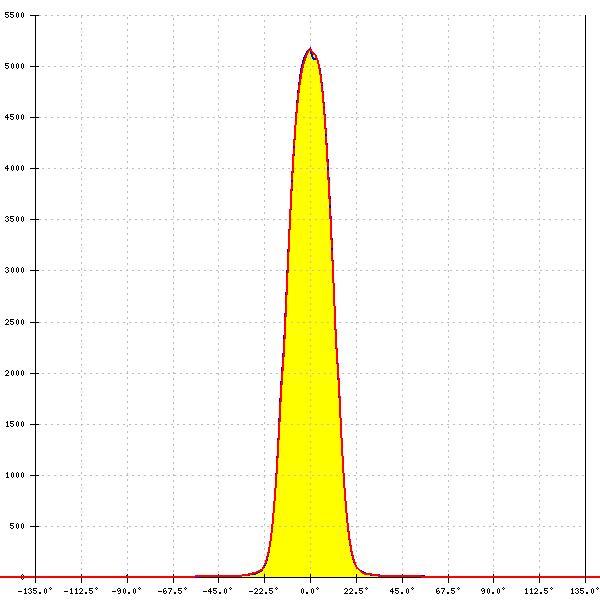

LED: CLU7B2
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 3.3 mm
Required components:
BJB: 47.360.1020
FWHM: 24°
FWTM: 36°
Peak intensity: 5.213 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

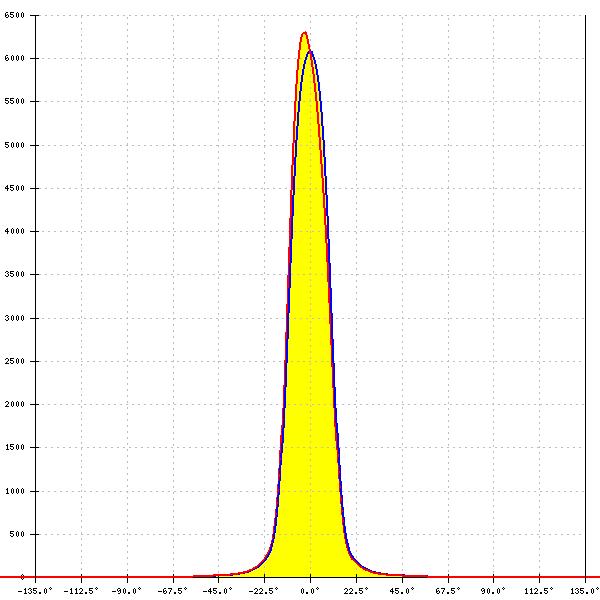

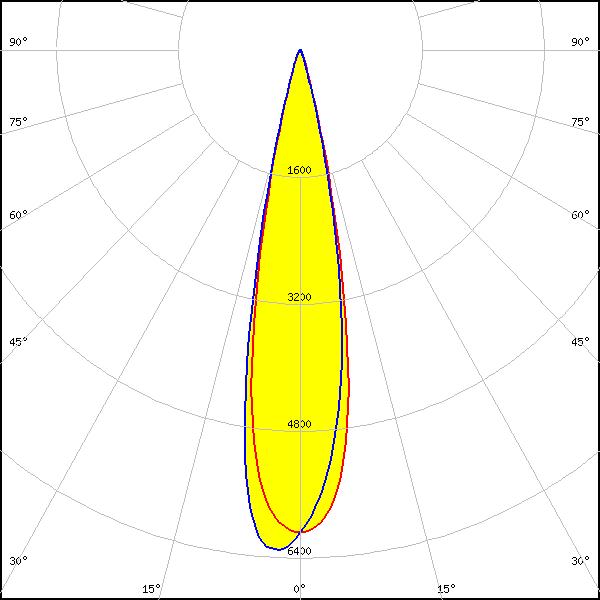

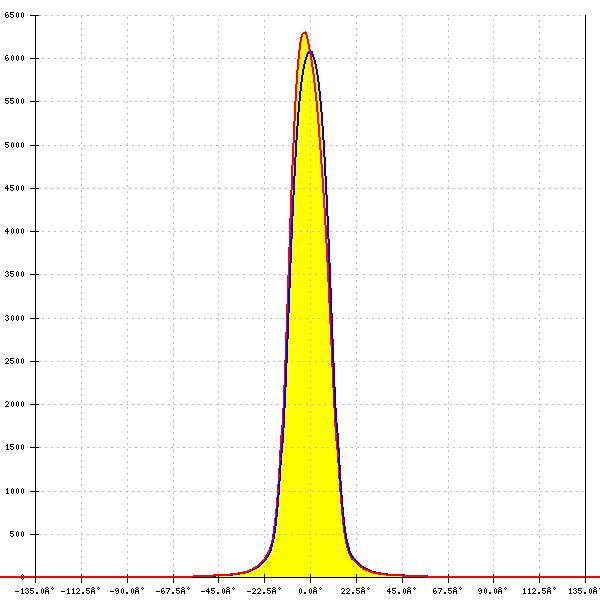

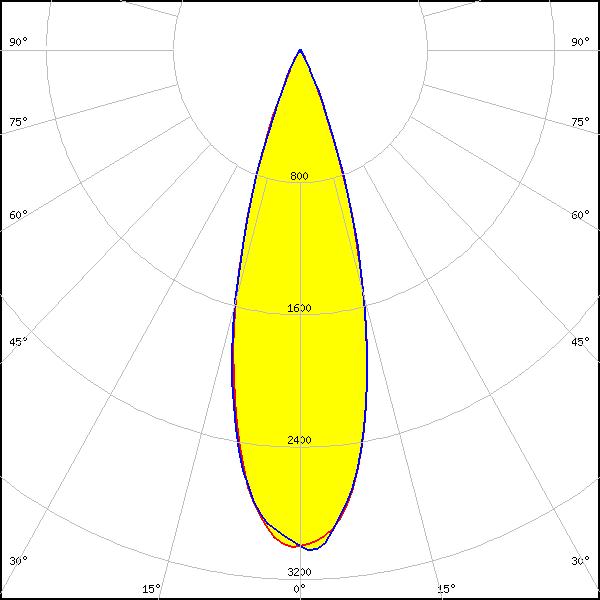

LED: CLU7L3
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 2.4 mm
Required components:
FWHM: 21°
FWTM: 33°
Peak intensity: 6.364 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

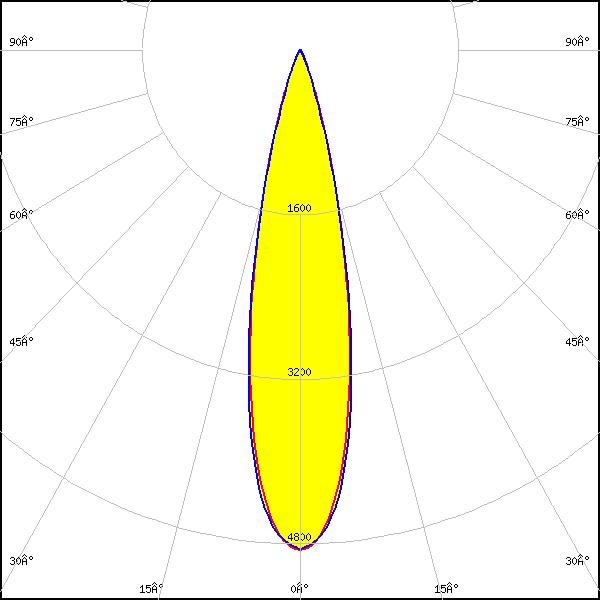

LED: CLU7R3
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 4.2 mm
Required components:
FWHM: 23°
FWTM: 40°
Peak intensity: 4.942 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

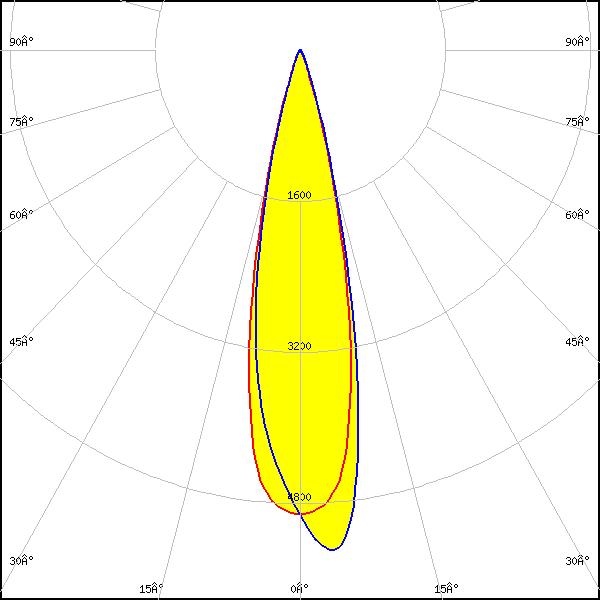

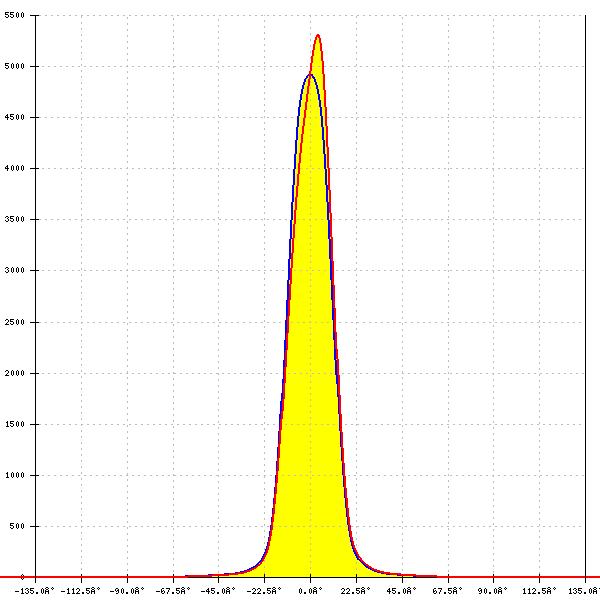

LED: CLU7S3
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 3.5 mm
Required components:
FWHM: 24°
FWTM: 38°
Peak intensity: 5.309 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

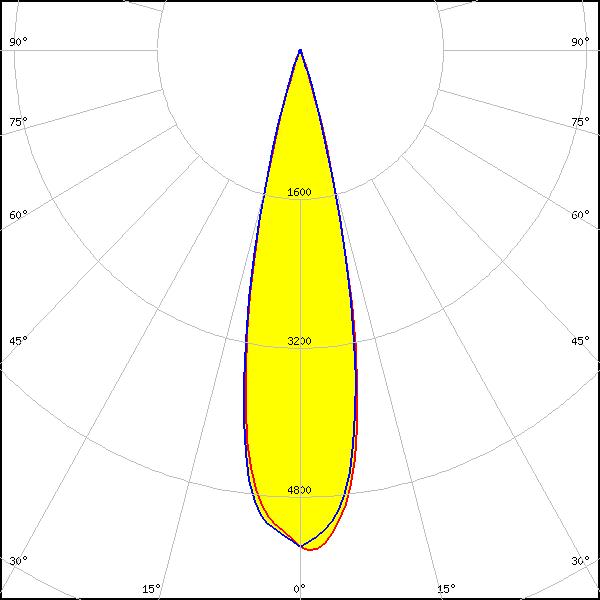

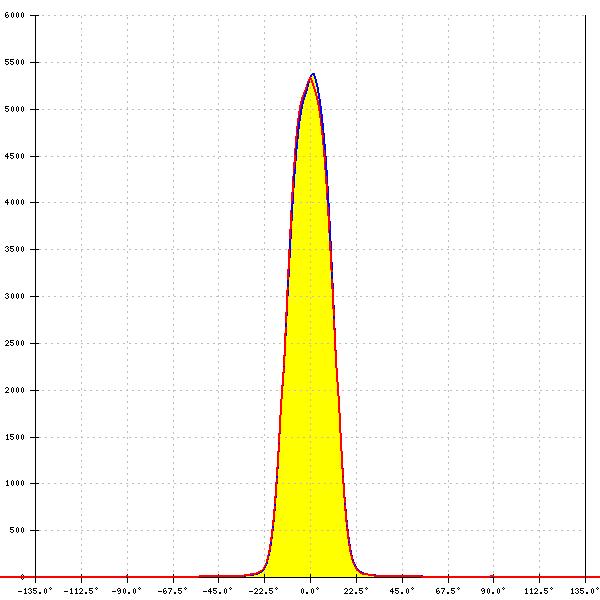

LED: CHA0304
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 3.3 mm
Required components:
BJB: 47.360.1020
FWHM: 24°
FWTM: 36°
Peak intensity: 5.379 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

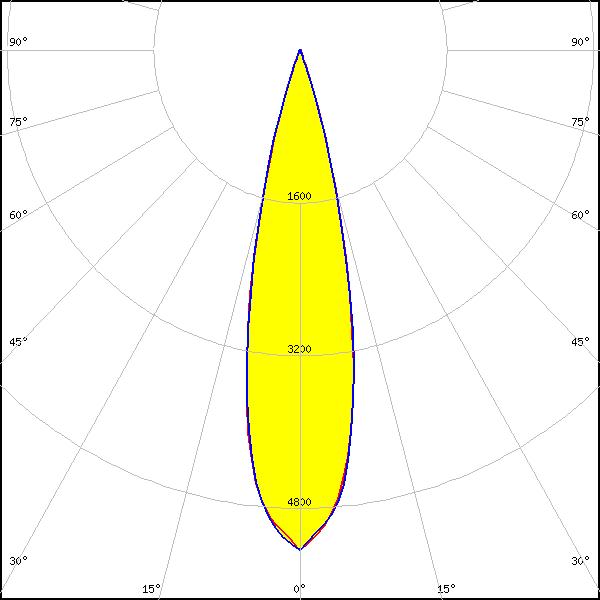

LED: CHA0410
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 4.2 mm
Required components:
BJB: 47.360.1020
FWHM: 24°
FWTM: 38°
Peak intensity: 5.240 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

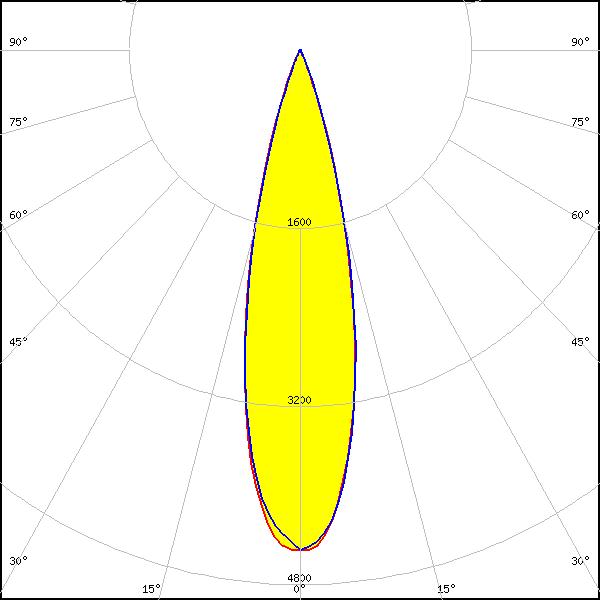

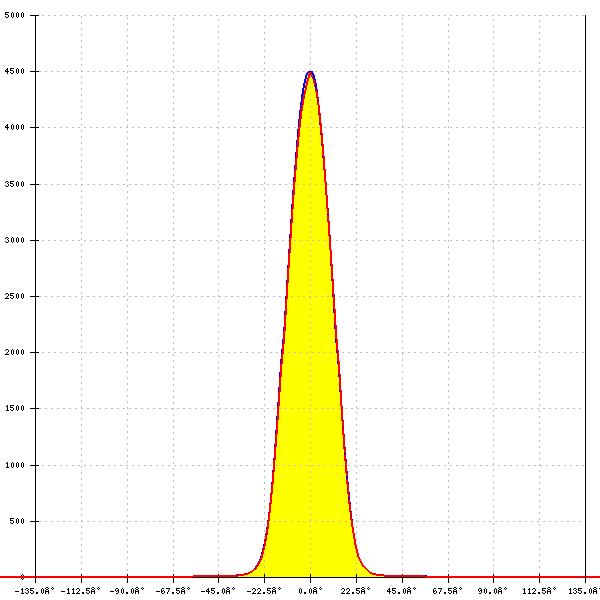

LED: CHA0612
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM: 26°
FWTM: 42°
Peak intensity: 4.516 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

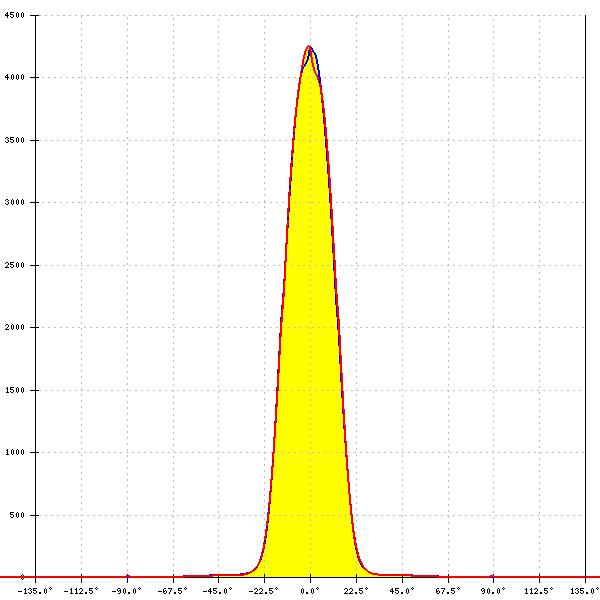

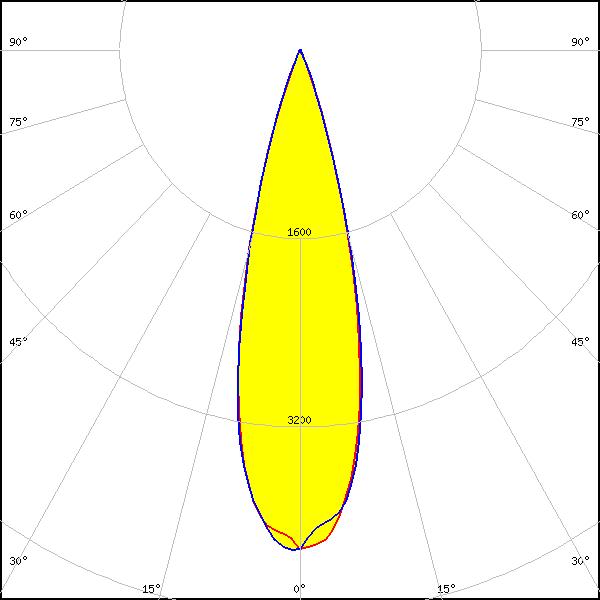

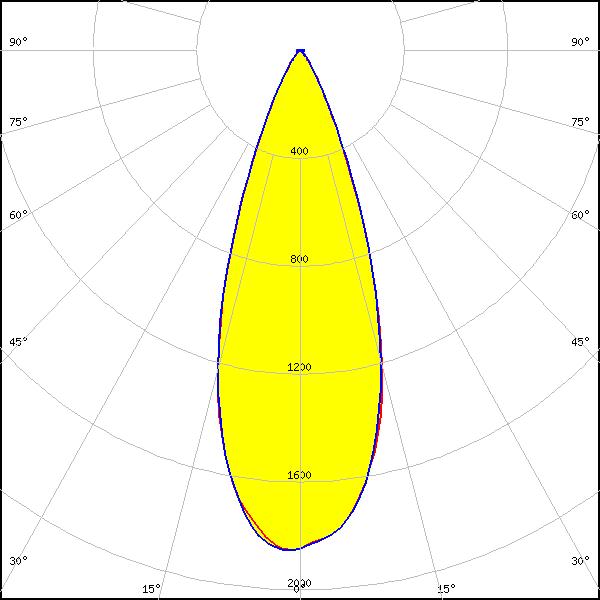

LED: LUXEON CX Plus CoB - HD S01H4
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 28°
FWTM: 42°
Peak intensity: 4.260 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

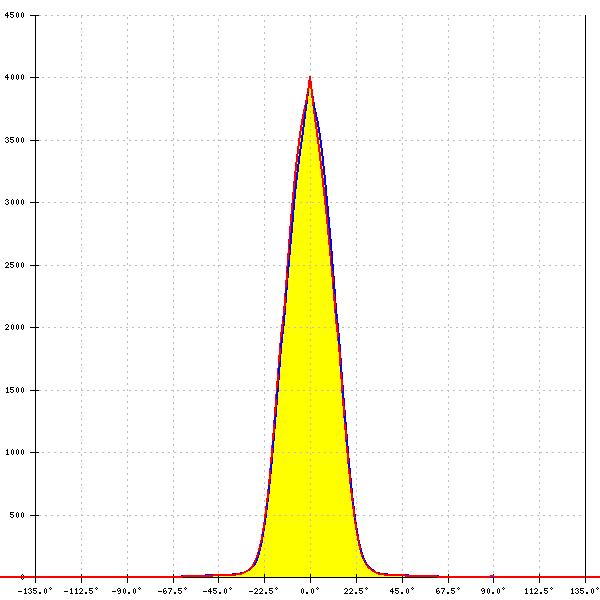

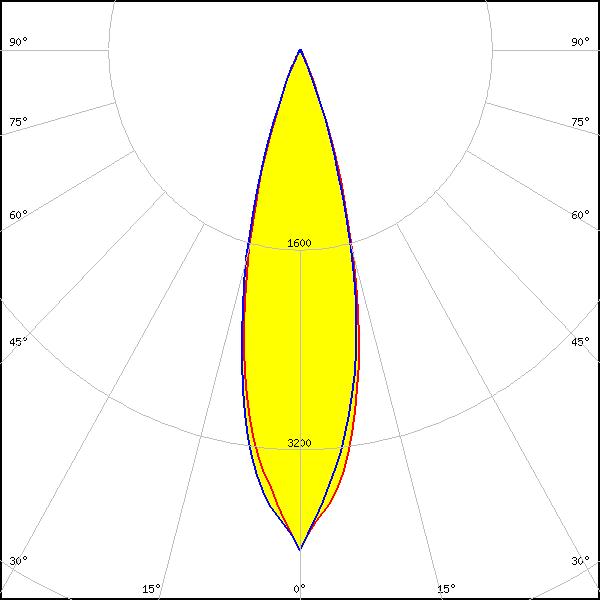

LED: LUXEON CX Plus CoB - HD S02H6
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 27°
FWTM: 46°
Peak intensity: 4.008 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

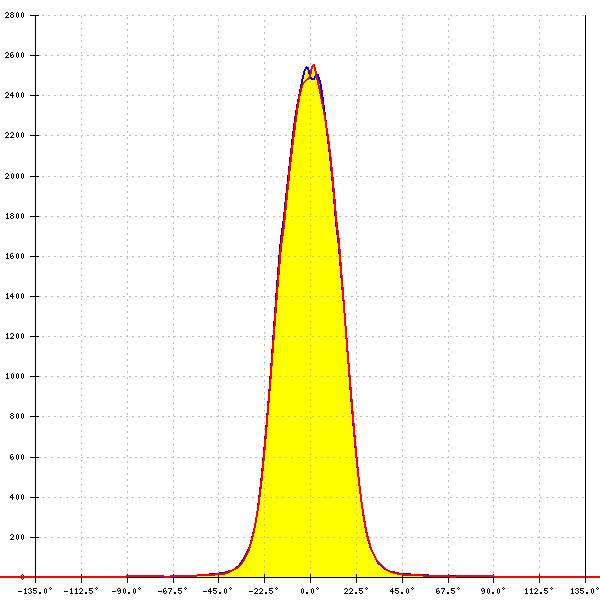

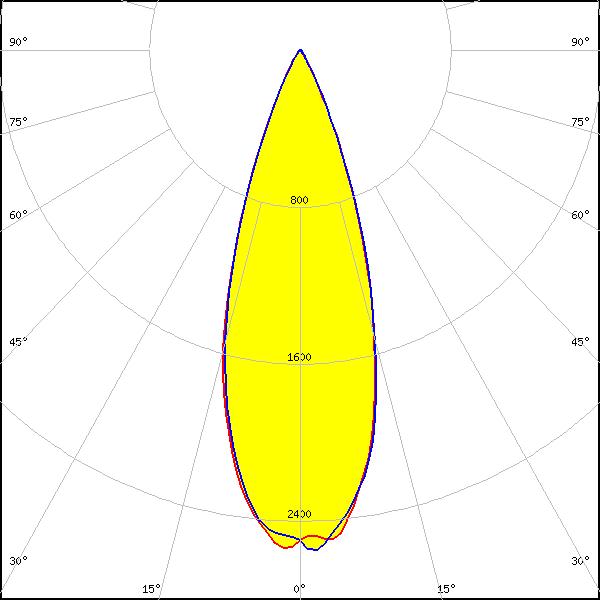

LED: LUXEON CX Plus CoB - HD S04H9
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 9.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 34°
FWTM: 54°
Peak intensity: 2.583 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

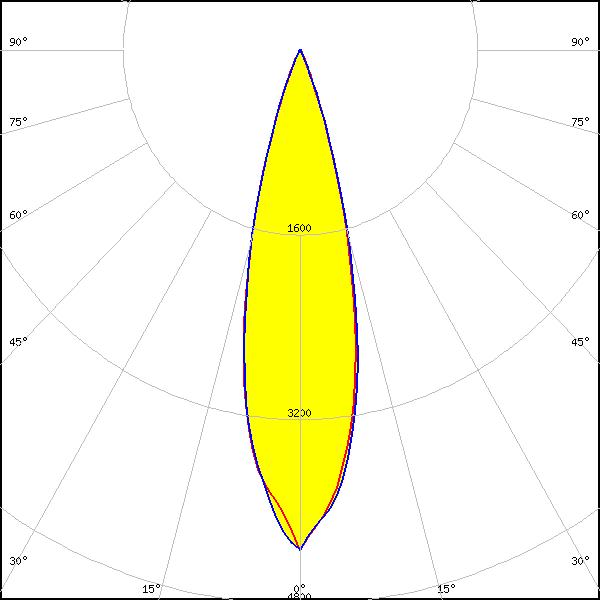

LED: LUXEON CX Plus CoB S01 (Gen2)
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 26°
FWTM: 43°
Peak intensity: 4.334 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

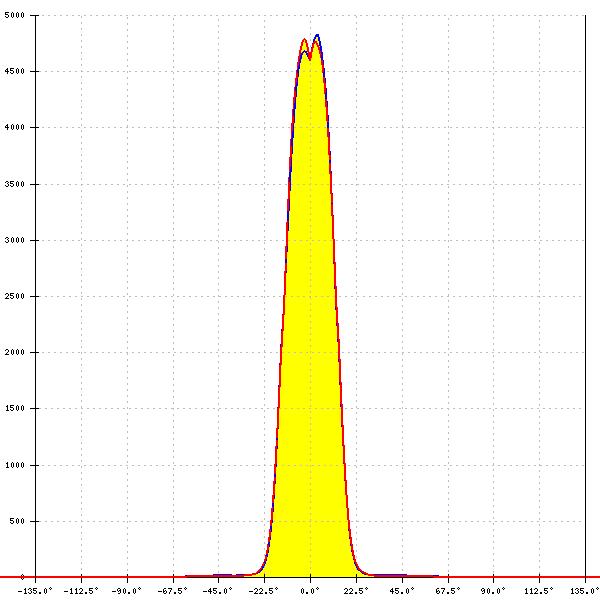

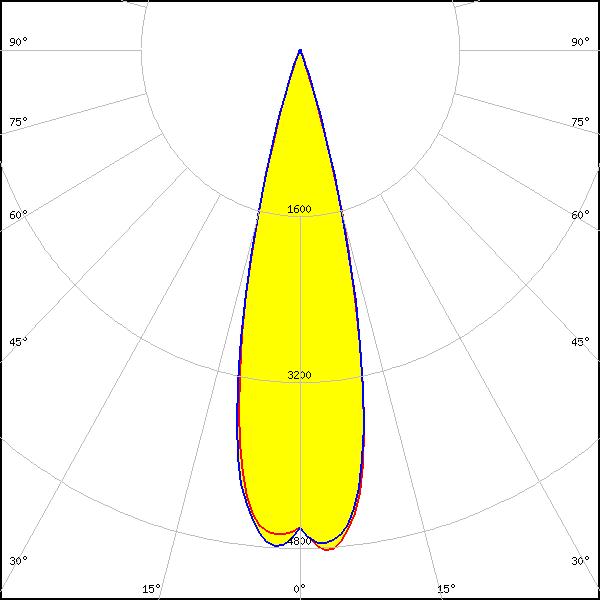

LED: CXM-3
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 3.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 26°
FWTM: 38°
Peak intensity: 4.851 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CXM-3
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 3.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 26°
FWTM: 38°
Peak intensity: 4.851 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

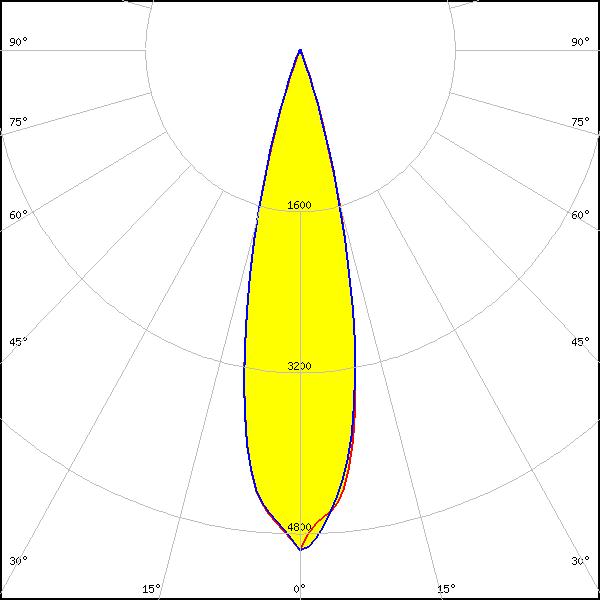

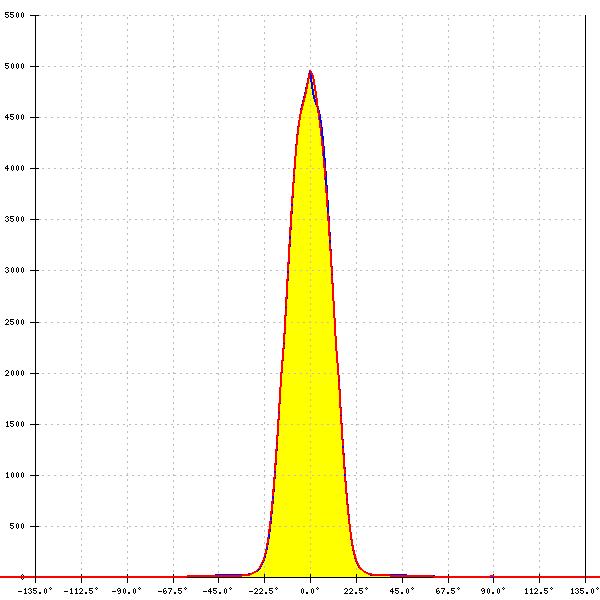

LED: CXM-4
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 4.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 24°
FWTM: 39°
Peak intensity: 4.964 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

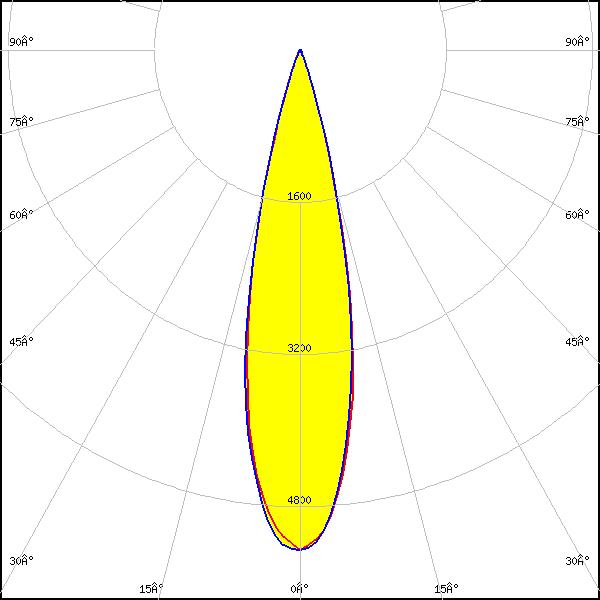

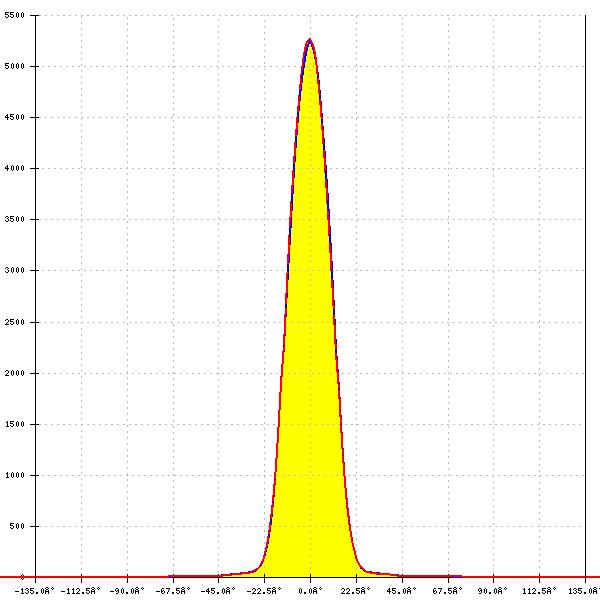

LED: CxM-6 (13.5x13.5)
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
FWHM: 25°
FWTM: 41°
Peak intensity: 4.625 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 6)
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 28°
FWTM: 44°
Peak intensity: 4.102 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 7)
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 28°
FWTM: 46°
Peak intensity: 3.780 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: COB T-Type
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 28°
FWTM: 44°
Peak intensity: 3.977 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

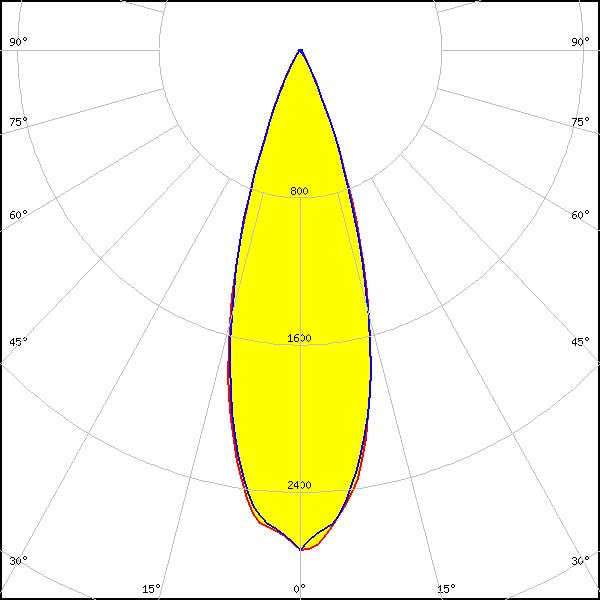

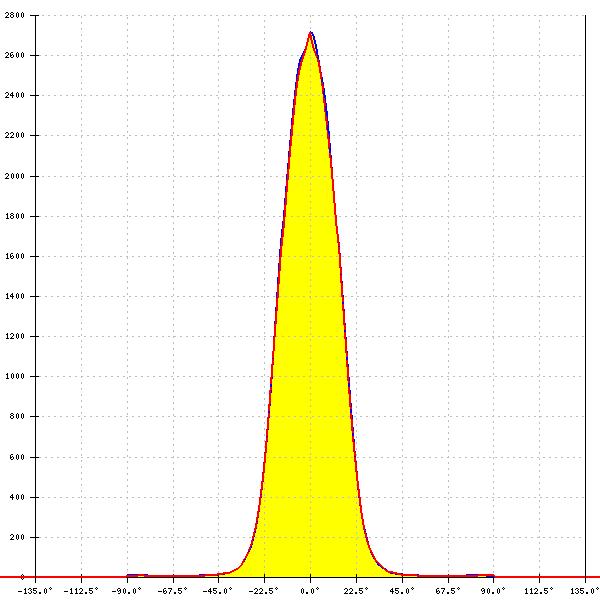

LED: LC003D / LC006D / LC009D / LC013D
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM: 32°
FWTM: 52°
Peak intensity: 2.715 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

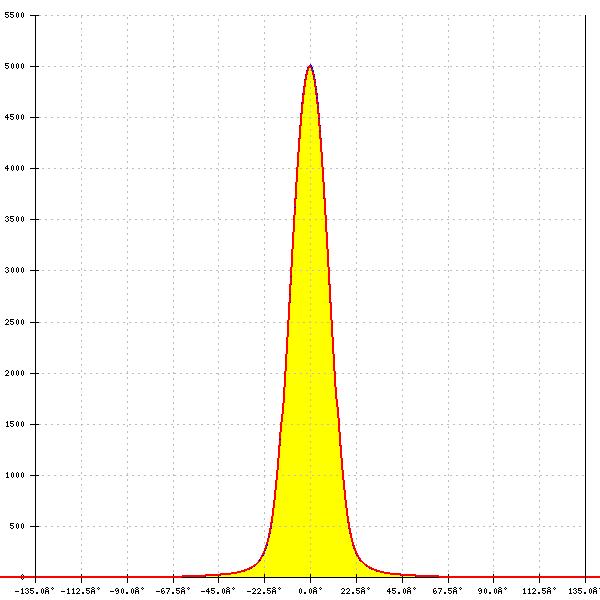

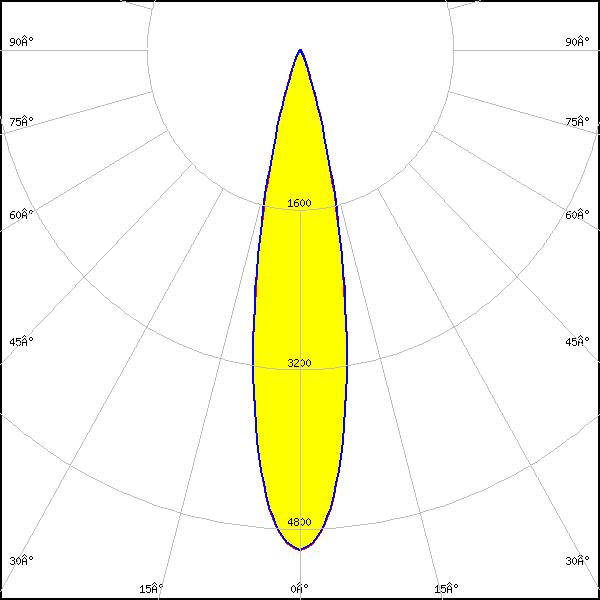

LED: LC010C G2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM: 22°
FWTM: 38°
Peak intensity: 5.011 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
