YASMEEN-70-WWW
Print

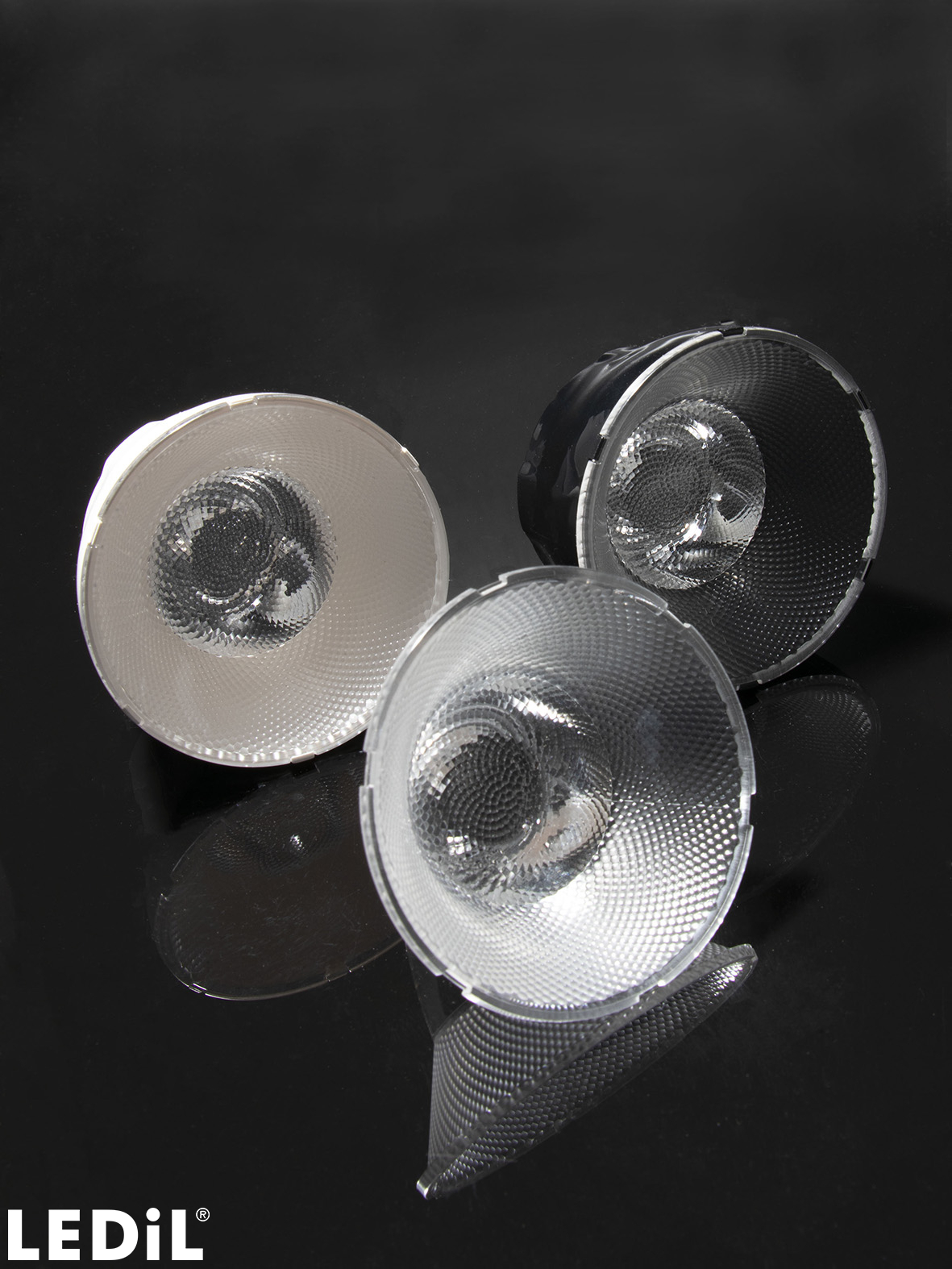

~80° wide beam. Assembly with holder C (LEDiL HEKLA) and B (BJB and B+W). Black and white versions.
This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.
Component Materials
- YASMEEN-70-WWWSingle lensPMMA
- YASMEEN-70-HLD2-C-WHTHolderPC
- YASMEEN-70-HLD2-CHolderPC
- YASMEEN-70-HLD2-B50-WHTHolderPC
- YASMEEN-70-HLD2-B50HolderPC
- YASMEEN-70-HLD2-B-WHTHolderPC
- YASMEEN-70-HLD2-BHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

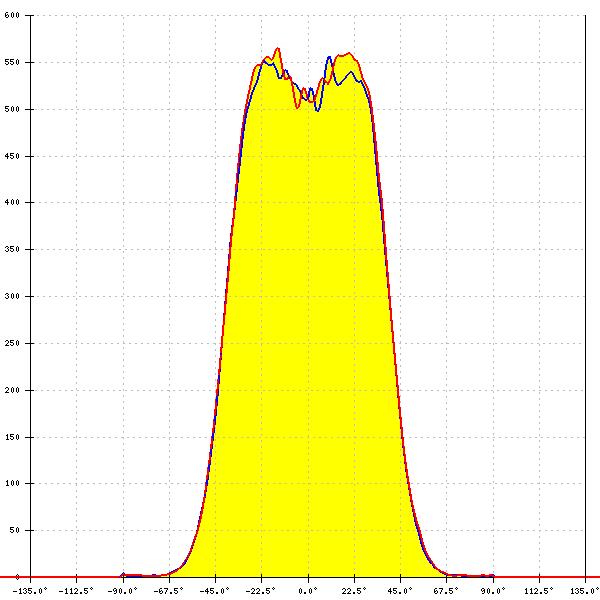

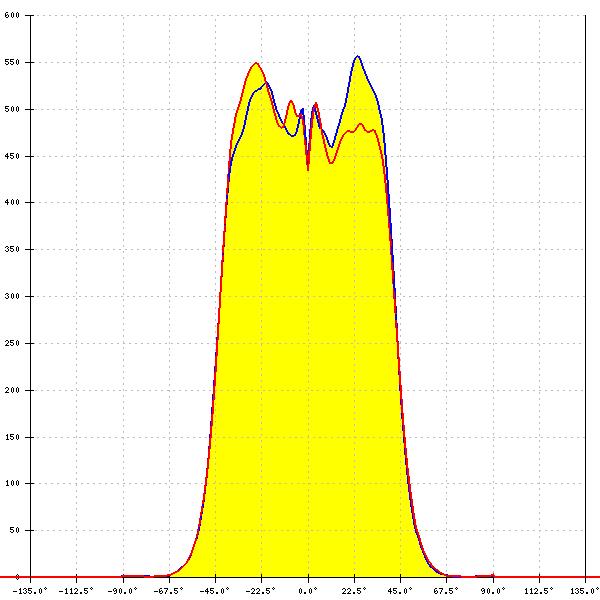

LED:
V6 HD Gen 8
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 6.6 mm
Required components:
FWHM:
86°
FWTM:
106°
Peak intensity:
0.559 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

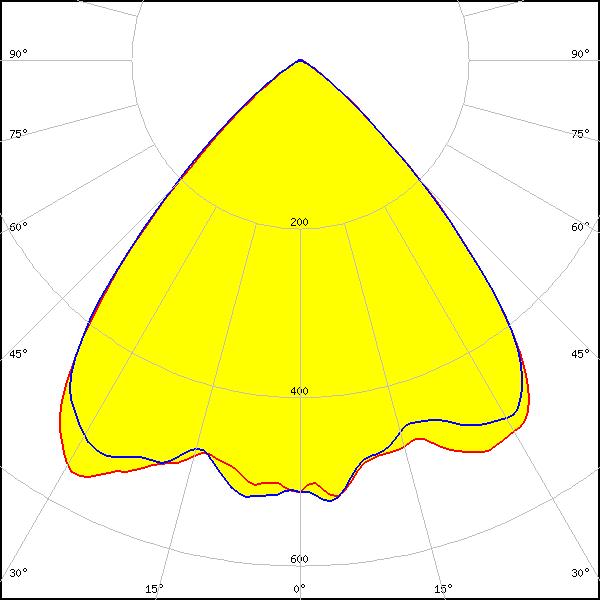

LED:
V9 HD Gen 8
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 8.8 mm
Required components:
FWHM:
85°
FWTM:
107°
Peak intensity:
0.560 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

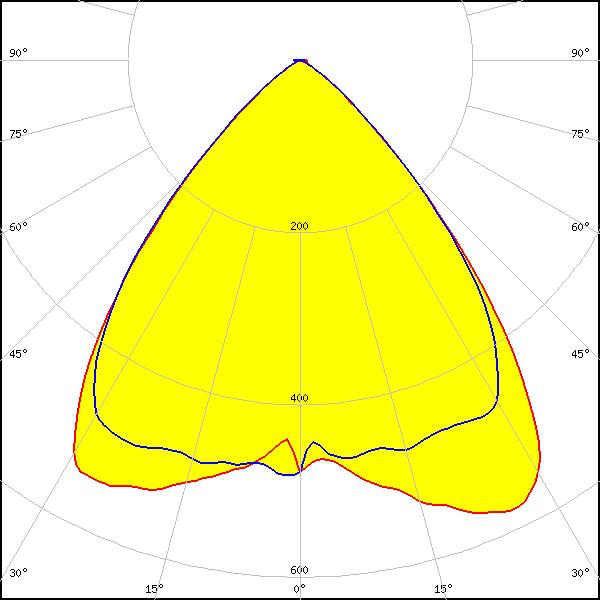

Vesta TW 13mm (18W) DP
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 14.0 mm
FWHM:
82°
FWTM:
105°
Peak intensity:
0.579 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

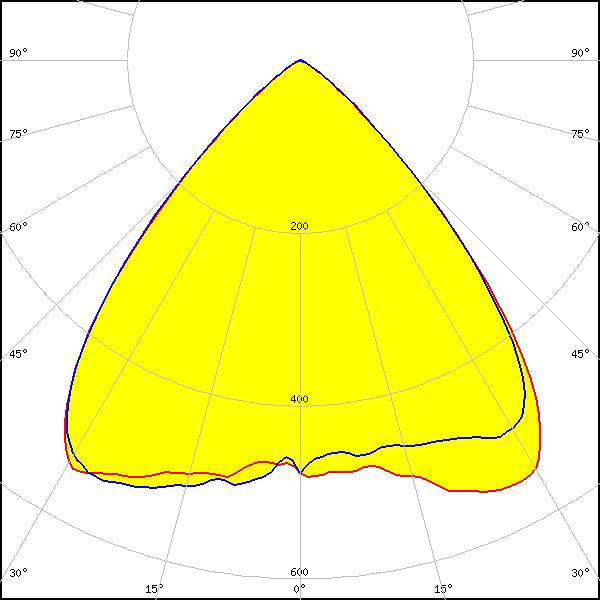

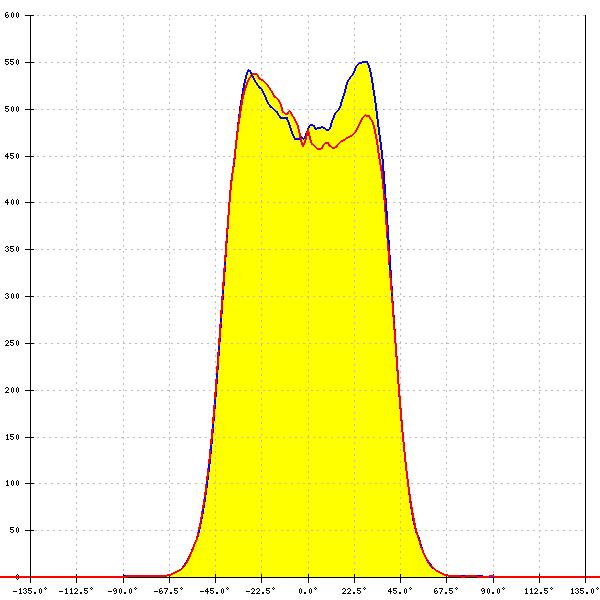

LED:
CLU02x (LES10)
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 9.8 mm
FWHM:
84°
FWTM:
105°
Peak intensity:
0.568 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

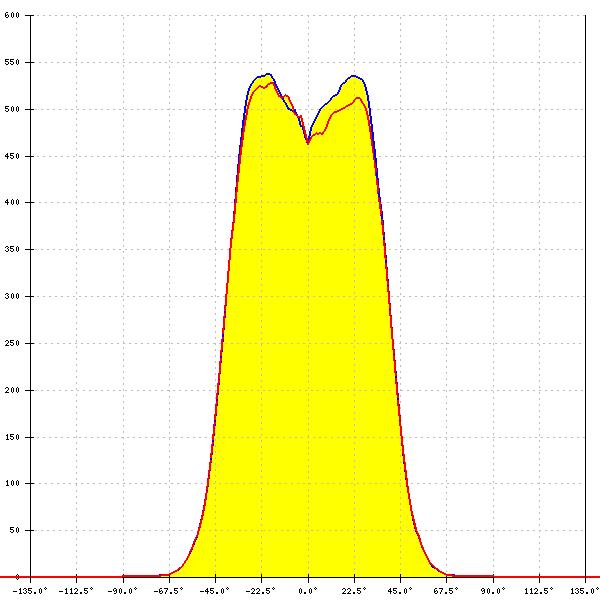

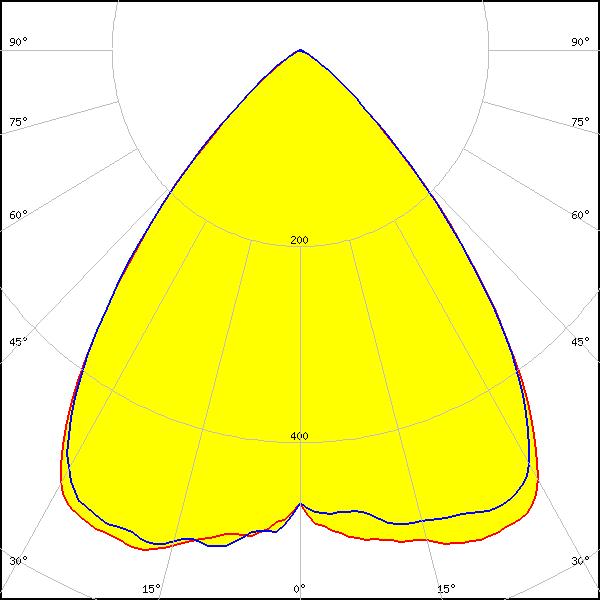

LED:
CLU03x
Ordering code: CP18703_YASMEEN-70-WWW-B2
LES size: 14.5 mm
FWHM:
82°
FWTM:
106°
Peak intensity:
0.540 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

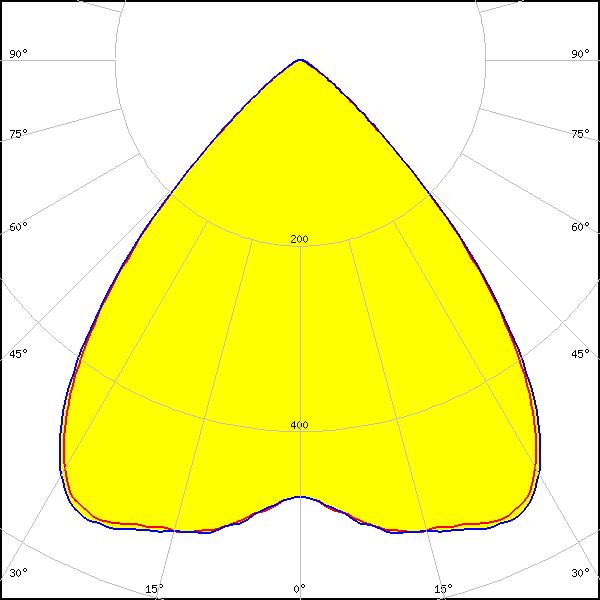

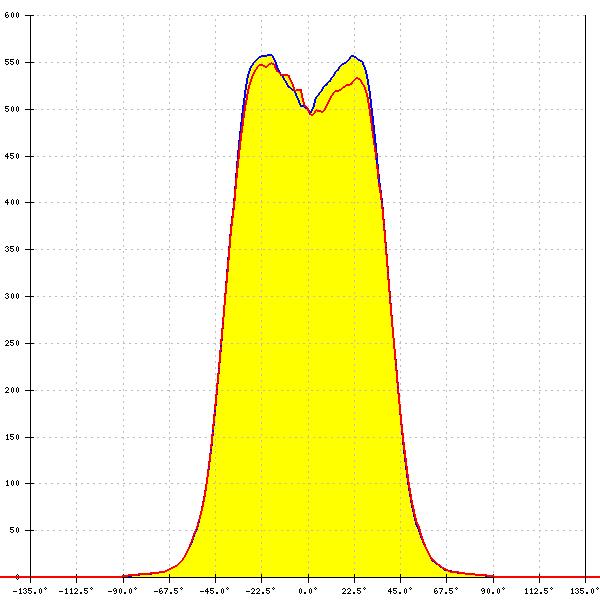

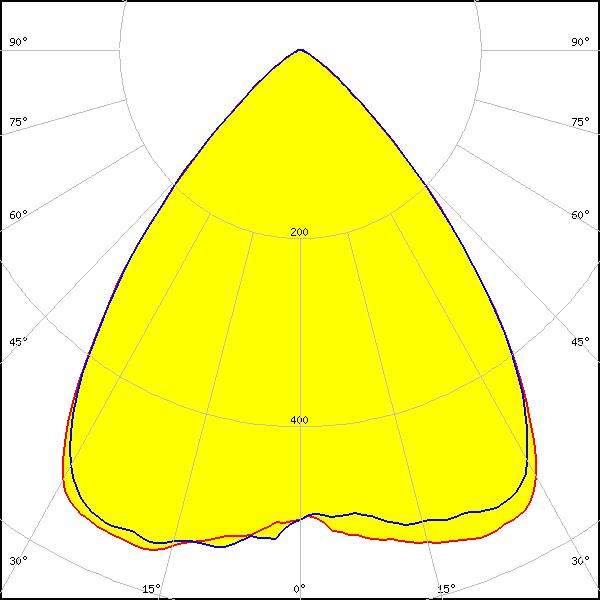

LED:
CLU03x
Ordering code: CP18705_YASMEEN-70-WWW-B2-WHT
LES size: 14.5 mm
FWHM:
82°
FWTM:
107°
Peak intensity:
0.563 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

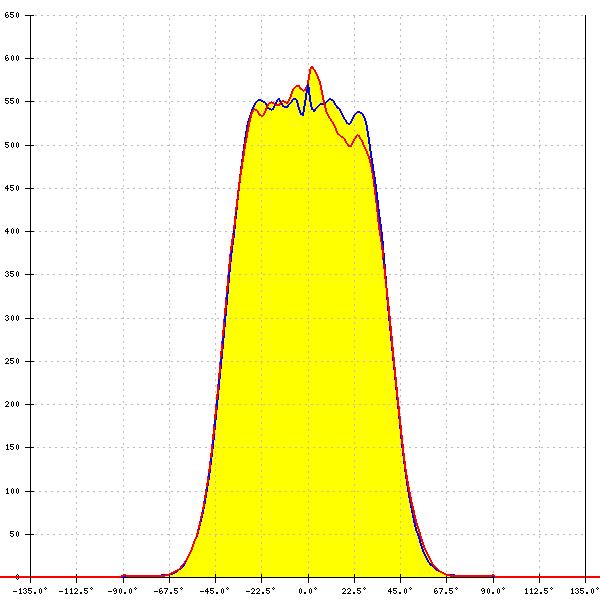

LED:

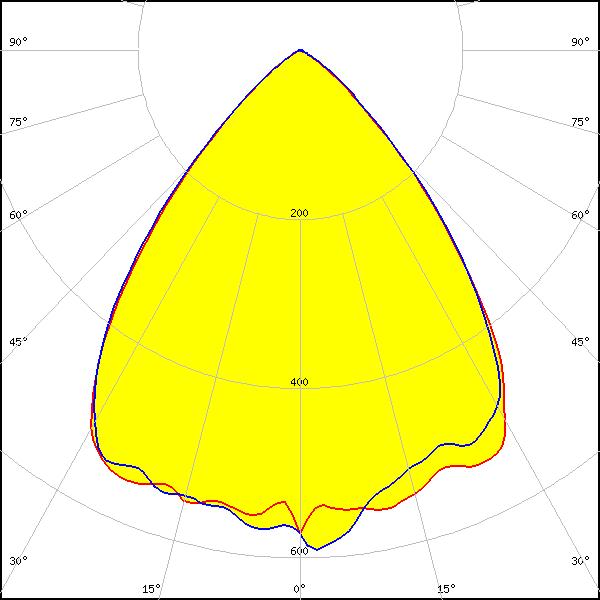

LUXEON CX Plus CoB L08 (Gen2)
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
80°
FWTM:
107°
Peak intensity:
0.608 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

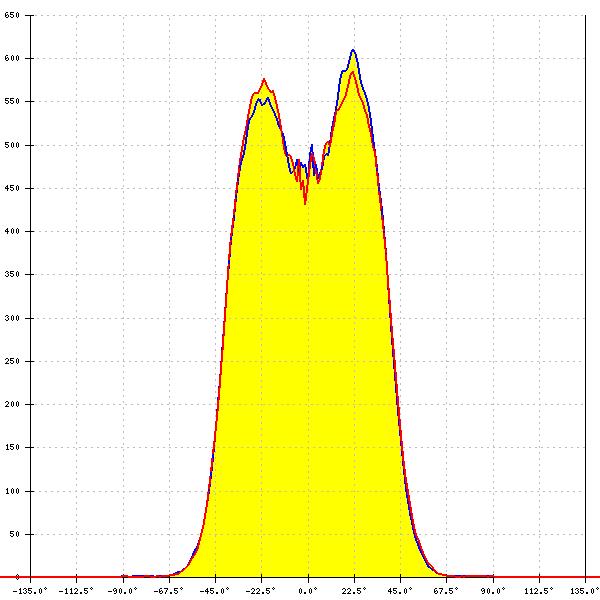

LED:
LUXEON CoB 1202/1203
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 9.0 mm
Required components:
FWHM:
81°
FWTM:
103°
Peak intensity:
0.611 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202HD
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 6.5 mm
FWHM:
85°
FWTM:
105°
Peak intensity:
0.599 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 6.5 mm
Required components:
FWHM:
81°
FWTM:
102°
Peak intensity:
0.608 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

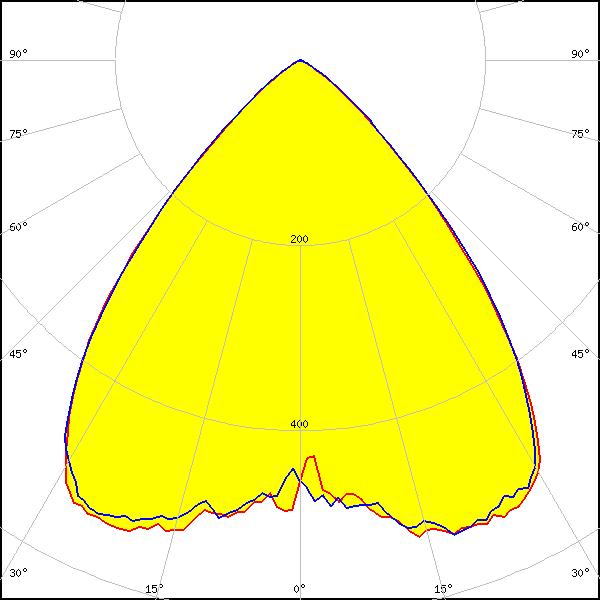

LED:

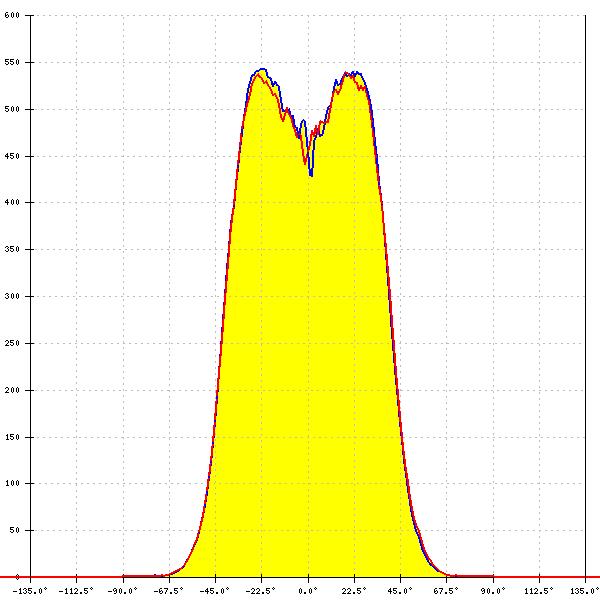

LUXEON CoB 1204/1205
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 13.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
79°
FWTM:
105°
Peak intensity:
0.644 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 13.0 mm
Required components:
FWHM:
82°
FWTM:
105°
Peak intensity:
0.555 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204HD
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 9.0 mm
FWHM:
85°
FWTM:
107°
Peak intensity:
0.547 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1205HD
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 11.0 mm
Required components:
FWHM:
84°
FWTM:
107°
Peak intensity:
0.567 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

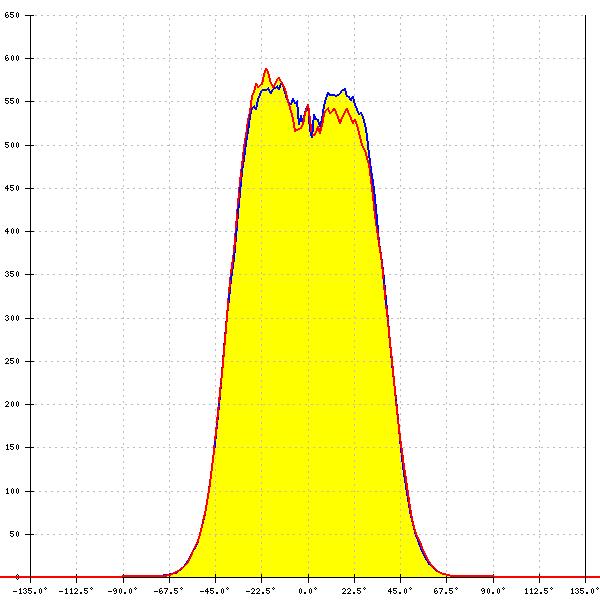

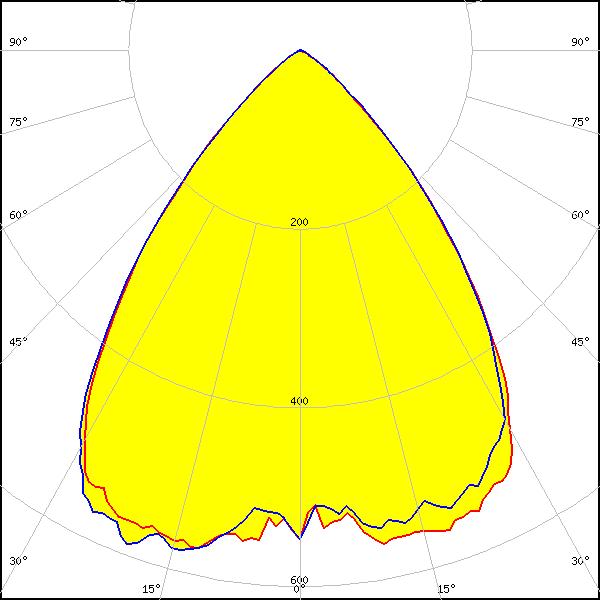

LED:
LUXEON CoB 1208
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 15.0 mm
Required components:
FWHM:
79°
FWTM:
104°
Peak intensity:
0.589 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

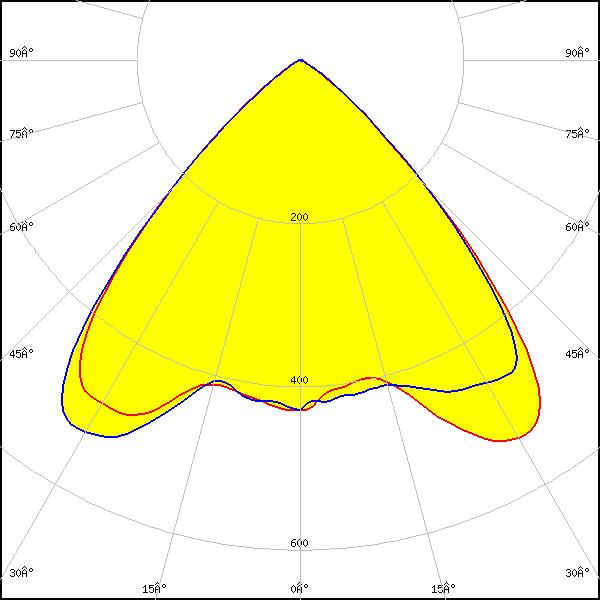

LED:

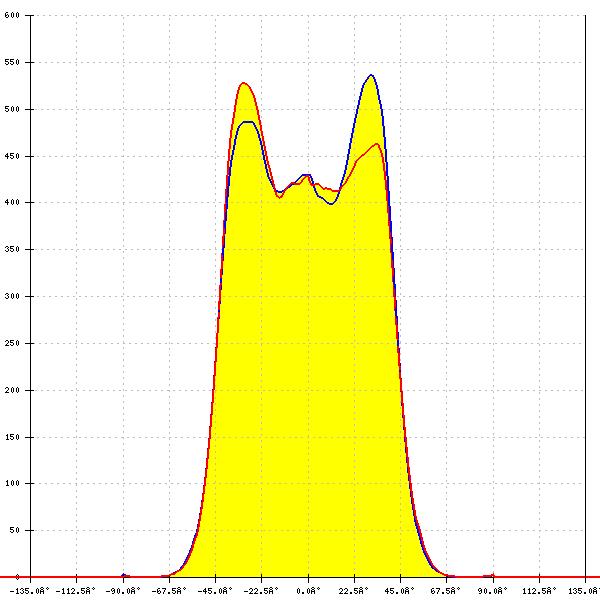

LUXEON CX Plus CoB - HD S02H6
Ordering code: CP18703_YASMEEN-70-WWW-B2
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
88°
FWTM:
107°
Peak intensity:
0.546 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

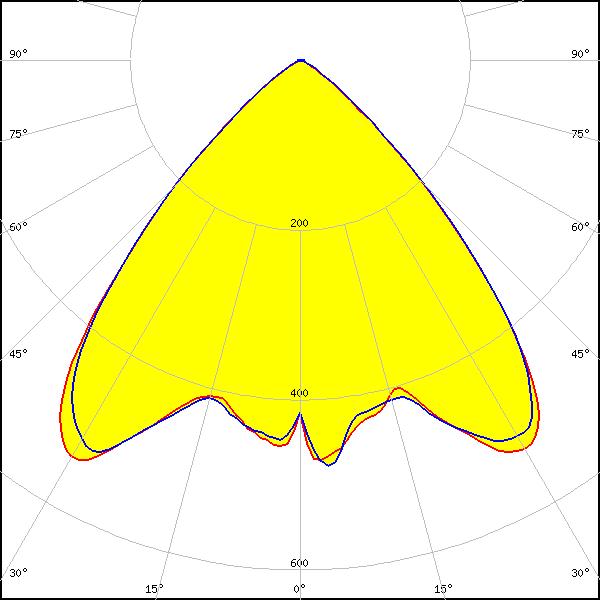

LED:
LUXEON CX Plus CoB - HD S04H9
Ordering code: CP18703_YASMEEN-70-WWW-B2
LES size: 9.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
86°
FWTM:
107°
Peak intensity:
0.546 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

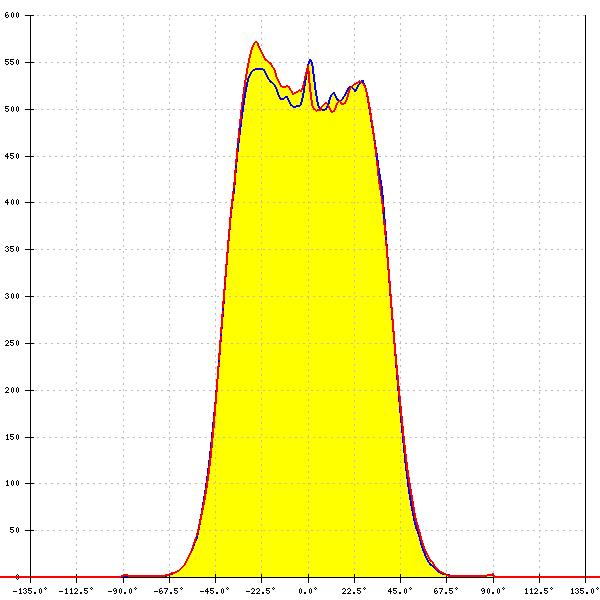

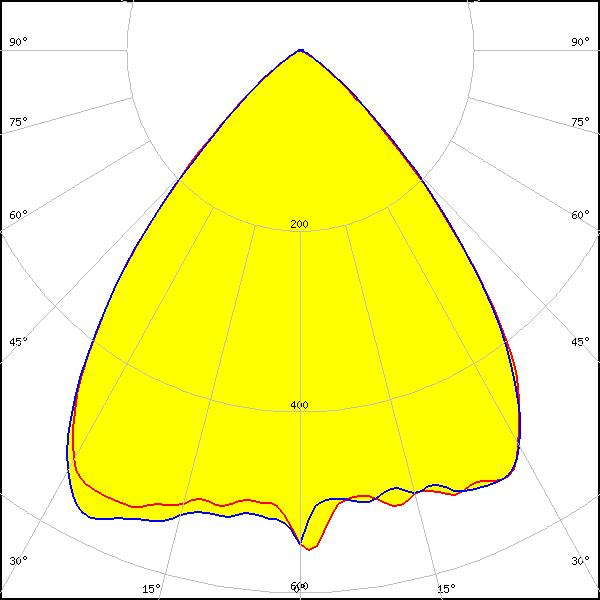

LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 12.0 mm
Required components:
FWHM:
82°
FWTM:
106°
Peak intensity:
0.573 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

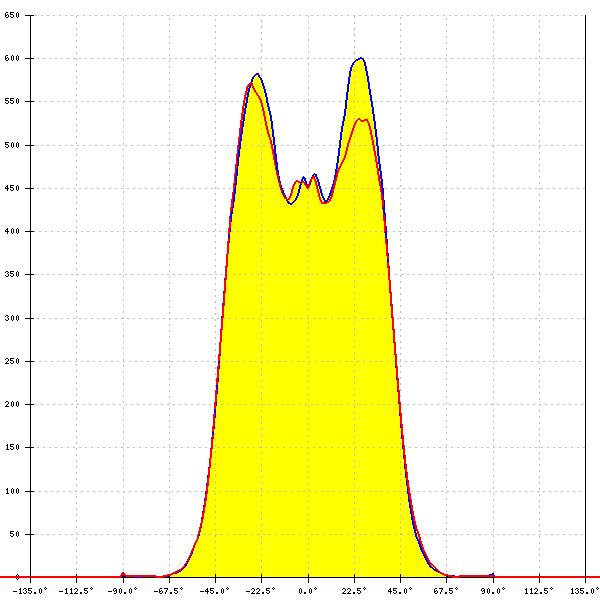

LUXEON CX Plus CoB M02 / M03 (Gen2)
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 9.0 mm
FWHM:
83°
FWTM:
105°
Peak intensity:
0.606 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

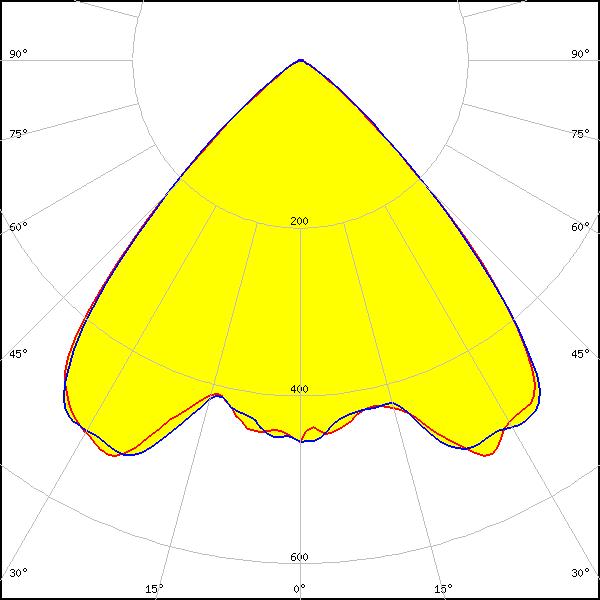

LED:
LUXEON CX Plus CoB S01 (Gen2)
Ordering code: CP18703_YASMEEN-70-WWW-B2
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
88°
FWTM:
107°
Peak intensity:
0.540 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

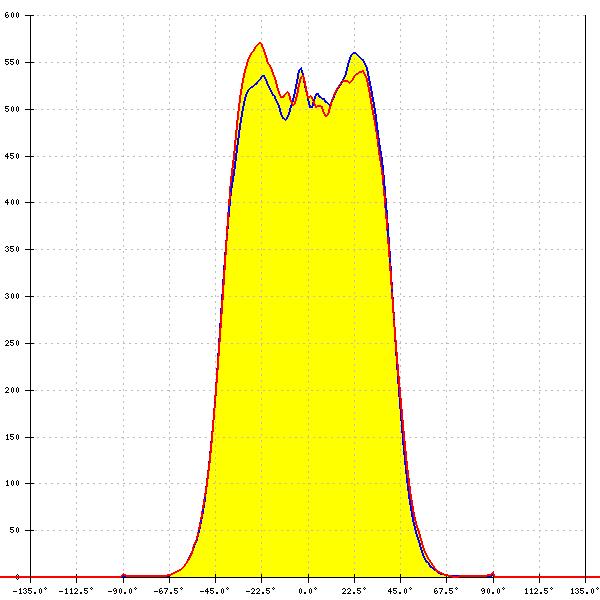

LED:

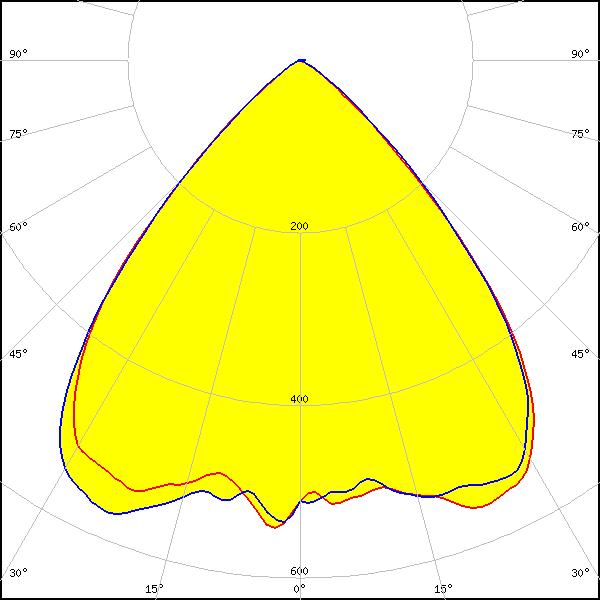

CHM-9 XH (19x19)
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 9.0 mm
Required components:
FWHM:
84°
FWTM:
105°
Peak intensity:
0.572 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

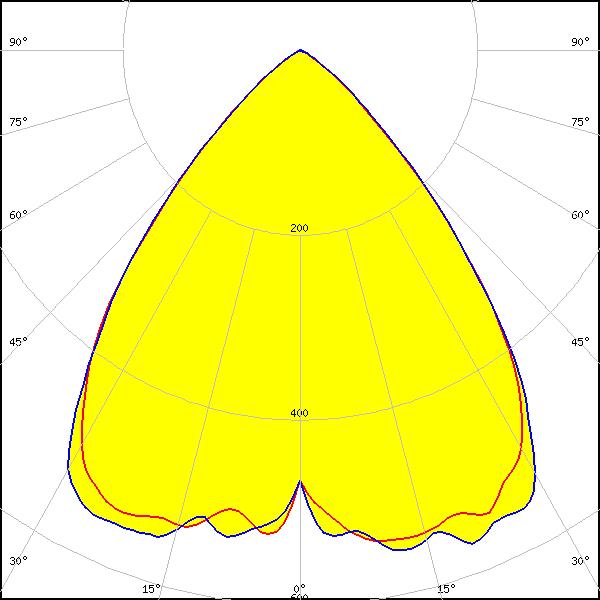

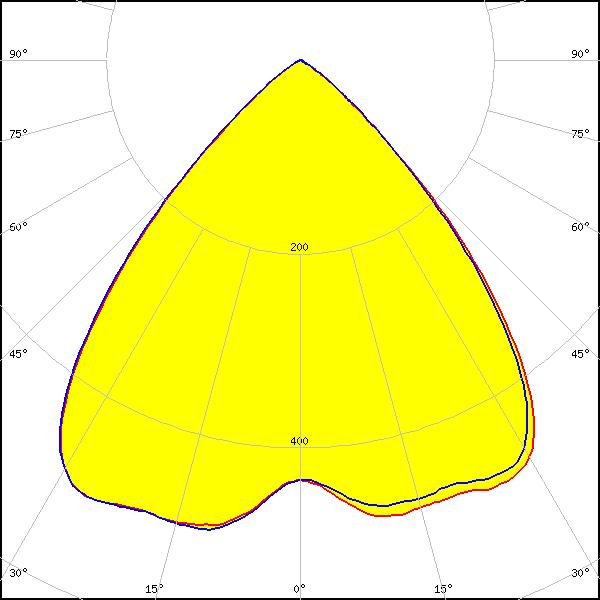

LED:
CTM-14 (Tunable White) Gen2
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 13.9 mm
Required components:
FWHM:
82°
FWTM:
106°
Peak intensity:
0.569 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CTM-14 (Tunable White) Gen2
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 13.9 mm
Required components:
FWHM:
84°
FWTM:
104°
Peak intensity:
0.572 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

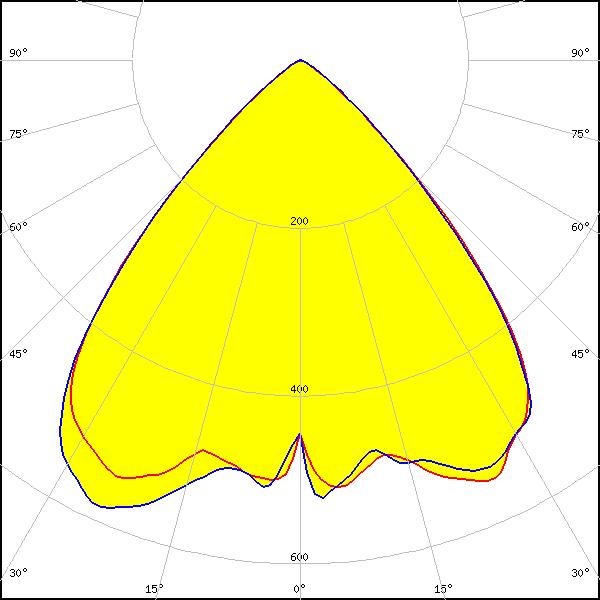

CTM-6 (Tunable White) Gen2
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 6.8 mm
Required components:
FWHM:
84°
FWTM:
105°
Peak intensity:
0.585 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White

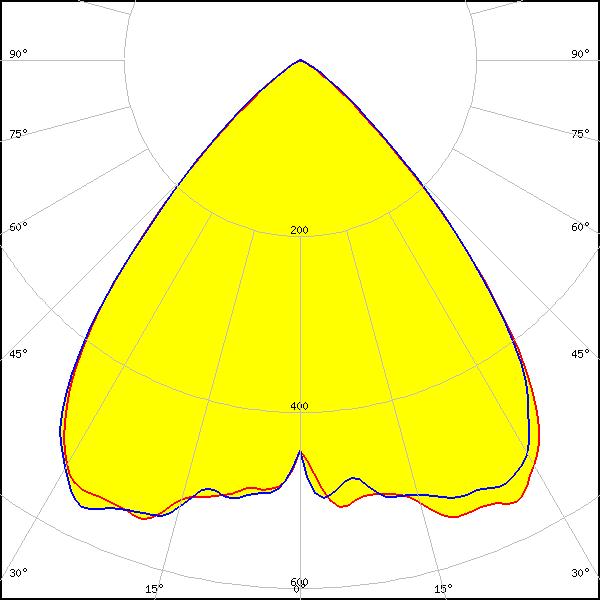

LED:
CTM-9 (Tunable White) Gen2
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 9.5 mm
Required components:
FWHM:
83°
FWTM:
105°
Peak intensity:
0.571 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Tunable White

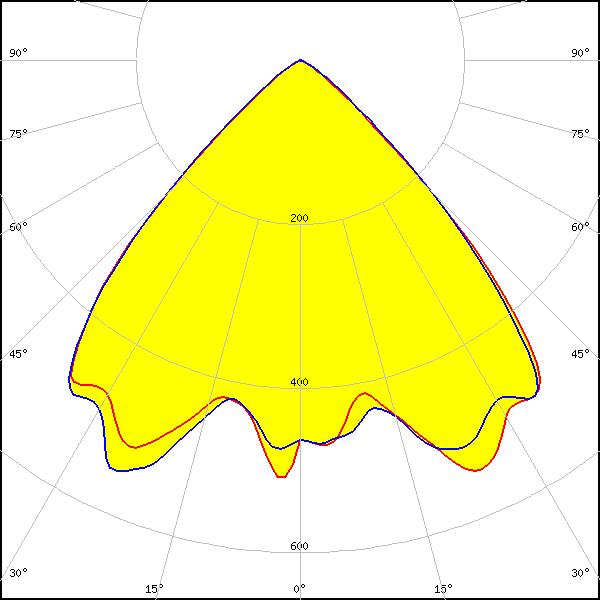

LED:
CXM-3
Ordering code: CP18703_YASMEEN-70-WWW-B2
LES size: 3.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
88°
FWTM:
106°
Peak intensity:
0.558 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

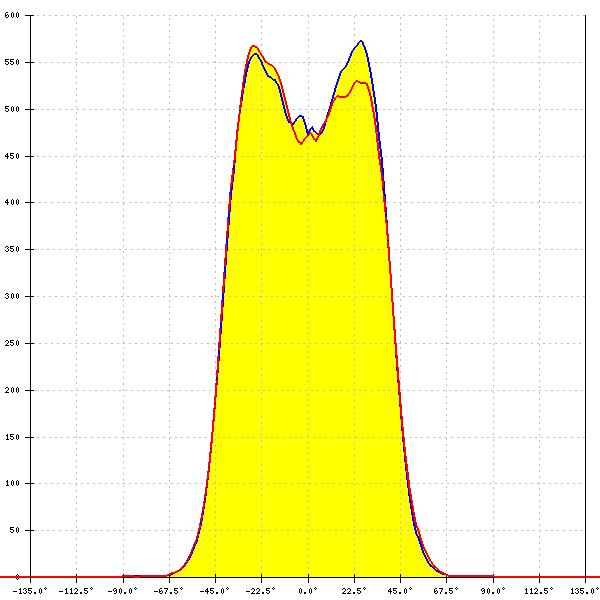

LED:

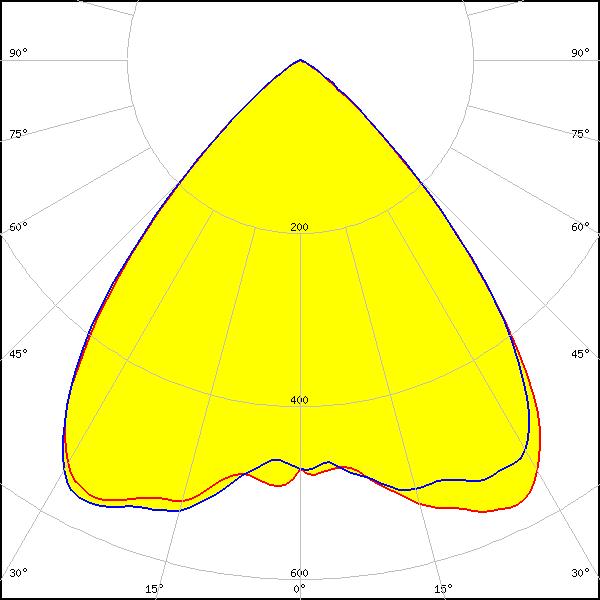

CxM-9 (13.5x13.5)
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 9.8 mm
Required components:
FWHM:
84°
FWTM:
105°
Peak intensity:
0.576 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 11.5 mm
Required components:
FWHM:
85°
FWTM:
107°
Peak intensity:
0.563 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 6)
Ordering code: CP18703_YASMEEN-70-WWW-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
88°
FWTM:
107°
Peak intensity:
0.528 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB T-Type
Ordering code: CP18703_YASMEEN-70-WWW-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
88°
FWTM:
107°
Peak intensity:
0.527 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NJCWL024Z-V1MT: COB L-Type Tunable White
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 7.0 mm
Required components:
FWHM:
83°
FWTM:
105°
Peak intensity:
0.583 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White

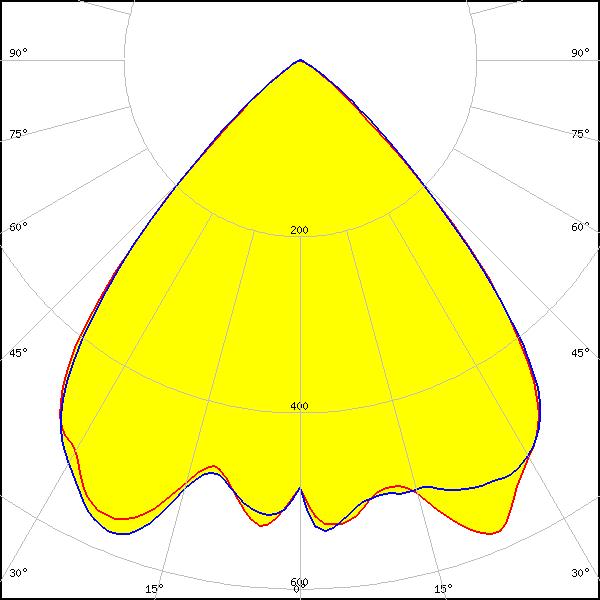

LED:
NJNWS012Z-V1MT: COB S-Type Tunable White
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 5.9 mm
Required components:
FWHM:
84°
FWTM:
104°
Peak intensity:
0.587 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White

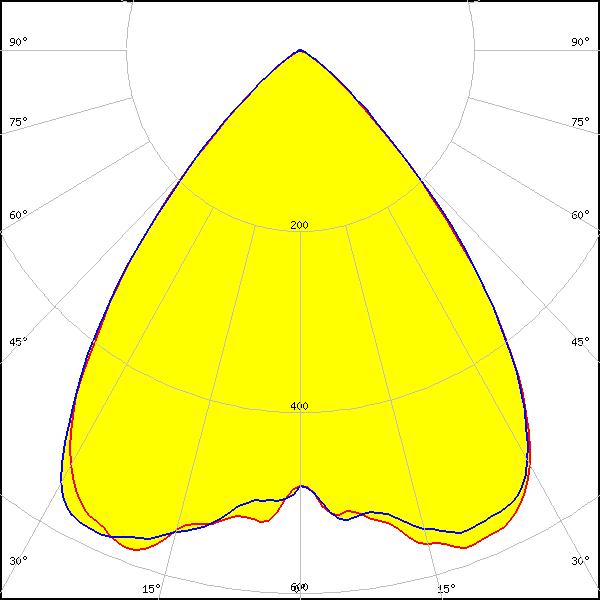

LED:

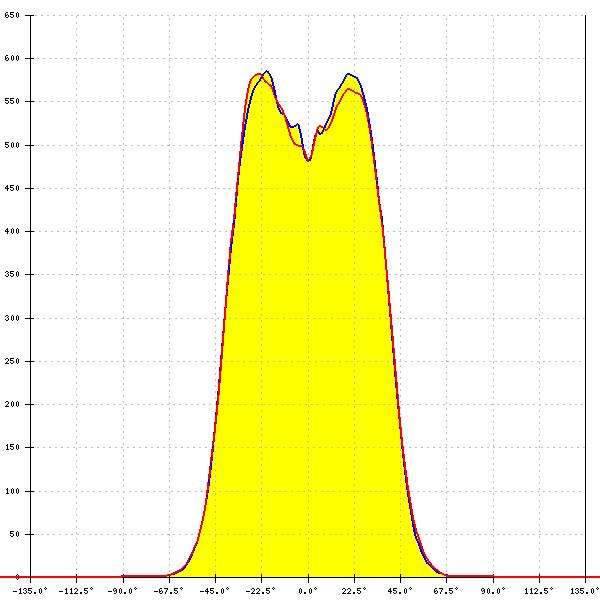

NVCWJ024Z-V1MT: COB J-Type Tunable White
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 10.6 mm
Required components:
FWHM:
81°
FWTM:
105°
Peak intensity:
0.586 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
Tunable White

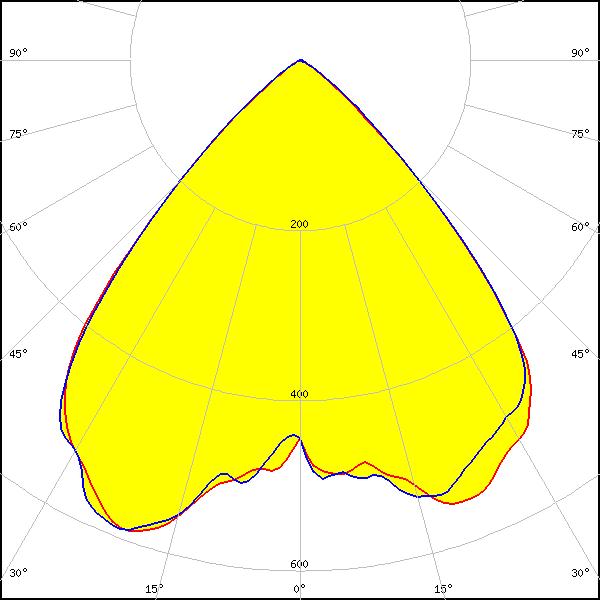

LED:
LC010C G2
Ordering code: CP18703_YASMEEN-70-WWW-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
84°
FWTM:
103°
Peak intensity:
0.606 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

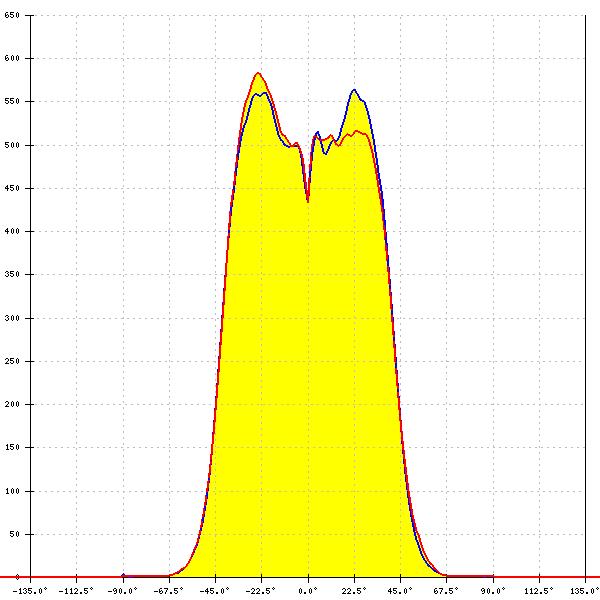

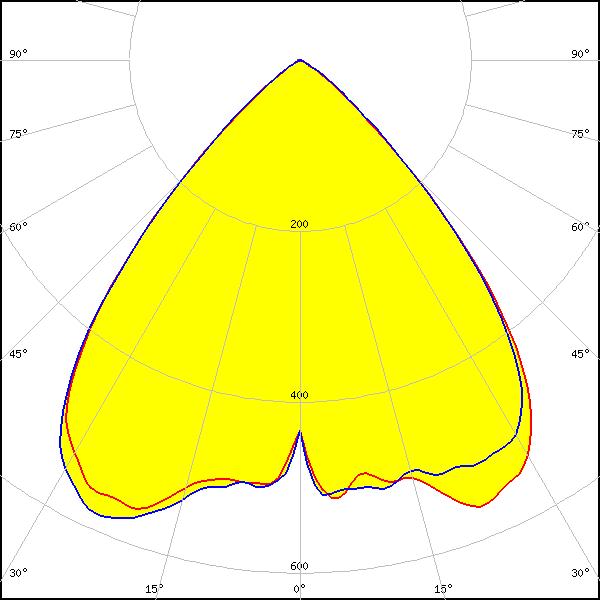

LC010T (Tunable White)
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 9.8 mm
Required components:
FWHM:
84°
FWTM:
105°
Peak intensity:
0.585 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White

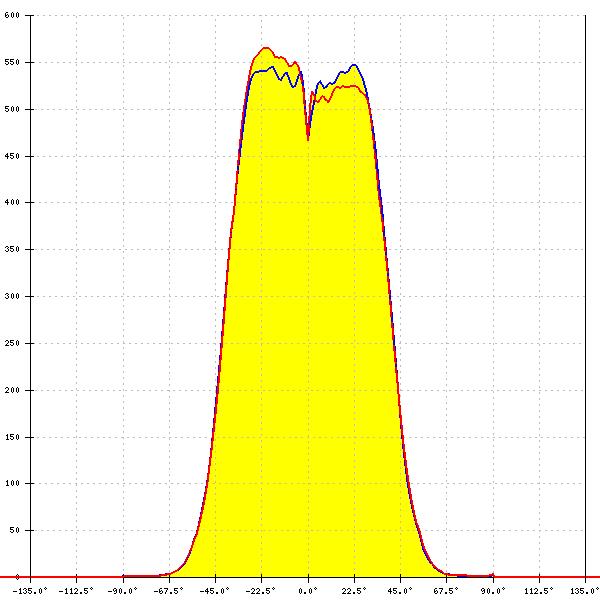

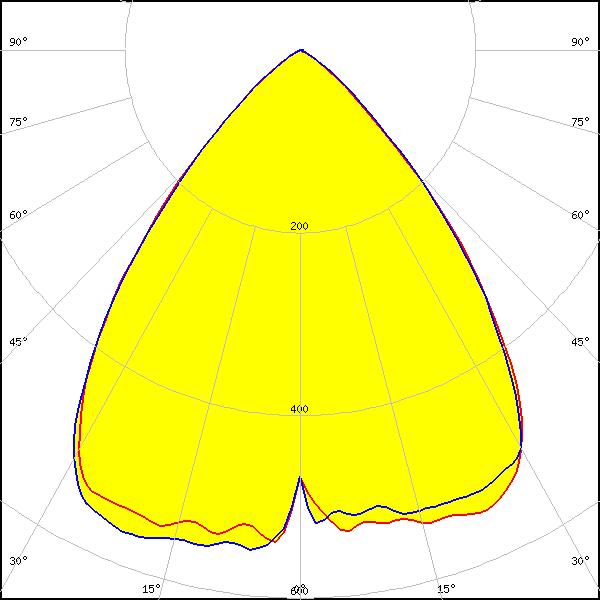

LED:
LC016D / LC019D / LC026D / LC033D
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 14.5 mm
Required components:
FWHM:
82°
FWTM:
106°
Peak intensity:
0.571 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C G2
Ordering code: CP18703_YASMEEN-70-WWW-B2
LES size: 8.5 mm
Required components:
BJB: 47.360.1010
FWHM:
84°
FWTM:
104°
Peak intensity:
0.573 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

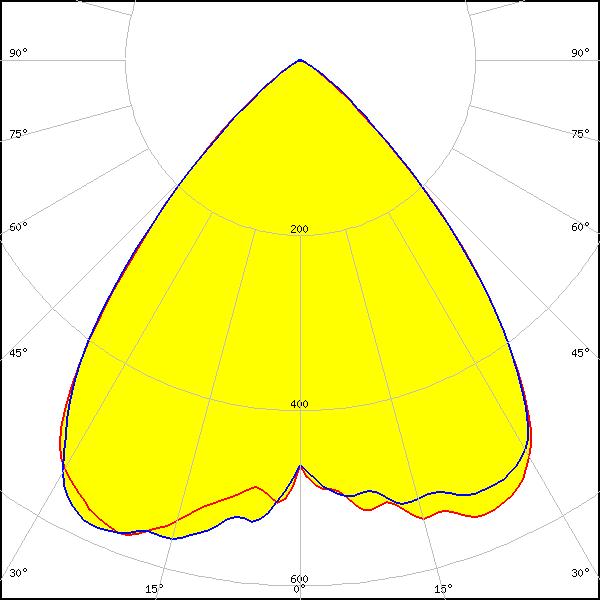

LED:
LC020T (Tunable white)
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 13.0 mm
Required components:
FWHM:
82°
FWTM:
105°
Peak intensity:
0.587 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

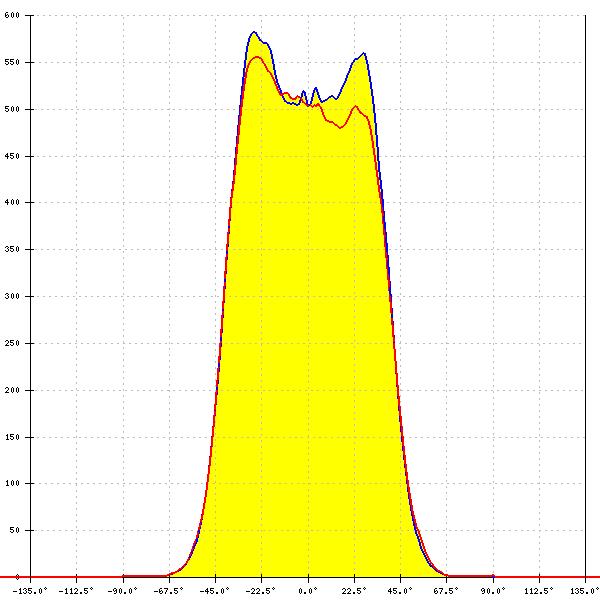

LC030C/040C G2
Ordering code: CP18703_YASMEEN-70-WWW-B2
LES size: 11.5 mm
Required components:
BJB: 47.360.1010
FWHM:
82°
FWTM:
105°
Peak intensity:
0.593 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 14.5
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 14.5 mm
Required components:
FWHM:
81°
FWTM:
107°
Peak intensity:
0.568 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 6
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 6.0 mm
Required components:
FWHM:
85°
FWTM:
105°
Peak intensity:
0.594 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 9.8
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 9.8 mm
Required components:
FWHM:
84°
FWTM:
106°
Peak intensity:
0.597 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

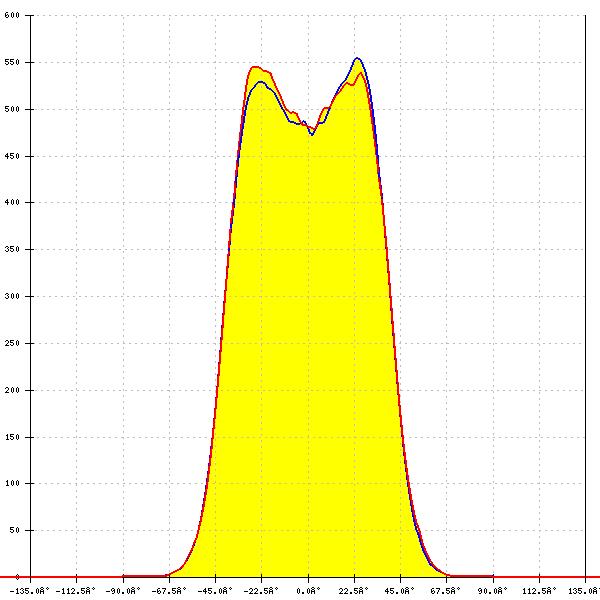

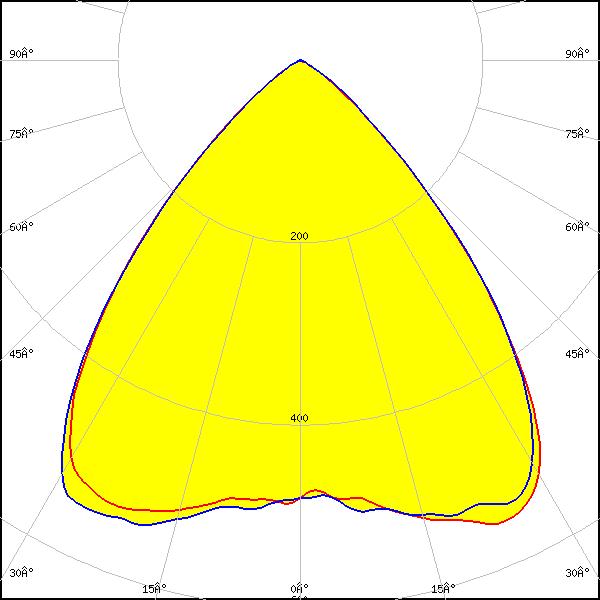

SLE G7 LES13
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 13.0 mm
Required components:
FWHM:
82°
FWTM:
107°
Peak intensity:
0.554 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

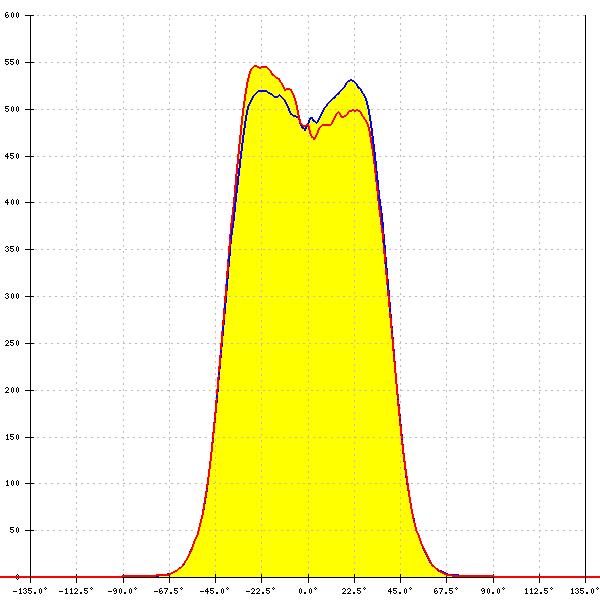

SLE G7 LES15
Ordering code: CP18703_YASMEEN-70-WWW-B2
LES size: 15.0 mm
FWHM:
82°
FWTM:
106°
Peak intensity:
0.548 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES15
Ordering code: CP18705_YASMEEN-70-WWW-B2-WHT
LES size: 15.0 mm
Required components:
BJB: 47.360.1010
FWHM:
82°
FWTM:
105°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

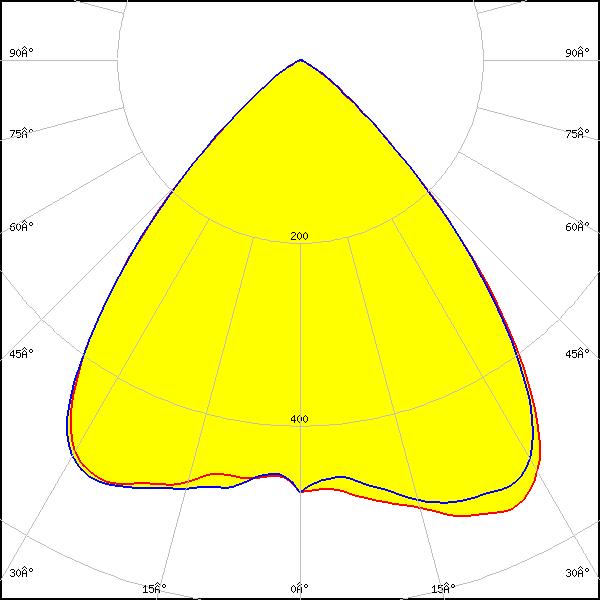

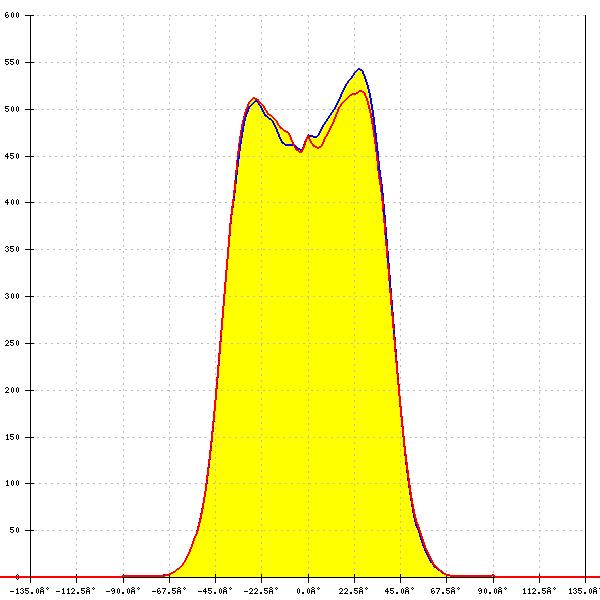

XOB 14.5 mm
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 14.5 mm
Required components:
FWHM:
84°
FWTM:
107°
Peak intensity:
0.543 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

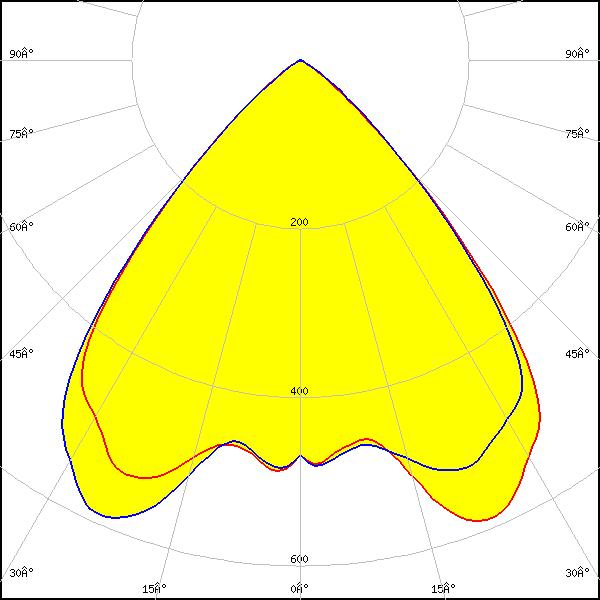

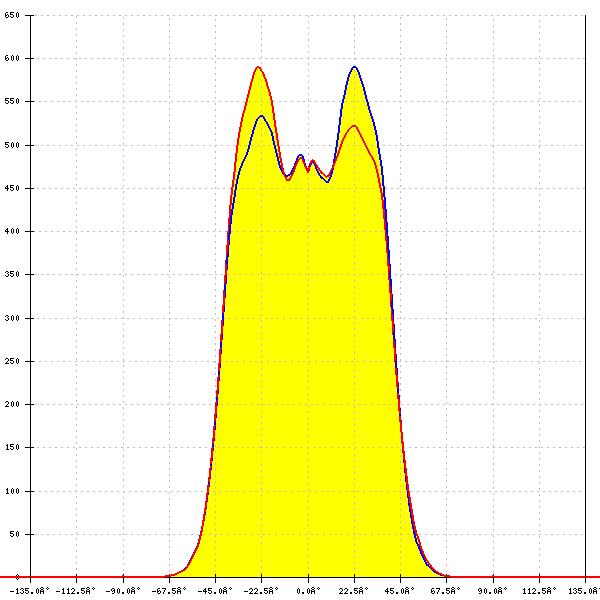

XOB 6 mm
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 6.0 mm
Required components:
Bender Wirth: 634b Hekla
FWHM:
83°
FWTM:
103°
Peak intensity:
0.599 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

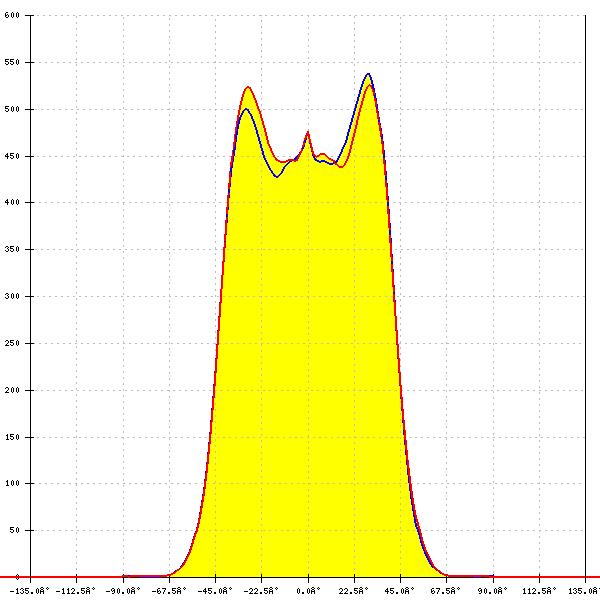

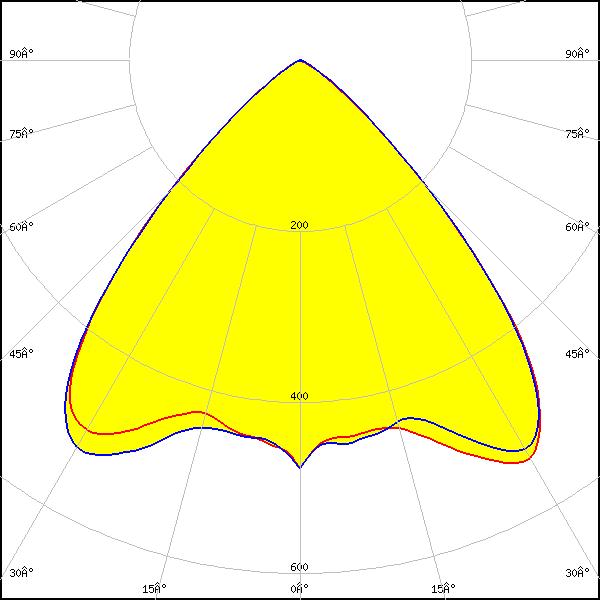

XOB 9.8 mm
Ordering code: CP18702_YASMEEN-70-WWW-C2
LES size: 9.8 mm
Required components:
FWHM:
86°
FWTM:
108°
Peak intensity:
0.542 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
