LP20073_LAURA-SC2-O-90-WHT
Print

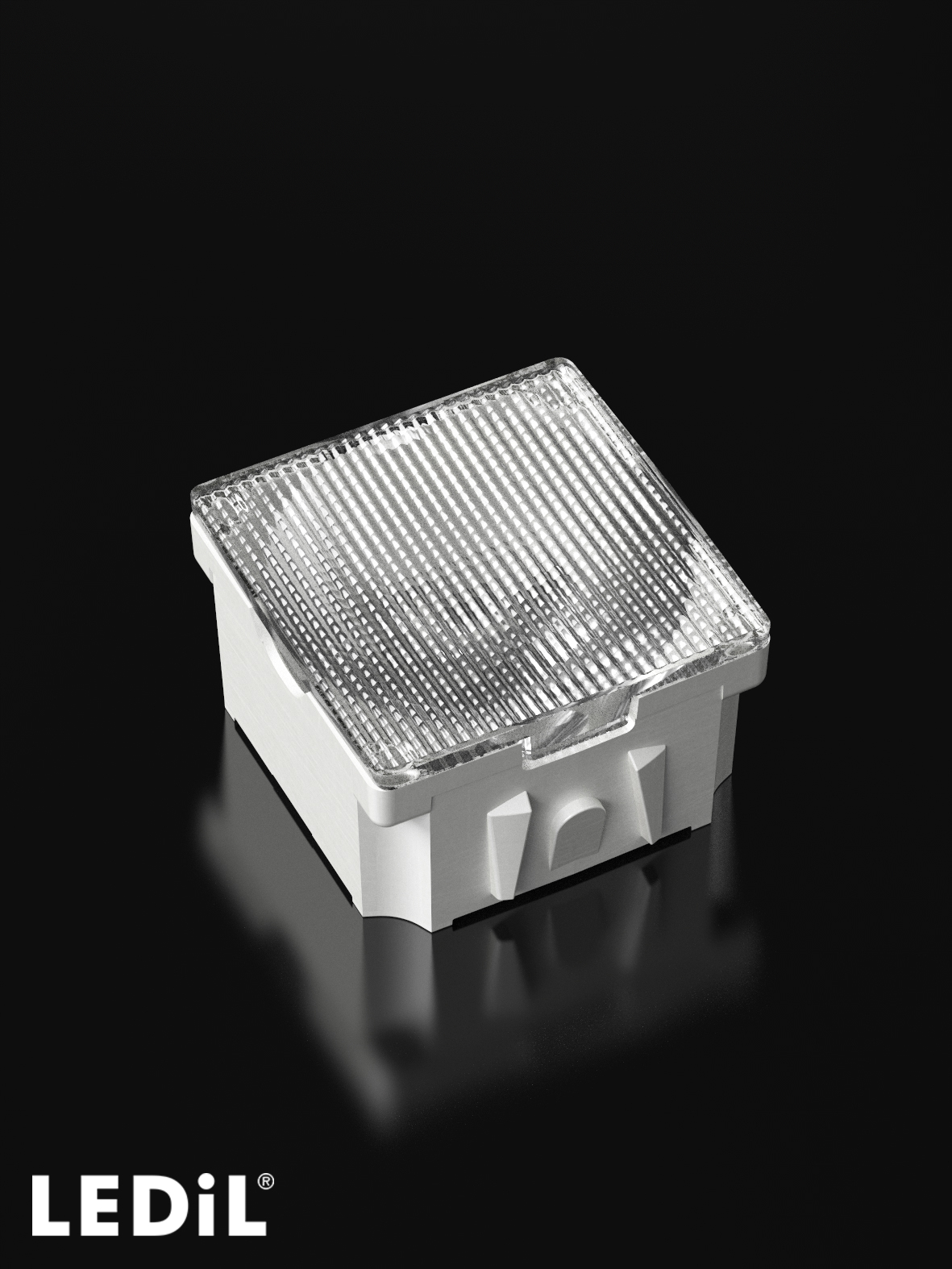

~40° x 15° oval beam. Variant with beam direction rotated 90°. Assembly with white SC2 holder.
Specification
-
Colour:white
-
RoHS and REACH compliant:Yes
Component Materials
- LAURA-O-90Single lensPMMA
- LAURA-SC2-HLD-WHTHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:1792 pcs
-
Box size:476 x 273 x 197 mm
-
Box weight:8.9 kg
-
MPQ:112 pcs
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
AVAILABLE LEDiL ACCESSORIES

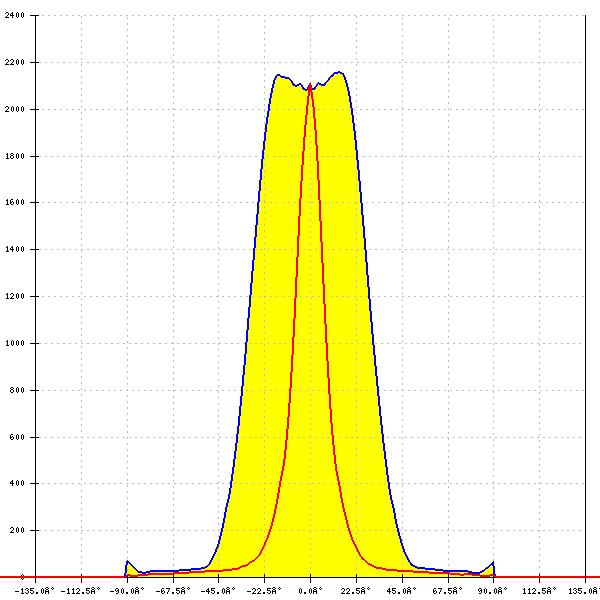

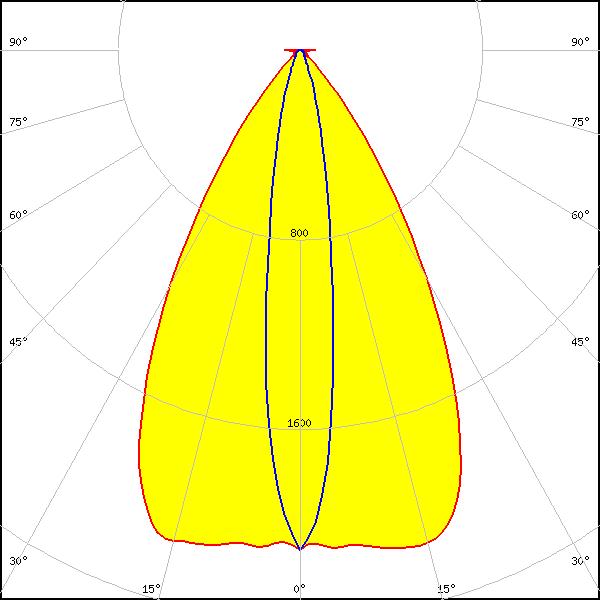

Optical results

LED:
XHP35.2 HI
FWHM:
61° + 16°
FWTM:
86° + 38°
Peak intensity:
2.157 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
