    FP16559_LISA3-M-PIN

    Print

    ~25° medium beam with location pin installation

    Specification
    • Dimensions:
      10 mm
    • Height:
      7.90 mm
    • Fastening:
      glue
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      2000 pcs
    • Box size:
      310 x 230 x 60 mm
    • Box weight:
      1.3 kg
    • MPQ:
      100 pcs
    • MOQ:
      300 pcs
    • MOQ size:
      230 x 160 x 30 mm
    • MOQ weight:
      0.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FP16559_LISA3-M-PIN
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR157 - Change of LISA3 MPQ, MOQ

    Luminaire, example

    Vitrine luminaire with LISA3

    Article

    Top 3 areas where retailers lose customers due to bad lighting

    News

    New Products - 2019-01-31

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    LuxR landscape lighting

    Application area

    Special Indoor Applications

    Application area

    Indoor Architectural Lighting

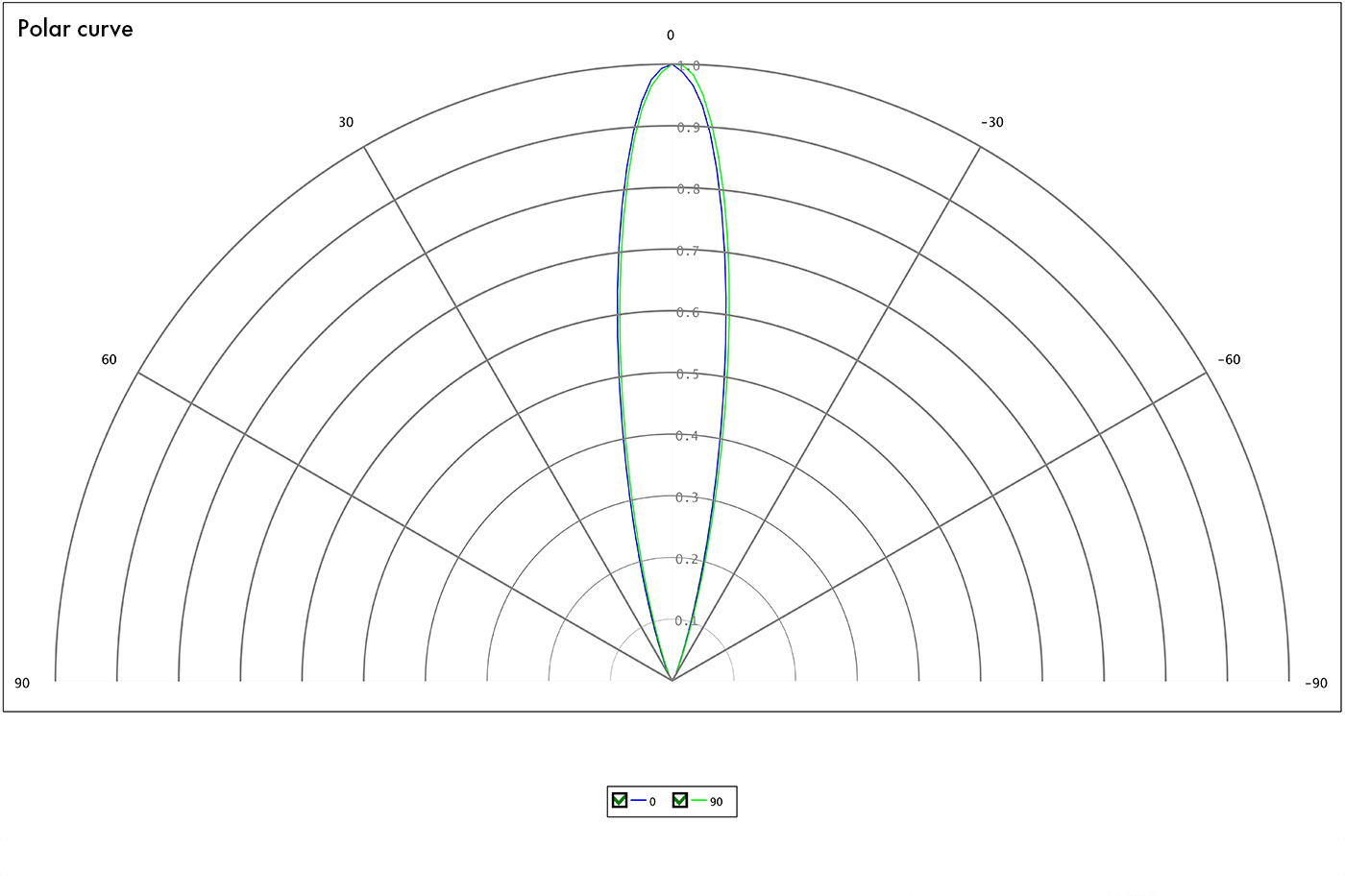

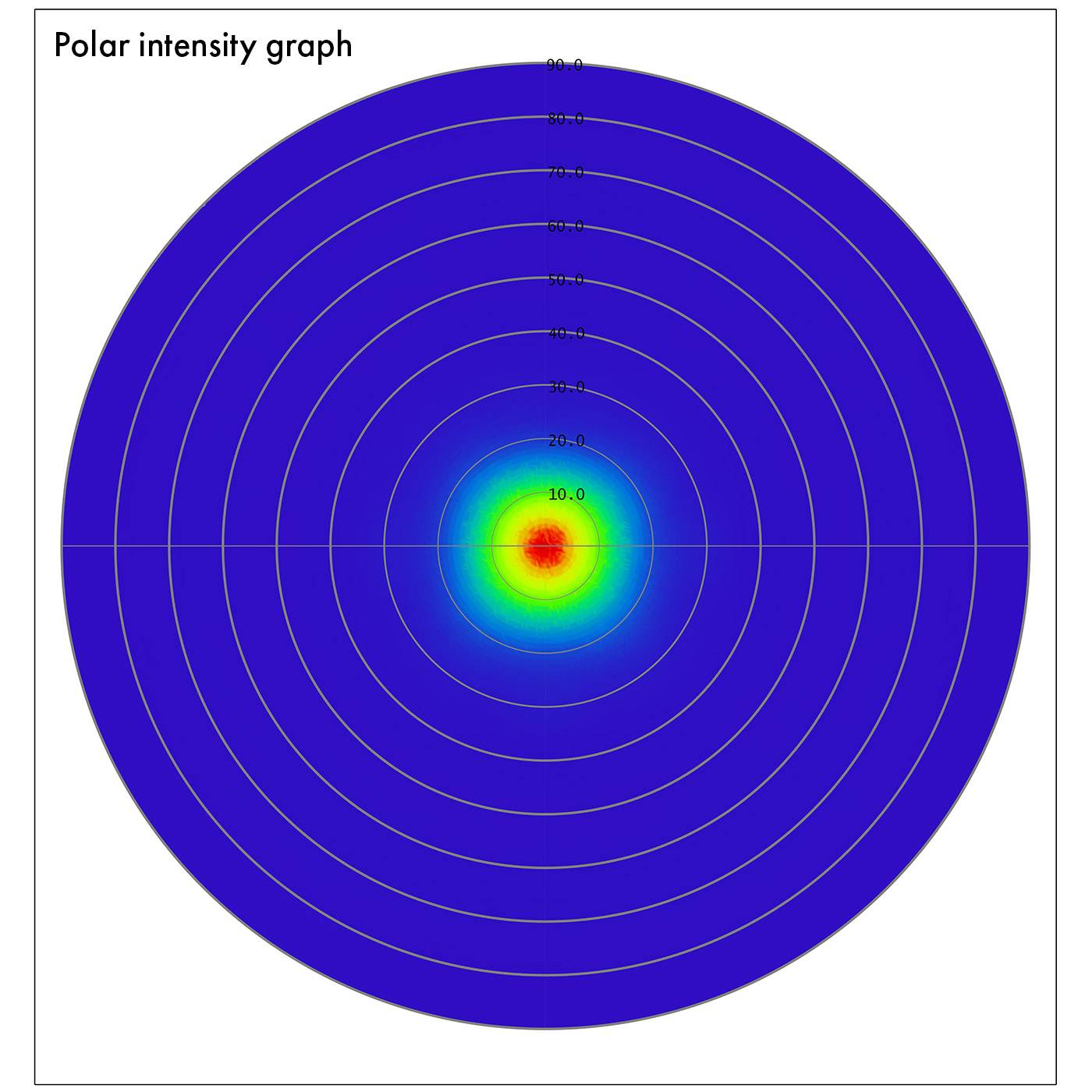

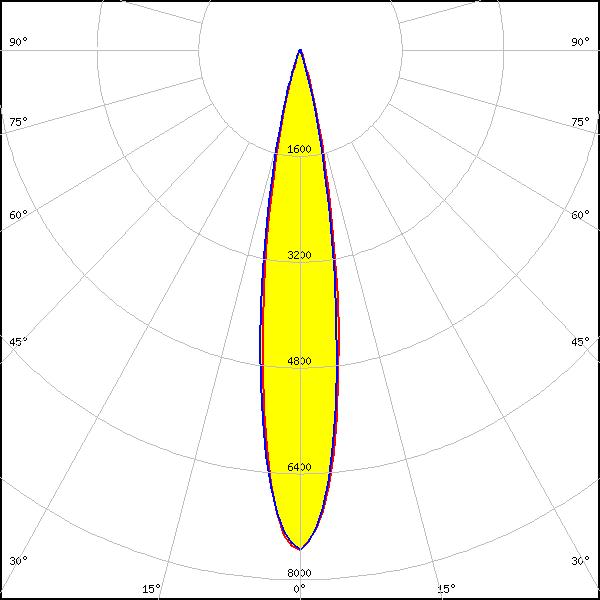

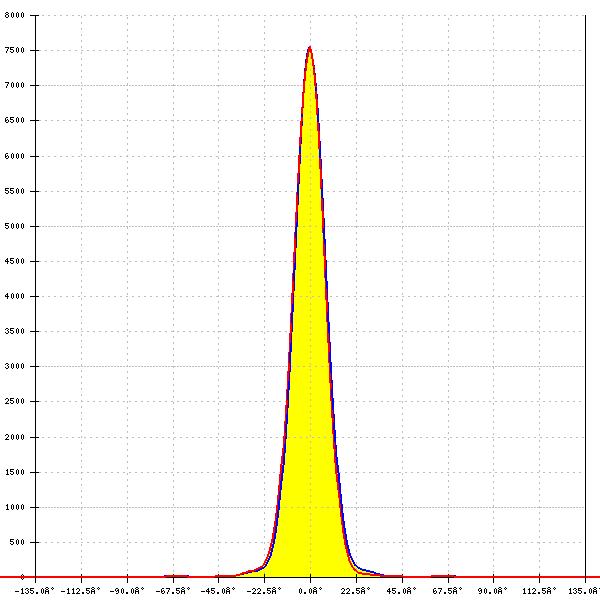

    Optical results

    LED: CSP 2323 (BXCP)
    FWHM: 22°
    FWTM: 42°
    Peak intensity: 4.392 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 2835
    FWHM: 25°
    FWTM: 50°
    Peak intensity: 3.457 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XD16
    FWHM: 25°
    FWTM: 46°
    Peak intensity: 3.530 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XD16
    FWHM: 26°
    FWTM: 49°
    Peak intensity: 2.969 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

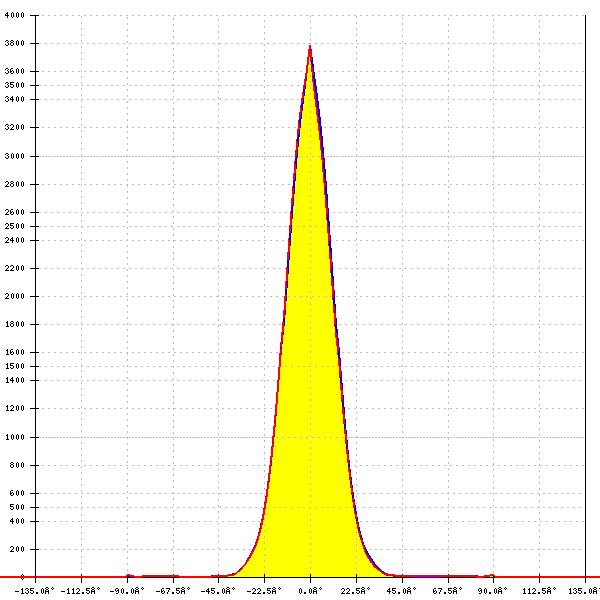

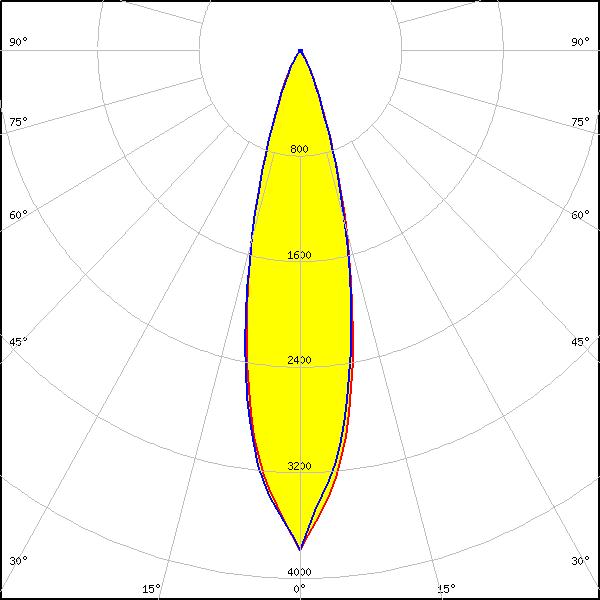

    LED: XE-G
    FWHM: 25°
    FWTM: 47°
    Peak intensity: 3.788 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E
    FWHM: 28°
    FWTM: 45°
    Peak intensity: 3.540 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E2
    FWHM: 25°
    FWTM: 44°
    Peak intensity: 4.060 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E2
    FWHM: 25°
    FWTM: 47°
    Peak intensity: 3.638 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G
    FWHM: 30°
    FWTM: 50°
    Peak intensity: 2.660 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2 HE
    FWHM: 34°
    FWTM: 66°
    Peak intensity: 2.001 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: 28°
    FWTM: 68°
    Peak intensity: 2.450 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: 31°
    FWTM: 58°
    Peak intensity: 2.266 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G4
    FWHM: 28°
    FWTM: 52°
    Peak intensity: 3.097 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 3.580 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 2835 Architectural
    FWHM: 23°
    FWTM: 46°
    Peak intensity: 4.163 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 3030 2D (Round LES)
    FWHM: 25°
    FWTM: 45°
    Peak intensity: 4.050 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON C
    FWHM: 28°
    FWTM: 54°
    Peak intensity: 2.616 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: Deep Red
    LED: LUXEON C
    FWHM: 26°
    FWTM: 52°
    Peak intensity: 2.831 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: Green
    LED: LUXEON C
    FWHM: 27°
    FWTM: 51°
    Peak intensity: 2.879 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: Royal Blue
    LED: LUXEON C
    FWHM: 28°
    FWTM: 52°
    Peak intensity: 2.864 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CZ
    FWHM: 23°
    FWTM: 43°
    Peak intensity: 4.271 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X
    FWHM: 31°
    FWTM: 58°

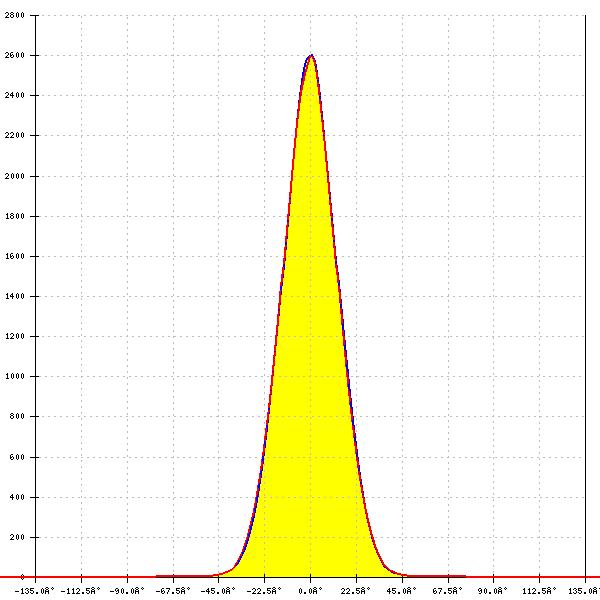

    Peak intensity: 2.601 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

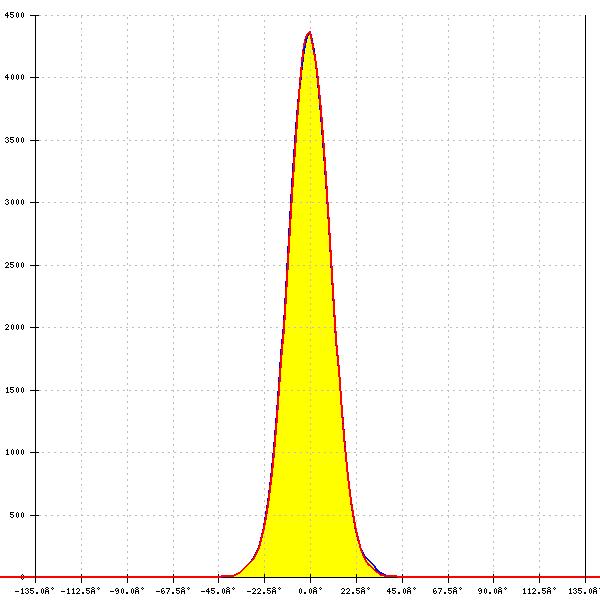

    LED: LUXEON Rubix
    FWHM: 24°
    FWTM: 44°
    Peak intensity: 4.364 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON TX
    FWHM: 28°
    FWTM: 50°
    Peak intensity: 3.130 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON V2
    FWHM: 30°
    FWTM: 56°
    Peak intensity: 2.700 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Z
    FWHM: 20°
    FWTM: 38°
    Peak intensity: 6.070 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Z ES
    FWHM: 22°
    FWTM: 41°
    Peak intensity: 5.045 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-12 Gen1
    FWHM: 26°
    FWTM: 48°
    Peak intensity: 3.806 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

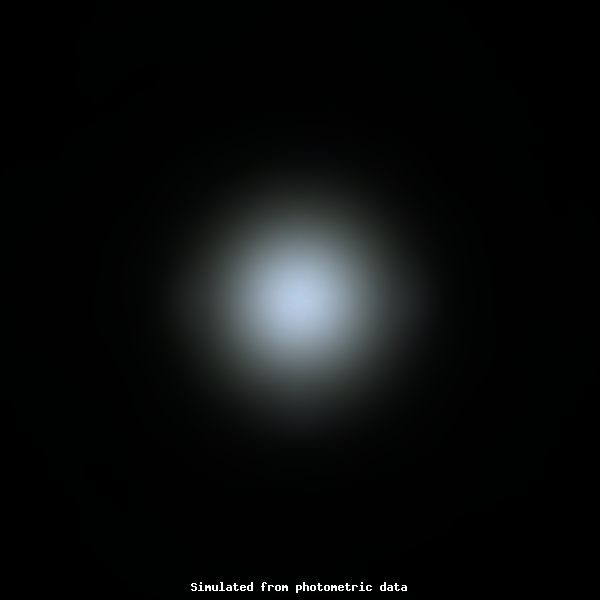

    LED: SST-12 Gen2
    FWHM: 28° + 27°
    FWTM: 50° + 50°
    Peak intensity: 3.457 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-20 Gen1
    FWHM: 26°
    FWTM: 46°
    Peak intensity: 3.770 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-20 Gen2
    FWHM: 26°
    FWTM: 50°
    Peak intensity: 3.467 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NCSU276C
    FWHM: 30°
    FWTM: 52°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: UV-A
    LED: NCSxx19B
    FWHM: 26°
    FWTM: 49°
    Peak intensity: 3.284 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NF2x757G
    FWHM: 25°
    FWTM: 45°
    Peak intensity: 3.560 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NF2x757G
    FWHM: 28°
    FWTM: 54°
    Peak intensity: 2.600 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4WB35AM
    FWHM: 38°
    FWTM: 66°
    Peak intensity: 1.796 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: 33°
    FWTM: 62°
    Peak intensity: 2.271 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: 32°
    FWTM: 59°
    Peak intensity: 2.375 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: 29°
    FWTM: 56°
    Peak intensity: 2.680 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris E 2835
    FWHM: 23°
    FWTM: 46°
    Peak intensity: 4.149 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: DURIS S5 (2 chip)
    FWHM: 25°
    FWTM: 45°
    Peak intensity: 3.220 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: DURIS S5 (Single chip)
    FWHM: 25°
    FWTM: 45°
    Peak intensity: 3.710 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 2424
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 3.792 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3030
    FWHM: 22°
    FWTM: 42°
    Peak intensity: 4.653 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Black
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 6.782 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Optimal (GF CSSRML.24)
    FWHM: 24°
    FWTM: 44°
    Peak intensity: 4.302 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Far Red
    LED: OSLON Pure 1414
    FWHM: 22°
    FWTM: 40°
    Peak intensity: 5.246 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 26°
    FWTM: 46°
    Peak intensity: 3.400 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 30°
    FWTM: 55°
    Peak intensity: 2.517 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square EC
    FWHM: 26°
    FWTM: 49°
    Peak intensity: 3.350 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square Flat
    FWHM: 24°
    FWTM: 45°
    Peak intensity: 3.646 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON SSL 120
    FWHM: 23°
    FWTM: 41°
    Peak intensity: 4.833 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Hyper Red
    LED: OSLON SSL 150
    FWHM: 25°
    FWTM: 45°
    Peak intensity: 4.000 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON SSL 80
    FWHM: 21°
    FWTM: 40°
    Peak intensity: 4.980 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFH 4715AS
    FWHM: 18°
    FWTM: 34°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: SFH 4715S
    FWHM: 20°
    FWTM: 35°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: SFH 4716S
    FWHM: 22°
    FWTM: 44°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: SYNIOS S2222
    FWHM: 23°
    FWTM: 44°
    Peak intensity: 4.733 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: 29°
    FWTM: 55°
    Peak intensity: 2.925 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: 32°
    FWTM: 59°
    Peak intensity: 2.417 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: 32°
    FWTM: 59°
    Peak intensity: 2.417 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: 31°
    FWTM: 58°
    Peak intensity: 2.456 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351D
    FWHM: 36°
    FWTM: 70°
    Peak intensity: 1.720 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM301A
    FWHM: 22°
    FWTM: 41°
    Peak intensity: 3.560 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM302A
    FWHM: 25°
    FWTM: 47°
    Peak intensity: 3.920 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M1/Z5M2
    FWHM: 28°
    FWTM: 50°
    Peak intensity: 3.267 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4
    FWHM: 29°
    FWTM: 53°
    Peak intensity: 3.026 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4
    FWHM: 33°
    FWTM: 61°
    Peak intensity: 2.278 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

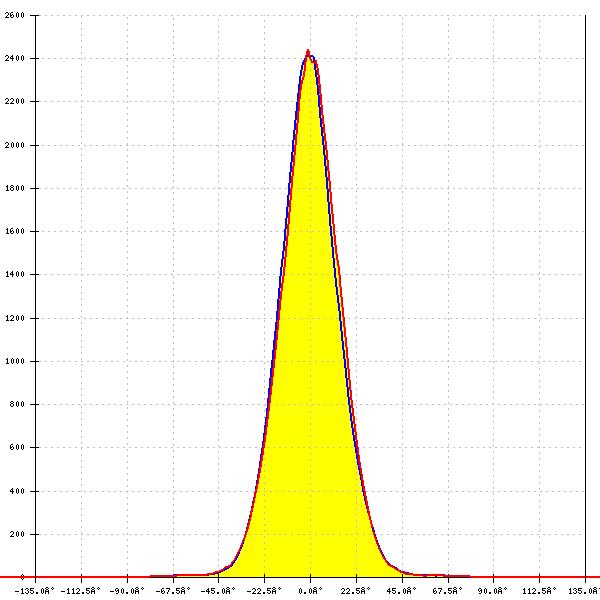

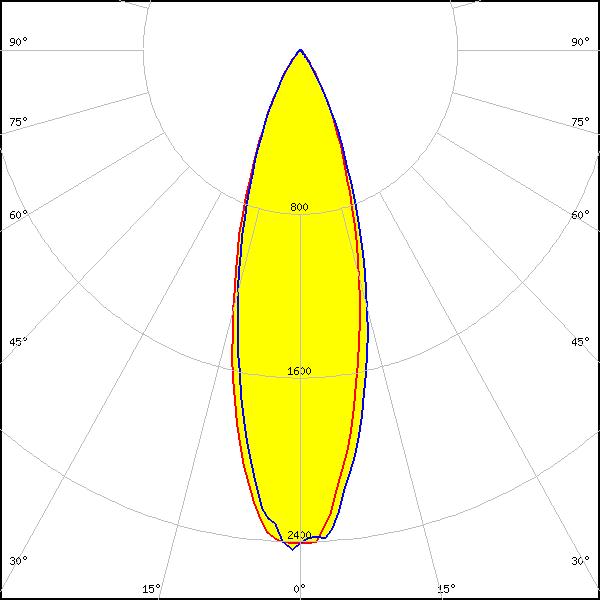

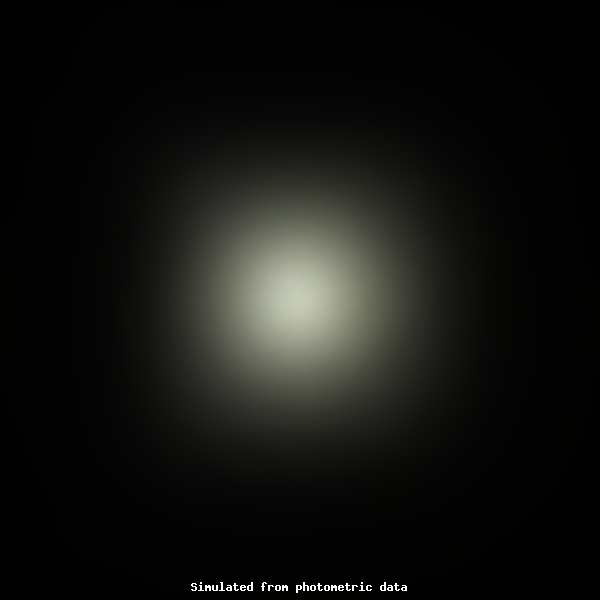

    LED: Z5M4-E1
    FWHM: 31°
    FWTM: 60°
    Peak intensity: 2.476 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

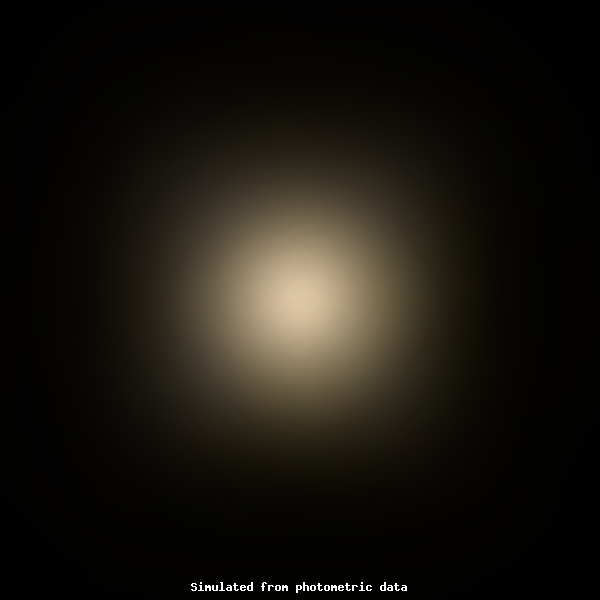

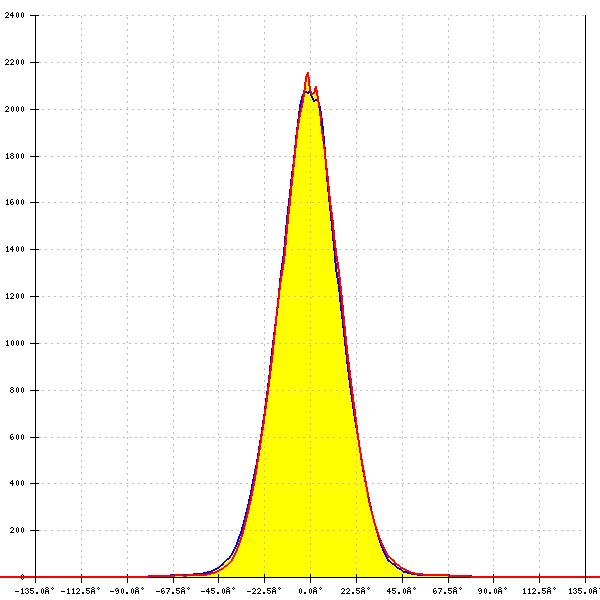

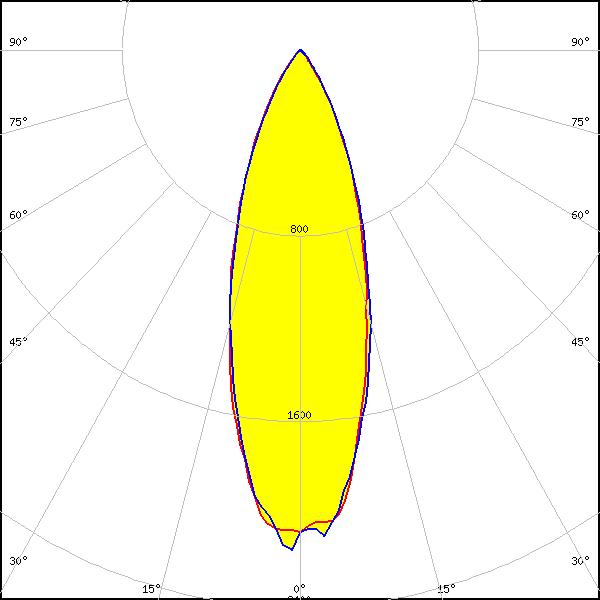

    LED: Z5M4-E2
    FWHM: 34°
    FWTM: 66°
    Peak intensity: 2.168 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M5
    FWHM: 34°
    FWTM: 60°
    Peak intensity: 2.052 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: FWR1108MS
    FWHM: 25°
    FWTM: 46°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: MFN1108MS
    FWHM: 21°
    FWTM: 37°
    Peak intensity: 5.957 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: MGN1108MS
    FWHM: 22°
    FWTM: 37°
    Peak intensity: 5.860 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: MJN1108MS
    FWHM: 25°
    FWTM: 46°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: IR
