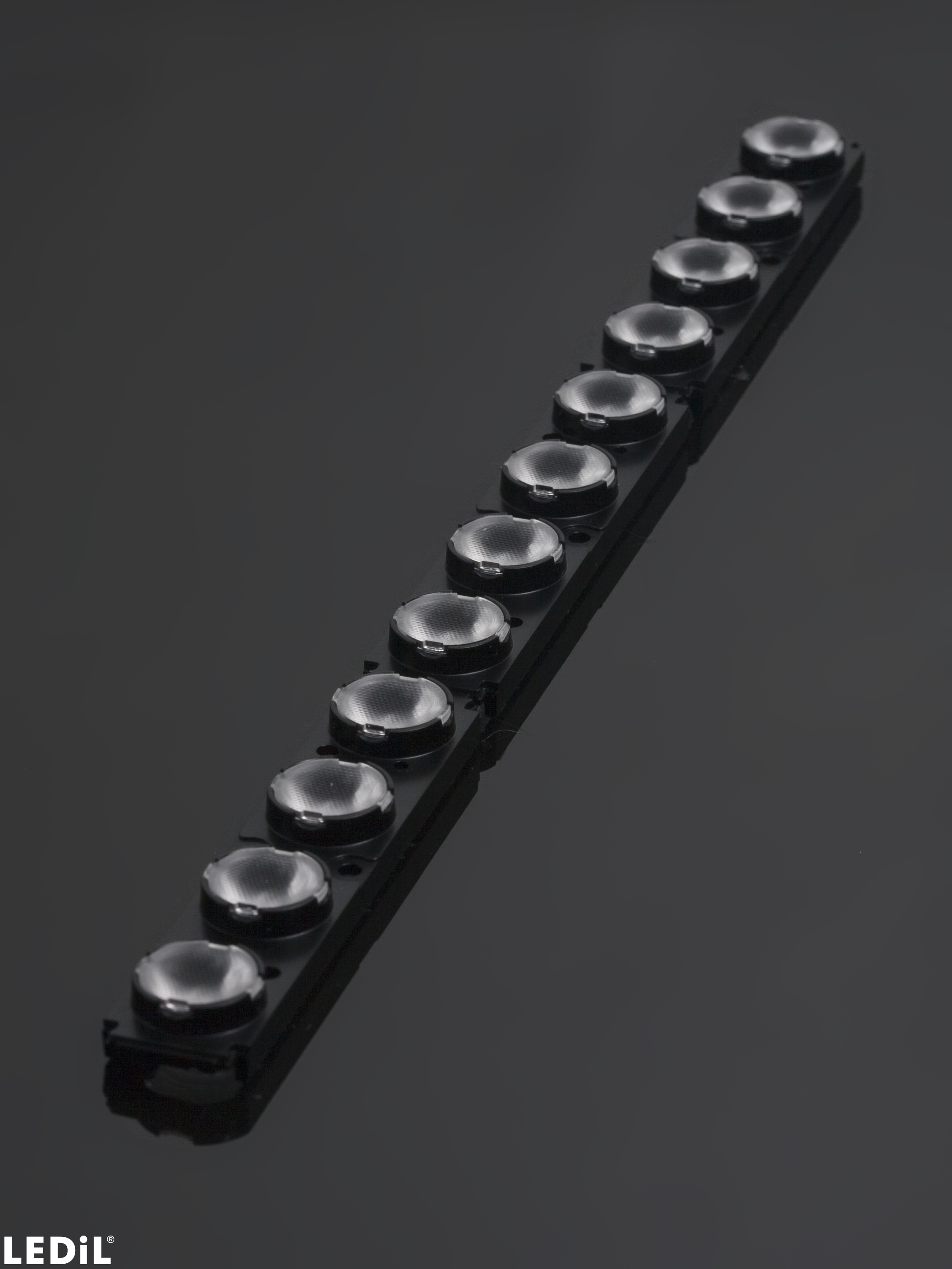

    FP16391_FLORENTINA-HLD-BW

    Print

    ~60° batwing beam

    Specification
    • Dimensions:
      286 x  20 mm
    • Height:
      10.20 mm
    • Fastening:
      clips
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      160 pcs
    • Box size:
      398 x 298 x 140 mm
    • Box weight:
      3.6 kg
    • MPQ:
      16 pcs
    • MOQ:
      32 pcs
    • MOQ size:
      400 x 300 x 50 mm
    • MOQ weight:
      1.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FP16391_FLORENTINA-HLD-BW

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR146 - Change of Florentina holder designs

    News

    New Products - 2018-05-09

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Compatibility guide

    FLORENTINA Assemblies

    Application guide

    LEDiL guide for office lighting optics

    News

    Effective fashion retail lighting

    Article

    Understanding the standards but aiming higher

    Article

    Stylish yet functional LED office lighting

    News

    PRODUCT NEWS - FLORENTINA-OPEN

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    FLORENTINA-SHD

    Black shade for FLORENTINA (12X1) assemblies

    FLORENTINA-SHD-WHT

    White shade for FLORENTINA (12X1) assemblies

    FLORENCE-1R-CLIP-C

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 24 mm wide PCB

    FLORENCE-1R-CLIP-B

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD to extrusion profiles

    FLORENCE-1R-CLIP-A

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 40 mm wide PCB

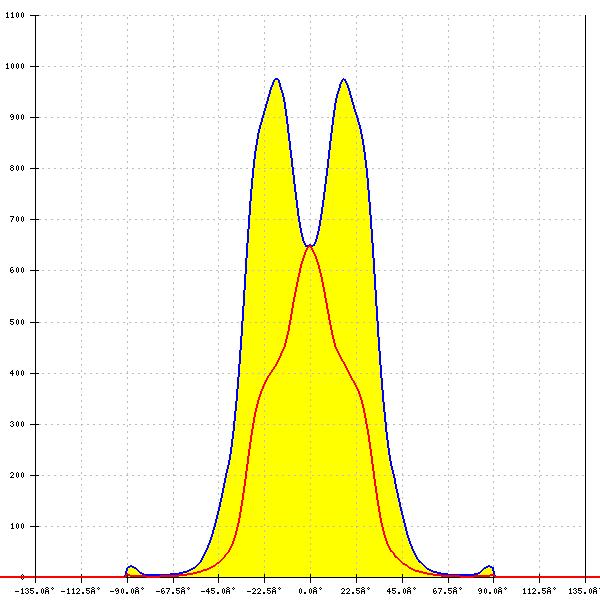

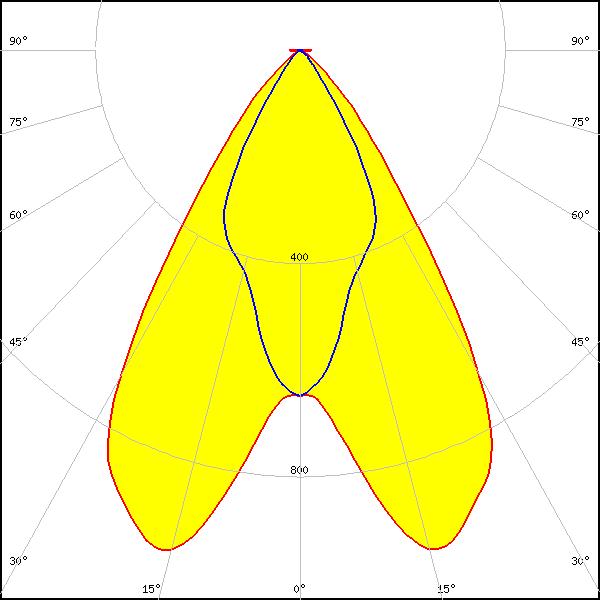

    Optical results

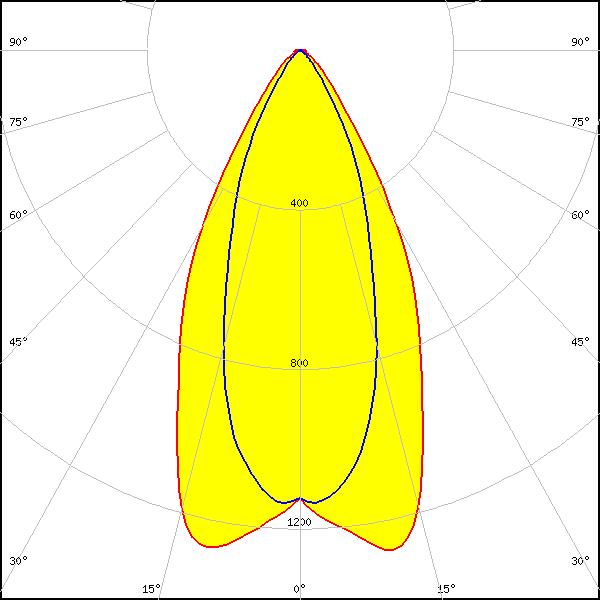

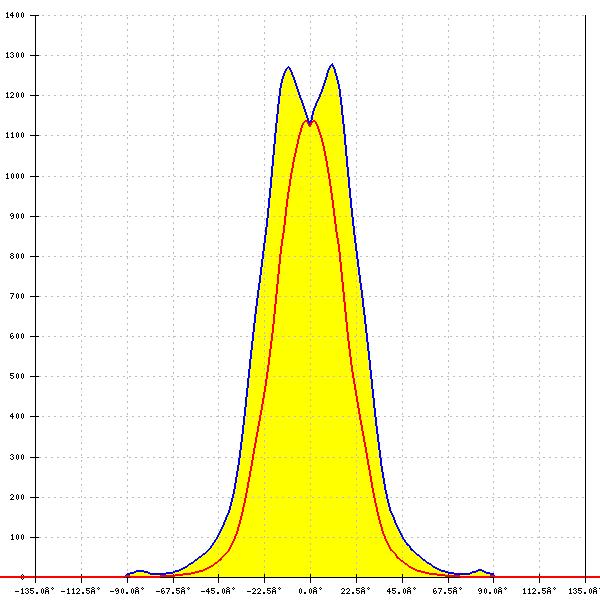

    LED: J Series 3030
    FWHM: asymmetric
    Peak intensity: 1.265 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

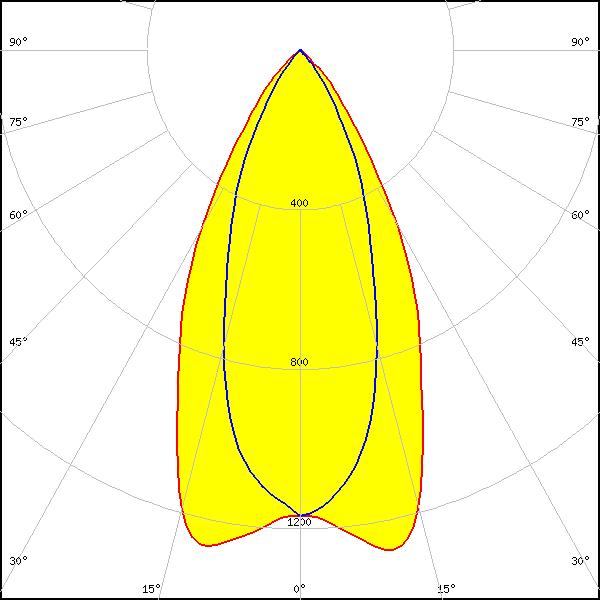

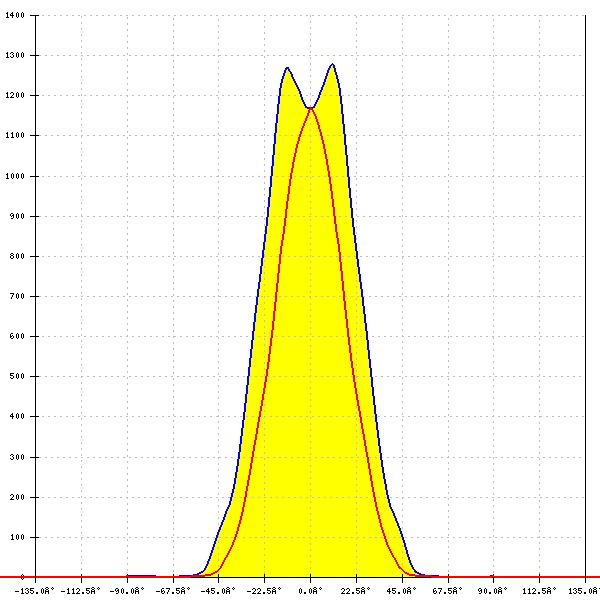

    LED: J Series 3030
    Required components:
    C14446_FLORENTINA-SHD
    FWHM: asymmetric
    Peak intensity: 1.263 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

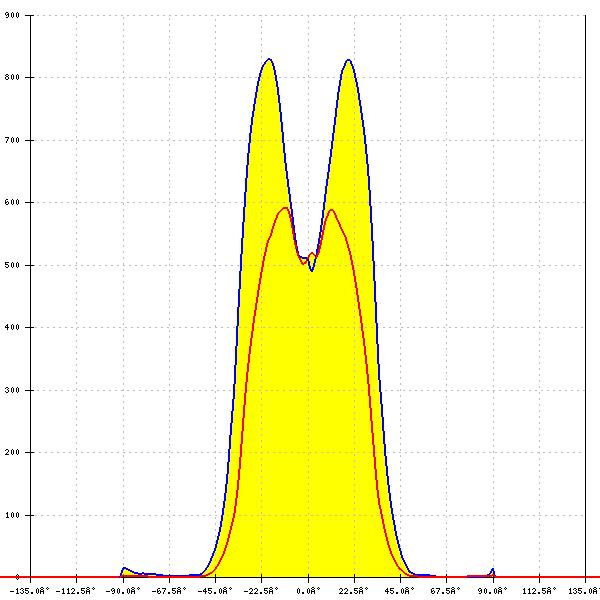

    LED: XP-G3
    Required components:
    C14446_FLORENTINA-SHD
    FWHM: asymmetric
    Peak intensity: 0.855 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

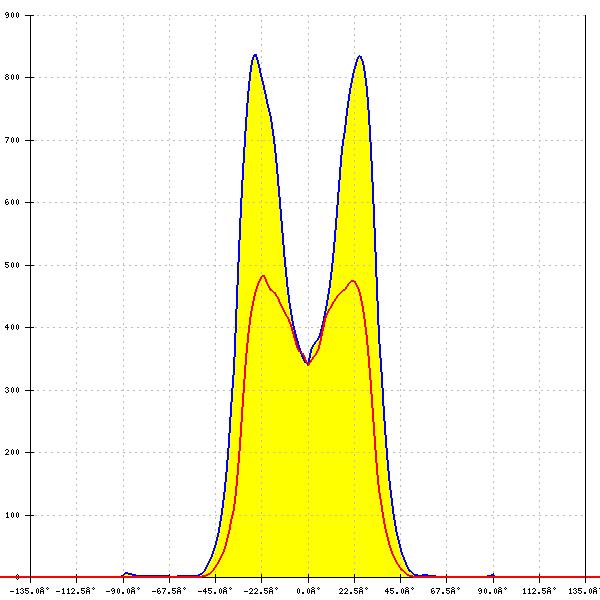

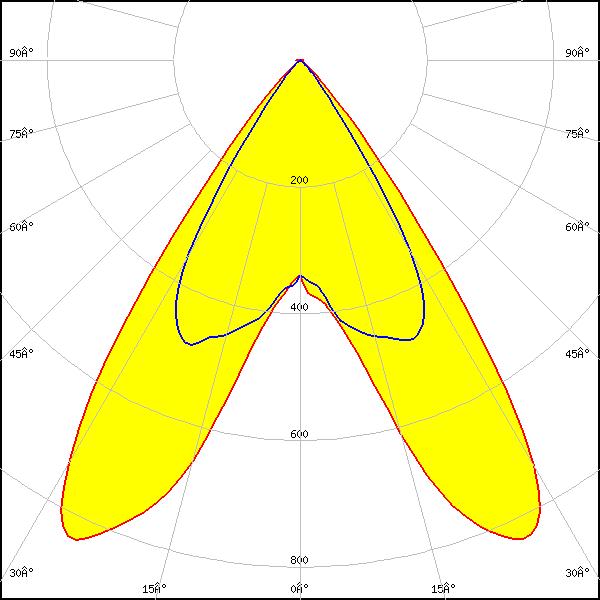

    LED: XP-G4
    Required components:
    C14446_FLORENTINA-SHD
    FWHM: asymmetric
    Peak intensity: 0.898 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

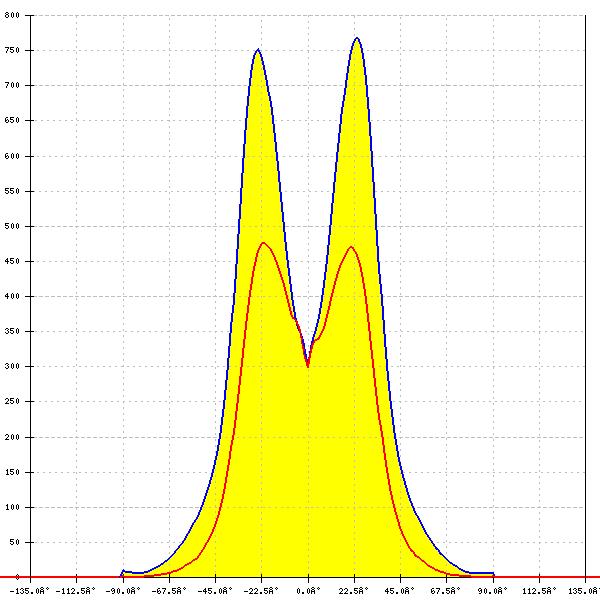

    LED: LUXEON HL2X
    FWHM: asymmetric
    Peak intensity: 0.783 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NCSxE17A
    Required components:
    C14446_FLORENTINA-SHD
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxE21A
    Required components:
    C14446_FLORENTINA-SHD
    FWHM: asymmetric
    Peak intensity: 1.340 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

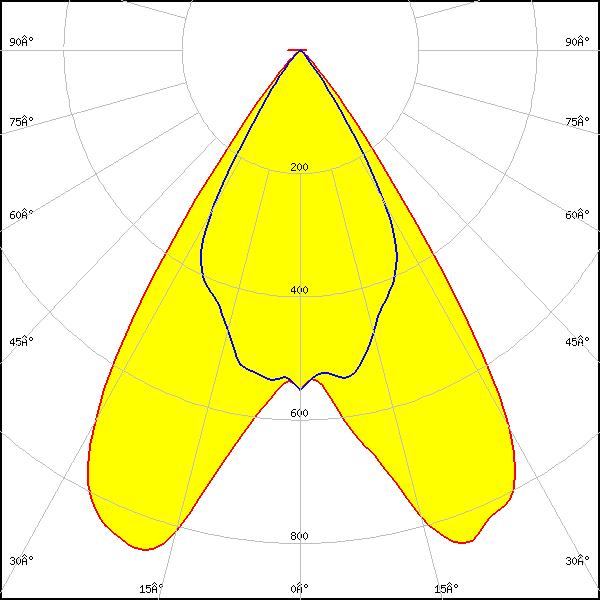

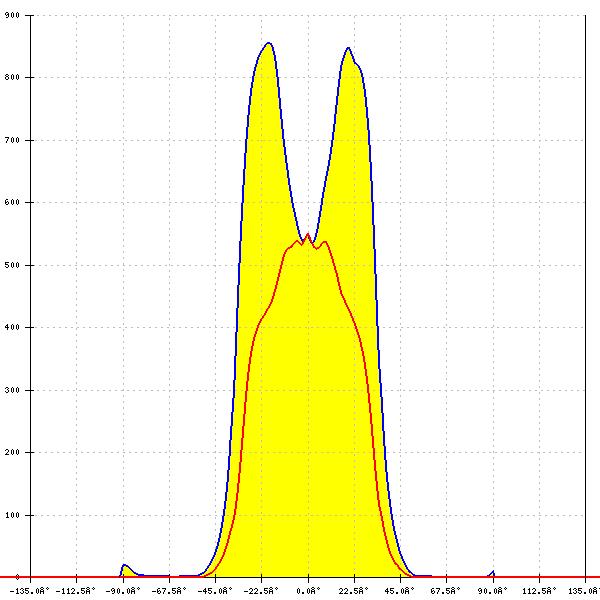

    LED: OSLON Square CSSRM2/CSSRM3
    Required components:
    C14446_FLORENTINA-SHD
    FWHM: asymmetric
    Peak intensity: 0.917 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square EC
    FWHM: asymmetric
    Peak intensity: 0.779 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

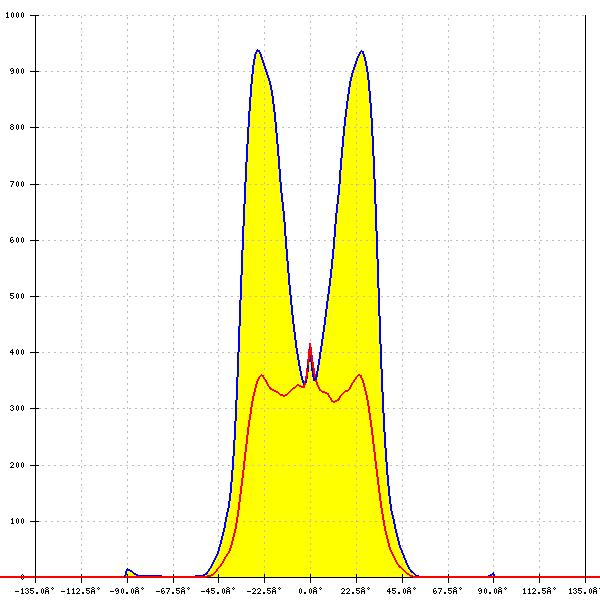

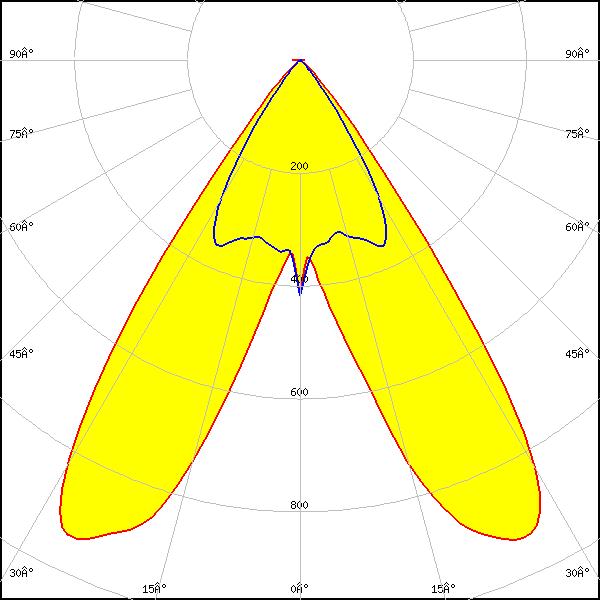

    LED: OSLON SSL 150
    Required components:
    C14446_FLORENTINA-SHD
    FWHM: asymmetric
    Peak intensity: 1.069 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

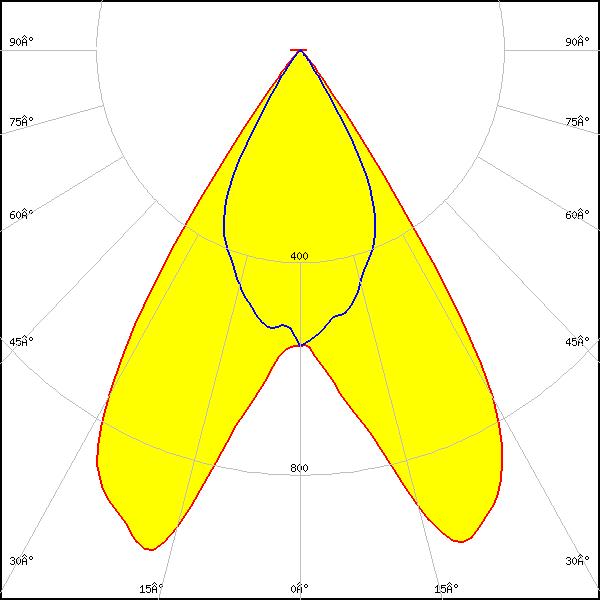

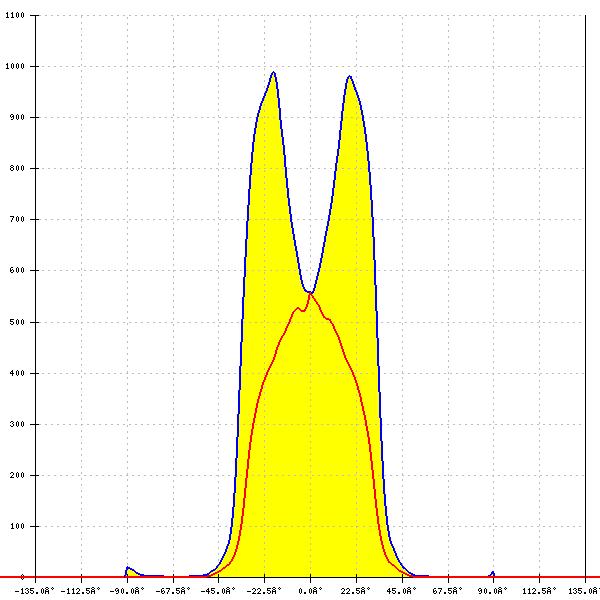

    LED: OSLON SSL 80
    Required components:
    C14446_FLORENTINA-SHD
    FWHM: asymmetric
    Peak intensity: 1.034 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

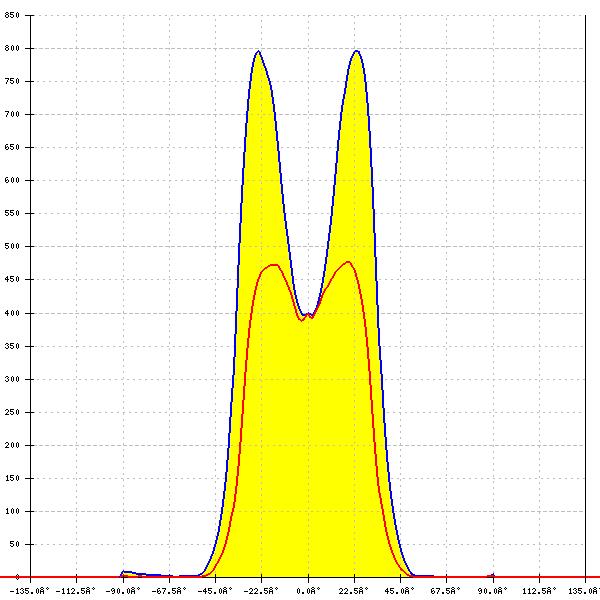

    LED: LH351B
    Required components:
    C14446_FLORENTINA-SHD
    FWHM: asymmetric
    Peak intensity: 0.854 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 0.700 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
