FP15073_ZORYA-SC-B
Print

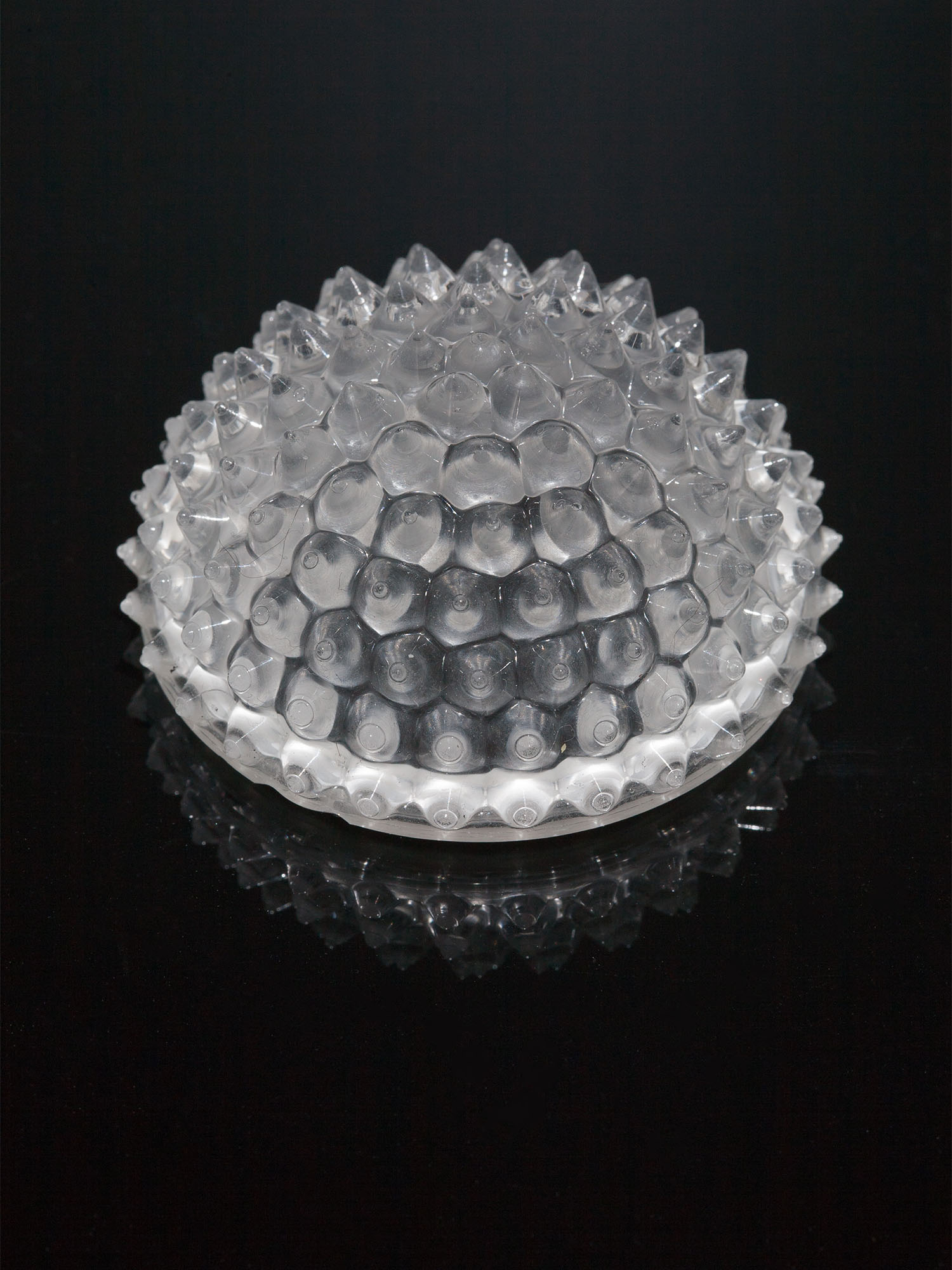

~340° omnidirectional decorative beam. Assembly with ZORYA adapter.
Component Materials
- ZORYA-SCSingle lensSilicone
- ZORYA-SC-ADAPTER-BHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
BJB 47.319.2xxx compatible
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:

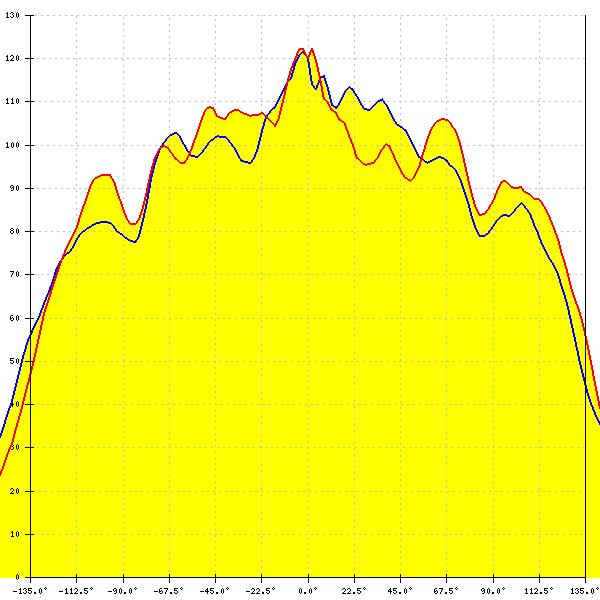

BXRA ES Rectangle
LES size: 19.2 mm
Required components:
BJB: 47.319.2040
FWHM:
256°
FWTM:
326°
Peak intensity:
0.130 cd/lm
LEDs/each optic:
1
Light colour/type:
White

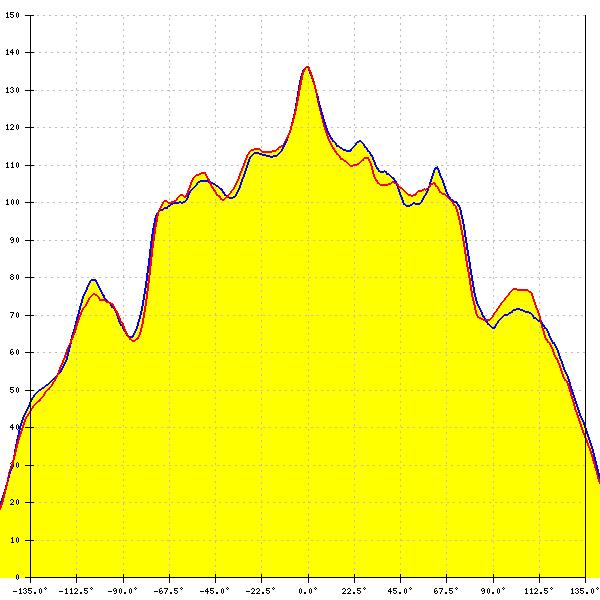

LED:

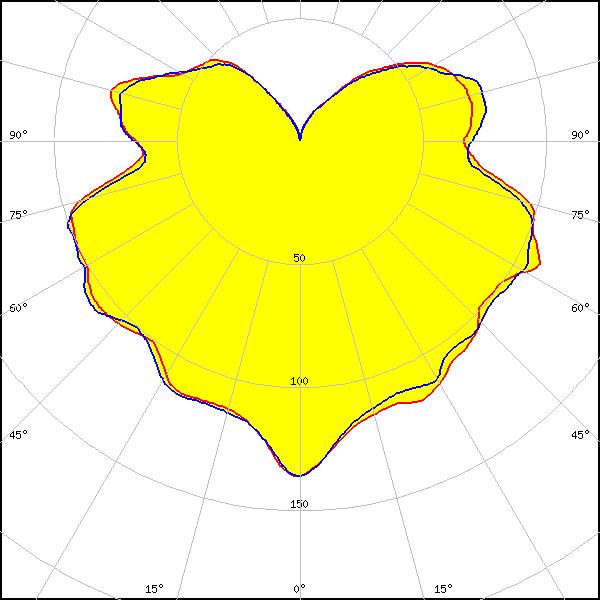

V8 Gen6
LES size: 8.1 mm
Required components:
FWHM:
234°
FWTM:
310°
Peak intensity:
0.140 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

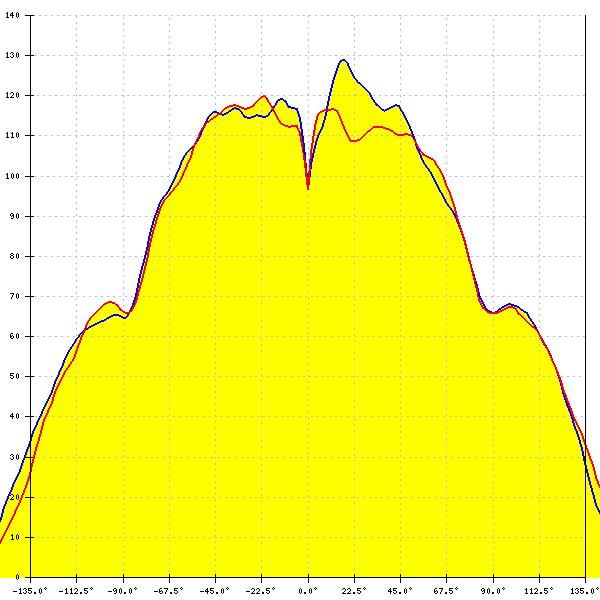

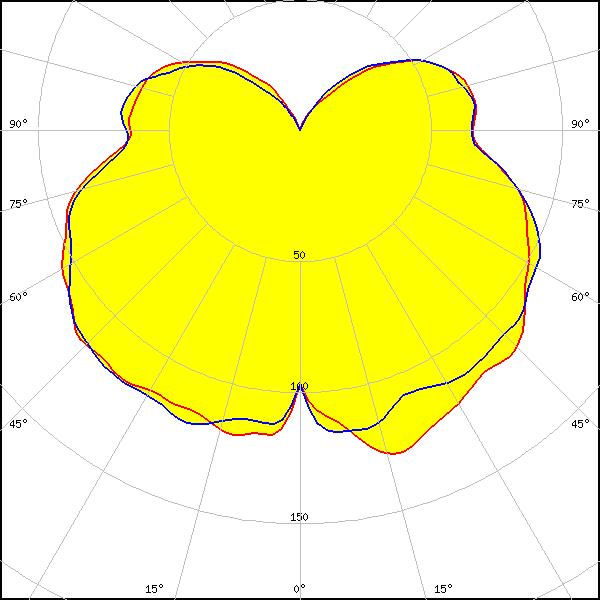

VERO18
LES size: 18.6 mm
Required components:
FWHM:
215°
FWTM:
296°
Peak intensity:
0.131 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU03x
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
253°
FWTM:
344°
Peak intensity:
0.121 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

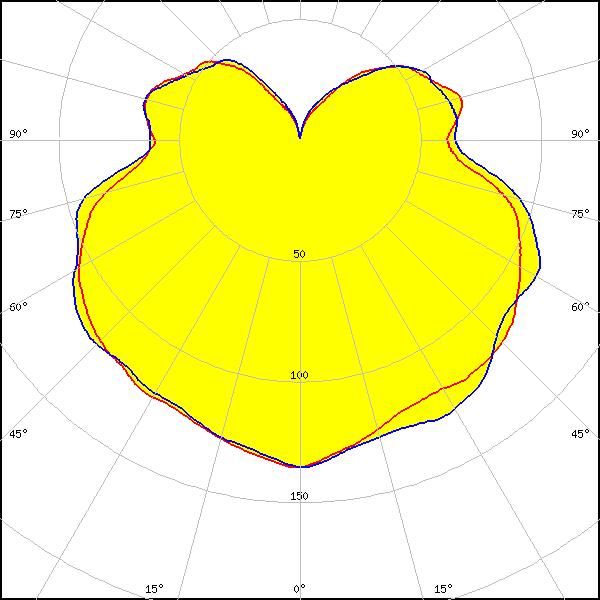

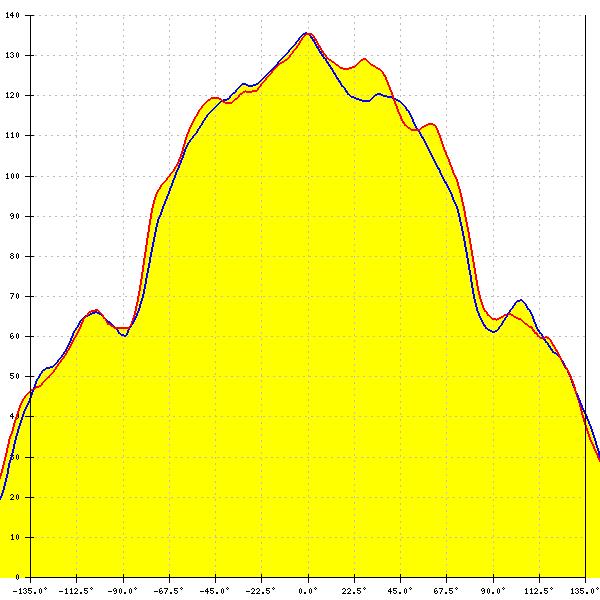

LED:

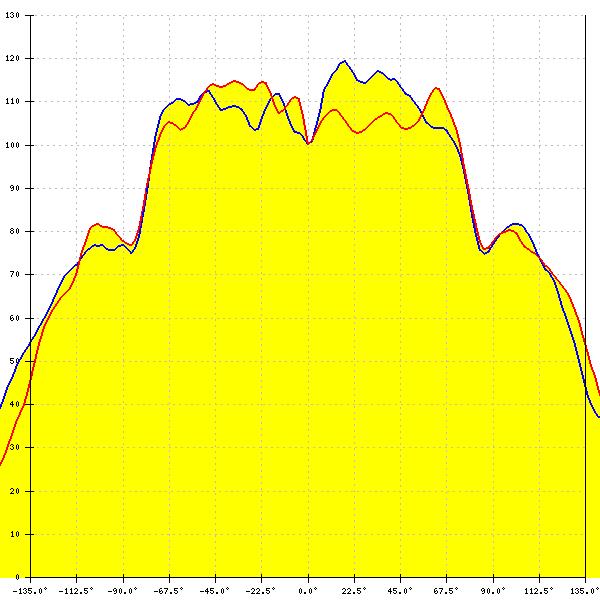

CLU03x
LES size: 14.5 mm
Required components:
FWHM:
171°
FWTM:
317°
Peak intensity:
0.140 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

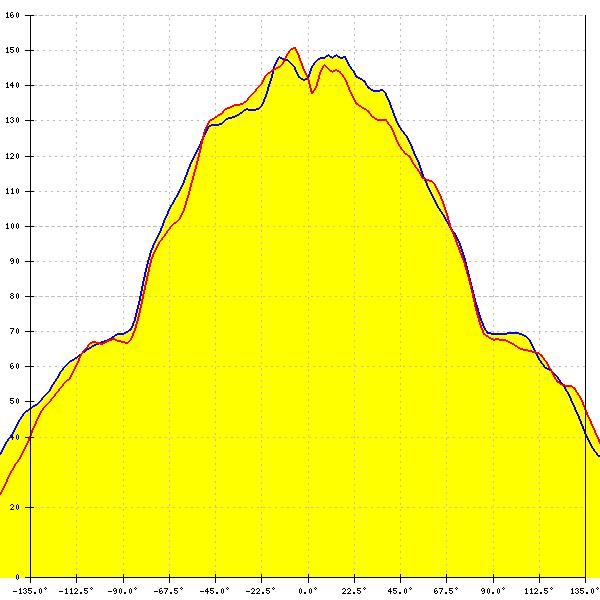

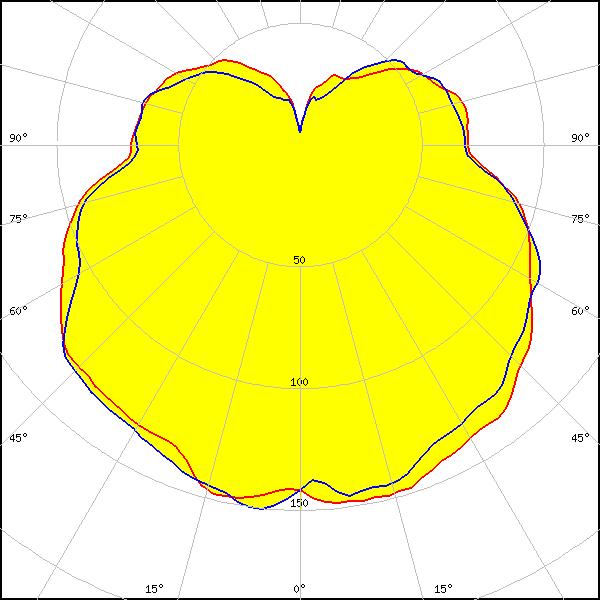

LED:
CLU04x
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
165°
FWTM:
341°
Peak intensity:
0.153 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

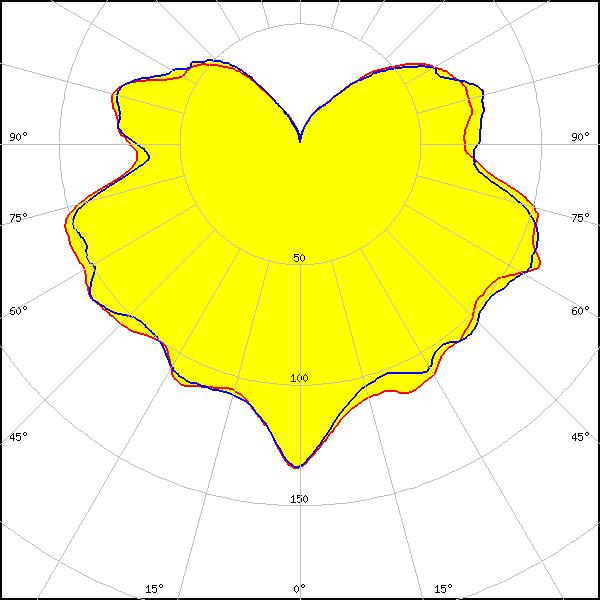

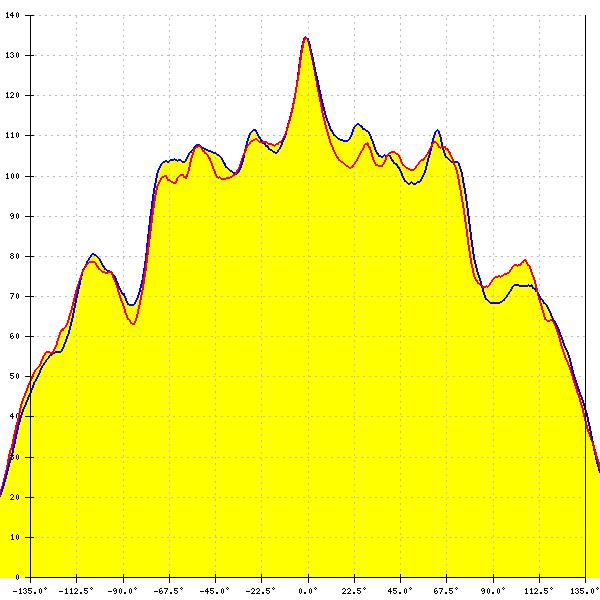

LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
230°
FWTM:
313°
Peak intensity:
0.135 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

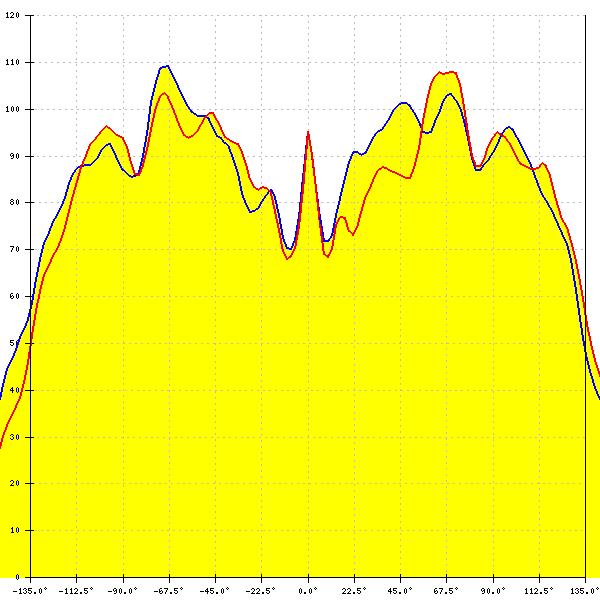

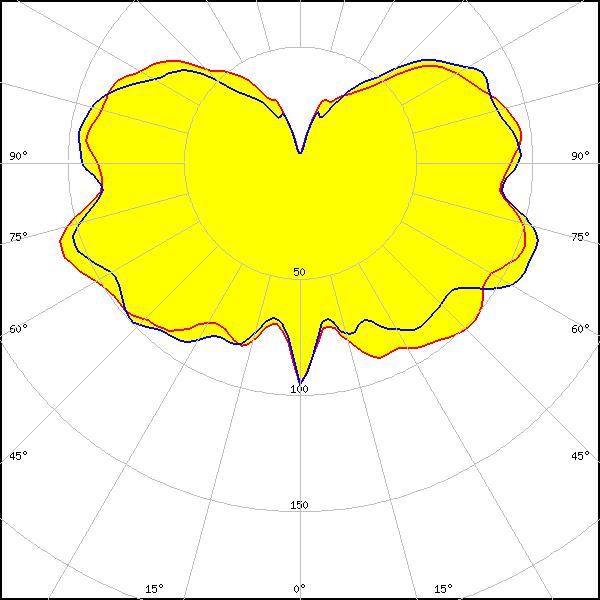

CLU710/711
LES size: 8.5 mm
Required components:
BJB: 47.319.2021
FWHM:
268°
FWTM:
25°
Peak intensity:
0.113 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

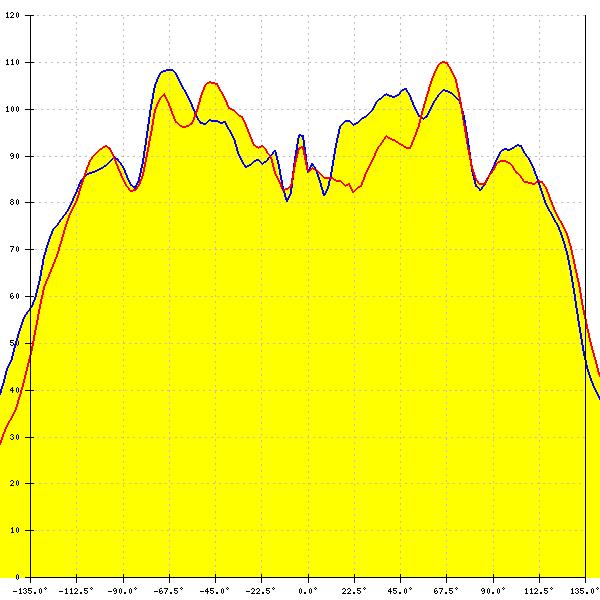

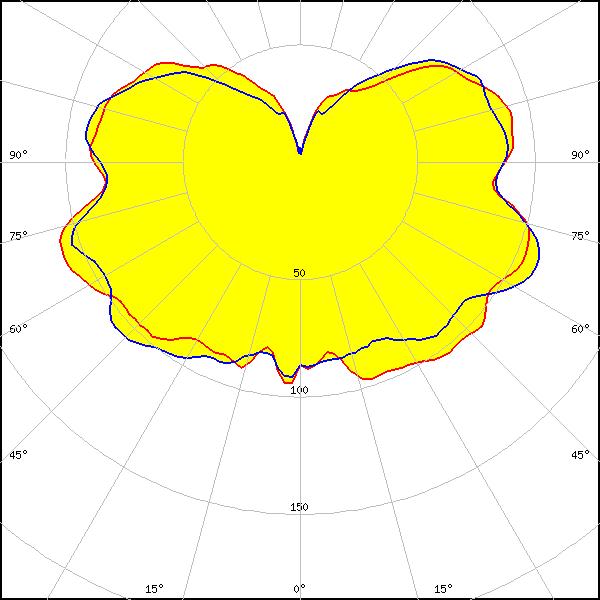

LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
BJB: 47.319.2021
FWHM:
265°
FWTM:
28°
Peak intensity:
0.111 cd/lm
LEDs/each optic:
1
Light colour/type:
White

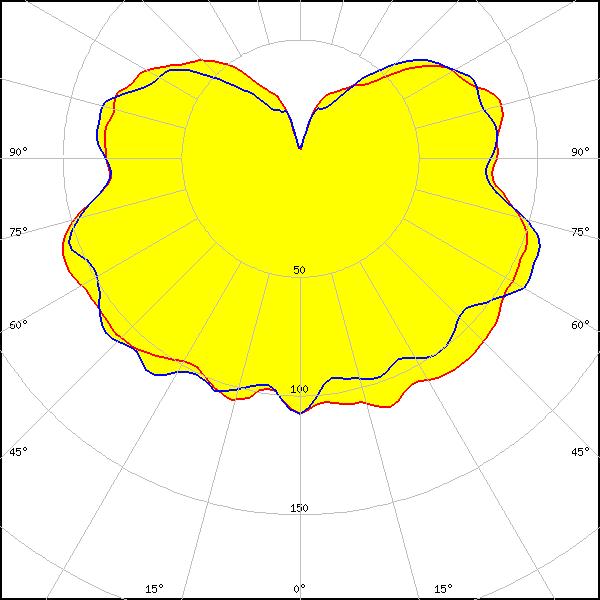

LED:

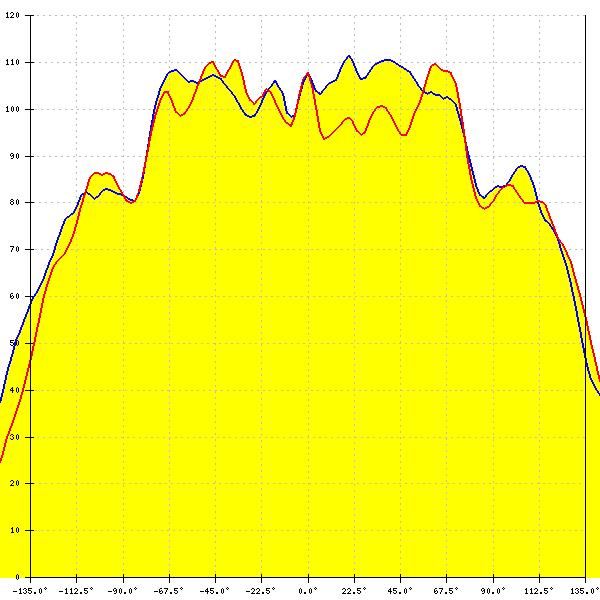

CLU730/731/733
LES size: 13.0 mm
Required components:
BJB: 47.319.2030
FWHM:
264°
FWTM:
344°
Peak intensity:
0.114 cd/lm
LEDs/each optic:
1
Light colour/type:
White
LED:

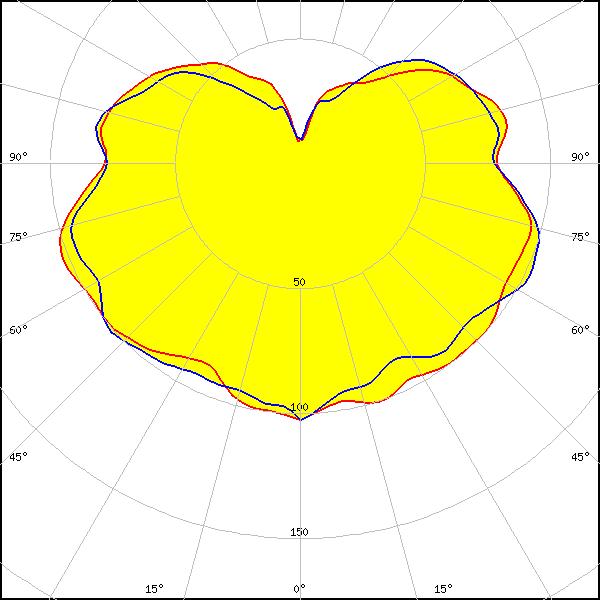

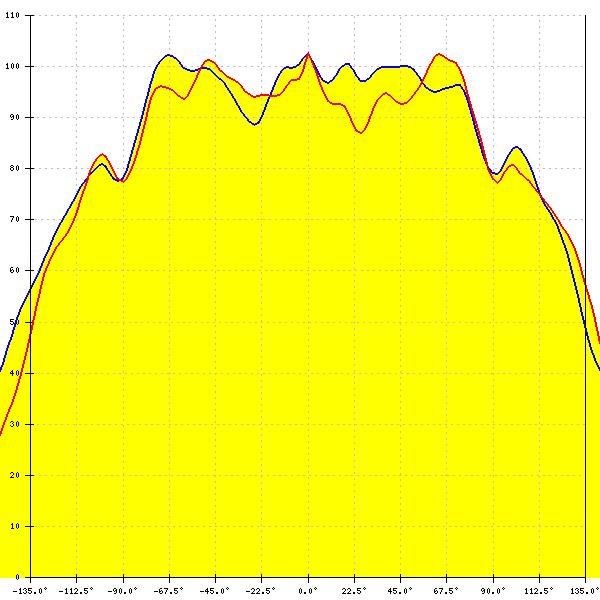

CMT19xx
LES size: 14.5 mm
Required components:
Bender Wirth: 477 Typ L7
FWHM:
273°
FWTM:
352°
Peak intensity:
0.104 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

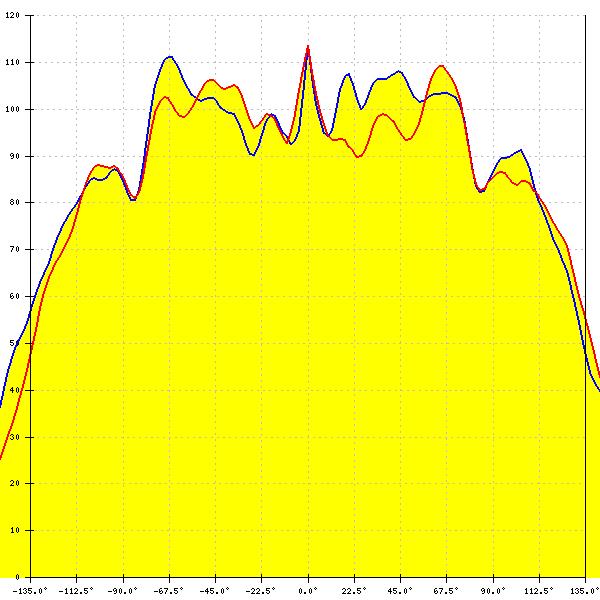

LED:

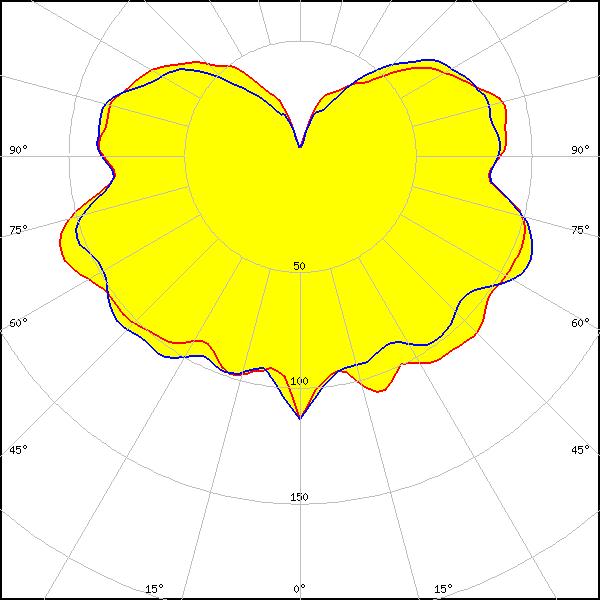

CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
BJB: 47.319.2131
FWHM:
266°
FWTM:
338°
Peak intensity:
0.113 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

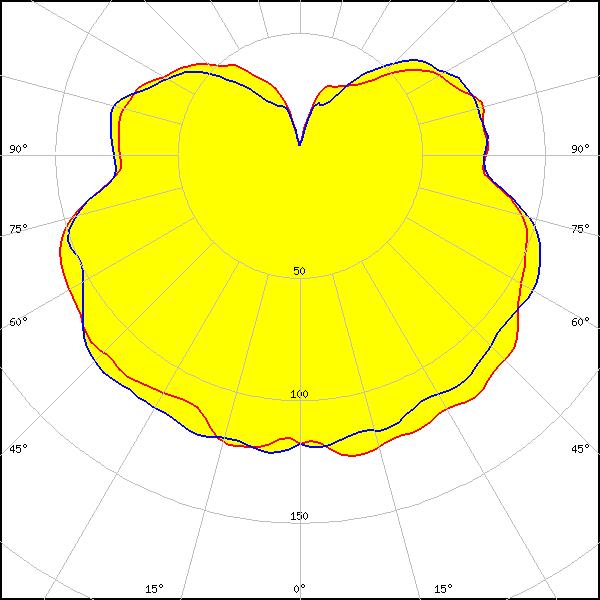

LED:

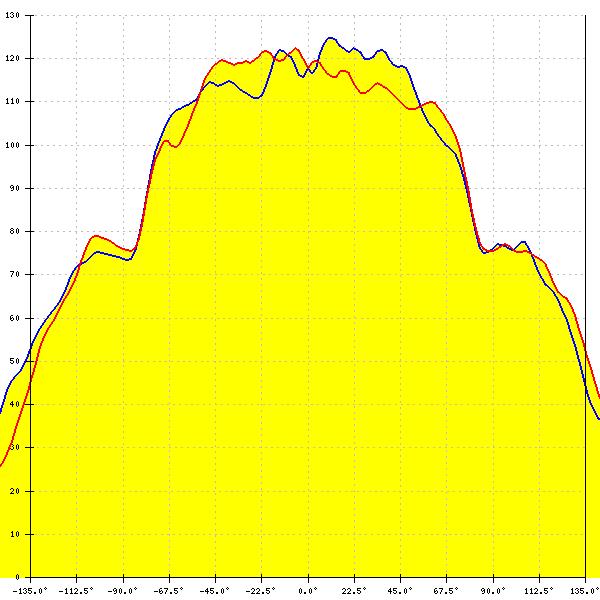

CXA/B 25xx
LES size: 19.0 mm
Required components:
BJB: 47.319.2040
FWHM:
240°
FWTM:
343°
Peak intensity:
0.130 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

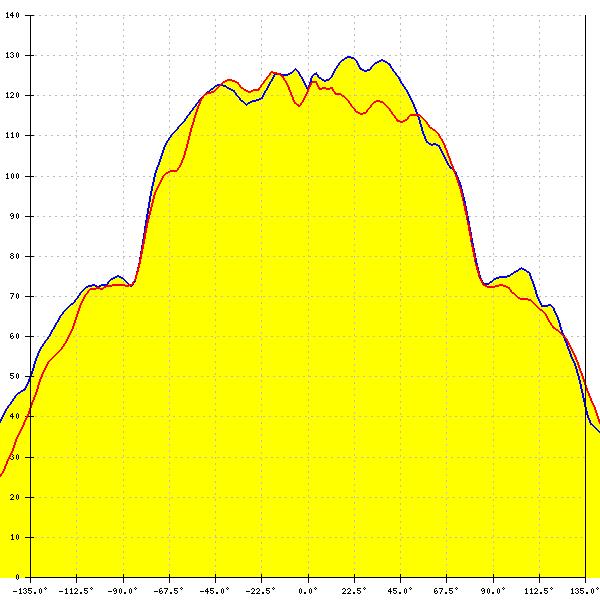

LED:
CXA/B 30xx
LES size: 23.0 mm
Required components:
BJB: 47.319.2151
FWHM:
242°
FWTM:
343°
Peak intensity:
0.131 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

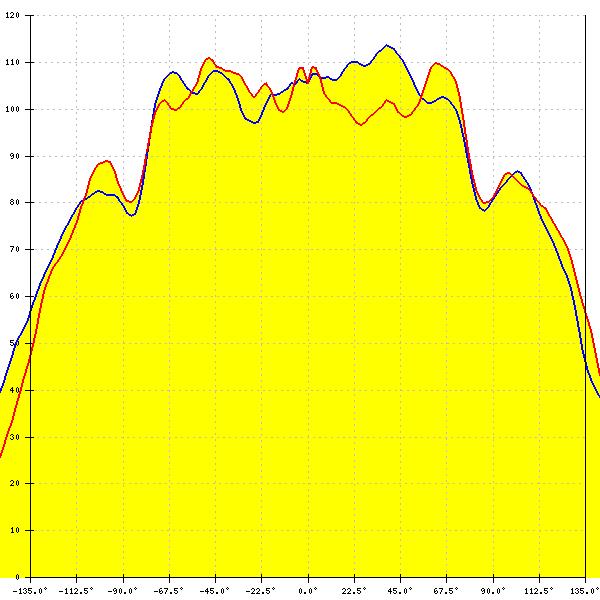

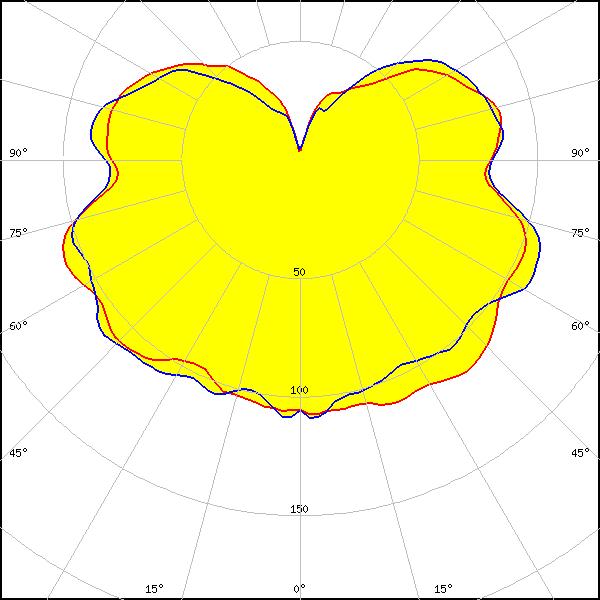

LED:
LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
BJB: 47.319.2011
FWHM:
263°
FWTM:
340°
Peak intensity:
0.115 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

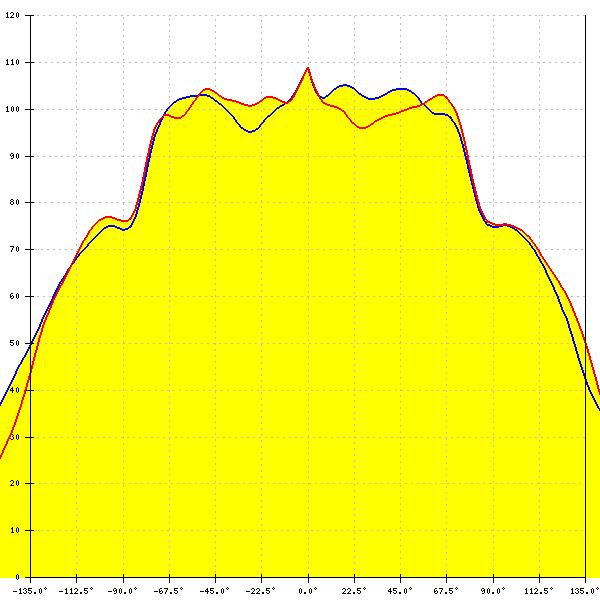

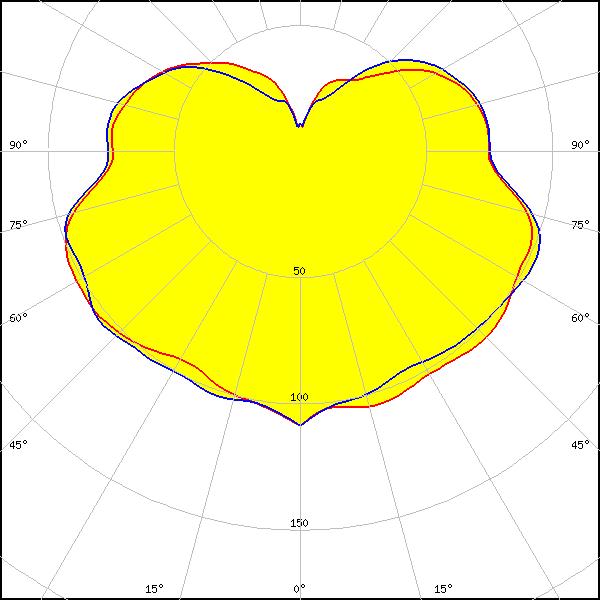

LUXEON CoB 1208
LES size: 15.0 mm
Required components:
BJB: 47.319.2011
FWHM:
253°
FWTM:
329°
Peak intensity:
0.110 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

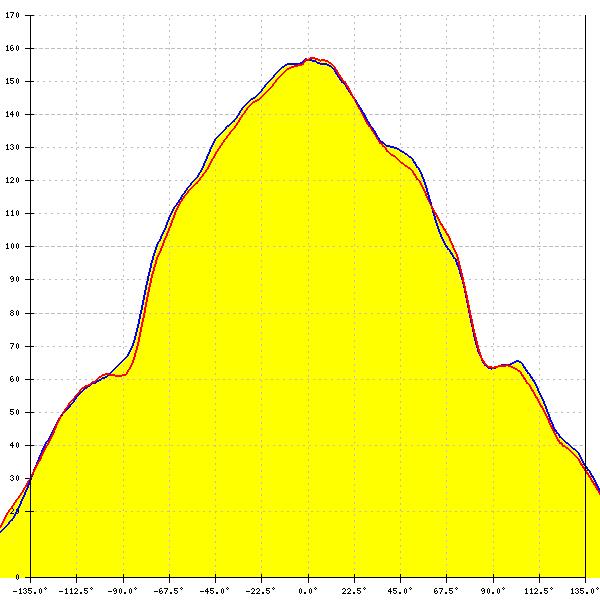

LED:

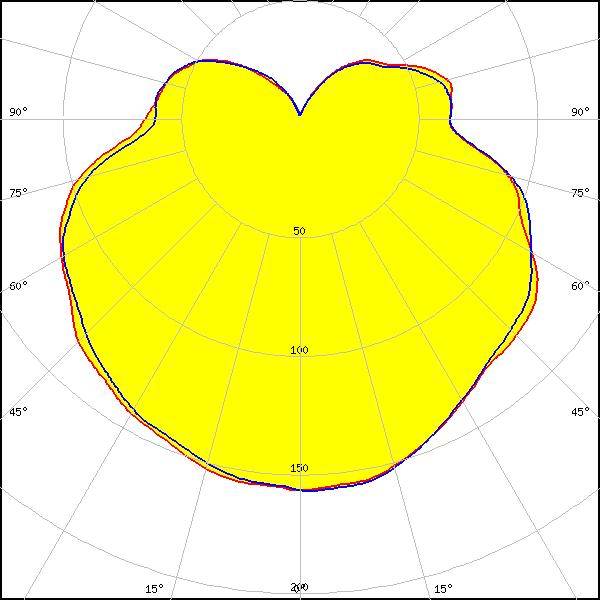

LUXEON CoB 1211
LES size: 18.5 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
160°
FWTM:
300°
Peak intensity:
0.160 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

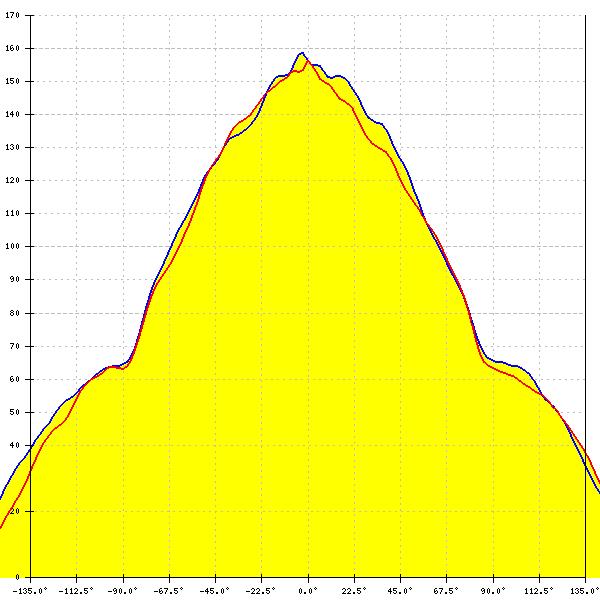

LED:

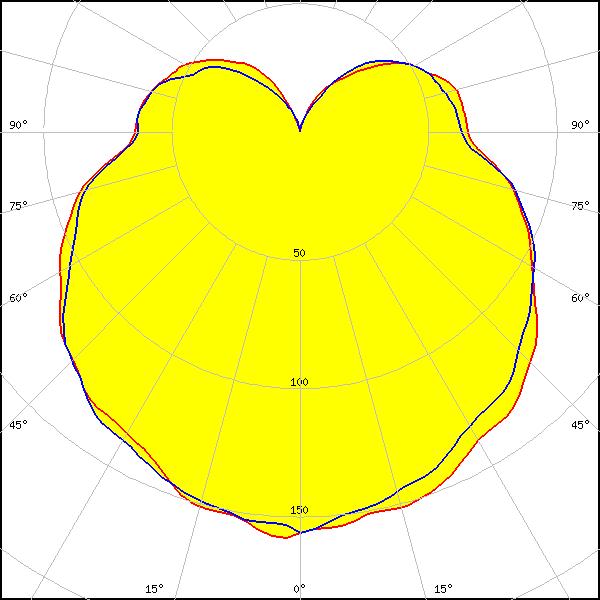

LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
157°
FWTM:
303°
Peak intensity:
0.160 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

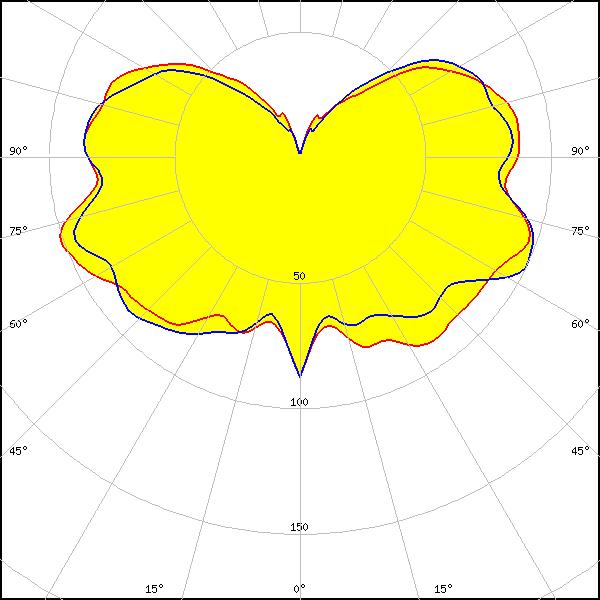

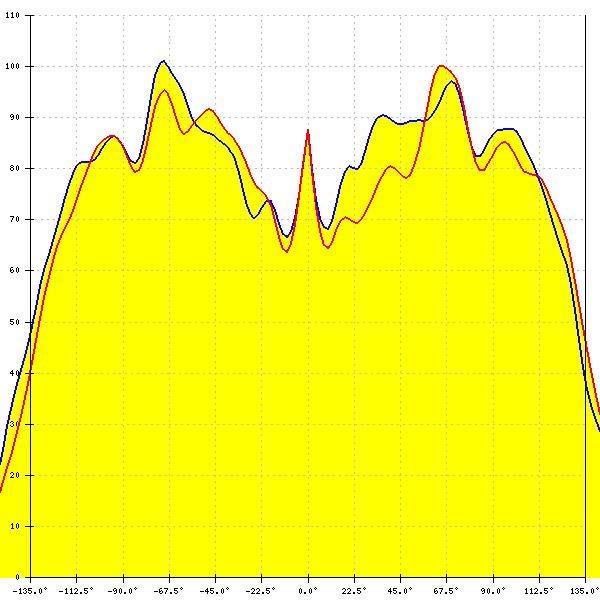

LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
Bender Wirth: 638a Bayonet50
FWHM:
264°
FWTM:
328°
Peak intensity:
0.102 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

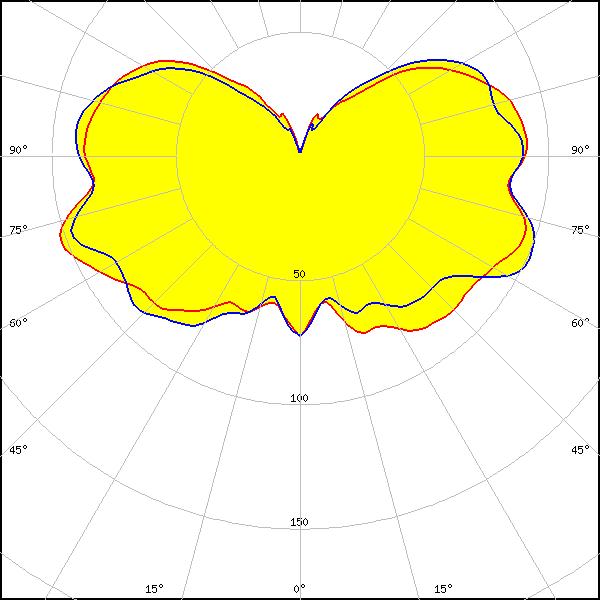

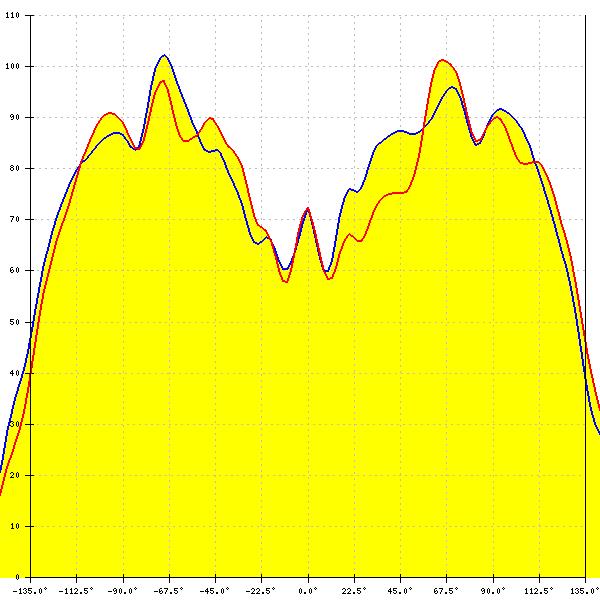

LED:
COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Bayonet50
FWHM:
263°
FWTM:
327°
Peak intensity:
0.102 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NF2x757G
LES size: 0.0 mm
Required components:
BJB: 47.319.2021
FWHM:
262°
FWTM:
322°
Peak intensity:
0.103 cd/lm
Efficiency:
91 %
LEDs/each optic:
4
Light colour/type:
White

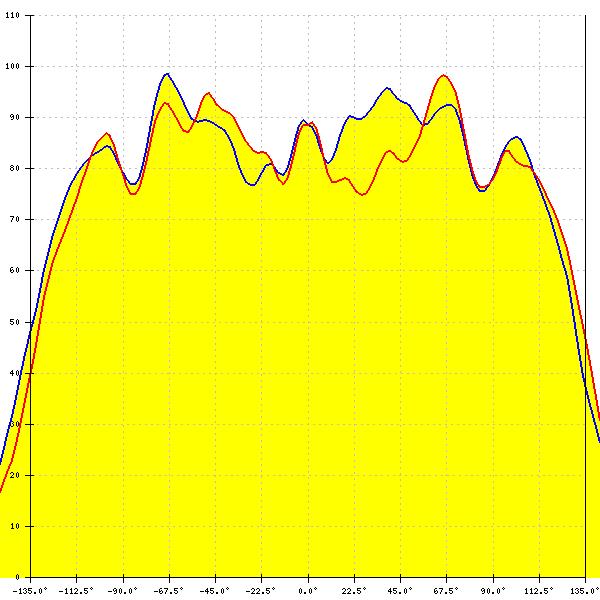

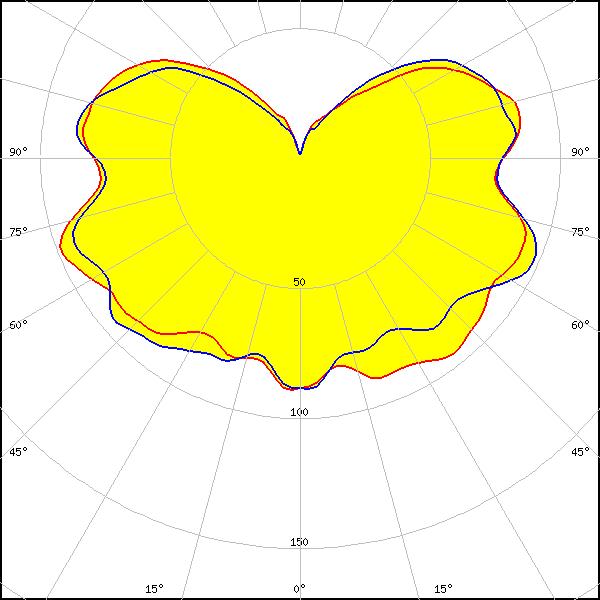

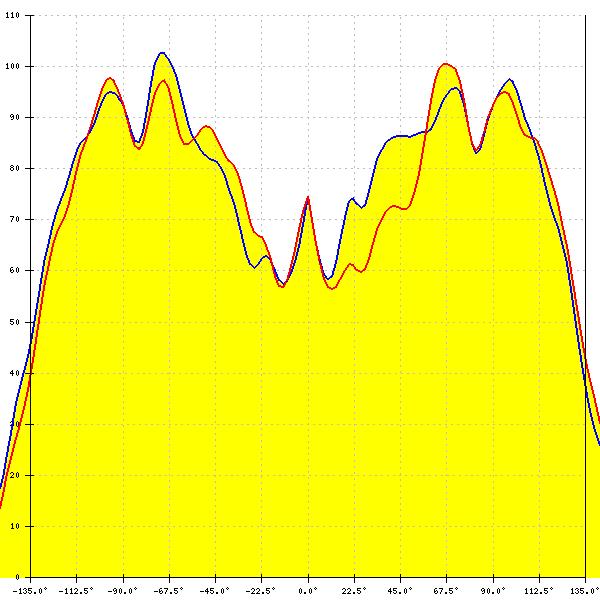

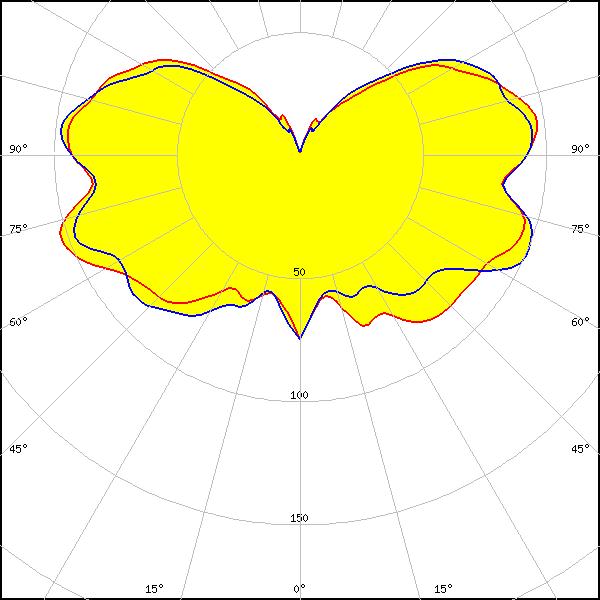

LED:
NF2x757G
LES size: 0.0 mm
Required components:
BJB: 47.319.2021
FWHM:
264°
FWTM:
326°
Peak intensity:
0.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
9
Light colour/type:
White
LED:

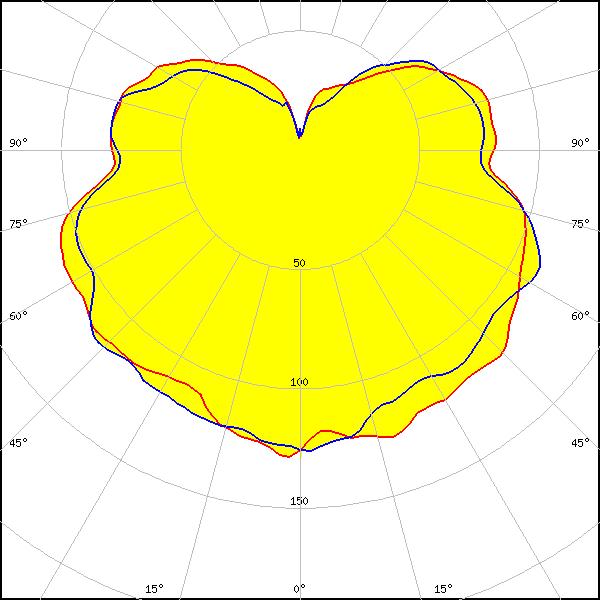

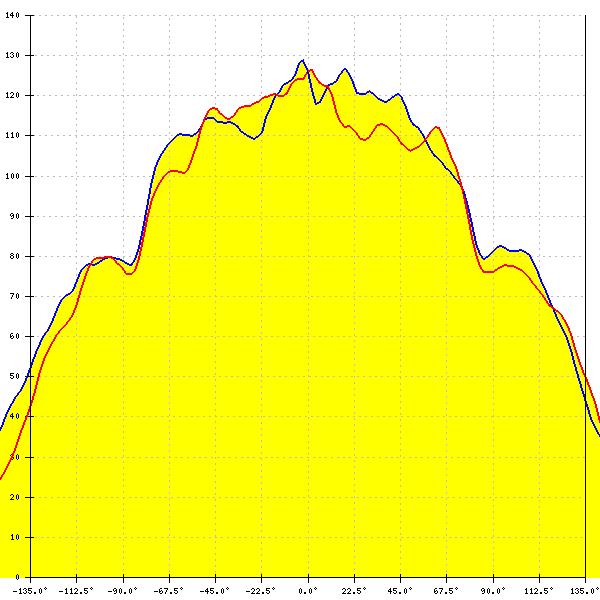

Soleriq S19
LES size: 17.9 mm
Required components:
BJB: 47.319.2170
FWHM:
246°
FWTM:
341°
Peak intensity:
0.130 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

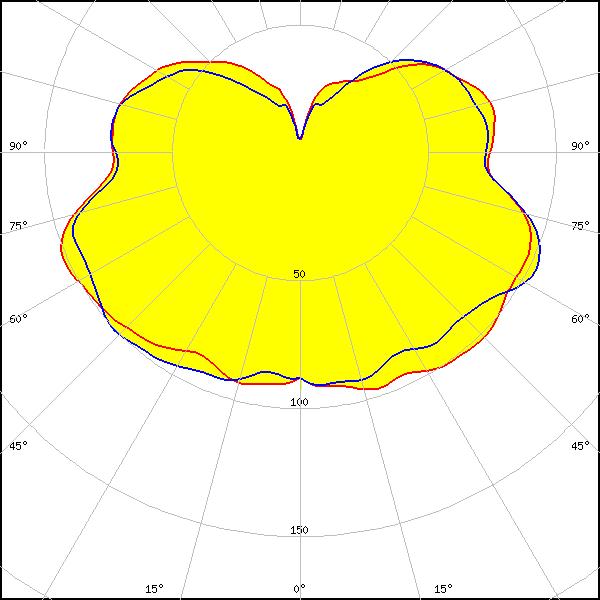

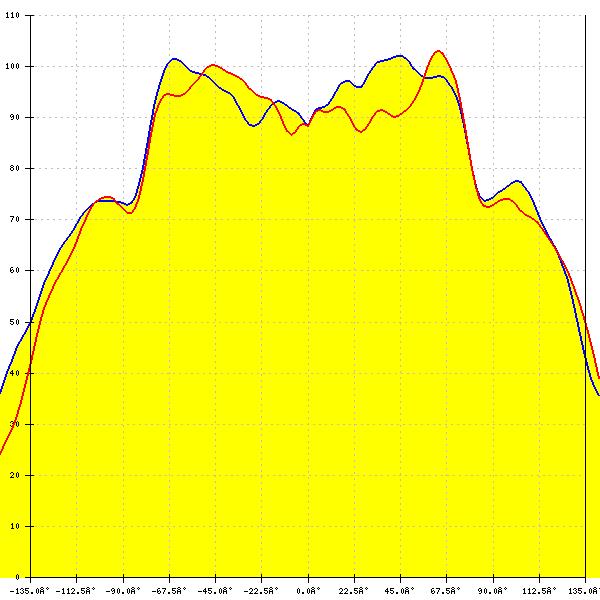

LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
263°
FWTM:
340°
Peak intensity:
0.105 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

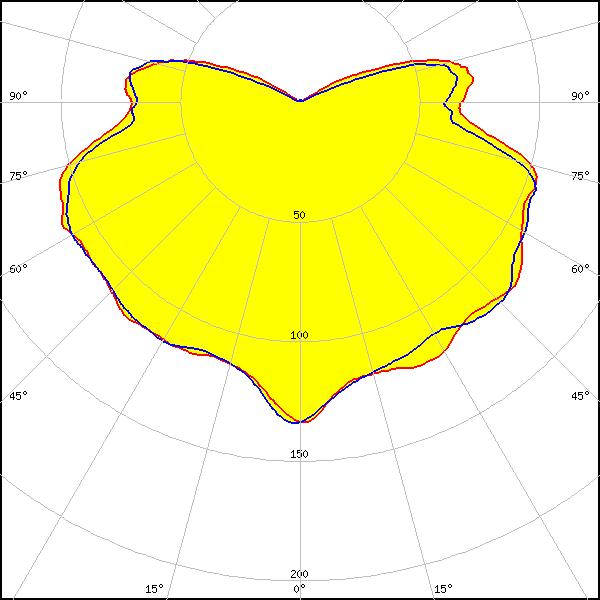

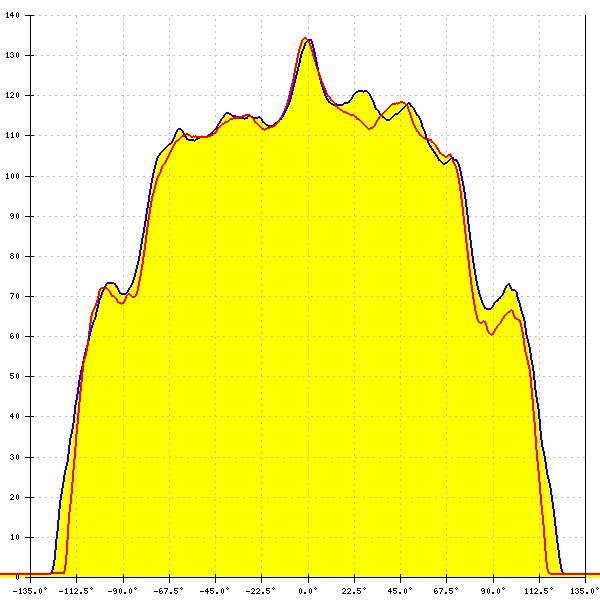

LC020C G2
LES size: 8.5 mm
Required components:
FWHM:
214°
FWTM:
237°
Peak intensity:
0.134 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

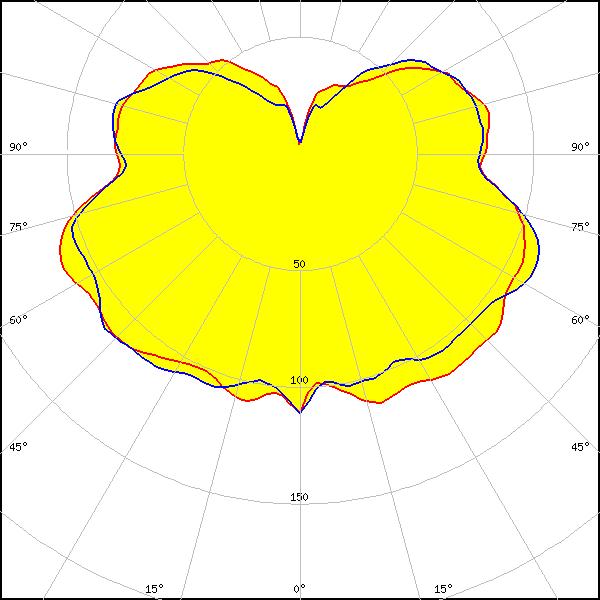

LED:

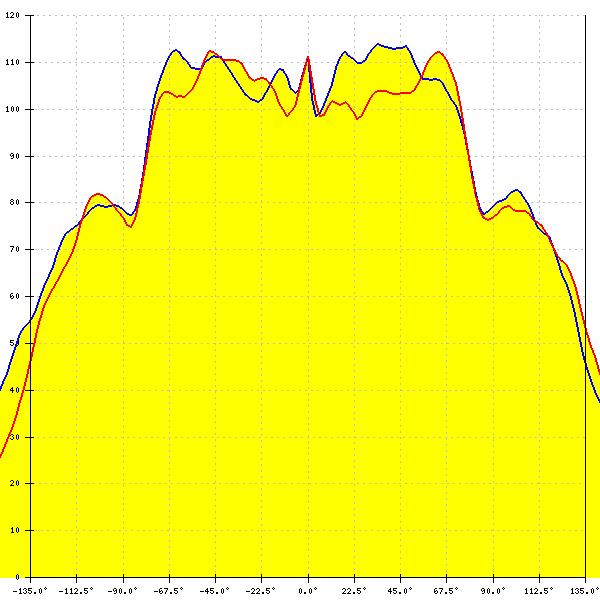

ZC12/18
LES size: 14.6 mm
Required components:
BJB: 47.319.2021
FWHM:
265°
FWTM:
138°
Peak intensity:
0.114 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

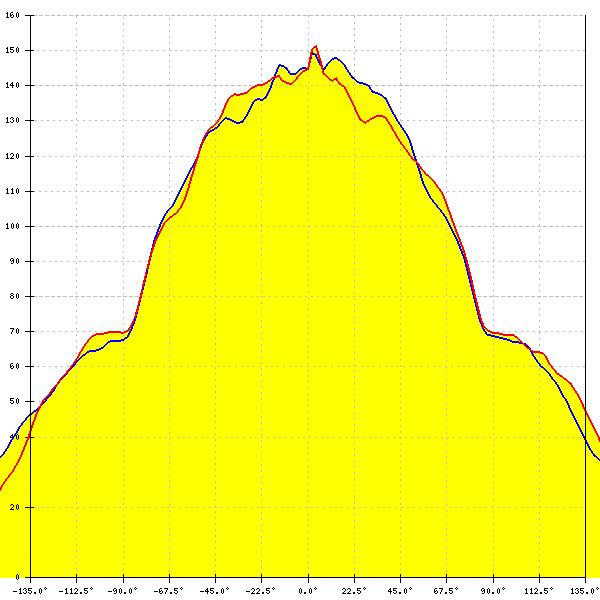

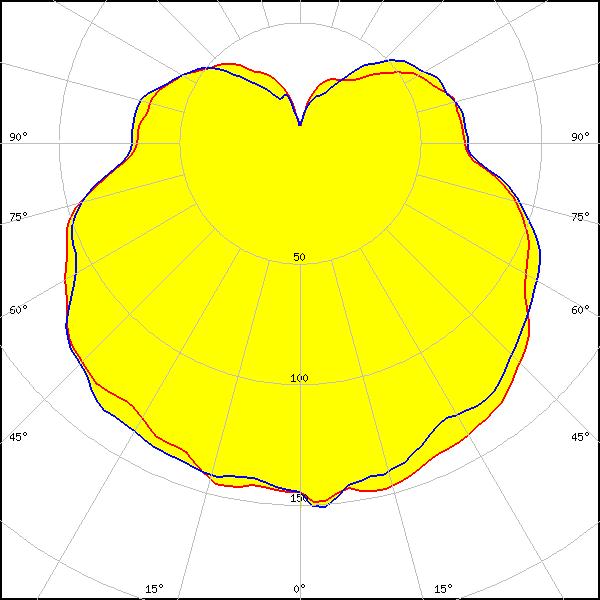

LED:
ZC25/40/60
LES size: 22.6 mm
Required components:
BJB: 47.319.2030
FWHM:
166°
FWTM:
342°
Peak intensity:
0.155 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

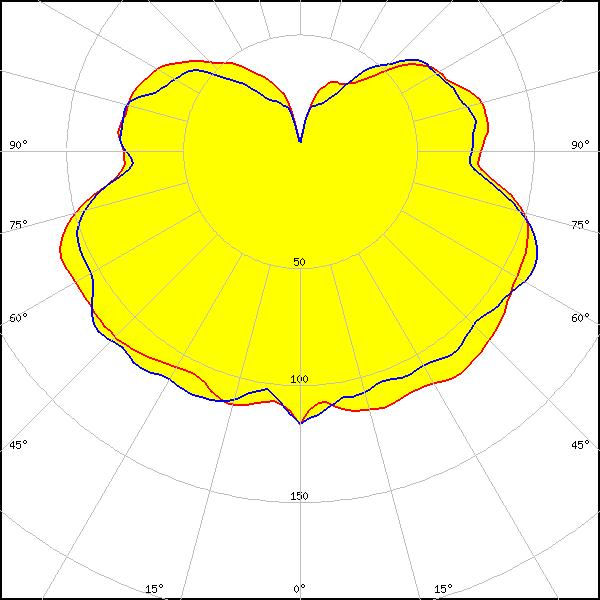

LED:
Mega Zenigata (GW5DGC)
LES size: 16.0 mm
Required components:
BJB: 47.319.2011
FWHM:
257°
FWTM:
78°
Peak intensity:
0.118 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

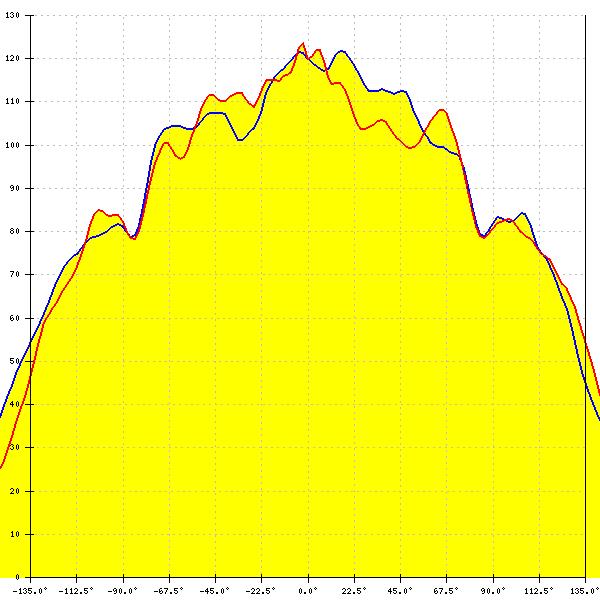

LED:

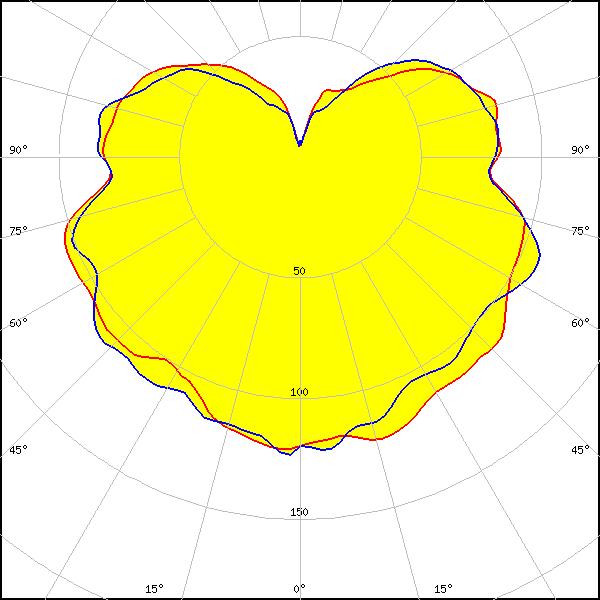

Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
BJB: 47.319.2011
FWHM:
250°
FWTM:
340°
Peak intensity:
0.130 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

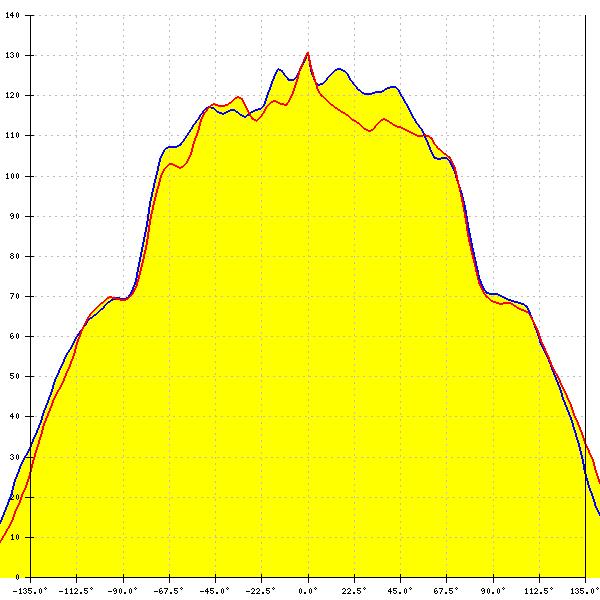

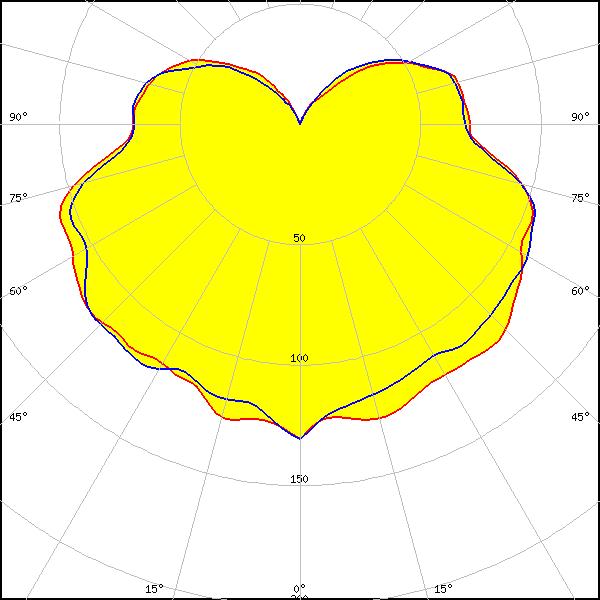

LED:
SLE G7 LES17 H
FWHM:
213°
FWTM:
293°
Peak intensity:
0.133 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

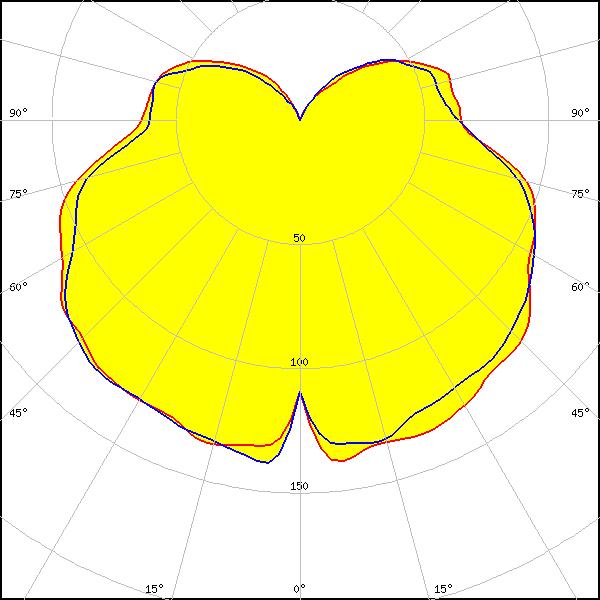

LED:
SLE G7 LES21 H
FWHM:
169°
FWTM:
291°
Peak intensity:
0.143 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
DMC 128
LES size: 13.8 mm
Required components:
BJB: 47.319.2021
LEDs/each optic:
1
Light colour/type:
White
