FP14825_STRADA-2X2MXS-DWC2
Print
Universal road lighting beam with excellent mixed illuminance and luminance uniformity. Typically IESNA Type II Medium.
Component Materials
- STRADA-2X2MXS-DWC2Multi-lensSilicone
- STRADA-2X2MXS-FRAMEHolderPA66
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

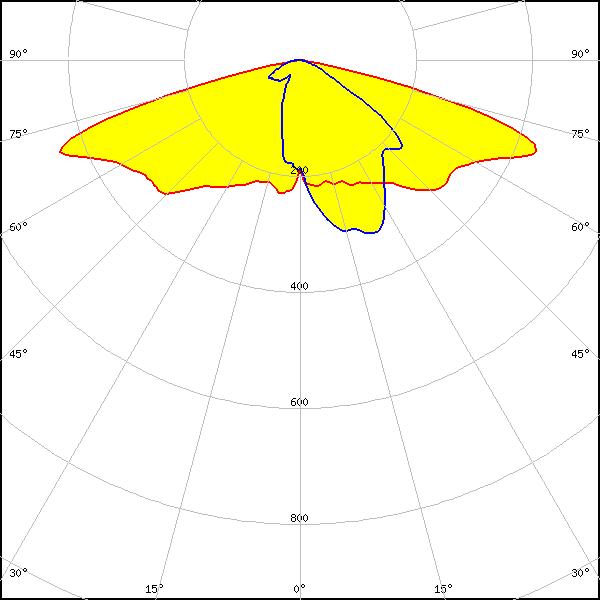

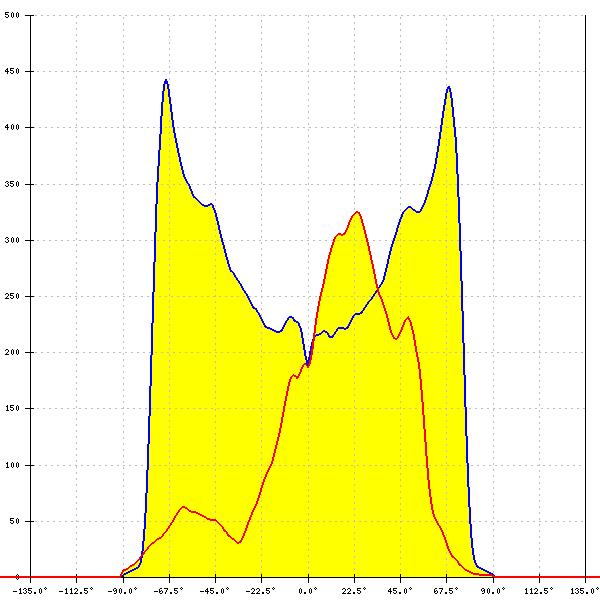

LED:
Bridgelux SMD 5050
FWHM: asymmetric
Peak intensity:
0.530 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

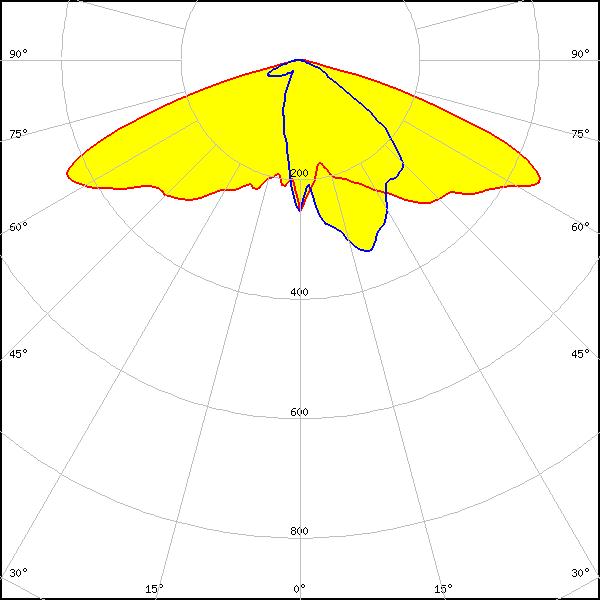

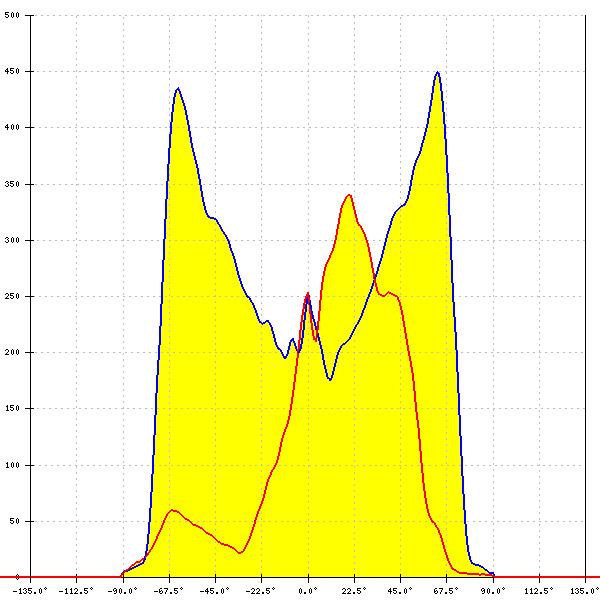

LED:
CLU700/701/702/703
Required components:
Bender Wirth: 434 Typ 2x2MX HV
FWHM: asymmetric
Peak intensity:
0.590 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

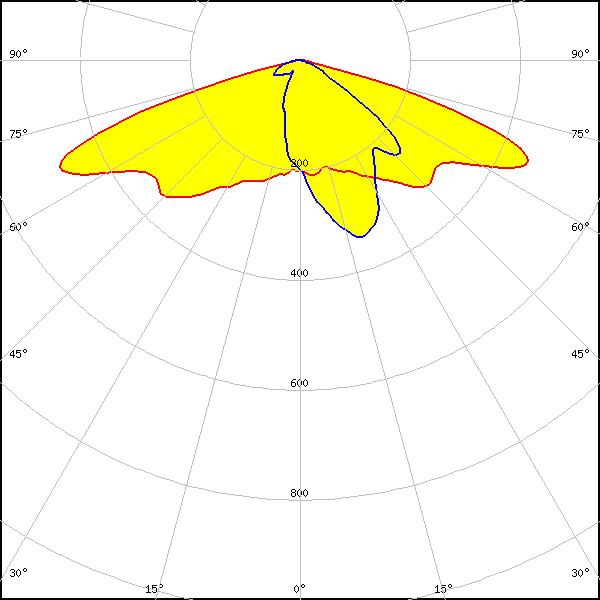

LED:

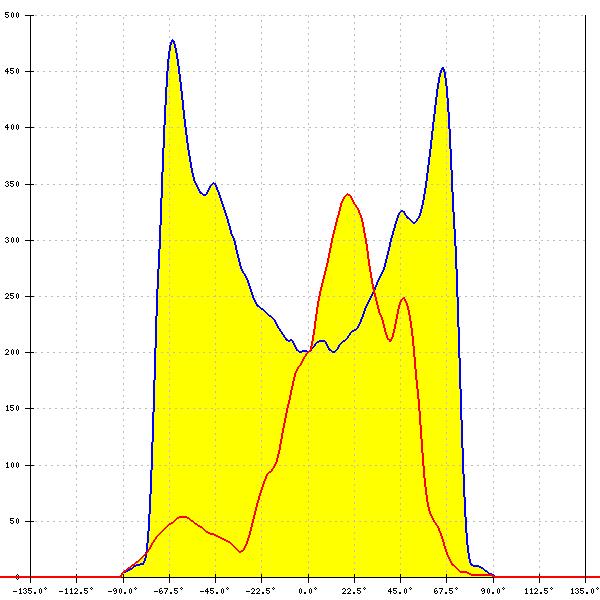

CMA1303
Required components:
Bender Wirth: 448 Typ 2x2MX HV
FWHM: asymmetric
Peak intensity:
0.602 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

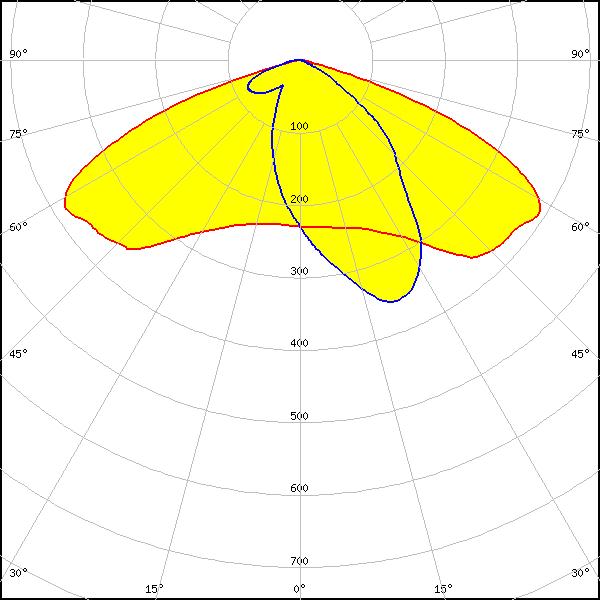

LED:

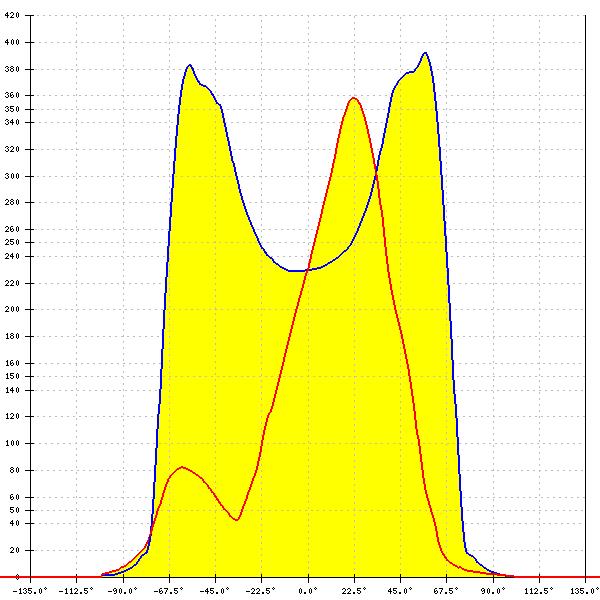

CXA/B 15xx
Required components:
Bender Wirth: 441 Typ 2x2MX HV
FWHM: asymmetric
Peak intensity:
0.520 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

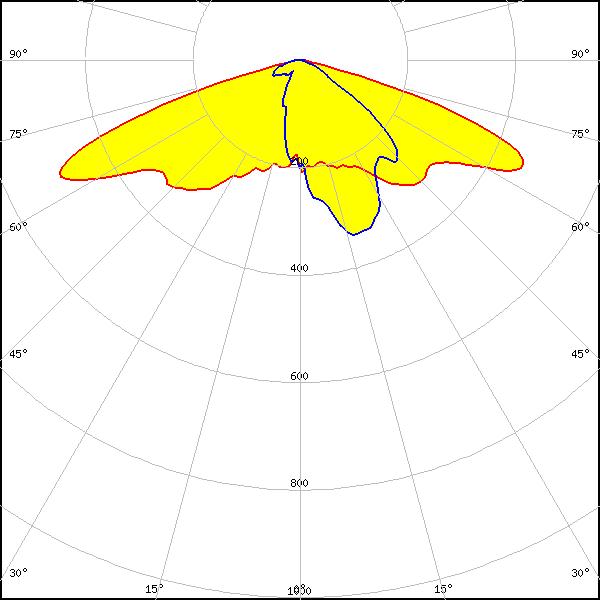

LED:

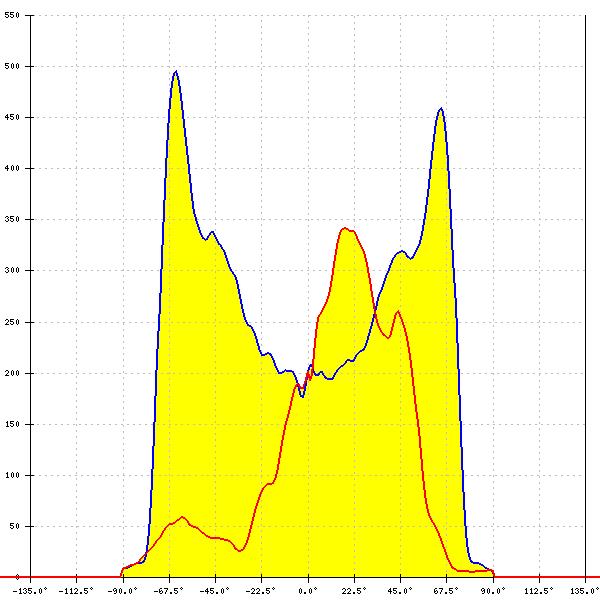

MHB-A/B
FWHM: asymmetric
Peak intensity:
0.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

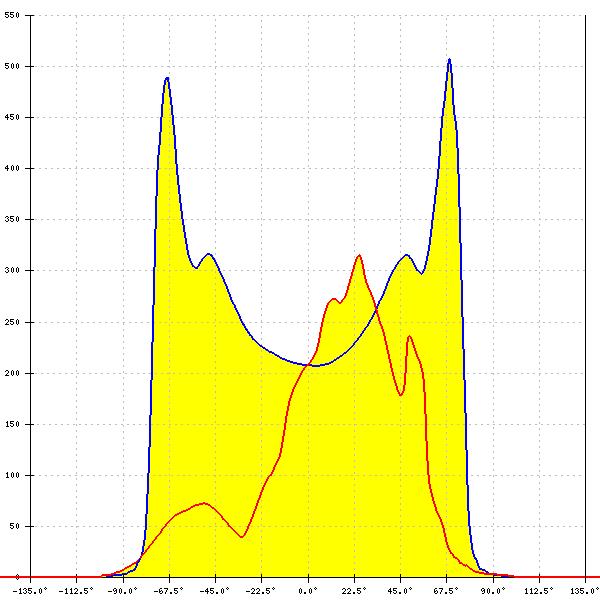

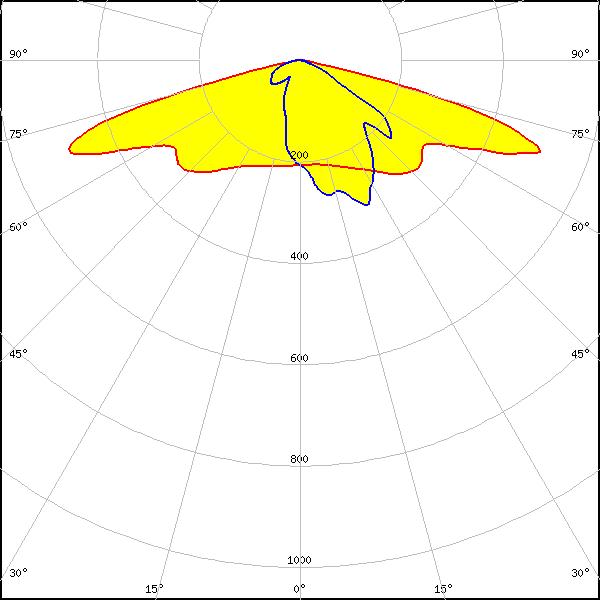

LED:
XHP35 HD
FWHM: asymmetric
Peak intensity:
0.660 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

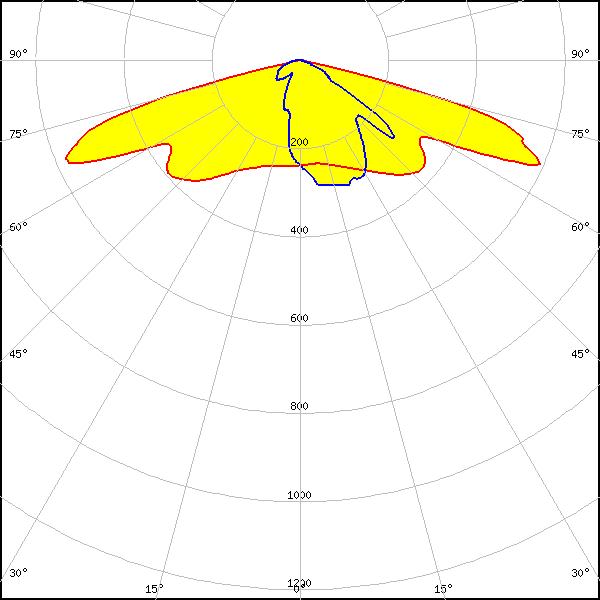

LED:

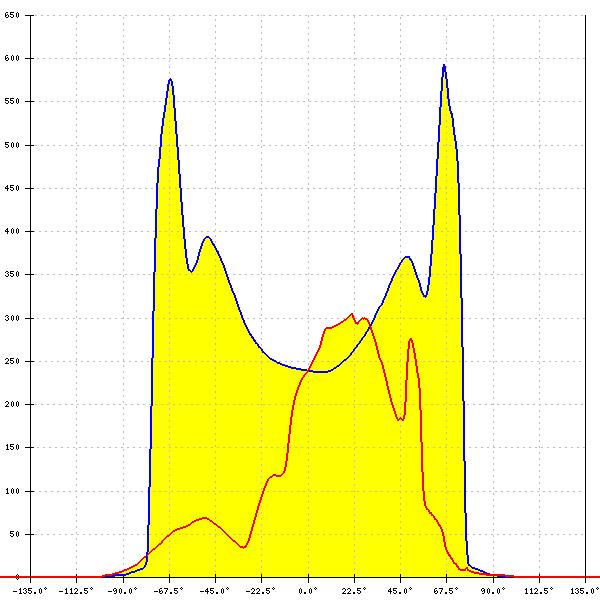

XHP35 HI
FWHM: asymmetric
Peak intensity:
0.640 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

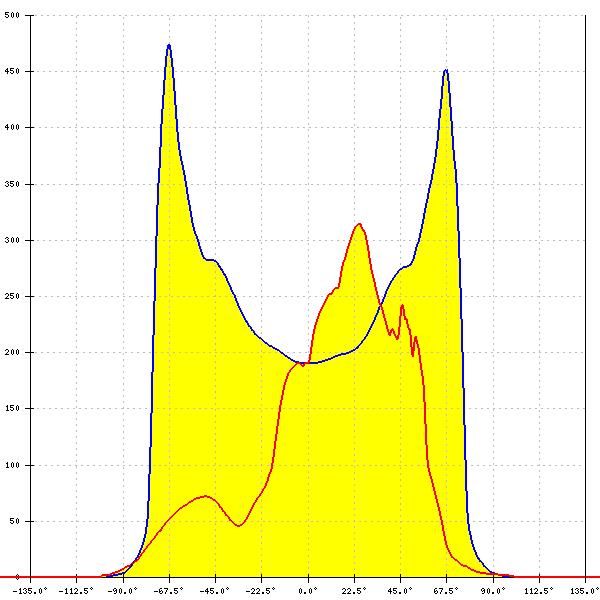

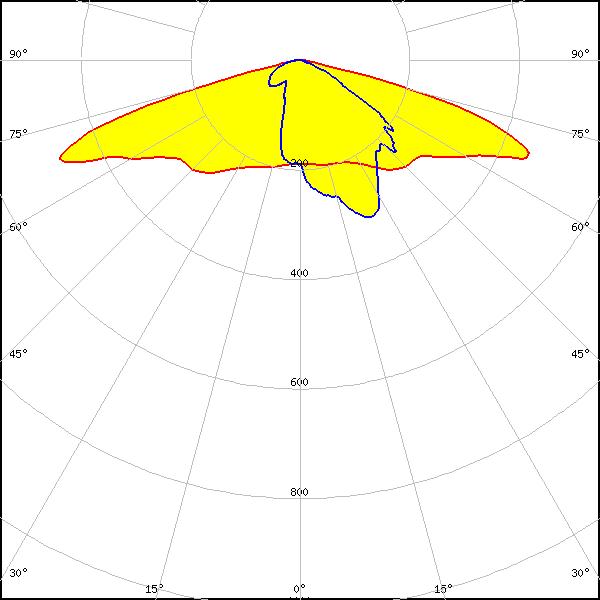

LED:
XHP50
FWHM: asymmetric
Peak intensity:
0.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

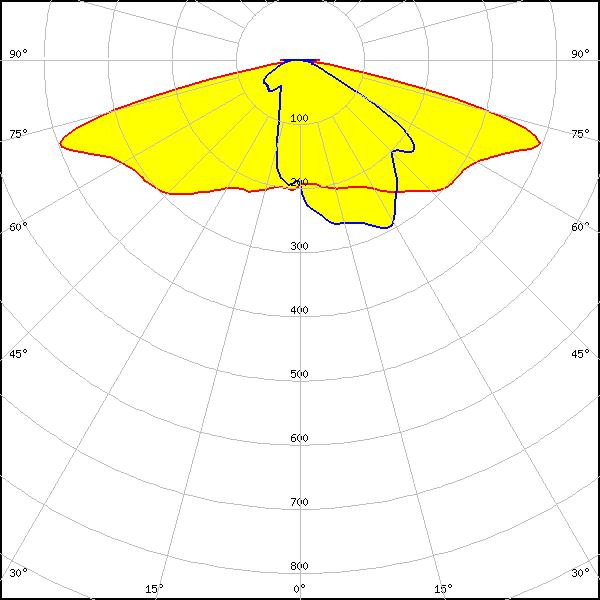

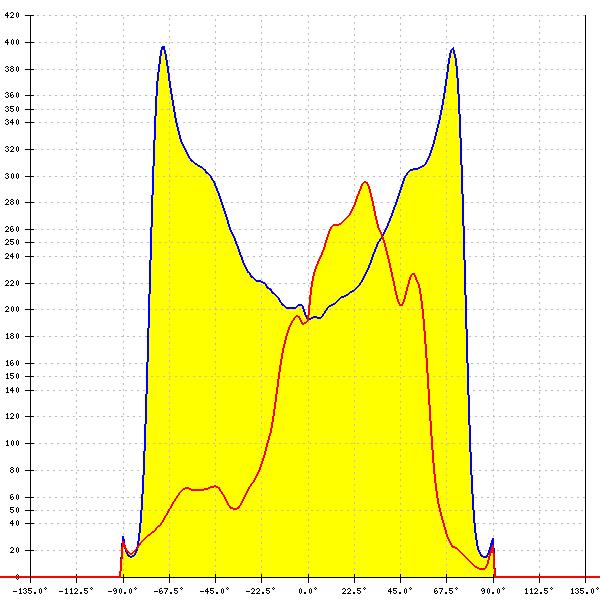

XHP50.3 HD
FWHM: asymmetric
Peak intensity:
0.483 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

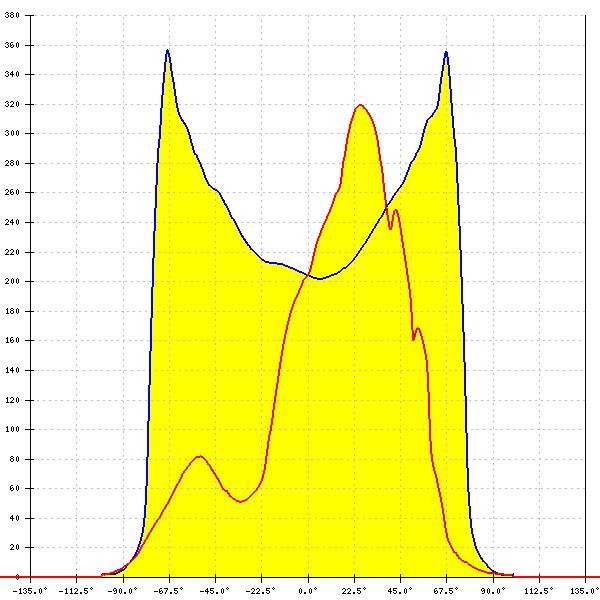

LED:

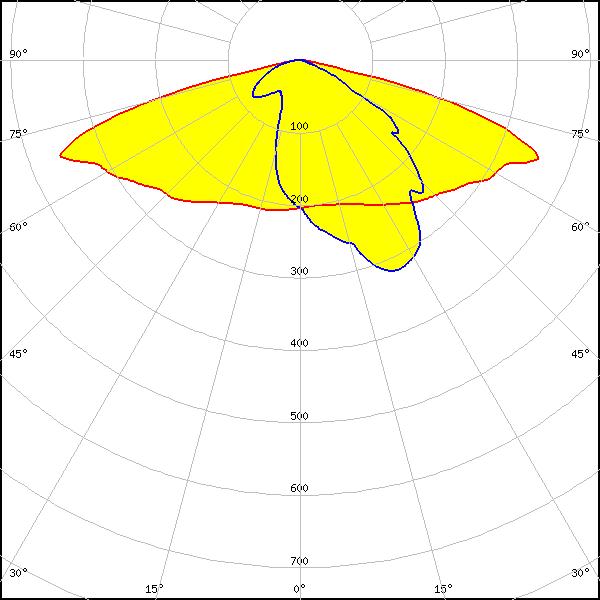

XHP70
FWHM: asymmetric
Peak intensity:
0.520 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

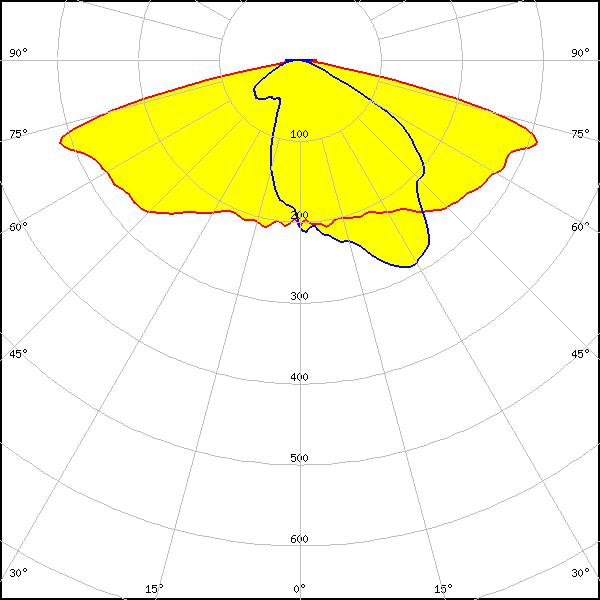

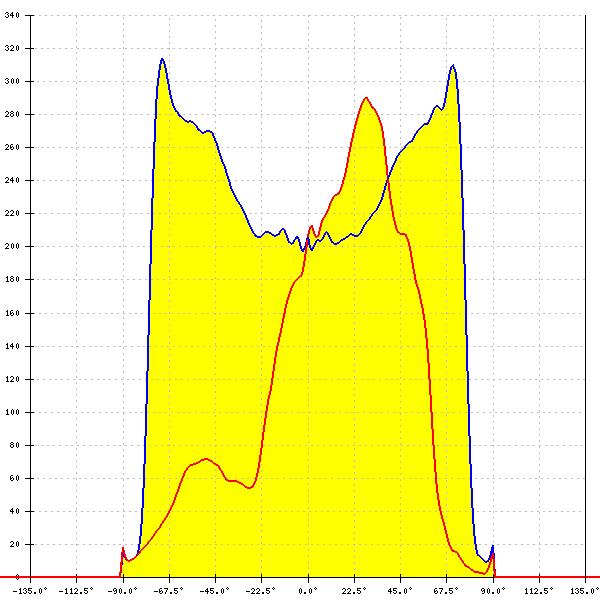

XHP70.3 HD
FWHM: asymmetric
Peak intensity:
0.425 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

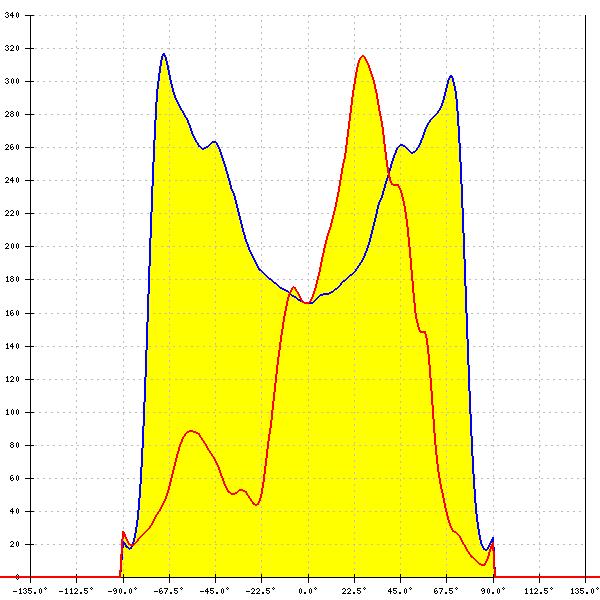

LED:

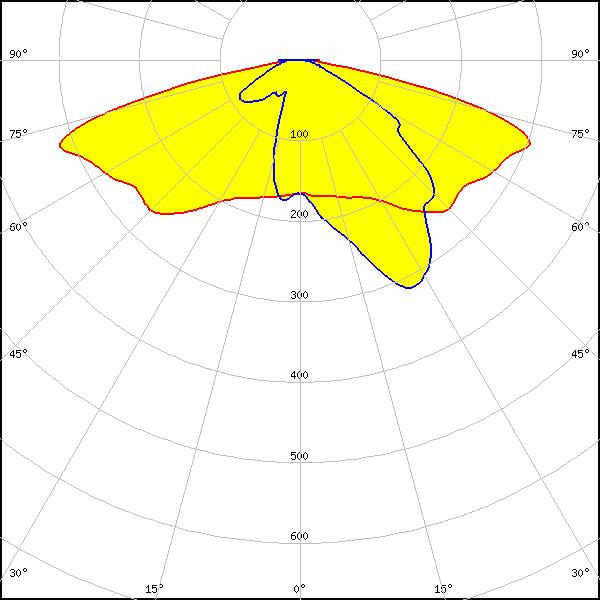

XP-G3
FWHM: asymmetric
Peak intensity:
0.444 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White
LED:
XT-E HE
FWHM: asymmetric
Peak intensity:
0.520 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

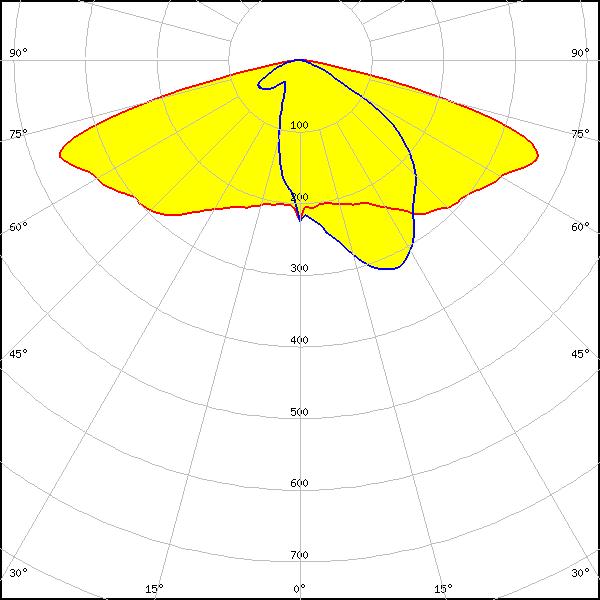

LED:

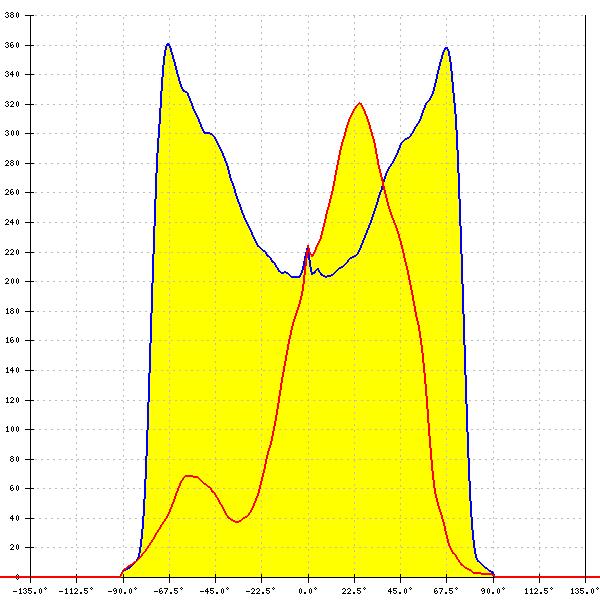

LUXEON 7070
FWHM: asymmetric
Peak intensity:
0.496 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

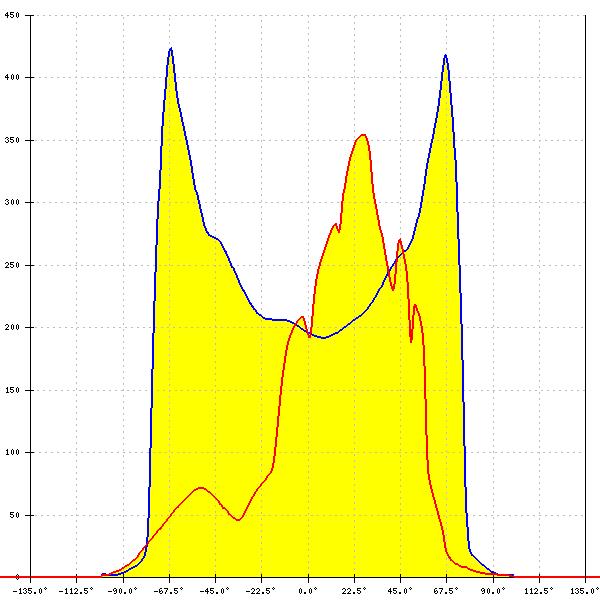

LED:

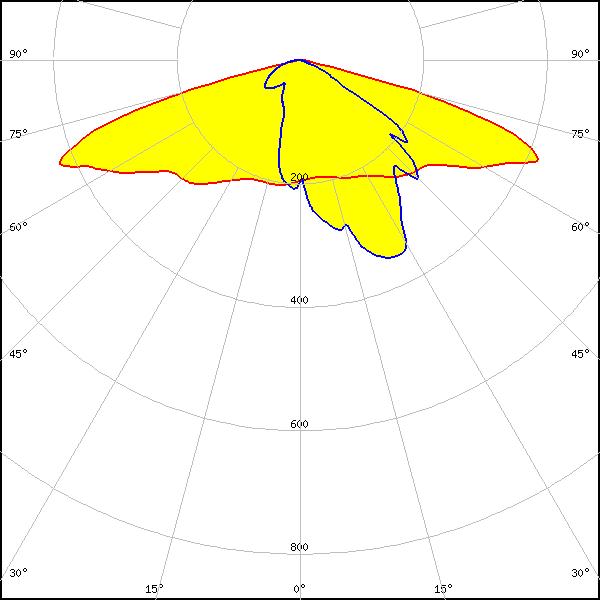

LUXEON M/MX
FWHM: asymmetric
Peak intensity:
0.640 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

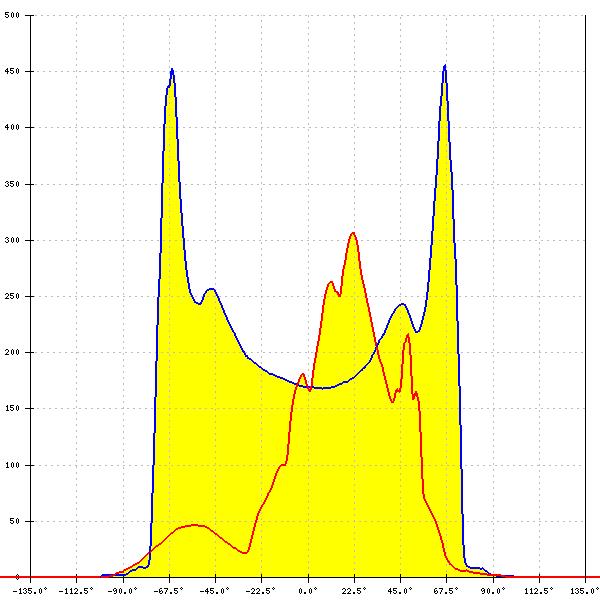

LED:

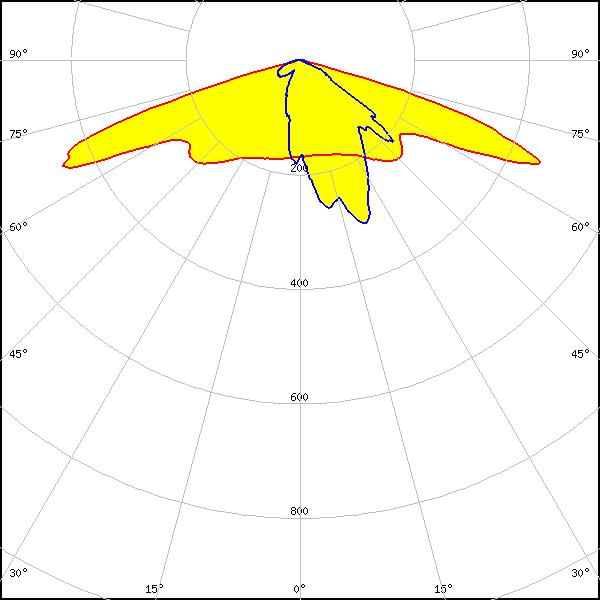

LUXEON MZ
FWHM: asymmetric
Peak intensity:
0.610 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

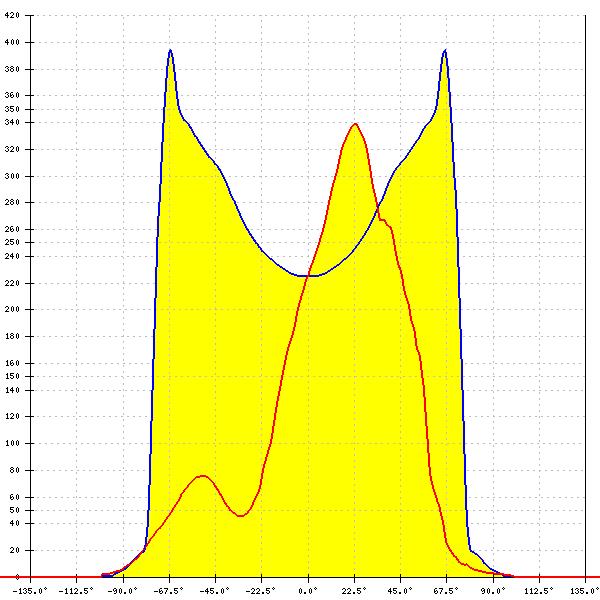

LED:

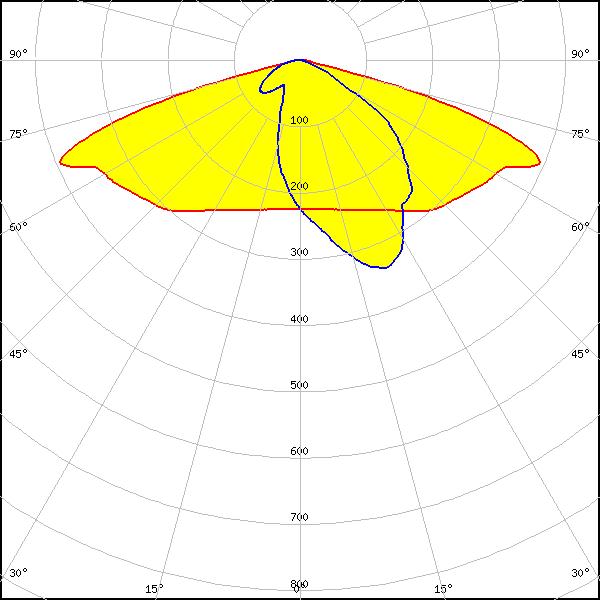

LUXEON XR-7070 (L224-xxxx004MLU010)
FWHM: asymmetric
Peak intensity:
0.539 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

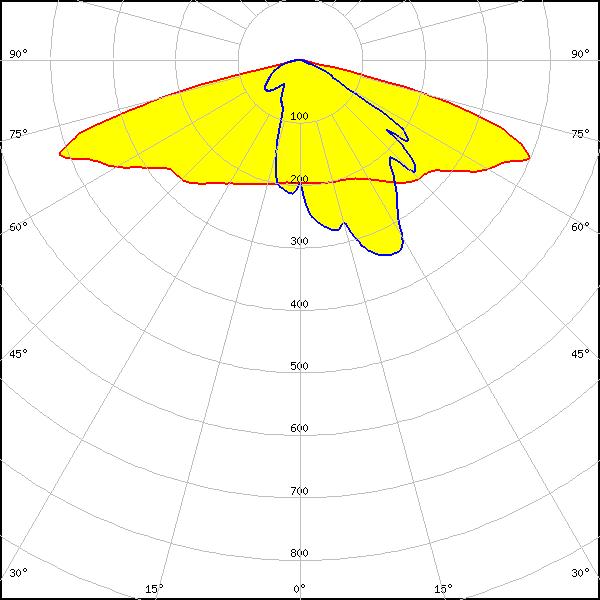

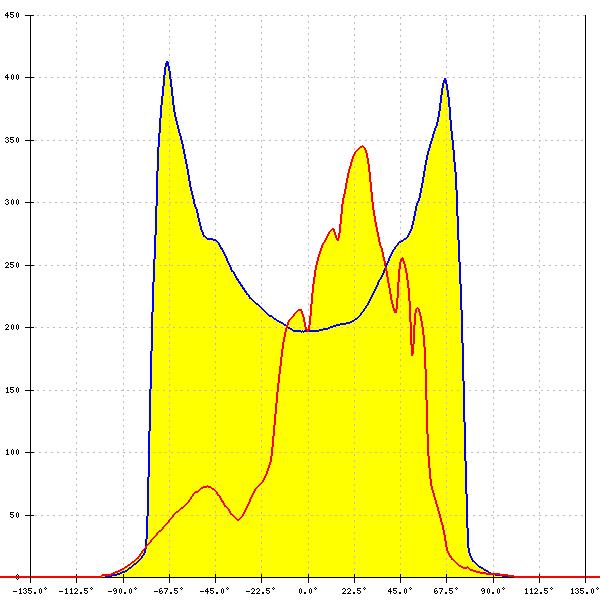

LED:
LUXEON XR-M Square (L2M0-xxxx004MC2200)
FWHM: asymmetric
Peak intensity:
0.590 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

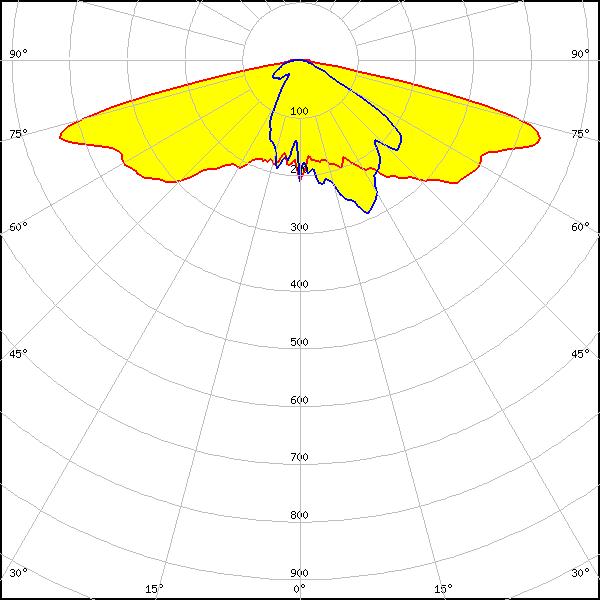

LED:

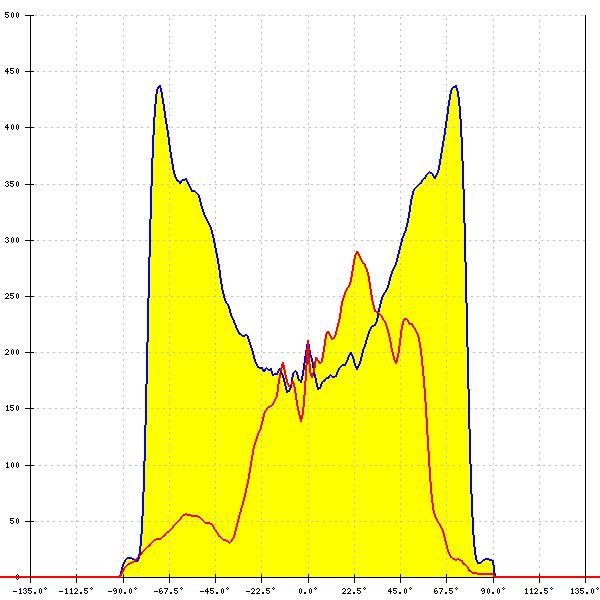

NFMW48xA
FWHM: asymmetric
Peak intensity:
0.630 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

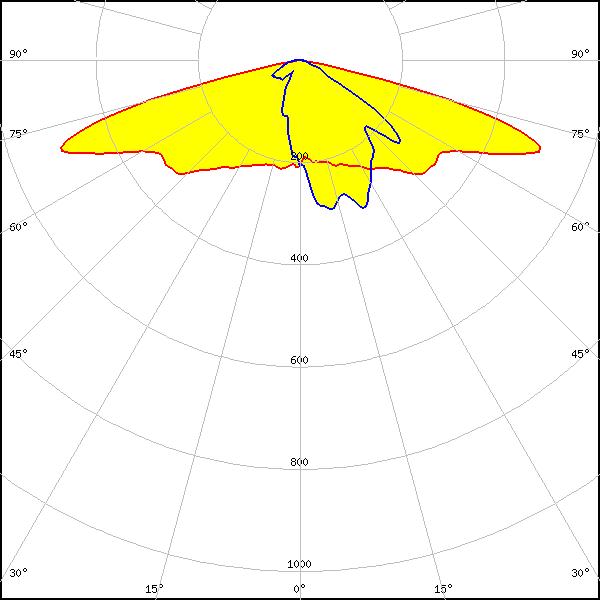

LED:

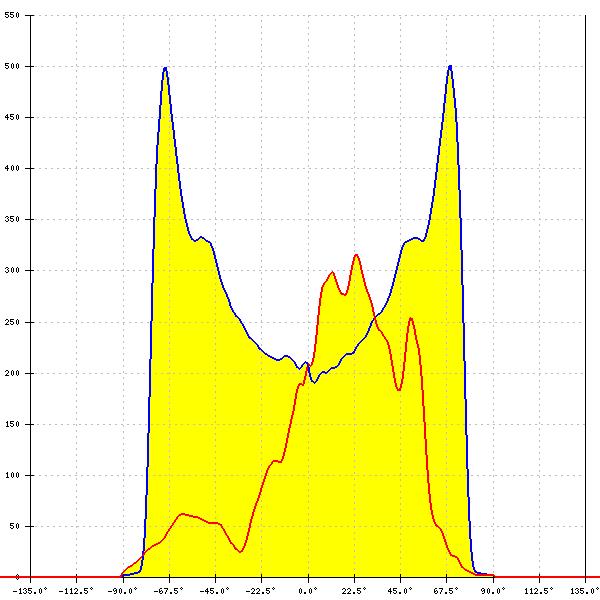

NV4WB35AM
FWHM: asymmetric
Peak intensity:
0.587 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

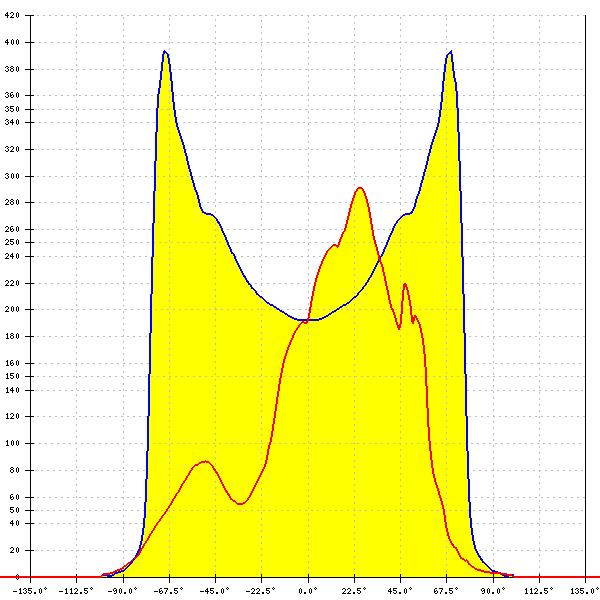

LED:

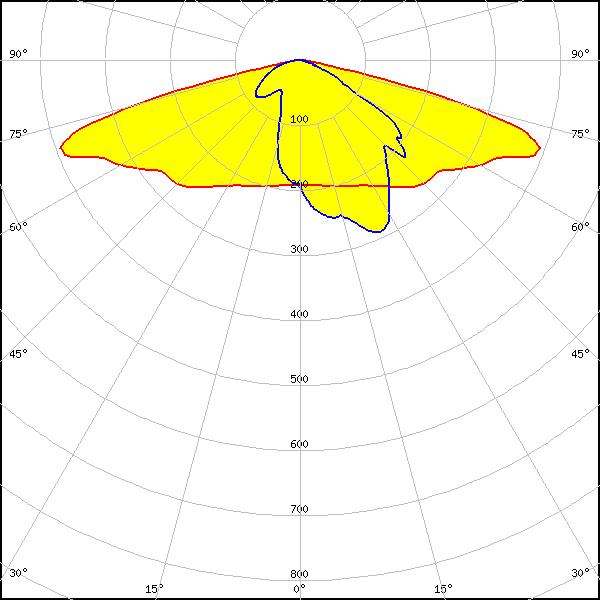

NV4x144A
FWHM: asymmetric
Peak intensity:
0.526 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

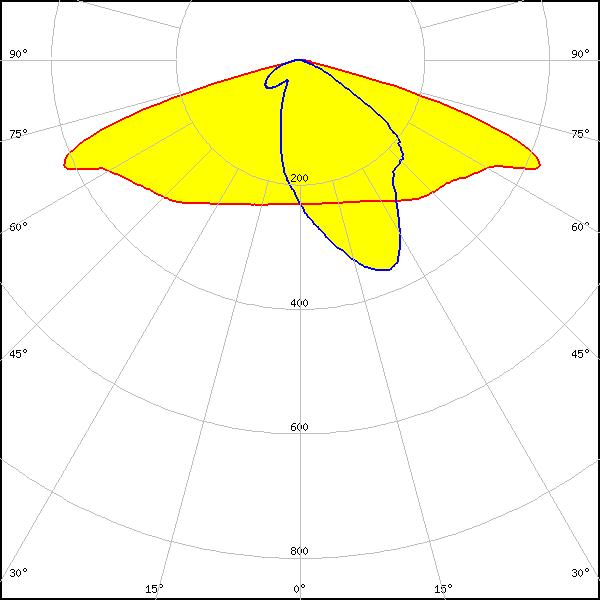

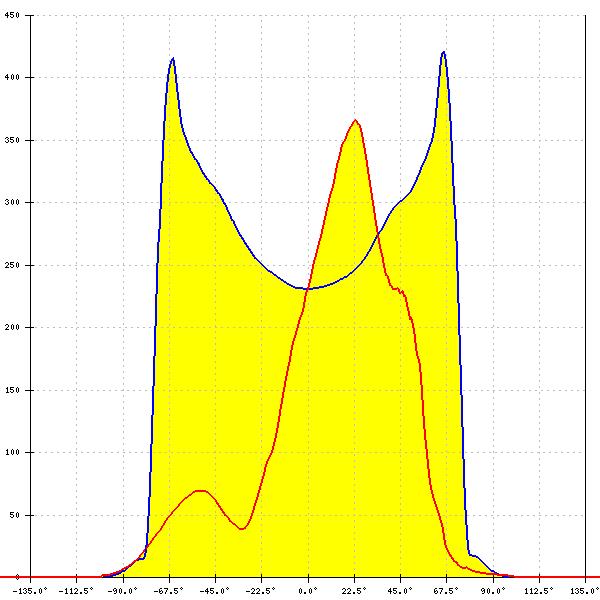

Duris S10
FWHM: asymmetric
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 2424
FWHM: asymmetric
Peak intensity:
0.559 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
White
LED:

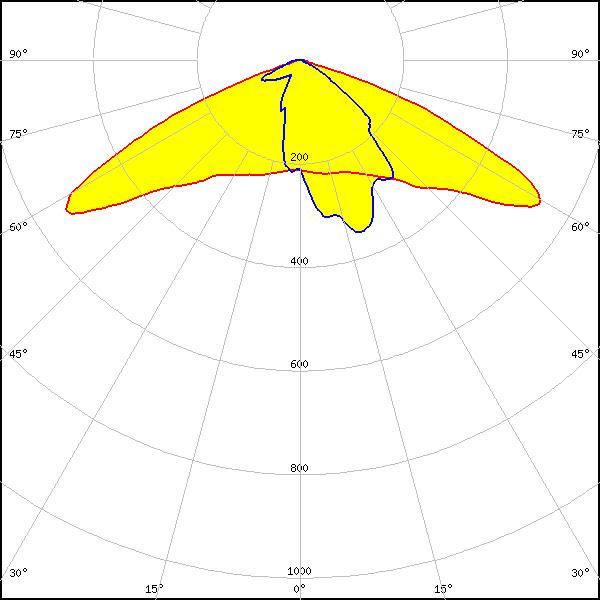

HiLOM SC16 (LH181B)
FWHM: asymmetric
Peak intensity:
0.750 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

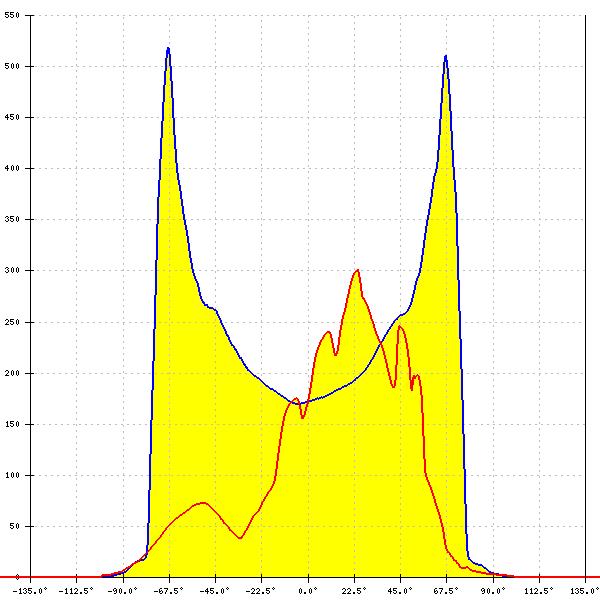

LED:

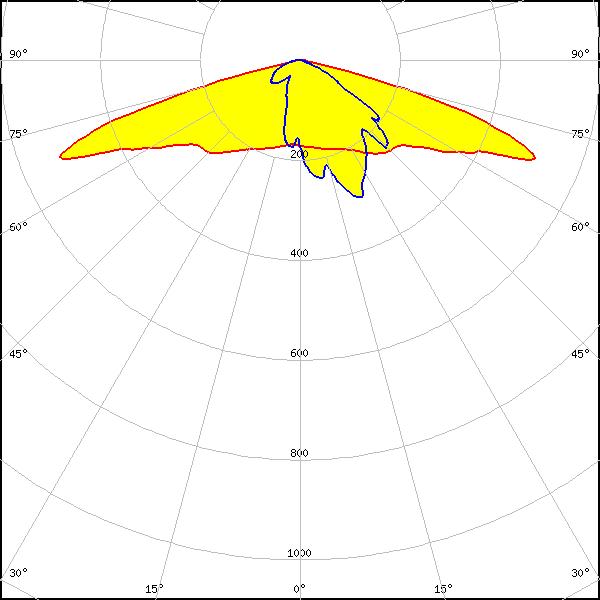

XLE-S22C4XD16 (XD16)
FWHM: asymmetric
Peak intensity:
0.639 cd/lm
Efficiency:
90 %
LEDs/each optic:
4
Light colour/type:
White
LED:

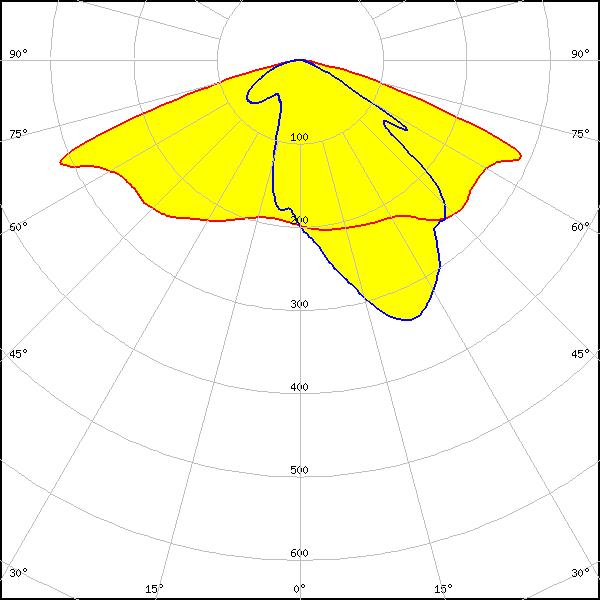

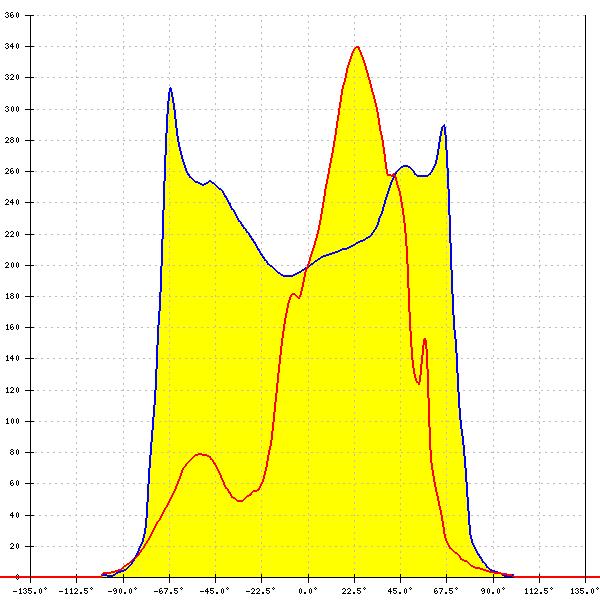

XLE-S22C4XTEHE (XT-E HE)
FWHM: asymmetric
Peak intensity:
0.520 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

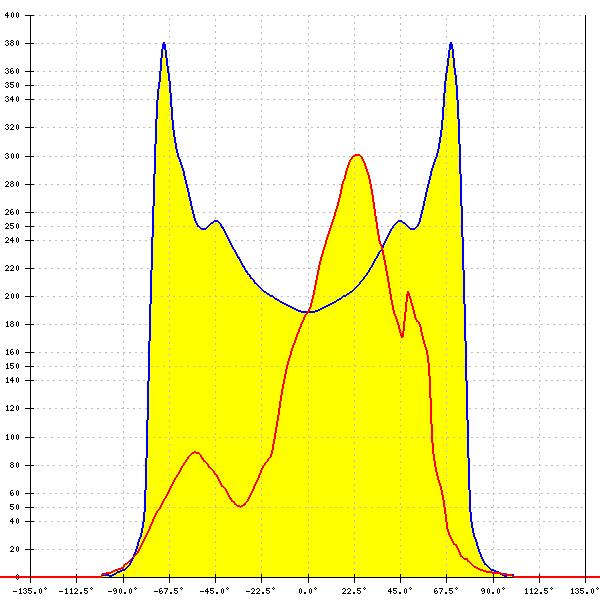

LED:

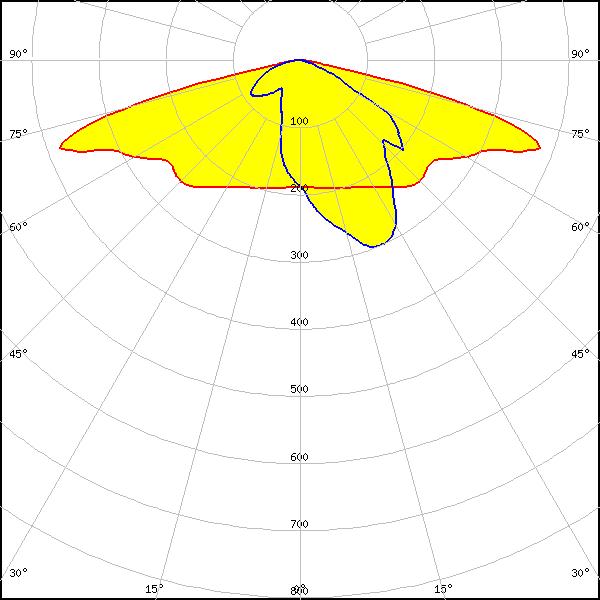

WICOP 5050
FWHM: asymmetric
Peak intensity:
0.575 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
