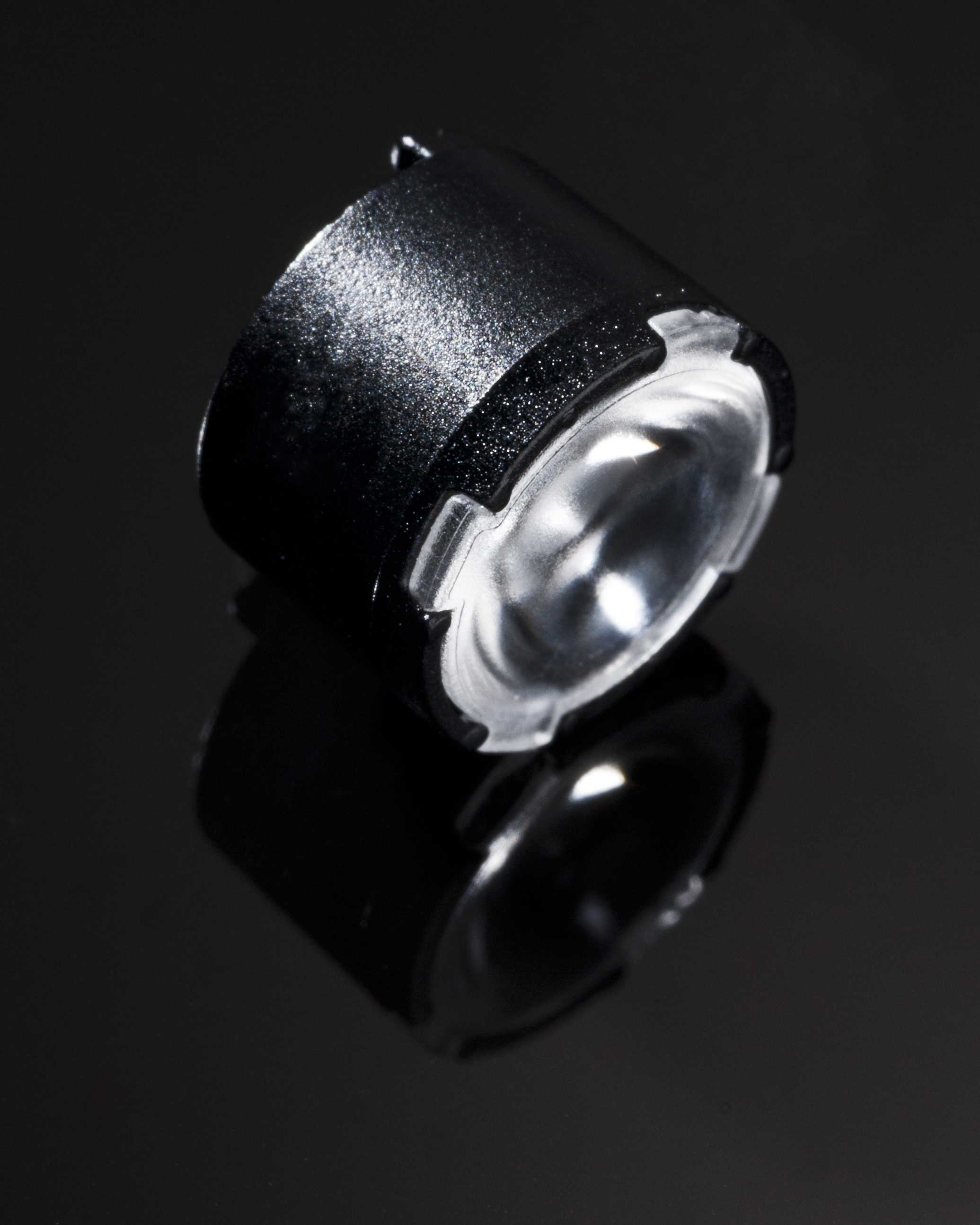

    FP10995_LISA2-M-PIN

    Print

    ~20° medium beam. 6.8 mm high variant with location pin installation.

    Specification
    • Dimensions:
      10 mm
    • Height:
      6.80 mm
    • Fastening:
      glue, pin
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      2000 pcs
    • Box size:
      310 x 230 x 60 mm
    • Box weight:
      1.4 kg
    • MPQ:
      100 pcs
    • MOQ:
      300 pcs
    • MOQ size:
      230 x 160 x 30 mm
    • MOQ weight:
      0.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FP10995_LISA2-M-PIN
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Training video

    Seeing further with LEDiL´s IR optics

    News

    PRODUCT NEWS - LISA2

    Reference product

    Meganova LED ring light

    Application guide

    Seeing further with LEDiL’s IR optics

    Application area

    Architectural Outdoor Lighting

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    LuxR landscape lighting

    Application area

    Special Indoor Applications

    Application area

    Indoor Architectural Lighting

    Optical results

    LED: CSP 2323 (BXCP)
    FWHM: 28°
    FWTM: 56°
    Peak intensity: 2.606 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XD16
    FWHM: 24°
    FWTM: 53°
    Peak intensity: 2.800 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E
    FWHM: 24°
    FWTM: -
    Peak intensity: 0.000 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G
    FWHM: 34°
    FWTM: 60°
    Peak intensity: 2.200 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XQ-E HD
    FWHM: 28°
    FWTM: 63°
    Peak intensity: 3.100 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XQ-E HI
    FWHM: 20°
    FWTM: 43°
    Peak intensity: 4.600 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E
    FWHM: 31°
    FWTM: 60°
    Peak intensity: 2.300 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON IR 2720
    FWHM: 23°
    FWTM: 47°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: LUXEON Z
    FWHM: 19°
    FWTM: 41°
    Peak intensity: 5.260 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Z ES
    FWHM: 23°
    FWTM: 48°
    Peak intensity: 4.000 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NCSxE17A
    FWHM: 26°
    FWTM: 57°
    Peak intensity: 2.400 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxE21A
    FWHM: 27°
    FWTM: 54°
    Peak intensity: 3.020 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFH 4170S
    FWHM: 20°
    FWTM: 41°
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: SFH 4170S
    FWHM: 14°
    FWTM: 38°
    LEDs/each optic: 1
    Light colour/type: IR
    LED: SFH 4180S
    FWHM: 14°
    FWTM: 38°
    LEDs/each optic: 1
    Light colour/type: IR
    LED: SFH 4770S
    FWHM: 20°
    FWTM: 43°
    Peak intensity: 5.182 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: LH181B
    FWHM: 27°
    FWTM: 59°
    Peak intensity: 2.200 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Double Dome (GM2BB)
    FWHM: 28°
    FWTM: -
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
