FN17810_VIOLET-12X1-RS
Print
~14° wide beam
NOTE: Choose PCB thickness (both 0.9 mm and 1.6 mm options approved) to ensure optical/mechanical compatibilities.
Component Materials
- VIOLET-12X1-RSMulti-lensSilicone
- VIOLET-12X1-FRAMEAccessoryStainless steel
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
LIGHT ENGINE VIOLET UVC 281 x 19.2mm (KL265-50V-SM-WD)
FWHM:
18°
FWTM:
38°
Efficiency:
64 %
LEDs/each optic:
1
Light colour/type:
UV-C

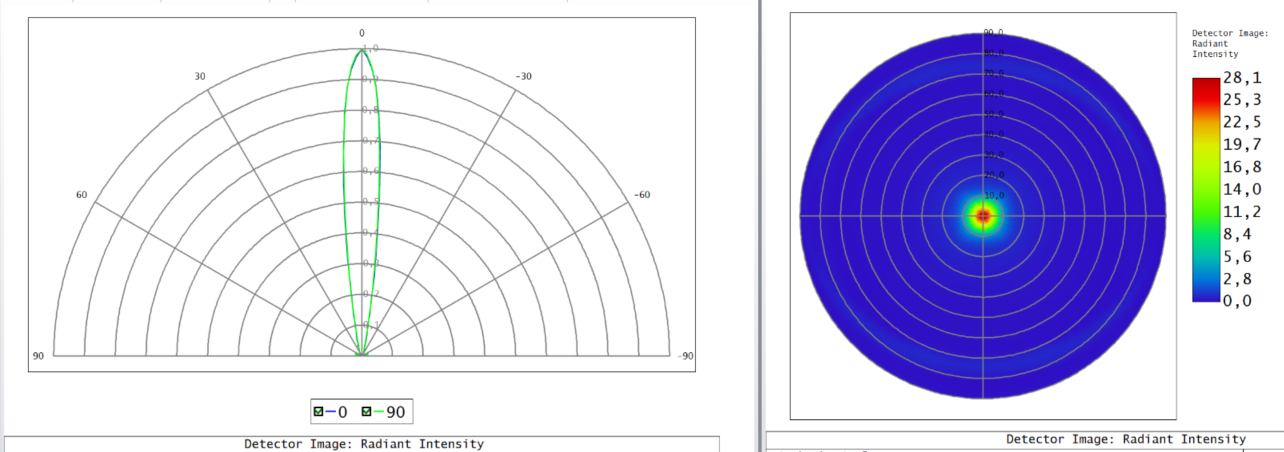

LED:
Bolb UV-C 6060 SMD
FWHM:
14°
FWTM:
24°
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
CLH-N3S
FWHM:
15°
FWTM:
38°
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
KL265-50V-SM-WD
FWHM:
13°
FWTM:
29°
Efficiency:
60 %
LEDs/each optic:
1
Light colour/type:
UV-C

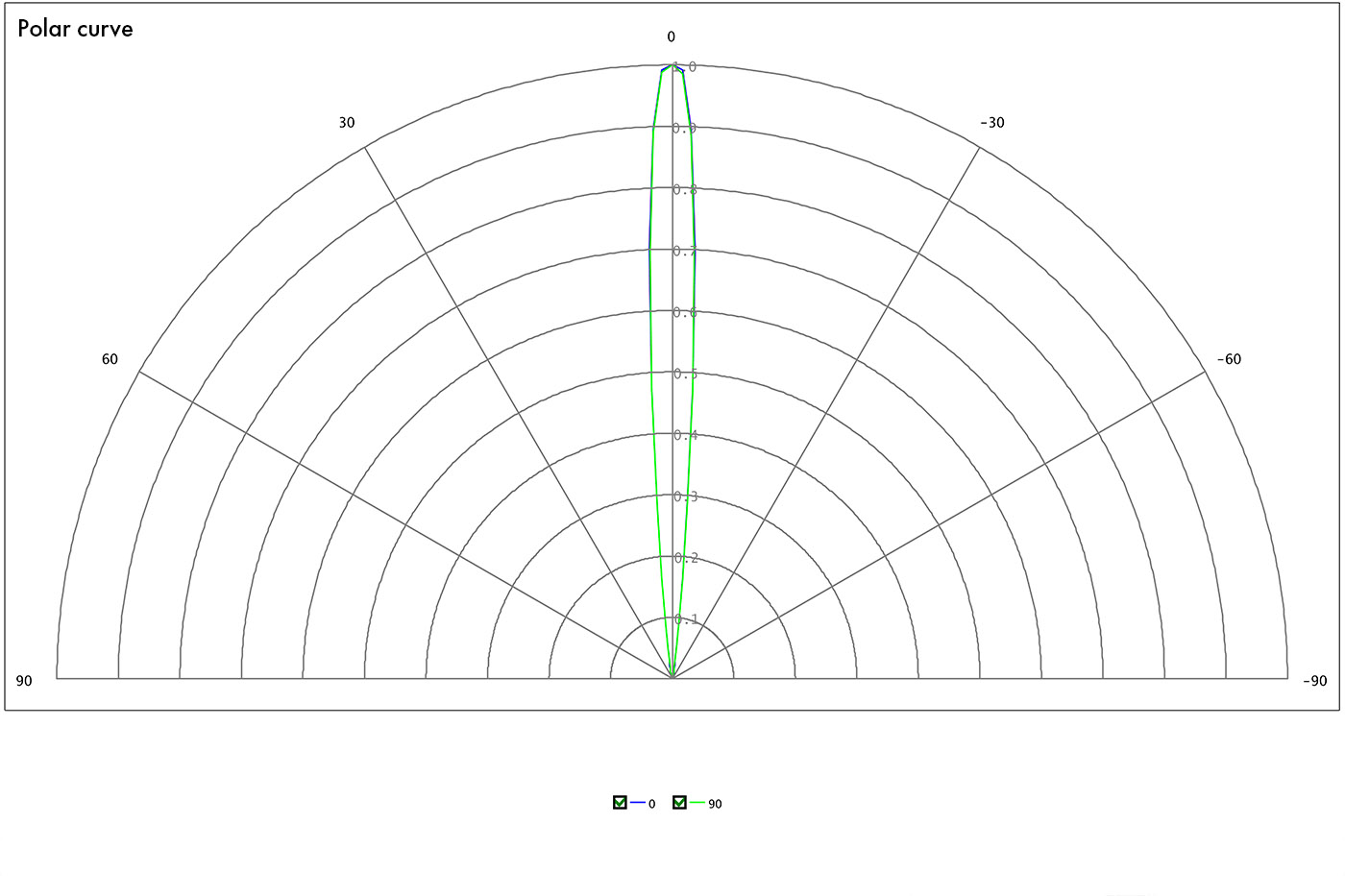

LED:
110384-GC VIOLET
FWHM:
7°
FWTM:
13°
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
110384-GC VIOLET
FWHM:
12°
FWTM:
24°
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
UV-C

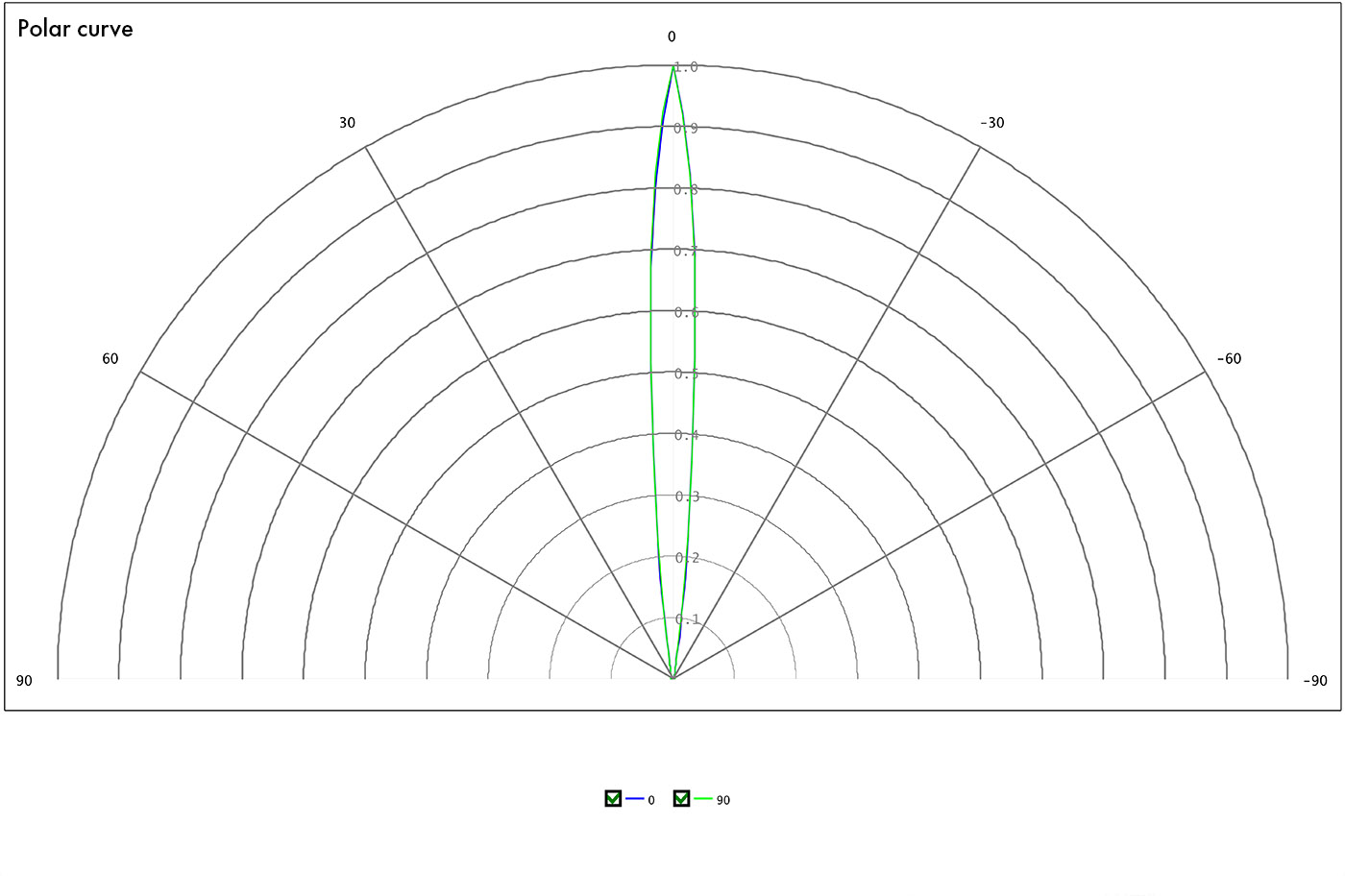

LED:
110384-GM VIOLET
FWHM:
8°
FWTM:
16°
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
110384-GM VIOLET
FWHM:
14°
FWTM:
30°
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
CLE LED module with UV-C (SU CULCN1.VC)
FWHM:
13°
FWTM:
29°
Efficiency:
65 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
LTPL-G35UV275GC-E
FWHM:
12°
FWTM:
20°
Efficiency:
65 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
LTPL-G35UV275GR-E
FWHM:
13°
FWTM:
27°
Efficiency:
64 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
LTPL-G35UVC275GH
FWHM:
14°
FWTM:
32°
Efficiency:
65 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
LTPL-G35UVC275GZ
FWHM:
14°
FWTM:
32°
Efficiency:
65 %
LEDs/each optic:
1
Light colour/type:
UV-C

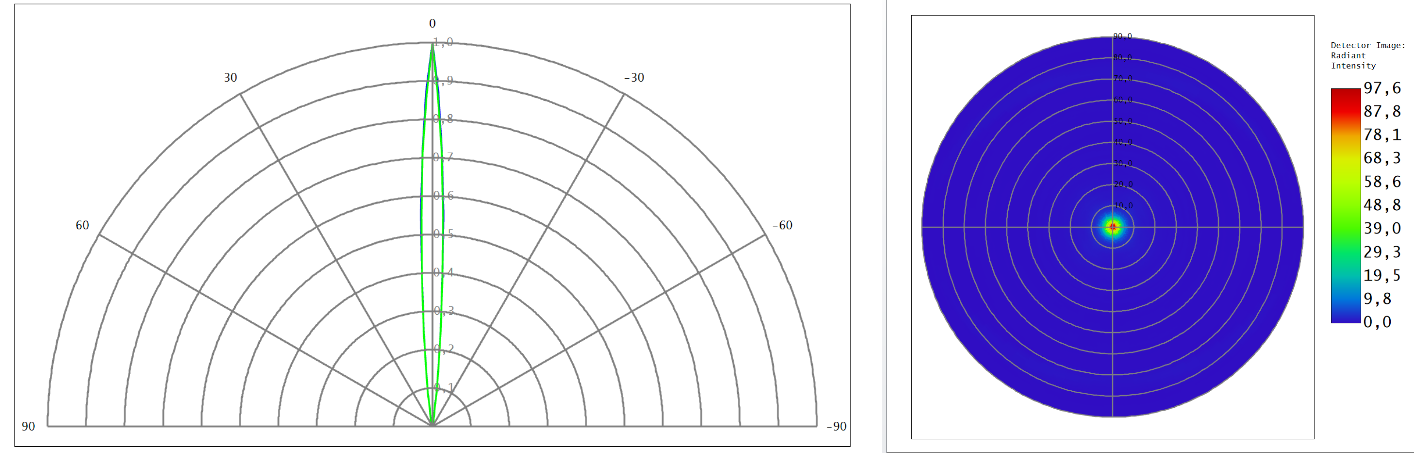

LED:
XBT-1313
FWHM:
7°
FWTM:
13°
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
UV-C

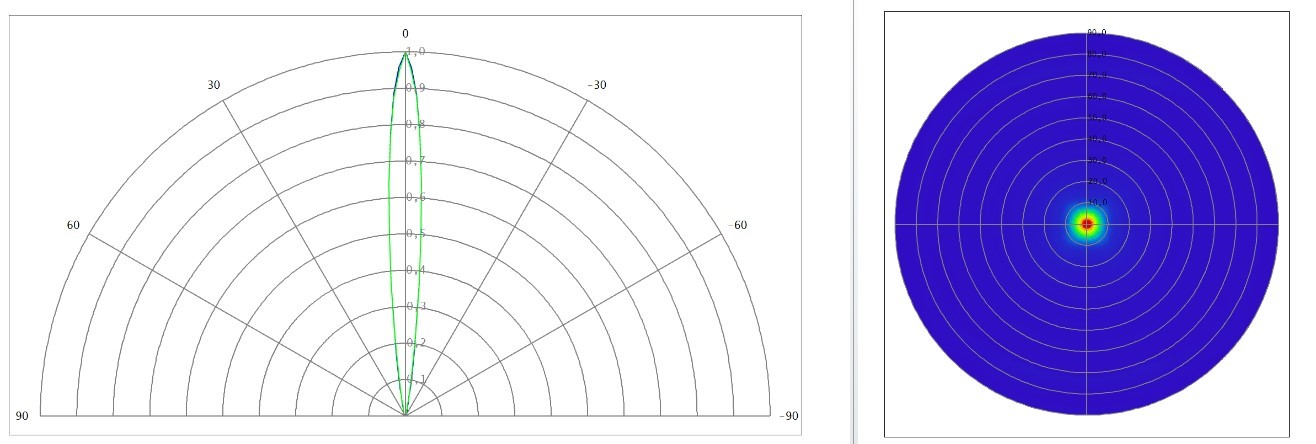

LED:
XBT-3535-UV
FWHM:
10°
FWTM:
19°
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
XBT-3535-UV
FWHM:
12°
FWTM:
29°
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
UV-C

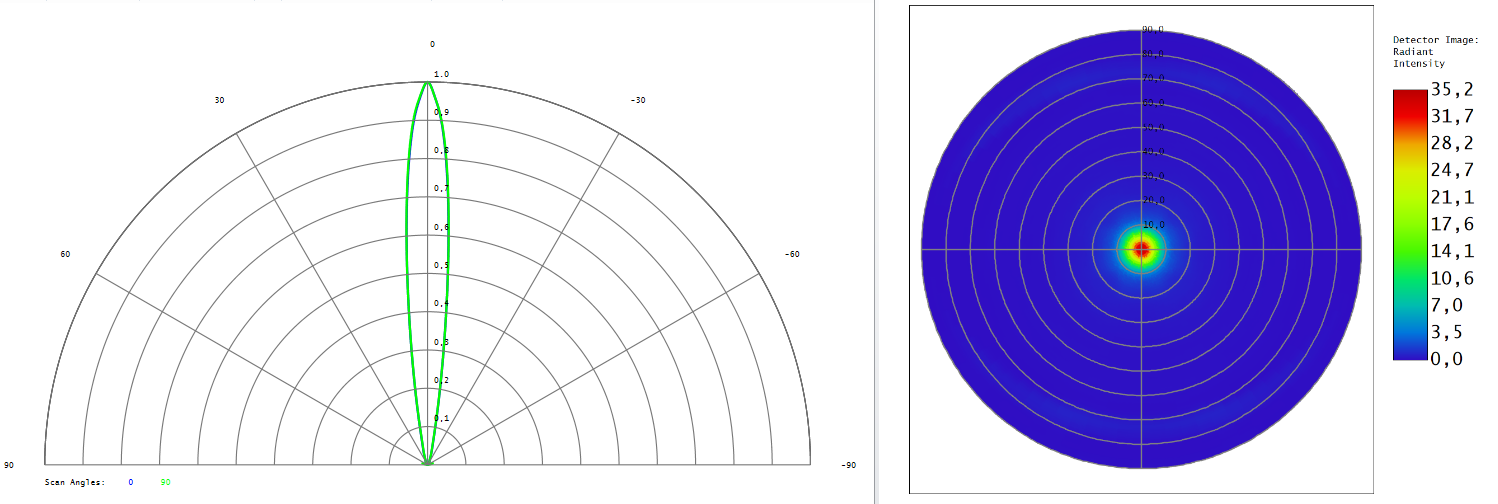

LED:
XFM-5050 2 Die
FWHM:
12°
FWTM:
23°
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
XFM-5050 2 Die
FWHM:
19°
FWTM:
41°
Efficiency:
60 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
XFM-5050 2 Die
FWHM:
23°
FWTM:
46°
Efficiency:
62 %
LEDs/each optic:
1
Light colour/type:
UV-C

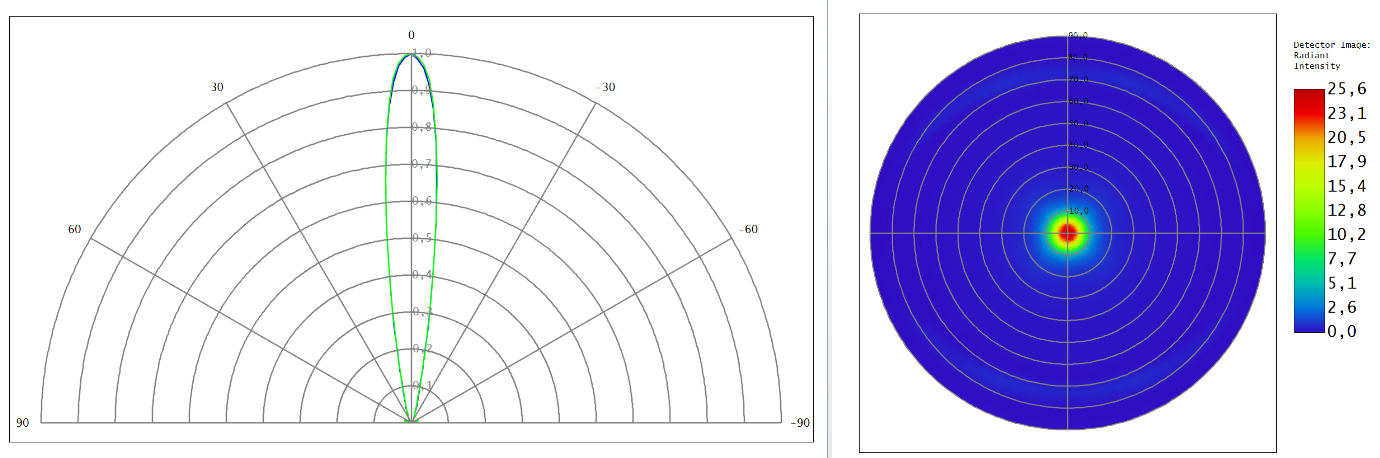

LED:
XFM-5050 3 Die
FWHM:
15°
FWTM:
27°
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
XFM-5050 3 Die
FWHM:
24°
FWTM:
47°
Efficiency:
58 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
XFM-5050 4 Die
FWHM:
15°
FWTM:
29°
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
UV-C

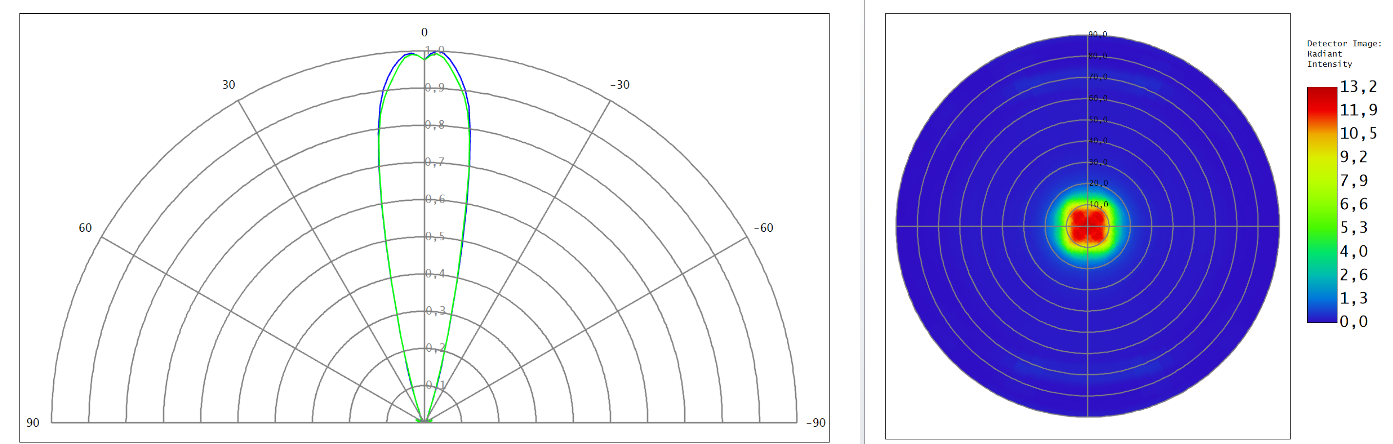

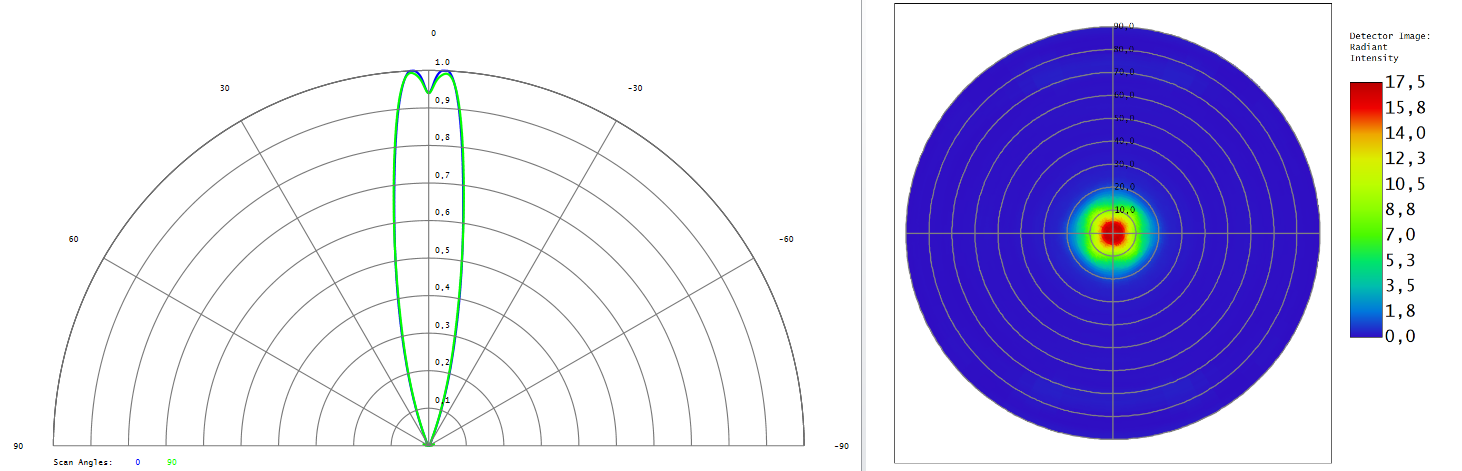

LED:
XST-3535-UV
FWHM:
24°
FWTM:
38°
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
XST-3535-UV
FWHM:
20°
FWTM:
39°
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
XST-3535-UV
FWHM:
22°
FWTM:
42°
Efficiency:
64 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
Violet UVC LED-Modul 280nm
FWHM:
14°
FWTM:
31°
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
NC4U334BR
FWHM:
20°
FWTM:
36°
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
UV-C

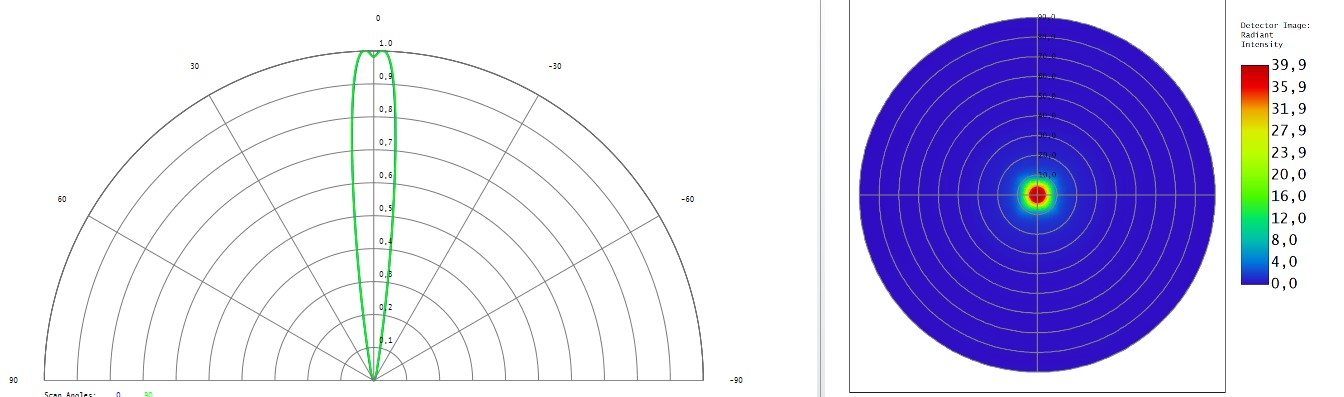

LED:
NCSU334A
FWHM:
13°
FWTM:
22°
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
NCSU334B
FWHM:
13°
FWTM:
22°
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
NCSU334B
FWHM:
8°
FWTM:
19°
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
NCSU334B
FWHM:
17°
FWTM:
36°
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
NCSU434A
FWHM:
12°
FWTM:
19°
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
NCSU434B
FWHM:
13°
FWTM:
21°
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
OSLON UV 3535 (SU CULFP1.VC)
FWHM:
14°
FWTM:
38°
Efficiency:
55 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
OSLON UV 3636 (SU CULBN1.VC)
FWHM:
10°
FWTM:
20°
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
OSLON UV 3636 (SU CULCN1.VC)
FWHM:
9°
FWTM:
16°
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
OSLON UV 3636 (SU CULDN1.VC)
FWHM:
12°
FWTM:
22°
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
UV-C

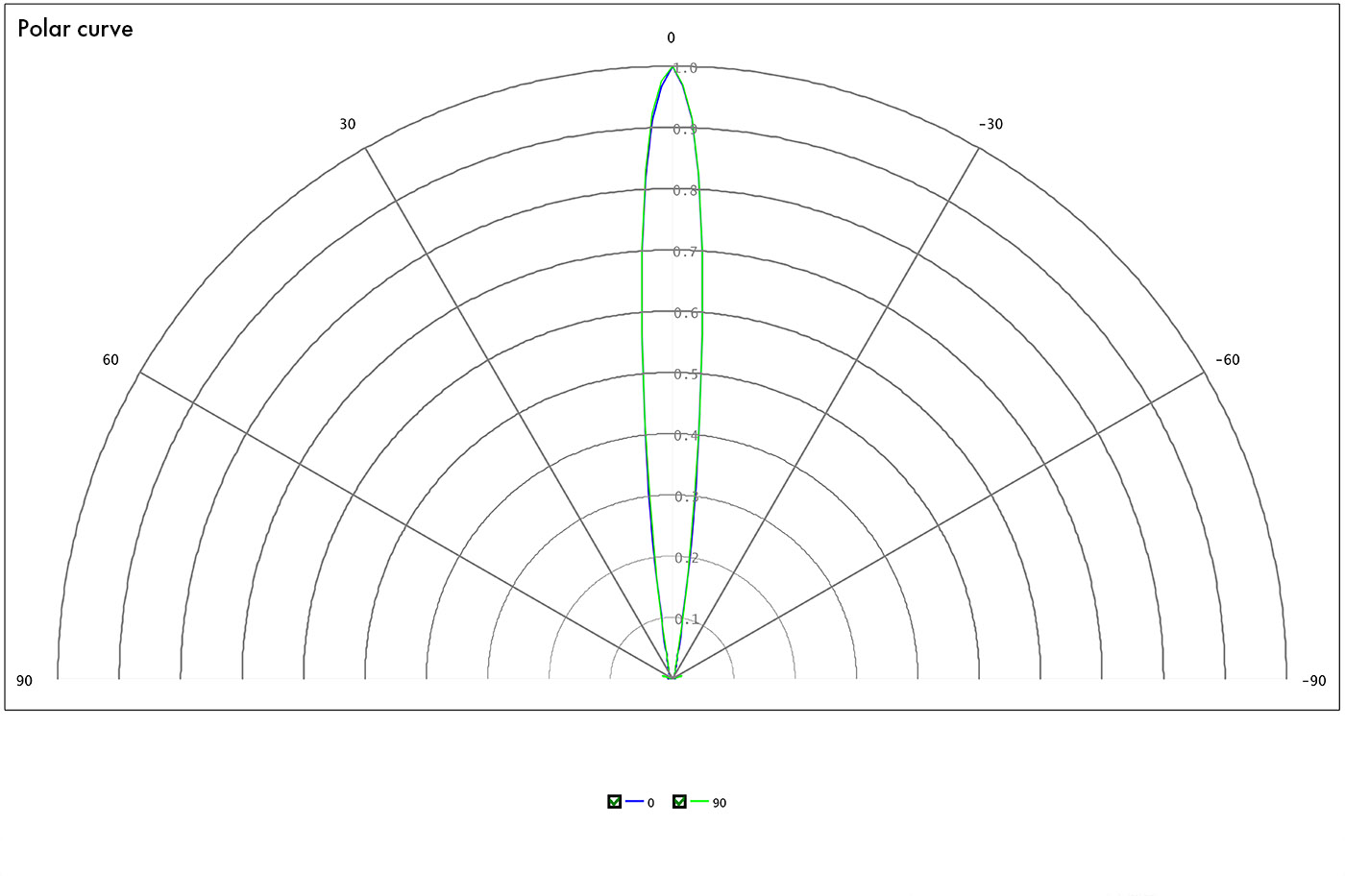

LED:
OSLON UV 6060 (SU CZHEF1.VC)
FWHM:
11°
FWTM:
20°
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
OSLON UV 6060 (SU CZHPF1.VC)
FWHM:
10°
FWTM:
20°
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
OSLON UV 6060 (SU CZHPF1.VC)
FWHM:
16°
FWTM:
37°
Efficiency:
62 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
UV351A
FWHM:
8°
FWTM:
19°
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
UV351B
FWHM:
9°
FWTM:
21°
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
UV352B
FWHM:
8°
FWTM:
20°
Efficiency:
65 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
UV353B
FWHM:
12°
FWTM:
25°
Efficiency:
63 %
LEDs/each optic:
1
Light colour/type:
UV-C

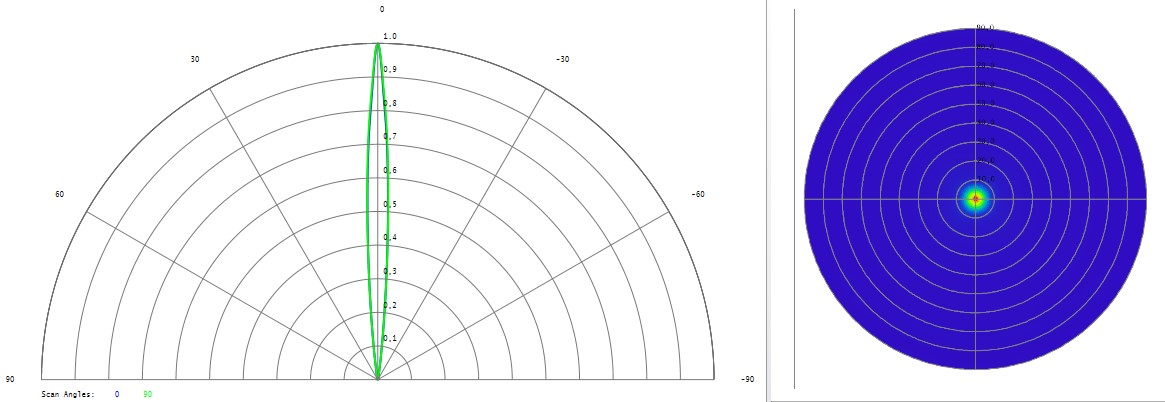

LED:
CUD7GF1A
FWHM:
7°
FWTM:
14°
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
CUD7GF1B
FWHM:
15°
FWTM:
30°
Efficiency:
61 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
CUD7QF1A
FWHM:
7°
FWTM:
15°
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
CUD7QF1A
FWHM:
14°
FWTM:
28°
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
UV-C

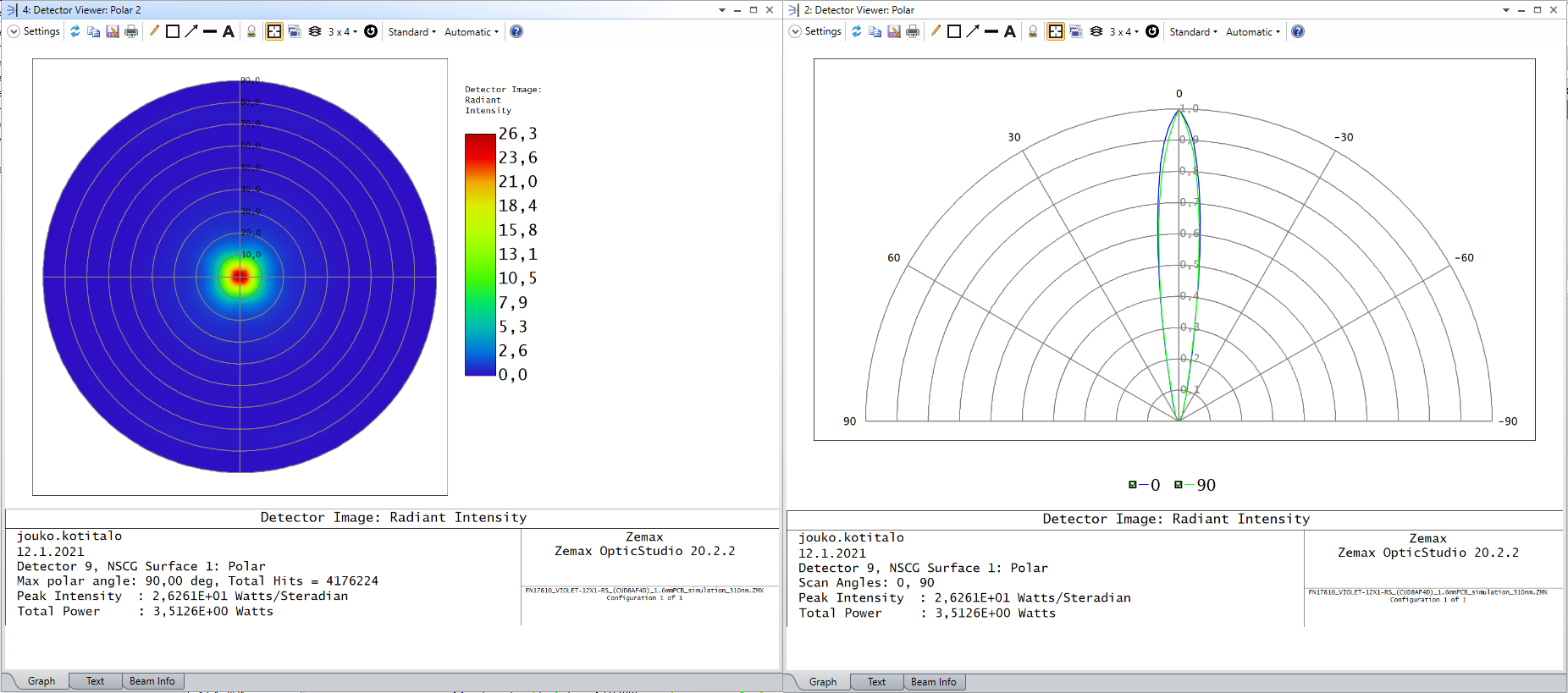

LED:
CUD8AF4D
FWHM:
14°
FWTM:
28°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
UV-B
LED:
CUN66A1B
FWHM:
9°
FWTM:
18°
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
UV-A

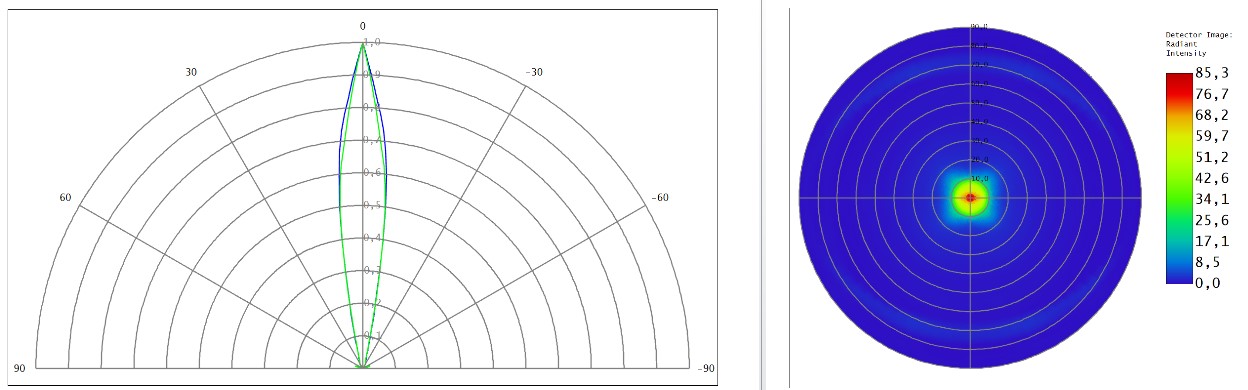

LED:
WICOP DY9560-27
FWHM:
16°
FWTM:
27°
Efficiency:
73 %
LEDs/each optic:
4
Light colour/type:
UV-C
LED:
WICOP DY9560-27
FWHM:
13°
FWTM:
18°
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
UV-C

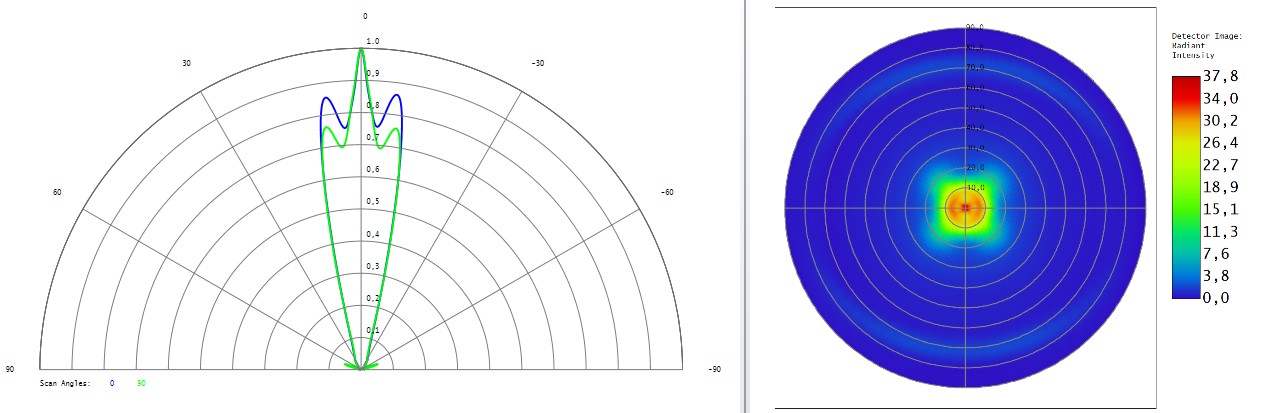

LED:
WICOP DY9560-27
FWHM:
22°
FWTM:
34°
Efficiency:
72 %
LEDs/each optic:
4
Light colour/type:
UV-C
LED:
XMD-FBC-LLCA
FWHM:
16°
FWTM:
34°
Efficiency:
55 %
LEDs/each optic:
1
Light colour/type:
UV-C
LED:
XMD-FBC-LLOA
FWHM:
31°
FWTM:
51°
Efficiency:
67 %
LEDs/each optic:
2
Light colour/type:
UV-C
LED:
XMD-FBC-LLVA
FWHM:
31°
FWTM:
63°
Efficiency:
63 %
LEDs/each optic:
4
Light colour/type:
UV-C
LED:
ZEUBE265 Series
FWHM:
13°
FWTM:
20°
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
UV-C
