    DAISY-MINI-W-D

    Print

    ~55° wide beam. Variant with diffused lenses.

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      280 x  21 mm
    • Height:
      13.30 mm
    • Fastening:
      pin, screw, snaps
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

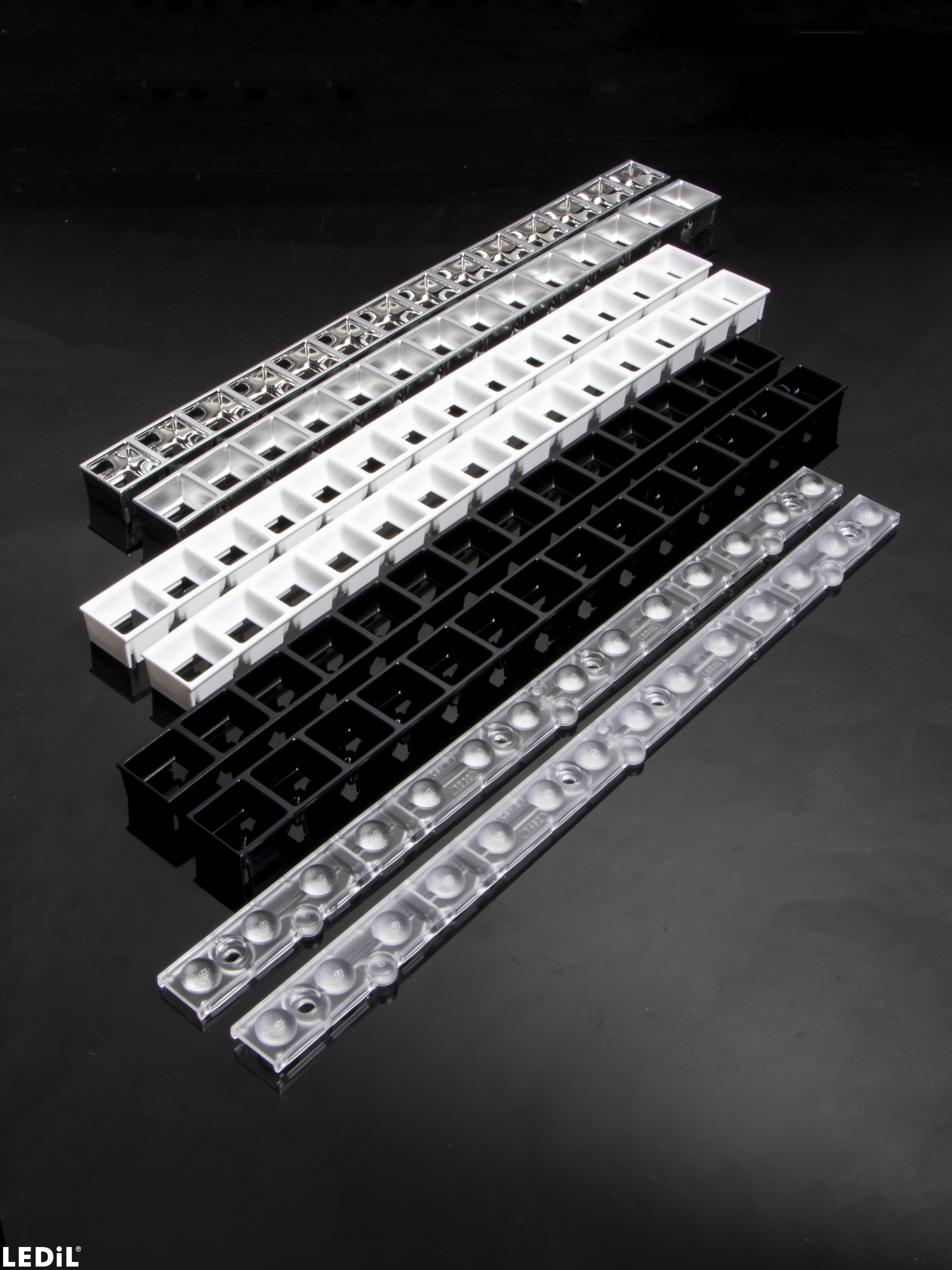

    Component Materials
    • DAISY-MINI-SHD
      Shade
      PC
    • DAISY-MINI-SHD-WHT
      Shade
      PC
    • DAISY-MINI-SHD-MATT
      Shade
      PC
    • DAISY-MINI-W-D
      Linear lens
      PMMA
    • DAISY-MINI-SHD-WHT-MATT
      Shade
      PC
    • DAISY-MINI-SHD-MET
      Shade
      PC
    • DAISY-MINI-SHD-MET-MATT
      Shade
      PC
    • Request material files from Tech Support

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Linear lens
      1 pcs
    • Shade
      1 pcs
    • Linear lens
    • F17462_DAISY-MINI-W-D
      milky
    • Quantity in box:
      252 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      5.80 kg
    • MPQ:
      12 pcs
    • MOQ:
      252 pcs
    • MOQ Size:
      398 x 298 x 265 mm
    • MOQ Weight:
      5.80 kg
    • Shade
    • F17028_DAISY-MINI-SHD
      black,gloss
    • F17033_DAISY-MINI-SHD-WHT
      white,gloss
    • F17034_DAISY-MINI-SHD-MATT
      black,matt
    • F17465_DAISY-MINI-SHD-WHT-MATT
      white,matt
    • F17666_DAISY-MINI-SHD-MET
      metal,gloss
    • F17667_DAISY-MINI-SHD-MET-MATT
      metal,matt
    • Quantity in box:
      252 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      5.90 kg
    • MPQ:
      4 pcs
    • MOQ:
      252 pcs
    • MOQ Size:
      398 x 298 x 265 mm
    • MOQ Weight:
      5.90 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      F17462_DAISY-MINI-W-D
      F17028_DAISY-MINI-SHD
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Luminaire, example

    Linear luminaire with DAISY-MINI

    Luminaire, example

    Track light luminaire with DAISY-MINI

    Reference product

    SG Armaturen Yggdrasil luminaire

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    News

    Meet DAISY-MINI – the smallest LEDiL Dark Light optic in the world

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Office Lighting Optics

    News

    Transforming workspaces with DAISY

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    News

    DAISY-MINI-3X1 – where modularity and flexibility meet

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    Application example

    Wall-washing with DAISY-7X1-WAS

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

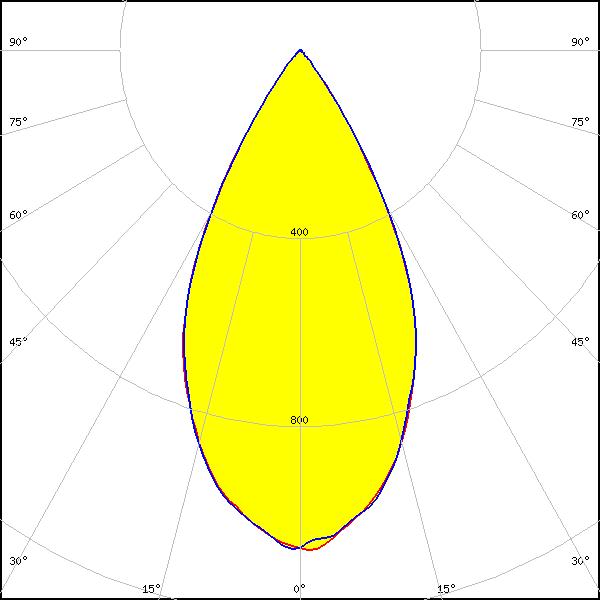

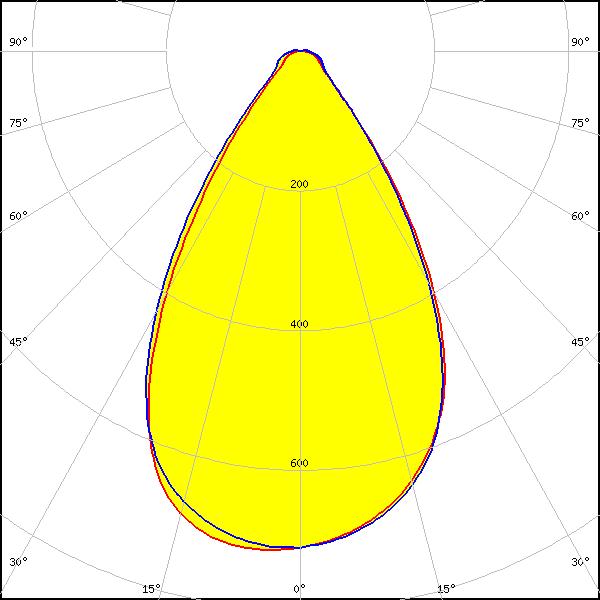

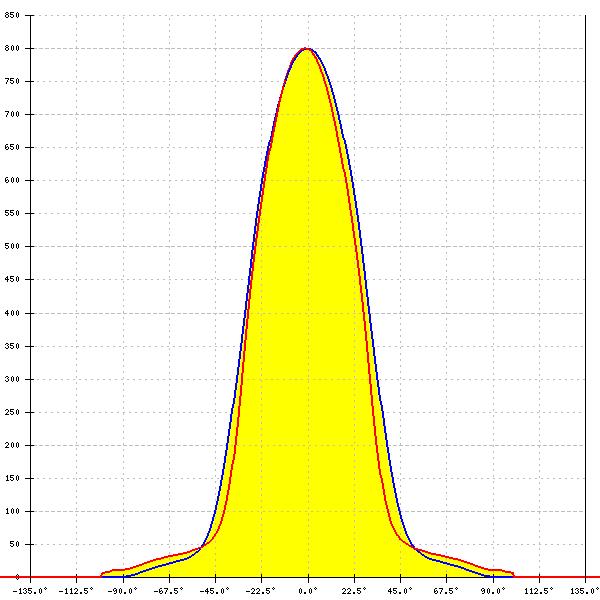

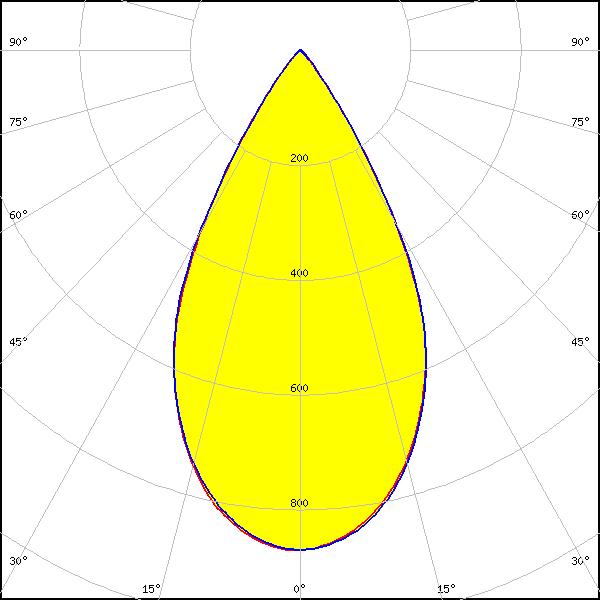

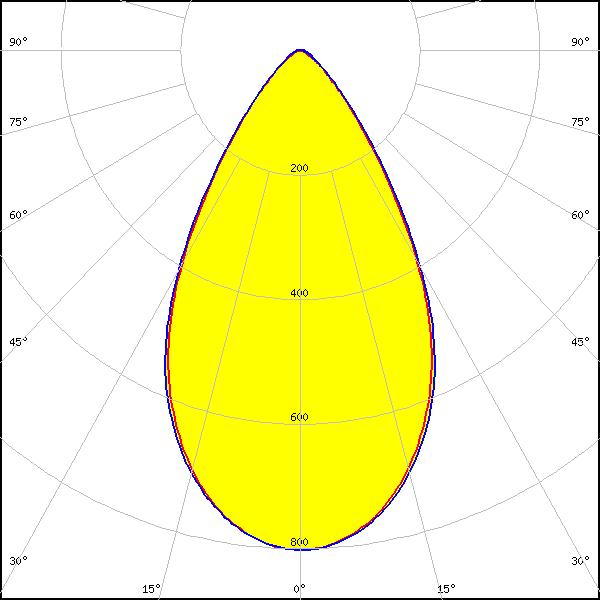

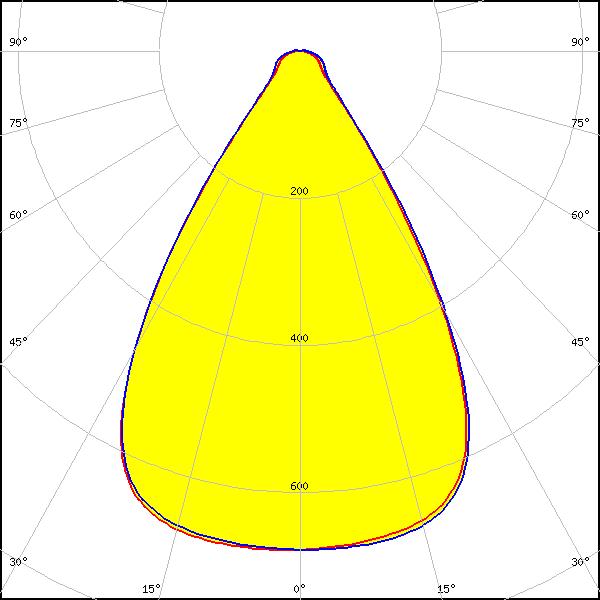

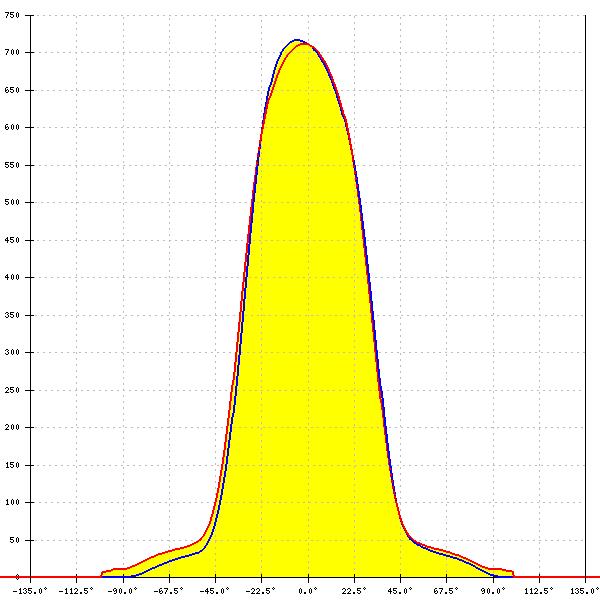

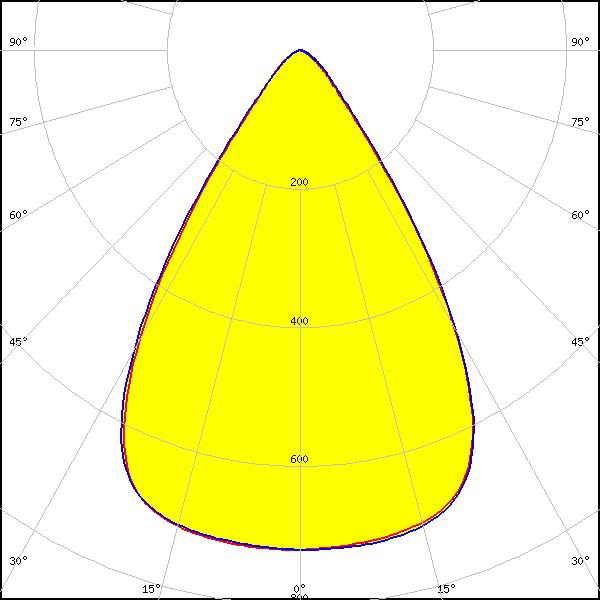

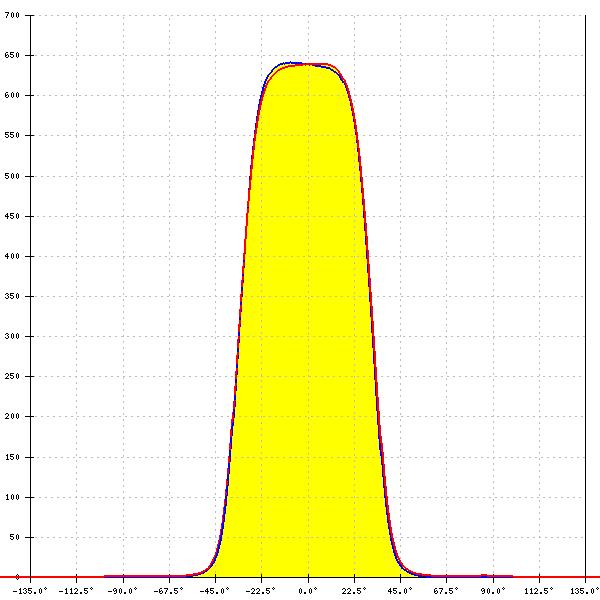

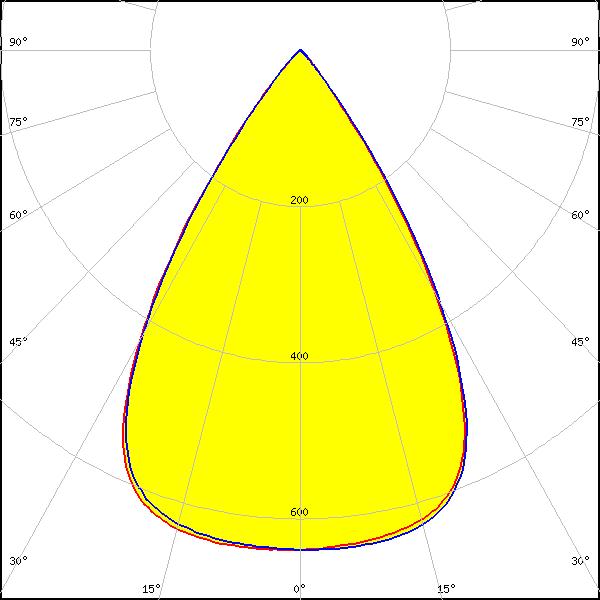

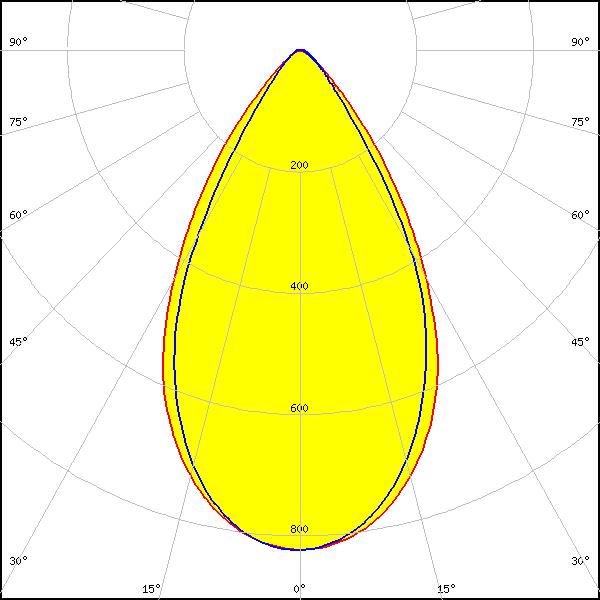

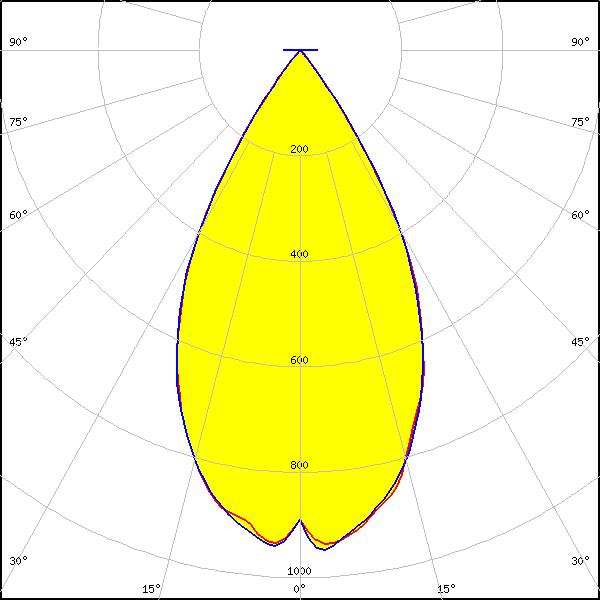

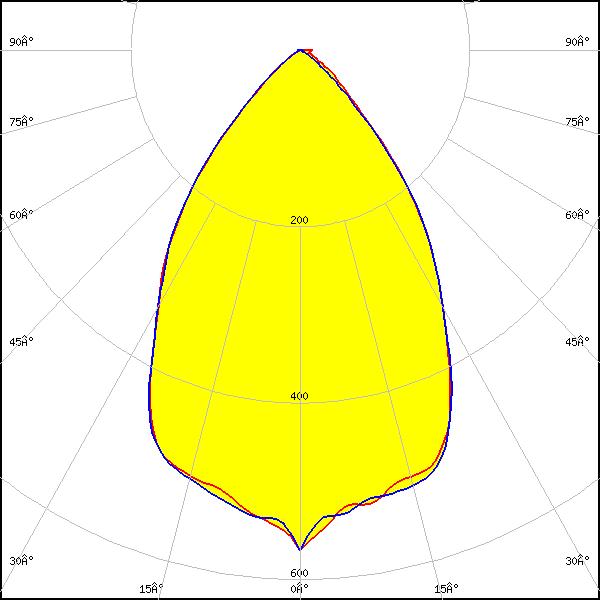

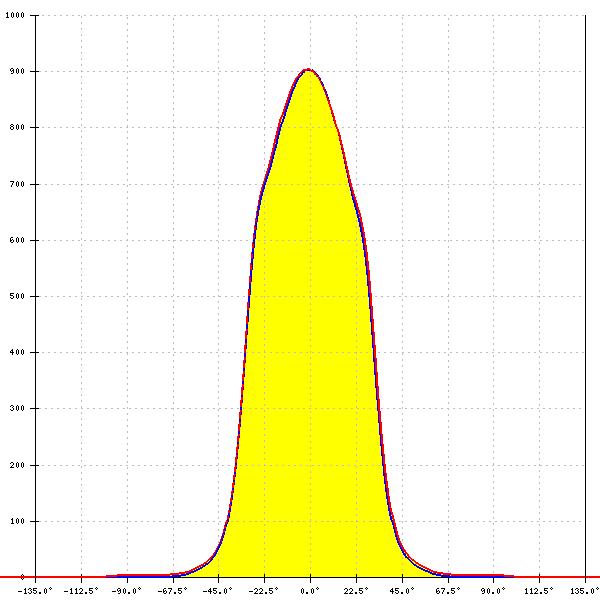

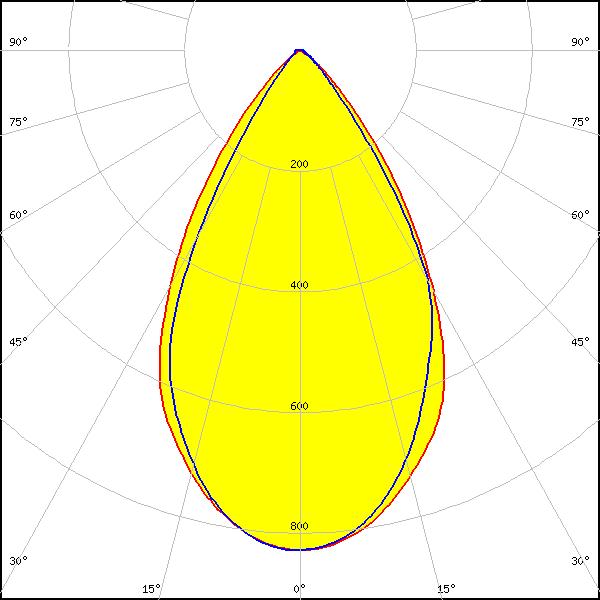

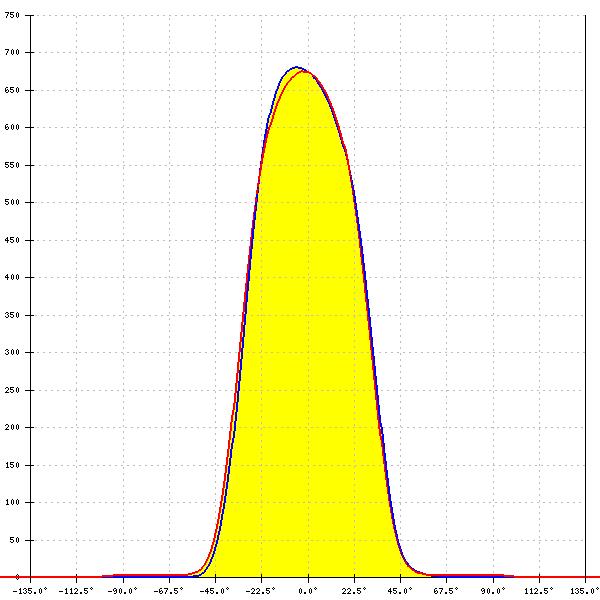

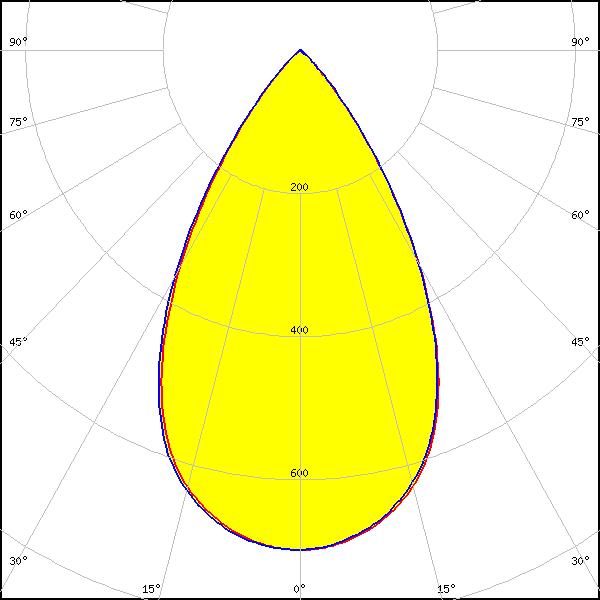

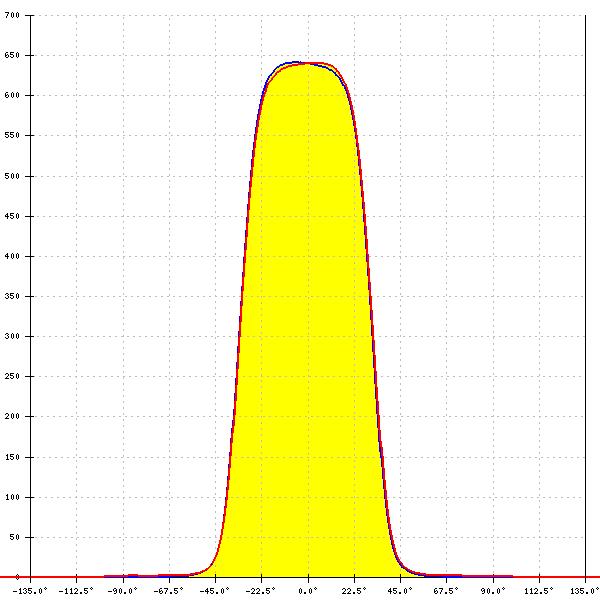

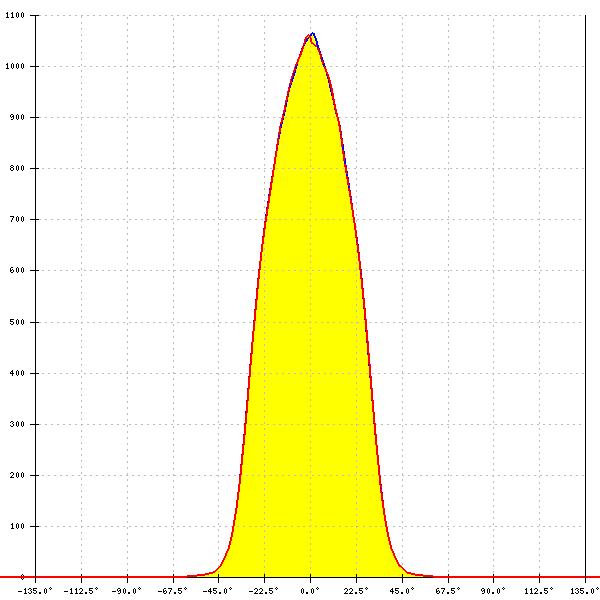

    Optical results

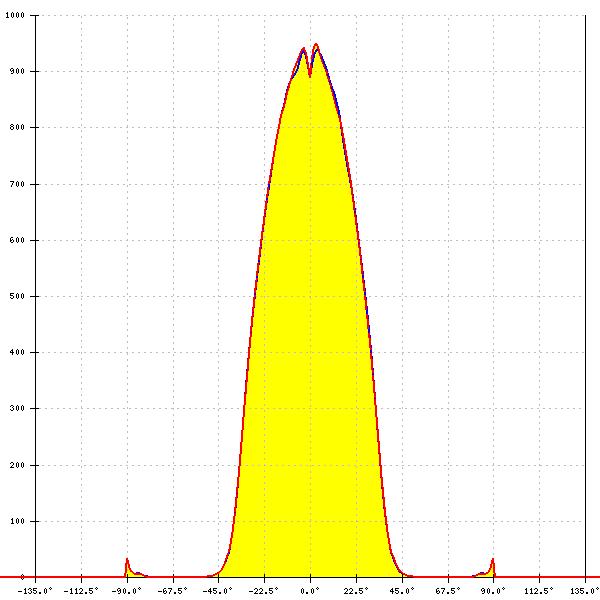

    LED: XQ-E HI
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 0.966 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

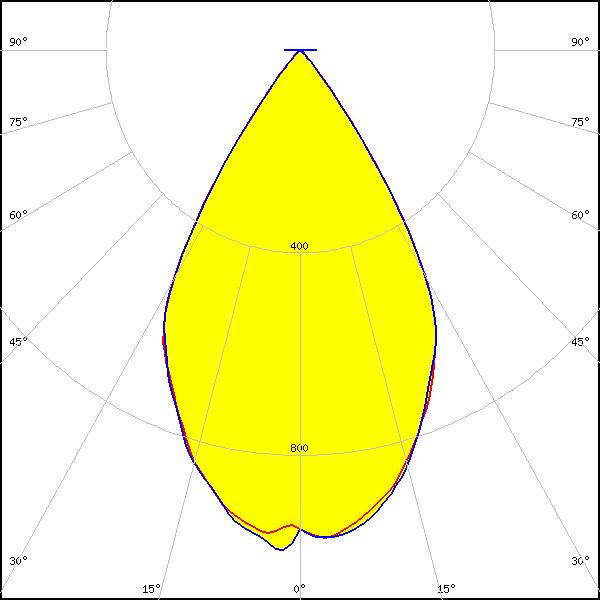

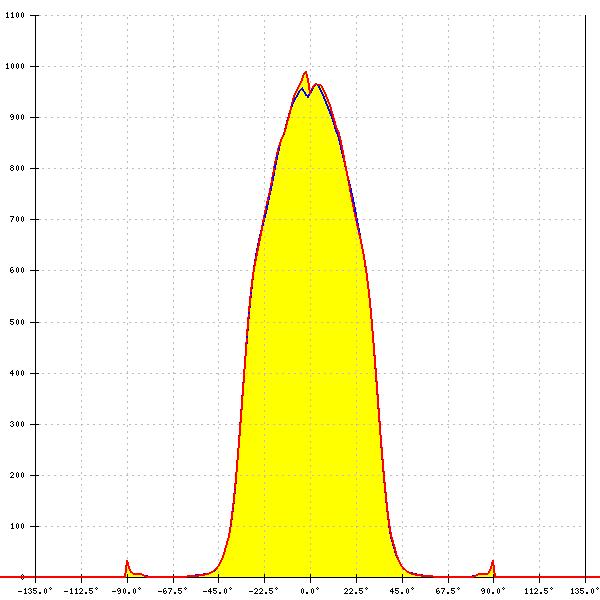

    LED: XQ-E HI
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 62°
    FWTM: 78°
    Peak intensity: 0.990 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1

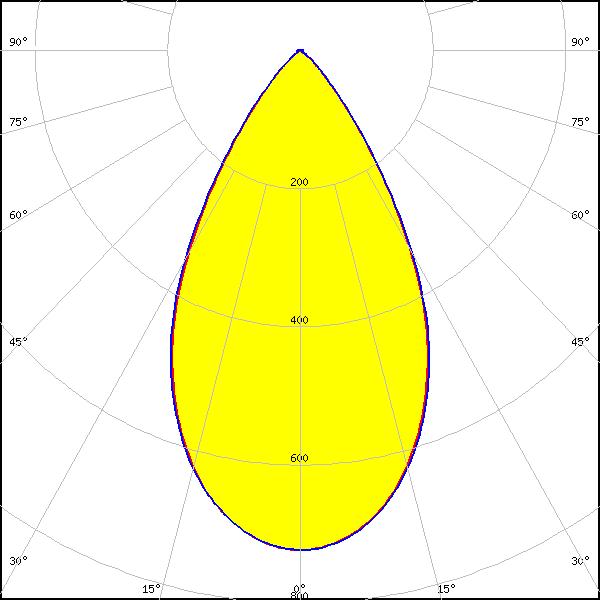

    Light colour/type: White

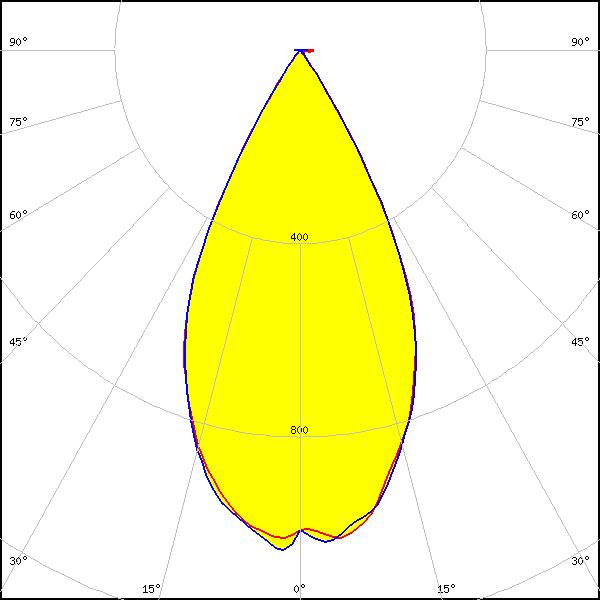

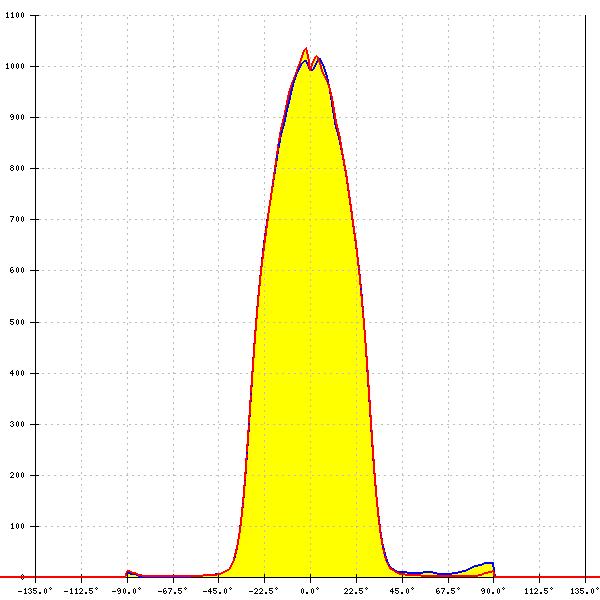

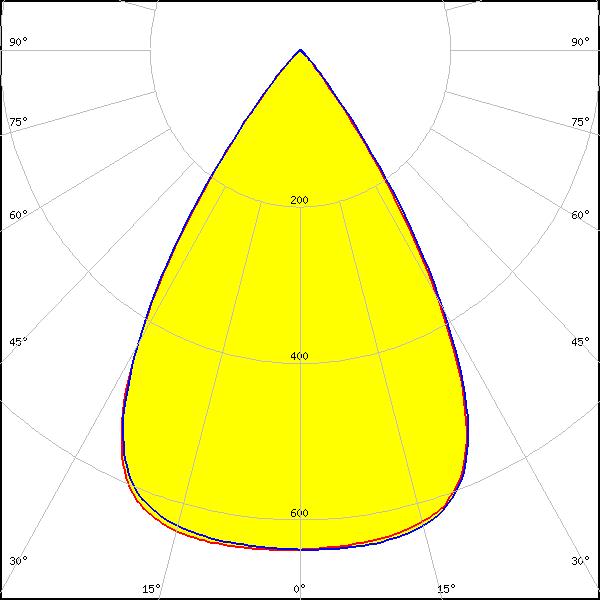

    LED: LUXEON HL1Z
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 52°
    FWTM: 68°
    Peak intensity: 1.048 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: White

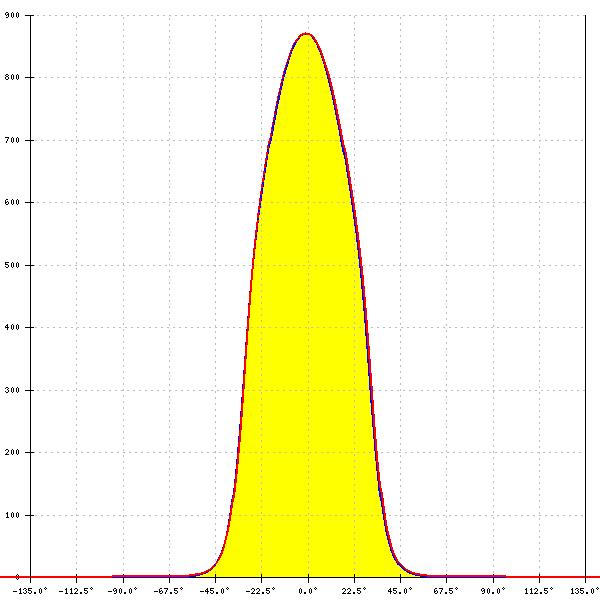

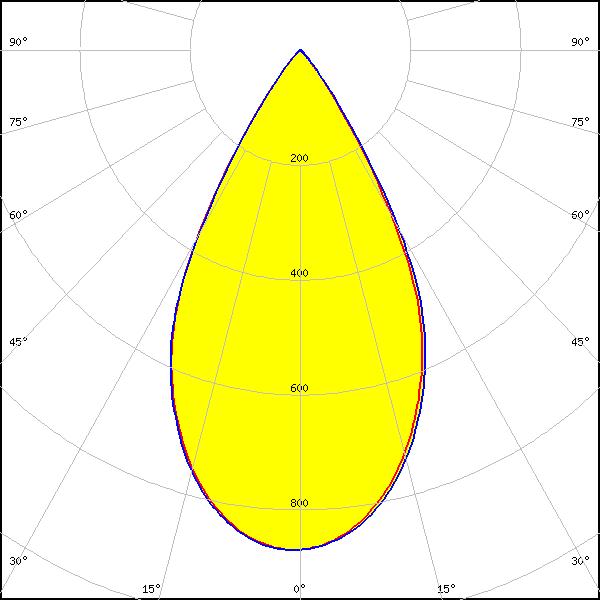

    LED: LED-Modul 279,65x20 mm 14 LEDs Mini Daisy
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 0.871 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

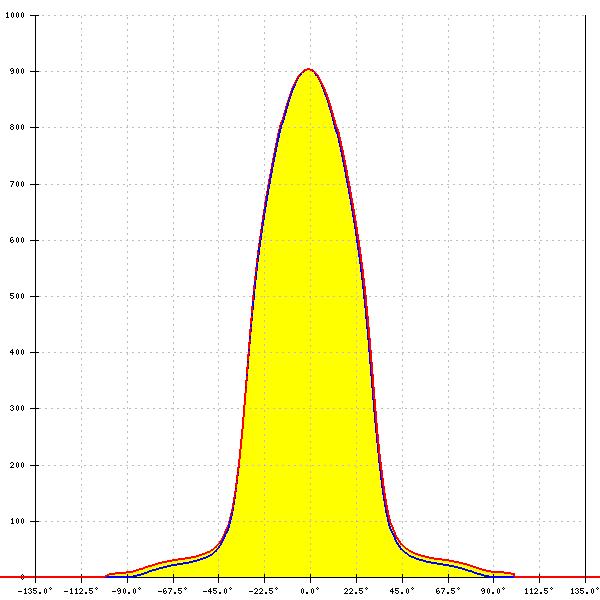

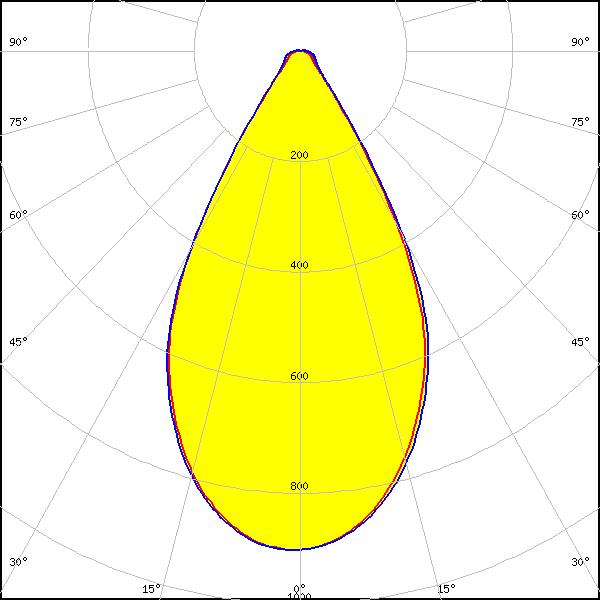

    LED: LED-Modul 279,65x20 mm 14 LEDs Mini Daisy
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 57°
    FWTM: 80°
    Peak intensity: 0.904 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LED-Modul 279,65x20 mm 14 LEDs Mini Daisy
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 0.873 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LED-Modul 279,65x20 mm 14 LEDs Mini Daisy
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 57°
    FWTM: 80°
    Peak intensity: 0.907 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

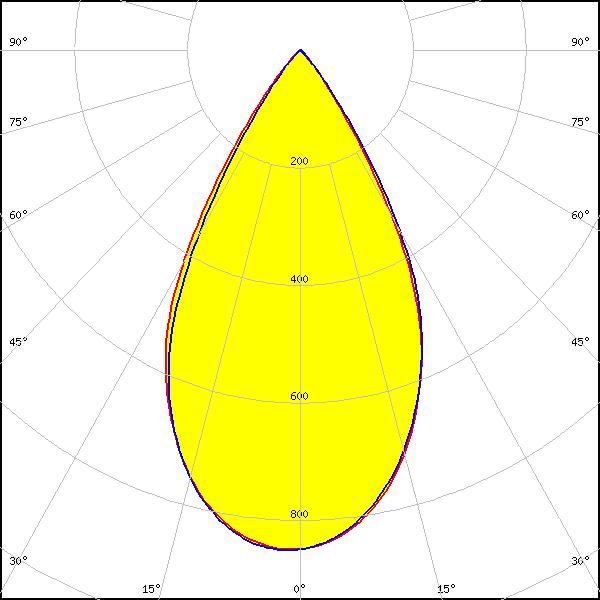

    LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 57°
    FWTM: 78°
    Peak intensity: 0.851 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

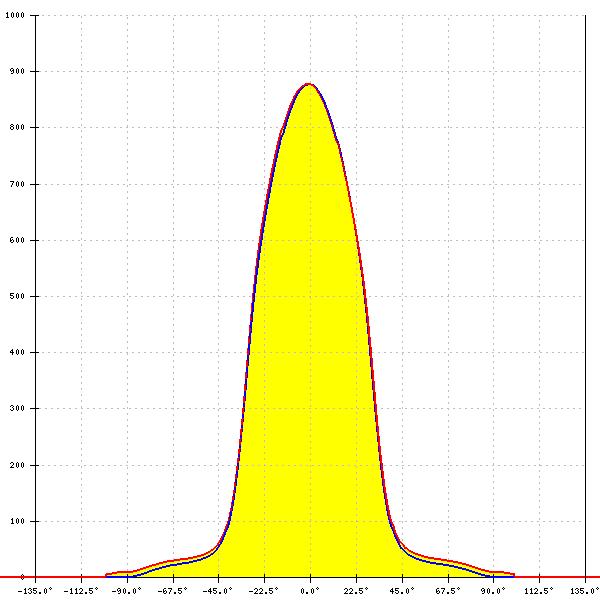

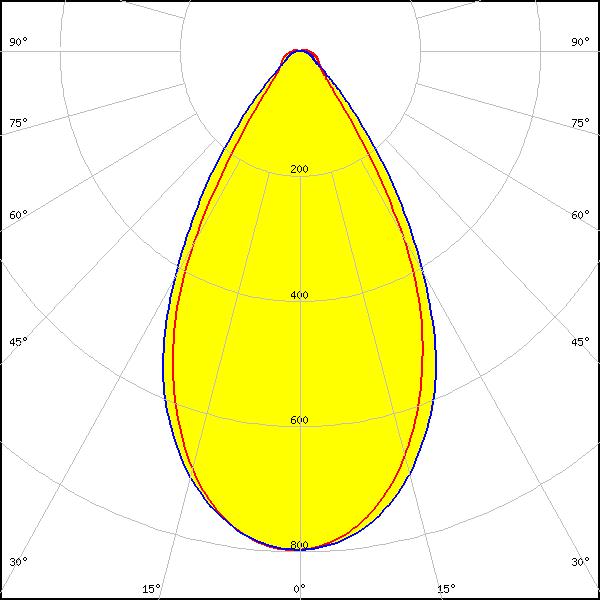

    LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 58°
    FWTM: 81°
    Peak intensity: 0.878 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 57°
    FWTM: 78°
    Peak intensity: 0.848 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

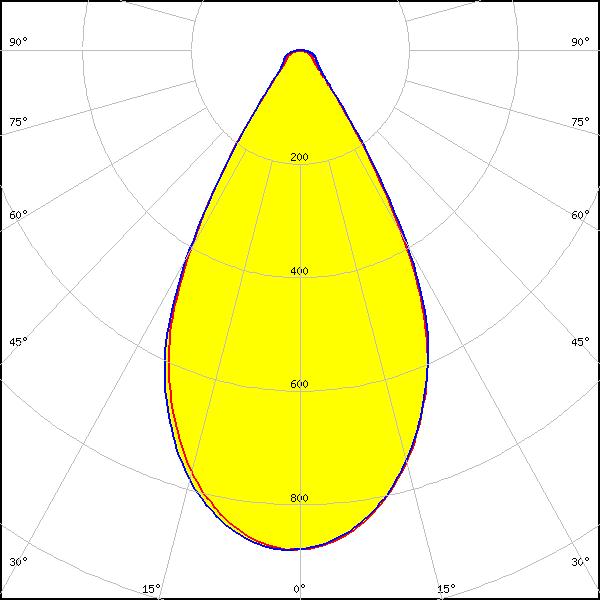

    LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 58°
    FWTM: 82°
    Peak intensity: 0.881 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 62°
    FWTM: 83°
    Peak intensity: 0.903 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

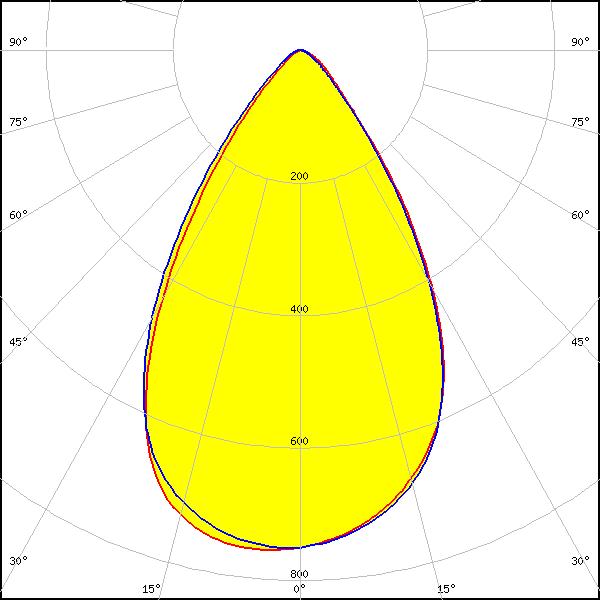

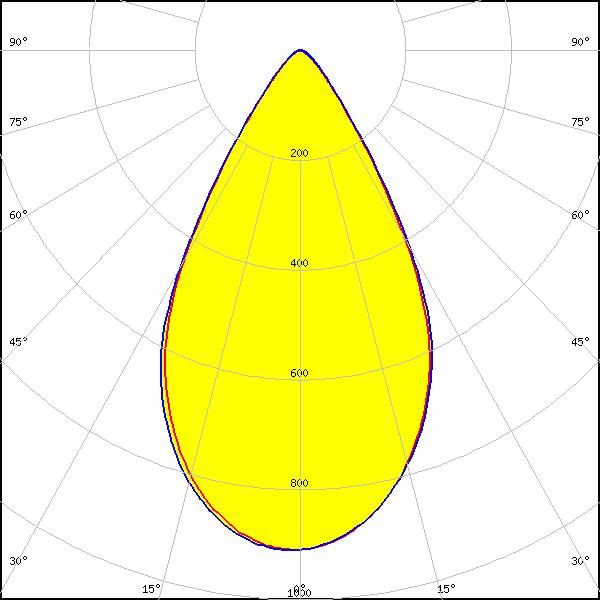

    LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 59°
    FWTM: 84°
    Peak intensity: 0.911 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

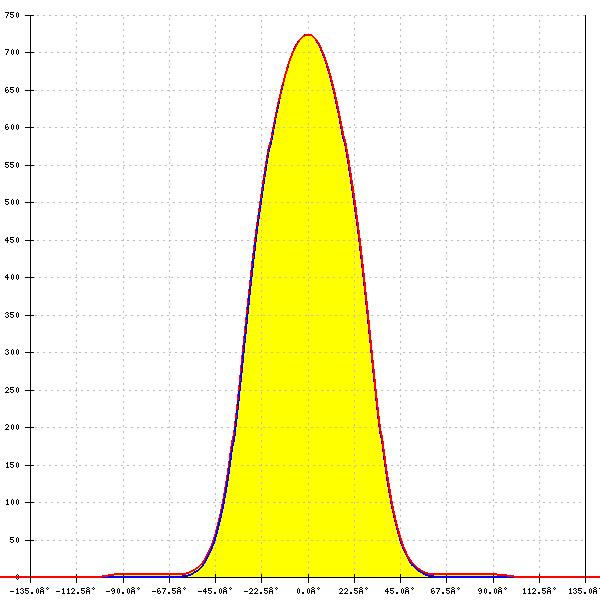

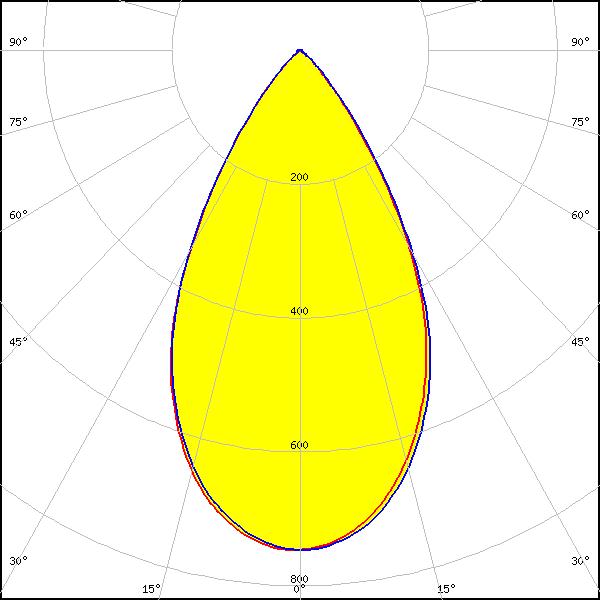

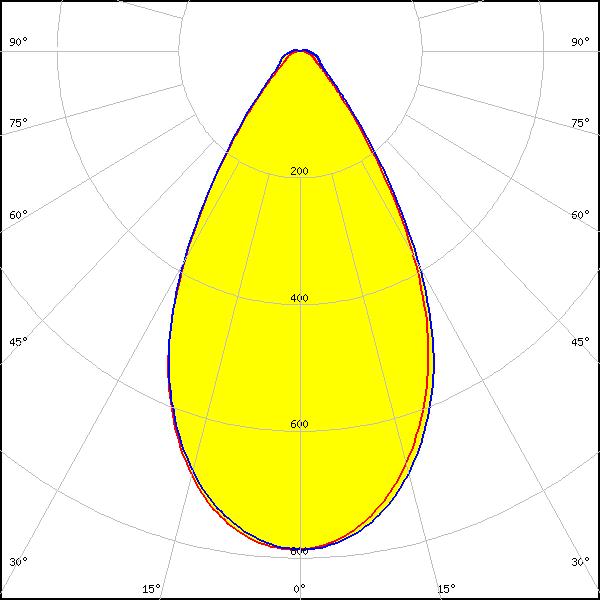

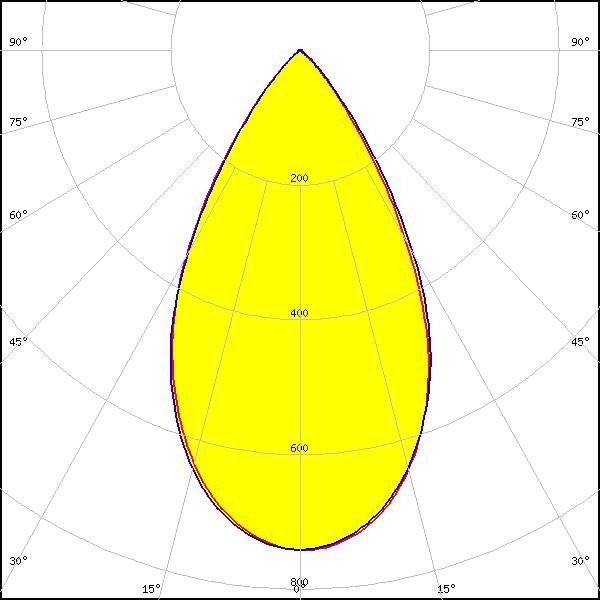

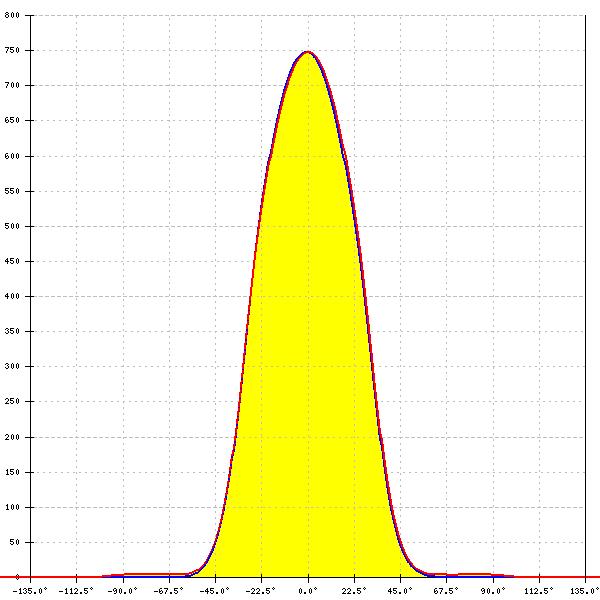

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 58°
    FWTM: 85°
    Peak intensity: 0.742 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 2
    Light colour/type: White

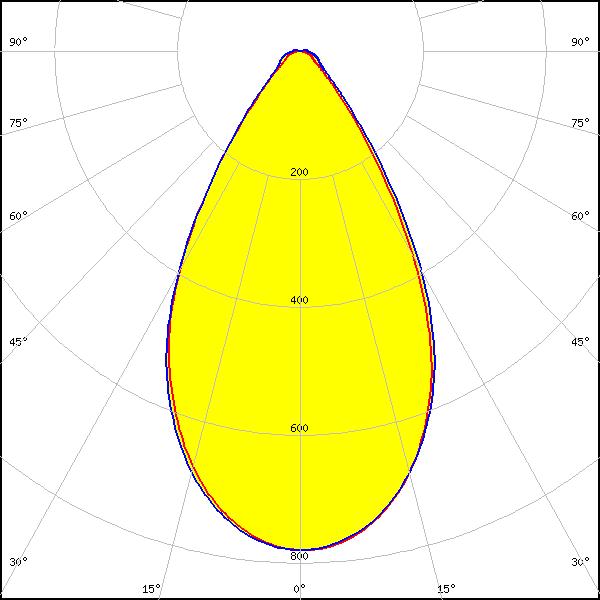

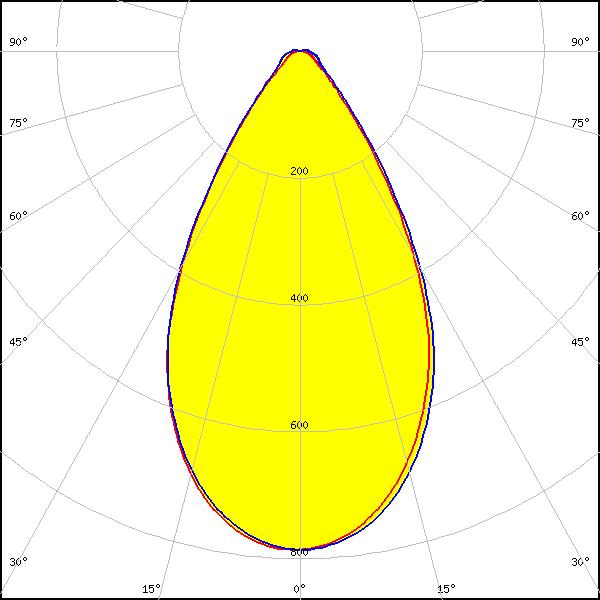

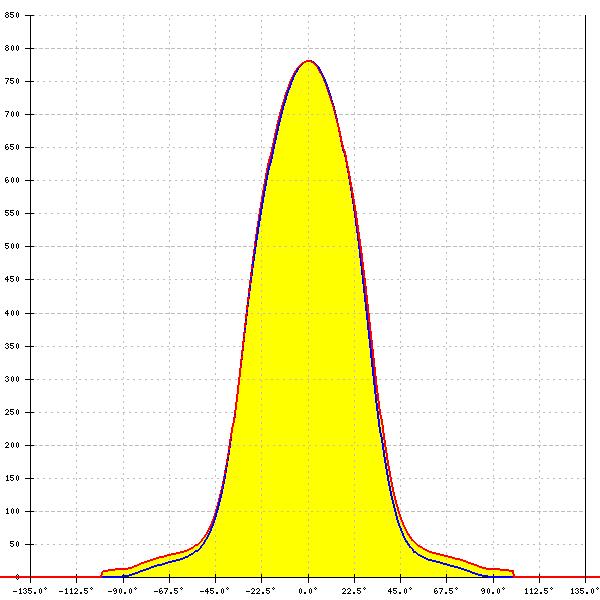

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 60°
    FWTM: 92°
    Peak intensity: 0.780 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 2
    Light colour/type: White

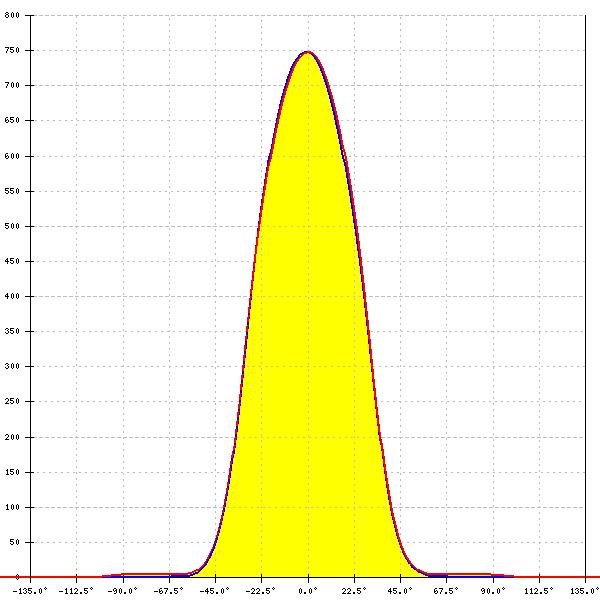

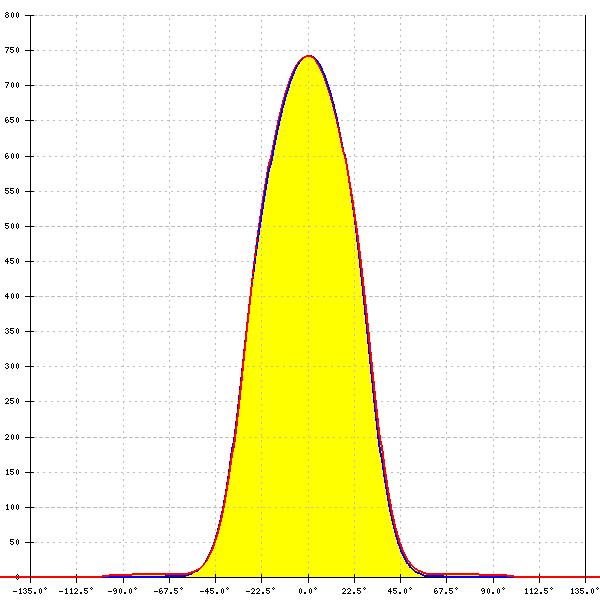

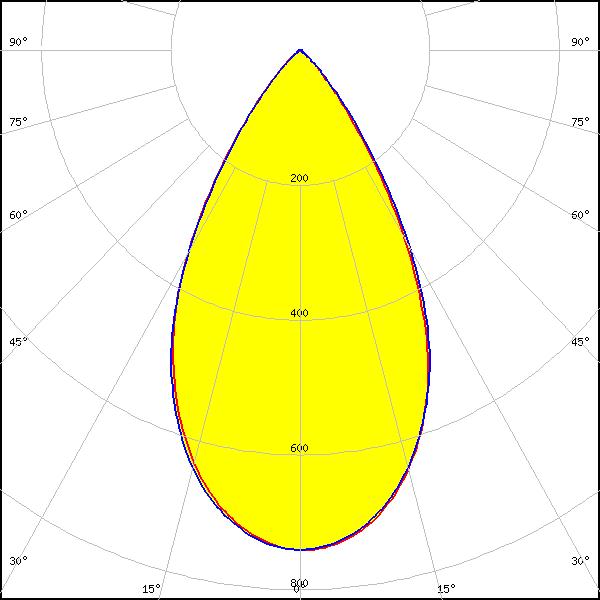

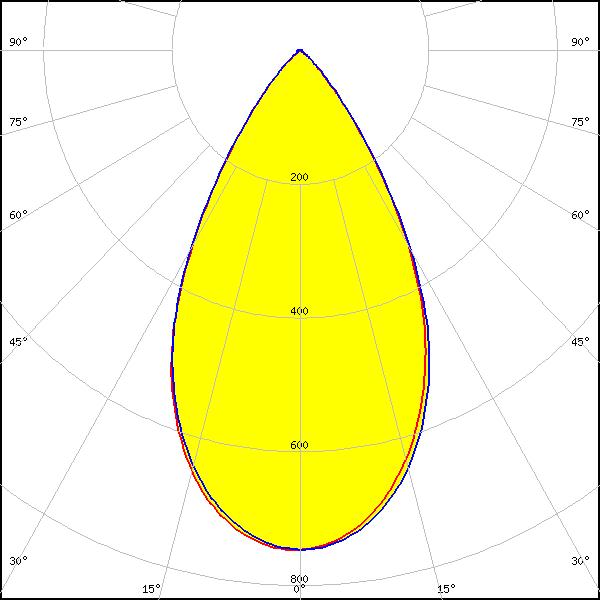

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 58°
    FWTM: 85°
    Peak intensity: 0.742 cd/lm
    Efficiency: 68 %
    LEDs/each optic: 2
    Light colour/type: White

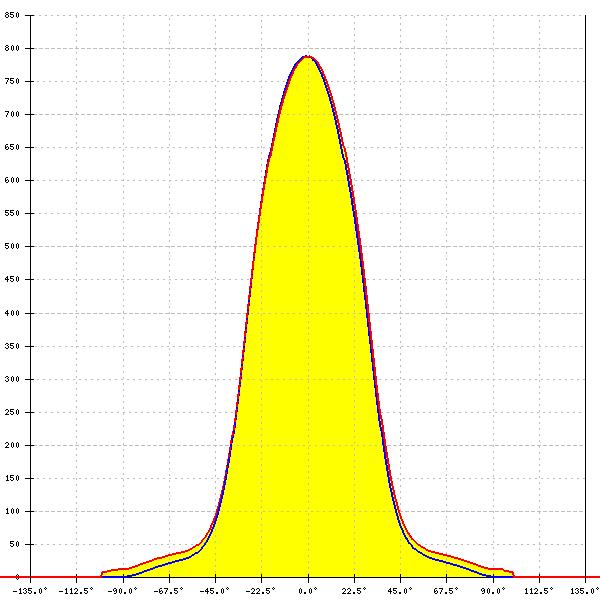

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 59°
    FWTM: 92°
    Peak intensity: 0.781 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 62°
    FWTM: 92°
    Peak intensity: 0.801 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 2
    Light colour/type: White

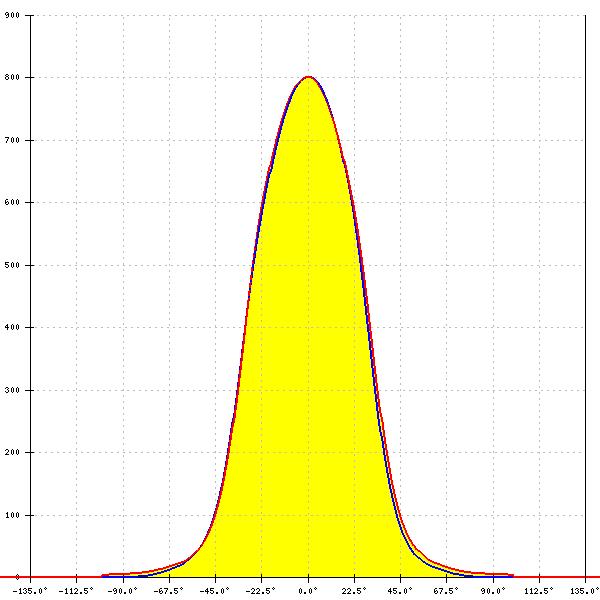

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 60°
    FWTM: 93°
    Peak intensity: 0.801 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 2
    Light colour/type: White

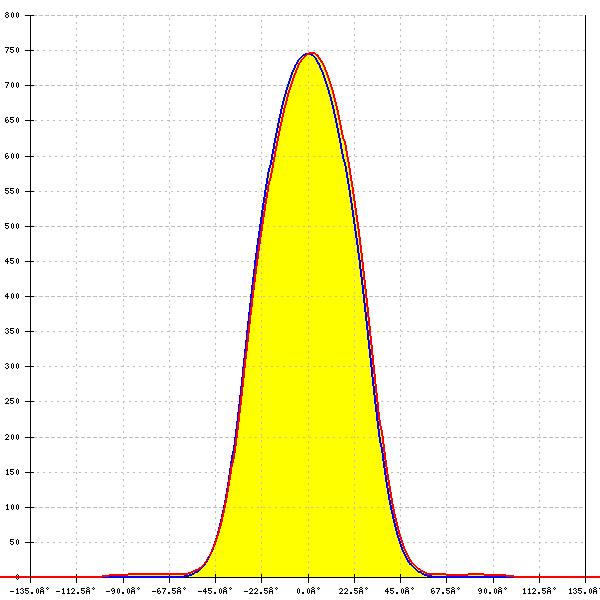

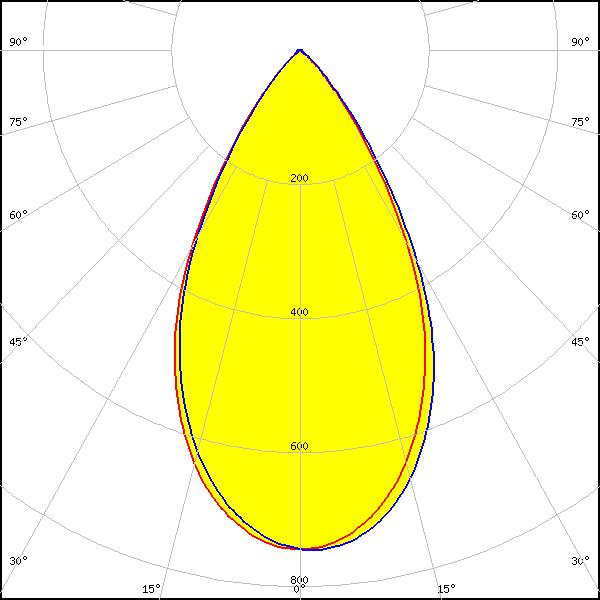

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 58°
    FWTM: 85°
    Peak intensity: 0.747 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 2
    Light colour/type: White

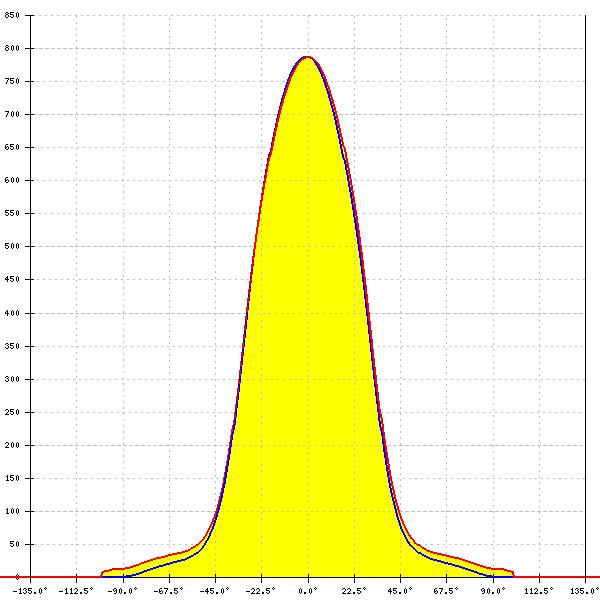

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 60°
    FWTM: 92°
    Peak intensity: 0.787 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 57°
    FWTM: 85°
    Peak intensity: 0.748 cd/lm
    Efficiency: 68 %
    LEDs/each optic: 2
    Light colour/type: White

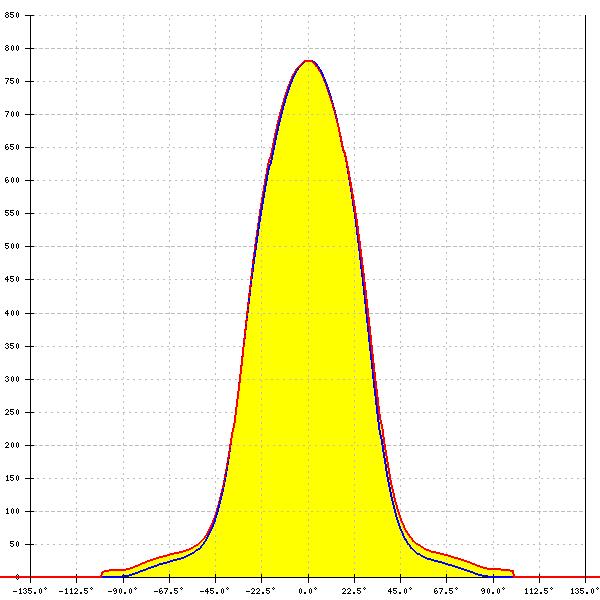

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 59°
    FWTM: 92°
    Peak intensity: 0.788 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 2
    Light colour/type: White

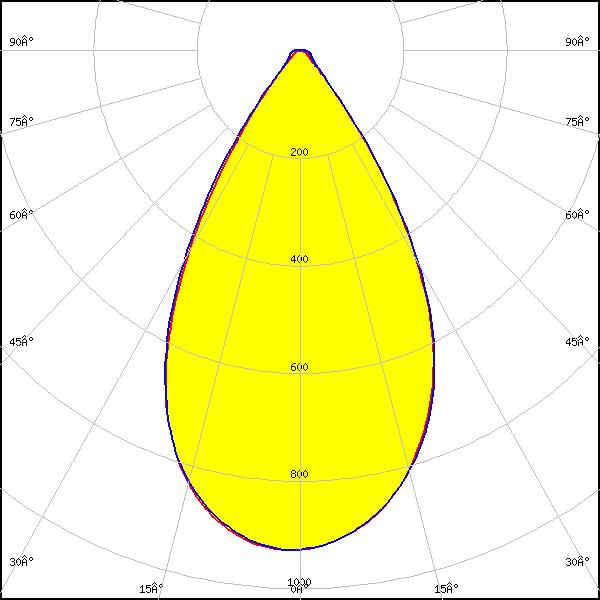

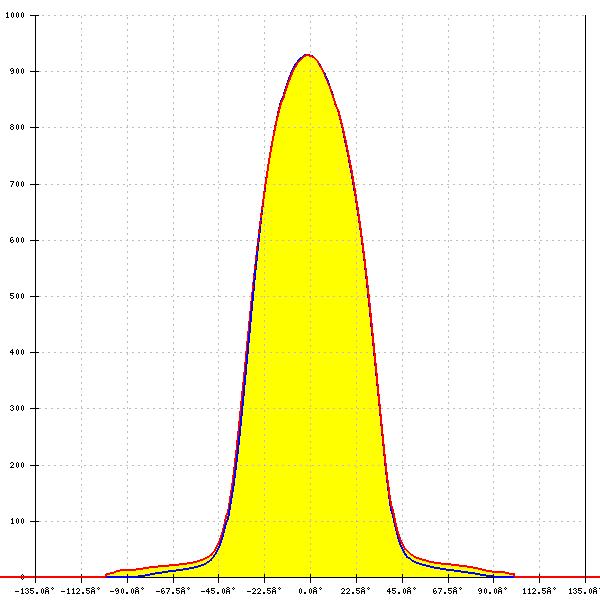

    LED: LinLED 280x20mm 2x550lm 827-865 2x2C 42V DAISY-MINI G1
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 59°
    FWTM: 83°
    Peak intensity: 0.929 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

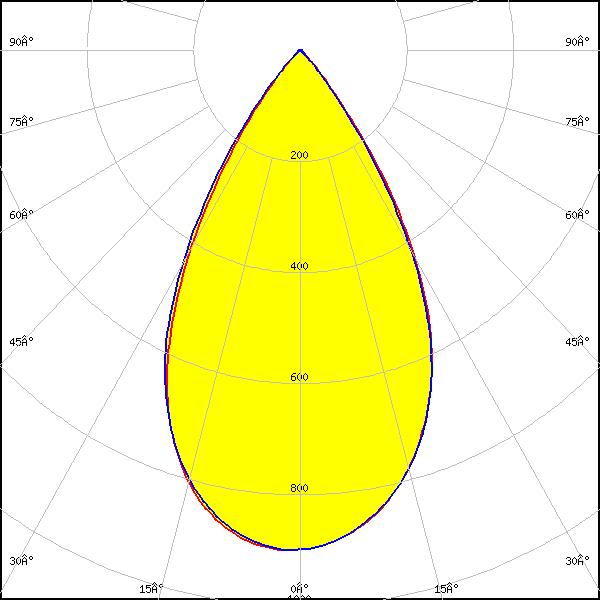

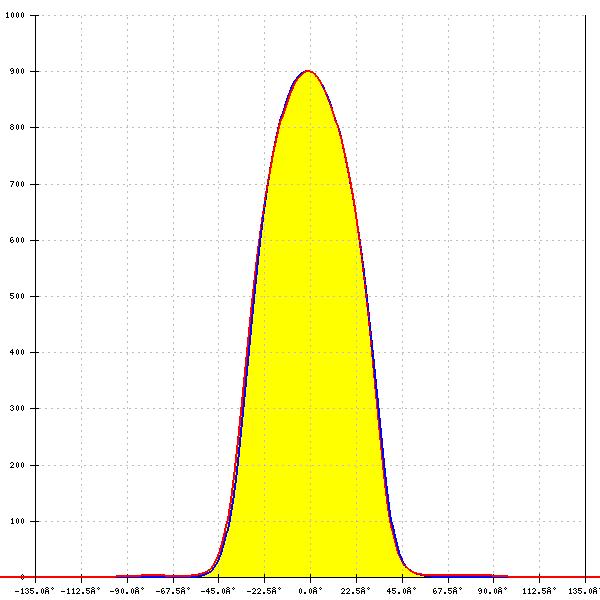

    LED: LinLED 280x20mm 2x550lm 827-865 2x2C 42V DAISY-MINI G1
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 58°
    FWTM: 81°
    Peak intensity: 0.901 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

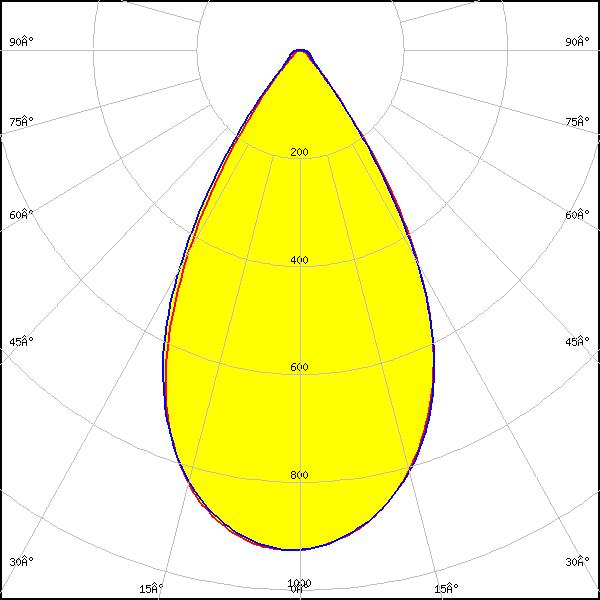

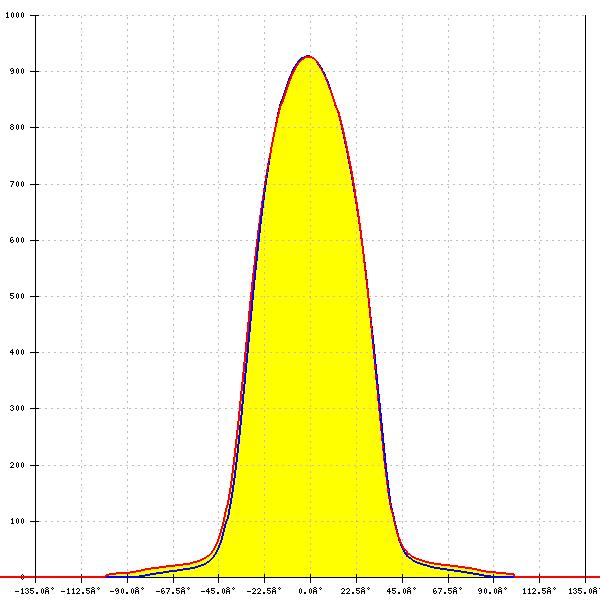

    LED: LinLED 280x20mm 2x550lm 827-865 2x2C 42V DAISY-MINI G1
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 59°
    FWTM: 84°
    Peak intensity: 0.927 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

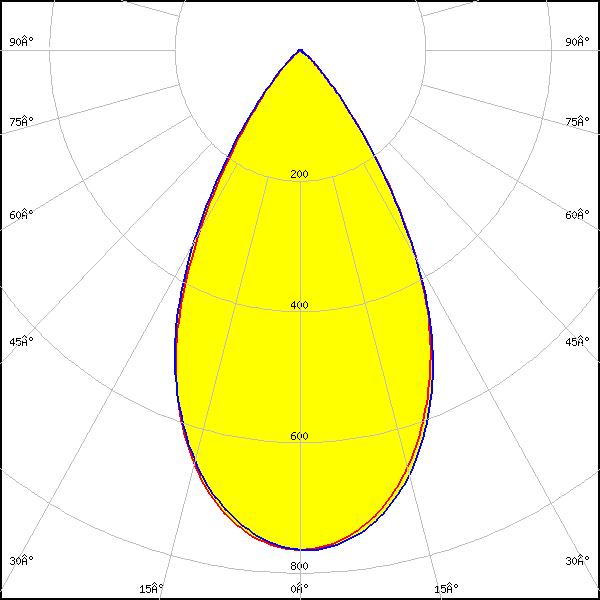

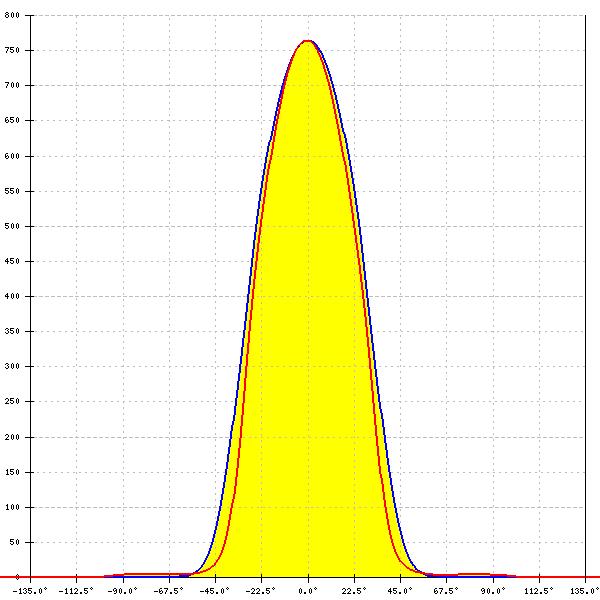

    LED: LinLED 280x20mm 2x550lm 827-865 2x2C 42V DAISY-MINI G1
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 58°
    FWTM: 85°
    Peak intensity: 0.765 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

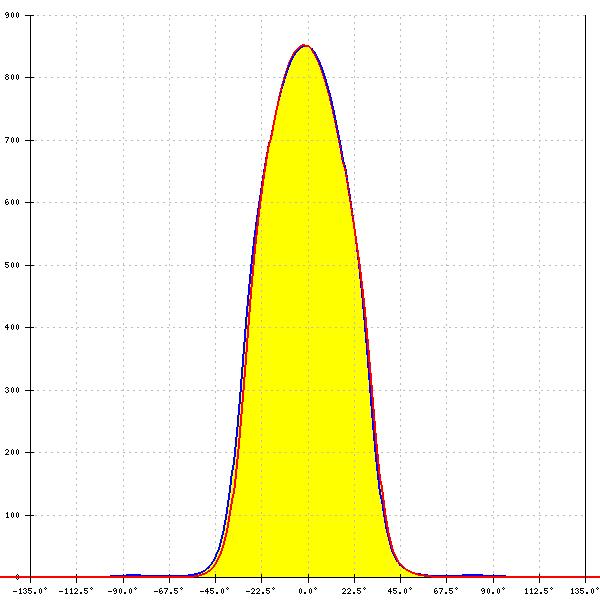

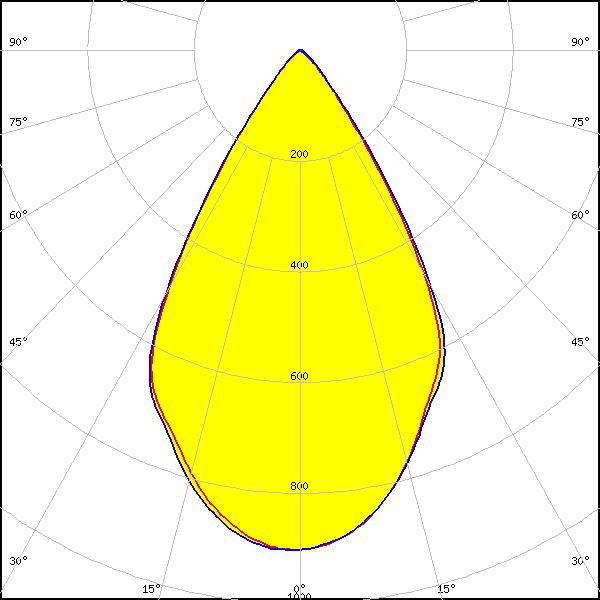

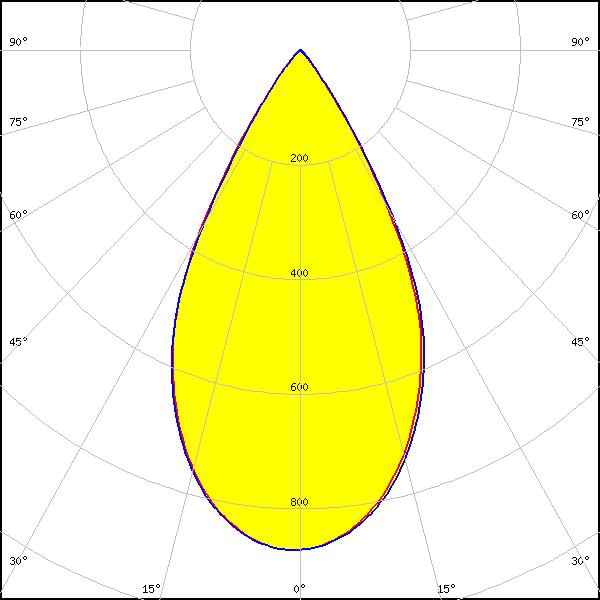

    LED: NF2W757G-MT (Tunable White)
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 57°
    FWTM: 78°
    Peak intensity: 0.851 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

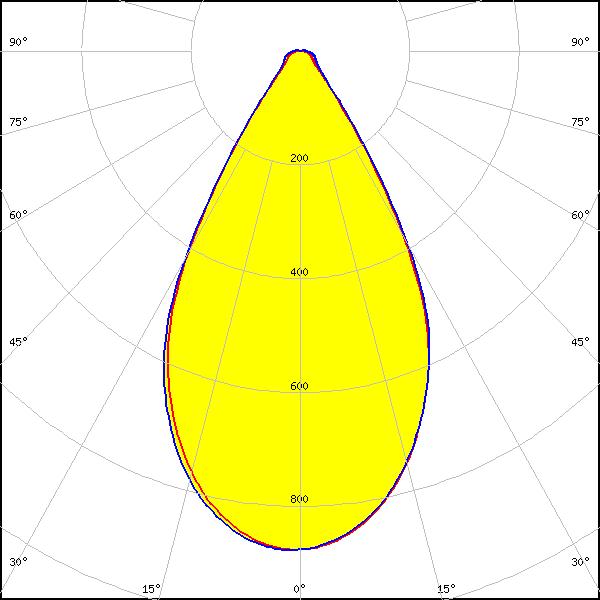

    LED: NF2W757G-MT (Tunable White)
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 58°
    FWTM: 81°
    Peak intensity: 0.878 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

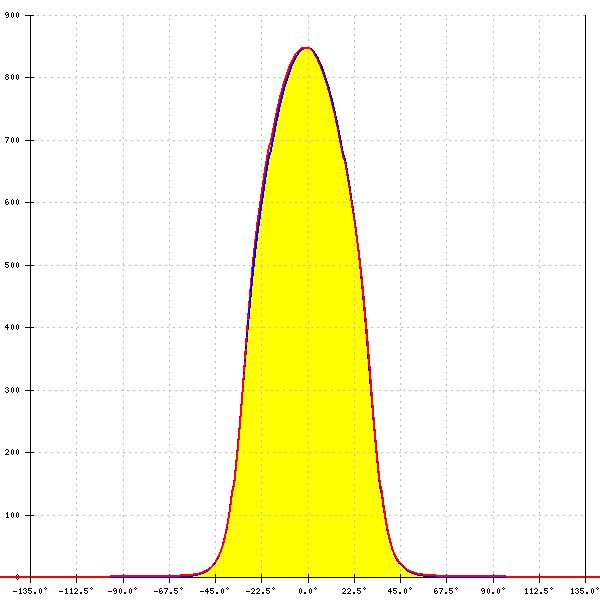

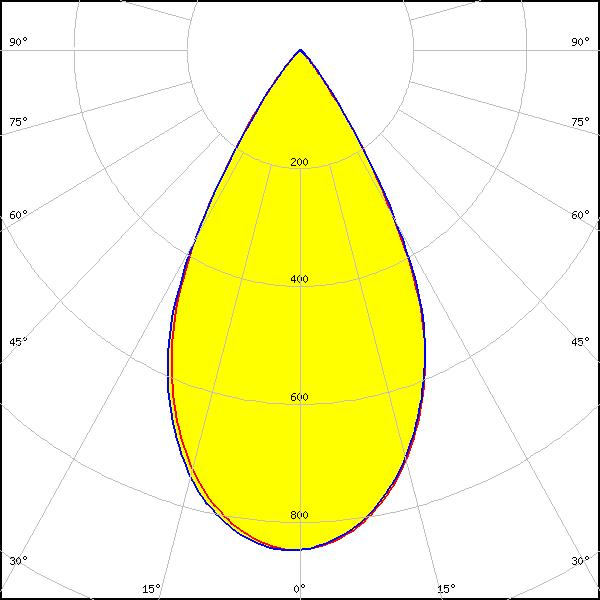

    LED: NF2W757G-MT (Tunable White)
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 57°
    FWTM: 78°
    Peak intensity: 0.848 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NF2W757G-MT (Tunable White)
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 58°
    FWTM: 82°
    Peak intensity: 0.881 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NF2W757G-MT (Tunable White)
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 62°
    FWTM: 83°
    Peak intensity: 0.903 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NF2W757G-MT (Tunable White)
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 59°
    FWTM: 84°
    Peak intensity: 0.911 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NFSWE11A
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 54°
    FWTM: 74°
    Peak intensity: 1.065 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: NFSx757G
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 0.871 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFSx757G
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 57°
    FWTM: 81°
    Peak intensity: 0.904 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFSx757G
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 0.873 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFSx757G
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 57°
    FWTM: 80°
    Peak intensity: 0.907 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris E 2835
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 55°
    FWTM: 76°
    Peak intensity: 0.947 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

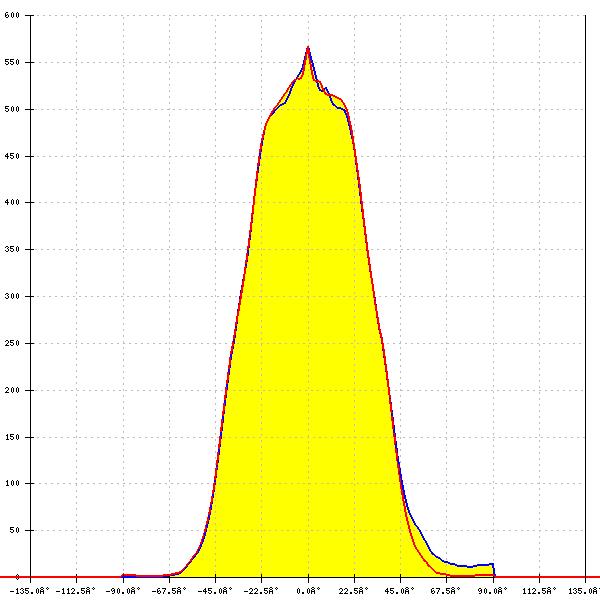

    LED: LM28xB Series
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 68°
    FWTM: 101°
    Peak intensity: 0.570 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 2
    Light colour/type: White

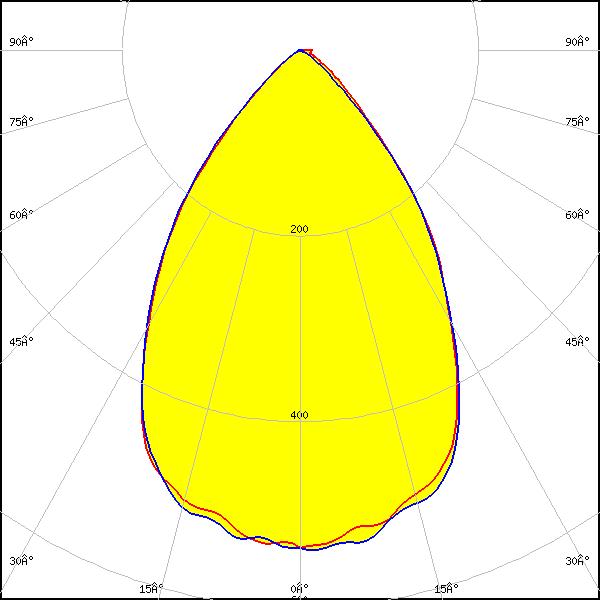

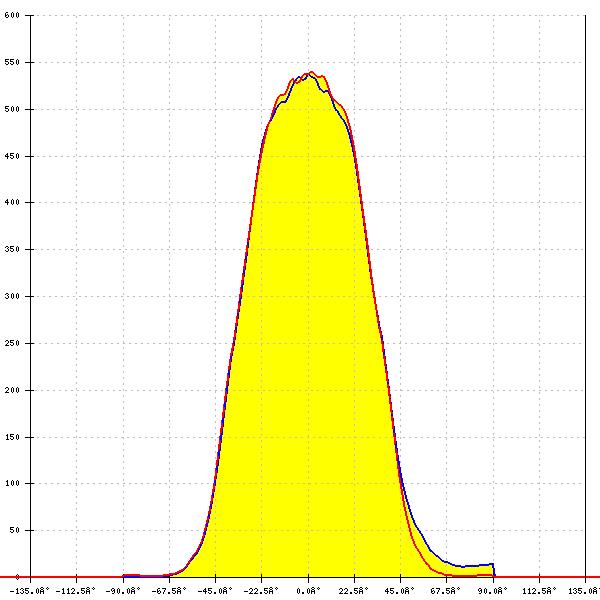

    LED: LM28xB Series
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 70°
    FWTM: 102°
    Peak intensity: 0.552 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LM28xB Series
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 0.870 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LED-St-L28W2-840-C010-06 (Daisy-Mini)
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 58°
    FWTM: 86°
    Peak intensity: 0.725 cd/lm
    Efficiency: 68 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LED-St-L28W2-927-C010-965-C010-07 (Daisy-Mini)
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 57°
    FWTM: 85°
    Peak intensity: 0.746 cd/lm
    Efficiency: 68 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

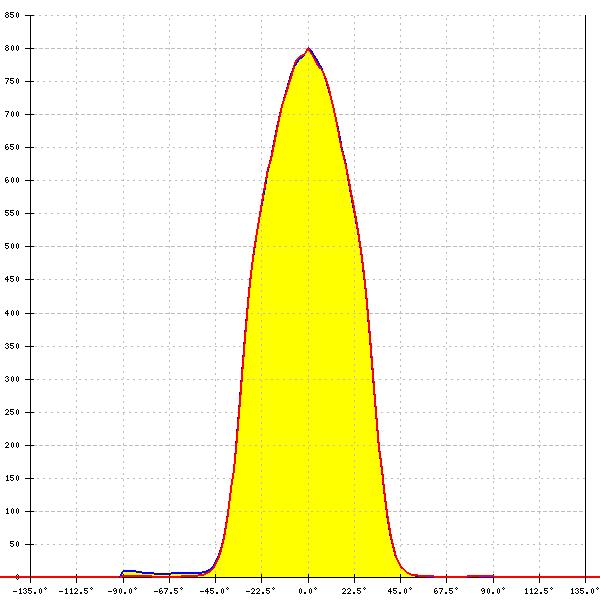

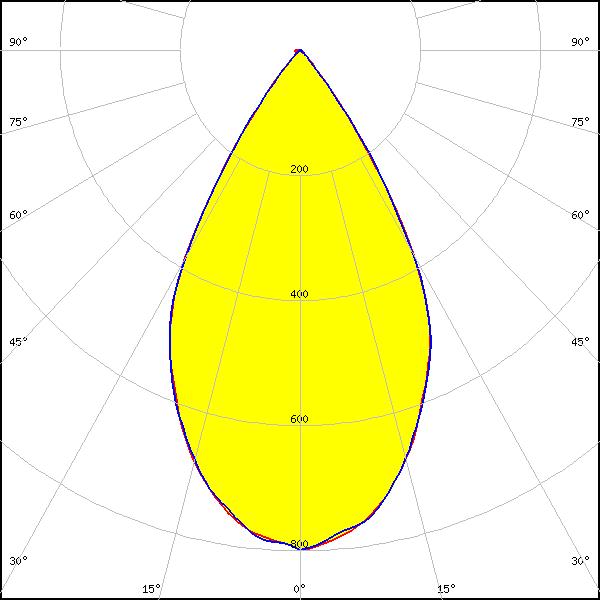

    LED: SEOUL 3030
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 58°
    FWTM: 78°
    Peak intensity: 0.805 cd/lm
    Efficiency: 68 %
    LEDs/each optic: 1
    Light colour/type: White

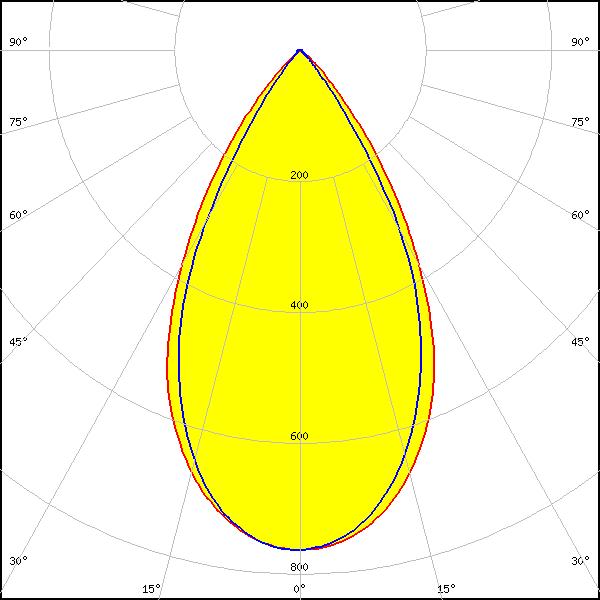

    LED: PassivePAQ-L-1F20-SA2-1K-827-1.1K-865-3-TW
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 60° + 55°
    FWTM: 89° + 77°
    Peak intensity: 0.764 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: PassivePAQ-L-1F20-SA2-1K-827-1.1K-865-3-TW
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 57° + 61°
    FWTM: 83° + 94°
    Peak intensity: 0.798 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: PassivePAQ-L-1F20-SA2-1K-827-1.1K-865-3-TW
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 59° + 55°
    FWTM: 88° + 77°
    Peak intensity: 0.763 cd/lm
    Efficiency: 68 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: PassivePAQ-L-1F20-SA2-1K-827-1.1K-865-3-TW
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 61° + 57°
    FWTM: 94° + 84°
    Peak intensity: 0.799 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

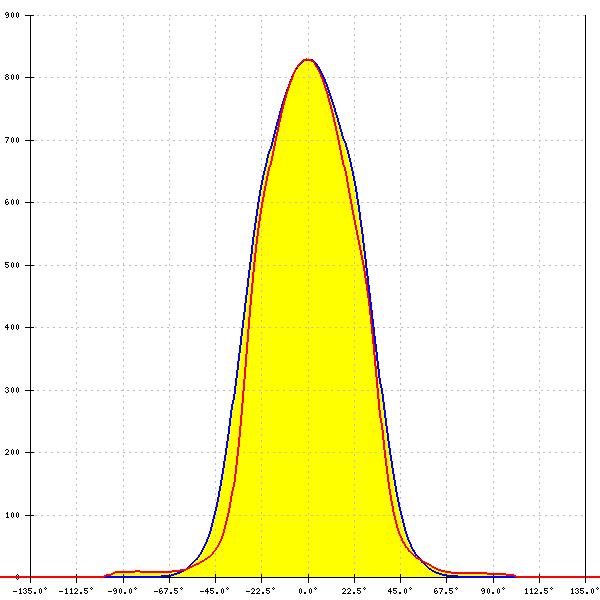

    LED: PassivePAQ-L-1F20-SA2-1K-827-1.1K-865-3-TW
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 63° + 60°
    FWTM: 94° + 84°
    Peak intensity: 0.829 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 2
    Light colour/type: Tunable White
    LED: PassivePAQ-L-1F20-SA2-1K-827-1.1K-865-3-TW
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 62° + 57°
    FWTM: 95° + 85°
    Peak intensity: 0.824 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 2
    Light colour/type: Tunable White
    LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 61° + 62°
    FWTM: 85° + 86°
    Peak intensity: 0.680 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 63° + 64°
    FWTM: 91° + 95°
    Peak intensity: 0.717 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 2
    Light colour/type: White

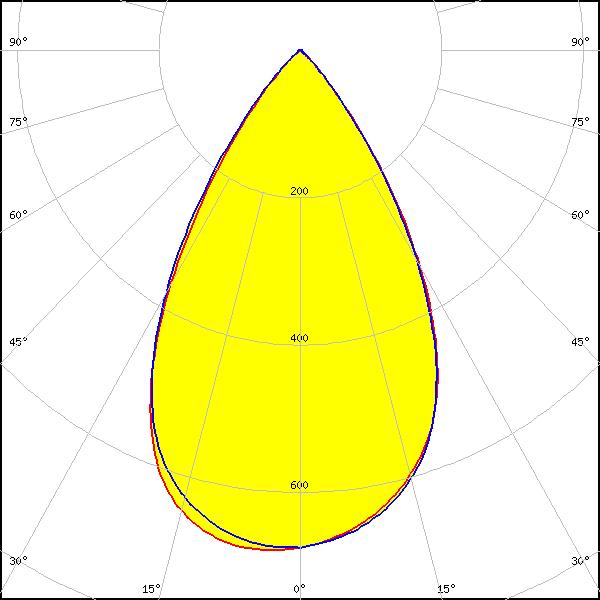

    LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 61° + 62°
    FWTM: 85° + 86°
    Peak intensity: 0.681 cd/lm
    Efficiency: 68 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 63° + 64°
    FWTM: 91° + 94°
    Peak intensity: 0.718 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: White

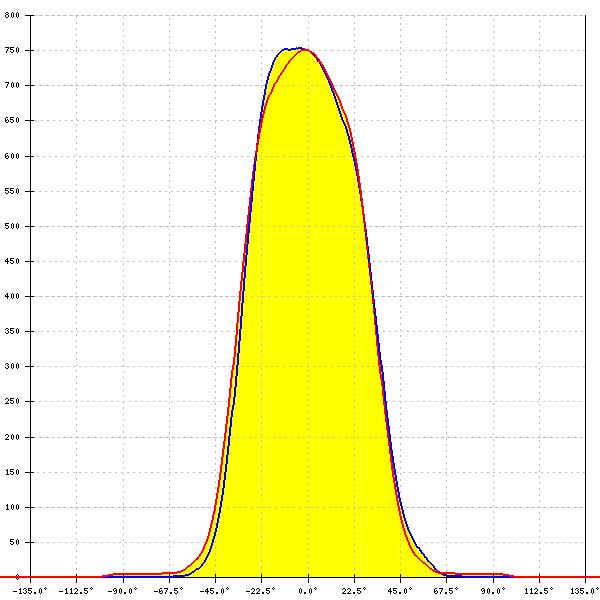

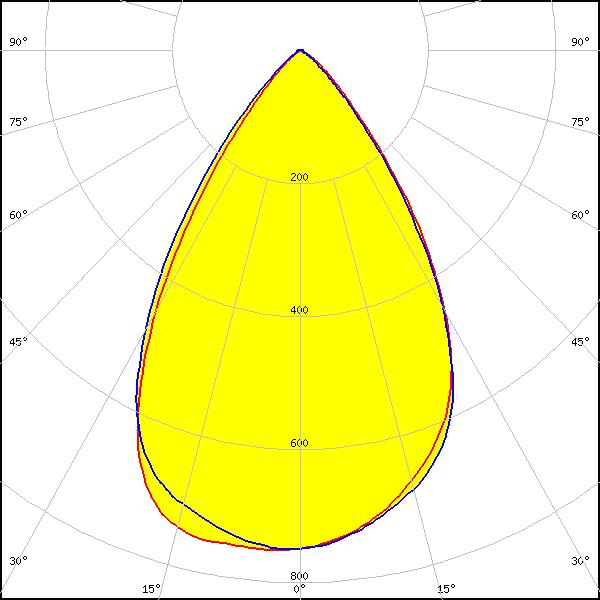

    LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 65° + 67°
    FWTM: 93° + 94°
    Peak intensity: 0.753 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: White

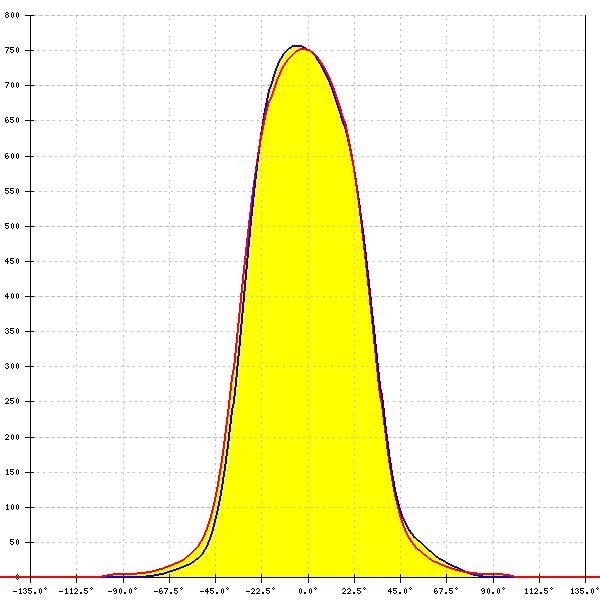

    LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 63° + 64°
    FWTM: 94° + 95°
    Peak intensity: 0.756 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 65°
    FWTM: 81°
    Peak intensity: 0.641 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour/type: White

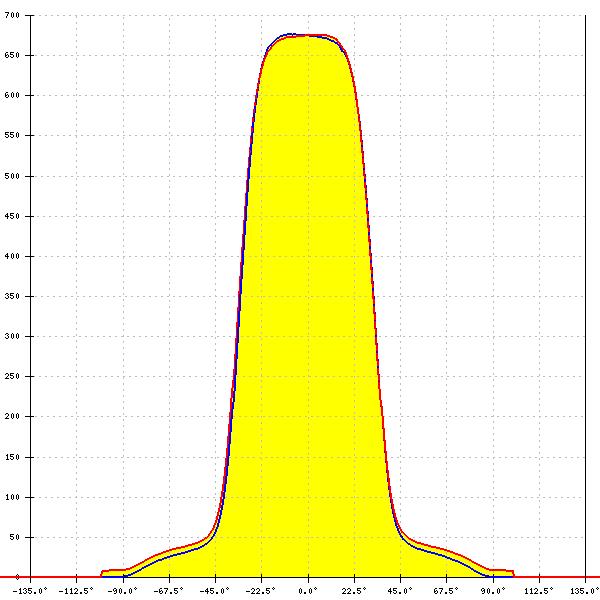

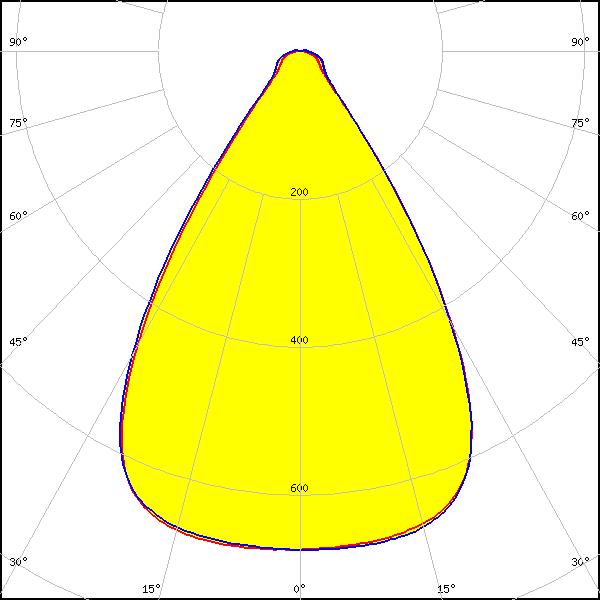

    LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 66°
    FWTM: 87°
    Peak intensity: 0.677 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 64°
    FWTM: 81°
    Peak intensity: 0.642 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour/type: White

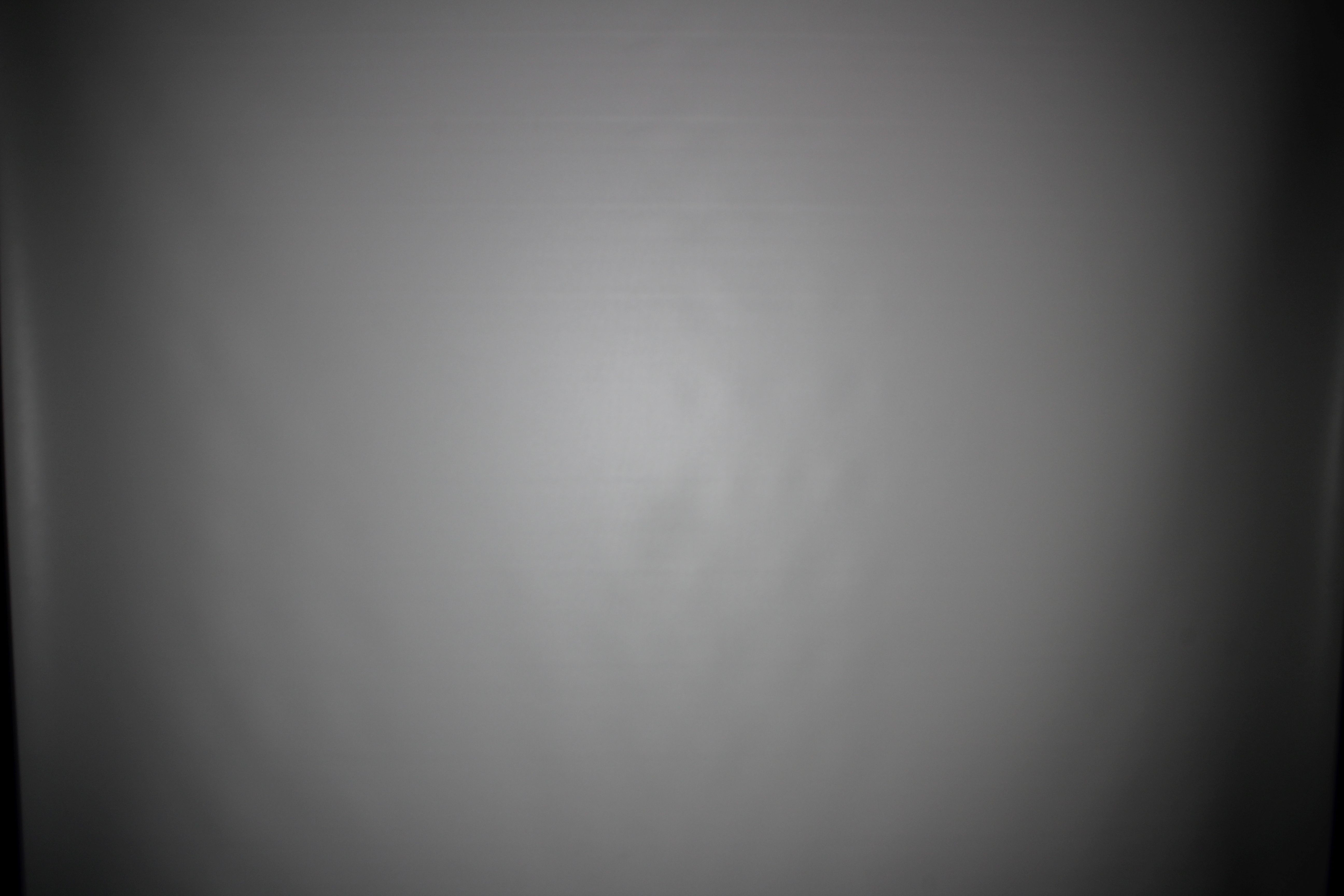

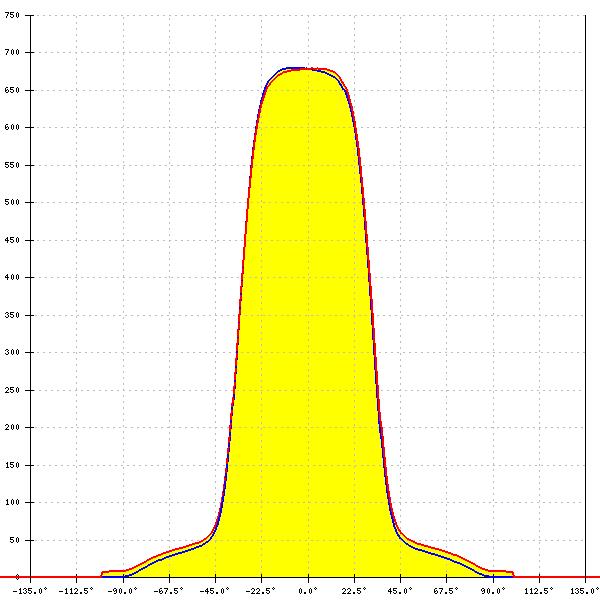

    LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 65°
    FWTM: 87°
    Peak intensity: 0.680 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

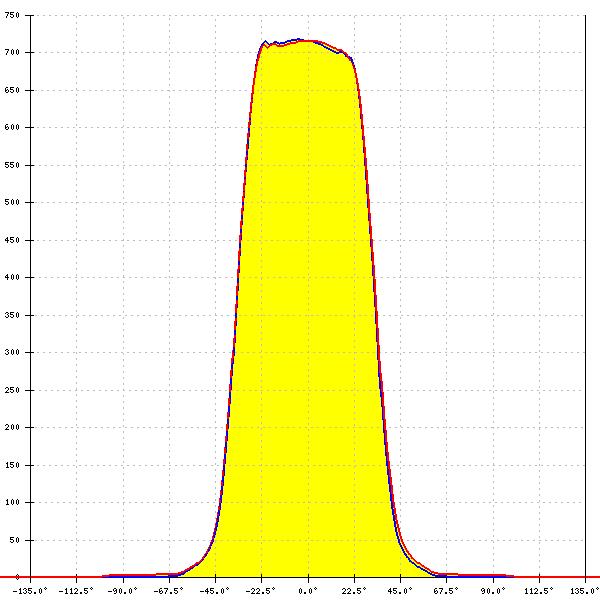

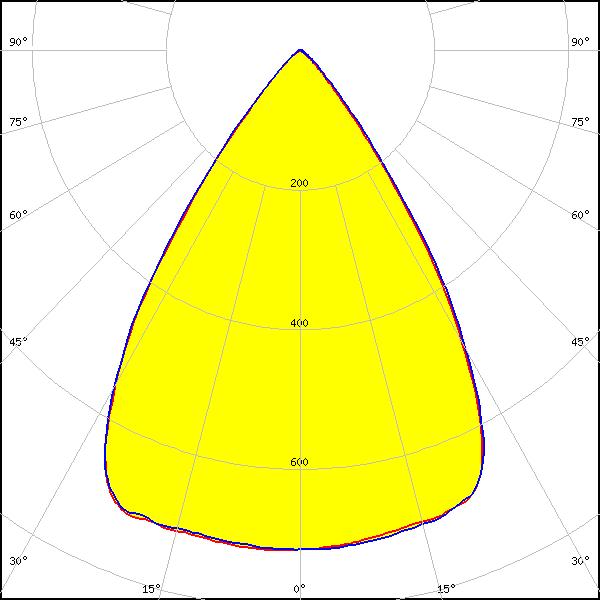

    LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 69°
    FWTM: 87°
    Peak intensity: 0.718 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 66°
    FWTM: 90°
    Peak intensity: 0.722 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

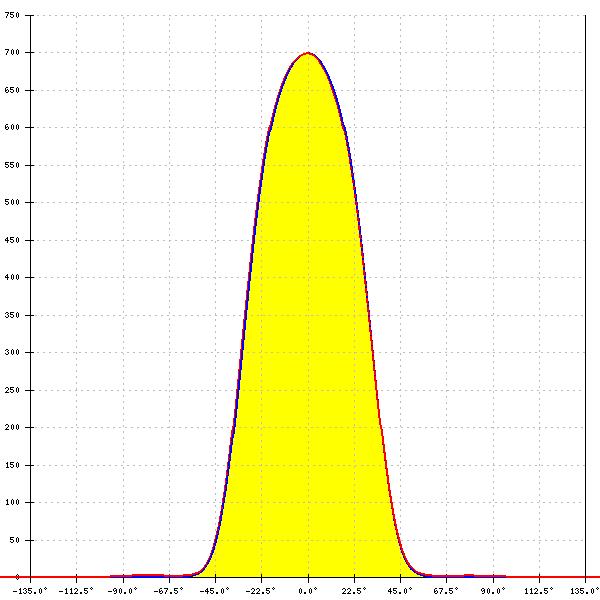

    LED: LLE 20x280mm 750lm 827-865 LV MD ADV1
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 60°
    FWTM: 86°
    Peak intensity: 0.699 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

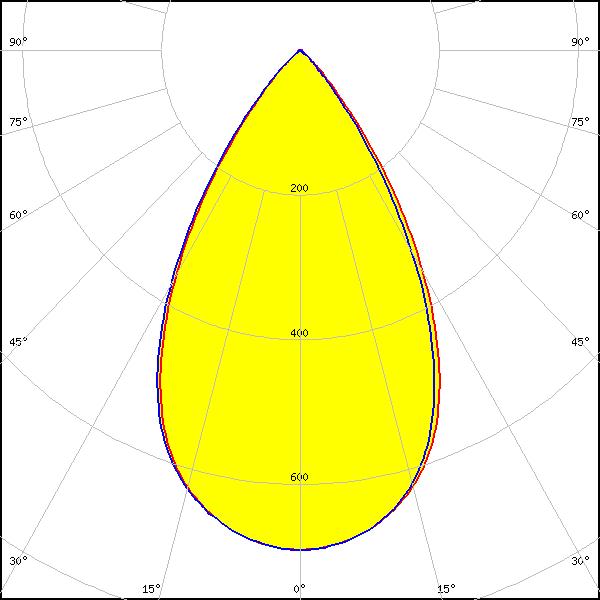

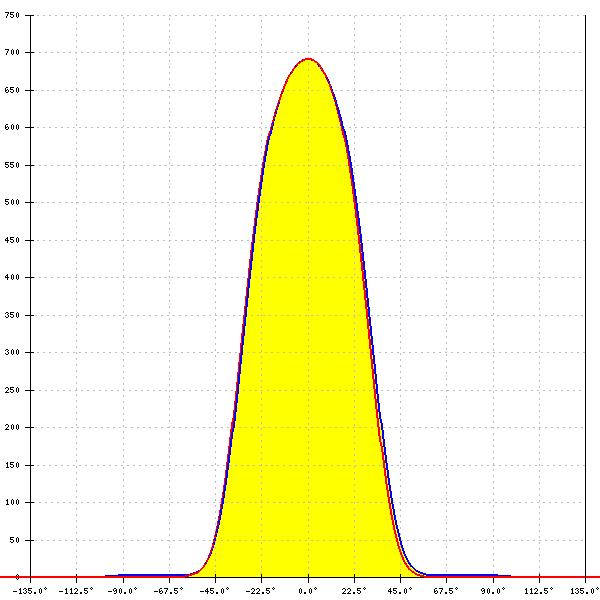

    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 61°
    FWTM: 86°
    Peak intensity: 0.692 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 2
    Light colour/type: White

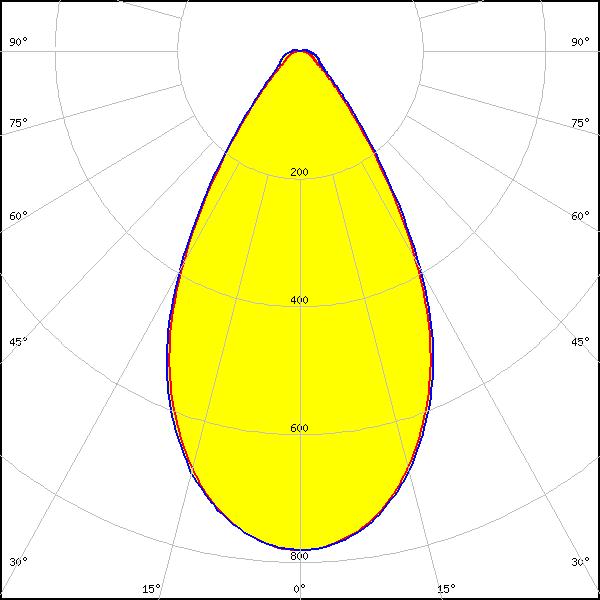

    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 60°
    FWTM: 93°
    Peak intensity: 0.782 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: White

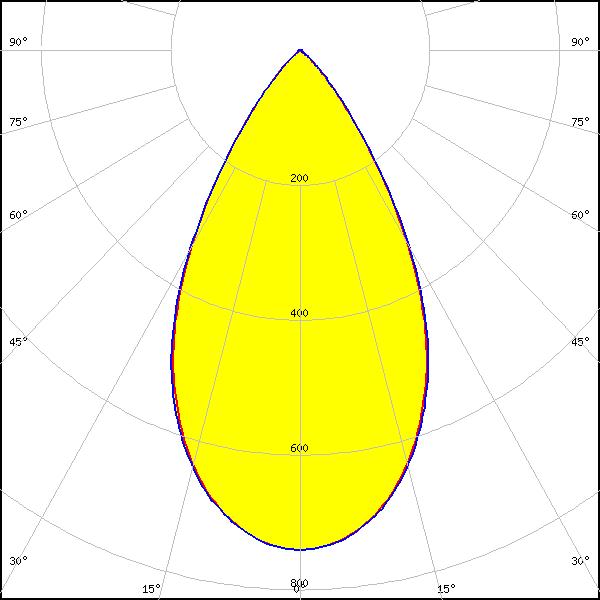

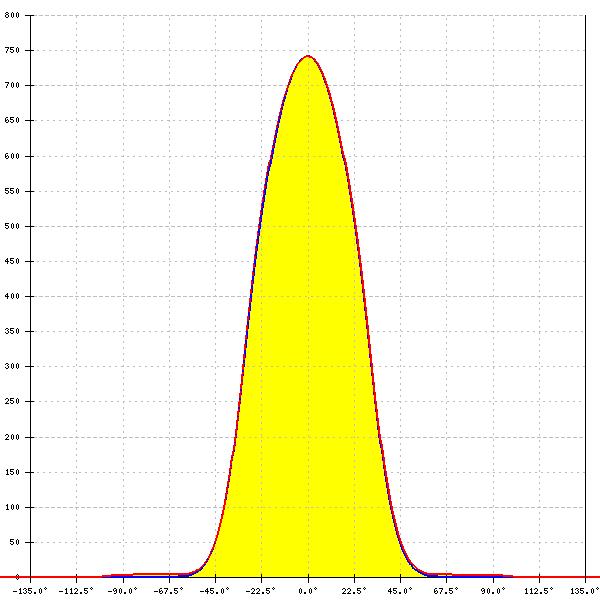

    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 58°
    FWTM: 85°
    Peak intensity: 0.742 cd/lm
    Efficiency: 68 %
    LEDs/each optic: 2
    Light colour/type: White

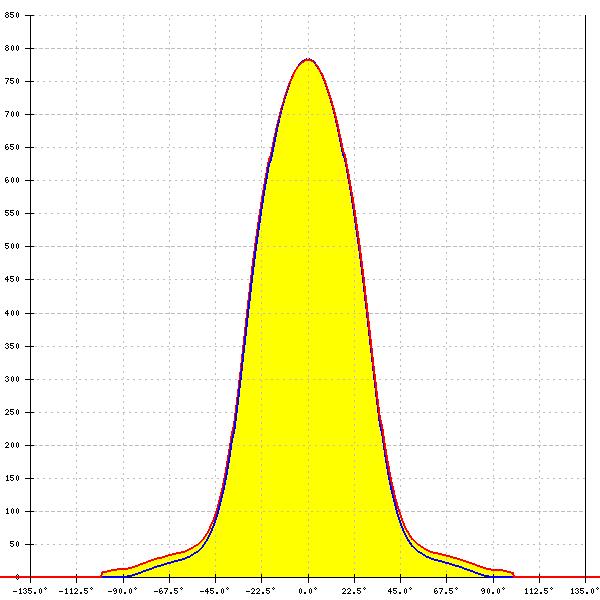

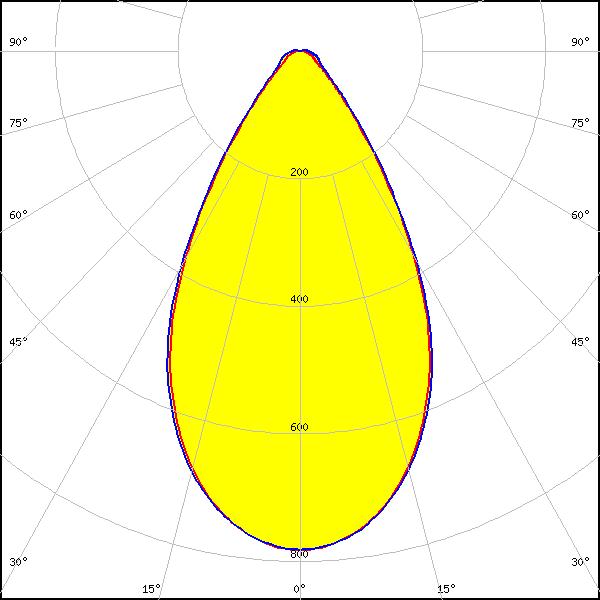

    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 59°
    FWTM: 92°
    Peak intensity: 0.784 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 2
    Light colour/type: White

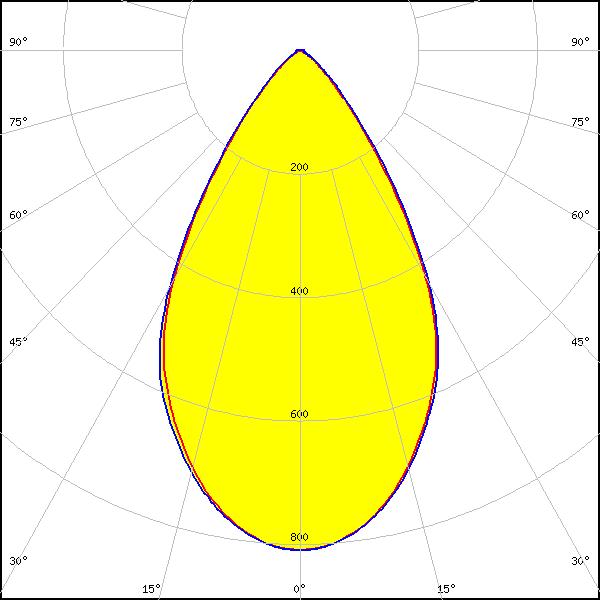

    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 62°
    FWTM: 92°
    Peak intensity: 0.810 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 2
    Light colour/type: White

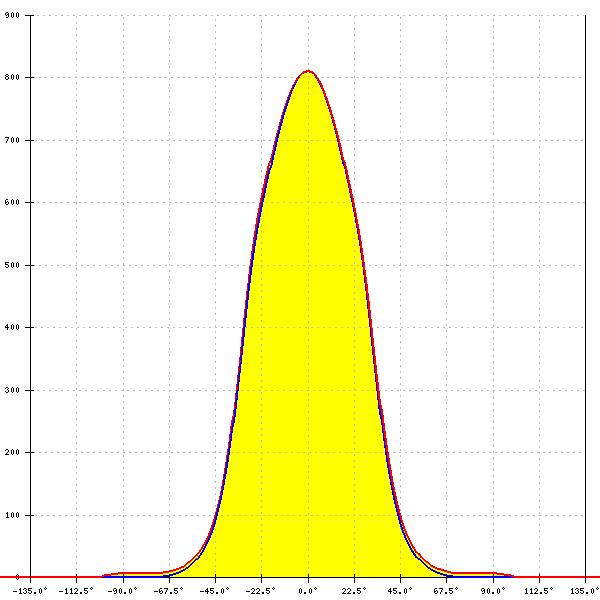

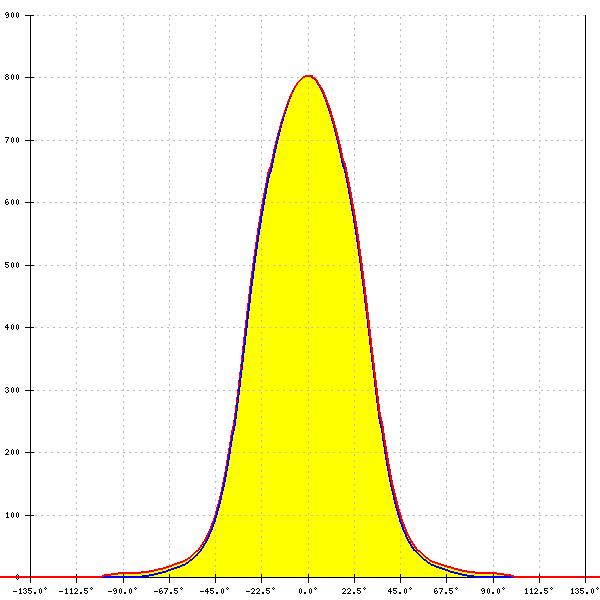

    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 60°
    FWTM: 93°
    Peak intensity: 0.804 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 2
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
