    DAISY-MINI-W

    Print

    ~55° wide beam

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      280 x  21 mm
    • Height:
      13.30 mm
    • Fastening:
      pin, screw, snaps
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    • DAISY-MINI-SHD
      Shade
      PC
    • DAISY-MINI-W
      Linear lens
      PMMA
    • DAISY-MINI-SHD-WHT
      Shade
      PC
    • DAISY-MINI-SHD-MATT
      Shade
      PC
    • DAISY-MINI-SHD-WHT-MATT
      Shade
      PC
    • DAISY-MINI-SHD-MET
      Shade
      PC
    • DAISY-MINI-SHD-MET-MATT
      Shade
      PC
    • Request material files from Tech Support

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Linear lens
      1 pcs
    • Shade
      1 pcs
    • Linear lens
    • F17030_DAISY-MINI-W
      clear
    • Quantity in box:
      252 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      5.80 kg
    • MPQ:
      12 pcs
    • MOQ:
      252 pcs
    • MOQ Size:
      398 x 298 x 265 mm
    • MOQ Weight:
      5.80 kg
    • Shade
    • F17028_DAISY-MINI-SHD
      black,gloss
    • F17033_DAISY-MINI-SHD-WHT
      white,gloss
    • F17034_DAISY-MINI-SHD-MATT
      black,matt
    • F17465_DAISY-MINI-SHD-WHT-MATT
      white,matt
    • F17666_DAISY-MINI-SHD-MET
      metal,gloss
    • F17667_DAISY-MINI-SHD-MET-MATT
      metal,matt
    • Quantity in box:
      252 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      5.90 kg
    • MPQ:
      4 pcs
    • MOQ:
      252 pcs
    • MOQ Size:
      398 x 298 x 265 mm
    • MOQ Weight:
      5.90 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      F17030_DAISY-MINI-W
      F17028_DAISY-MINI-SHD
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Luminaire, example

    Linear luminaire with DAISY-MINI

    Luminaire, example

    Track light luminaire with DAISY-MINI

    Reference product

    SG Armaturen Yggdrasil luminaire

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    News

    Meet DAISY-MINI – the smallest LEDiL Dark Light optic in the world

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Office Lighting Optics

    News

    Transforming workspaces with DAISY

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    News

    DAISY-MINI-3X1 – where modularity and flexibility meet

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    Application example

    Wall-washing with DAISY-7X1-WAS

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

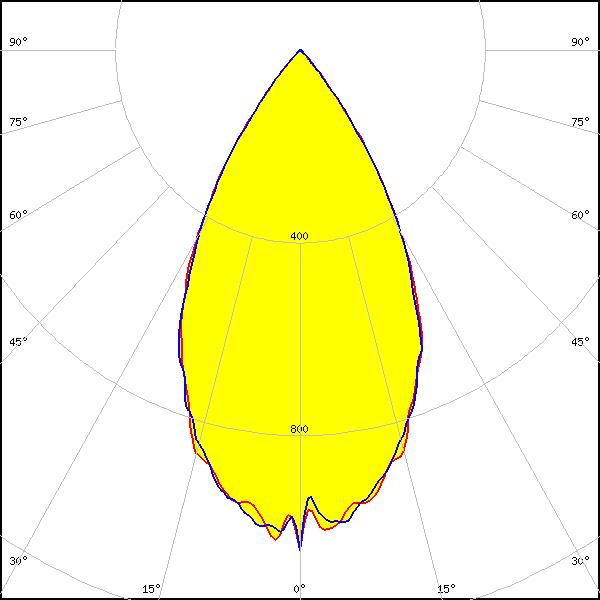

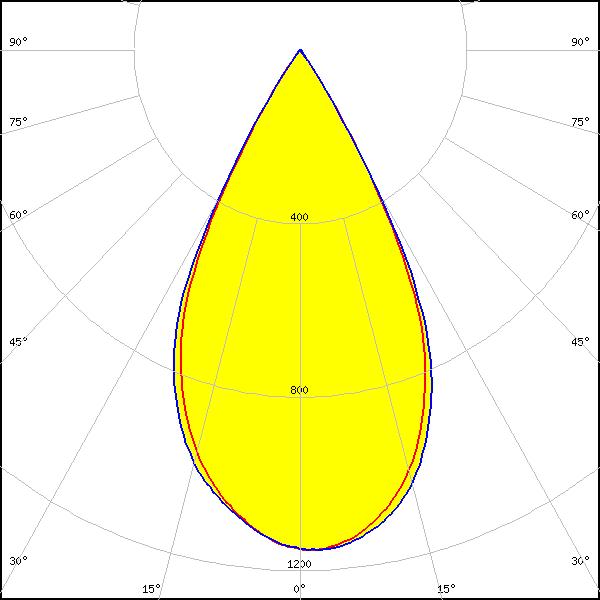

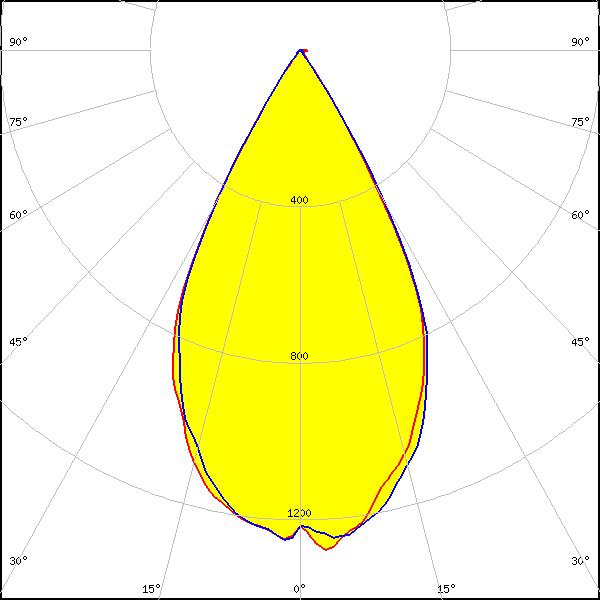

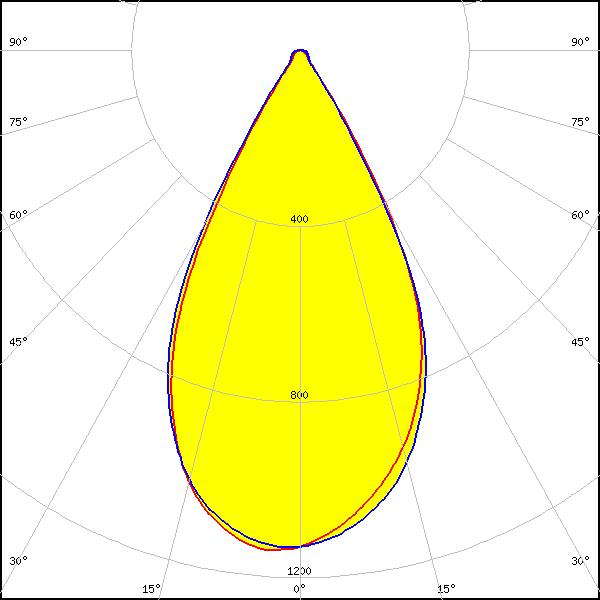

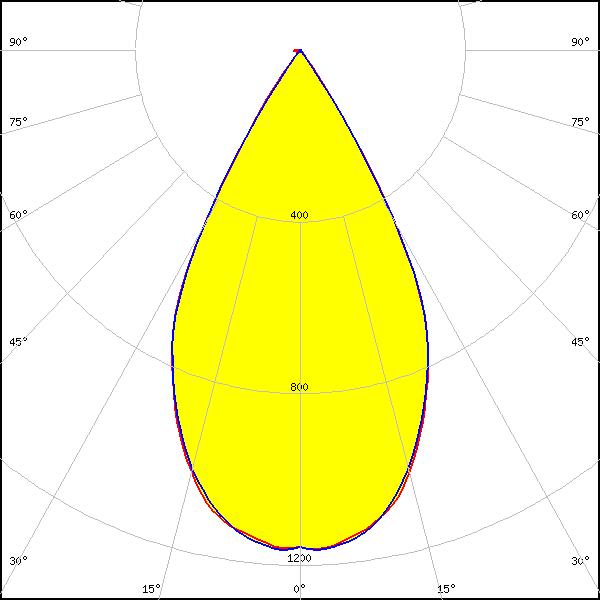

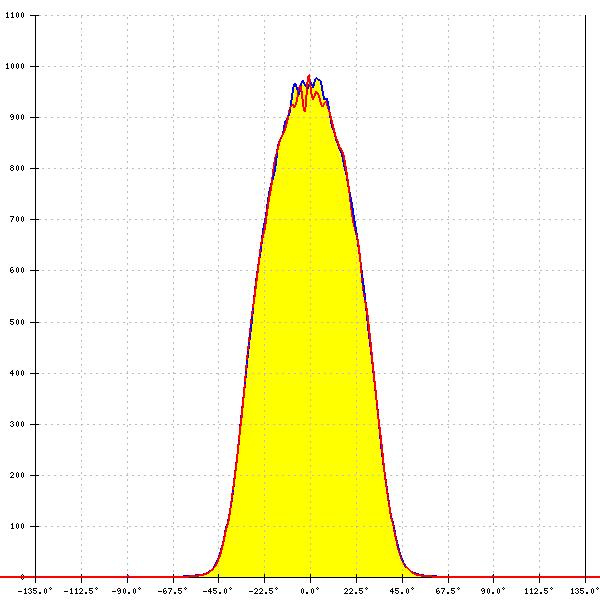

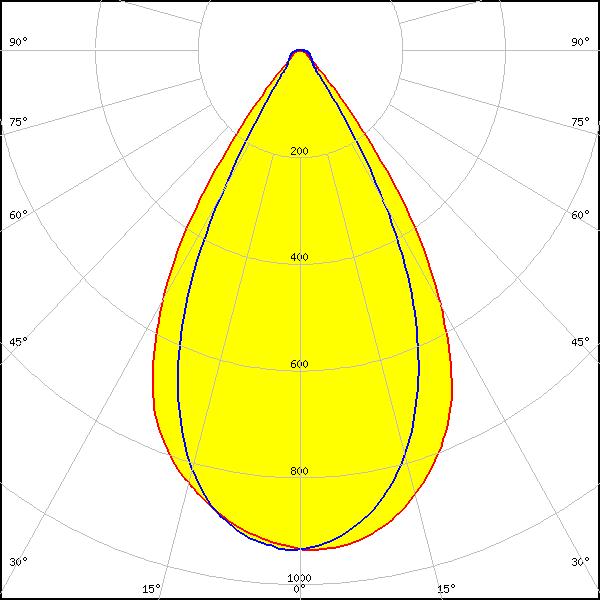

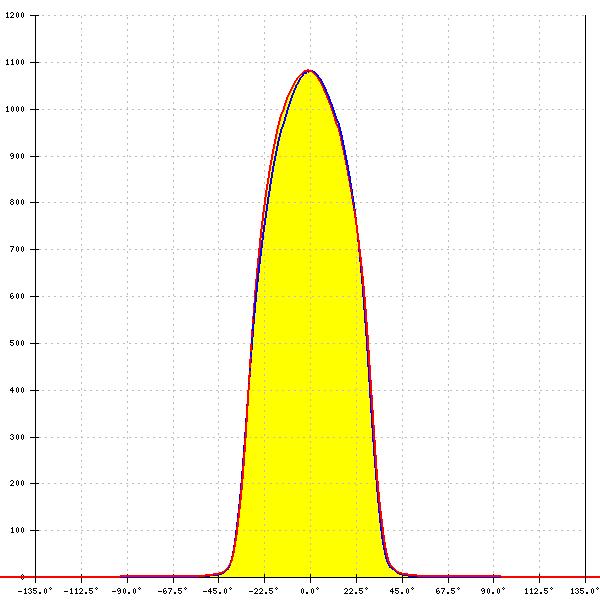

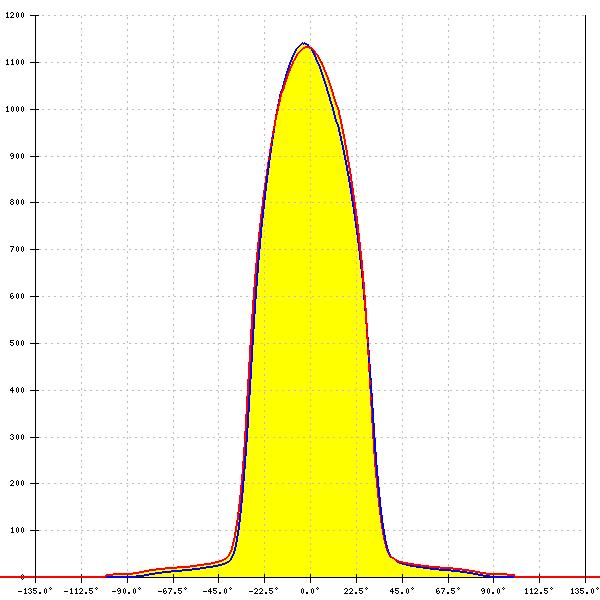

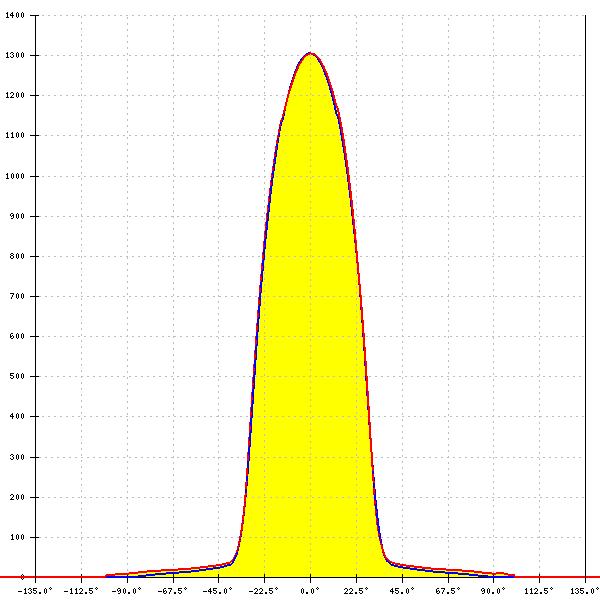

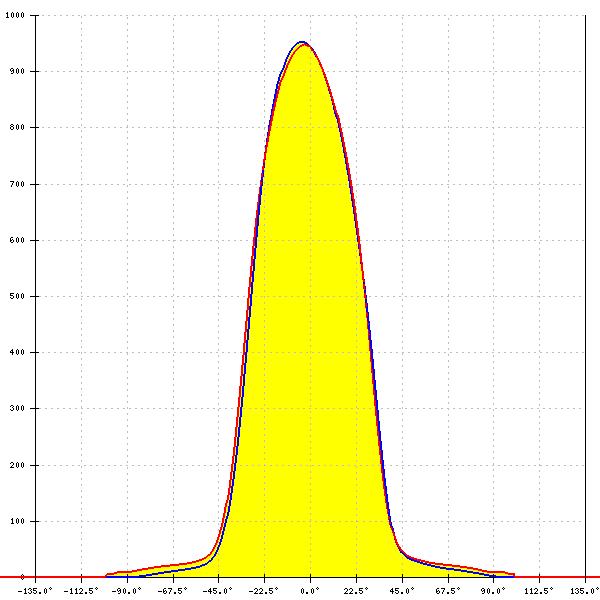

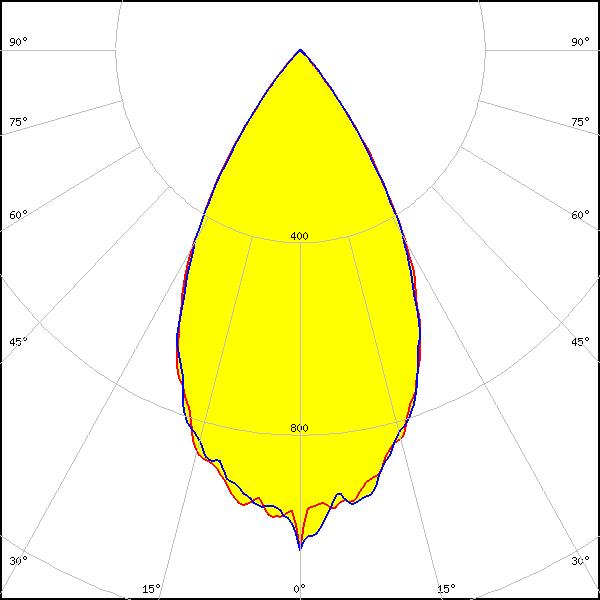

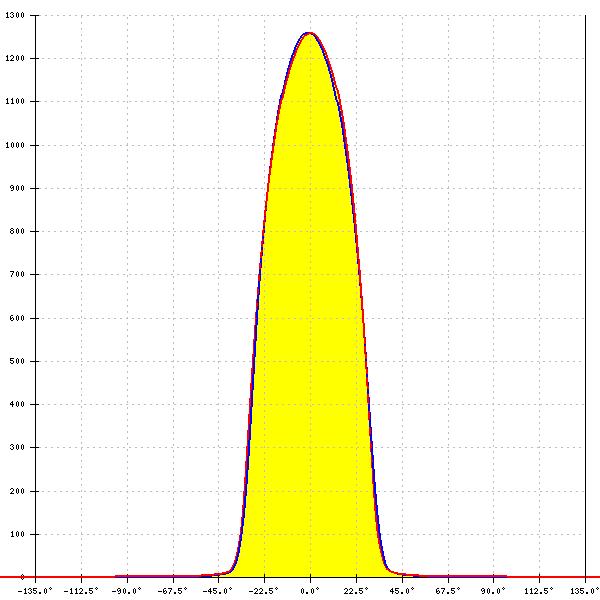

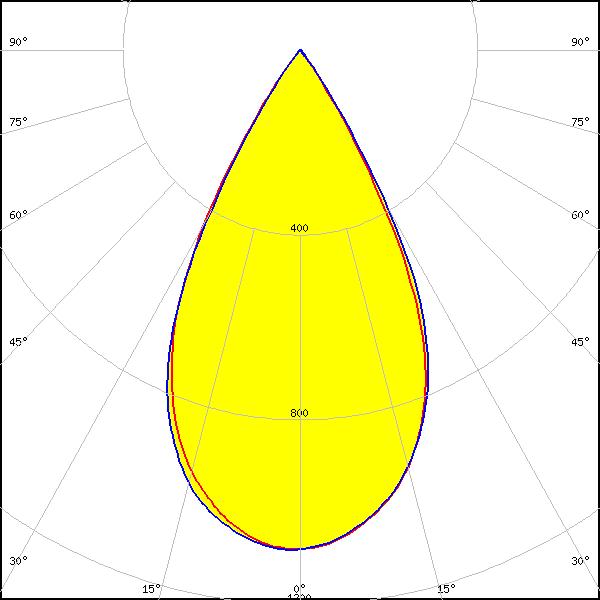

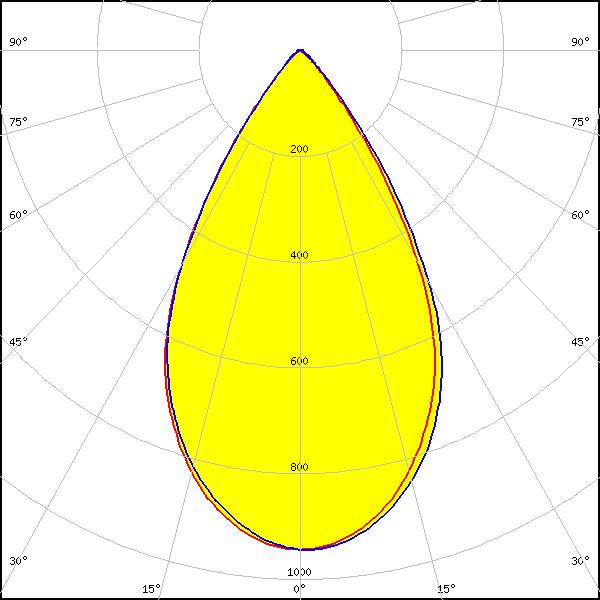

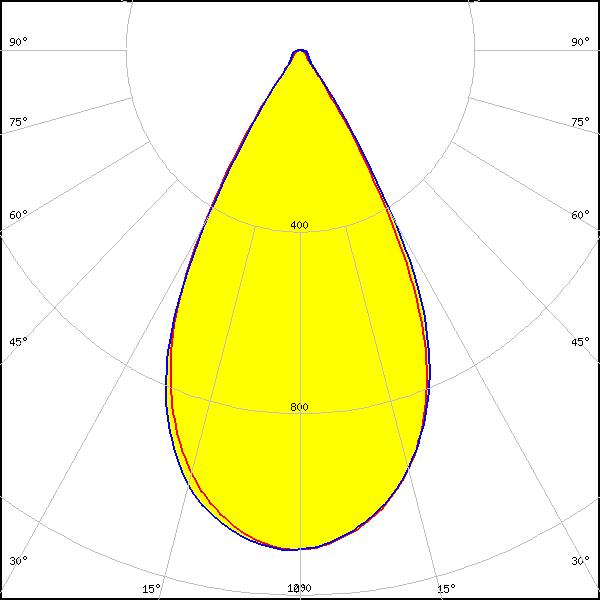

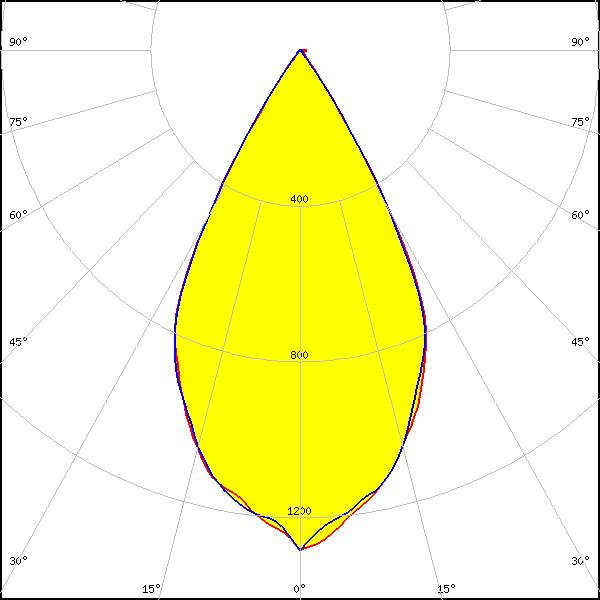

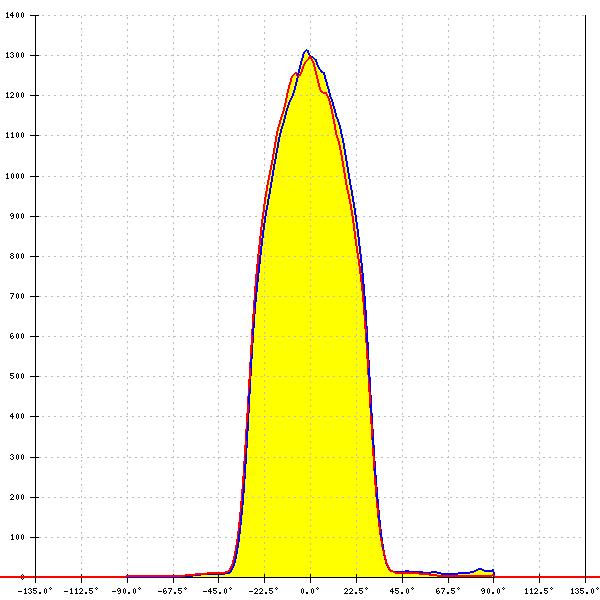

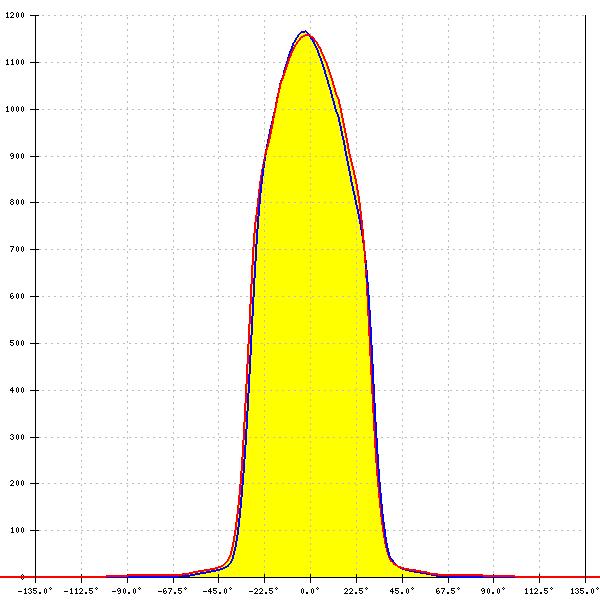

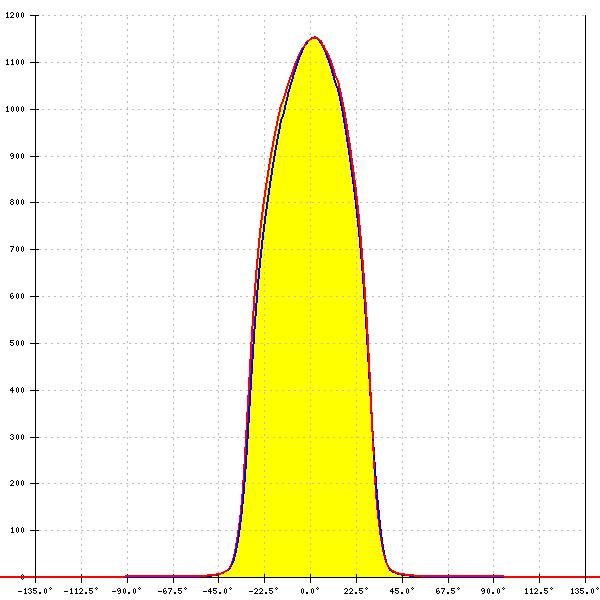

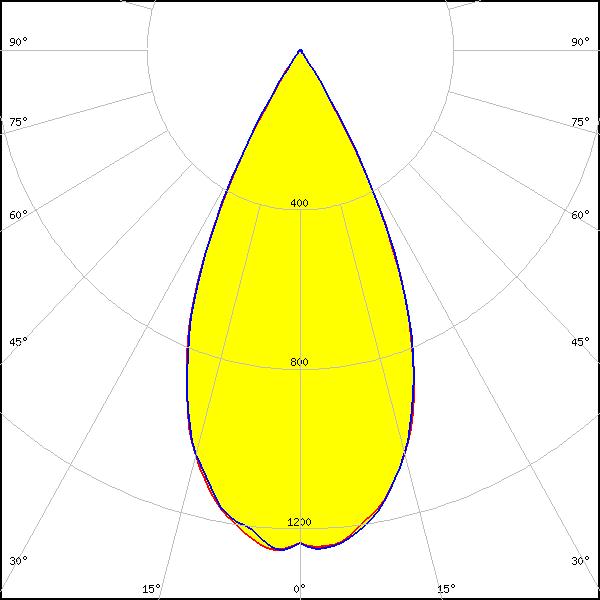

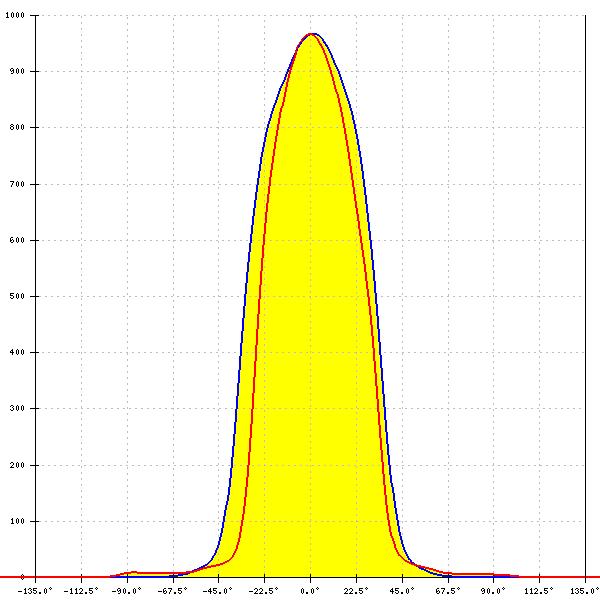

    Optical results

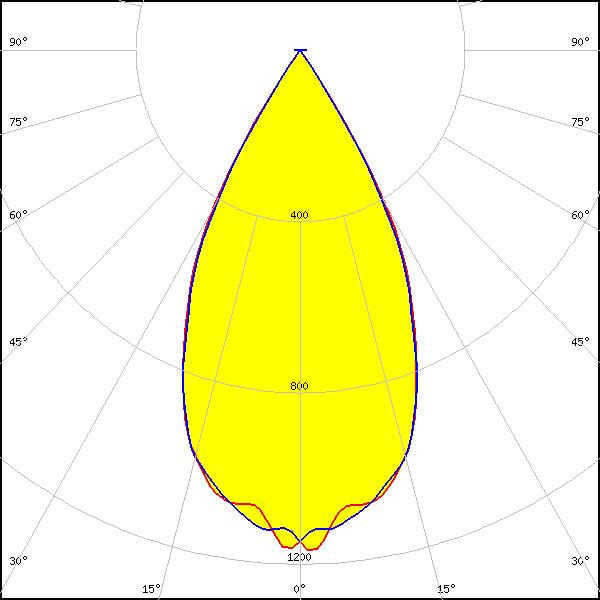

    LED: XQ-E HI
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 53°
    FWTM: 68°
    Peak intensity: 1.168 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

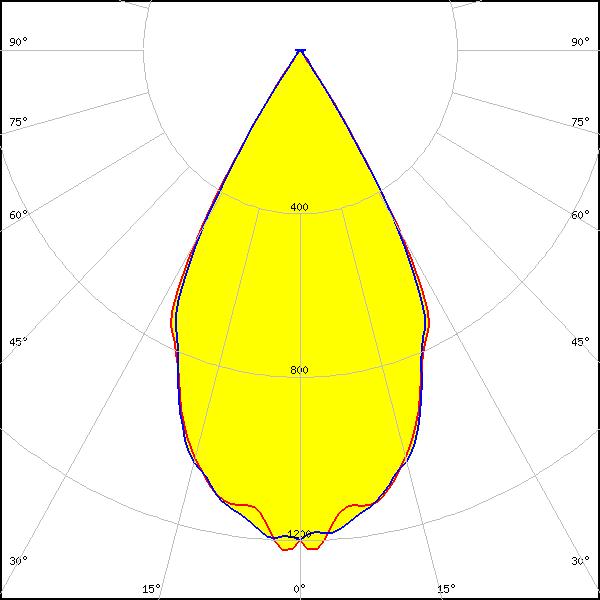

    LED: XQ-E HI
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 57°
    FWTM: 69°
    Peak intensity: 1.225 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

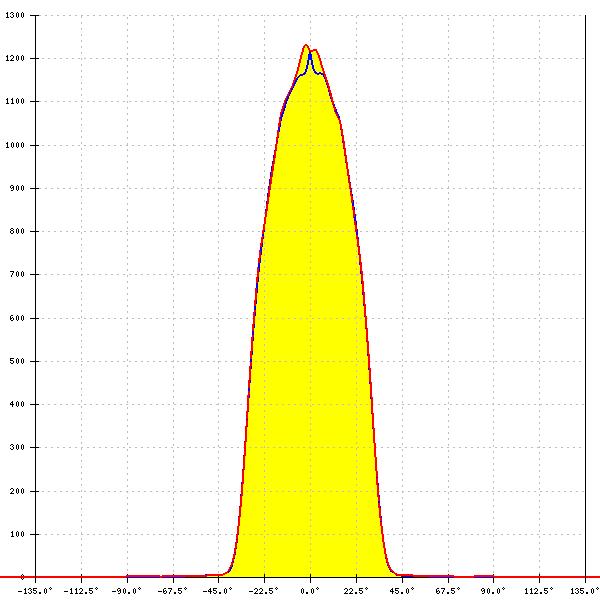

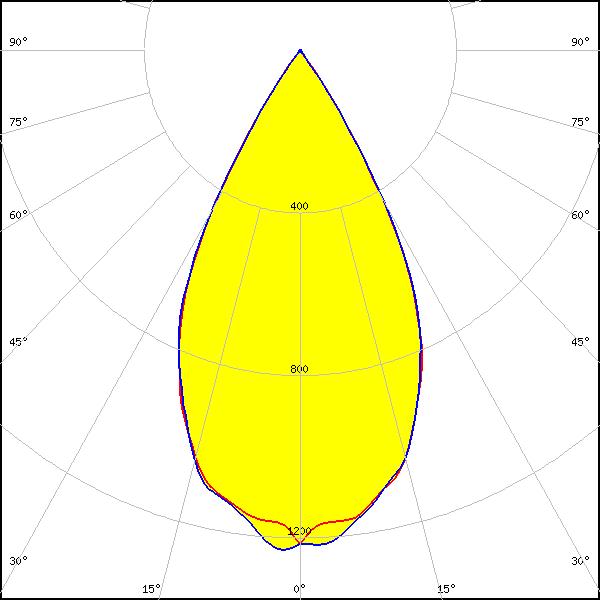

    LED: LUXEON 2835 Architectural
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 54°
    FWTM: 70°
    Peak intensity: 1.232 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

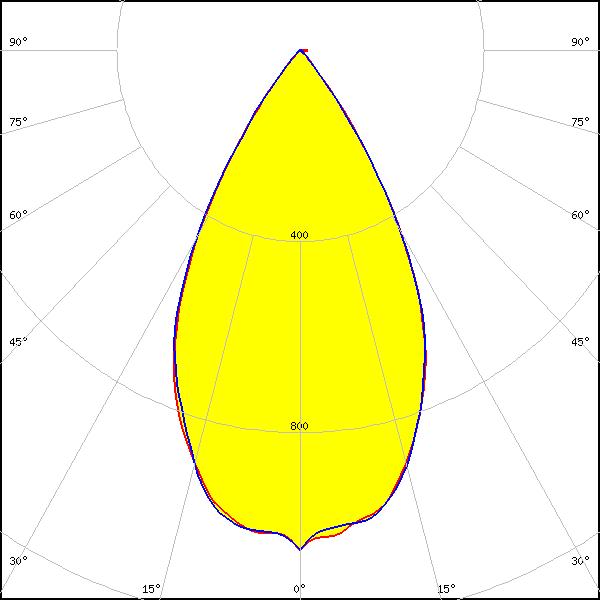

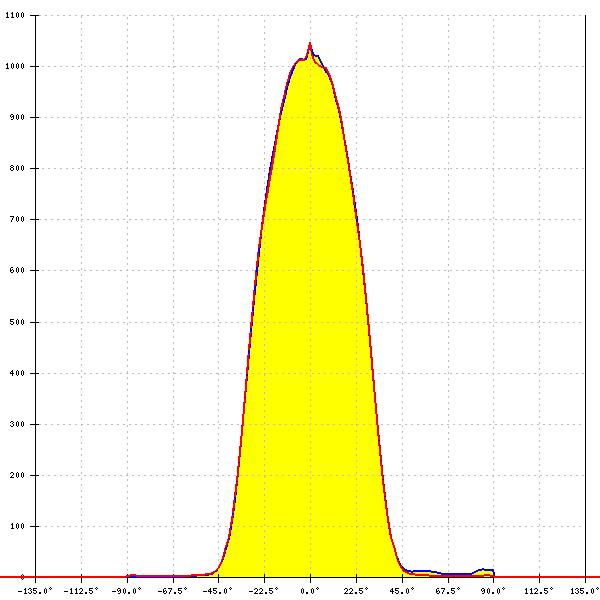

    LED: LUXEON 5050 HE
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.048 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

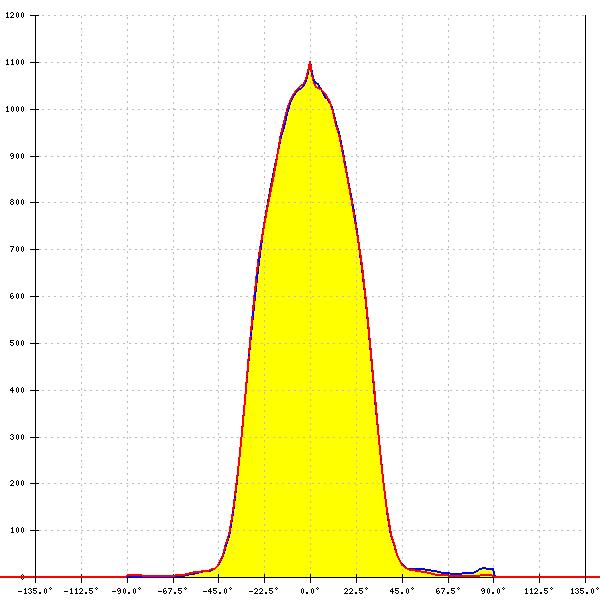

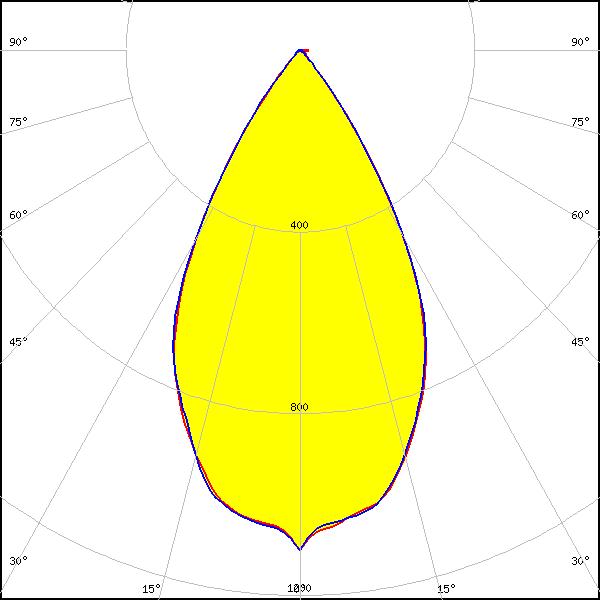

    LED: LUXEON 5050 HE
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.101 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

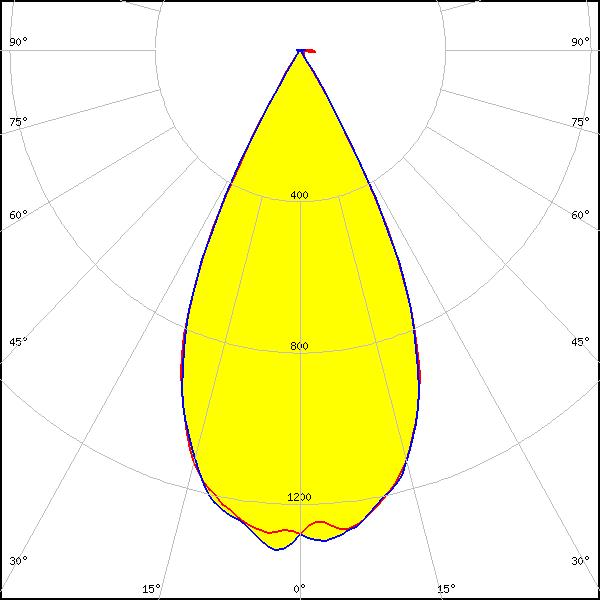

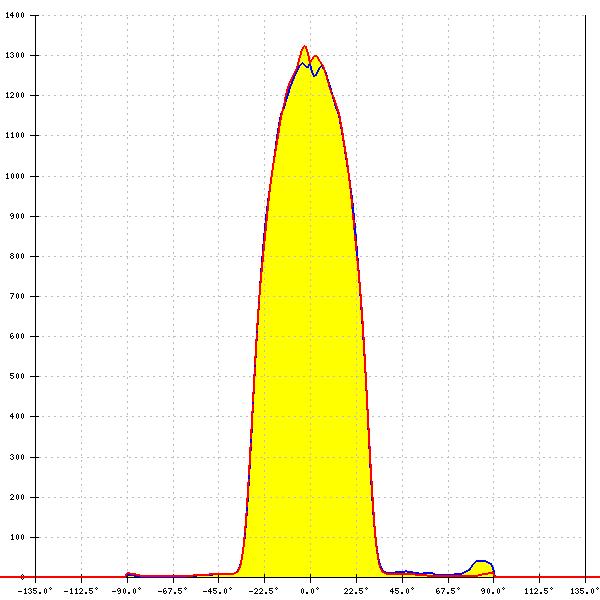

    LED: LUXEON HL1Z
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 50°
    FWTM: 64°
    Peak intensity: 1.333 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LED-Modul 279,65x20 mm 14 LEDs Mini Daisy
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 55°
    FWTM: 69°
    Peak intensity: 1.155 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

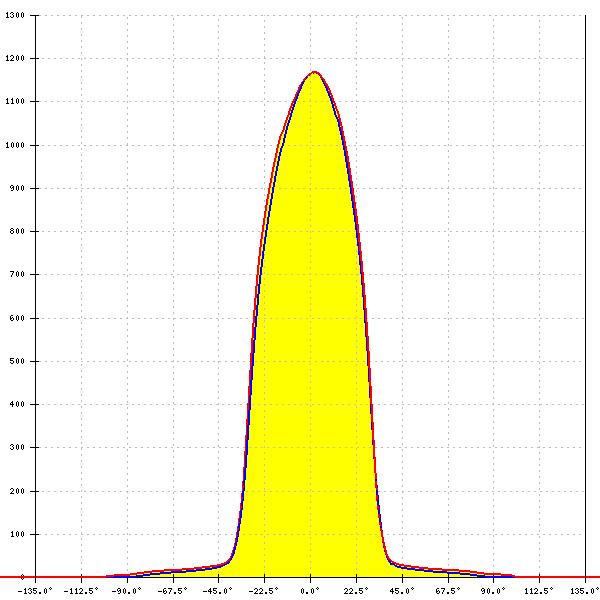

    LED: LED-Modul 279,65x20 mm 14 LEDs Mini Daisy
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 55°
    FWTM: 71°
    Peak intensity: 1.171 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

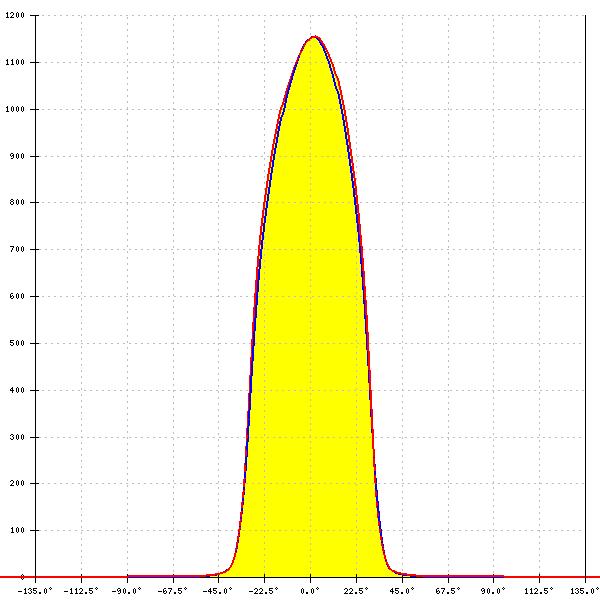

    LED: LED-Modul 279,65x20 mm 14 LEDs Mini Daisy
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 55°
    FWTM: 69°
    Peak intensity: 1.156 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

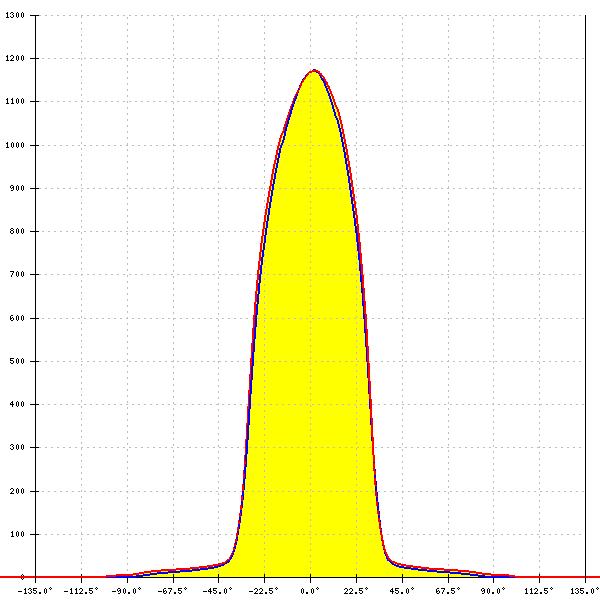

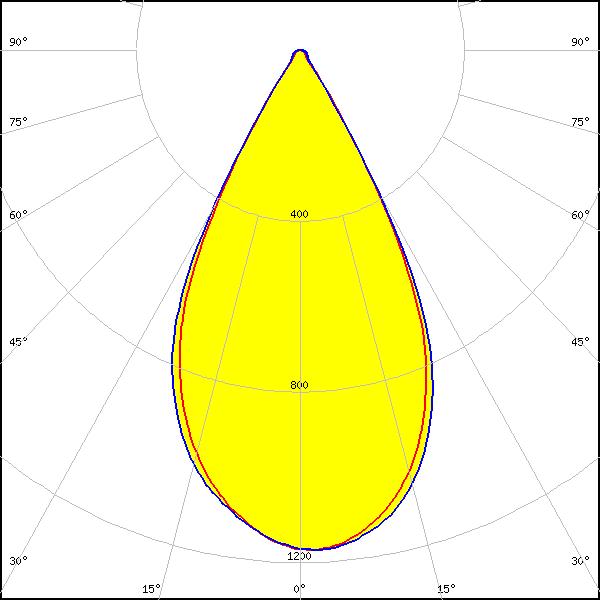

    LED: LED-Modul 279,65x20 mm 14 LEDs Mini Daisy
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 55°
    FWTM: 70°
    Peak intensity: 1.174 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

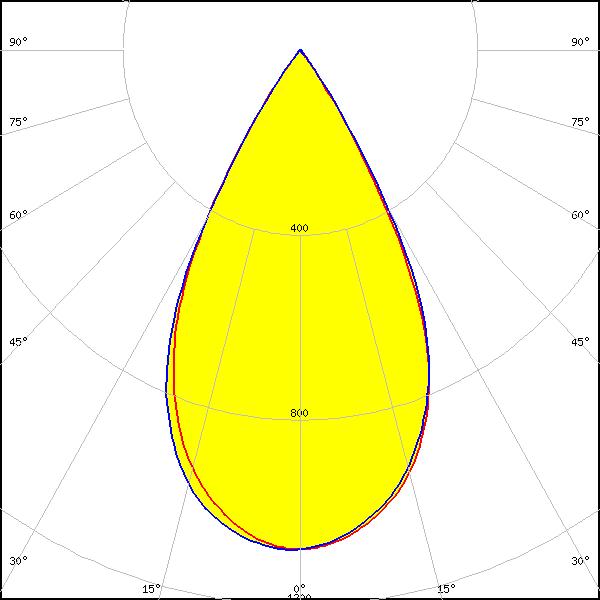

    LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 56°
    FWTM: 71°
    Peak intensity: 1.082 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

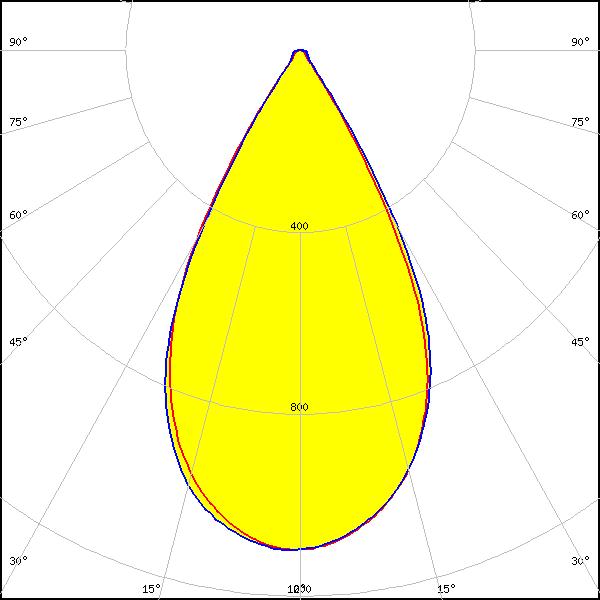

    LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 56°
    FWTM: 73°
    Peak intensity: 1.100 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 55°
    FWTM: 71°
    Peak intensity: 1.083 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

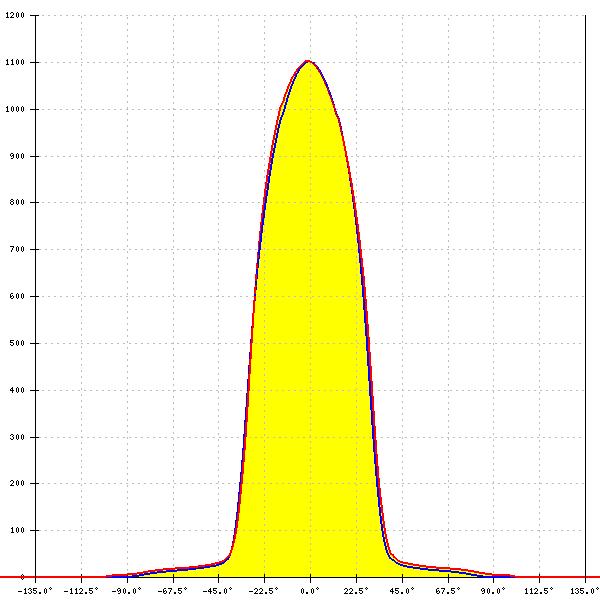

    LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 56°
    FWTM: 72°
    Peak intensity: 1.102 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

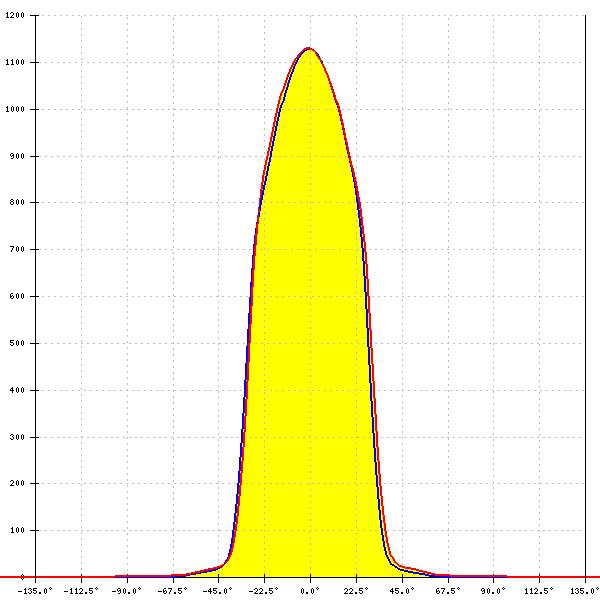

    LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 58°
    FWTM: 73°
    Peak intensity: 1.130 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

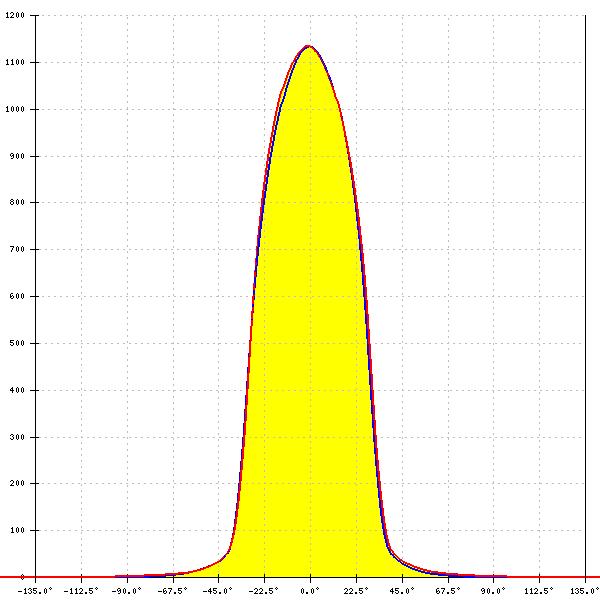

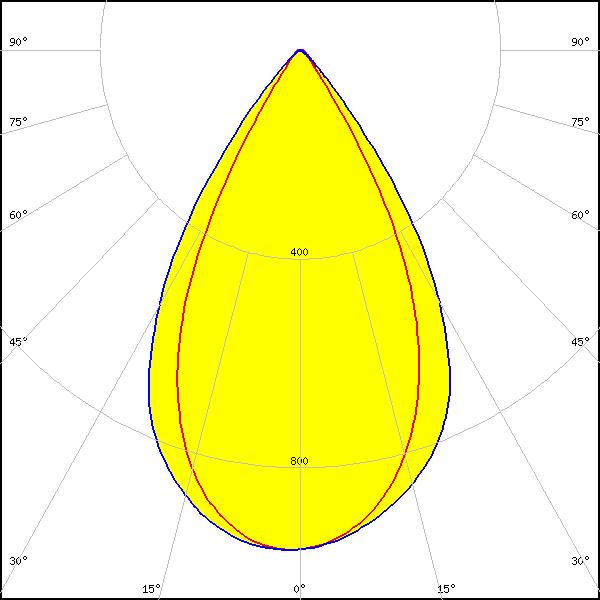

    LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 56°
    FWTM: 74°
    Peak intensity: 1.134 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

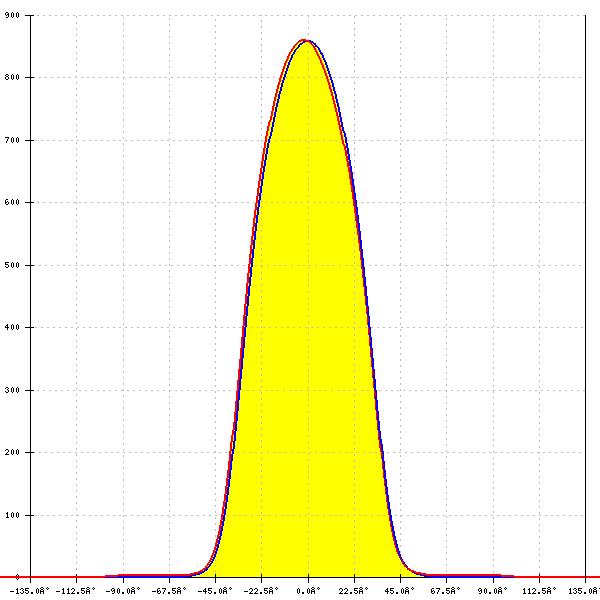

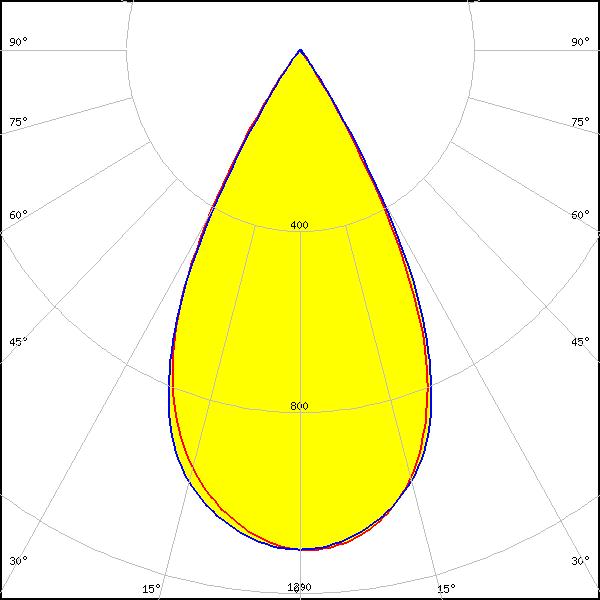

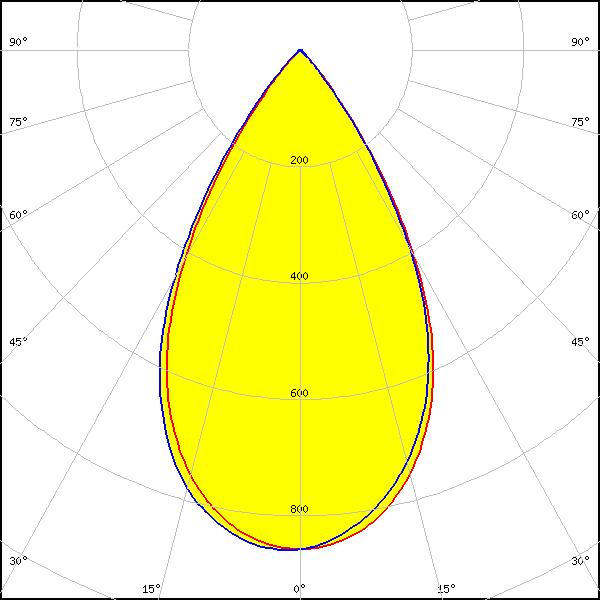

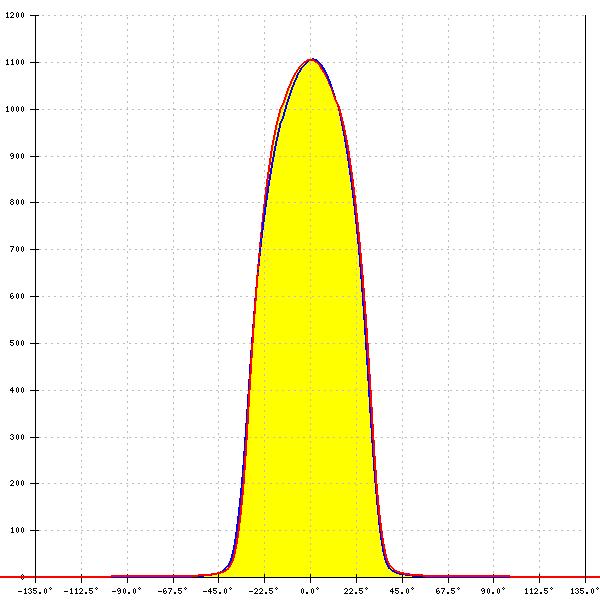

    LED: Opticus Daisy Mini M L28W2
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 55°
    FWTM: 70°
    Peak intensity: 1.105 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

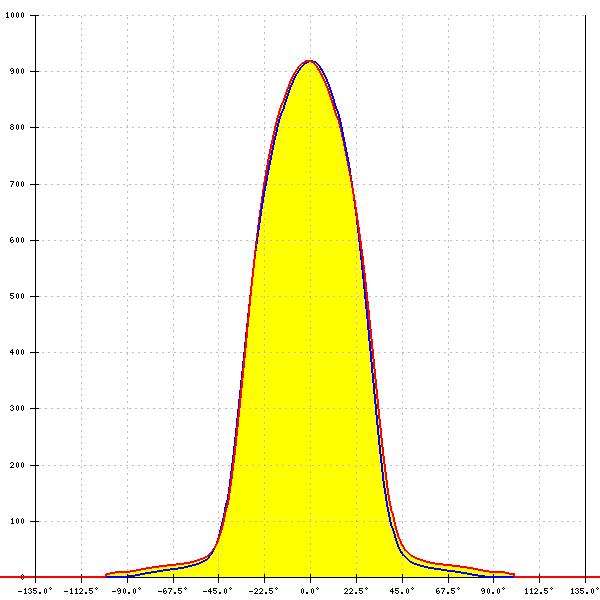

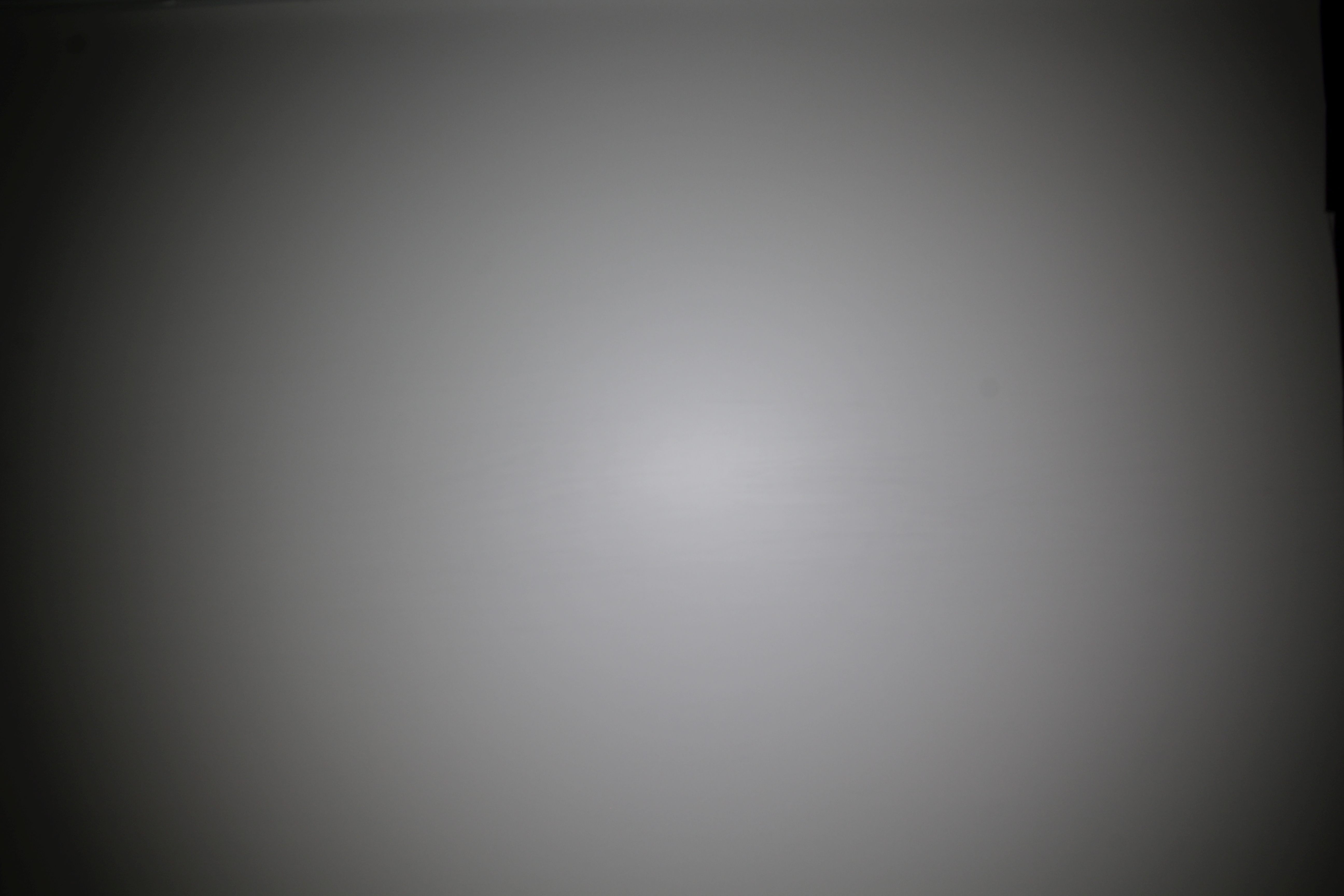

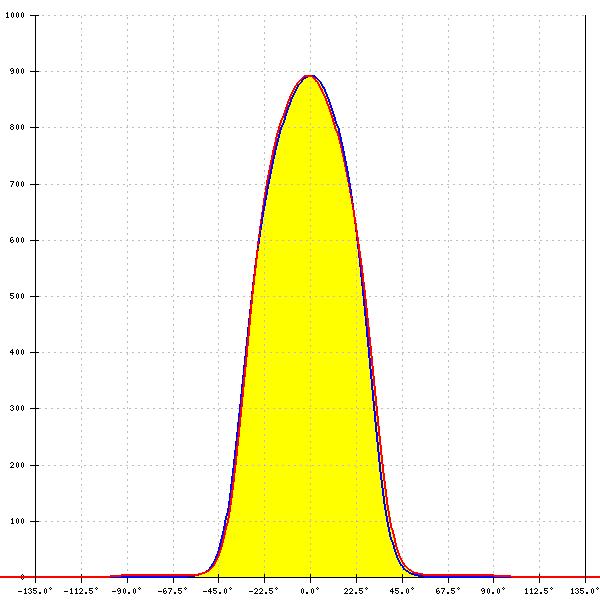

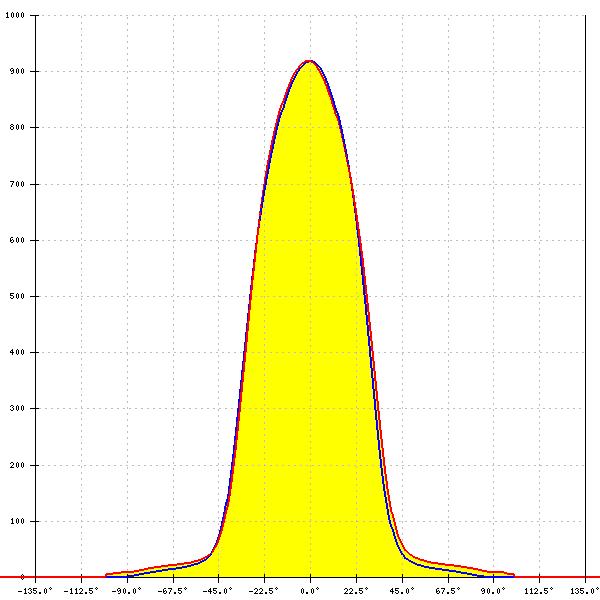

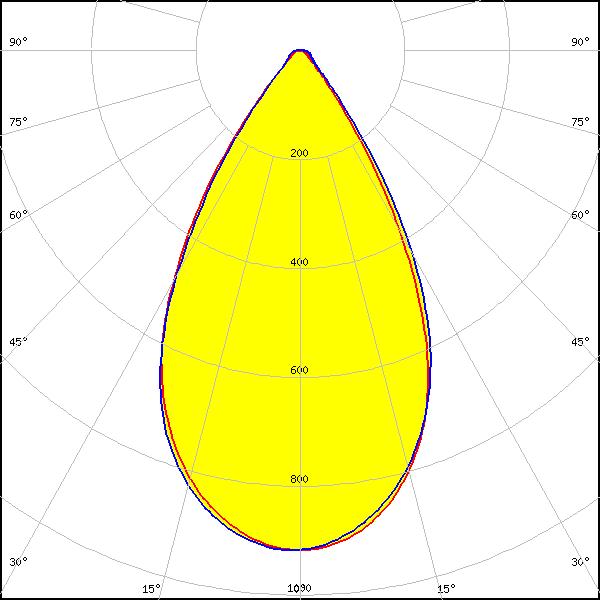

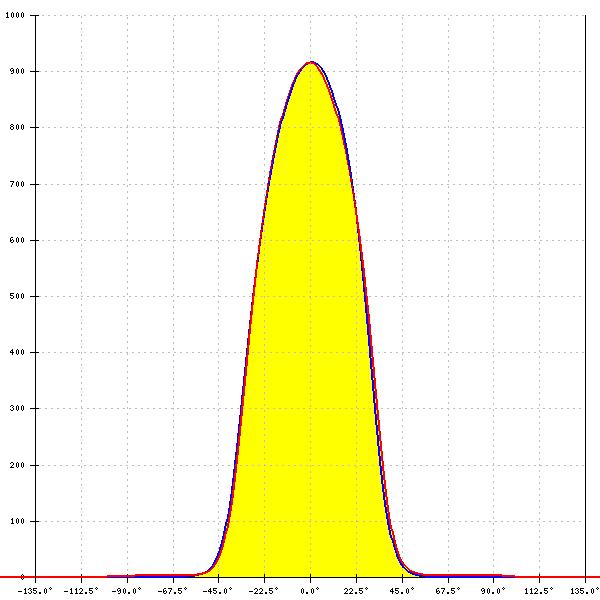

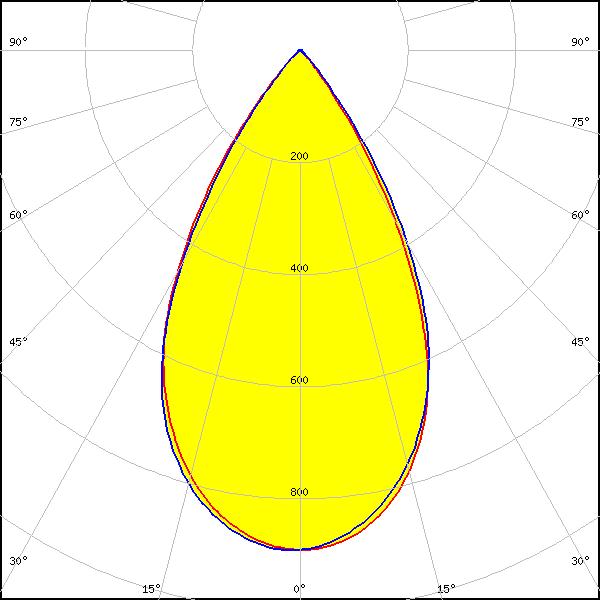

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 58°
    FWTM: 80°
    Peak intensity: 0.916 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: White

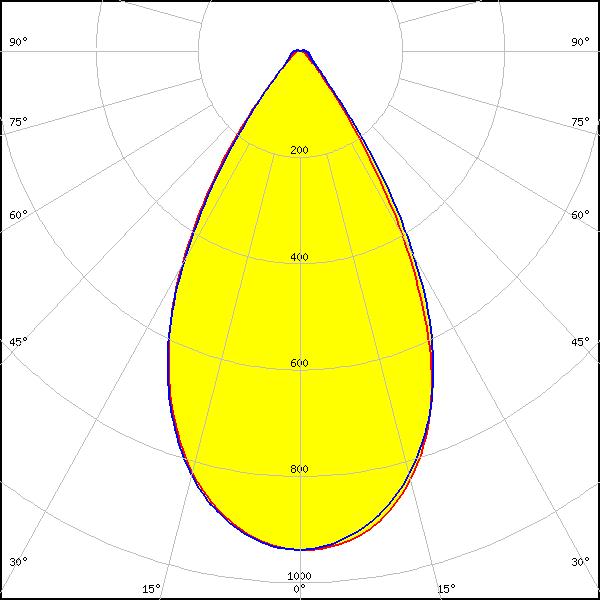

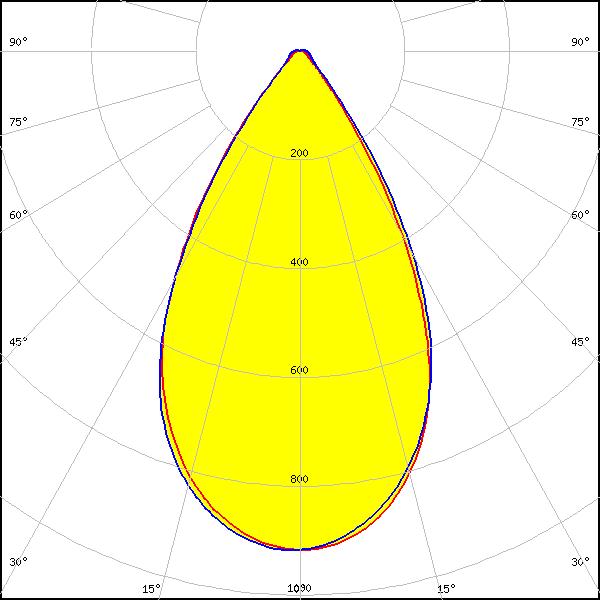

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 59°
    FWTM: 83°
    Peak intensity: 0.939 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 2
    Light colour/type: White

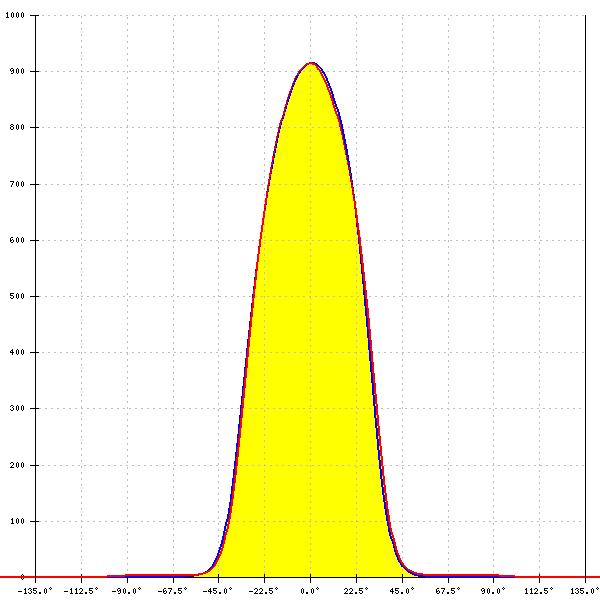

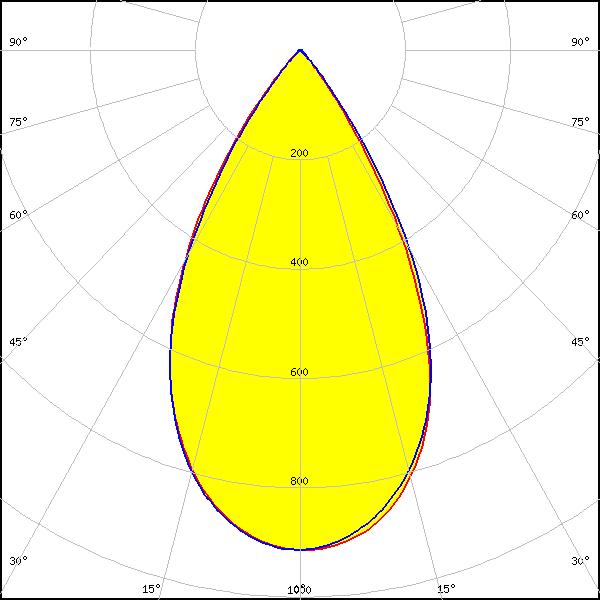

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 57°
    FWTM: 80°
    Peak intensity: 0.915 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: White

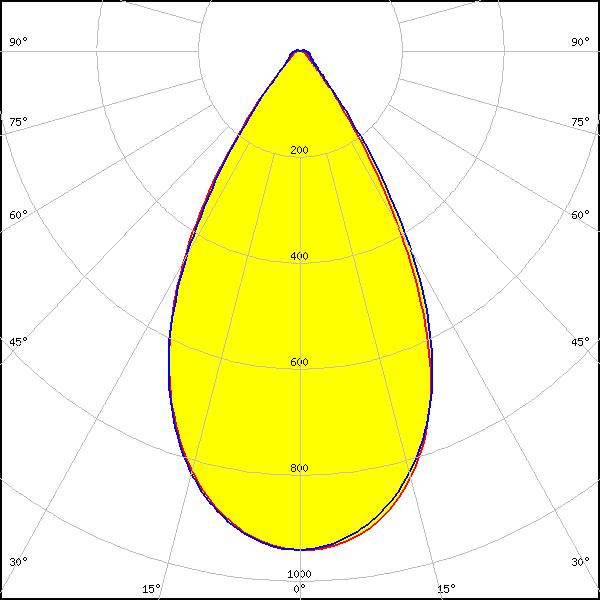

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 58°
    FWTM: 82°
    Peak intensity: 0.942 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 58°
    FWTM: 81°
    Peak intensity: 0.892 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 59°
    FWTM: 84°
    Peak intensity: 0.918 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 58°
    FWTM: 81°
    Peak intensity: 0.891 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 59°
    FWTM: 84°
    Peak intensity: 0.918 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 2
    Light colour/type: White

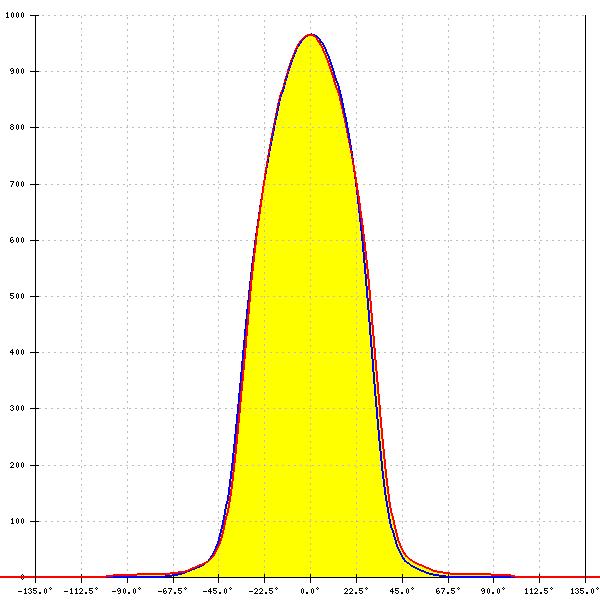

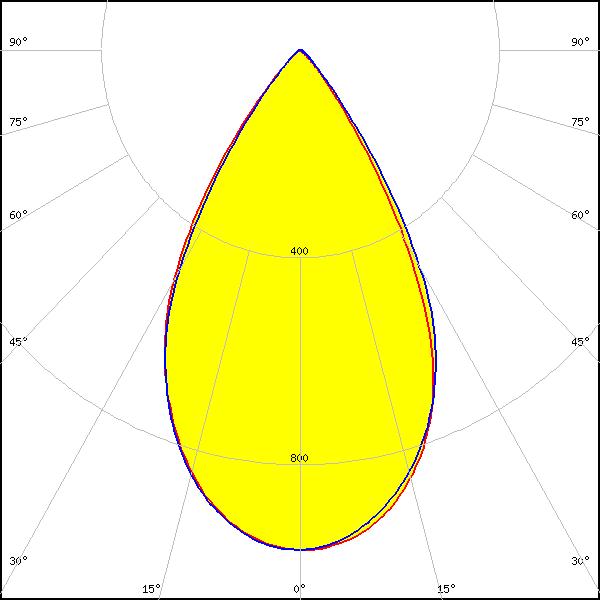

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 60°
    FWTM: 82°
    Peak intensity: 0.965 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: White

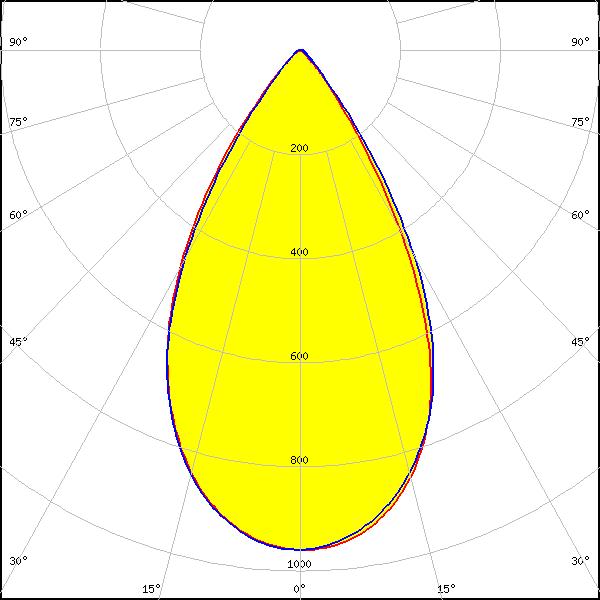

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 59°
    FWTM: 83°
    Peak intensity: 0.961 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: White

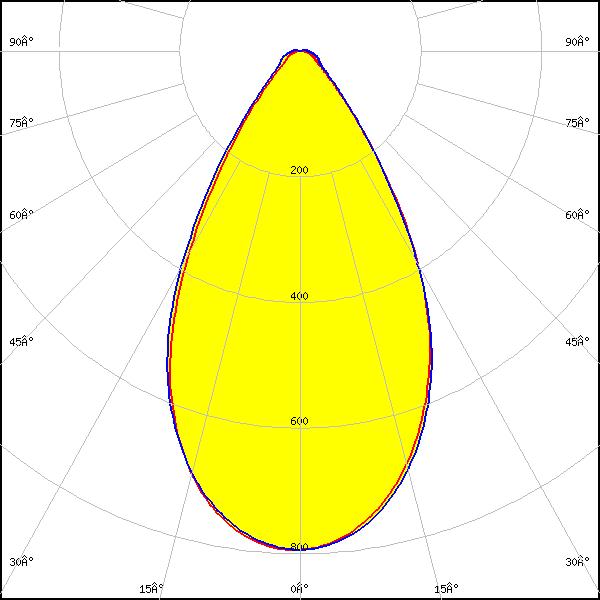

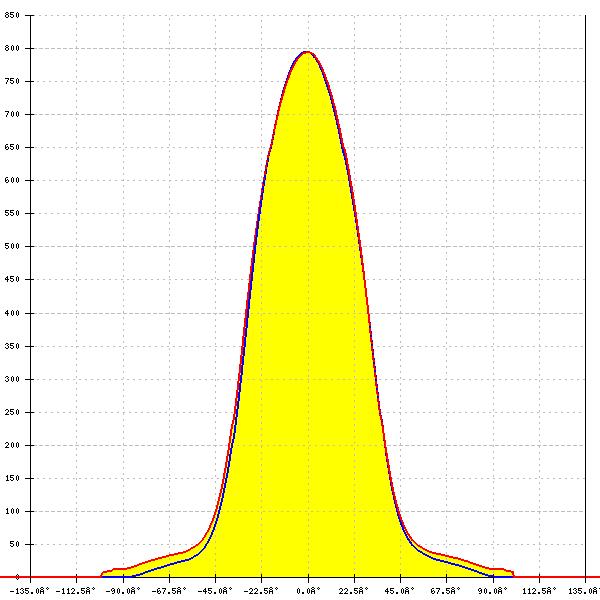

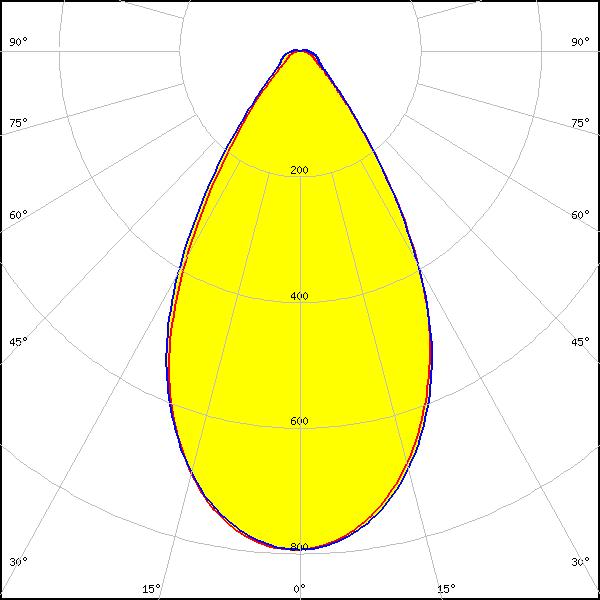

    LED: LinLED 280x20mm 2x550lm 827-865 2x2C 42V DAISY-MINI G1
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 60°
    FWTM: 93°
    Peak intensity: 0.794 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

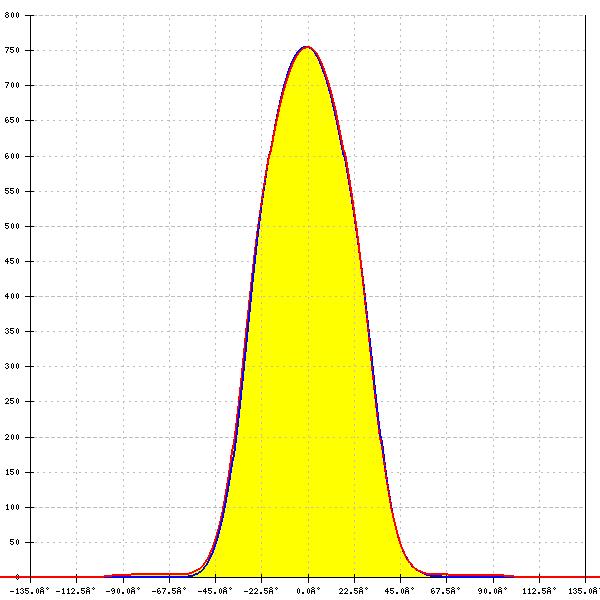

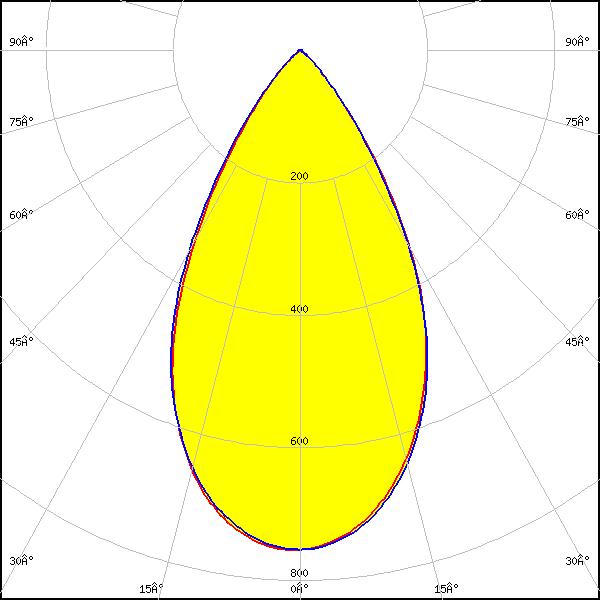

    LED: LinLED 280x20mm 2x550lm 827-865 2x2C 42V DAISY-MINI G1
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 58°
    FWTM: 85°
    Peak intensity: 0.755 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

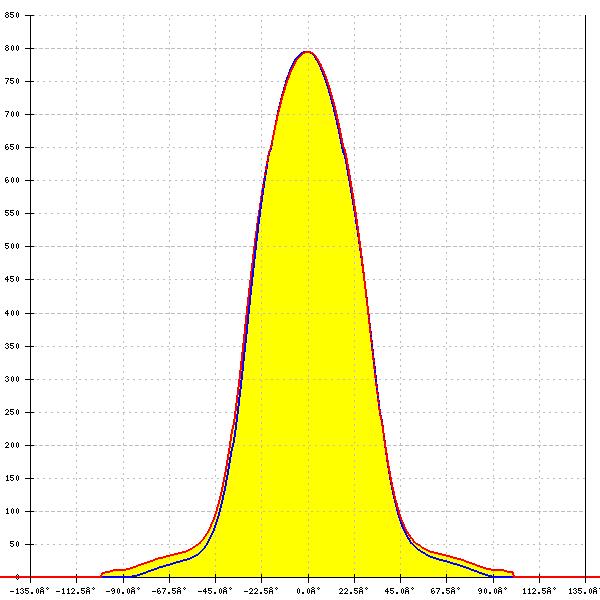

    LED: LinLED 280x20mm 2x550lm 827-865 2x2C 42V DAISY-MINI G1
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 59°
    FWTM: 92°
    Peak intensity: 0.795 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

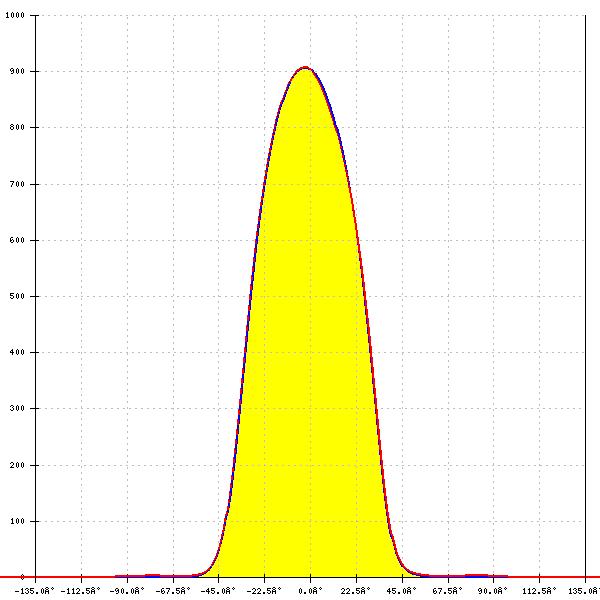

    LED: LinLED 280x20mm 2x550lm 827-865 2x2C 42V DAISY-MINI G1
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 59°
    FWTM: 82°
    Peak intensity: 0.911 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 2
    Light colour/type: Tunable White
    LED: NF2W757G-MT (Tunable White)
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 56°
    FWTM: 71°
    Peak intensity: 1.082 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

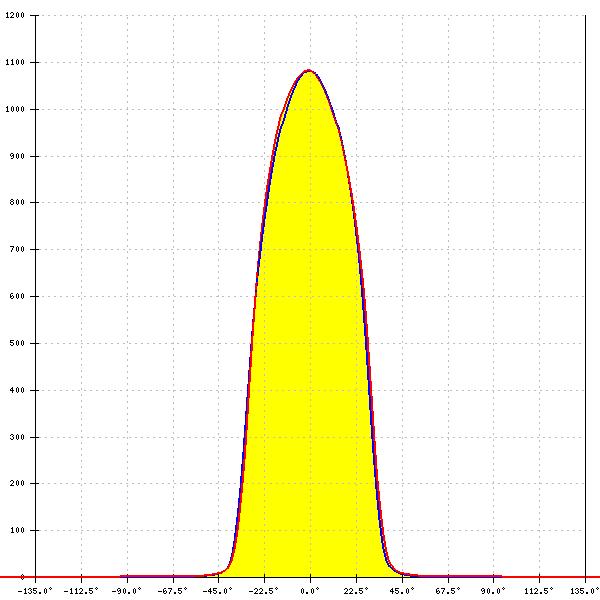

    LED: NF2W757G-MT (Tunable White)
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 55°
    FWTM: 71°
    Peak intensity: 1.083 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NF2W757G-MT (Tunable White)
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 56°
    FWTM: 73°
    Peak intensity: 1.100 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NF2W757G-MT (Tunable White)
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 56°
    FWTM: 72°
    Peak intensity: 1.102 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

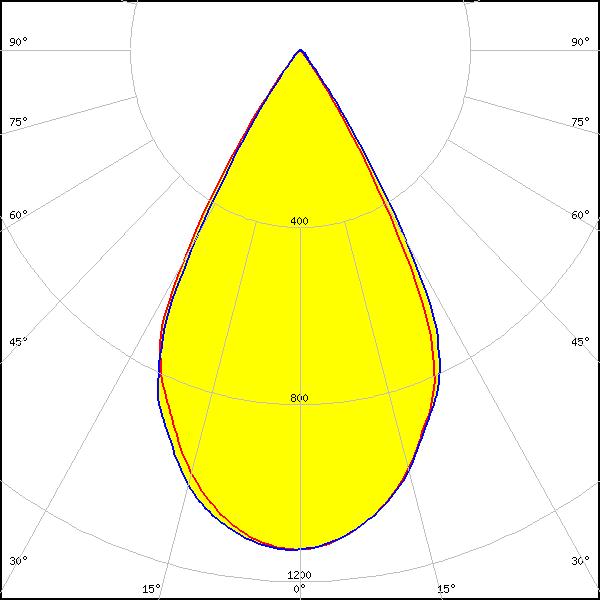

    LED: NF2W757G-MT (Tunable White)
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 58°
    FWTM: 73°
    Peak intensity: 1.130 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NF2W757G-MT (Tunable White)
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 56°
    FWTM: 74°
    Peak intensity: 1.134 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NF2x757G
    FWHM: 58°
    FWTM: 82°
    Peak intensity: 1.066 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 2
    Light colour/type: White

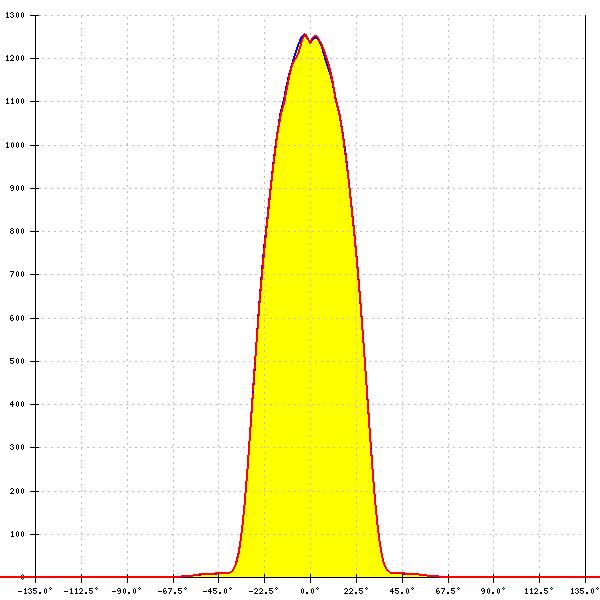

    LED: NFSWE11A
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 50°
    FWTM: 66°
    Peak intensity: 1.276 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: NFSx757G
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 55°
    FWTM: 69°
    Peak intensity: 1.155 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFSx757G
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 55°
    FWTM: 70°
    Peak intensity: 1.171 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFSx757G
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 54°
    FWTM: 69°
    Peak intensity: 1.156 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFSx757G
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 54°
    FWTM: 70°
    Peak intensity: 1.174 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris E 2835
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 56°
    FWTM: 70°
    Peak intensity: 1.284 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

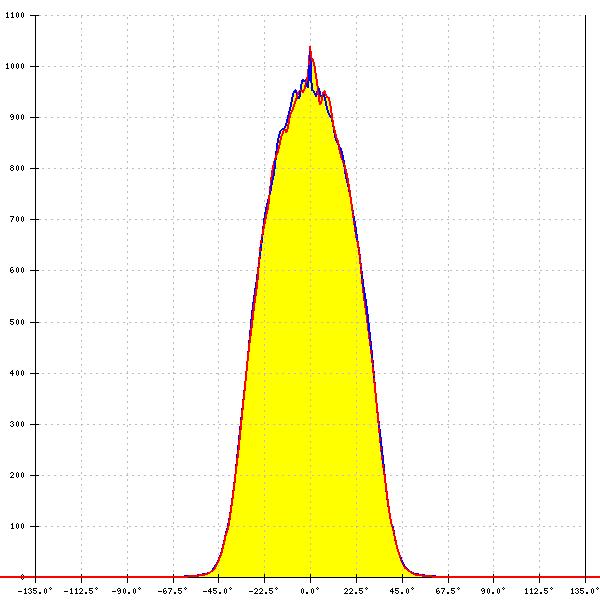

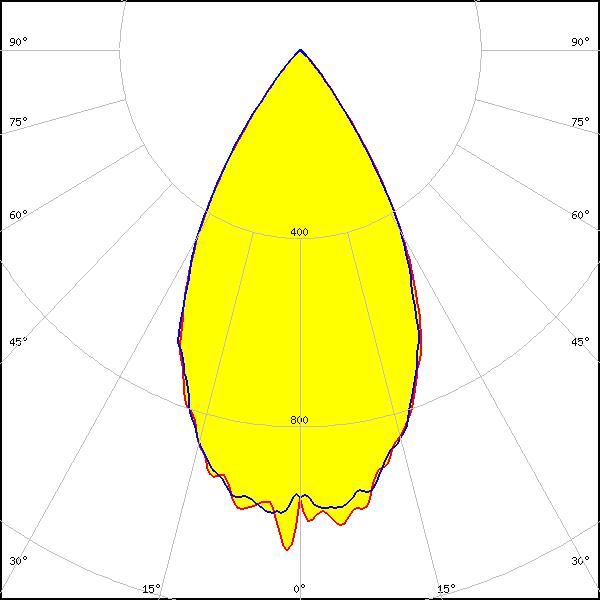

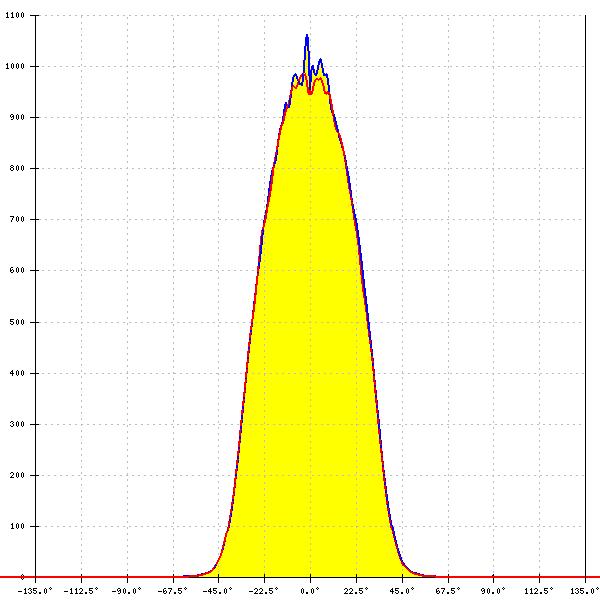

    LED: LM28xB Series
    FWHM: 57°
    FWTM: 80°
    Peak intensity: 1.075 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LM28xB Series
    FWHM: 56°
    FWTM: 80°
    Peak intensity: 1.050 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 2
    Light colour/type: White

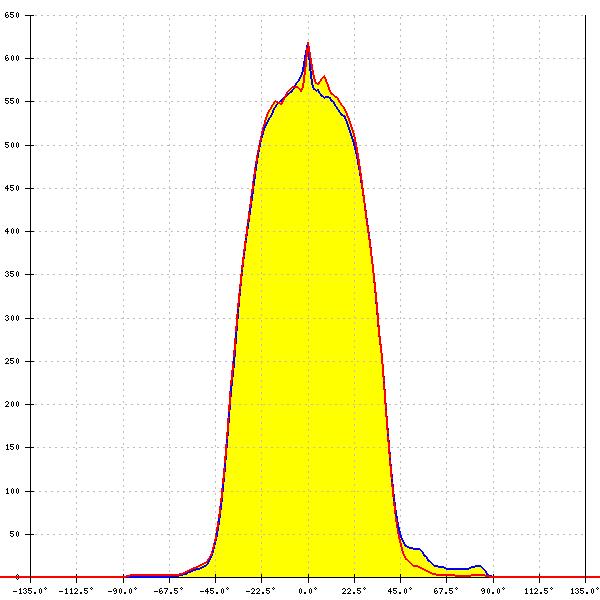

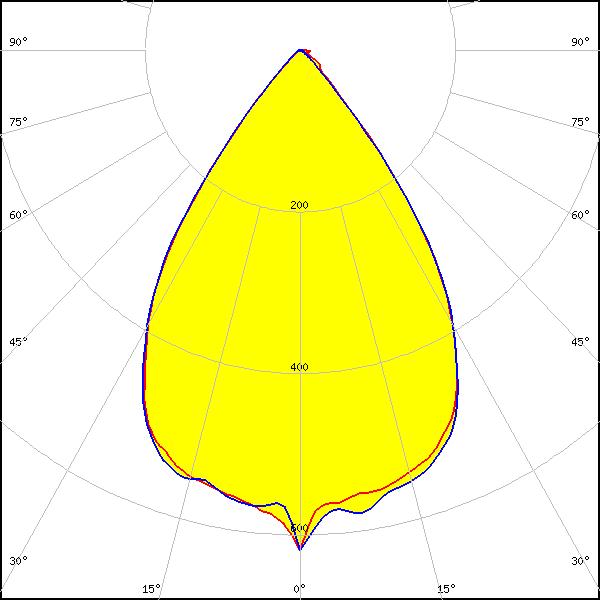

    LED: LM28xB Series
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 68°
    FWTM: 87°
    Peak intensity: 0.619 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LM28xB Series
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 76°
    FWTM: 101°
    Peak intensity: 0.467 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LM28xB Series
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 76°
    FWTM: 101°
    Peak intensity: 0.458 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LM28xB Series
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 55°
    FWTM: 69°
    Peak intensity: 1.325 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM28xB Series
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 51°
    FWTM: 67°
    Peak intensity: 1.259 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM28xB Series
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 55°
    FWTM: 70°
    Peak intensity: 1.114 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

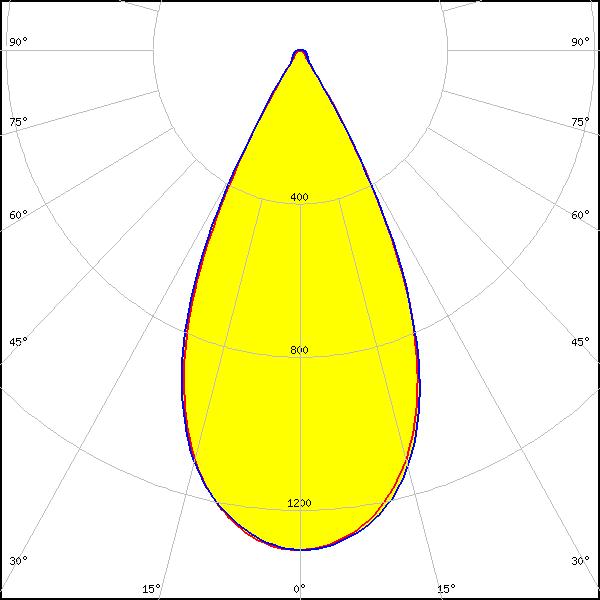

    LED: LM28xB Series
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 51°
    FWTM: 67°
    Peak intensity: 1.305 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

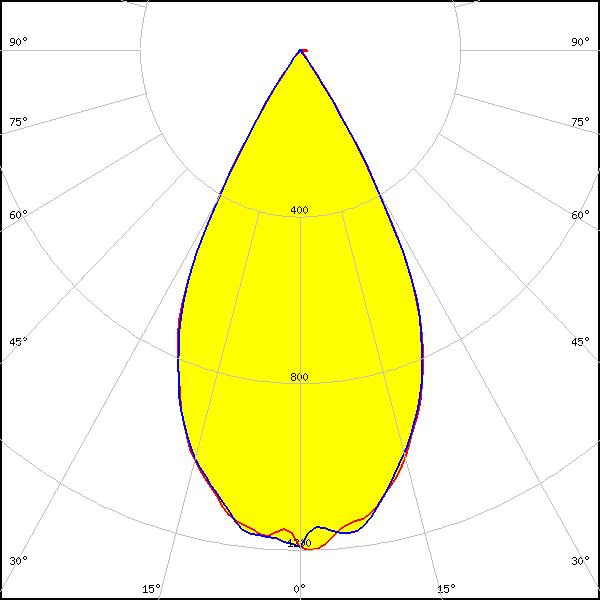

    LED: LM302D
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 54°
    FWTM: 70°
    Peak intensity: 1.211 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

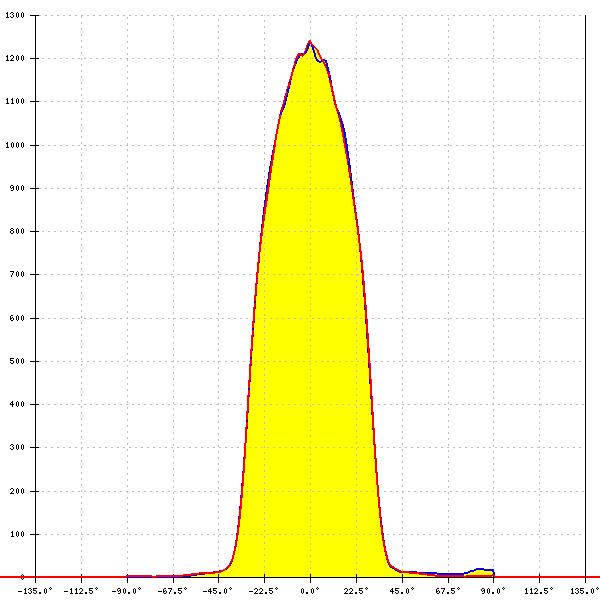

    LED: LM302D
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 54°
    FWTM: 70°
    Peak intensity: 1.254 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM302Z plus
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 55°
    FWTM: 70°
    Peak intensity: 1.292 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM302Z plus
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 55°
    FWTM: 70°
    Peak intensity: 1.292 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM561B Plus
    FWHM: 55°
    FWTM: 80°
    Peak intensity: 1.067 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LM561B Plus
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 55°
    FWTM: 70°
    Peak intensity: 1.333 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LED-St-L28W2-840-C010-06 (Daisy-Mini)
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 59°
    FWTM: 82°
    Peak intensity: 0.860 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LED-St-L28W2-927-C010-965-C010-07 (Daisy-Mini)
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 58°
    FWTM: 81°
    Peak intensity: 0.897 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 2

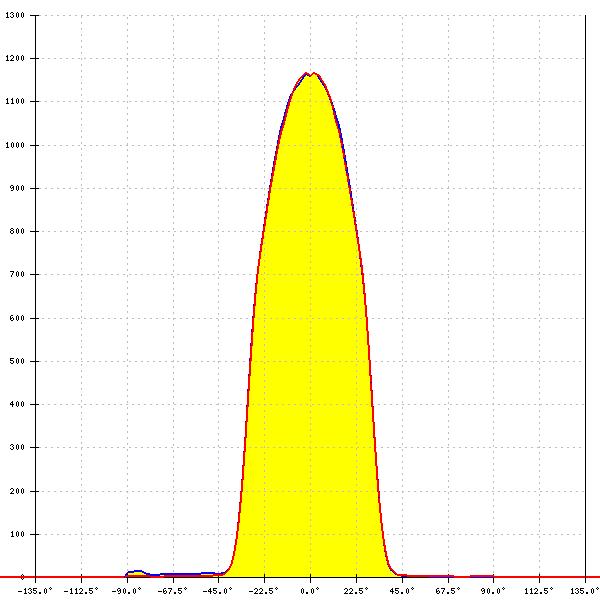

    Light colour/type: Tunable White
    LED: SEOUL 3030
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 56°
    FWTM: 71°
    Peak intensity: 1.174 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

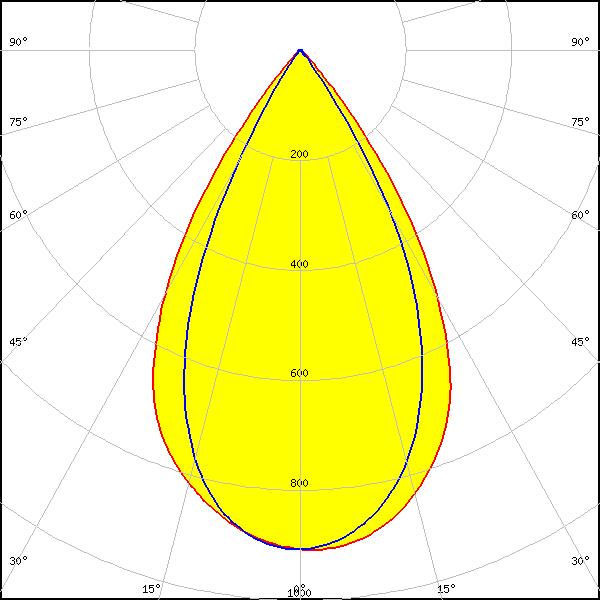

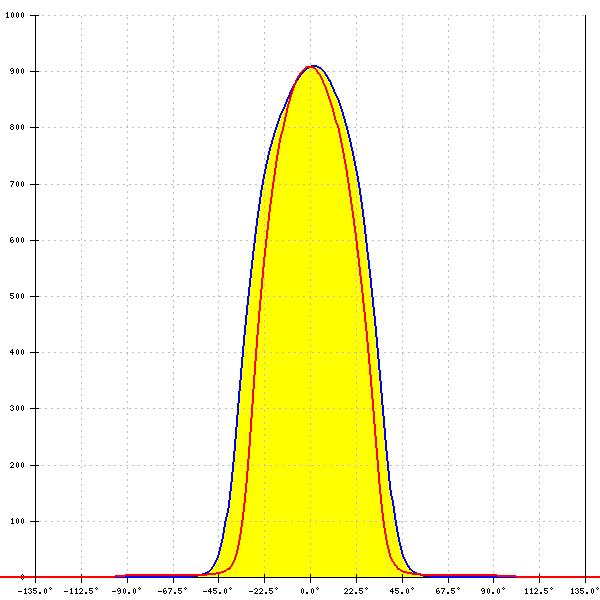

    LED: PassivePAQ-L-1F20-SA2-1K-827-1.1K-865-3-TW
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 64° + 53°
    FWTM: 84° + 70°
    Peak intensity: 0.910 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: Tunable White
    LED: PassivePAQ-L-1F20-SA2-1K-827-1.1K-865-3-TW
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 64° + 52°
    FWTM: 84° + 70°
    Peak intensity: 0.911 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

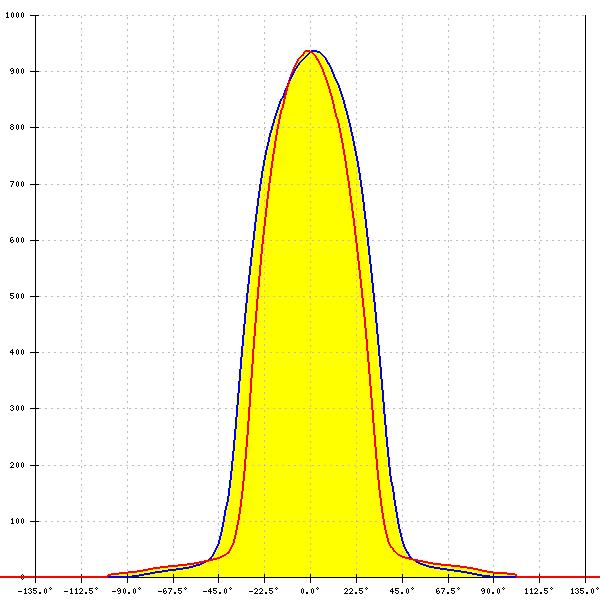

    LED: PassivePAQ-L-1F20-SA2-1K-827-1.1K-865-3-TW
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 65° + 53°
    FWTM: 86° + 72°
    Peak intensity: 0.937 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 2
    Light colour/type: Tunable White
    LED: PassivePAQ-L-1F20-SA2-1K-827-1.1K-865-3-TW
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 65° + 55°
    FWTM: 86° + 73°
    Peak intensity: 0.967 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

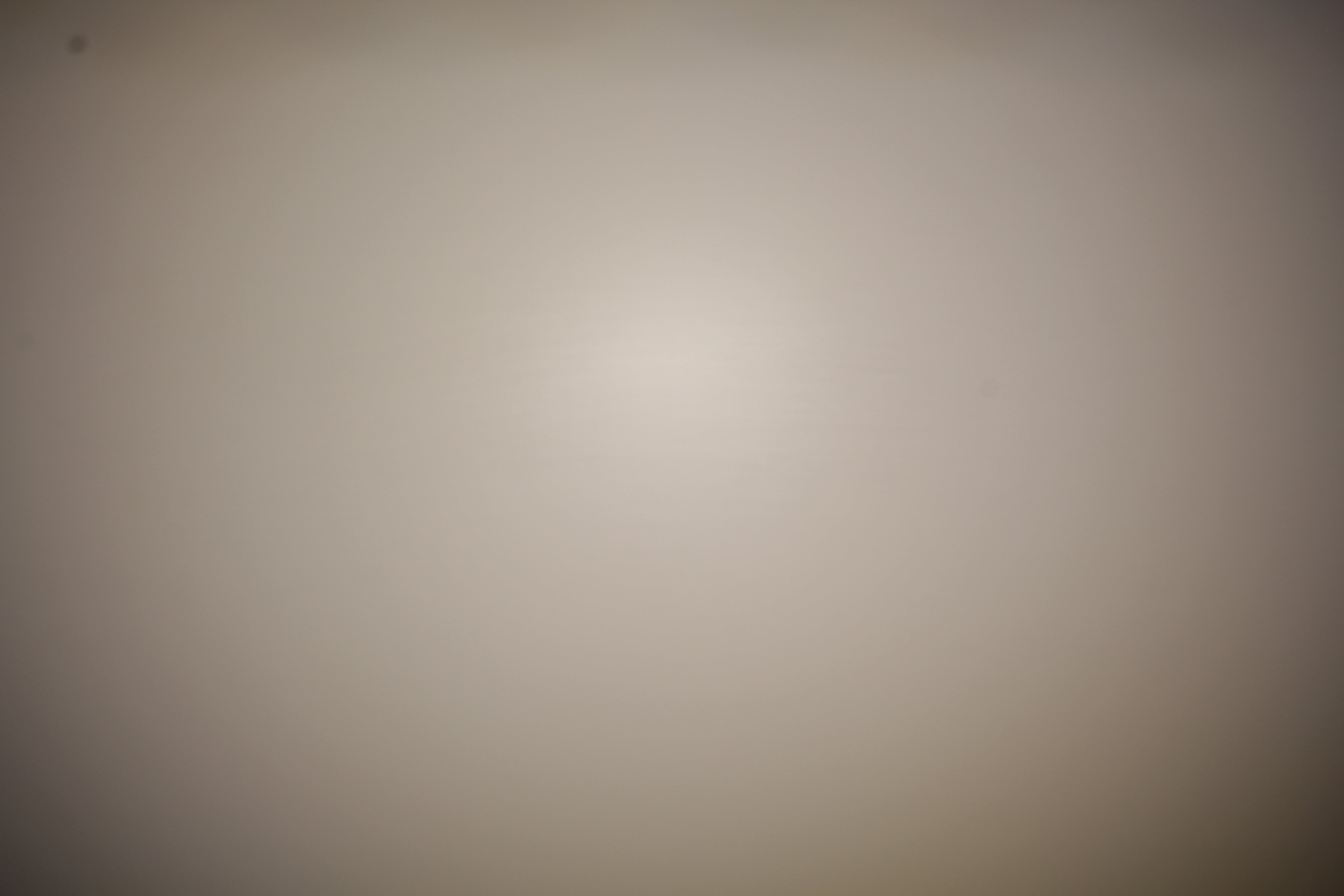

    LED: PassivePAQ-L-1F20-SA2-1K-827-1.1K-865-3-TW
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 53° + 65°
    FWTM: 73° + 87°
    Peak intensity: 0.960 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: Tunable White
    LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 57° + 58°
    FWTM: 80° + 80°
    Peak intensity: 0.926 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: White

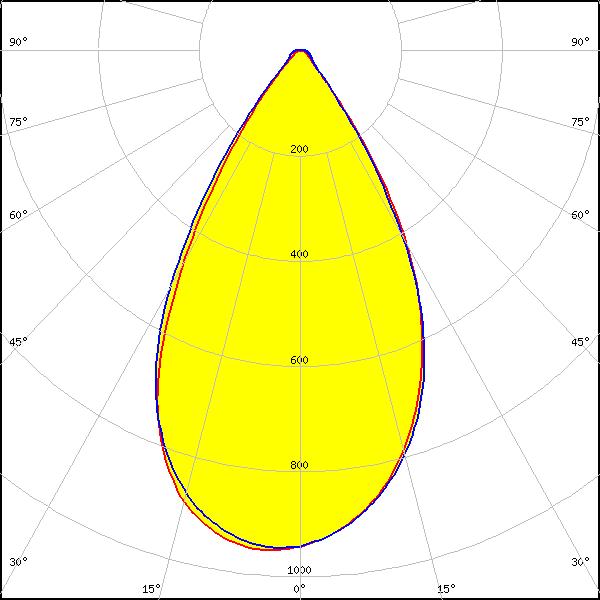

    LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 58° + 59°
    FWTM: 82° + 83°
    Peak intensity: 0.952 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 2
    Light colour/type: White

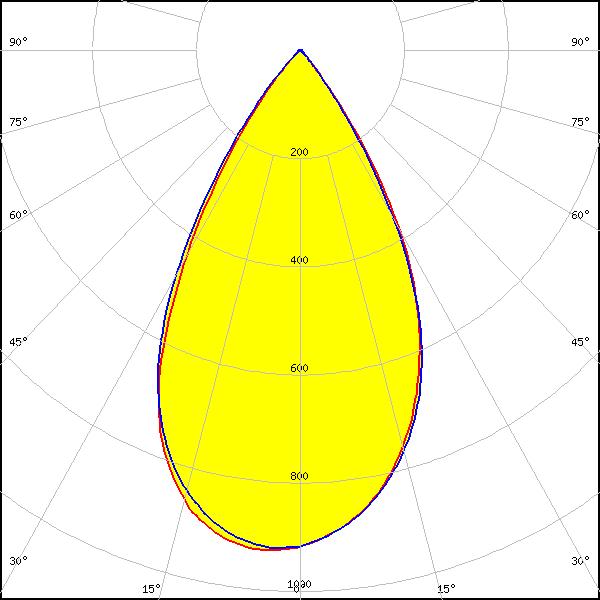

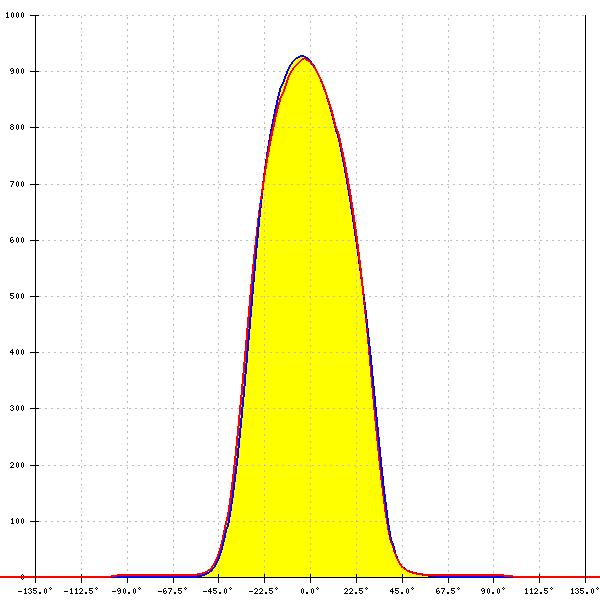

    LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 57° + 58°
    FWTM: 80° + 80°
    Peak intensity: 0.927 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 58° + 59°
    FWTM: 82° + 83°
    Peak intensity: 0.953 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 2
    Light colour/type: White

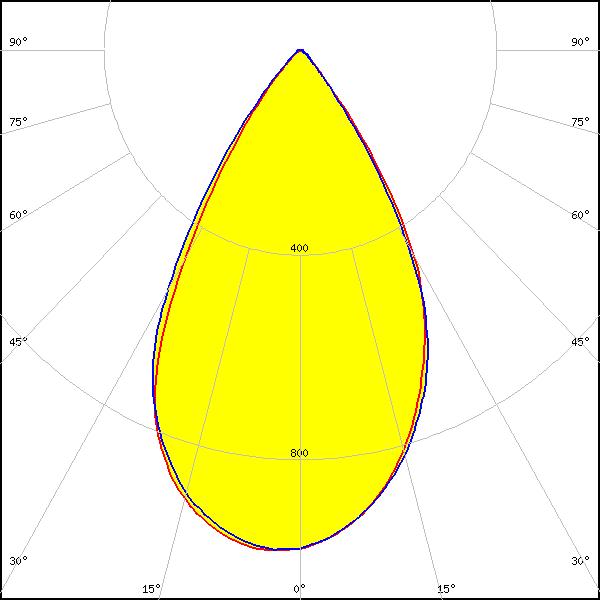

    LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 59° + 60°
    FWTM: 82° + 83°
    Peak intensity: 0.981 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 2
    Light colour/type: White

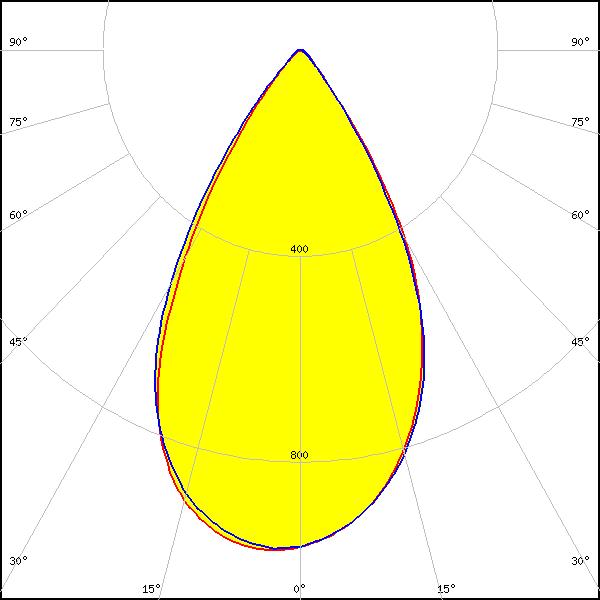

    LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 58° + 59°
    FWTM: 82° + 83°
    Peak intensity: 0.974 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: White

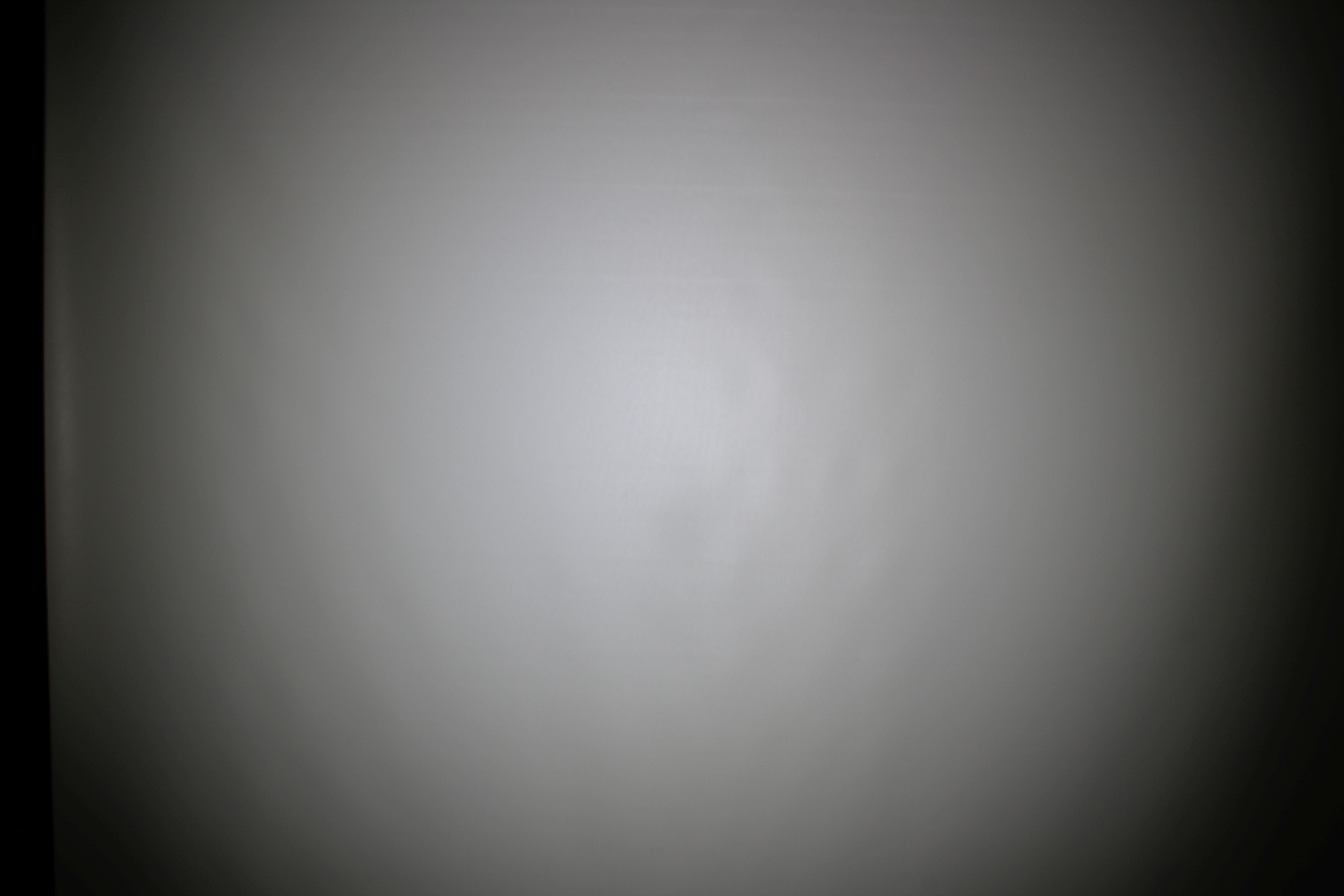

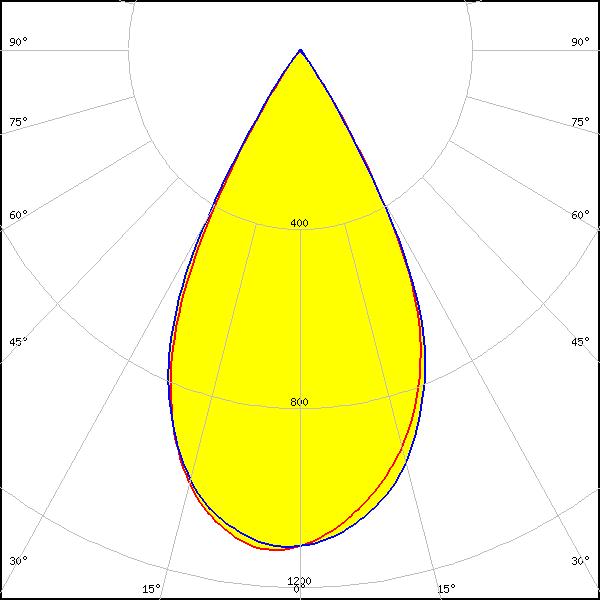

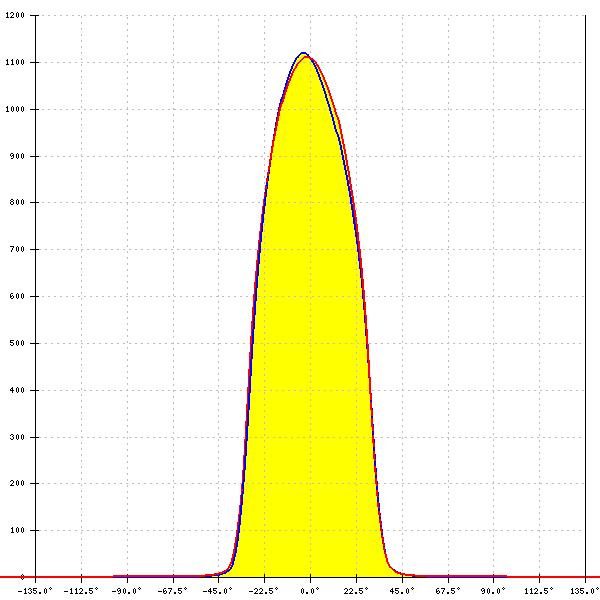

    LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 55°
    FWTM: 70°
    Peak intensity: 1.119 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

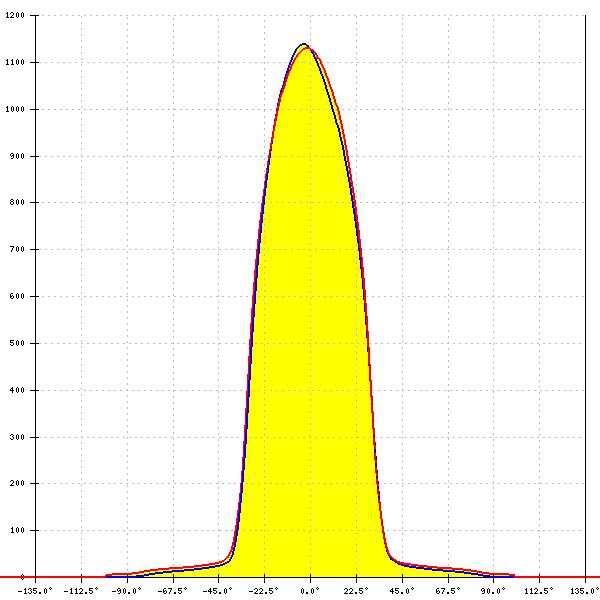

    LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 55°
    FWTM: 71°
    Peak intensity: 1.139 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

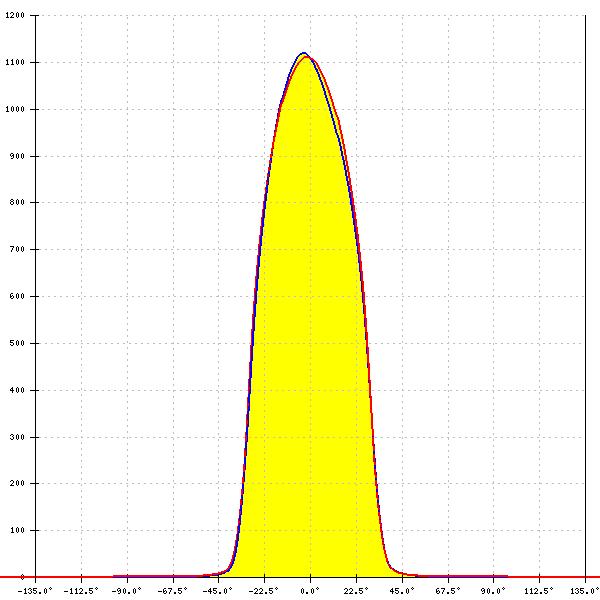

    LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 55°
    FWTM: 70°
    Peak intensity: 1.119 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 55°
    FWTM: 71°
    Peak intensity: 1.139 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

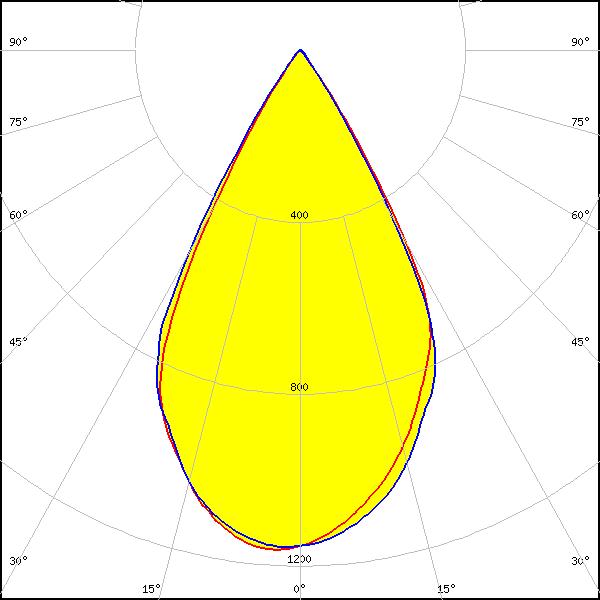

    LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 57°
    FWTM: 72°
    Peak intensity: 1.165 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

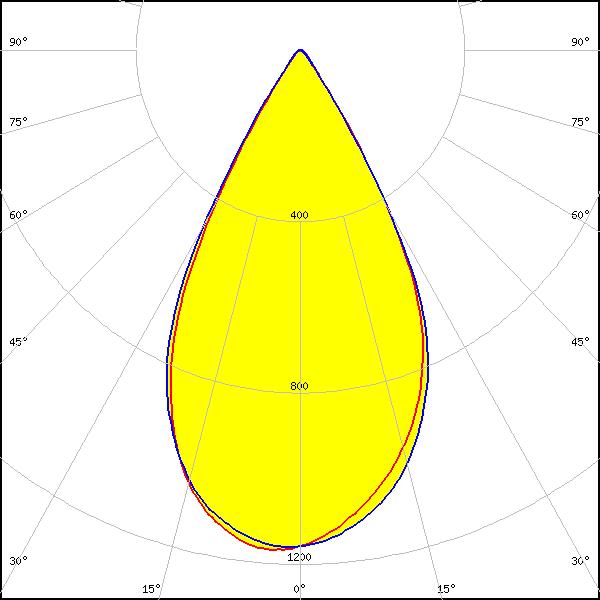

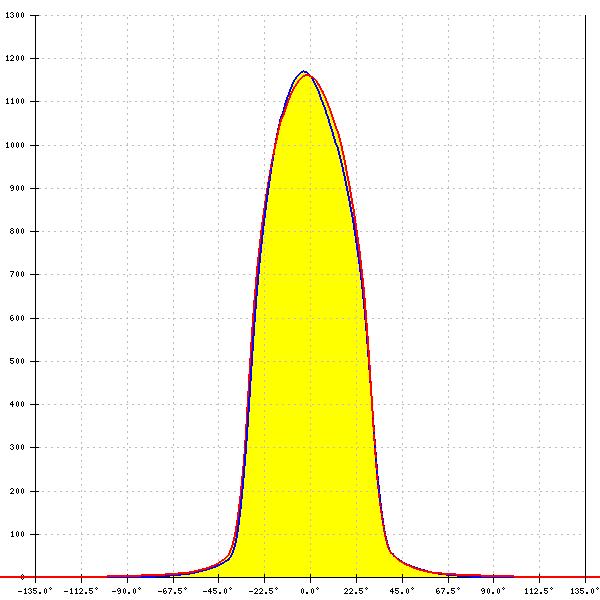

    LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 55°
    FWTM: 72°
    Peak intensity: 1.170 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

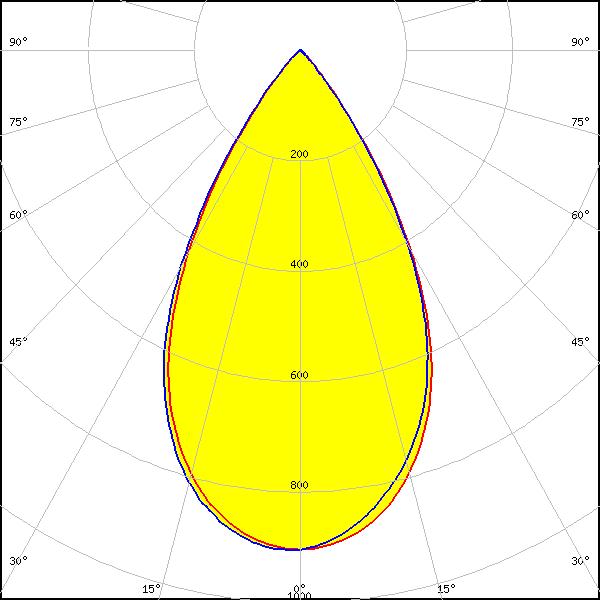

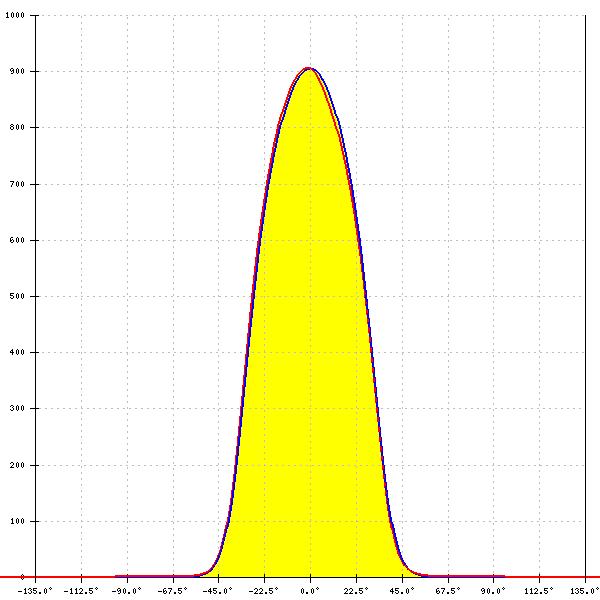

    LED: LLE 20x280mm 750lm 827-865 LV MD ADV1
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 58°
    FWTM: 81°
    Peak intensity: 0.907 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

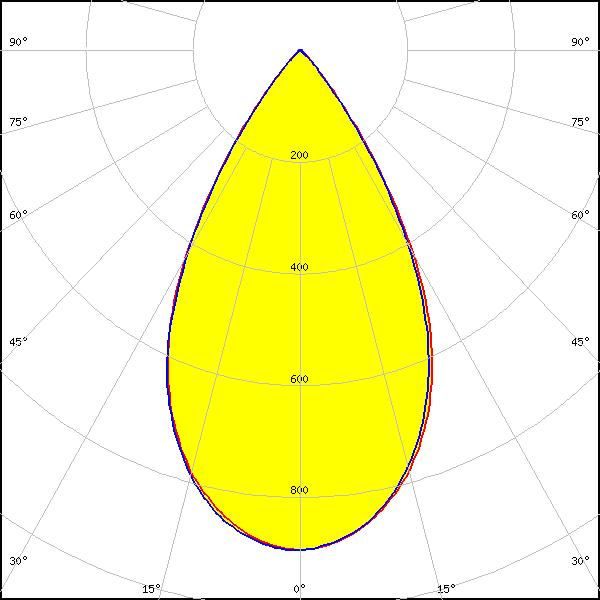

    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 58°
    FWTM: 81°
    Peak intensity: 0.895 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: White

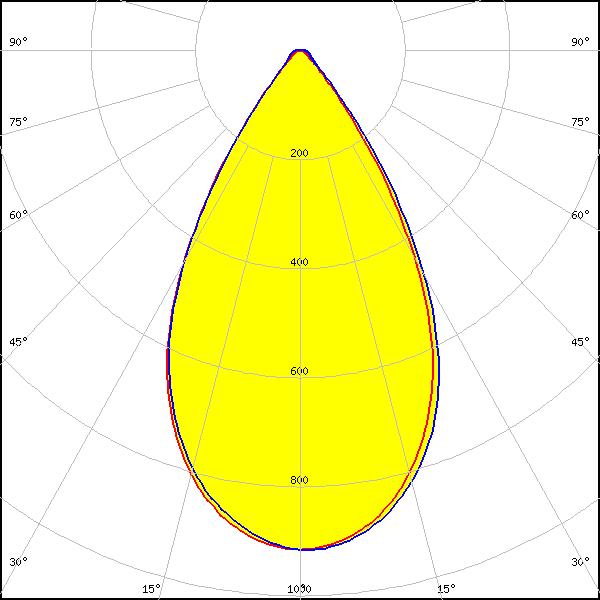

    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 60°
    FWTM: 85°
    Peak intensity: 0.917 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 2
    Light colour/type: White

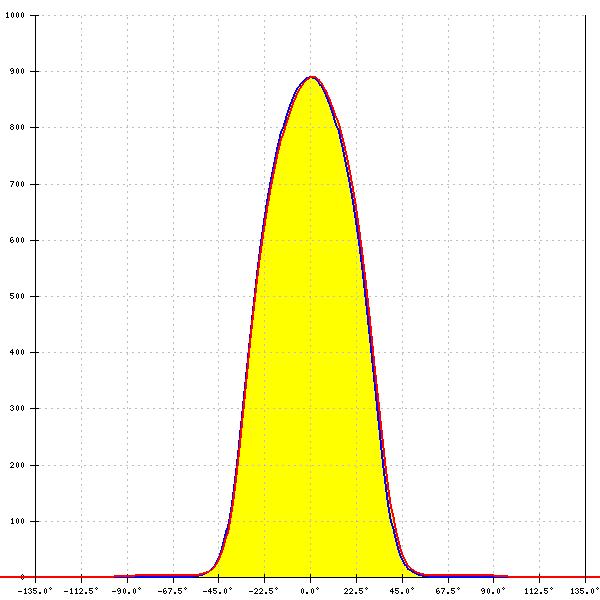

    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 58°
    FWTM: 81°
    Peak intensity: 0.890 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 2
    Light colour/type: White

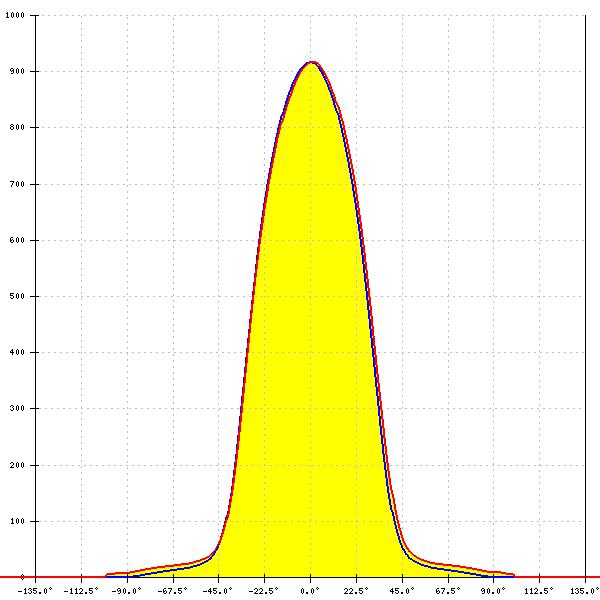

    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 59°
    FWTM: 85°
    Peak intensity: 0.917 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 60°
    FWTM: 84°
    Peak intensity: 0.946 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 2
    Light colour/type: White

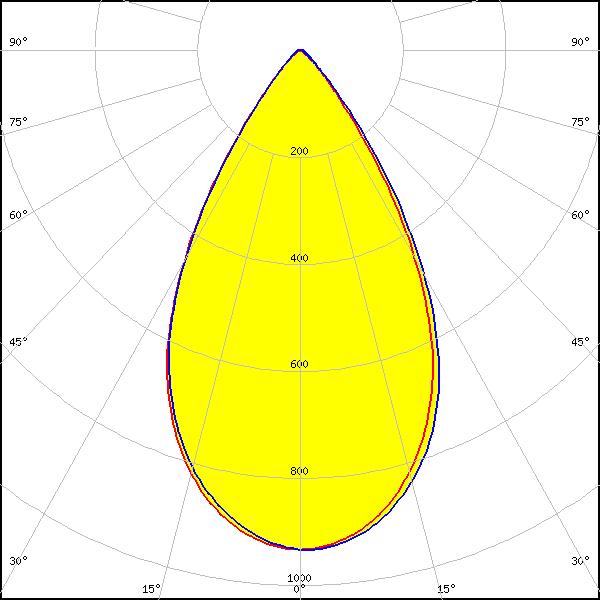

    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 60°
    FWTM: 85°
    Peak intensity: 0.935 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
