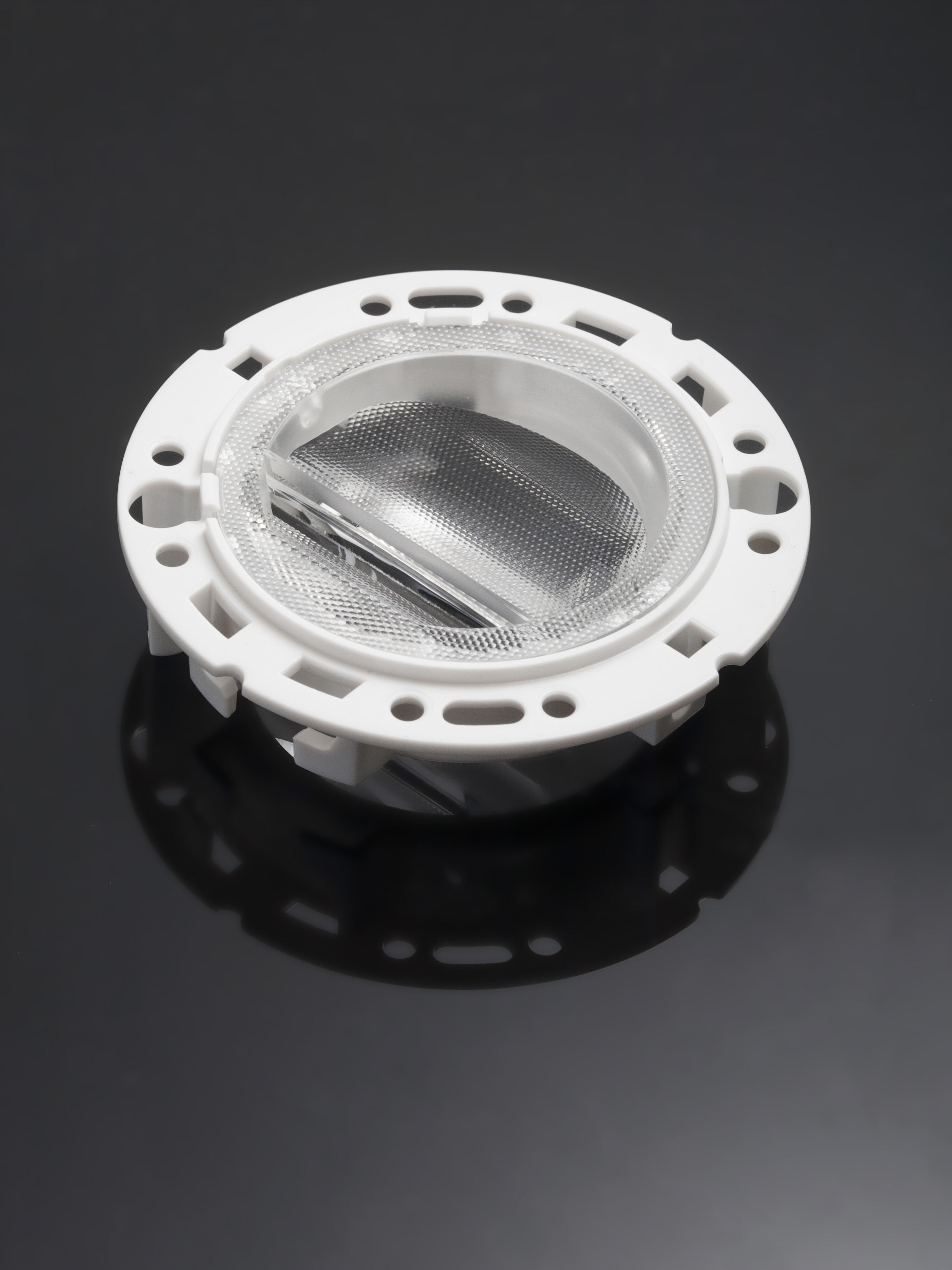

RONDA-WAS2-B

Print

Asymmetric beam for wall-washing with holder B compatible with 3rd party connectors from BJB, IDEAL and Stucchi.

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    70 mm
  • Height:
    14.50 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Holder
    1 pcs
  • Single lens
  • F15862_RONDA-WAS2
    clear
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.30 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 100 mm
  • MOQ Weight:
    2.40 kg
  • Holder
  • F15586_RONDA-HLD-B
    white
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.40 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 120 mm
  • MOQ Weight:
    1.40 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15862_RONDA-WAS2
    F15586_RONDA-HLD-B

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

LED: V10 Gen7
LES size: 10.2 mm
Required components:
IDEAL: 50-2002CT
FWHM: asymmetric
Peak intensity: 0.800 cd/lm
LEDs/each optic: 1
Light colour/type: White
LED: VERO13
LES size: 13.4 mm
Required components:
FWHM: asymmetric
Peak intensity: 0.000 cd/lm
LEDs/each optic: 1
Light colour/type: White
LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
IDEAL: 50-2002CT
FWHM: asymmetric
Peak intensity: 0.750 cd/lm
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
BJB: 47.319.2011
FWHM: asymmetric
Peak intensity: 0.650 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
