    RONDA-WAS2-C

    Print

    Asymmetric beam ideal for floor installations with holder C compatible with LEDiL HEKLA

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      54 mm
    • Height:
      16.00 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Single lens
      1 pcs
    • Holder
      1 pcs
    • Single lens
    • F15862_RONDA-WAS2
      clear
    • Quantity in box:
      420 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.30 kg
    • MPQ:
      30 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 100 mm
    • MOQ Weight:
      2.40 kg
    • Holder
    • F15635_RONDA-HLD-C
      white
    • Quantity in box:
      420 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      4.10 kg
    • MPQ:
      30 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 120 mm
    • MOQ Weight:
      1.30 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F15862_RONDA-WAS2
      F15635_RONDA-HLD-C

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR182 - Change of ordering method and quantities

    Compatible product

    B+W 630 Hekla datasheet

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    News

    PRODUCT NEWS - RONDA-WAS2 AND -O

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    Effective fashion retail lighting

    News

    PRODUCT NEWS - RONDA

    News

    PRODUCT NEWS - RONDA

    News

    HEKLA - Innovative family of sockets and solderless connectors

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    XTM-ADAPTER-50-C

    ∅50 mm basepart for Xicato XTM/XIM modules compatible with RONDA & CARMEN

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

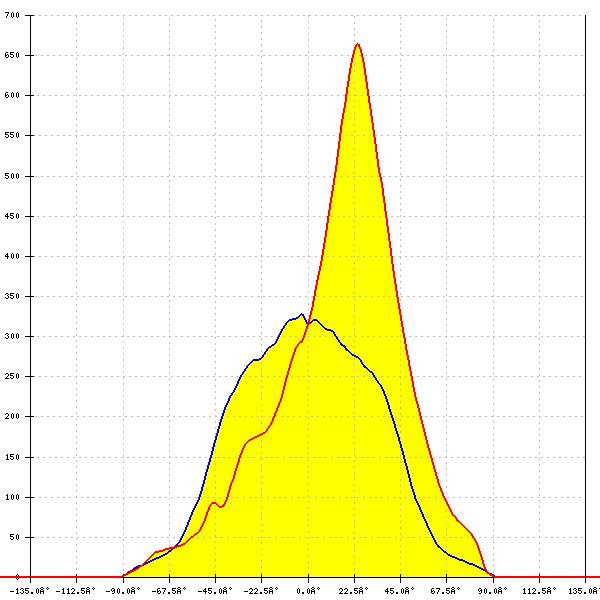

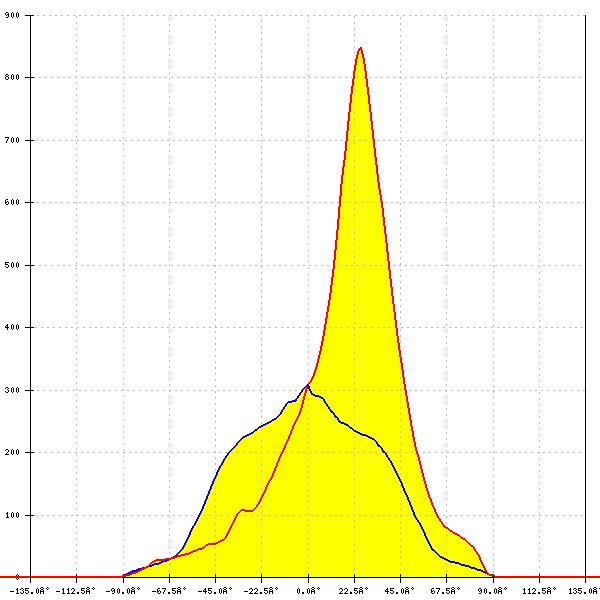

    Optical results

    LED: V10 Gen 8-9
    LES size: 10.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 0.849 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V10 Gen7
    LES size: 10.2 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 0.800 cd/lm
    LEDs/each optic: 1
    Light colour/type: White
    LED: V11 HD Gen 8
    LES size: 11.3 mm
    Required components:
    Bender Wirth: 633d Hekla
    FWHM: asymmetric
    Peak intensity: 0.734 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V13 Gen7
    LES size: 14.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.671 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V4 HD Gen 7
    LES size: 5.2 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V6 Gen6
    LES size: 6.0 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: asymmetric
    Peak intensity: 0.960 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V6 HD Gen 7
    LES size: 7.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V9 HD Gen7
    LES size: 9.2 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.860 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO10
    LES size: 9.9 mm
    Required components:
    F15616_HEKLA-SOCKET-F
    FWHM: asymmetric
    Peak intensity: 0.780 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO13
    LES size: 13.4 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: asymmetric
    Peak intensity: 0.714 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 13mm (21W)
    LES size: 14.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 491 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.633 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 13mm (25W) CSP
    LES size: 14.3 mm
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 6mm DP
    LES size: 6.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 504 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.895 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 9mm (12W) CSP
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: asymmetric
    Peak intensity: 0.740 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLC020 Series (Dim-To-Warm)
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: asymmetric
    Peak intensity: 0.820 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL02x/CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 0.770 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL03x/CLU03x
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.610 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 0.960 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7A2/7A3
    LES size: 4.2 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LCN-C01B (Tunable White)
    LES size: 10.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 481 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1516
    LES size: 9.0 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: asymmetric
    Peak intensity: 0.800 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1825
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: asymmetric
    Peak intensity: 0.700 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT14xx
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 0.800 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT19xx
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.629 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 13xx
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: asymmetric
    Peak intensity: 0.970 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 15xx
    LES size: 8.9 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: asymmetric
    Peak intensity: 0.810 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 1830
    LES size: 14.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 457 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.650 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L08 (Gen2)
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: asymmetric
    Peak intensity: 0.650 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202HD
    LES size: 6.5 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: asymmetric
    Peak intensity: 1.020 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202s
    LES size: 6.5 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: asymmetric
    Peak intensity: 0.940 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204HD
    LES size: 9.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: asymmetric
    Peak intensity: 0.840 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1205HD
    LES size: 11.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: asymmetric
    Peak intensity: 0.750 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB L04/L05
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: asymmetric
    Peak intensity: 0.718 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB L08
    LES size: 14.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 457 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.626 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB M02/M03
    LES size: 8.5 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: asymmetric
    Peak intensity: 0.908 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB S01
    LES size: 5.5 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: asymmetric
    Peak intensity: 1.124 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S01H4
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: asymmetric
    Peak intensity: 1.104 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S02H6
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: asymmetric
    Peak intensity: 1.054 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S04H9
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: asymmetric
    Peak intensity: 0.872 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    LES size: 12.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: asymmetric
    Peak intensity: 0.753 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 641a Hekla
    FWHM: asymmetric
    Peak intensity: 0.898 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB S01 (Gen2)
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: asymmetric
    Peak intensity: 1.101 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CDM-14 (Dim-To-Warm)
    LES size: 15.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 491 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CDM-6 (Dim-To-Warm)
    LES size: 6.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 490 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.840 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CDM-9 (Dim-To-Warm)
    LES size: 9.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 490 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.750 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-14 (Tunable White)
    LES size: 14.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.590 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-9 (Tunable White)
    LES size: 9.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.750 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-14 (19x19)
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.610 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXM-4
    LES size: 4.5 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 1.021 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-9 (13.5x13.5)
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 0.770 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB T-Type
    LES size: 5.9 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: asymmetric
    Peak intensity: 1.070 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NJCWL024Z-V1MT: COB L-Type Tunable White
    LES size: 7.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 497 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.855 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    LES size: 10.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 498 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.743 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L09 CoB
    LES size: 9.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: asymmetric
    Peak intensity: 0.800 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L13 CoB
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 432 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.670 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 0.760 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010C
    LES size: 6.0 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: asymmetric
    Peak intensity: 0.860 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010C G2
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010T (Tunable White)
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.774 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020C
    LES size: 8.0 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: asymmetric
    Peak intensity: 0.810 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020C G2
    LES size: 8.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.770 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020T (Tunable white)
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.642 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: SLE G7 LES09
    LES size: 9.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 0.800 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES13
    LES size: 13.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.620 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES15
    LES size: 15.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XOB 14.5 mm
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.612 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XTM - 19mm LES
    LES size: 19.0 mm
    Required components:
    C16058_XTM-ADAPTER-50-C
    FWHM: asymmetric
    Peak intensity: 0.530 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XTM - 9mm LES
    LES size: 9.0 mm
    Required components:
    C16058_XTM-ADAPTER-50-C
    FWHM: asymmetric
    Peak intensity: 0.900 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
