    RONDA-WAS-C

    Print

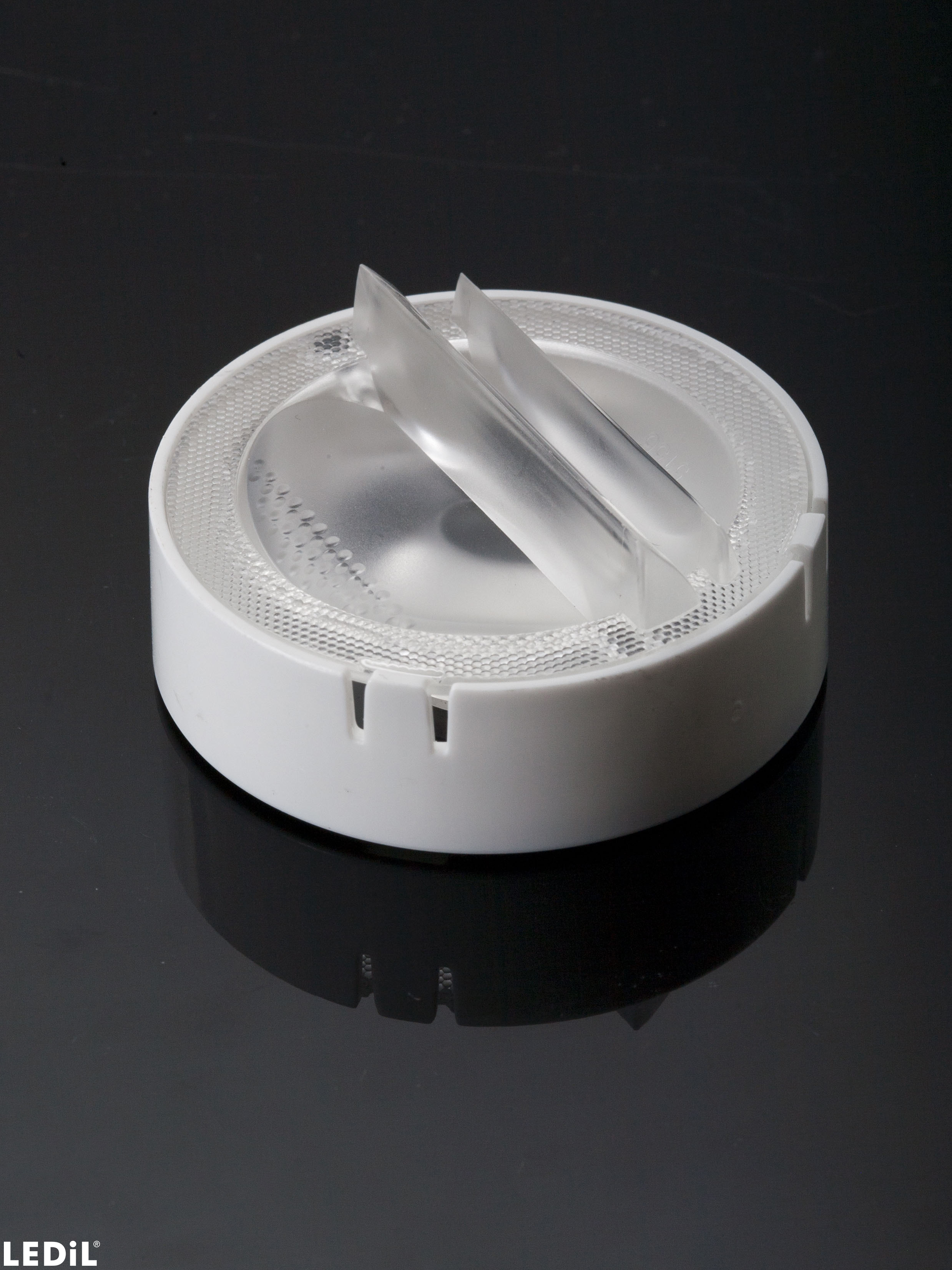

    Asymmetric beam for wall washing with holder C compatible with LEDiL HEKLA

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      54 mm
    • Height:
      24.65 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Single lens
      1 pcs
    • Holder
      1 pcs
    • Single lens
    • F15156_RONDA-WAS
      clear
    • Quantity in box:
      420 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.30 kg
    • MPQ:
      30 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 100 mm
    • MOQ Weight:
      2.20 kg
    • Holder
    • F15635_RONDA-HLD-C
      white
    • Quantity in box:
      420 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      4.10 kg
    • MPQ:
      30 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 120 mm
    • MOQ Weight:
      1.30 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F15156_RONDA-WAS
      F15635_RONDA-HLD-C
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Article

    Explore new retail lighting opportunities

    PCN

    Product change notification NR182 - Change of ordering method and quantities

    Compatible product

    B+W 630 Hekla datasheet

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    Case story

    RiQuardo modular bedhead

    Compatibility guide

    LEDiL connector and socket compatibility

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    Effective fashion retail lighting

    News

    PRODUCT NEWS - RONDA

    News

    PRODUCT NEWS - RONDA

    News

    HEKLA - Innovative family of sockets and solderless connectors

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    XTM-ADAPTER-50-C

    ∅50 mm basepart for Xicato XTM/XIM modules compatible with RONDA & CARMEN

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

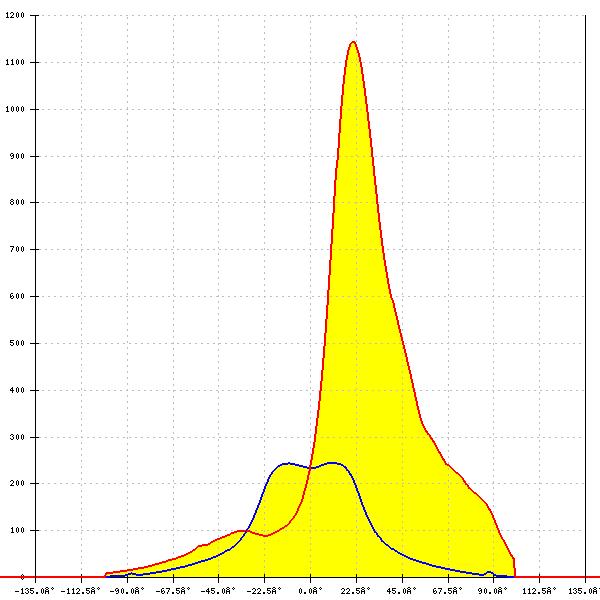

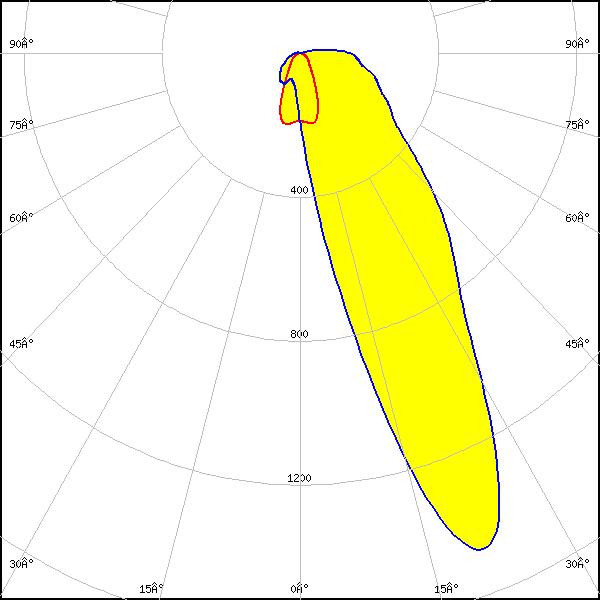

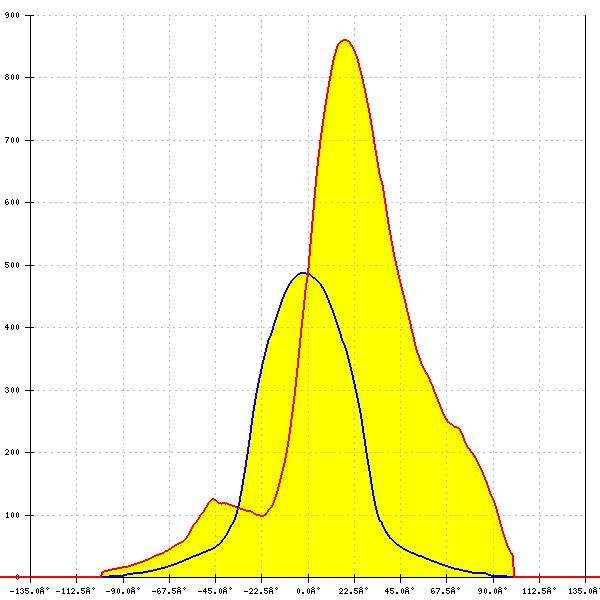

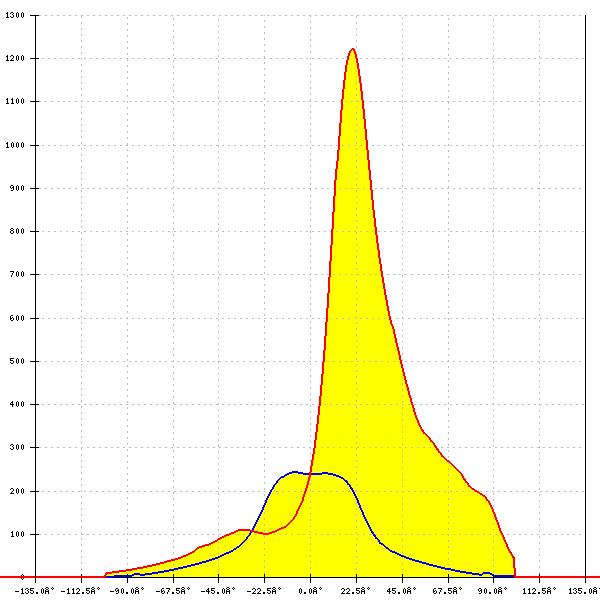

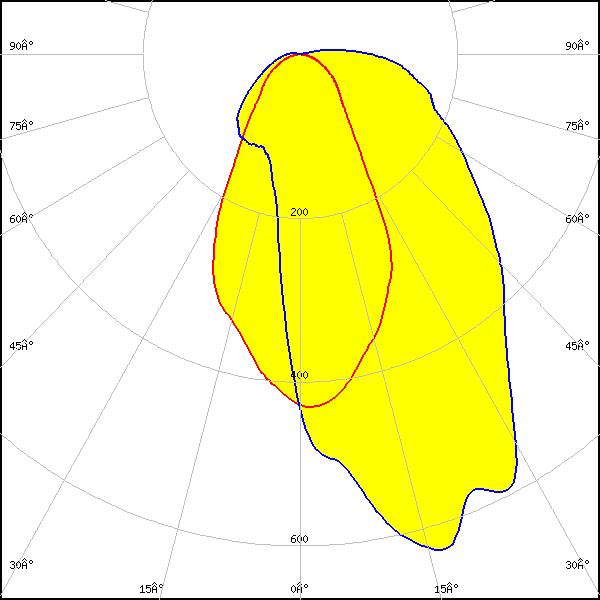

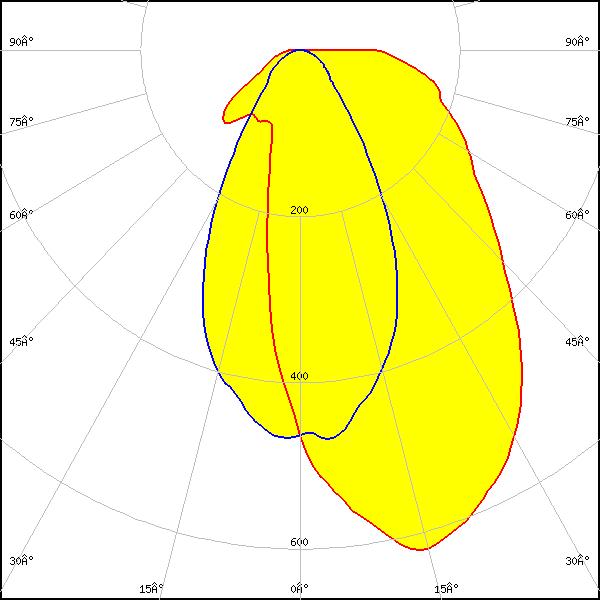

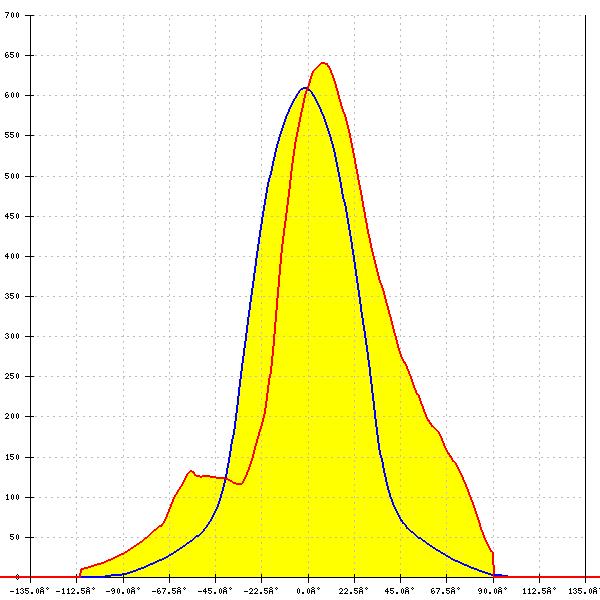

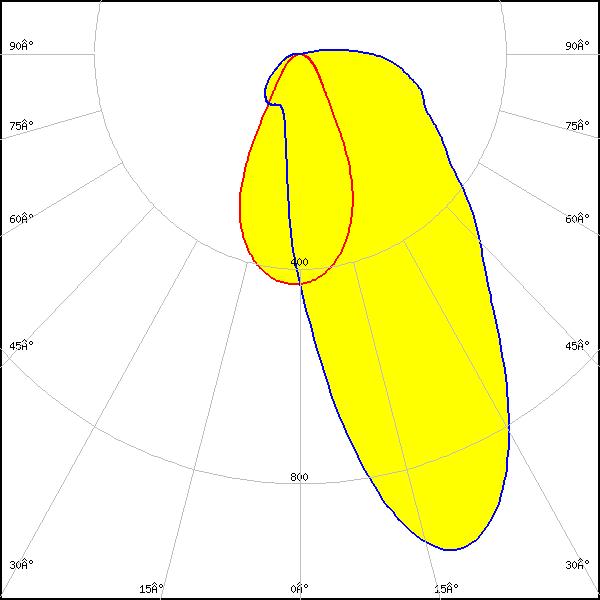

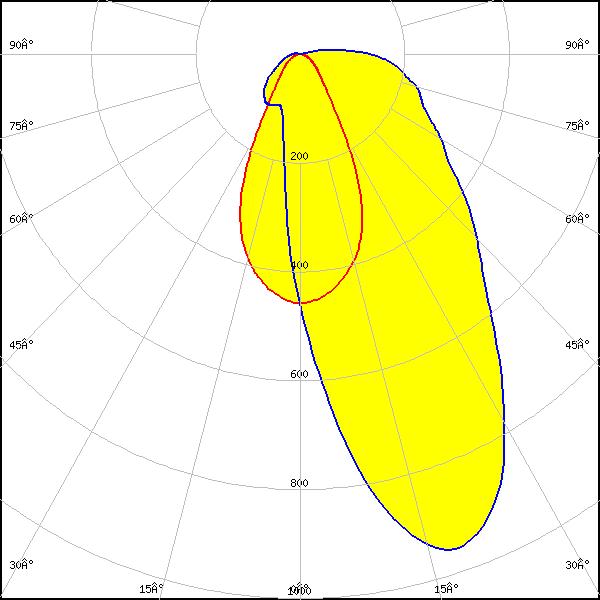

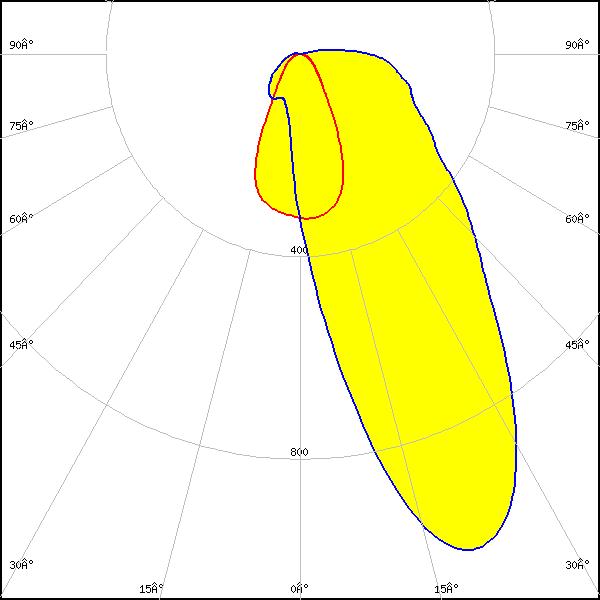

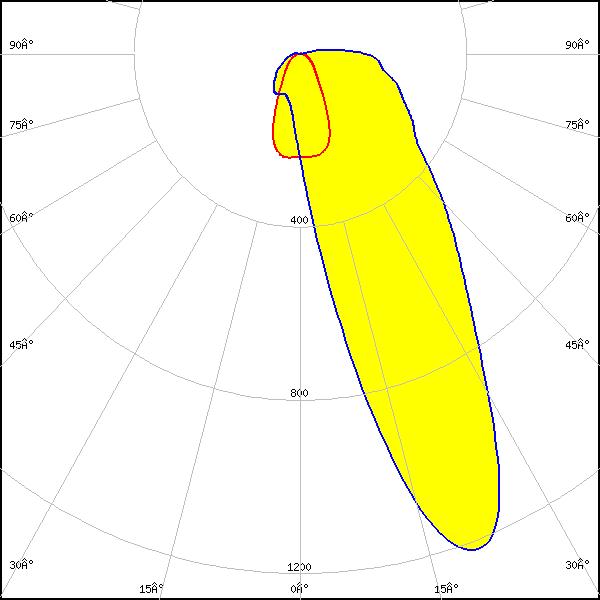

    Optical results

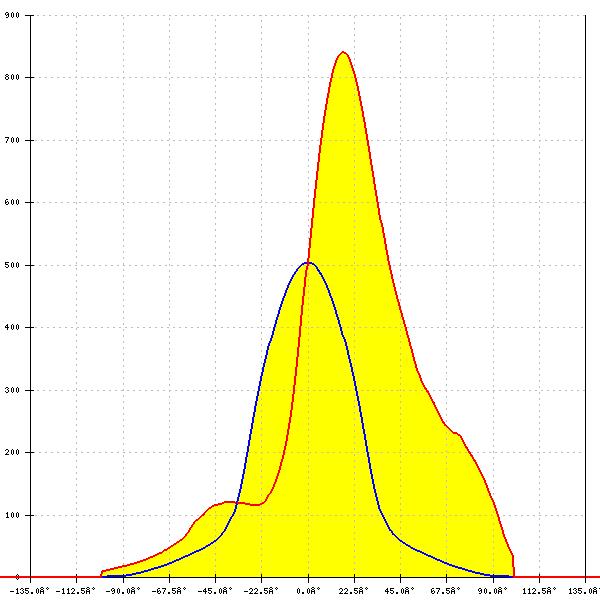

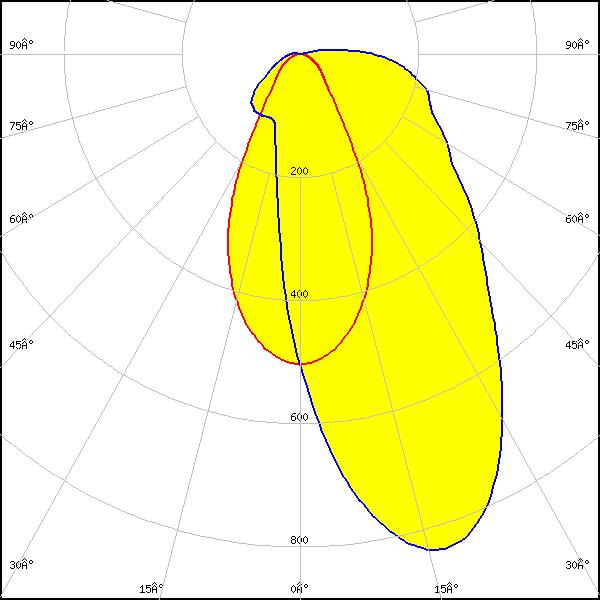

    LED: V11 HD Gen 8
    LES size: 11.3 mm
    Required components:
    Bender Wirth: 633d Hekla
    FWHM: asymmetric
    Peak intensity: 0.840 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

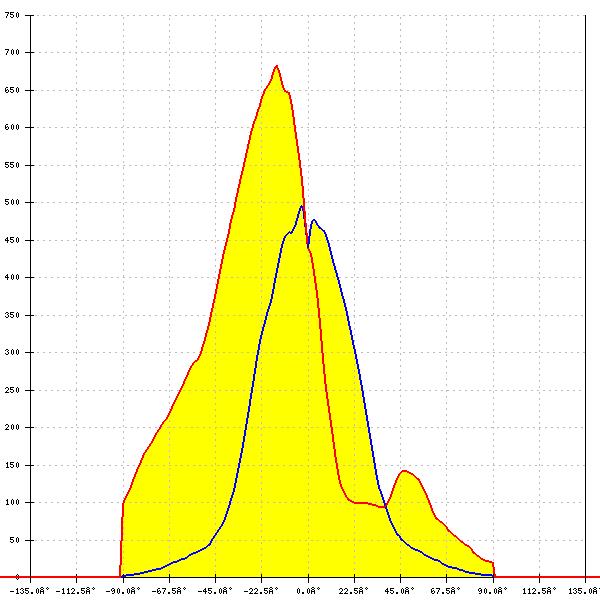

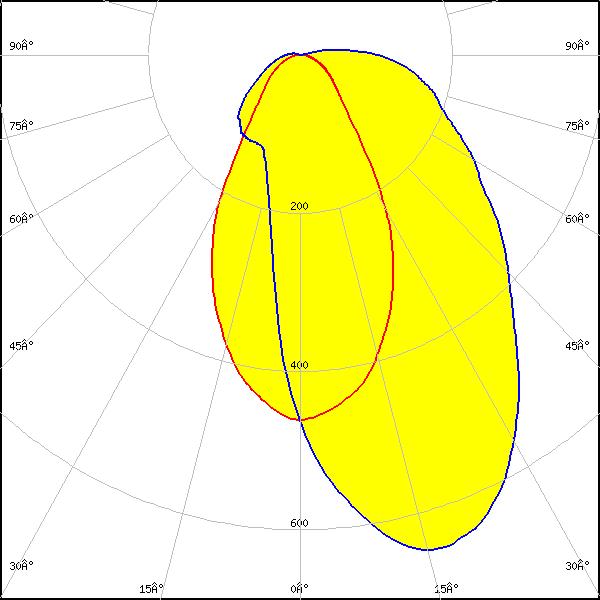

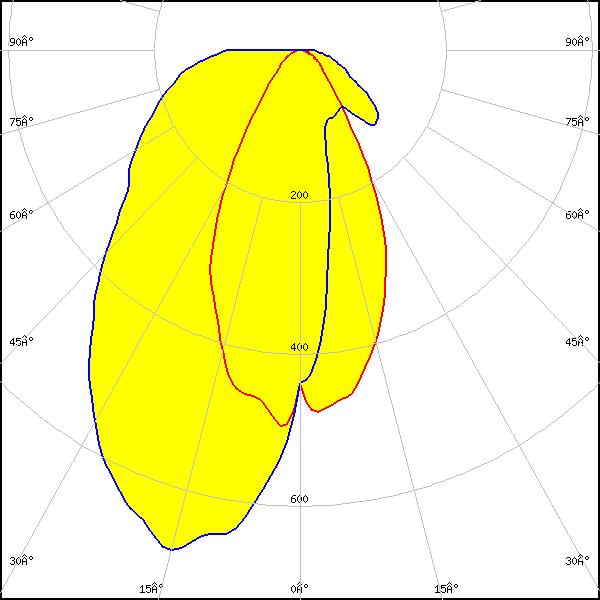

    LED: V13 Gen7
    LES size: 14.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.683 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

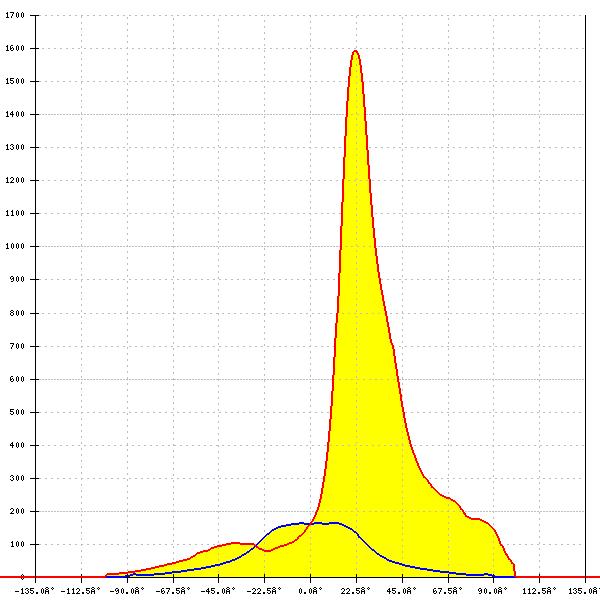

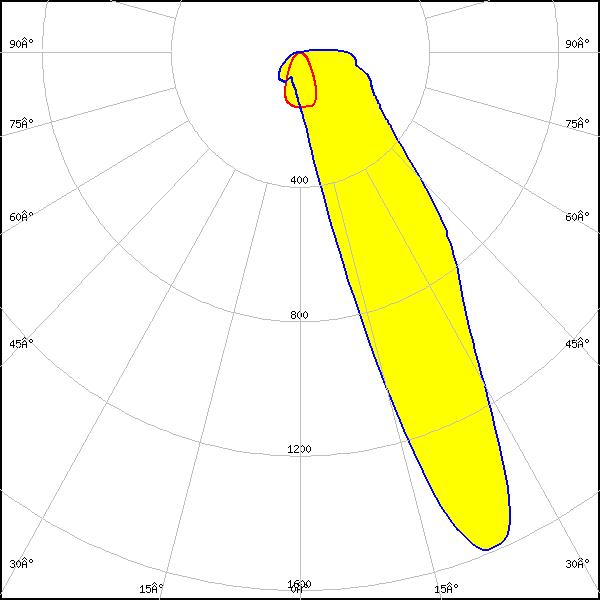

    LED: V4 HD Gen 7
    LES size: 5.2 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: asymmetric
    Peak intensity: 1.600 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

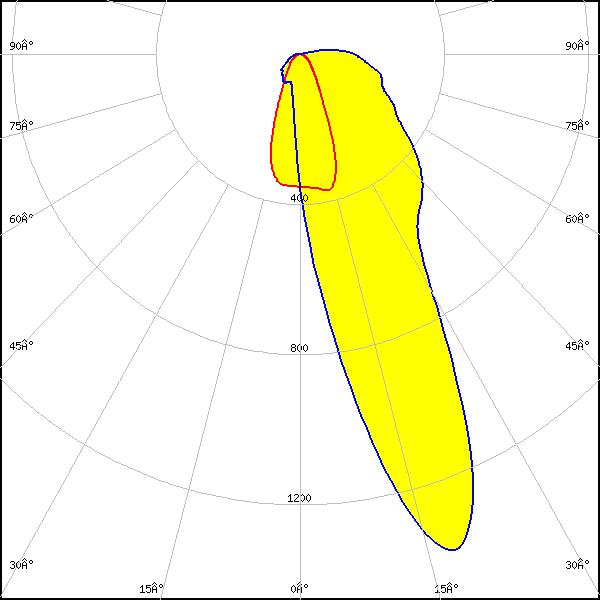

    LED: V6 Gen6
    LES size: 6.0 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: asymmetric
    Peak intensity: 1.400 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V6 HD Gen 7
    LES size: 7.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 1.400 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

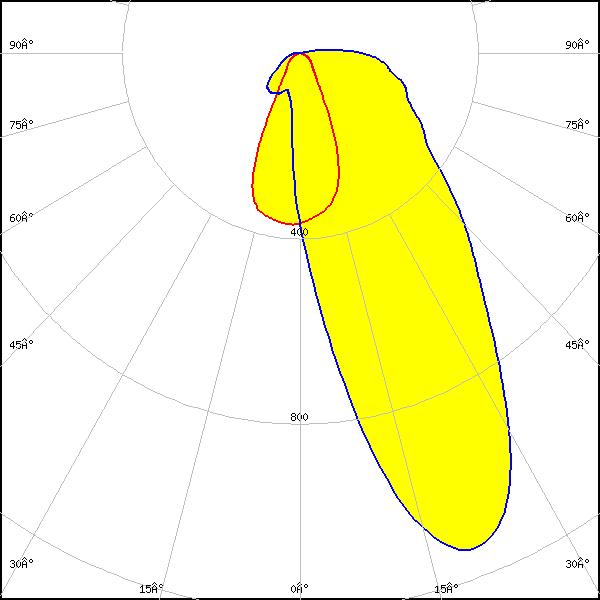

    LED: V9 HD Gen7
    LES size: 9.2 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

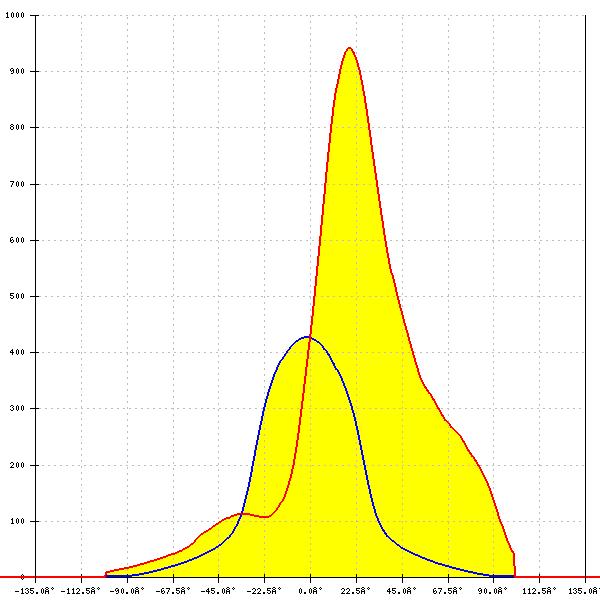

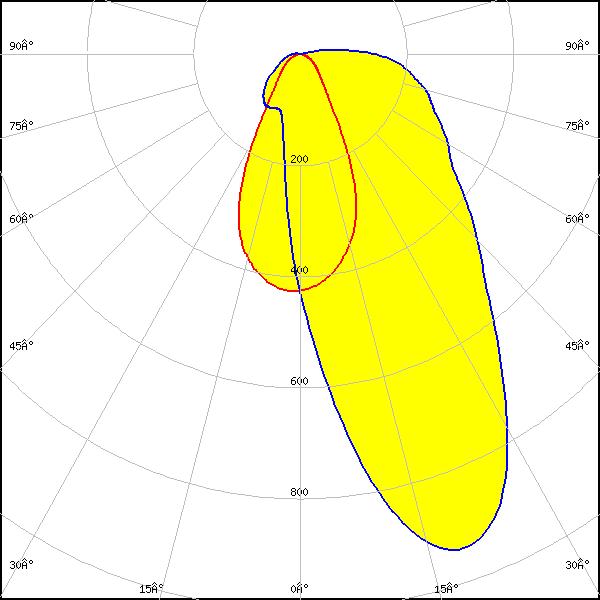

    LED: VERO10
    LES size: 9.9 mm
    Required components:
    F15616_HEKLA-SOCKET-F
    FWHM: asymmetric
    Peak intensity: 0.950 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 13mm (21W)
    LES size: 14.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 491 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.581 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

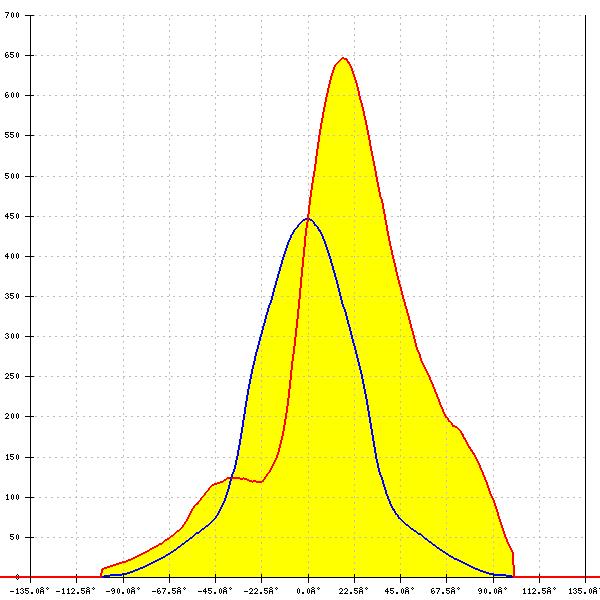

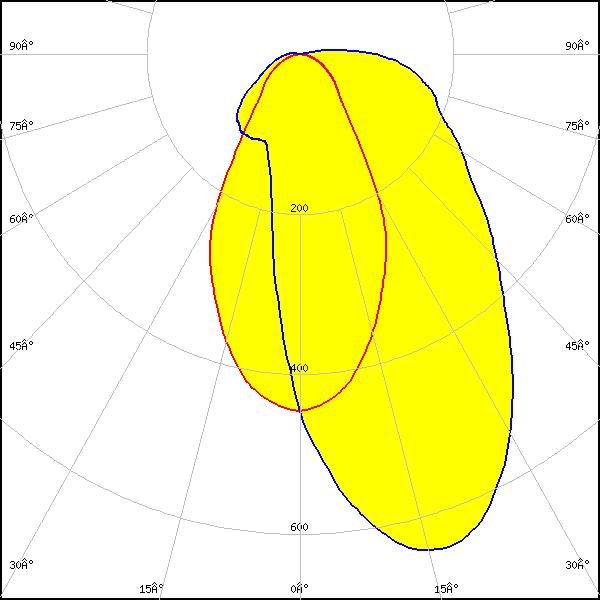

    LED: Vesta TW 13mm (25W) CSP
    LES size: 14.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 492 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 6mm DP
    LES size: 6.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 504 Typ L8
    FWHM: asymmetric
    Peak intensity: 1.308 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

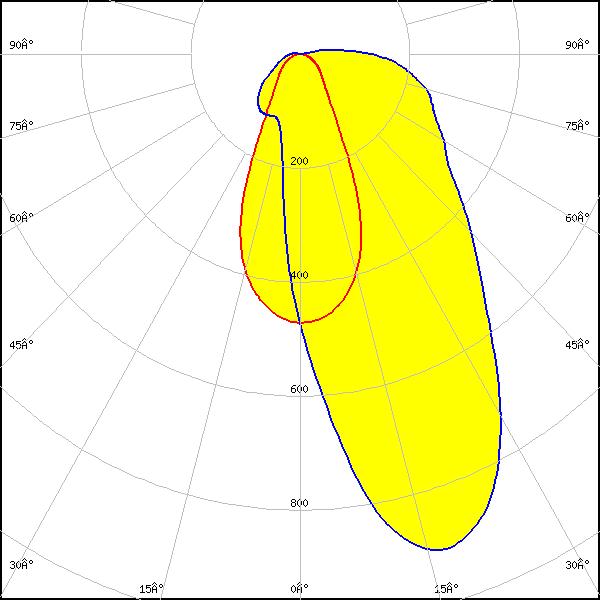

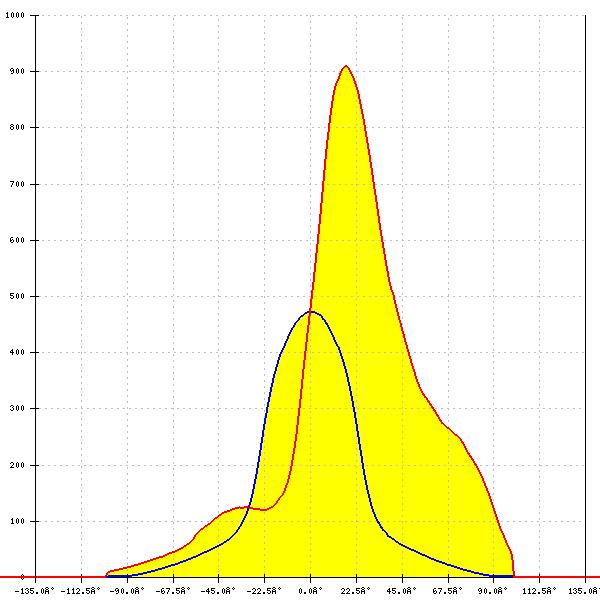

    LED: Vesta TW 9mm (12W) CSP
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: asymmetric
    Peak intensity: 0.910 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

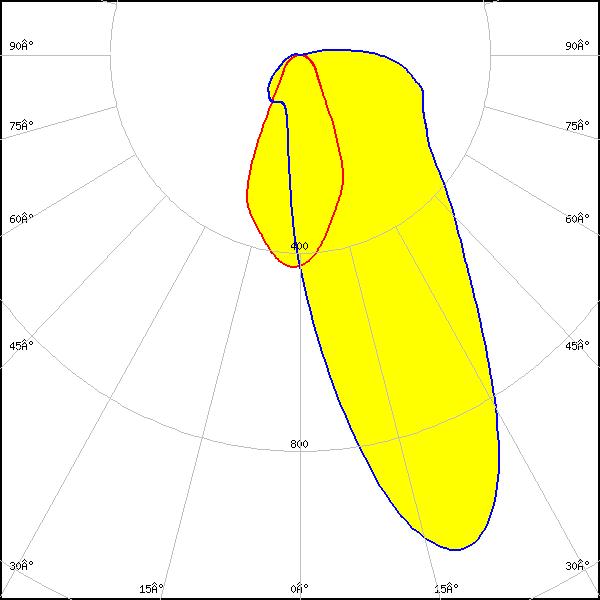

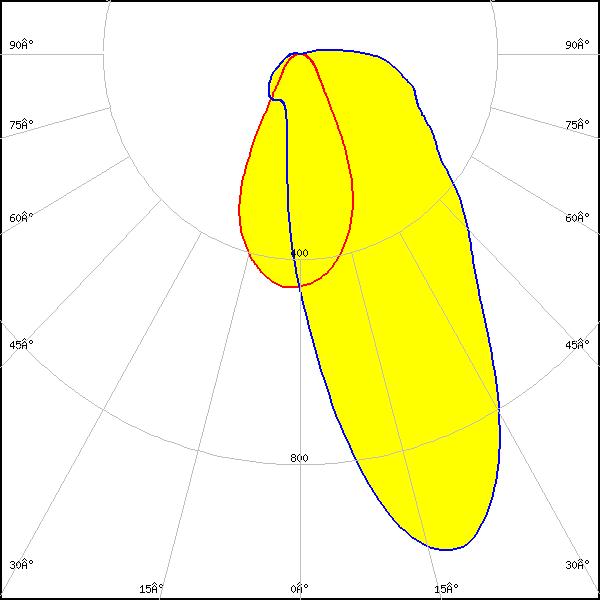

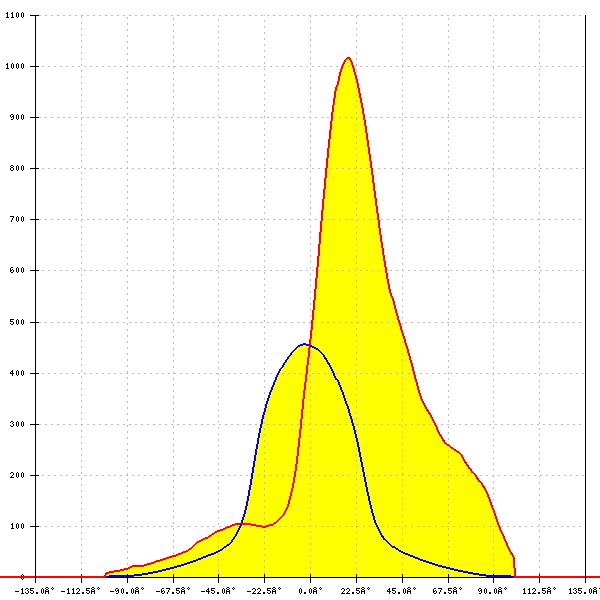

    LED: CLC020 Series (Dim-To-Warm)
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

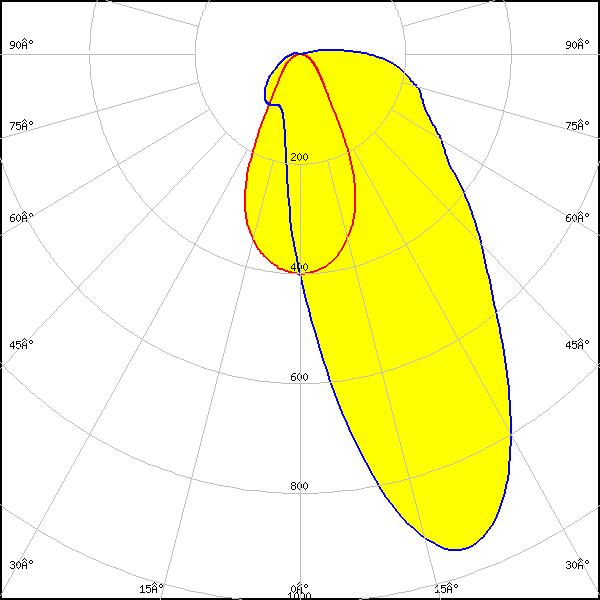

    LED: CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 0.960 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

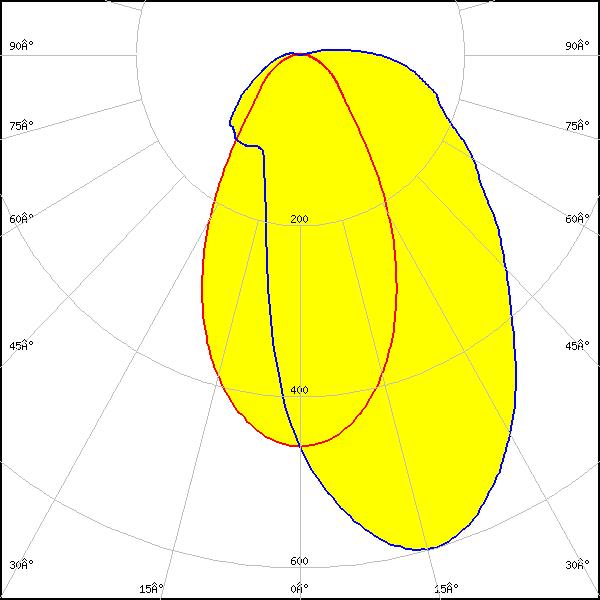

    LED: CLU03x
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

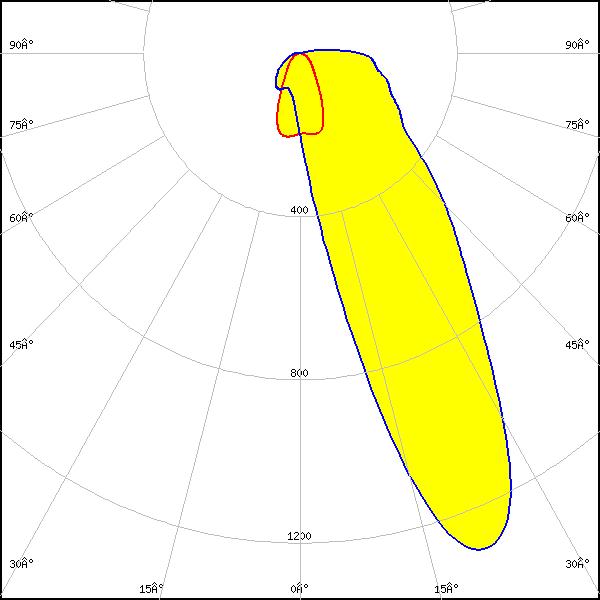

    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

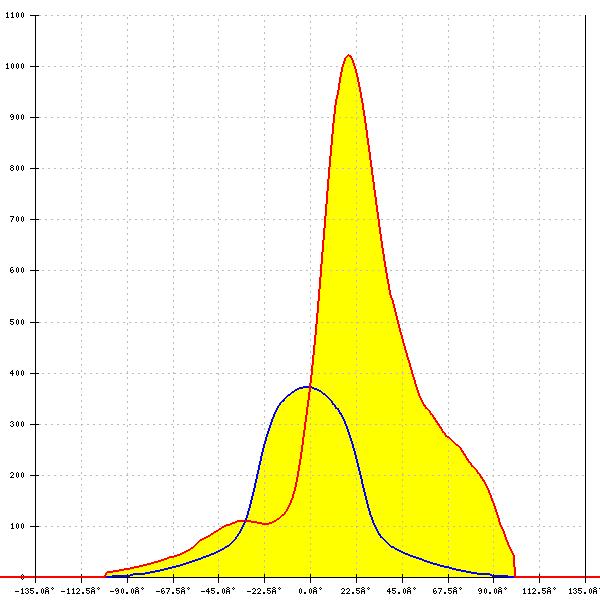

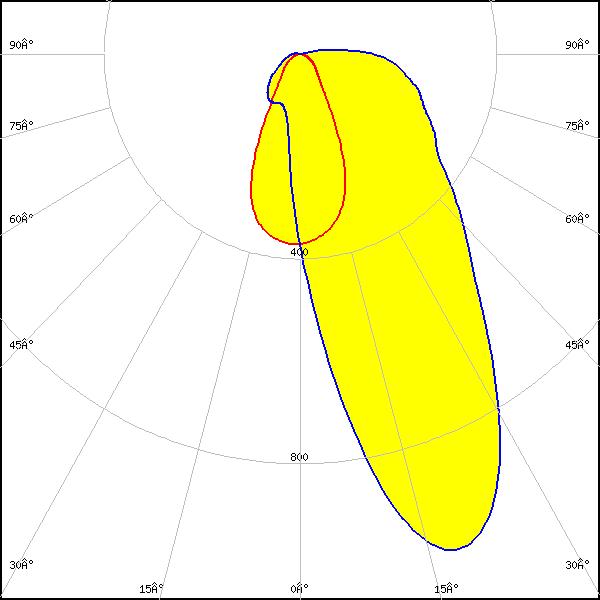

    LED: CLU710/711
    LES size: 8.5 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

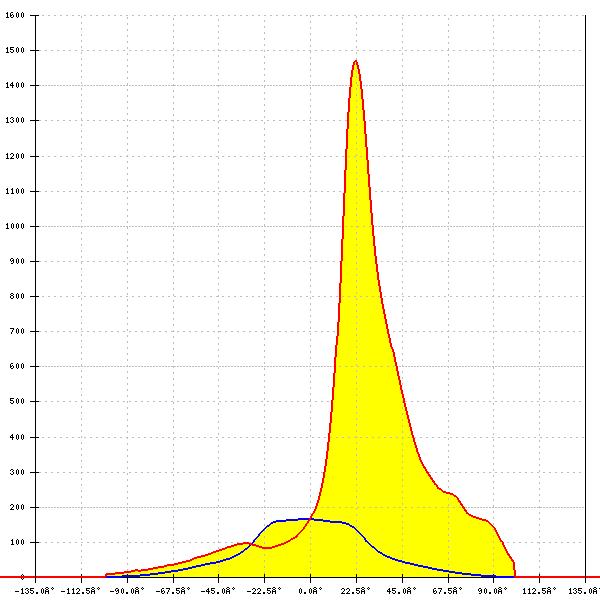

    LED: CLU7A2/7A3
    LES size: 4.2 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 1.500 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

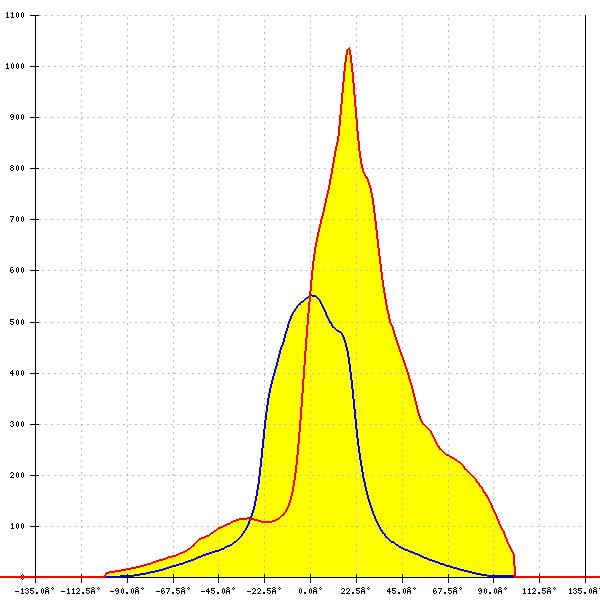

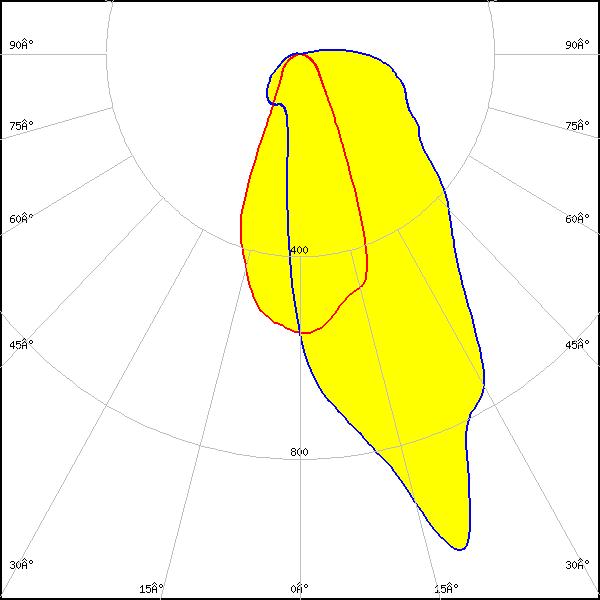

    LED: LCN-C01B (Tunable White)
    LES size: 10.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 481 Typ L8
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

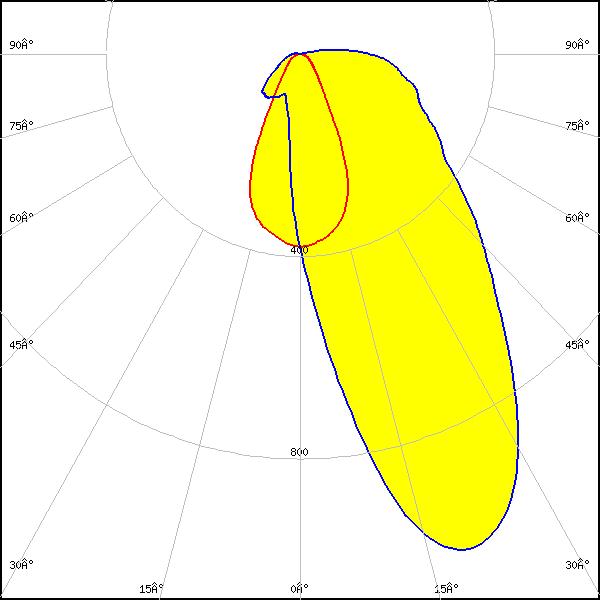

    LED: CMA1516
    LES size: 9.0 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

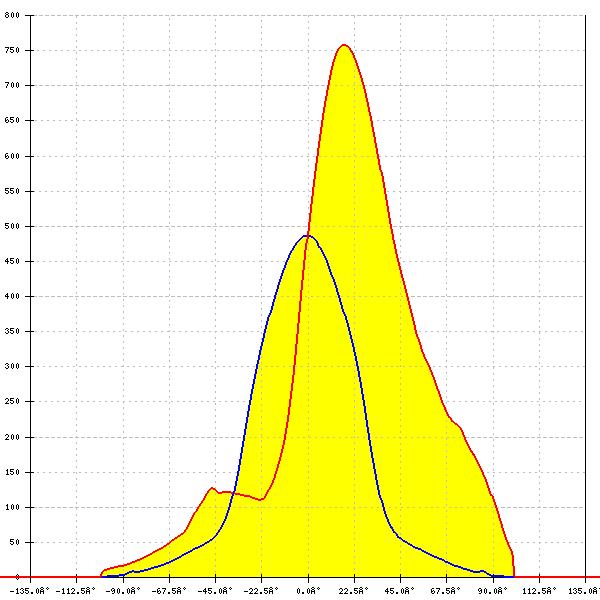

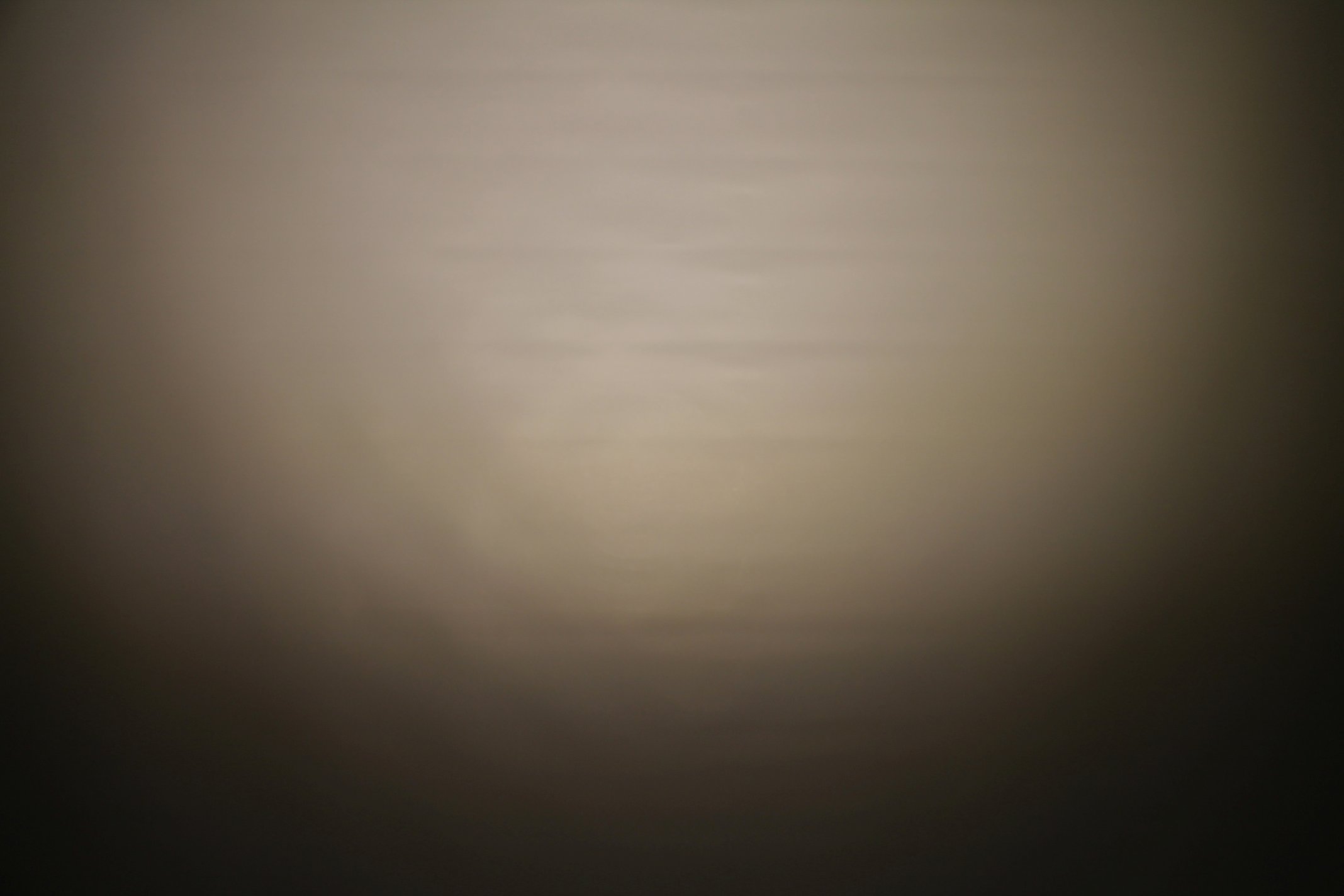

    LED: CMA1825
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: asymmetric
    Peak intensity: 0.770 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

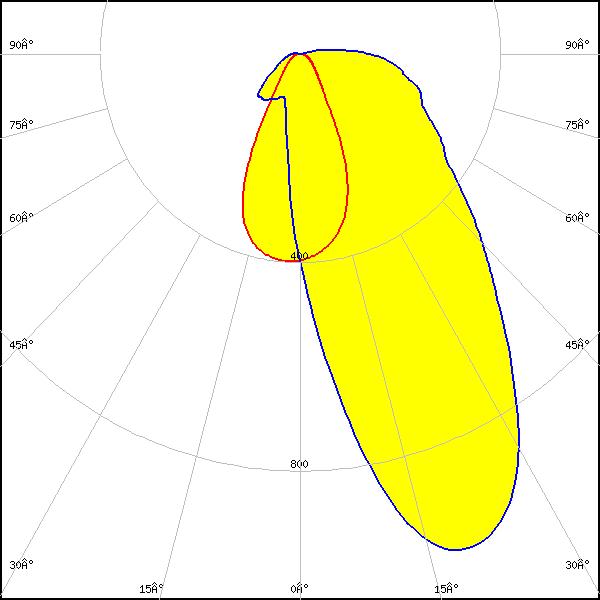

    LED: CMT14xx
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

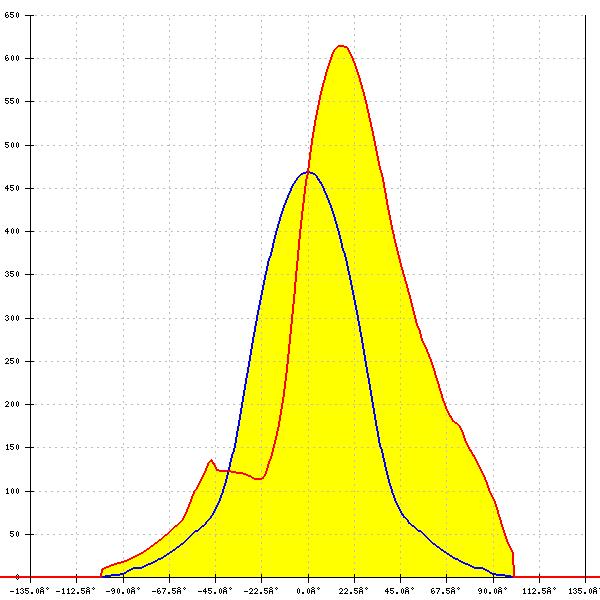

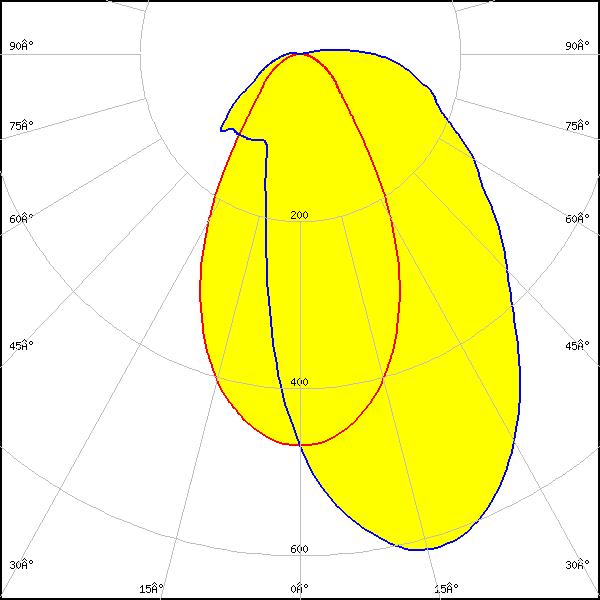

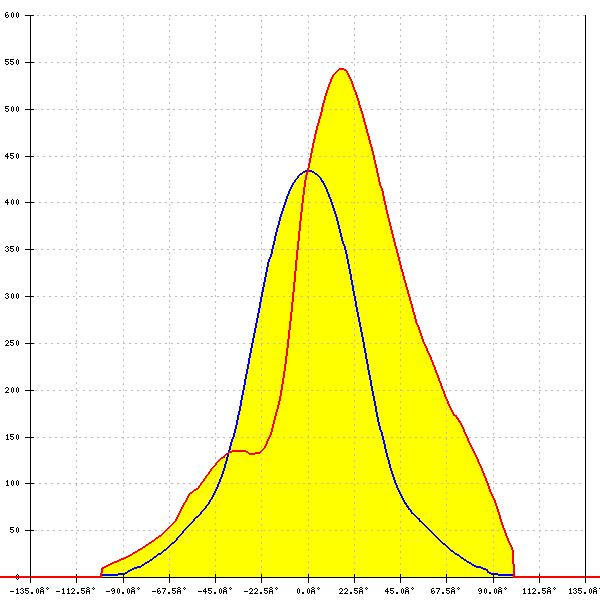

    LED: CMT19xx
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.618 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

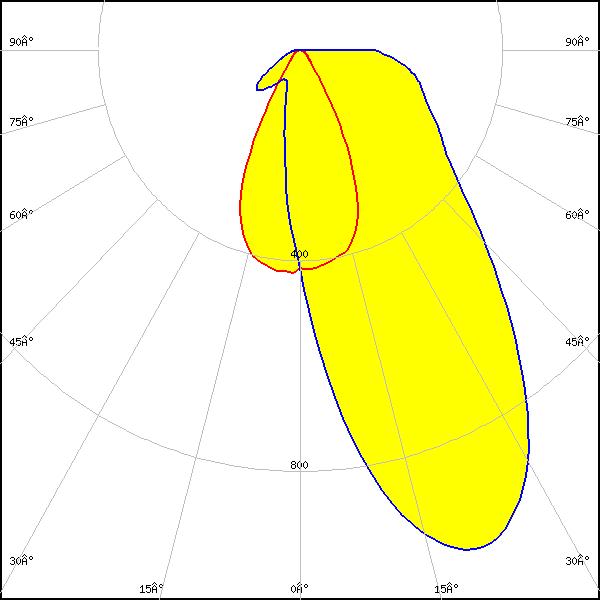

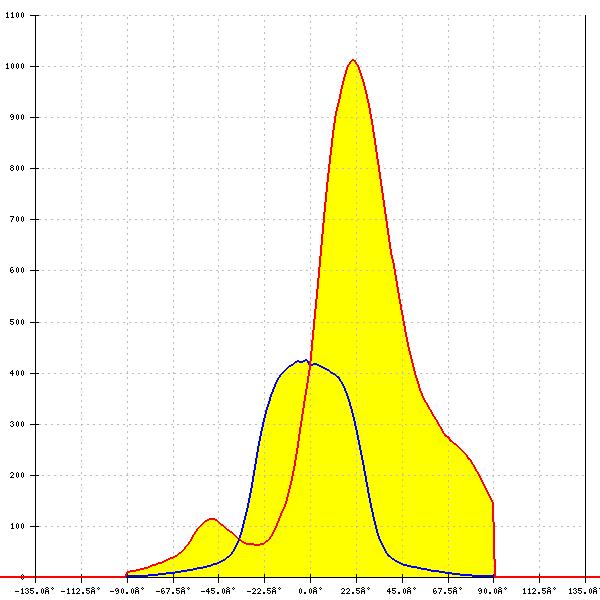

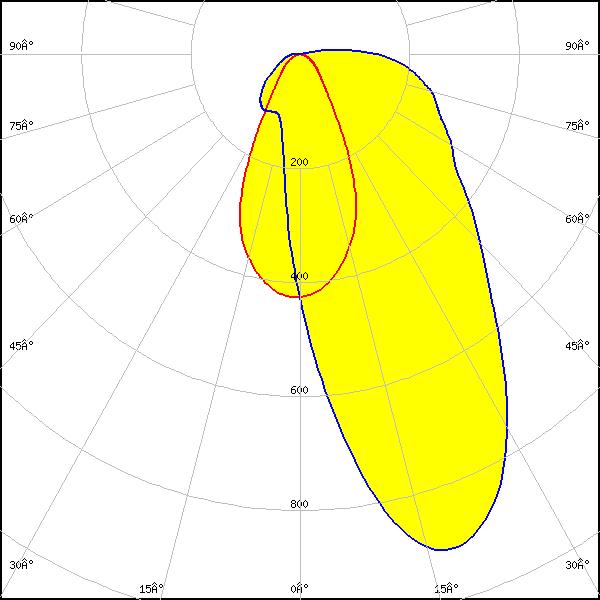

    LED: CMU10xx
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: asymmetric
    Peak intensity: 1.011 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

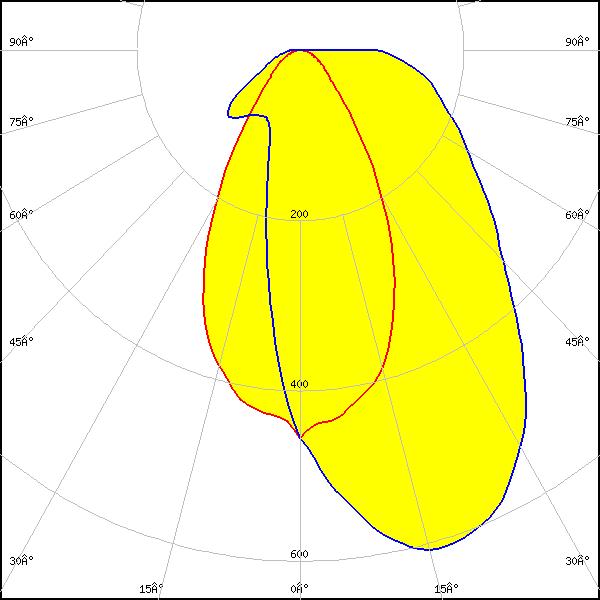

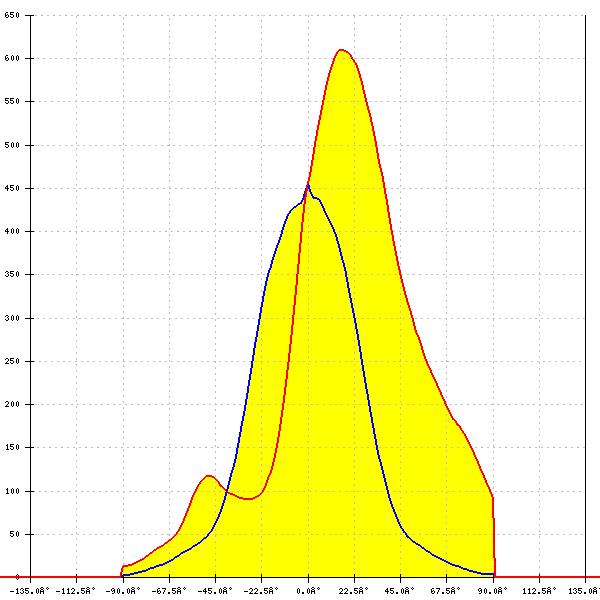

    LED: CMU15xx
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: asymmetric
    Peak intensity: 0.611 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

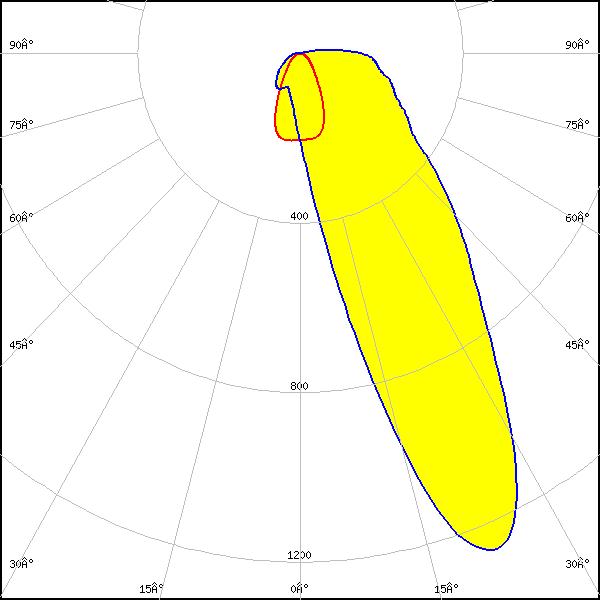

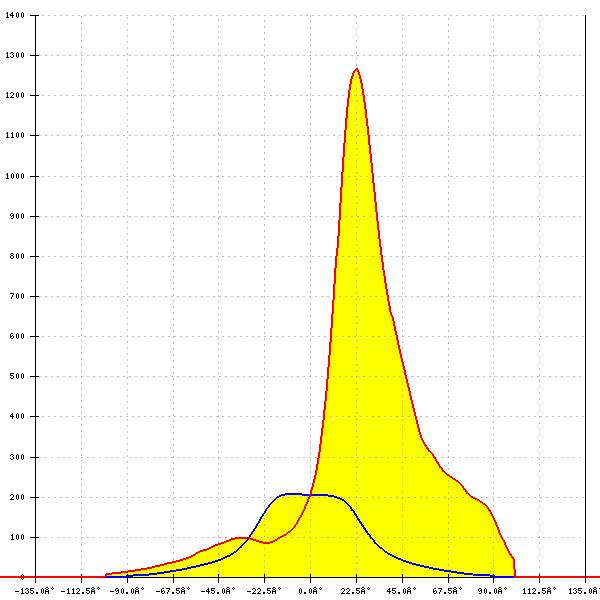

    LED: CXA/B 13xx
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: asymmetric
    Peak intensity: 1.270 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

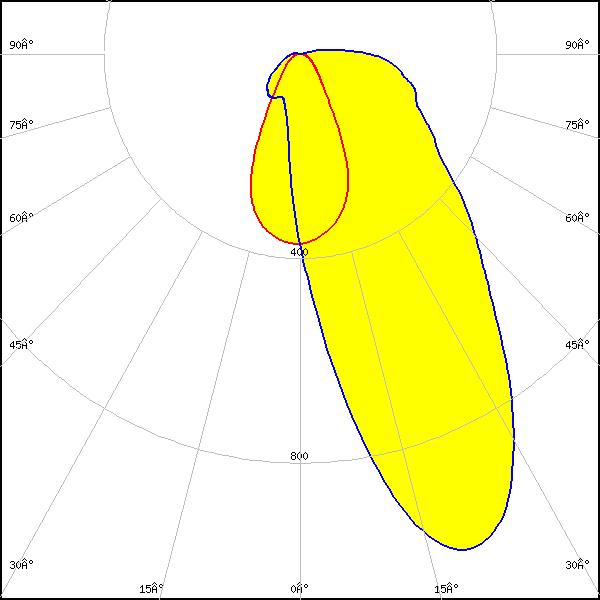

    LED: CXA/B 15xx
    LES size: 8.9 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

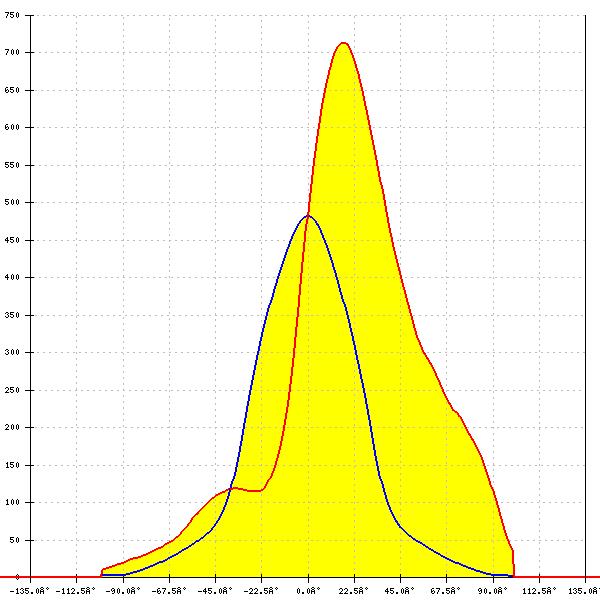

    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: asymmetric
    Peak intensity: 0.700 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

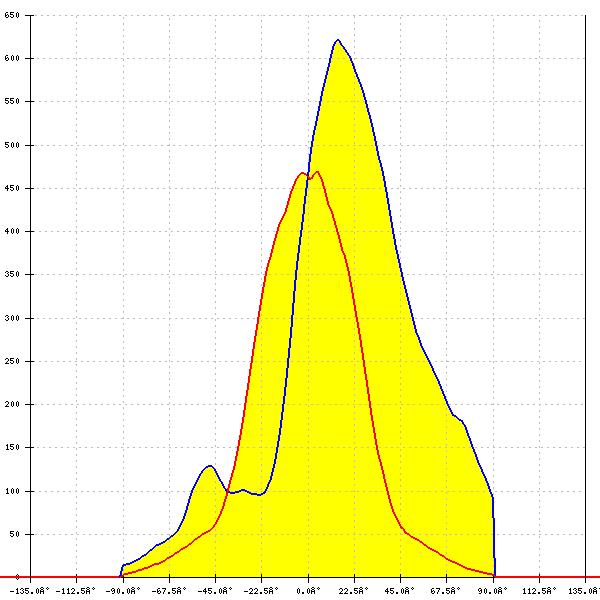

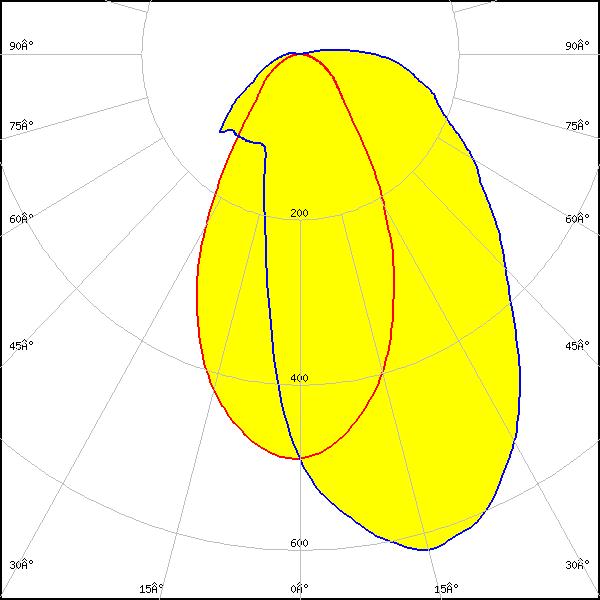

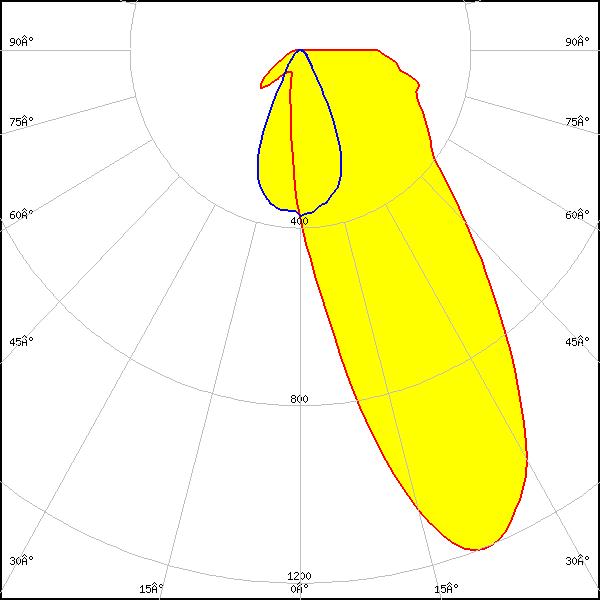

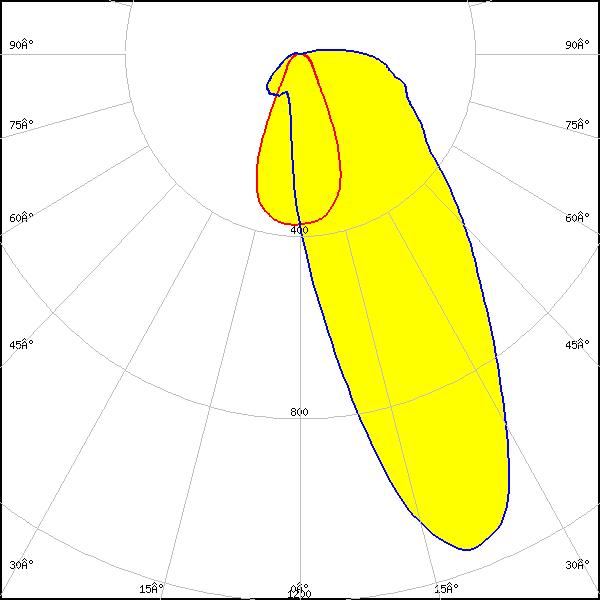

    LED: LUXEON CX Plus CoB L08 (Gen2)
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: asymmetric
    Peak intensity: 0.624 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

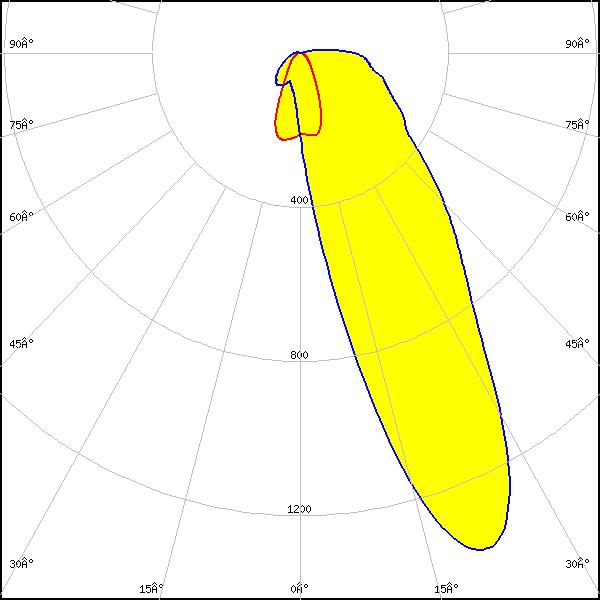

    LED: LUXEON CoB 1202HD
    LES size: 6.5 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: asymmetric
    Peak intensity: 1.400 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

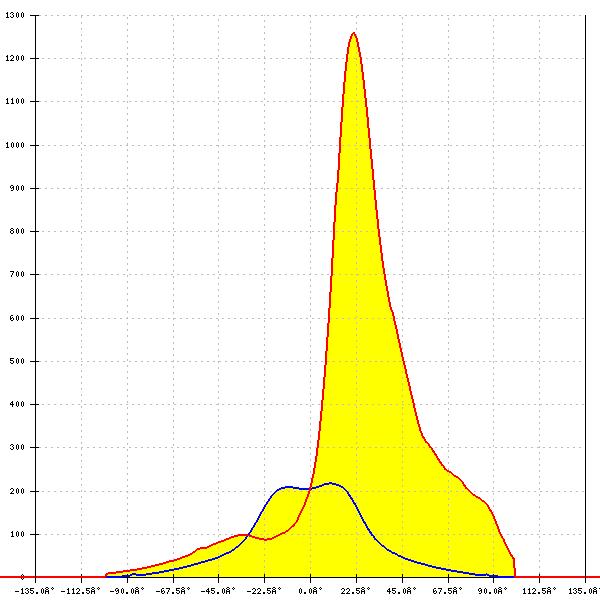

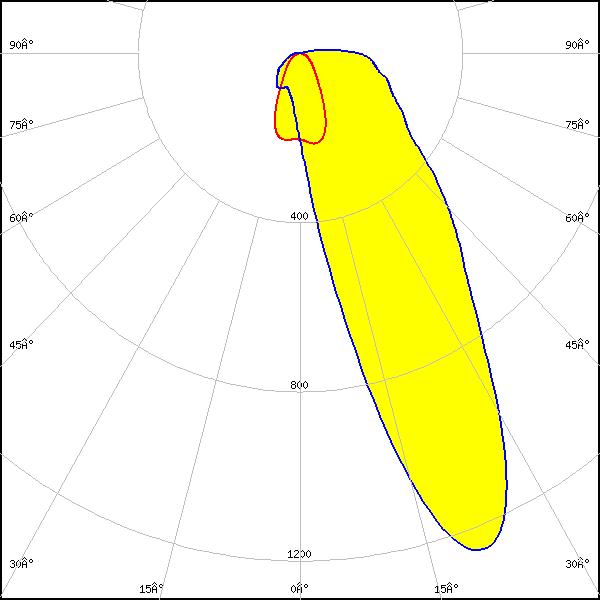

    LED: LUXEON CoB 1202s
    LES size: 6.5 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204HD
    LES size: 9.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: asymmetric
    Peak intensity: 1.090 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

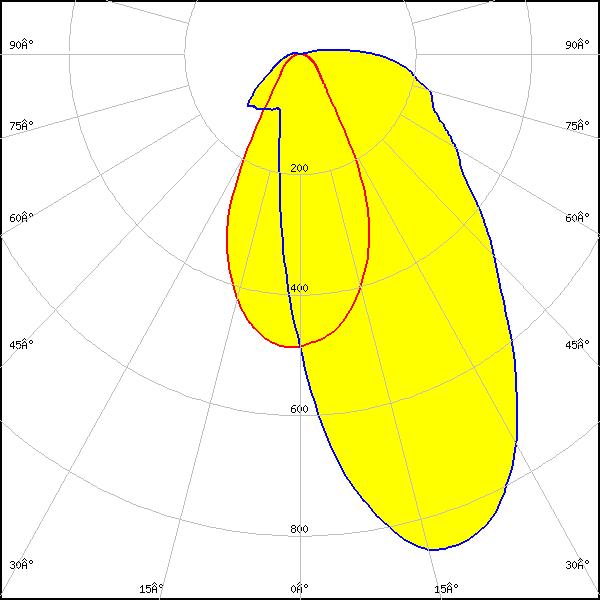

    LED: LUXEON CoB 1205HD
    LES size: 11.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: asymmetric
    Peak intensity: 0.870 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB L04/L05
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: asymmetric
    Peak intensity: 0.831 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB L08
    LES size: 14.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 457 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.621 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB M02/M03
    LES size: 8.5 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: asymmetric
    Peak intensity: 1.204 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB S01
    LES size: 5.5 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: asymmetric
    Peak intensity: 1.592 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

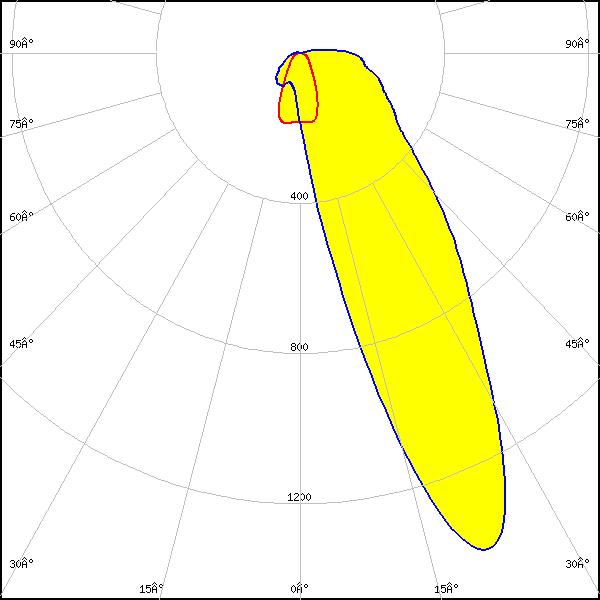

    LED: LUXEON CX Plus CoB - HD S01H4
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: asymmetric
    Peak intensity: 1.441 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S02H6
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: asymmetric
    Peak intensity: 1.393 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S04H9
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: asymmetric
    Peak intensity: 1.079 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

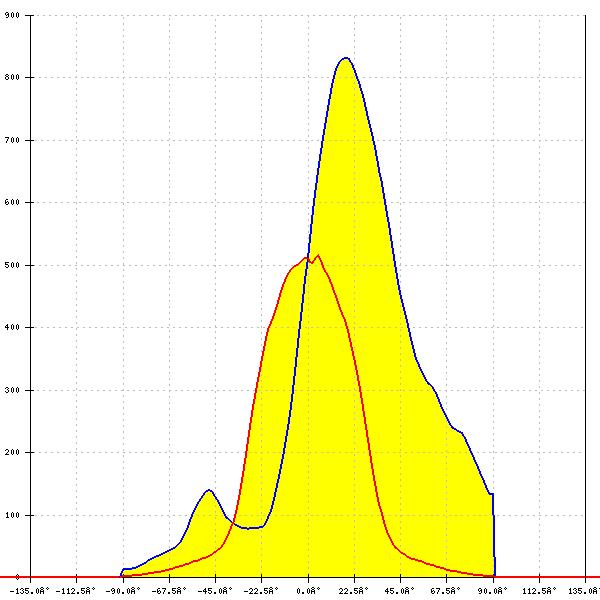

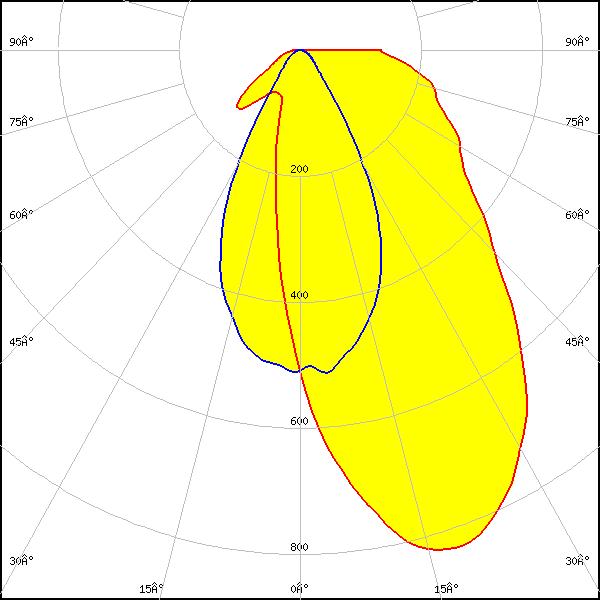

    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    LES size: 12.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: asymmetric
    Peak intensity: 0.849 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

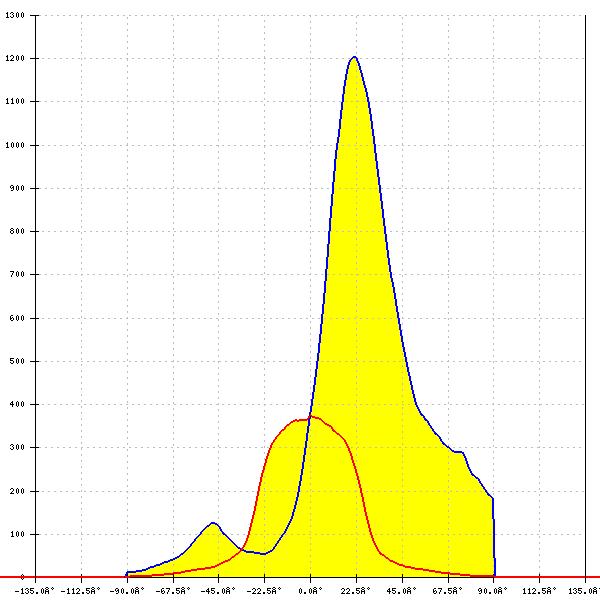

    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 641a Hekla
    FWHM: asymmetric
    Peak intensity: 1.162 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB S01 (Gen2)
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: asymmetric
    Peak intensity: 1.493 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

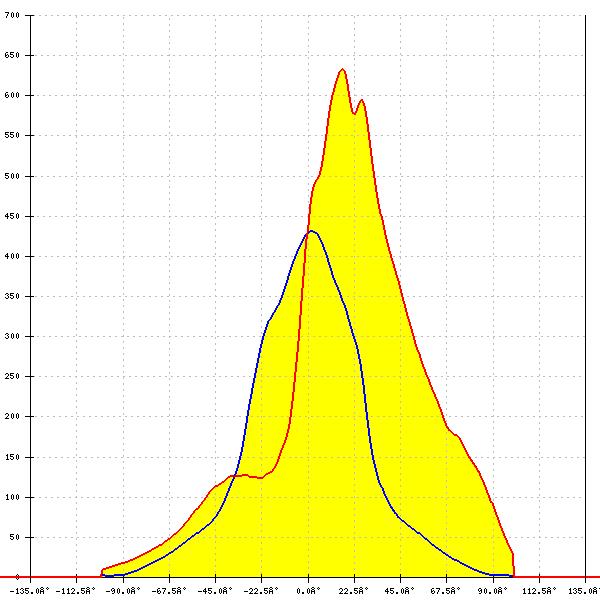

    LED: CDM-14 (Dim-To-Warm)
    LES size: 15.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 491 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

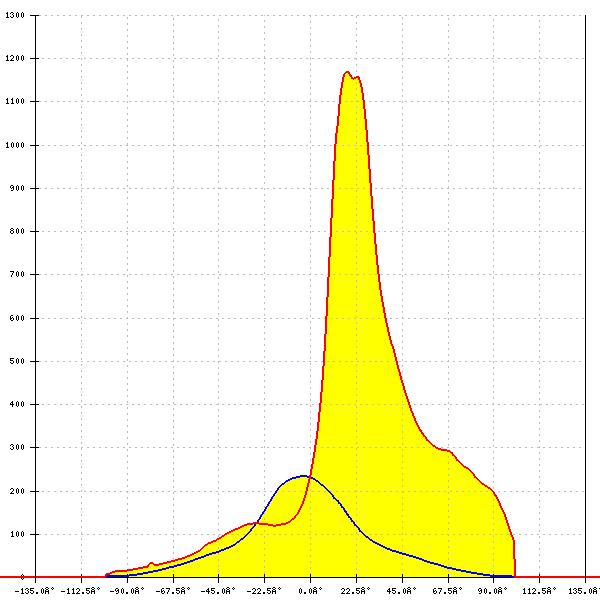

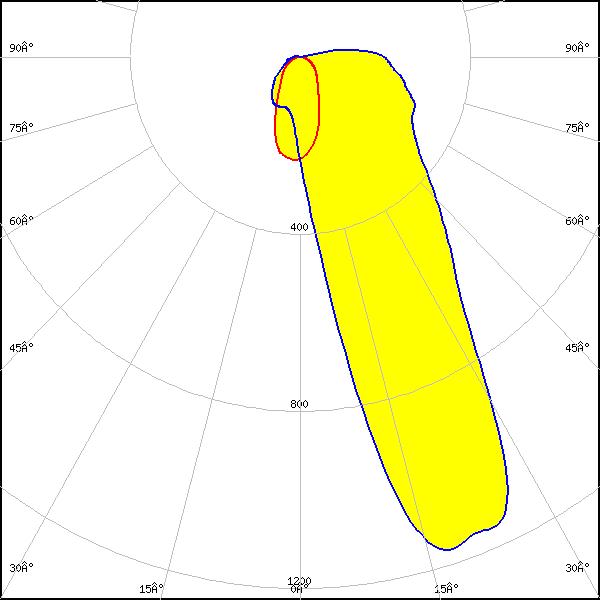

    LED: CDM-6 (Dim-To-Warm)
    LES size: 6.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 490 Typ L8
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

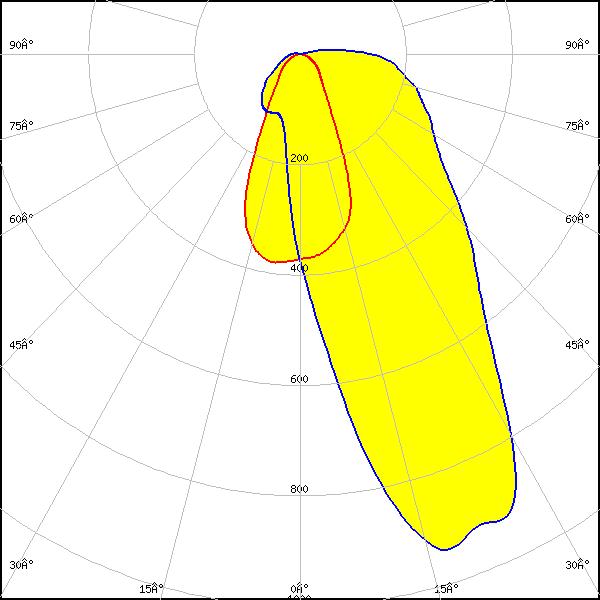

    LED: CDM-9 (Dim-To-Warm)
    LES size: 9.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 490 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.940 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

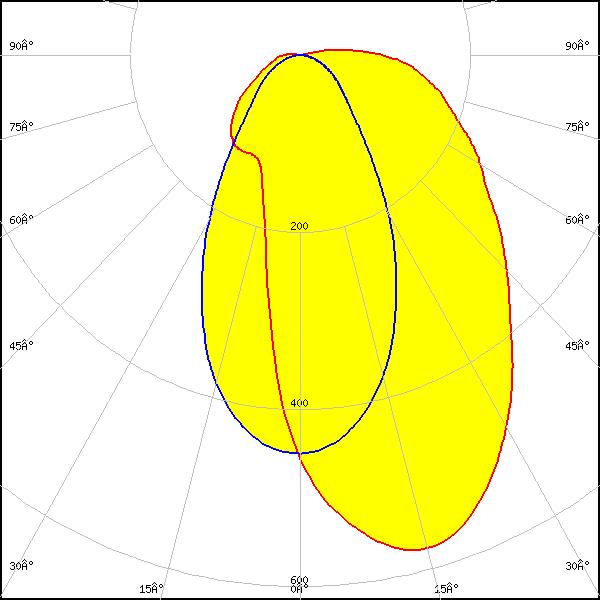

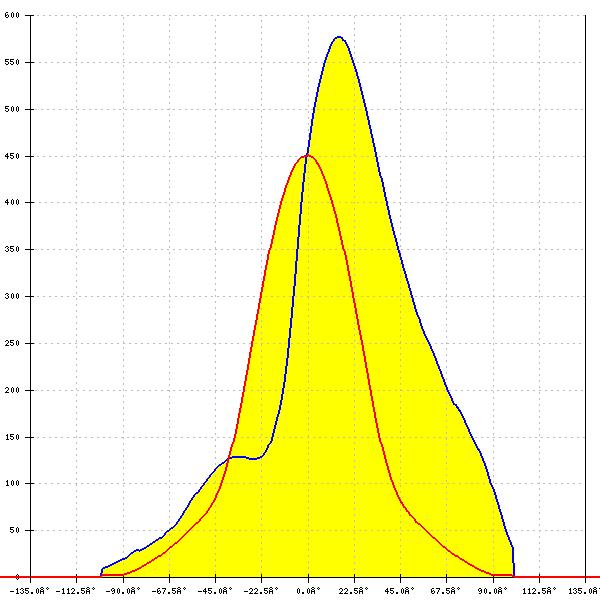

    LED: CxM-14 (19x19)
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.580 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

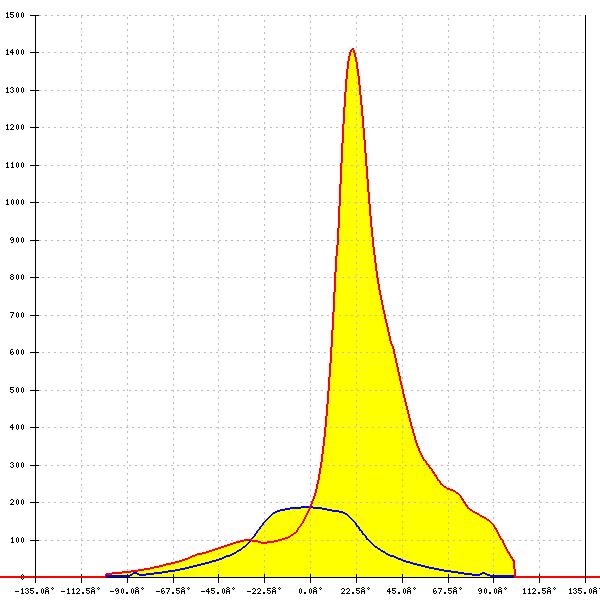

    LED: CXM-4
    LES size: 4.5 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 1.418 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-9 (13.5x13.5)
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 0.970 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 11)
    LES size: 11.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 463 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.710 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

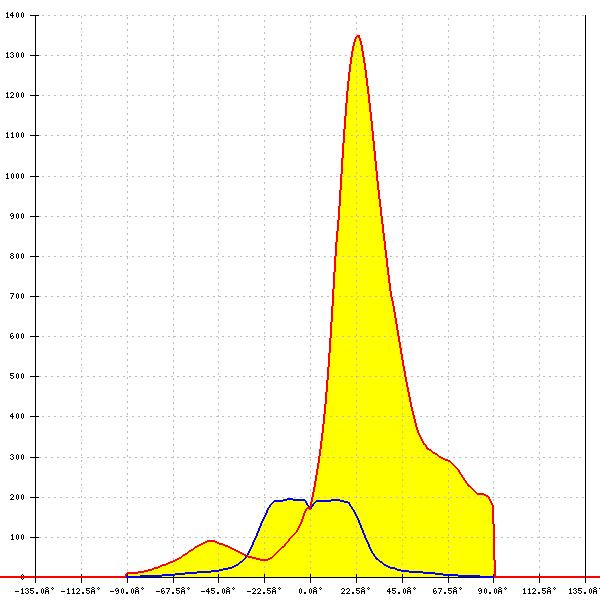

    LED: COB T-Type
    LES size: 5.9 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: asymmetric
    Peak intensity: 1.350 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

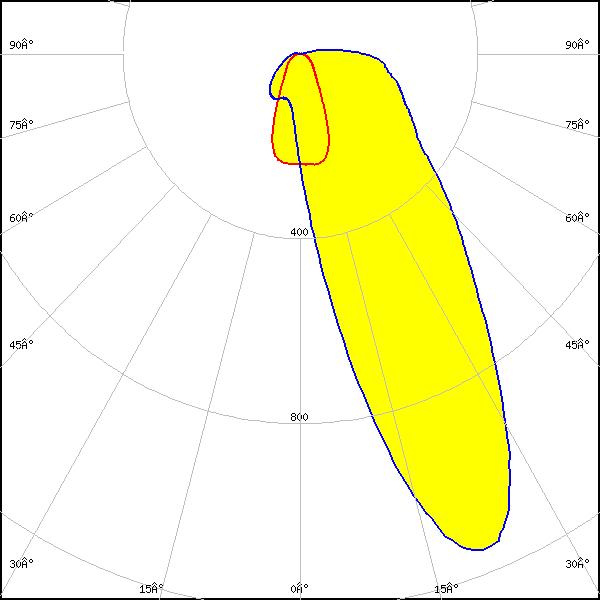

    LED: NJCWL024Z-V1MT: COB L-Type Tunable White
    LES size: 7.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 497 Typ L8
    FWHM: asymmetric
    Peak intensity: 1.158 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    LES size: 10.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 498 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.870 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

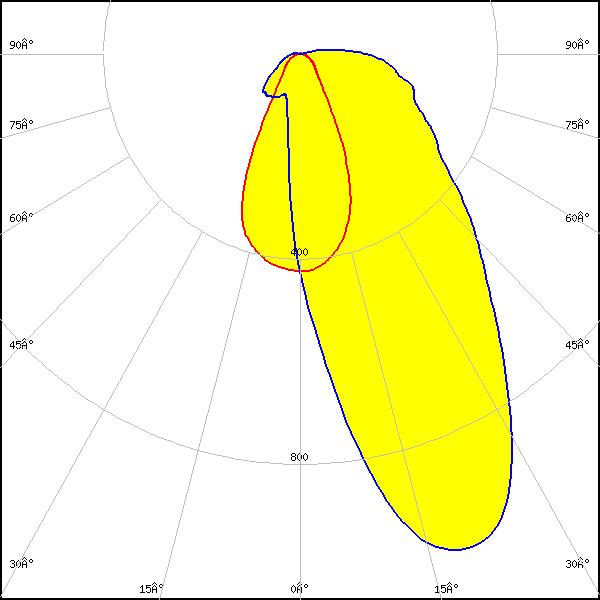

    LED: Fortimo SLM L09 CoB
    LES size: 9.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

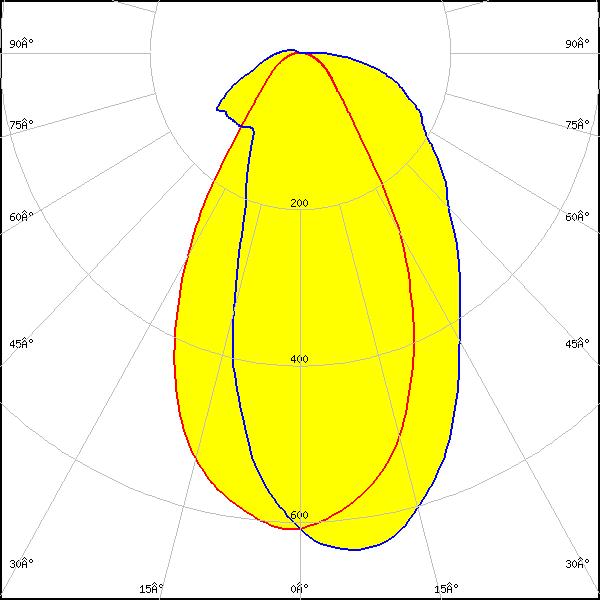

    LED: Fortimo SLM L13 CoB
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 432 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.640 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    LES size: 9.8 mm
    FWHM: asymmetric
    Peak intensity: 0.960 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010C
    LES size: 6.0 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

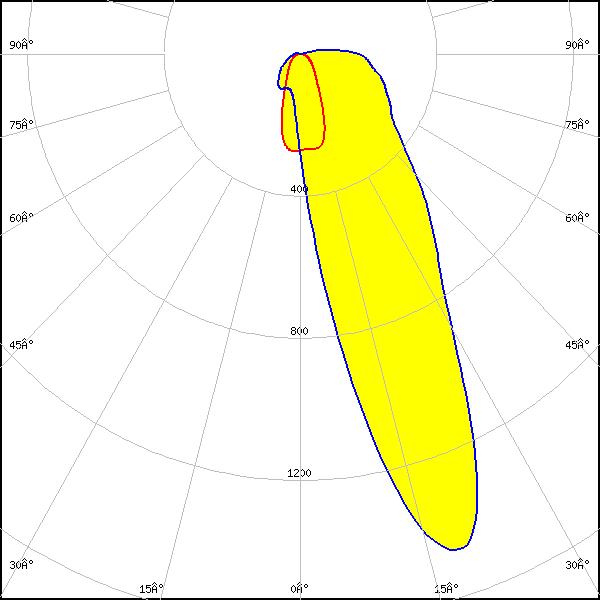

    LED: LC010C G2
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 1.500 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

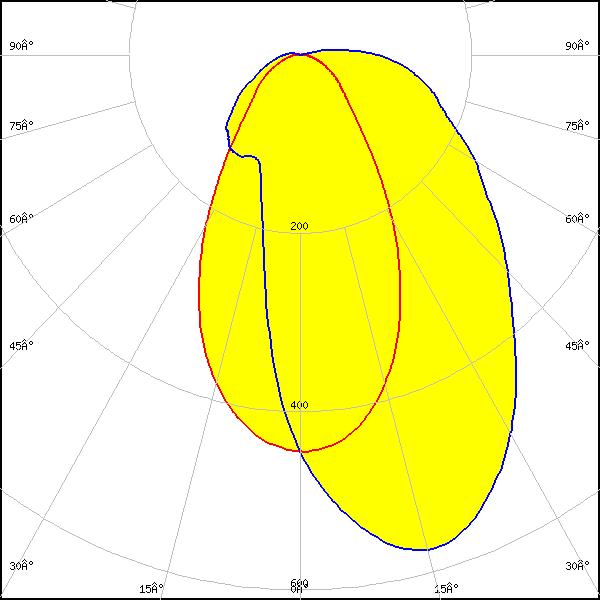

    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.580 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020C
    LES size: 8.0 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020C G2
    LES size: 8.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 6
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 9.8
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 0.900 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

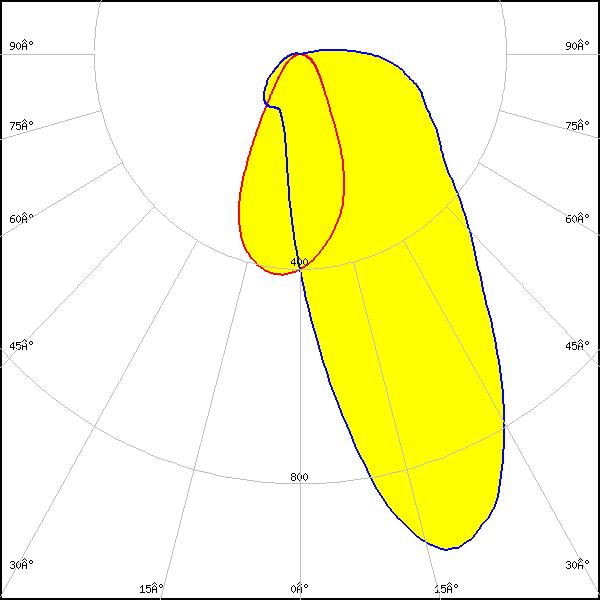

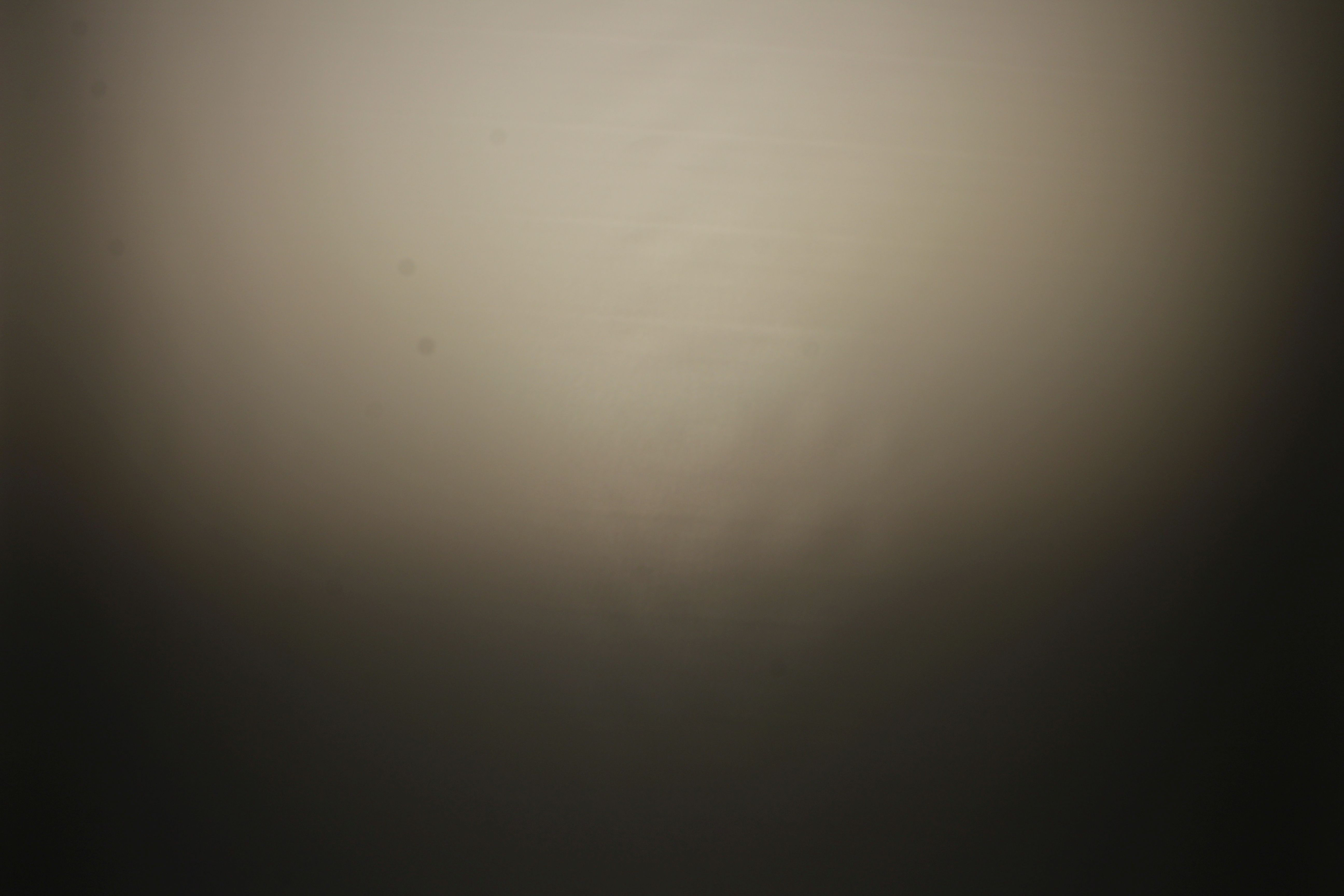

    LED: SLE G7 LES09
    LES size: 9.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 0.980 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES13
    LES size: 13.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.650 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

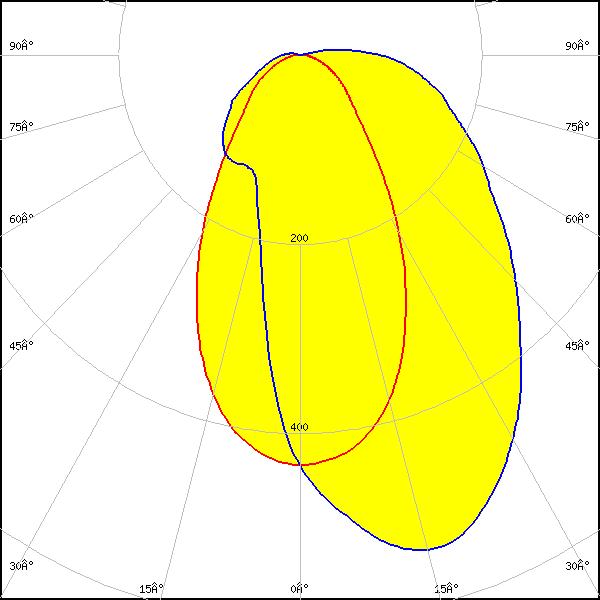

    LED: SLE G7 LES15
    LES size: 15.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.500 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XOB 14.5 mm
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.603 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XOB 9.8 mm
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 0.985 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

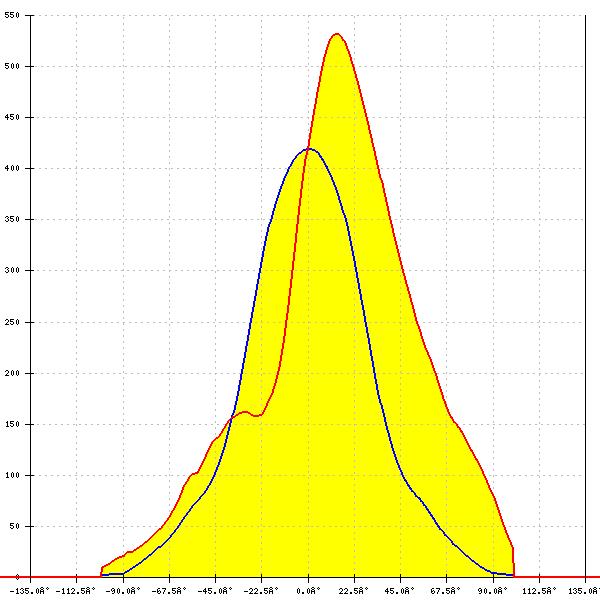

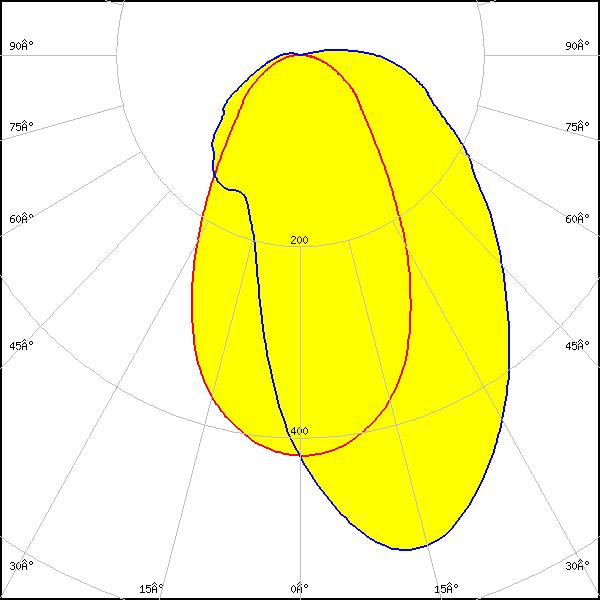

    LED: XTM - 19mm LES
    LES size: 19.0 mm
    Required components:
    C16058_XTM-ADAPTER-50-C
    FWHM: asymmetric
    Peak intensity: 0.530 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
