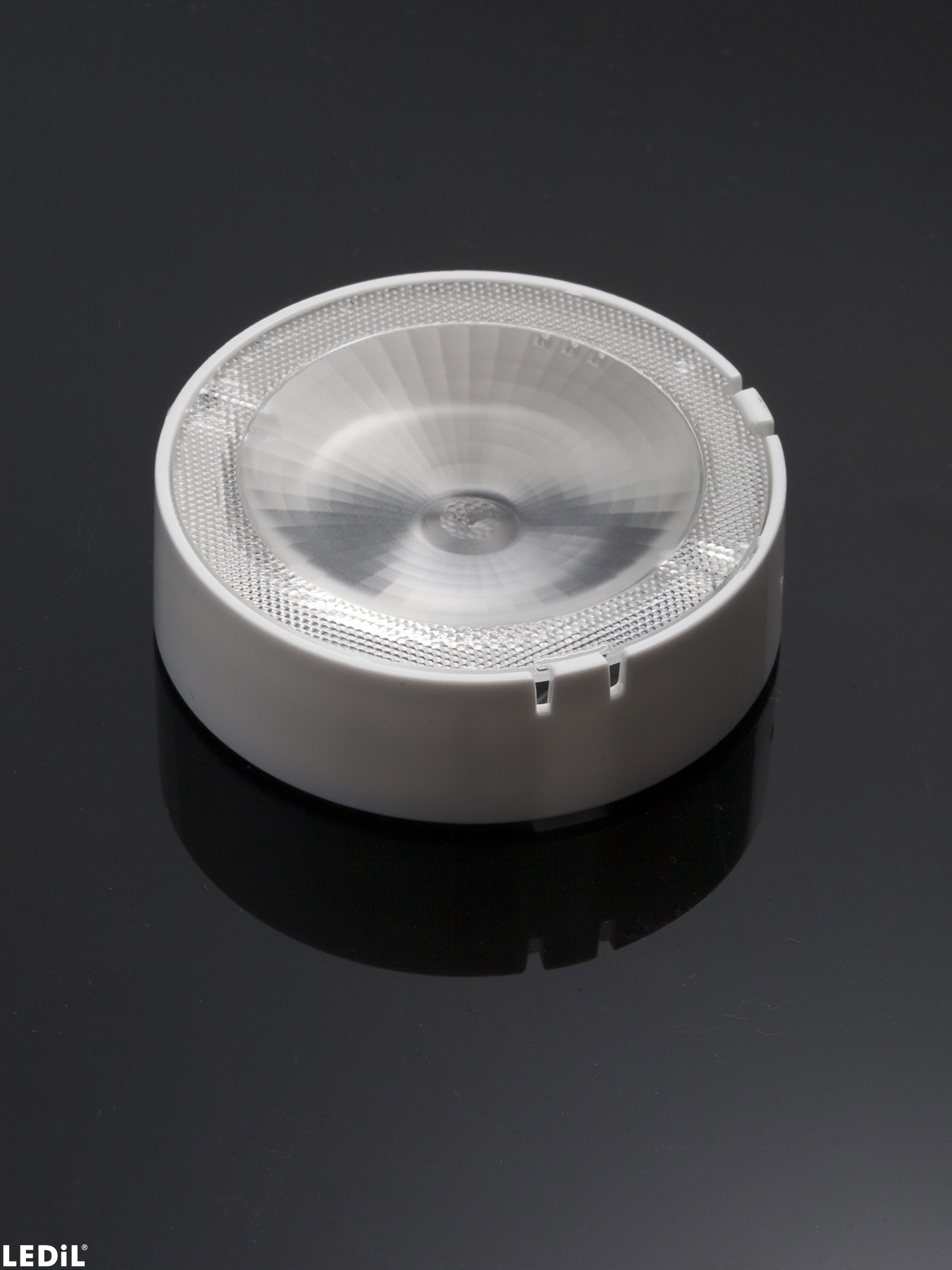

RONDA-WWW-C
Print
~90° wide beam with holder C compatible with LEDiL HEKLA
This product consists of multiple parts that need to be ordered separately. See ordering information.
Component Materials
- RONDA-WWWSingle lensPMMA
- RONDA-HLD-CHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

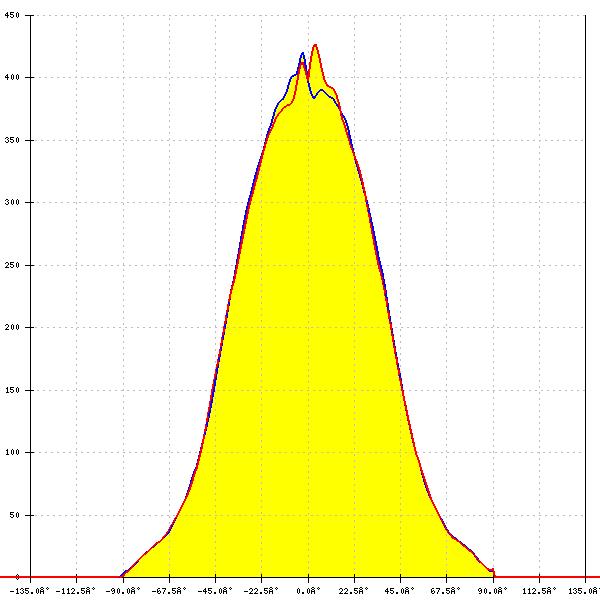

Optical results
LED:
V11 HD Gen 8
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM:
73°
FWTM:
116°
Peak intensity:
0.598 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 Gen6
LES size: 6.0 mm
Required components:
FWHM:
89°
FWTM:
129°
Peak intensity:
0.560 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

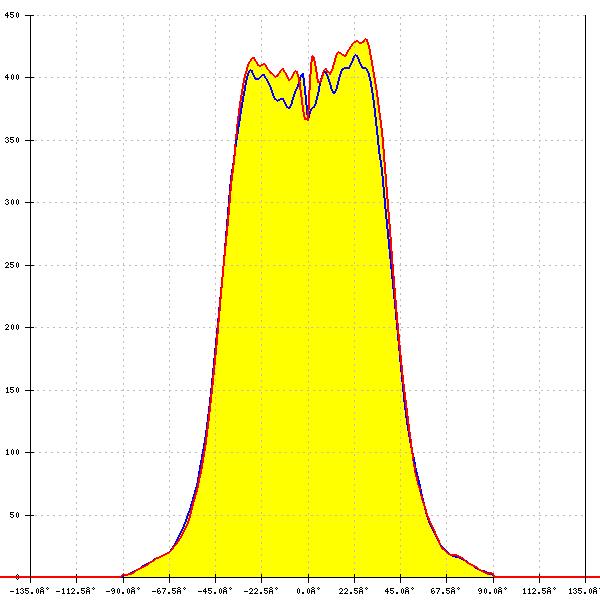

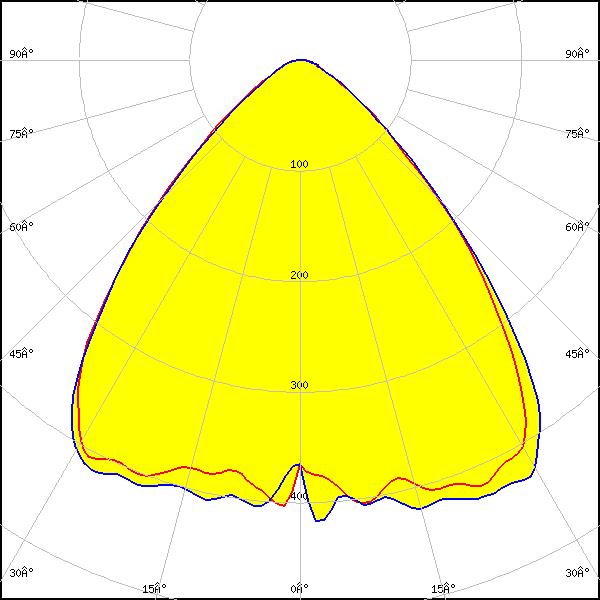

V9 HD Gen 8
LES size: 8.8 mm
Required components:
FWHM:
86°
FWTM:
119°
Peak intensity:
0.432 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V9 HD Gen7
LES size: 9.2 mm
Required components:
FWHM:
83°
FWTM:
121°
Peak intensity:
0.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO10
LES size: 9.9 mm
Required components:
FWHM:
82°
FWTM:
120°
Peak intensity:
0.490 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
FWHM:
77°
FWTM:
127°
Peak intensity:
0.493 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta DTW 15mm (33W)
LES size: 16.2 mm
Required components:
FWHM:
67°
FWTM:
112°
Peak intensity:
0.580 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta DTW 9mm (4W/6W/12W)
LES size: 9.3 mm
Required components:
FWHM:
77°
FWTM:
115°
Peak intensity:
0.520 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 13mm (25W) CSP
LES size: 14.3 mm
Required components:
FWHM:
77°
FWTM:
126°
Peak intensity:
0.500 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
FWHM:
80°
FWTM:
116°
Peak intensity:
0.514 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 9mm (12W) CSP
LES size: 9.8 mm
Required components:
FWHM:
75°
FWTM:
115°
Peak intensity:
0.550 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLC020 Series (Dim-To-Warm)
LES size: 9.8 mm
Required components:
FWHM:
73°
FWTM:
112°
Peak intensity:
0.590 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
81°
FWTM:
121°
Peak intensity:
0.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
93°
FWTM:
132°
Peak intensity:
0.520 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LCN-C01B (Tunable White)
LES size: 10.9 mm
Required components:
FWHM:
74°
FWTM:
114°
Peak intensity:
0.570 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA1516
LES size: 9.0 mm
Required components:
FWHM:
83°
FWTM:
123°
Peak intensity:
0.480 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA1825
LES size: 12.0 mm
Required components:
FWHM:
77°
FWTM:
124°
Peak intensity:
0.530 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT14xx
LES size: 9.8 mm
Required components:
FWHM:
79°
FWTM:
119°
Peak intensity:
0.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

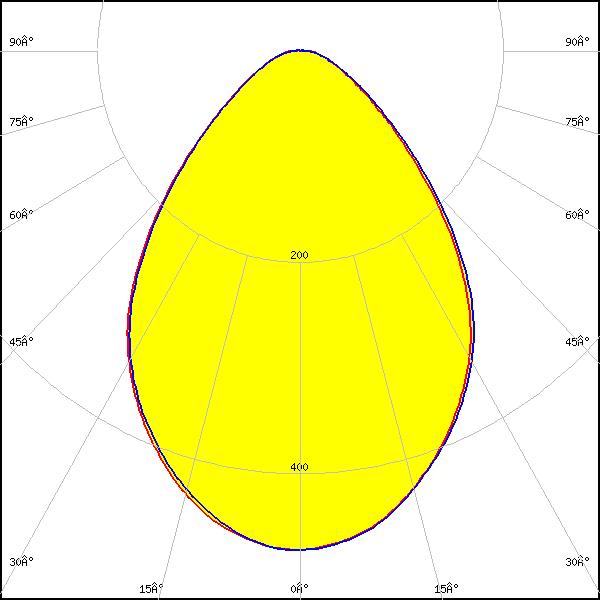

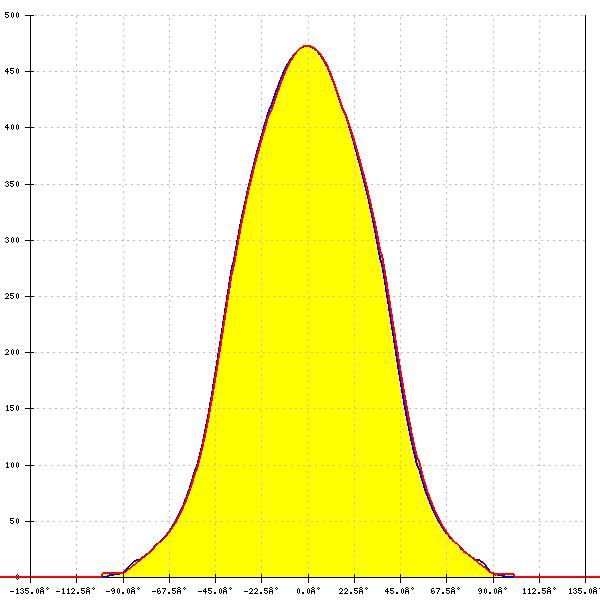

CMT19xx
LES size: 14.5 mm
Required components:
FWHM:
80°
FWTM:
129°
Peak intensity:
0.473 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
94°
FWTM:
131°
Peak intensity:
0.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
84°
FWTM:
123°
Peak intensity:
0.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
76°
FWTM:
124°
Peak intensity:
0.559 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L08 (Gen2)
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
78°
FWTM:
129°
Peak intensity:
0.498 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202HD
LES size: 6.5 mm
Required components:
FWHM:
89°
FWTM:
128°
Peak intensity:
0.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
94°
FWTM:
133°
Peak intensity:
0.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
FWHM:
83°
FWTM:
131°
Peak intensity:
0.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
FWHM:
75°
FWTM:
118°
Peak intensity:
0.560 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
83°
FWTM:
118°
Peak intensity:
0.520 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
83°
FWTM:
118°
Peak intensity:
0.510 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
80°
FWTM:
118°
Peak intensity:
0.524 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
LES size: 12.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
76°
FWTM:
118°
Peak intensity:
0.563 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
FWHM:
80°
FWTM:
118°
Peak intensity:
0.512 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
83°
FWTM:
117°
Peak intensity:
0.515 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-14 (Dim-To-Warm)
LES size: 15.5 mm
Required components:
FWHM:
81°
FWTM:
128°
Peak intensity:
0.500 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-6 (Dim-To-Warm)
LES size: 6.8 mm
Required components:
FWHM:
90°
FWTM:
131°
Peak intensity:
0.510 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM:
82°
FWTM:
121°
Peak intensity:
0.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 (Tunable White)
LES size: 14.5 mm
Required components:
FWHM:
79°
FWTM:
126°
Peak intensity:
0.470 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-9 (Tunable White)
LES size: 9.5 mm
FWHM:
79°
FWTM:
118°
Peak intensity:
0.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
80°
FWTM:
119°
Peak intensity:
0.520 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NJCWL024Z-V1MT: COB L-Type Tunable White
LES size: 7.0 mm
Required components:
FWHM:
85°
FWTM:
122°
Peak intensity:
0.500 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
76°
FWTM:
117°
Peak intensity:
0.552 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L09 CoB
LES size: 9.0 mm
Required components:
FWHM:
81°
FWTM:
120°
Peak intensity:
0.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
77°
FWTM:
127°
Peak intensity:
0.500 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
77°
FWTM:
127°
Peak intensity:
0.490 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
FWHM:
81°
FWTM:
121°
Peak intensity:
0.510 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C
LES size: 6.0 mm
Required components:
FWHM:
94°
FWTM:
133°
Peak intensity:
0.480 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C G2
LES size: 6.0 mm
Required components:
FWHM:
94°
FWTM:
133°
Peak intensity:
0.520 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010T (Tunable White)
LES size: 9.8 mm
Required components:
FWHM:
76°
FWTM:
117°
Peak intensity:
0.540 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
80°
FWTM:
131°
Peak intensity:
0.470 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C
LES size: 8.0 mm
Required components:
FWHM:
87°
FWTM:
127°
Peak intensity:
0.480 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C G2
LES size: 8.5 mm
Required components:
FWHM:
82°
FWTM:
120°
Peak intensity:
0.495 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020T (Tunable white)
LES size: 13.0 mm
Required components:
FWHM:
75°
FWTM:
122°
Peak intensity:
0.532 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
MJT COB LES 14.5
LES size: 14.5 mm
Required components:
FWHM:
79°
FWTM:
133°
Peak intensity:
0.426 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 6
LES size: 6.0 mm
Required components:
FWHM:
91°
FWTM:
129°
Peak intensity:
0.510 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 9.8
LES size: 9.8 mm
Required components:
FWHM:
79°
FWTM:
118°
Peak intensity:
0.510 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM:
83°
FWTM:
120°
Peak intensity:
0.510 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES13
LES size: 13.0 mm
Required components:
FWHM:
78°
FWTM:
124°
Peak intensity:
0.500 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES15
LES size: 15.0 mm
Required components:
FWHM:
81°
FWTM:
132°
Peak intensity:
0.500 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 14.5 mm
LES size: 14.5 mm
Required components:
FWHM:
78°
FWTM:
128°
Peak intensity:
0.486 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM:
81°
FWTM:
121°
Peak intensity:
0.499 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM:
81°
FWTM:
137°
Peak intensity:
0.440 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
