    FCP13895_SEANNA-A

    Print

    ~2.3° spot beam. Assembly with holder.

    Specification
    • Dimensions:
      155 mm
    • Height:
      82.00 mm
    • Fastening:
      pin, screw
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    • SEANNA-FRES
      Single lens
      PMMA
    • SEANNA-A
      Single lens
      PMMA
    • SEANNA-HLD-B-BOTTOMRING
      Holder
      PA66GF30
    • SEANNA-HLD-B-TOPRING
      Holder
      PA66GF30
    • SEANNA-HLD-B
      Holder
      PA66GF30
    • SEANNA-SCREW
      Accessory
      Stainless steel
    • Request material files from Tech Support

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Box weight:
      6.5 kg
    • MPQ:
      2 pcs
    • MOQ:
      20 pcs
    • MOQ size:
      480 x 280 x 300 mm
    • MOQ weight:
      6.5 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FCP13895_SEANNA-A
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR101.b - Change of product order code 290115

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Outdoor Special Applications

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

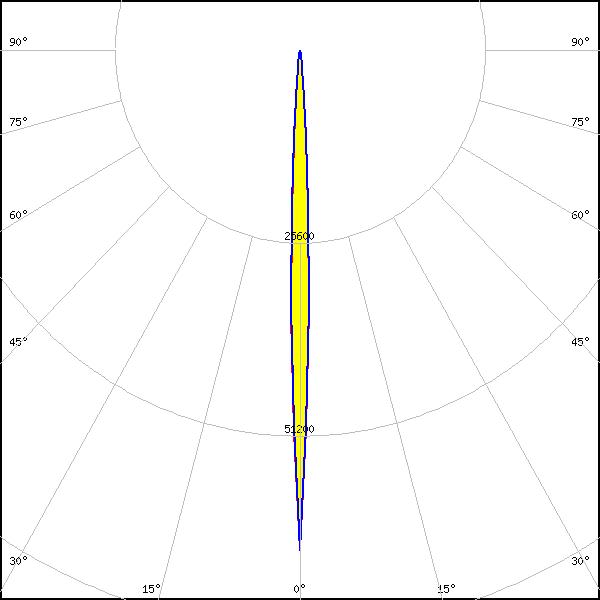

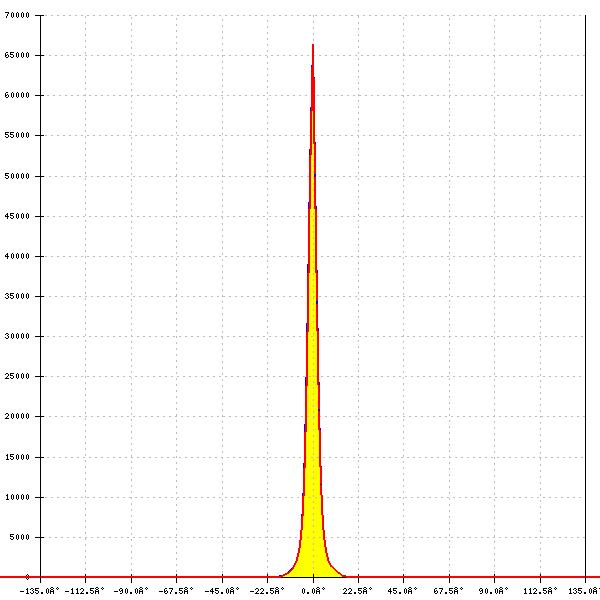

    Optical results

    LED: MK-R
    FWHM: 4°
    FWTM: 10°
    Peak intensity: 82.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XB-D
    FWHM: 1°
    FWTM: 3°
    Peak intensity: 698.000 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XD16
    FWHM: 1°
    FWTM: 3°
    Peak intensity: 629.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35 HD
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 257.000 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35 HI
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 496.000 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35.2 HD
    FWHM: 2°
    FWTM: 6°
    Peak intensity: 161.889 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35.2 HI
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 160.964 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP50
    FWHM: 3°
    FWTM: 7°
    Peak intensity: 122.000 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP50.2
    FWHM: 3°
    FWTM: 7°
    Peak intensity: 128.680 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP70
    FWHM: 4°
    FWTM: 10°
    Peak intensity: 69.900 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP70.2
    FWHM: 5°
    FWTM: 10°
    Peak intensity: 71.640 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

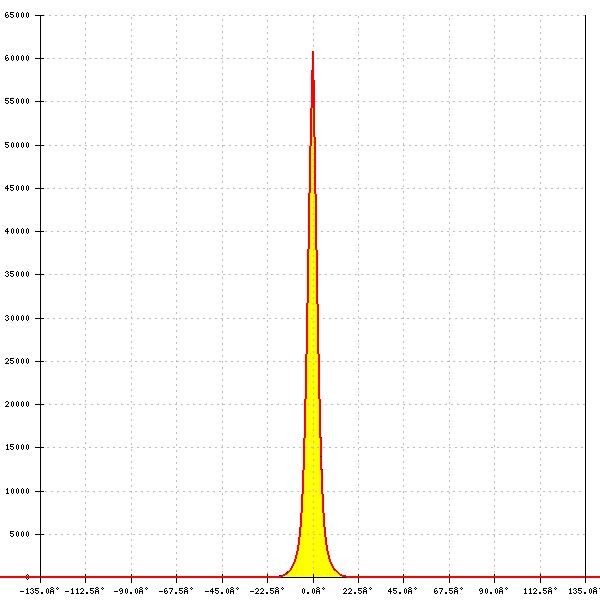

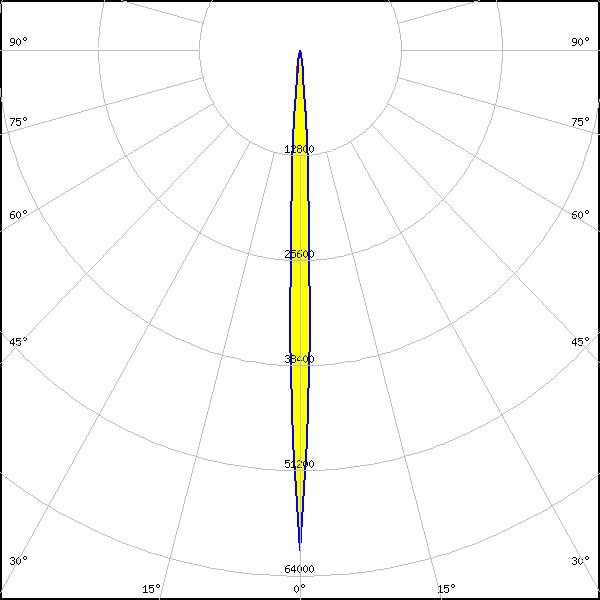

    LED: XHP70.3 HI
    FWHM: 4°
    FWTM: 8°
    Peak intensity: 103.304 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L
    FWHM: 2°
    FWTM: -
    Peak intensity: 272.000 cd/lm
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L2
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 275.000 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L3
    FWHM: 2°
    FWTM: 6°
    Peak intensity: 196.216 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E
    FWHM: 1°
    FWTM: 3°
    Peak intensity: 955.000 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E2
    FWHM: 2°
    FWTM: 6°
    Peak intensity: 211.478 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: Blue
    LED: XP-E2
    FWHM: 1°
    FWTM: 3°
    Peak intensity: 718.000 cd/lm
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G
    FWHM: 1°
    FWTM: 3°
    Peak intensity: 578.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: 1°
    FWTM: 3°
    Peak intensity: 628.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2 HE
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 286.549 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 246.212 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HD
    FWHM: 2°
    FWTM: 5°
    Peak intensity: 255.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HI
    FWHM: 2°
    FWTM: 3°
    Peak intensity: 492.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-P
    FWHM: 2°
    FWTM: 6°
    Peak intensity: 246.762 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XQ-E HD
    FWHM: 1°
    FWTM: 3°
    Peak intensity: 1460.000 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XQ-E HI
    FWHM: 1°
    FWTM: 2°
    Peak intensity: 1300.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E
    FWHM: 1°
    FWTM: 4°
    Peak intensity: 519.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LZ4 (00xW00)
    FWHM: 3°
    FWTM: 8°
    Peak intensity: 136.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CZ
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 346.000 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CZ
    FWHM: 1°
    FWTM: 3°
    Peak intensity: 564.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Red
    LED: LUXEON CZ
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 371.000 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: Blue
    LED: LUXEON CZ
    FWHM: 1°
    FWTM: 3°
    Peak intensity: 564.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: PC Amber
    LED: LUXEON CZ
    FWHM: 1°
    FWTM: 4°
    Peak intensity: 424.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Green
    LED: LUXEON HL2X
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 317.794 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON M/MX
    FWHM: 4°
    FWTM: 9°
    Peak intensity: 99.000 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON MZ
    FWHM: 2°
    FWTM: 6°
    Peak intensity: 151.040 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rebel
    FWHM: 1°
    FWTM: 3°
    Peak intensity: 704.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rebel ES
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 530.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rubix
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 290.199 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rubix
    FWHM: 2°
    FWTM: 6°
    Peak intensity: 196.240 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: Red
    LED: LUXEON Rubix
    FWHM: 2°
    FWTM: 6°
    Peak intensity: 157.731 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: Green
    LED: LUXEON Rubix
    FWHM: 2°
    FWTM: 6°
    Peak intensity: 141.887 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: Blue
    LED: LUXEON S1000
    FWHM: 4°
    FWTM: 8°
    Peak intensity: 100.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON V2
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 250.139 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SBT-90
    FWHM: 2°
    FWTM: 6°
    Peak intensity: 175.908 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4WB35AM
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 185.547 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 296.023 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW3x9A
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 310.000 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW519A
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 251.590 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW719AC
    FWHM: 2°
    FWTM: 6°
    Peak intensity: 207.349 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 2424
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 241.599 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (2W version)
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 258.179 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (3W version)
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 232.290 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 7070
    FWHM: 4°
    FWTM: 7°
    Peak intensity: 122.200 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Black Flat (LUW HWQP)
    FWHM: 1°
    FWTM: 2°
    Peak intensity: 1196.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Boost HX (KW CULPM1.TG)
    FWHM: 2°
    FWTM: 6°
    Peak intensity: 176.849 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 2°
    FWTM: 3°
    Peak intensity: 587.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square PC
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 550.000 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSRAM OSTAR Projection Compact (KW CSLPM1.TG)
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 229.283 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 279.364 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 279.156 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351D
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 235.323 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3
    FWHM: 1°
    FWTM: 3°
    Peak intensity: 151.363 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4
    FWHM: 2°
    FWTM: 4°
    Peak intensity: 149.353 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y50P
    FWHM: 3°
    FWTM: 7°
    Peak intensity: 90.400 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
