    FCA14295_BILLIE-B

    Print

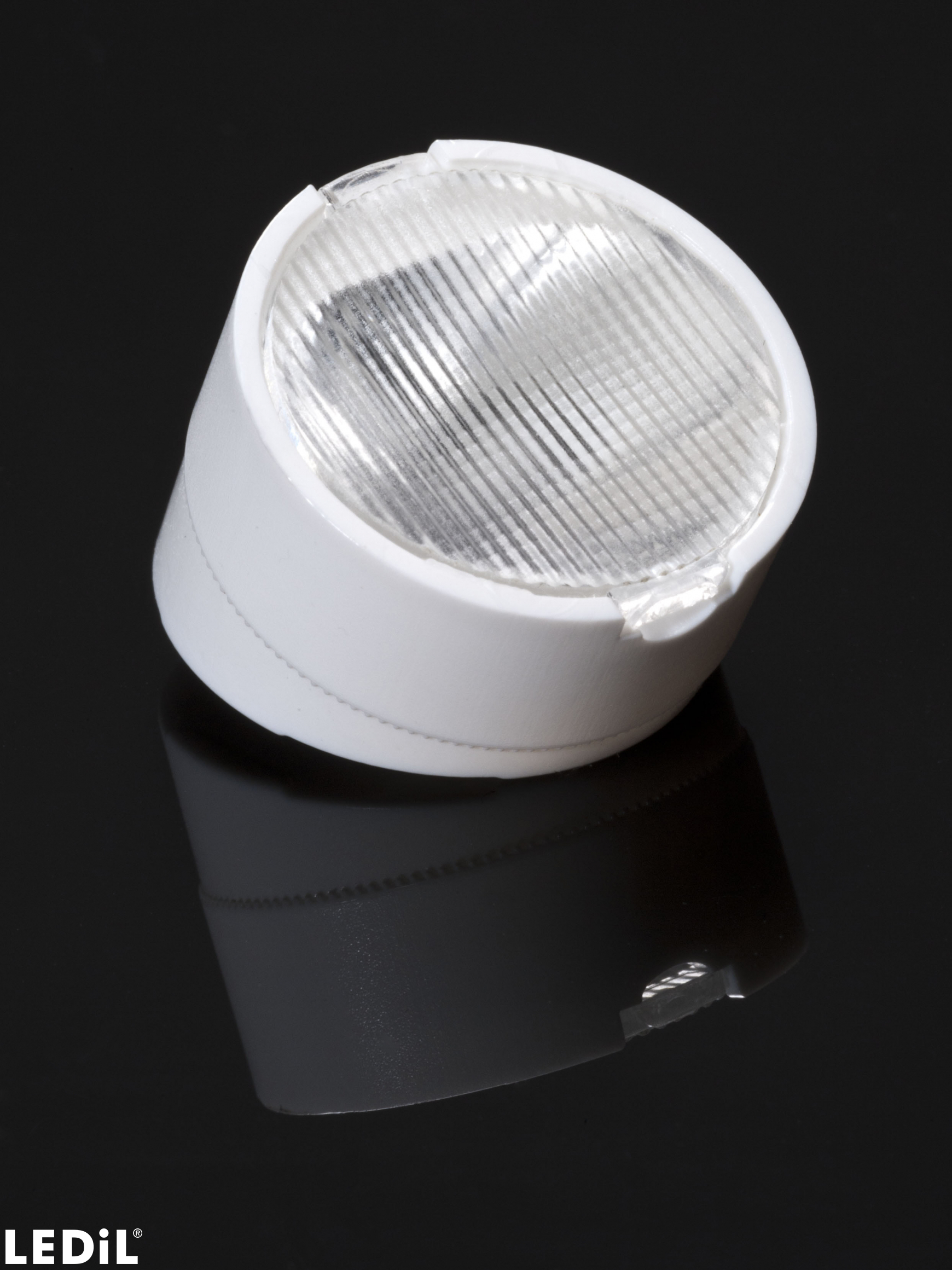

    Asymmetric beam for wall-washing. Assembly with holder and installation tape.

    Specification
    • Dimensions:
      22 mm
    • Height:
      16.10 mm
    • Fastening:
      tape, pin
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      1792 pcs
    • Box size:
      480 x 280 x 300 mm
    • MPQ:
      112 pcs
    • MOQ:
      336 pcs
    • MOQ size:
      480 x 280 x 70 mm
    • MOQ weight:
      1.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FCA14295_BILLIE-B

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application example

    Wall-washing with BILLIE-B

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Outdoor Special Applications

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

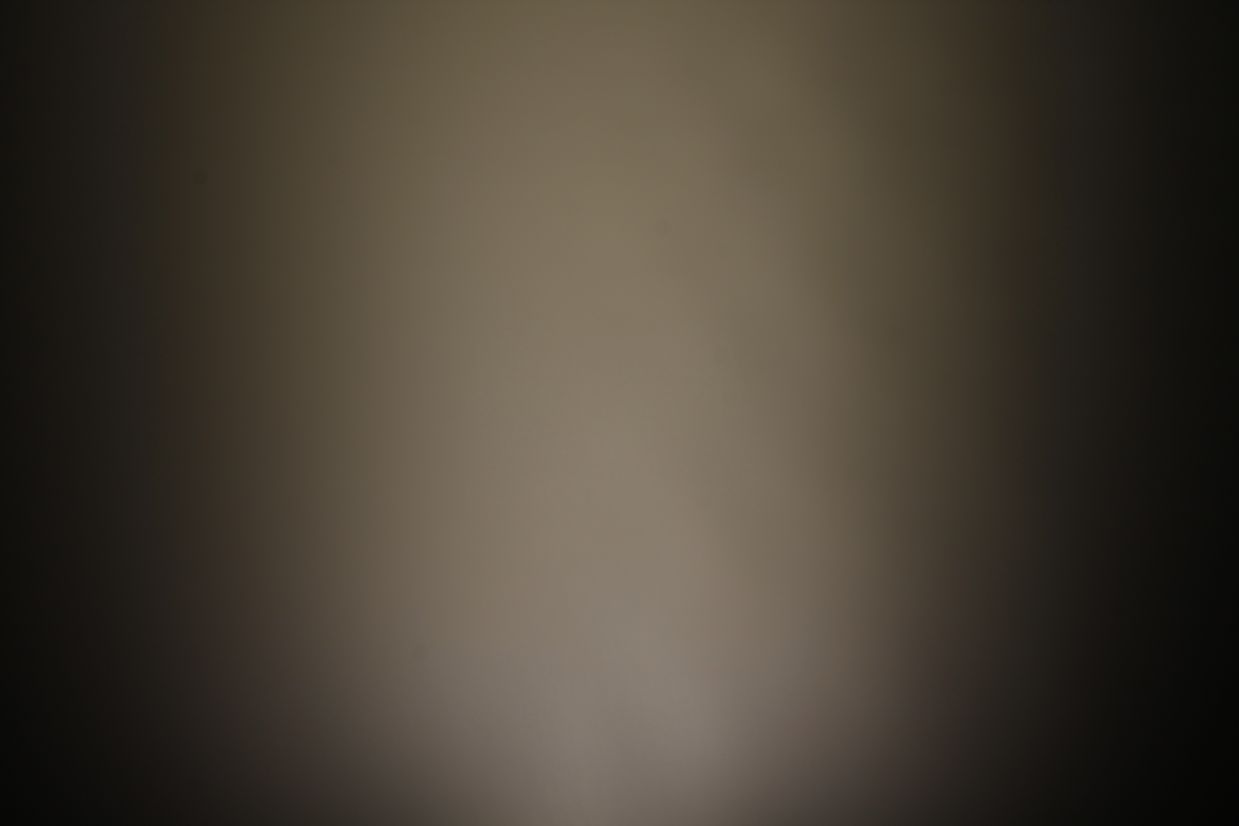

    Optical results

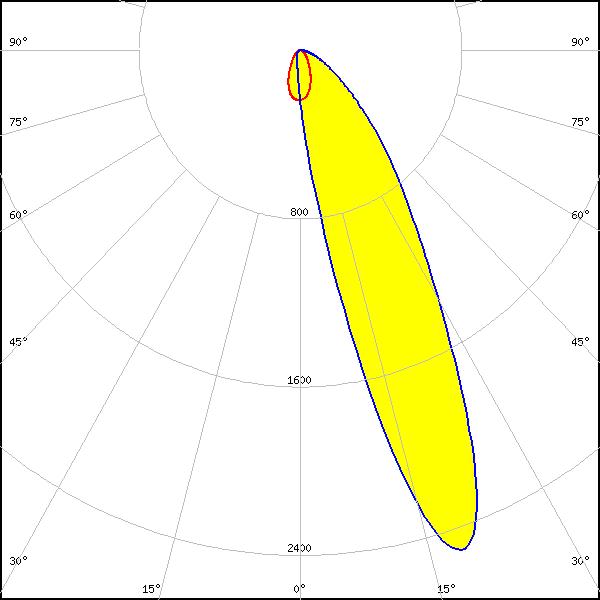

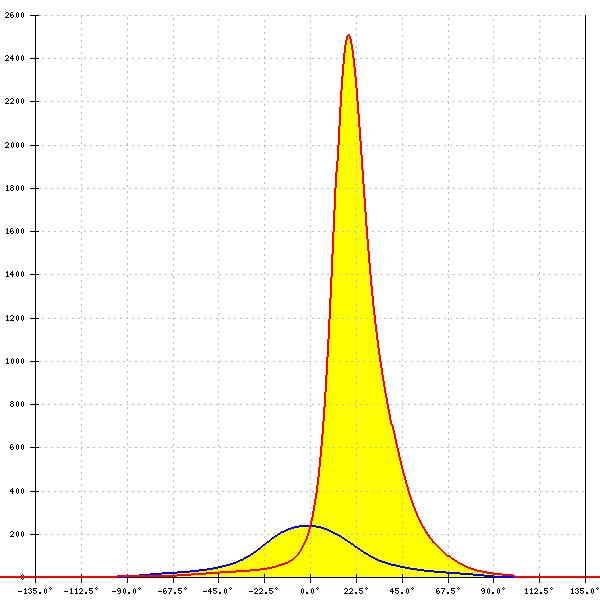

    LED: XP-E
    FWHM: asymmetric
    Peak intensity: 2.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

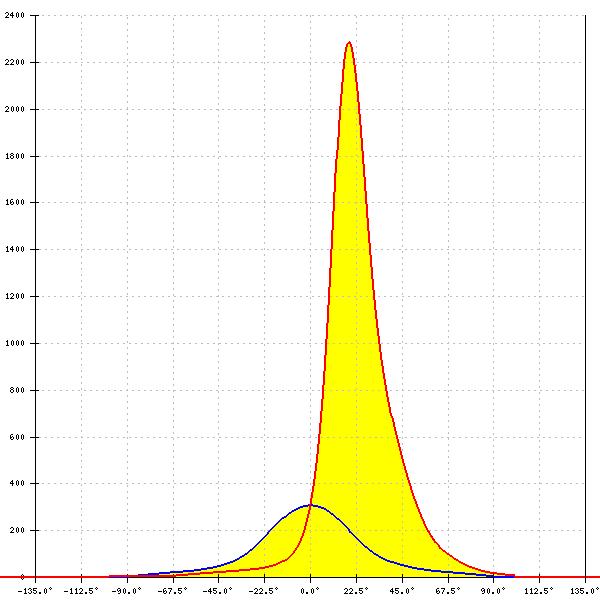

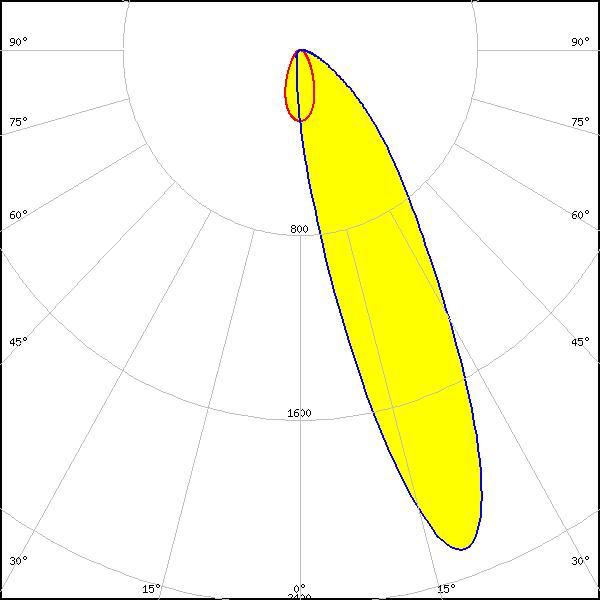

    LED: XP-G
    FWHM: asymmetric
    Peak intensity: 2.300 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

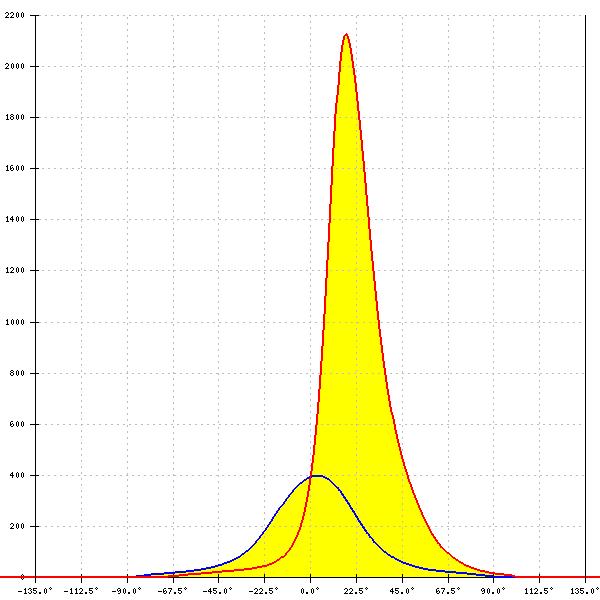

    LED: LUXEON Rebel
    FWHM: asymmetric
    Peak intensity: 2.100 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

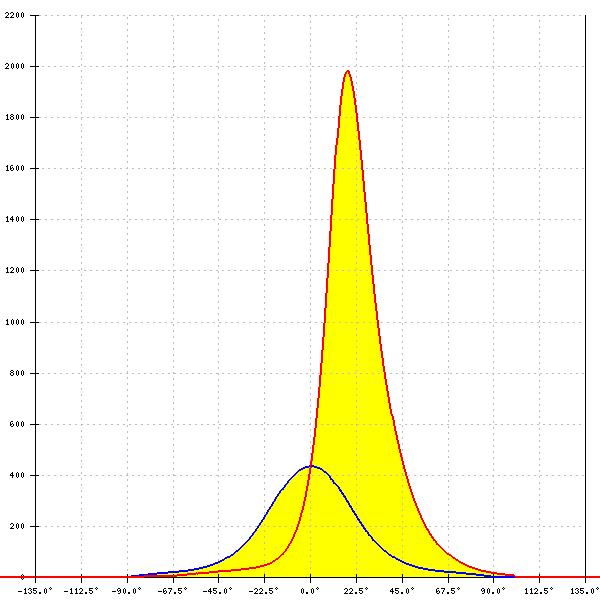

    LED: LUXEON Rebel ES
    FWHM: asymmetric
    Peak intensity: 2.000 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

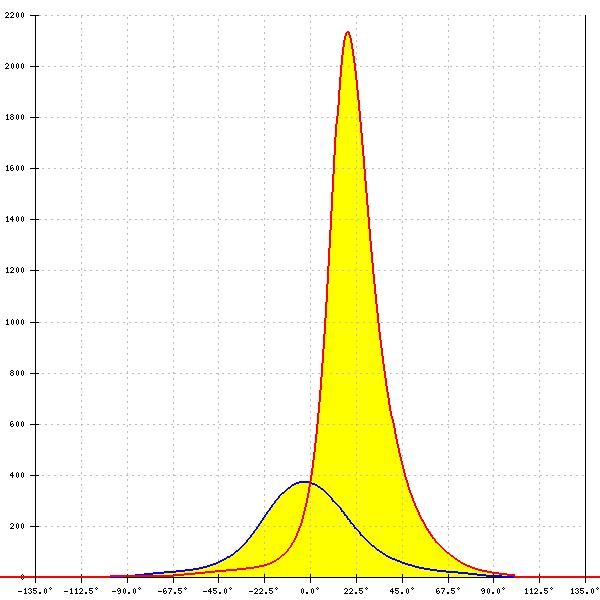

    LED: NCSxx19B
    FWHM: asymmetric
    Peak intensity: 2.100 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NF2x757D
    FWHM: asymmetric
    Peak intensity: 1.900 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

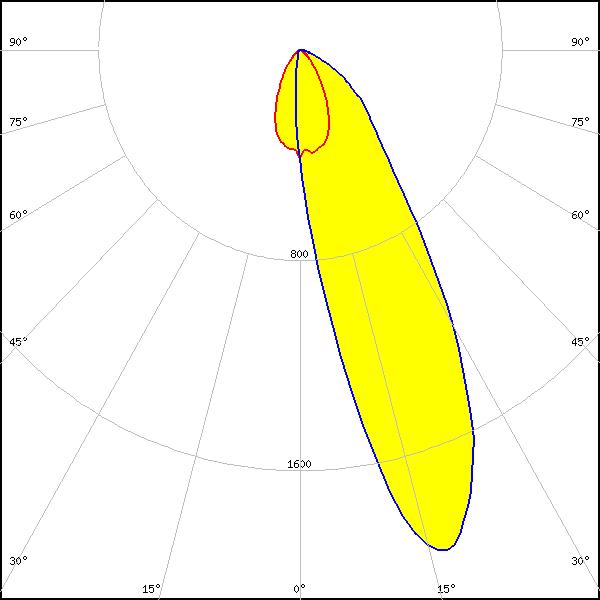

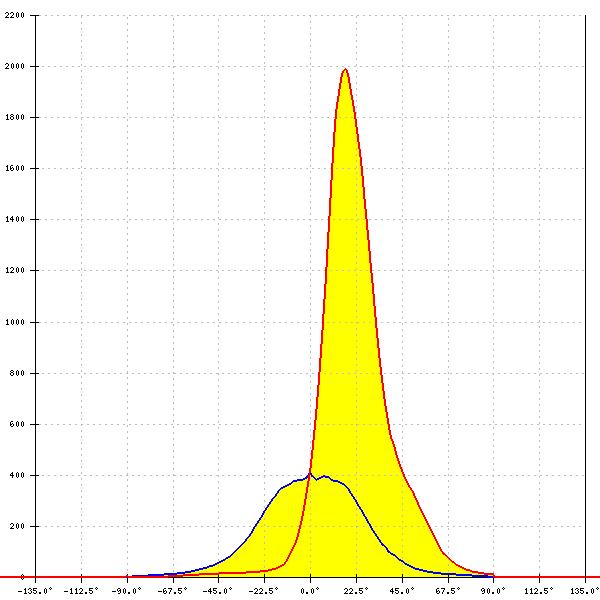

    LED: NF2x757G
    FWHM: asymmetric
    Peak intensity: 2.000 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

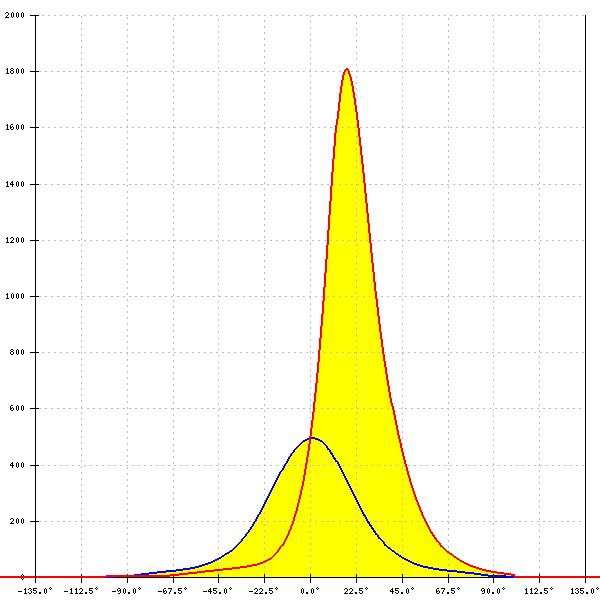

    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Peak intensity: 1.800 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

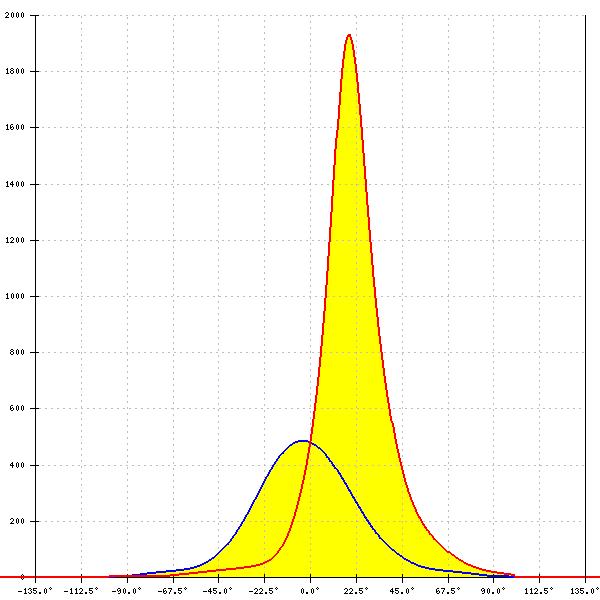

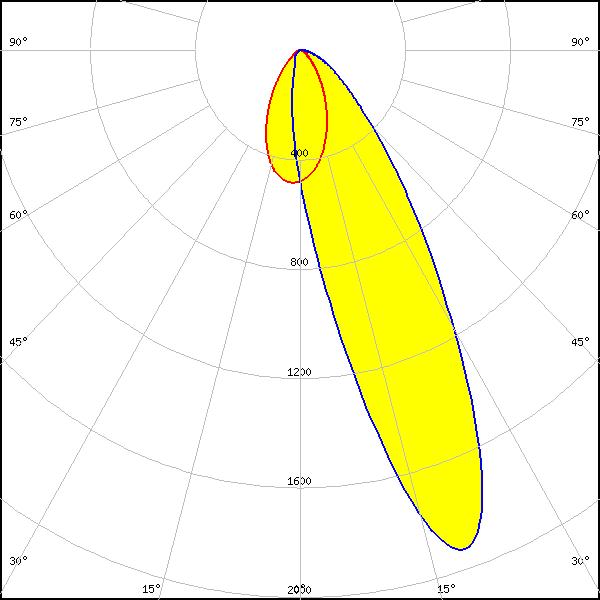

    LED: Duris S5 (2 chip)
    FWHM: asymmetric
    Peak intensity: 1.900 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

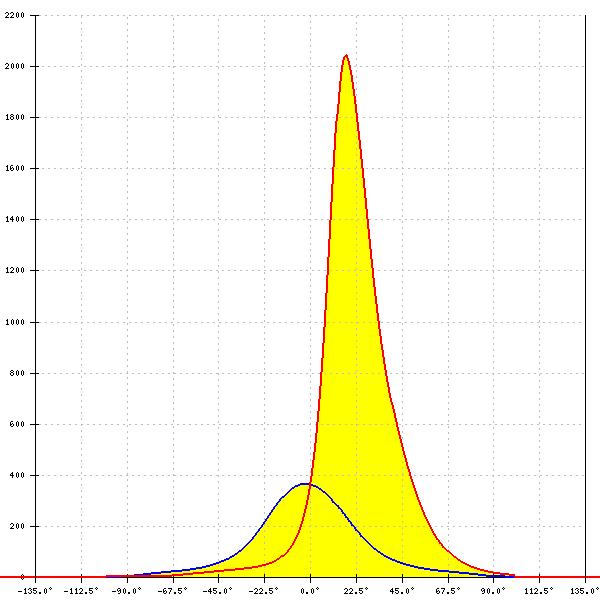

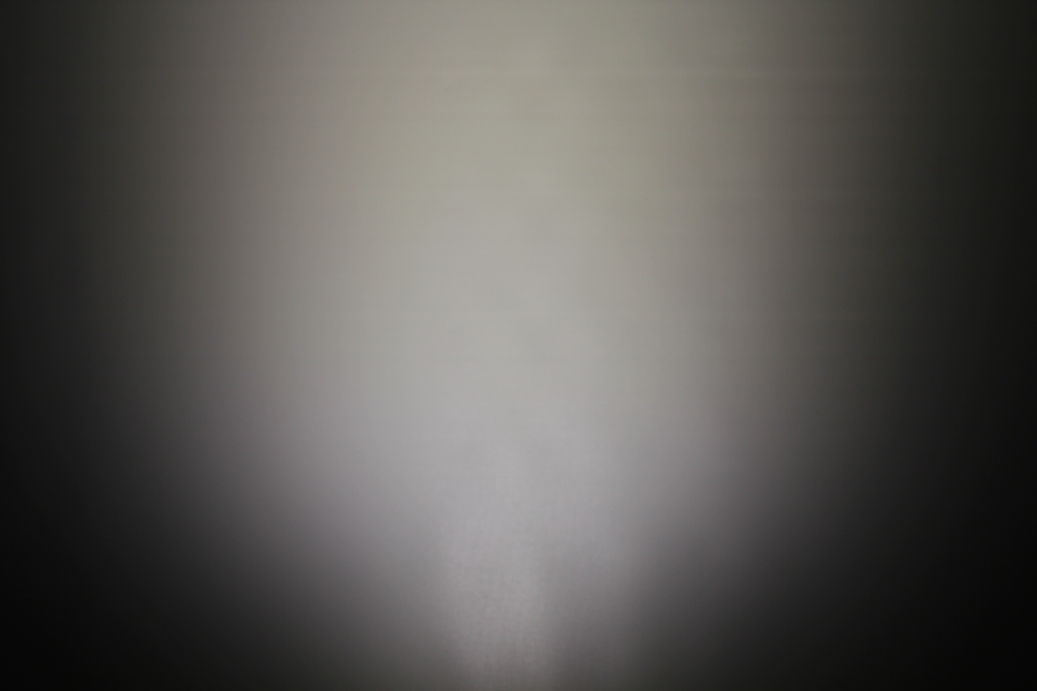

    LED: OSLON Square EC
    FWHM: asymmetric
    Peak intensity: 2.000 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 2.100 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351Z
    FWHM: asymmetric
    Peak intensity: 2.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

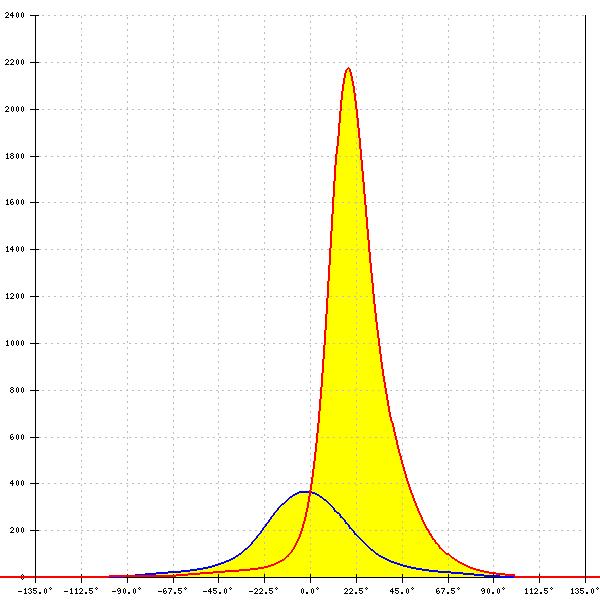

    LED: Z5M1/Z5M2
    FWHM: asymmetric
    Peak intensity: 2.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
