    FA16987_TYRA2-M

    Print

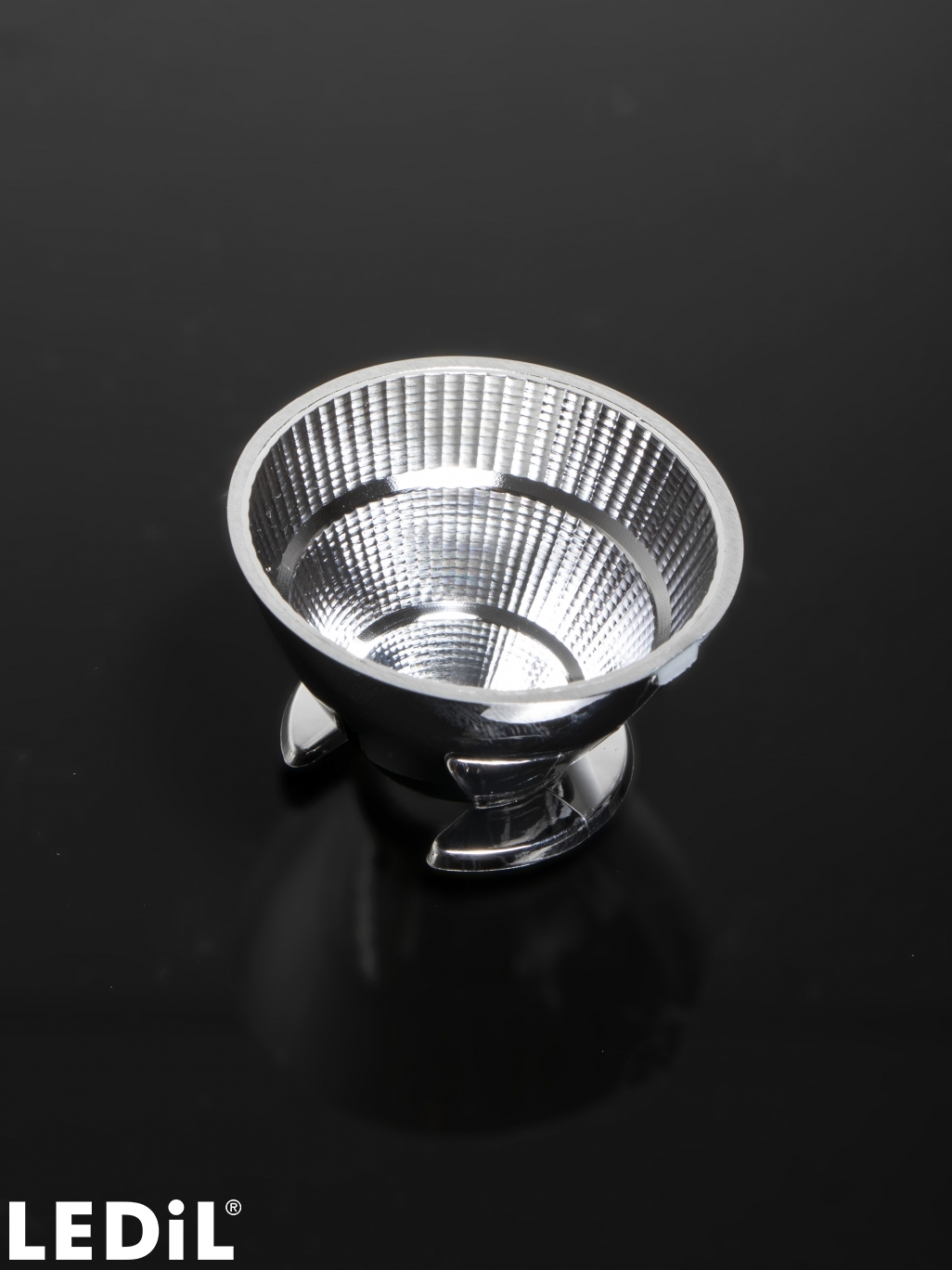

    ~20° medium beam. Assembly with installation tape.

    Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.

    Specification
    • Dimensions:
      40 mm
    • Height:
      24.30 mm
    • Fastening:
      tape, pin
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      352 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      3.2 kg
    • MPQ:
      352 pcs
    • MOQ:
      5280 pcs
    • MOQ size:
      480 x 280 x 300 mm
    • MOQ weight:
      3.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FA16987_TYRA2-M

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
    WHERE TO BUY

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR189 - EOL Notice and Change of Product status

    News

    New Products - 2019-08-27

    PCN

    Product change notification NR152 - Change of product ordering codes and coating method_24012019

    Application area

    Indoor Architectural Lighting

    Optical results

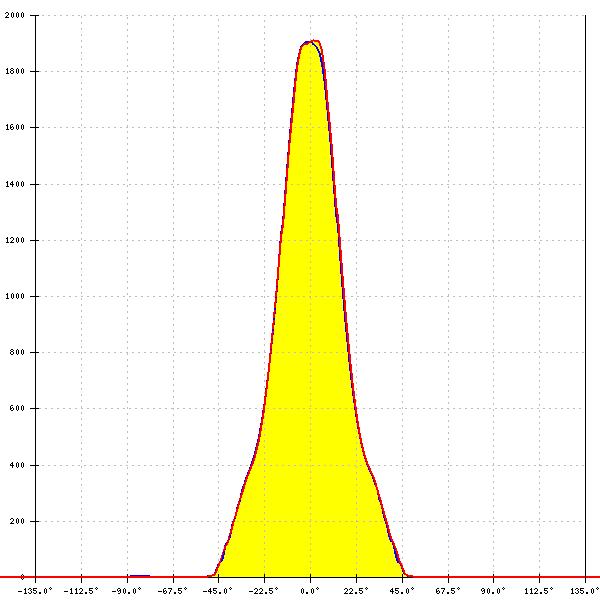

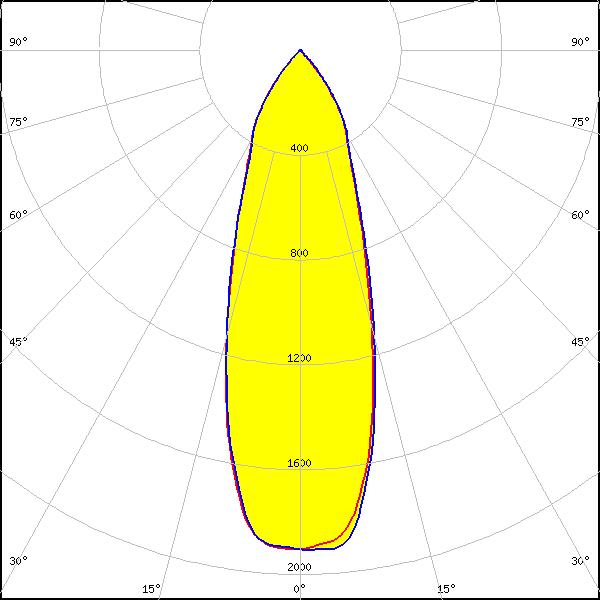

    LED: MP-L
    FWHM: 34°
    FWTM: 76°
    Peak intensity: 1.900 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

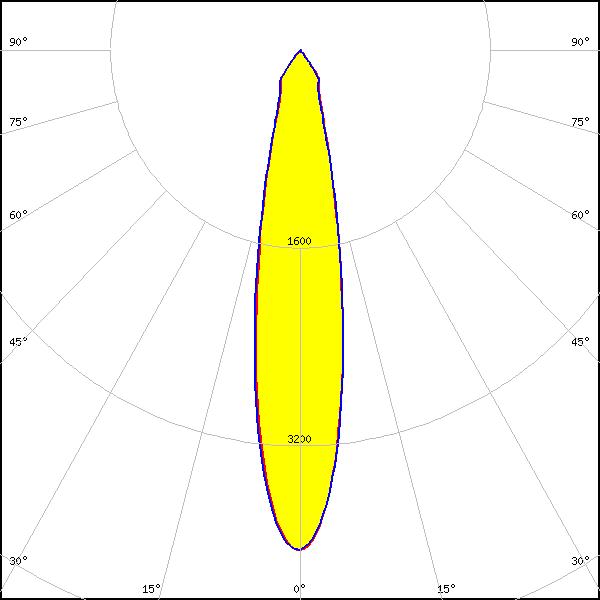

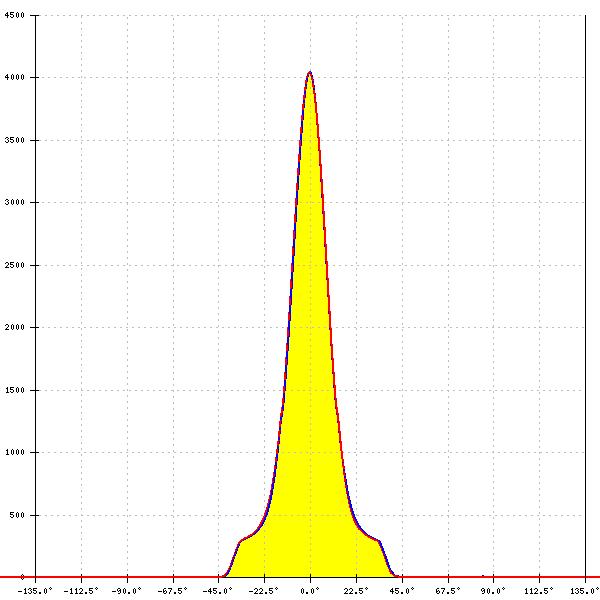

    LED: Duris S10
    FWHM: 21°
    FWTM: 48°
    Peak intensity: 4.000 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

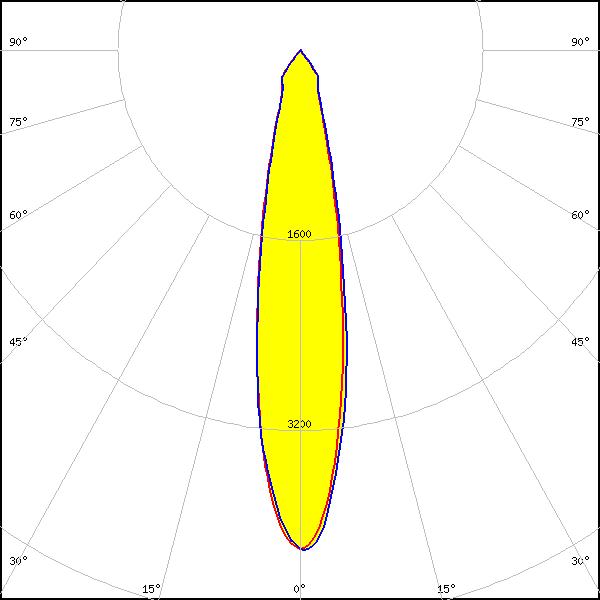

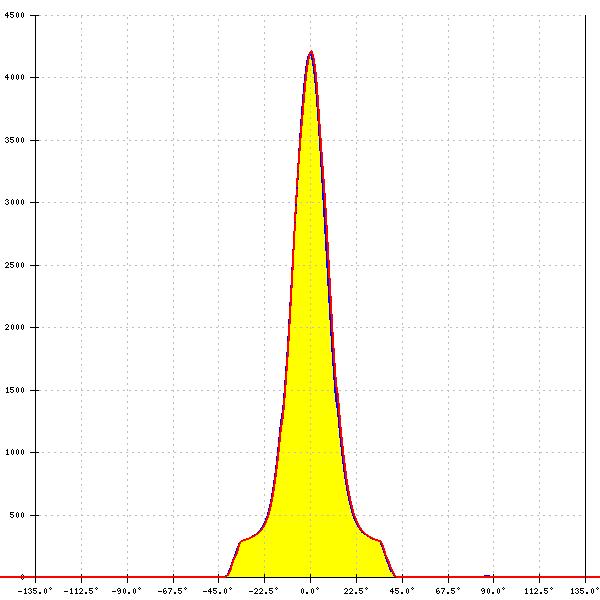

    LED: Duris S8
    FWHM: 21°
    FWTM: 46°
    Peak intensity: 4.200 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
