FA15232_ROSE-MRK-M

Print

~45° medium beam. Assembly with white holder.

Specification
  • Dimensions:
    22 x  22 mm
  • Height:
    12.96 mm
  • Fastening:
    tape, pin
  • Colour:
    white
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    2304 pcs
  • Box size:
    457 x 260 x 260 mm
  • Box weight:
    10.4 kg
  • MPQ:
    144 pcs
  • MOQ:
    288 pcs
  • MOQ size:
    470 x 240 x 50 mm
  • MOQ weight:
    1.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FA15232_ROSE-MRK-M

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

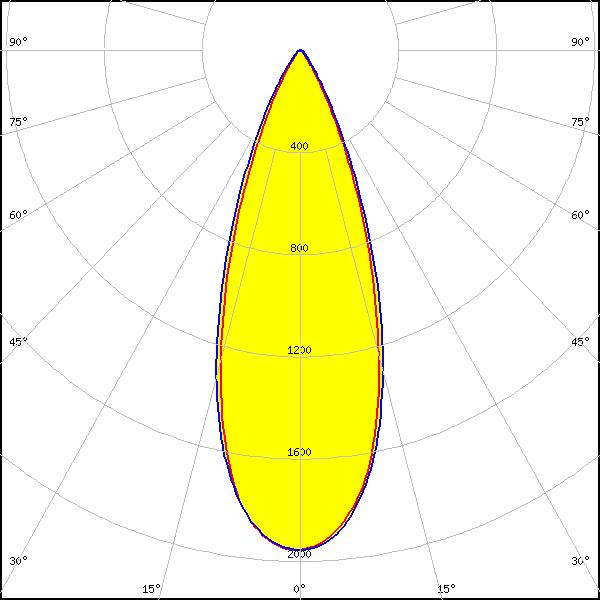

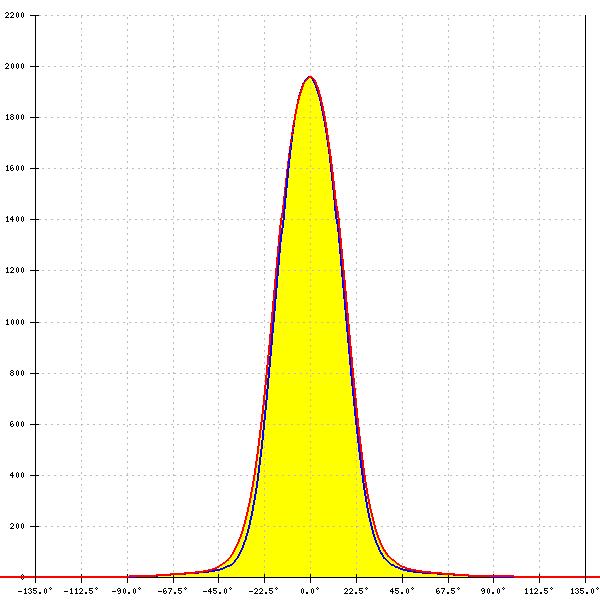

LED: LUXEON 5050 Round LES
FWHM: 37°
FWTM: 63°
Peak intensity: 2.000 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

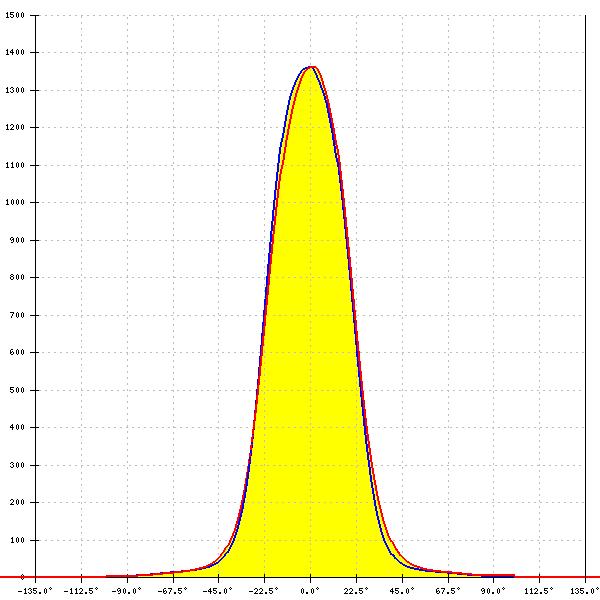

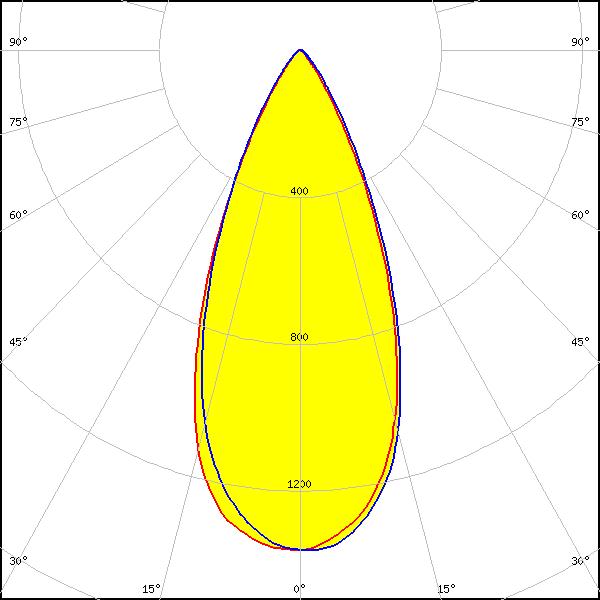

LED: LUXEON M/MX
FWHM: 45°
FWTM: 73°
Peak intensity: 1.360 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

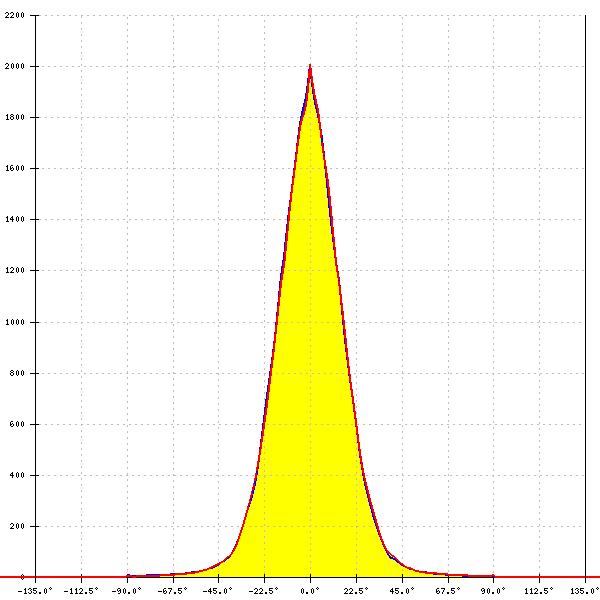

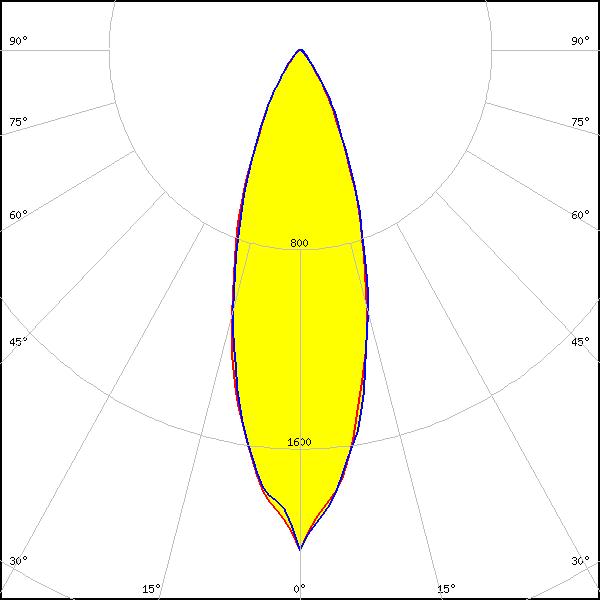

LED: SST-20
FWHM: 32°
FWTM: 66°
Peak intensity: 2.007 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

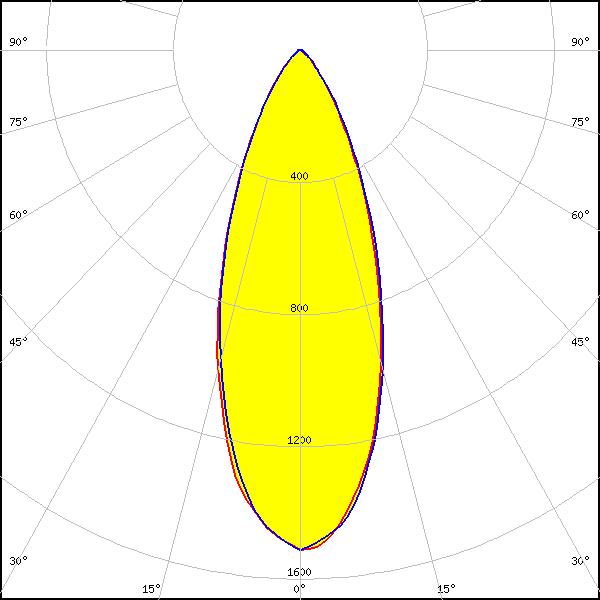

LED: NFMW48xA
FWHM: 39°
FWTM: 74°
Peak intensity: 1.513 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
