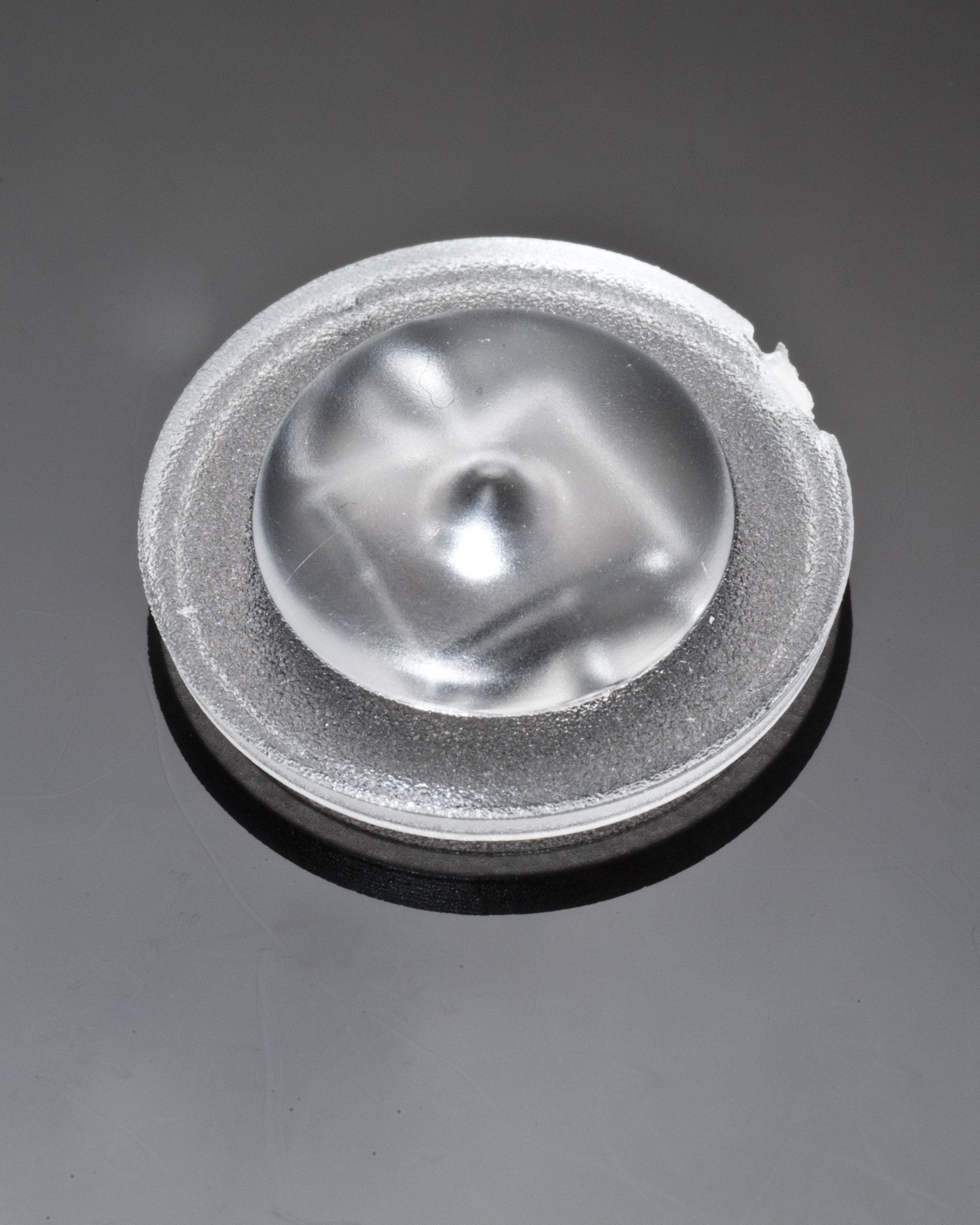

FA11948_JULIA-A

~90° + 160° wide beam. Assembly with installation tape.

Specification

Dimensions:

19 mm
Height:

4.81 mm
Fastening:

tape, pin
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

JULIA-A
Single lens
PMMA
TINA-TAPE3
Tape
Acryl tape
Request material files from Tech Support

Ordering information

Quantity in box:

2850 pcs
Box weight:

3.7 kg
MPQ:

150 pcs
MOQ:

300 pcs
MOQ size:

480 x 280 x 50 mm
MOQ weight:

0.7 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: FA11948_JULIA-A

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

FA11948_JULIA-A

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

PCN

Product change notification NR100.a - Change of packaging quantities 050115

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

News

PRODUCT NEWS - JULIA-A

Application guide

Backlighting with JULIA-A

Application area

Architectural Outdoor Lighting

Application area

Special Indoor Applications

Application area

Indoor Architectural Lighting

Application area

Office Lighting

Optical results

LED: J Series 2835

FWHM: 155°

FWTM: 169°

Peak intensity: 0.356 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

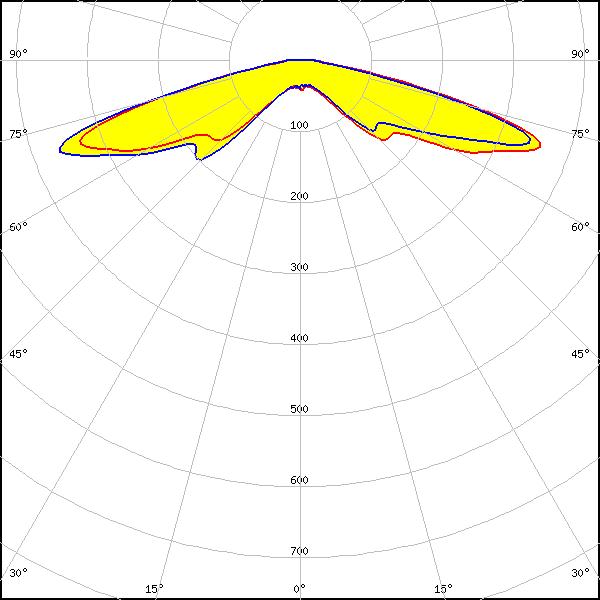

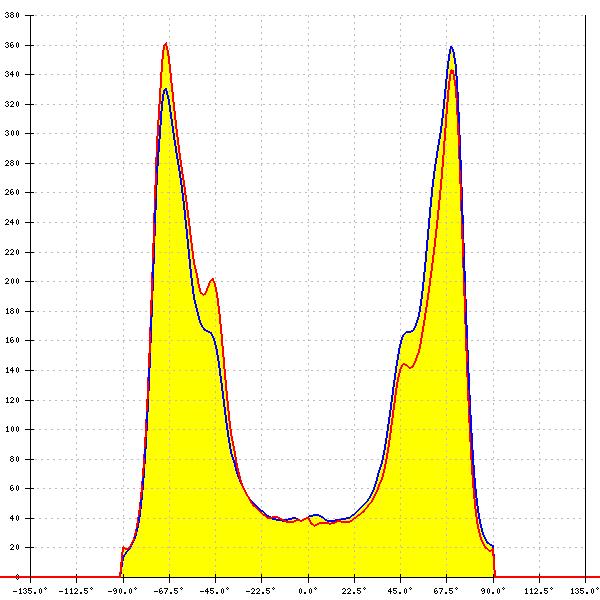

LED: J Series 3030

FWHM: 153°

FWTM: 166°

Peak intensity: 0.370 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

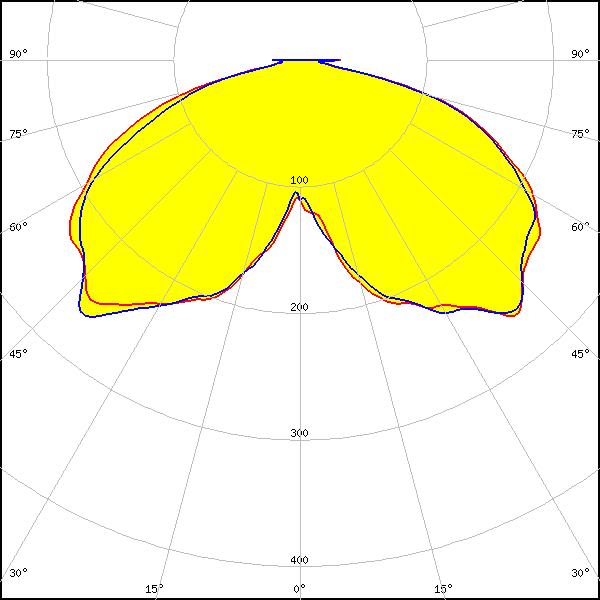

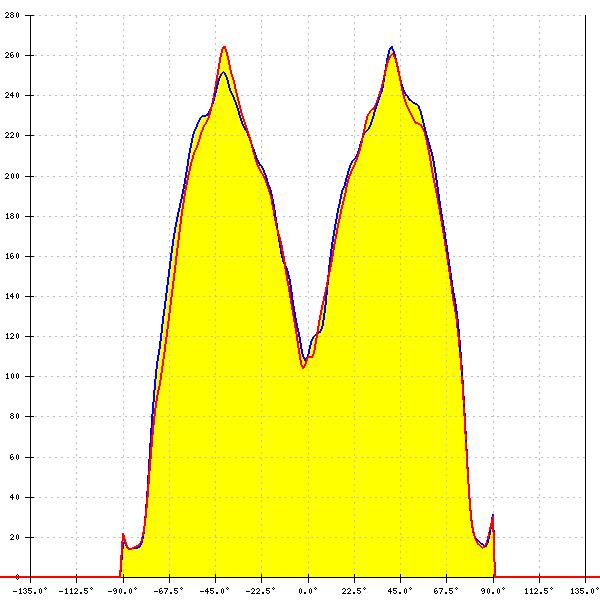

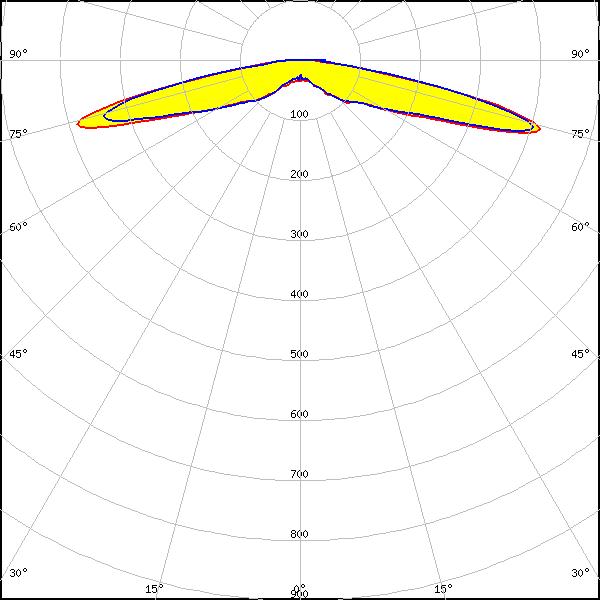

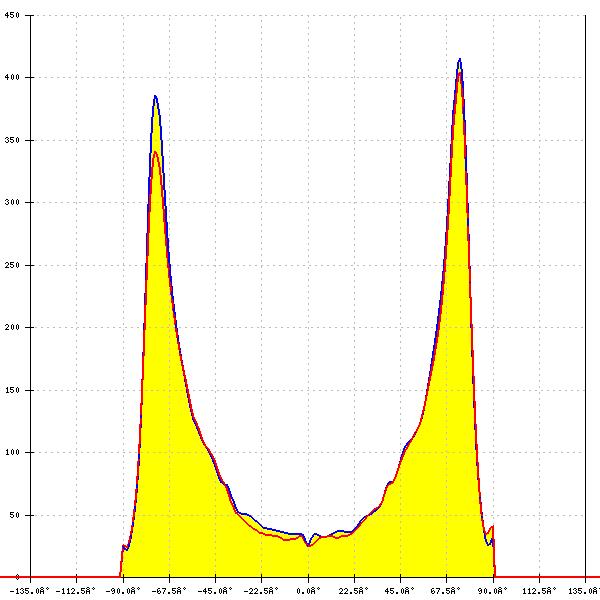

LED: XE-G

FWHM: 141°

FWTM: 169°

Peak intensity: 0.271 cd/lm

Efficiency: 97 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: XP-E

FWHM: 164°

FWTM: -

Peak intensity: 0.240 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

LED: XP-G

FWHM: 166°

FWTM: -

Peak intensity: 0.210 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

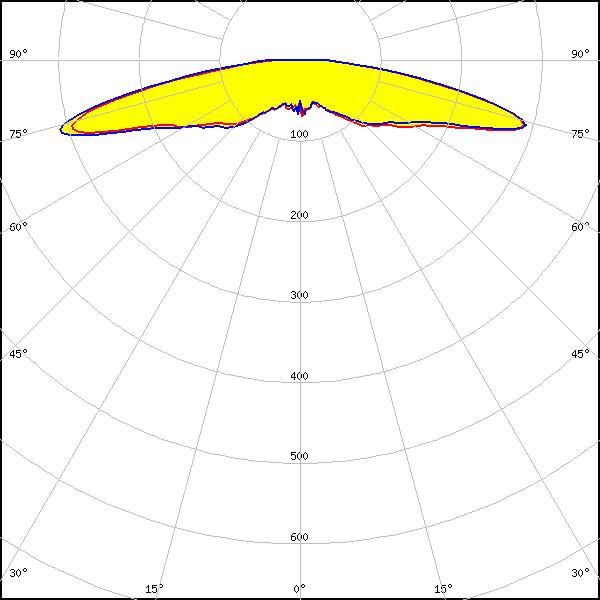

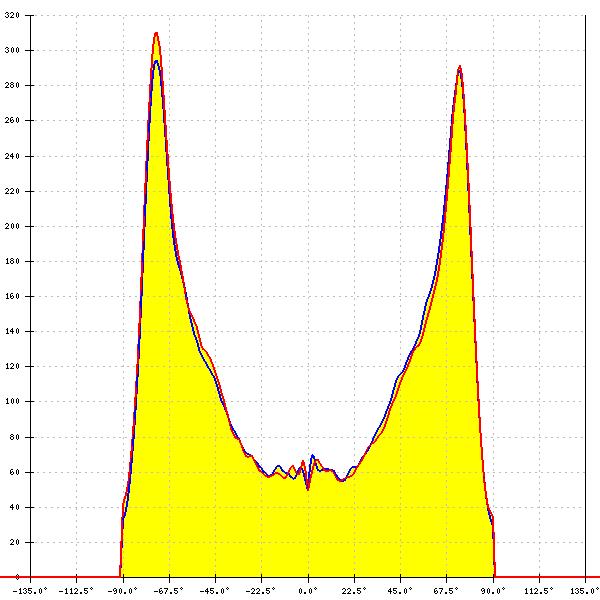

LED: XP-G2 HE

FWHM: 162°

FWTM: 180°

Peak intensity: 0.310 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

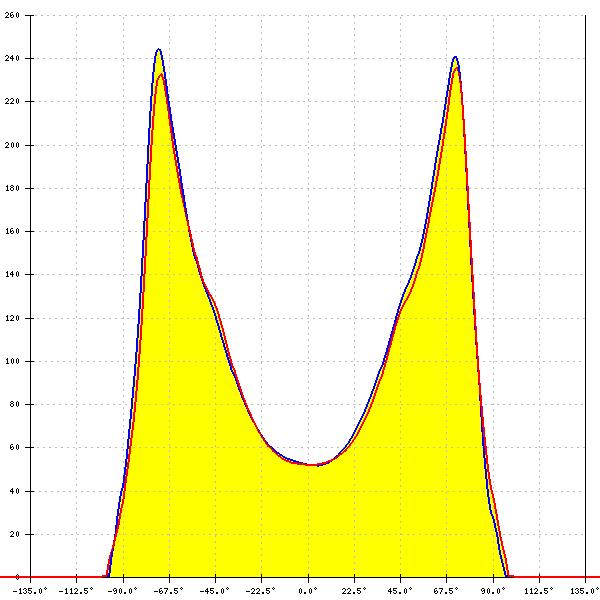

LED: XP-G3

FWHM: 166°

FWTM: 187°

Peak intensity: 0.240 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON IR Compact

FWHM: 141°

FWTM: 167°

Efficiency: 97 %

LEDs/each optic: 1

Light colour/type: IR

Datasheet

Light distribution files

LED: LUXEON Rebel

FWHM: 154°

FWTM: -

Peak intensity: 0.260 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

LED: LUXEON Rebel ES

FWHM: 163°

FWTM: -

Peak intensity: 0.240 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

LED: NCSxx19A

FWHM: 156°

FWTM: -

Peak intensity: 0.240 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

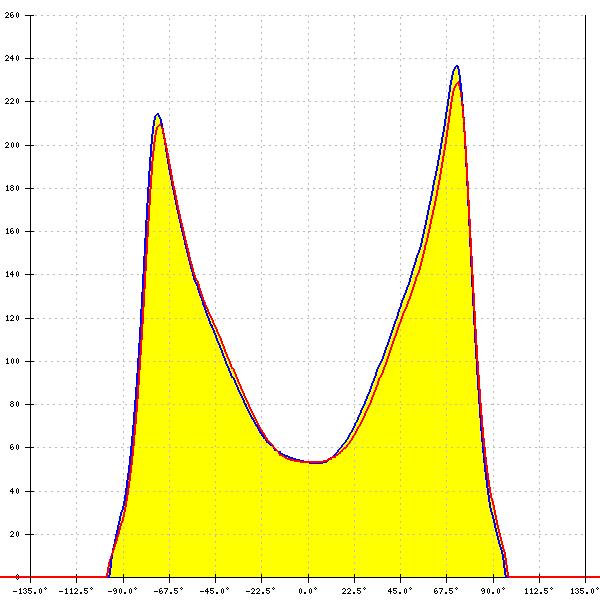

LED: NVSW219F

FWHM: 166°

FWTM: 186°

Peak intensity: 0.240 cd/lm

Efficiency: 82 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NVSxx19A

FWHM: 159°

FWTM: -

Peak intensity: 0.240 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

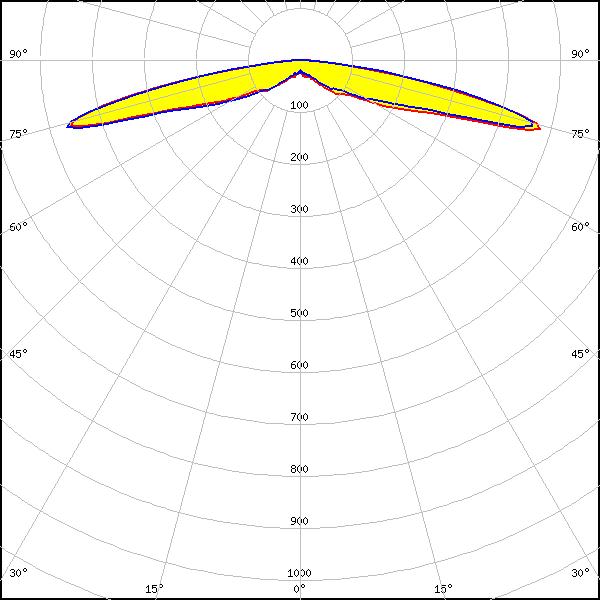

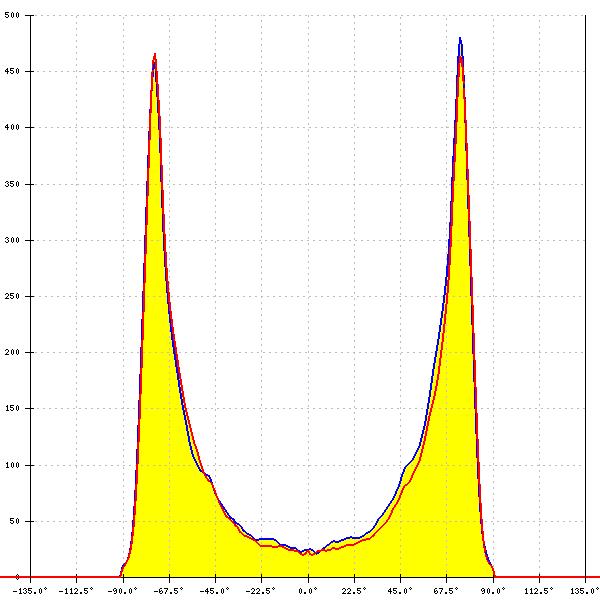

LED: OSLON SSL 150

FWHM: 159°

FWTM: -

Peak intensity: 0.300 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSLON SSL 80

FWHM: 158°

FWTM: -

Peak intensity: 0.200 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

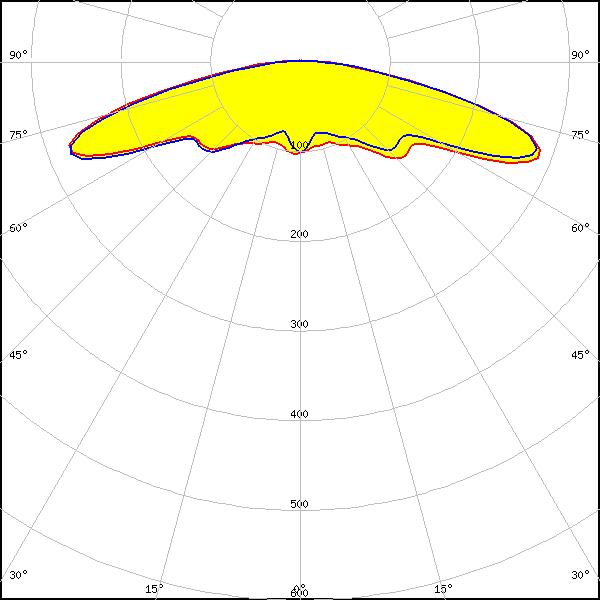

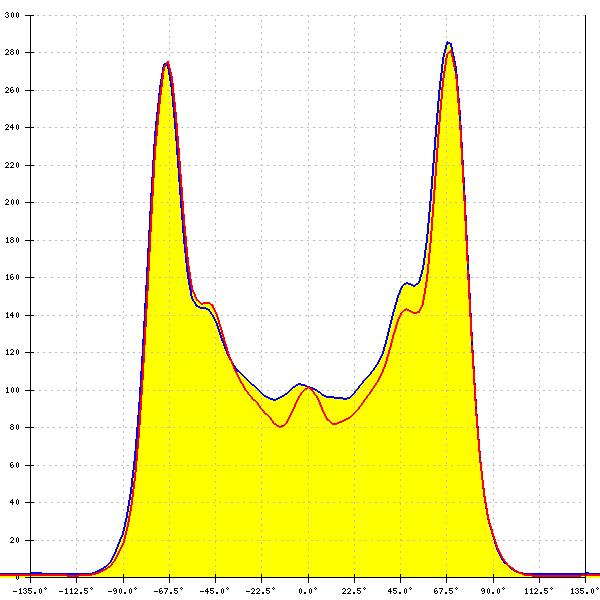

LED: LH351C

FWHM: 158°

FWTM: 176°

Peak intensity: 0.296 cd/lm

Efficiency: 95 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

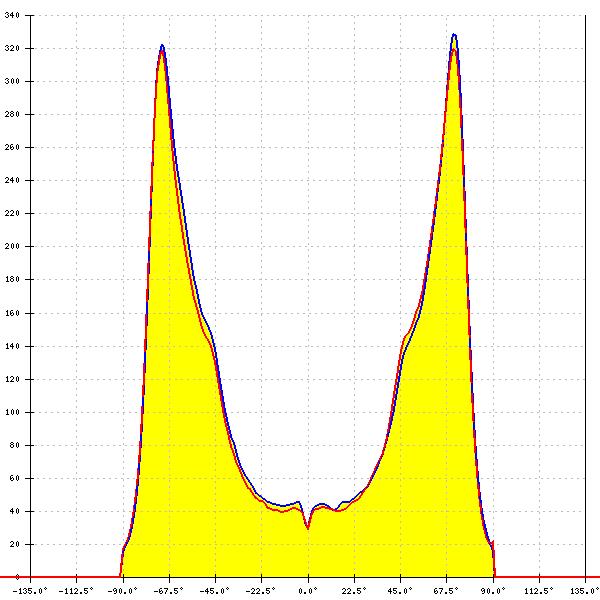

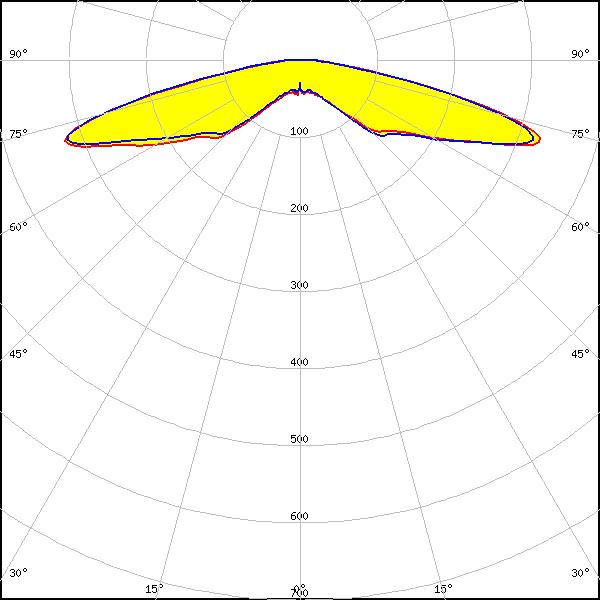

LED: LM301B

FWHM: 156°

FWTM: 172°

Peak intensity: 0.328 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

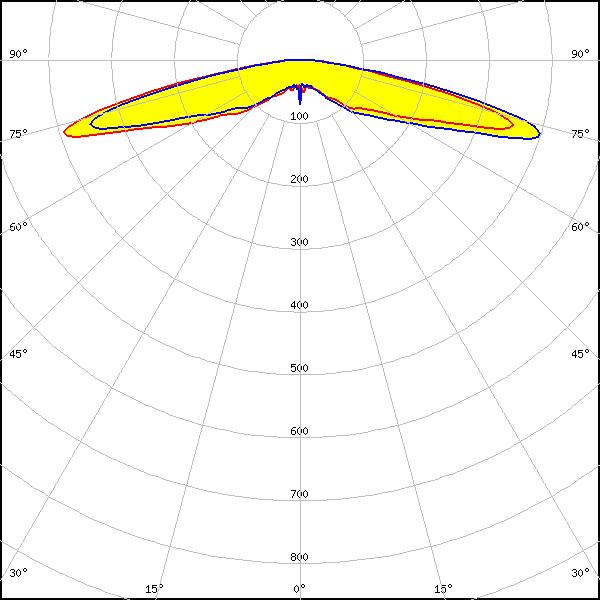

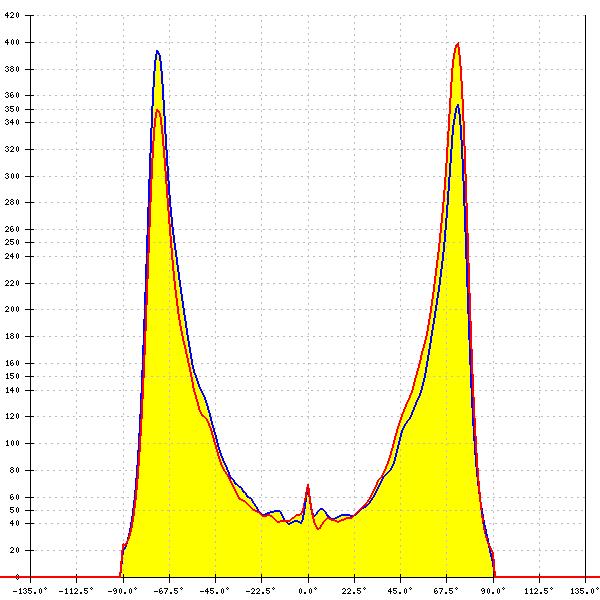

LED: Z5

FWHM: 160°

FWTM: -

Peak intensity: 0.240 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
