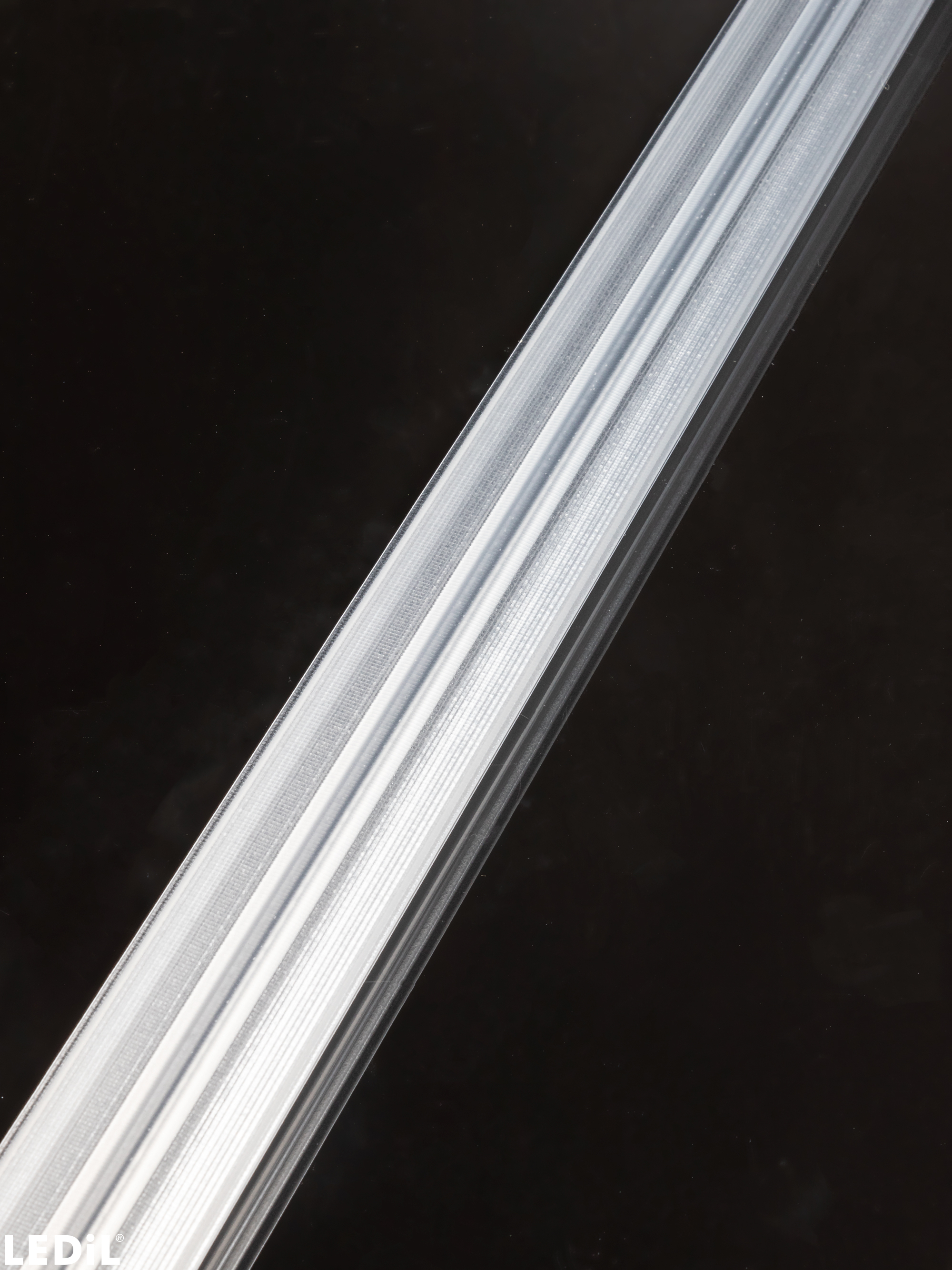

F17601_LINDA-40-O
Print

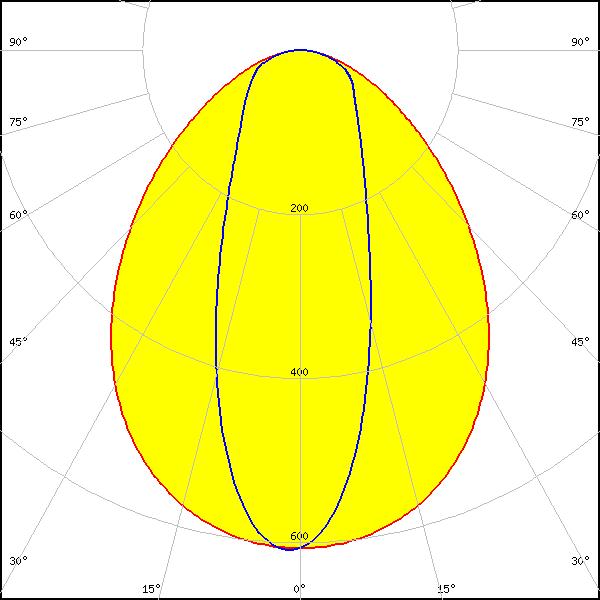

~86° + 40° oval beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Other variants: F17873_LINDA-40-O-48in (North American 48 inch length)
F17874_LINDA-40-O-3m (3.01 m length) and other custom lengths available
Related Content

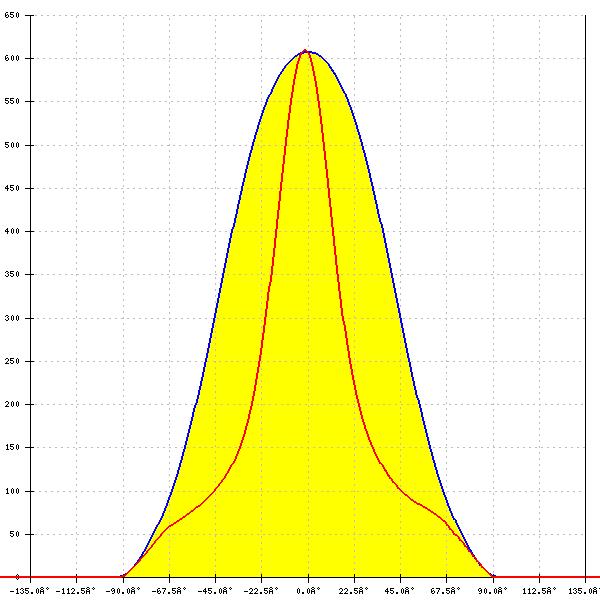

Optical results

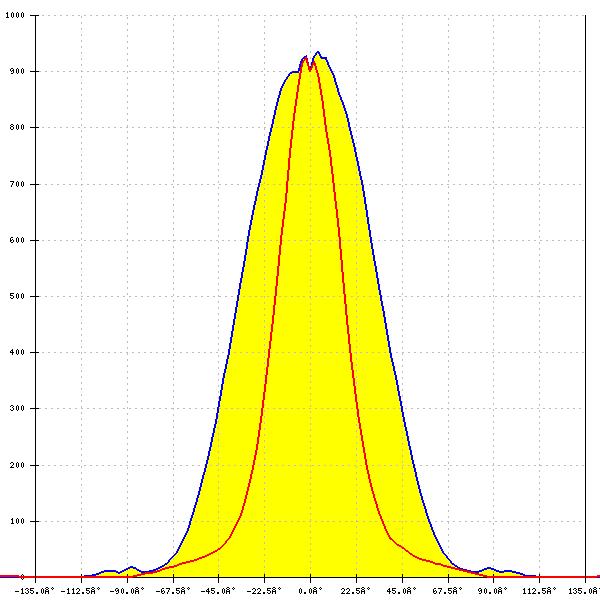

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
72° + 36°
FWTM:
120° + 72°
Peak intensity:
0.958 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

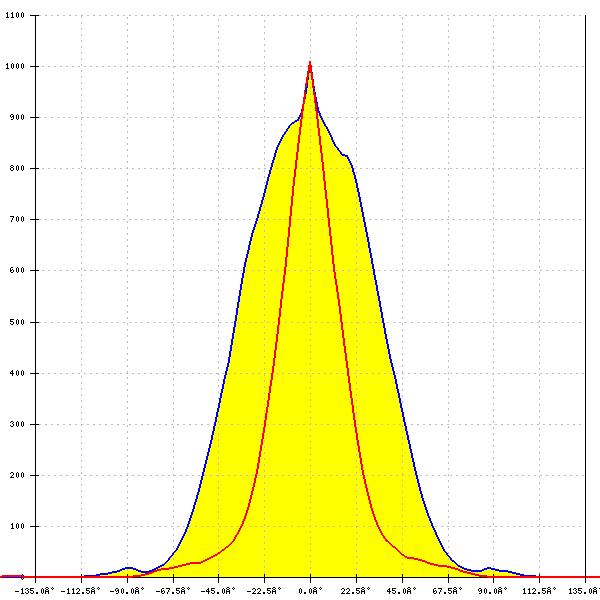

LED:
OSLON SSL 150
FWHM:
72° + 30°
FWTM:
120° + 68°
Peak intensity:
1.010 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Far Red
LED:
LM28xB Series
FWHM:
76° + 32°
FWTM:
130° + 68°
Peak intensity:
0.922 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM301B
FWHM:
72° + 36°
FWTM:
116° + 76°
Peak intensity:
0.947 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
