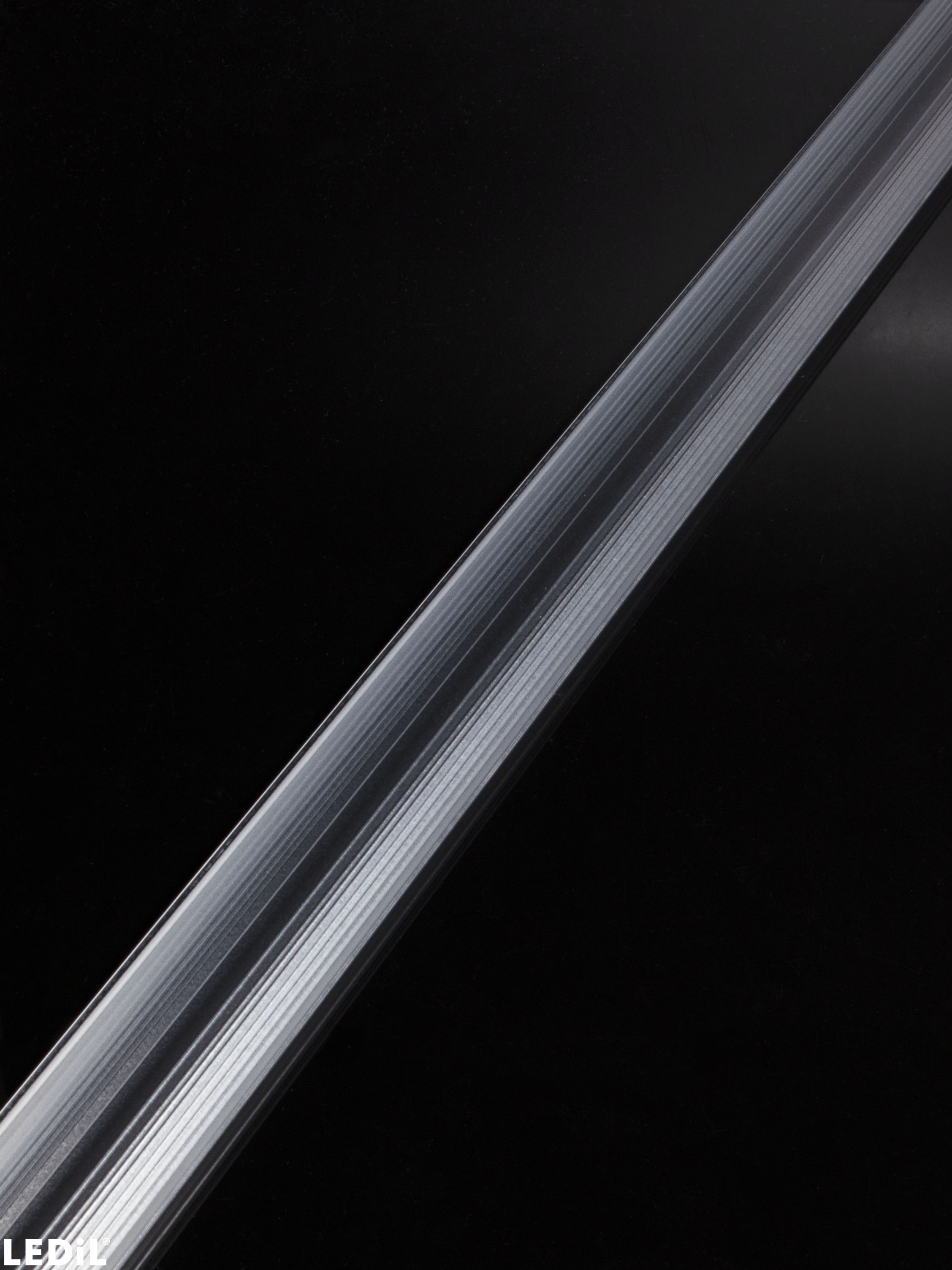

    F17600_LINDA-40-W

    Print

    ~60° + 110° wide beam

    Specification
    • Dimensions:
      40 x  1140 mm
    • Height:
      8.80 mm
    • Colour:
      milky
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      64 pcs
    • Box size:
      1200x190x167 mm
    • Box weight:
      10.2 kg
    • MPQ:
      64 pcs
    • MOQ:
      64 pcs
    • MOQ size:
      1200x190x167 mm
    • MOQ weight:
      10.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      F17600_LINDA-40-W
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    News

    New products – December 2, 2021

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Office Lighting Optics

    News

    LINDA-40 – versatile 40 mm free pitch extrusion

    Case story

    Badia di Pomaio resort

    Article

    Top 3 areas where retailers lose customers due to bad lighting

    News

    New Products 2019-11-07

    News

    Effective fashion retail lighting

    Application example

    Retail lighting with LINDA and ELISE (low contrast)

    Article

    Illuminating supermarkets with LEDiL optics

    Application example

    Supermarket lighting with LINDA and ALISE

    News

    LINDA industrial scale extrusion optic for precise retail lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application area

    Office Lighting

    Optical results

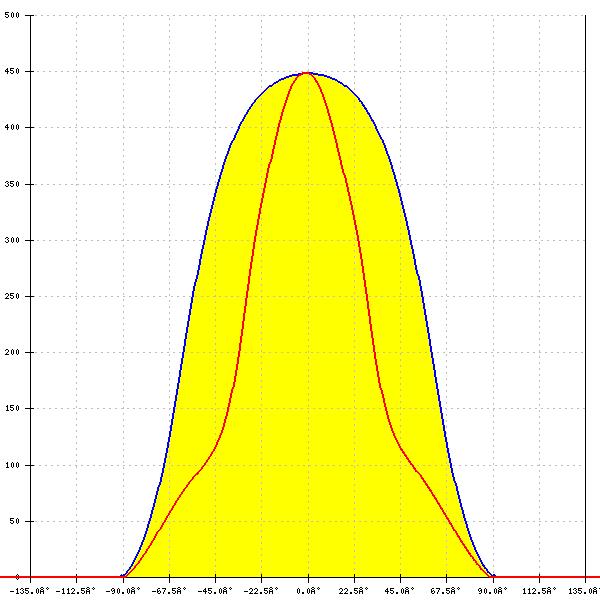

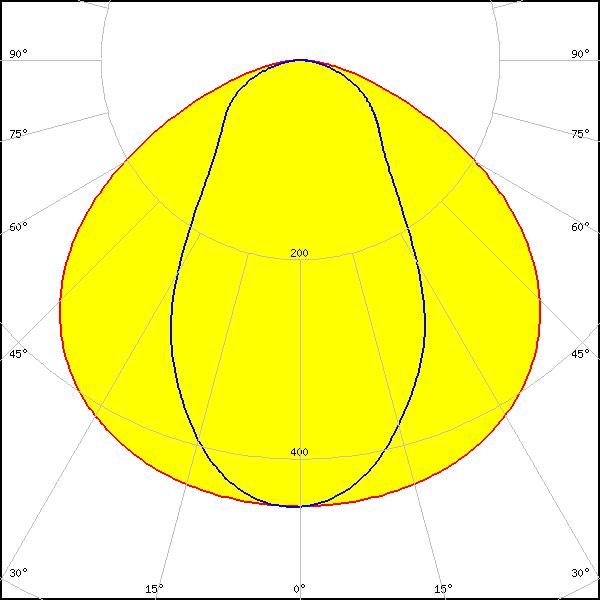

    LED: Basic Linear Z3 2200 560x20mm
    FWHM: 117° + 63°
    FWTM: 156° + 141°
    Peak intensity: 0.448 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3030
    FWHM: 96° + 58°
    FWTM: 130° + 98°
    Peak intensity: 0.560 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: Red
    LED: OSCONIQ P 3030
    FWHM: 92° + 56°
    FWTM: 129° + 92°
    Peak intensity: 0.606 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Strip 1ft 1100lm FC HV5 & LV5
    FWHM: 116° + 65°
    FWTM: 156° + 140°
    Peak intensity: 0.434 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

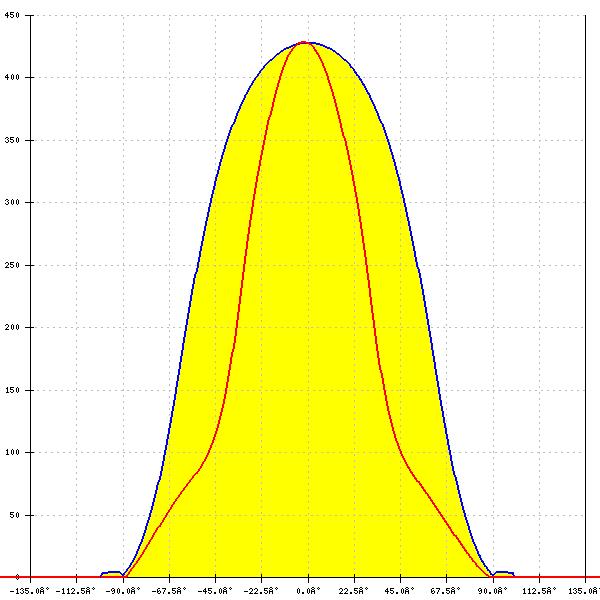

    LED: Fortimo LED Strip 1ft 2000lm FC HV6
    FWHM: 115° + 65°
    FWTM: 156° + 140°
    Peak intensity: 0.429 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Strip 1ft 650lm FC HV5 & LV5
    FWHM: 112° + 67°
    FWTM: 155° + 139°
    Peak intensity: 0.429 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM28xB Series
    FWHM: 108° + 60°
    FWTM: 146° + 92°
    Peak intensity: 0.513 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM301B
    FWHM: 88° + 56°
    FWTM: 128° + 92°
    Peak intensity: 0.598 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
