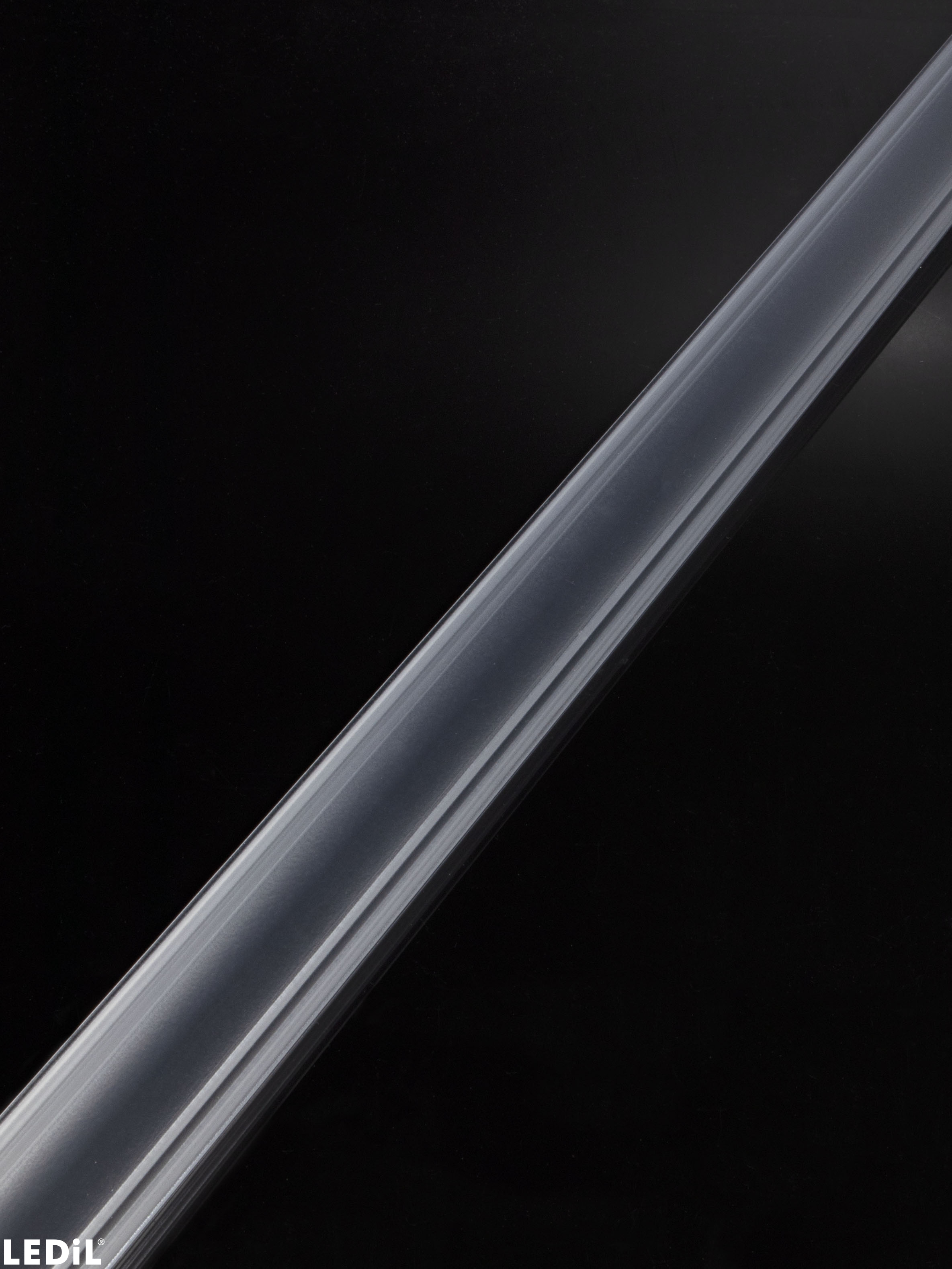

F17599_LINDA-40-WW

Print

~90° + 110° wide beam

Specification
  • Dimensions:
    40 x  1140 mm
  • Height:
    8.80 mm
  • Fastening:
    snaps
  • Colour:
    milky
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    64 pcs
  • Box size:
    1190 x 182 x 165 mm
  • Box weight:
    12.1 kg
  • MPQ:
    64 pcs
  • MOQ:
    64 pcs
  • MOQ size:
    1190 x 182 x 165 mm
  • MOQ weight:
    12.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    F17599_LINDA-40-WW

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Other variants:F17865_LINDA-40-WW-48in (North American 48 inch length)
F17866_LINDA-40-WW-3m (3.01 m length) and other custom lengths available

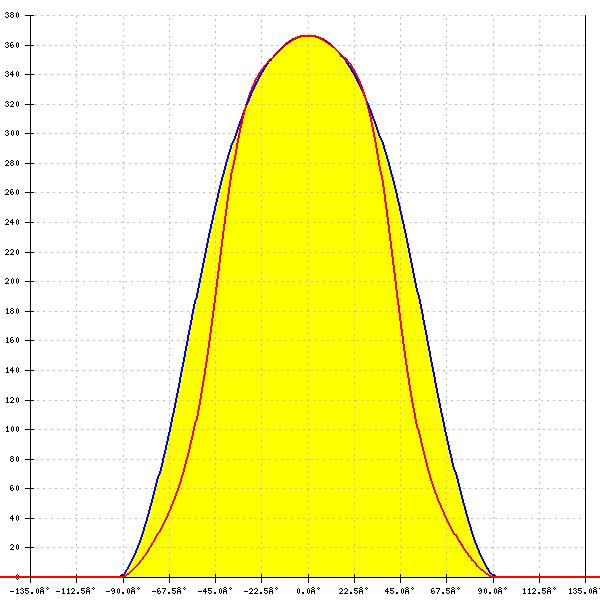

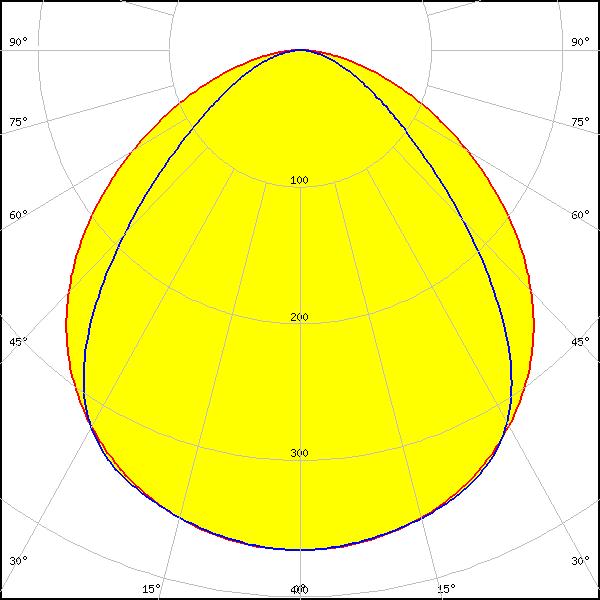

Optical results

LED: J Series 2835
FWHM: 88° + 86°
FWTM: 130° + 120°
Peak intensity: 0.453 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
FWHM: 96° + 92°
FWTM: 184° + 128°
Peak intensity: 0.403 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3030
FWHM: 98° + 90°
FWTM: 134° + 124°
Peak intensity: 0.396 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: Red
LED: LM28xB Series
FWHM: 104° + 90°
FWTM: 148° + 124°
Peak intensity: 0.385 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: LM301B
FWHM: 88°
FWTM: 132°
Peak intensity: 0.453 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
