F17194_LINDA-WW2
Print![](http://lediloptics.cn/wp-content/themes/LEDiL_Theme/img/icon-download.png)
~90° + 100° wide beam
Specification
-
Dimensions:26 x 1140 mm
-
Height:5.30 mm
-
Colour:milky
-
RoHS and REACH compliant:Yes
Materials
Ordering information
-
Quantity in box:160 pcs
-
Box size:1185 x 150 x 115 mm
-
Box weight:11.4 kg
-
MPQ:160 pcs
-
MOQ:160 pcs
-
MOQ size:1185 x 150 x 115 mm
-
MOQ weight:11.4 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
- PCB drawing
Other variants: F17450_LINDA-WW2-48in (North American 48 inch length)
F17322_LINDA-WW2-3m (3.01 m length) and other custom lengths available
Related Content
Optical results

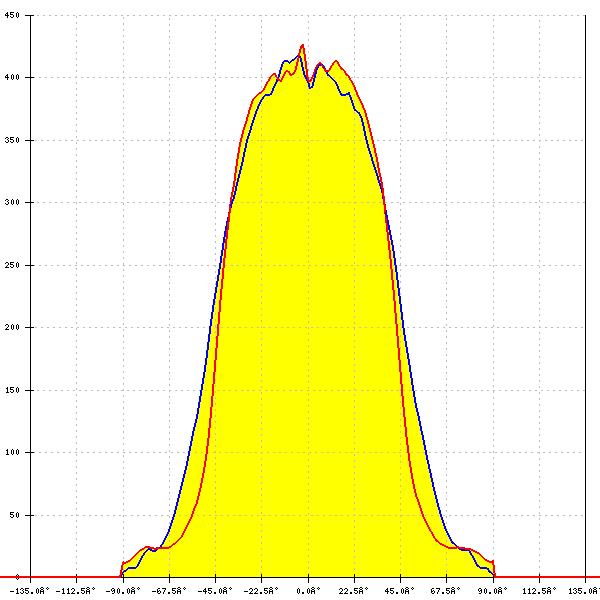

![](/data/logos/bridgelux.jpg)
LED:
Bridgelux SMD 5050
FWHM:
93° + 86°
FWTM:
134° + 116°
Peak intensity:
0.426 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

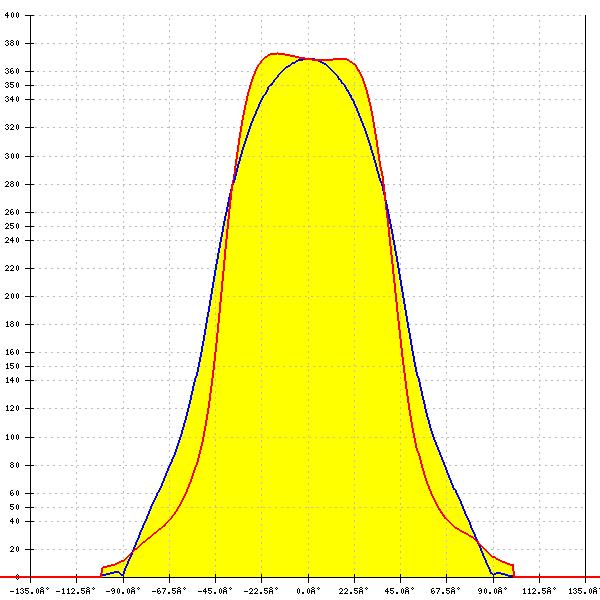

![](/data/logos/bridgelux.jpg)
LED:
SMD 3030 (BXEM)
FWHM:
98° + 87°
FWTM:
160° + 140°
Peak intensity:
0.373 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
Tunable White
![](/data/logos/citizen.jpg)
LED:
CLUC11
FWHM:
98° + 85°
FWTM:
156° + 143°
Peak intensity:
0.376 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/cree.jpg)
LED:
XP-G3
FWHM:
104° + 92°
FWTM:
163° + 170°
Peak intensity:
0.322 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/lumileds.jpg)
LED:
LUXEON CSP HL1
FWHM:
98° + 83°
FWTM:
140° + 109°
Peak intensity:
0.450 cd/lm
Efficiency:
88 %
LEDs/each optic:
5
Light colour/type:
White
![](/data/logos/nichia.jpg)
LED:
NFSWE11A
FWHM:
96° + 84°
FWTM:
180° + 117°
Peak intensity:
0.403 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/osram.jpg)
LED:
PL-LIN-Z5 1100 280x20
FWHM:
97° + 86°
FWTM:
159° + 135°
Peak intensity:
0.368 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/osram.jpg)
LED:
PL-LIN-Z5 2000 280x20
FWHM:
97° + 84°
FWTM:
158° + 135°
Peak intensity:
0.359 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/osramopto.jpg)
LED:
Duris E 2835
FWHM:
97° + 84°
FWTM:
158° + 135°
Peak intensity:
0.359 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/osramopto.jpg)
LED:
Duris E 2835
FWHM:
97° + 86°
FWTM:
159° + 135°
Peak intensity:
0.368 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

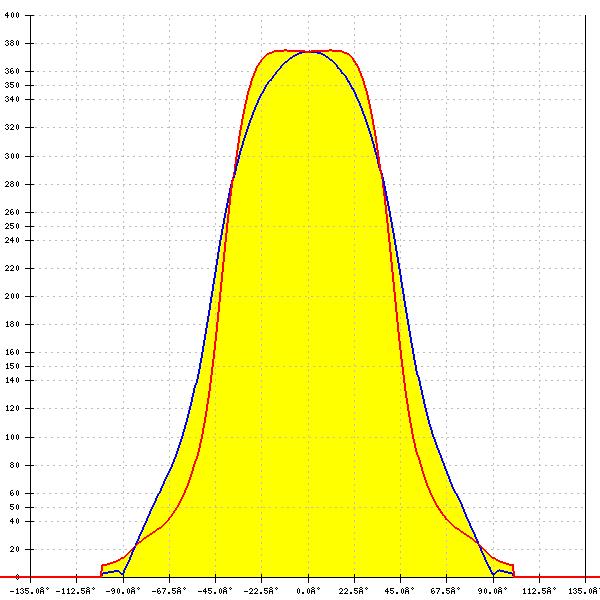

![](/data/logos/osramopto.jpg)
LED:
OSCONIQ E 2835
FWHM:
97° + 87°
FWTM:
158° + 140°
Peak intensity:
0.375 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Tunable White
![](/data/logos/philips.jpg)
LED:
Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
FWHM:
97° + 86°
FWTM:
158° + 136°
Peak intensity:
0.369 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/philips.jpg)
LED:
Fortimo LED Strip 1ft 1100lm FC HV5 & LV5
FWHM:
97° + 86°
FWTM:
159° + 143°
Peak intensity:
0.379 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/philips.jpg)
LED:
Fortimo LED Strip 1ft 650lm FC HV4 & LV4
FWHM:
97° + 86°
FWTM:
158° + 135°
Peak intensity:
0.379 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/philips.jpg)
LED:
Fortimo LED Strip 1ft 650lm FC HV5 & LV5
FWHM:
97° + 86°
FWTM:
158° + 142°
Peak intensity:
0.384 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/samsung.jpg)
LED:
LM561B Plus
FWHM:
87° + 100°
FWTM:
147° + 159°
Peak intensity:
0.380 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/samsung.jpg)
LED:
LT-H282C
FWHM:
98° + 87°
FWTM:
158° + 143°
Peak intensity:
0.383 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/samsung.jpg)
LED:
LT-Q282A
FWHM:
97° + 87°
FWTM:
158° + 141°
Peak intensity:
0.380 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/samsung.jpg)
LED:
LT-S282H
FWHM:
97° + 87°
FWTM:
159° + 143°
Peak intensity:
0.385 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/seoulsemiconductor.jpg)
LED:
SEOUL DC 3030
FWHM:
94° + 86°
FWTM:
134° + 114°
Peak intensity:
0.422 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

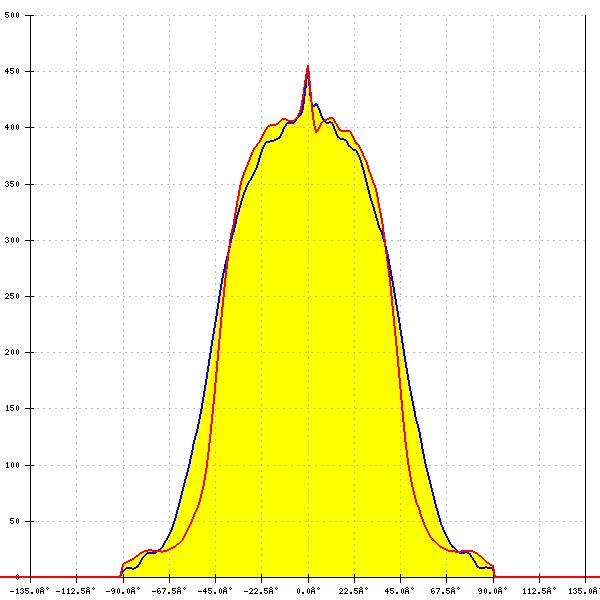

![](/data/logos/seoulsemiconductor.jpg)
LED:
SEOUL DC 5050 6V
FWHM:
90° + 84°
FWTM:
132° + 114°
Peak intensity:
0.455 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/tridonic.jpg)
LED:
LLE 24x280mm 1250lm HV ADV5
FWHM:
98° + 86°
FWTM:
158° + 138°
Peak intensity:
0.368 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/tridonic.jpg)
LED:
LLE 24x280mm 650lm HV ADV5
FWHM:
98° + 86°
FWTM:
159° + 137°
Peak intensity:
0.369 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
