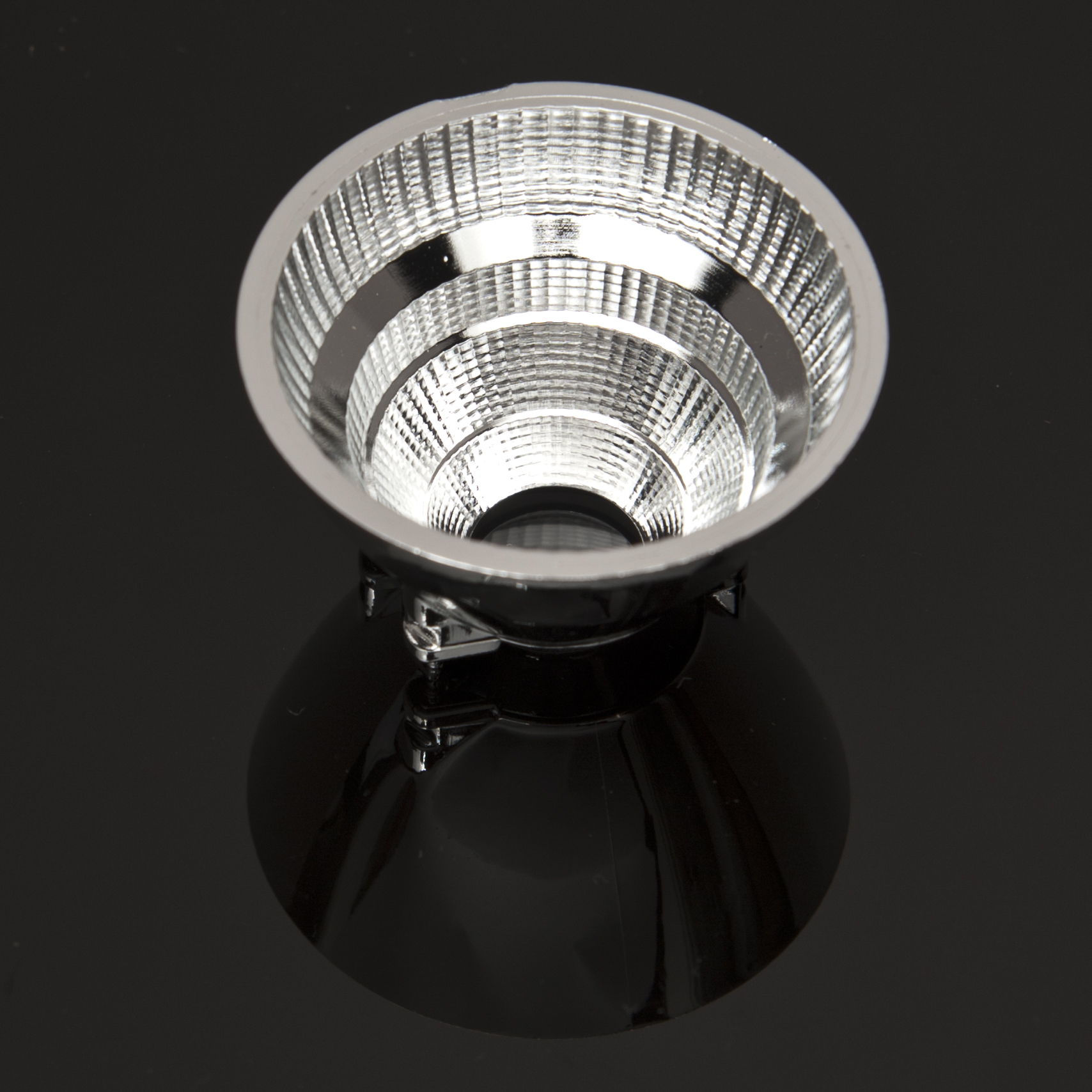

F16886_TYRA-W
Print~50° wide beam
Specification
-
Dimensions:40 mm
-
Height:23.10 mm
-
Fastening:socket
-
Colour:metal
-
RoHS and REACH compliant:Yes
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:352 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:2.9 kg
-
MPQ:32 pcs
-
MOQ:96 pcs
-
MOQ size:480 x 280 x 80 mm
-
MOQ weight:1.1 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content

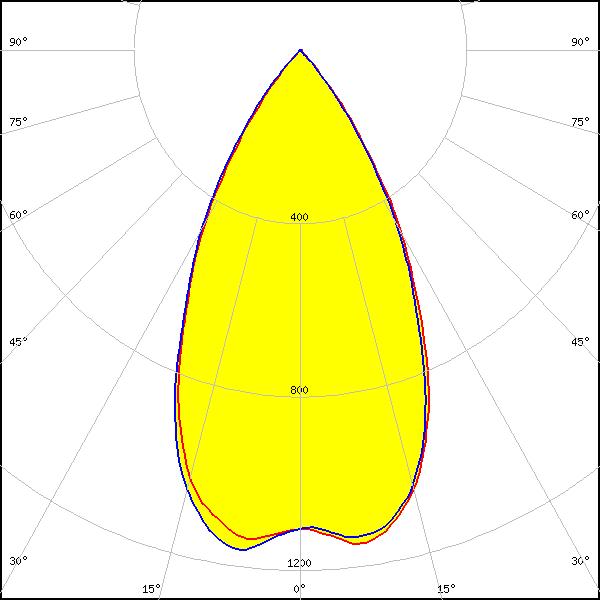

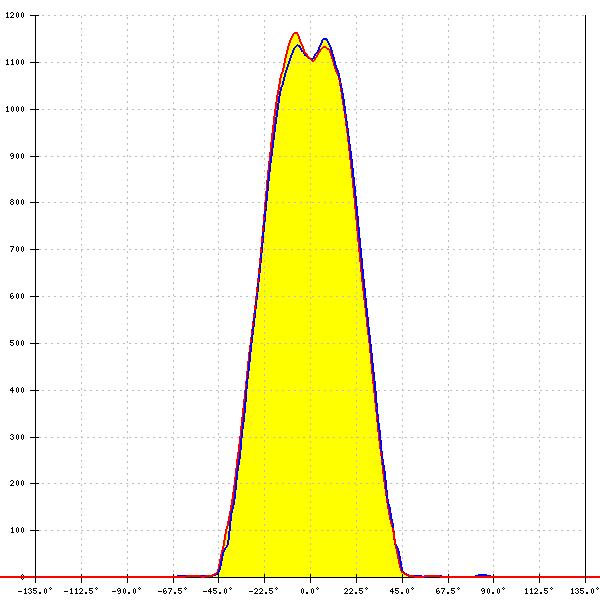

Optical results
LED:
MP-L
FWHM:
54°
FWTM:
80°
Peak intensity:
1.186 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
