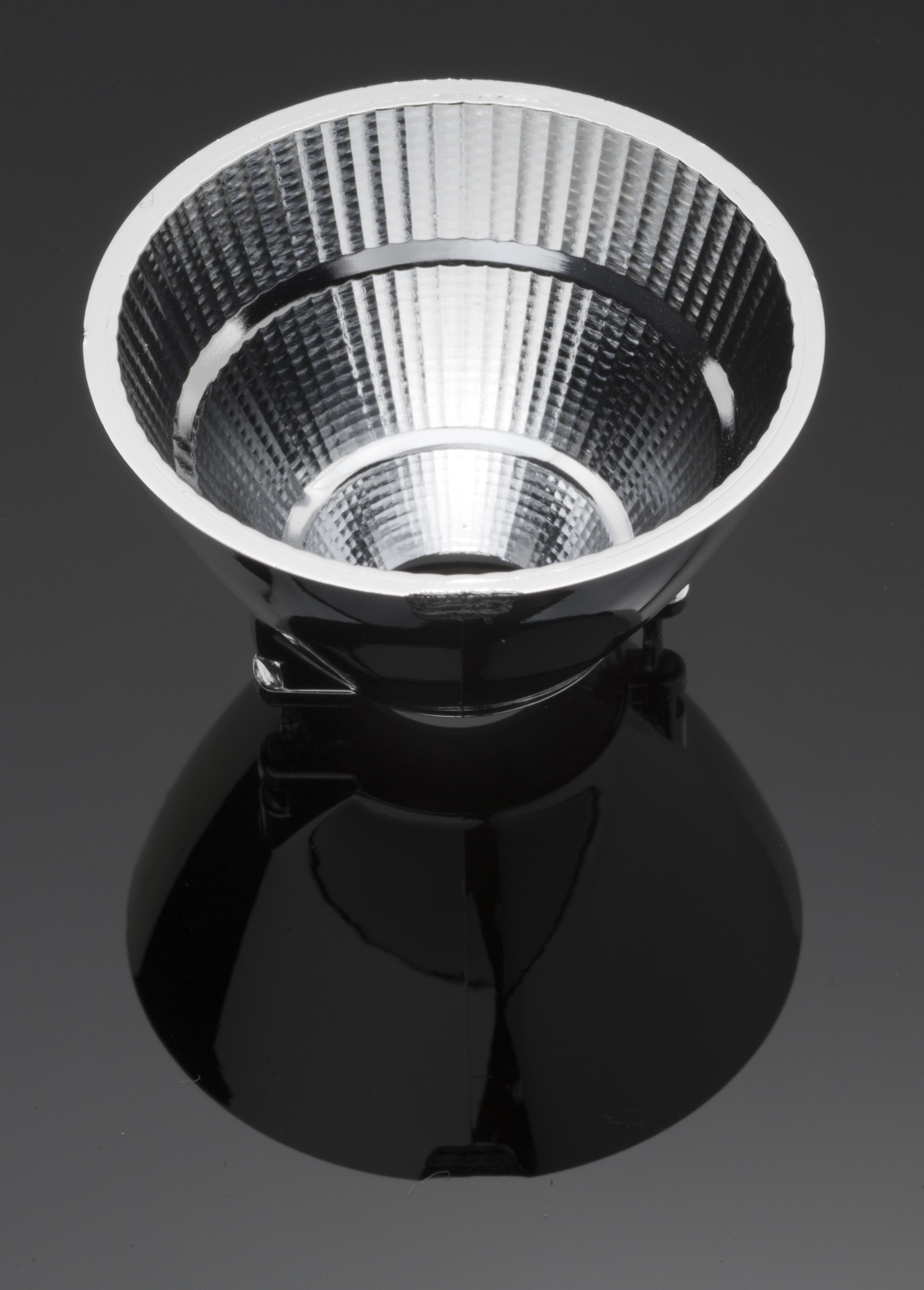

F16885_TYRA-M
Print~20° medium beam
Specification
-
Dimensions:40 mm
-
Height:23.10 mm
-
Fastening:socket
-
Colour:metal
-
RoHS and REACH compliant:Yes
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:352 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:3.2 kg
-
MPQ:32 pcs
-
MOQ:96 pcs
-
MOQ size:480 x 280 x 80 mm
-
MOQ weight:1.1 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content

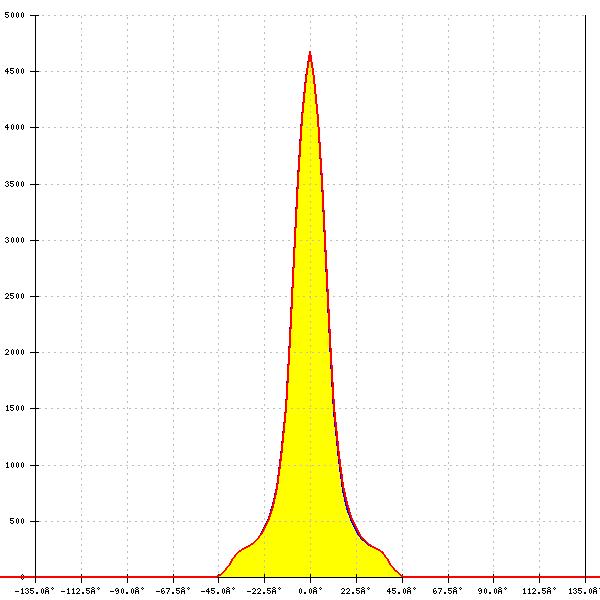

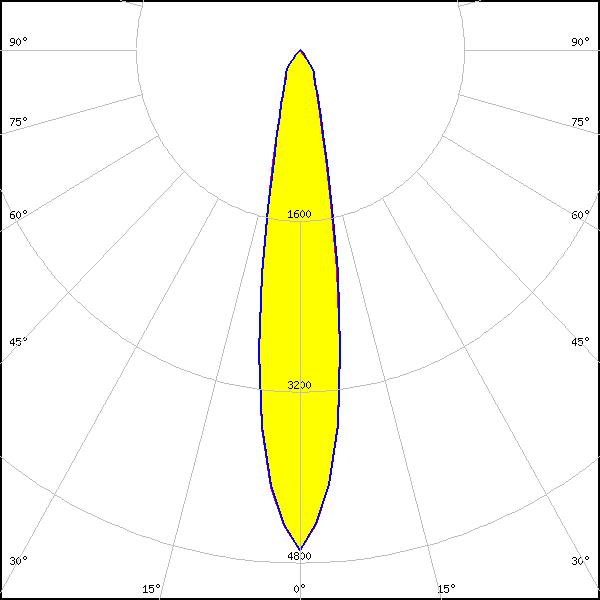

Optical results

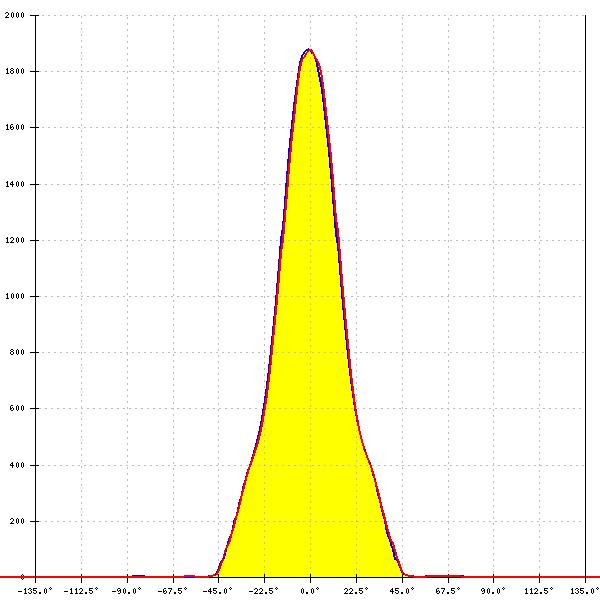

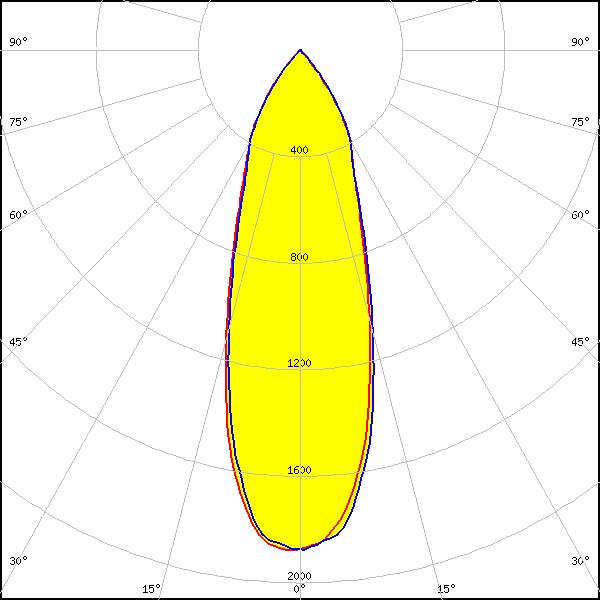

LED:
MP-L
FWHM:
34°
FWTM:
75°
Peak intensity:
1.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

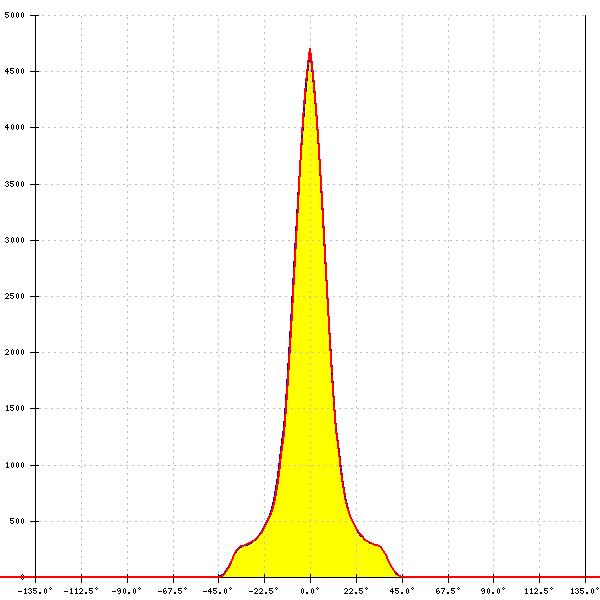

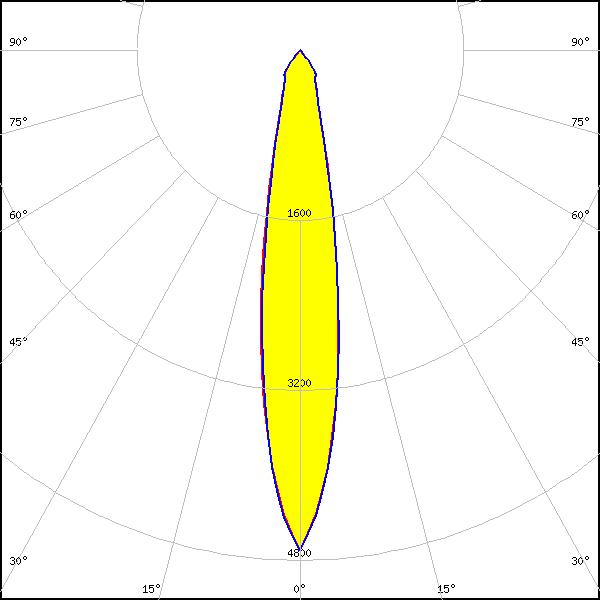

LED:
LUXEON 5050 Square LES
FWHM:
18°
FWTM:
43°
Peak intensity:
4.708 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

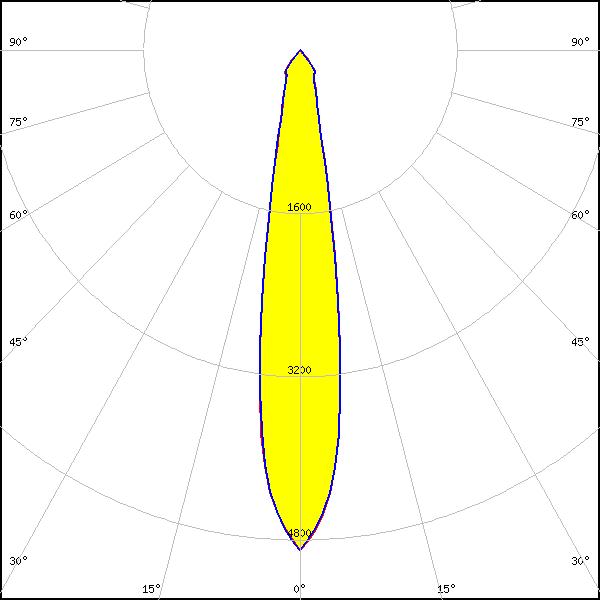

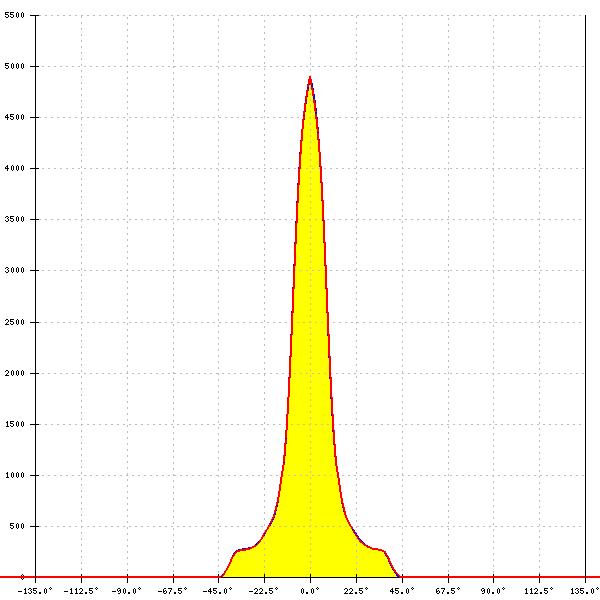

LED:
NVSW219F
FWHM:
18°
FWTM:
40°
Peak intensity:
4.902 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
