F16261_FLORENCE-Z90-B
Print
~90° wide beam with added compatibility for Philips G4 LED modules
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

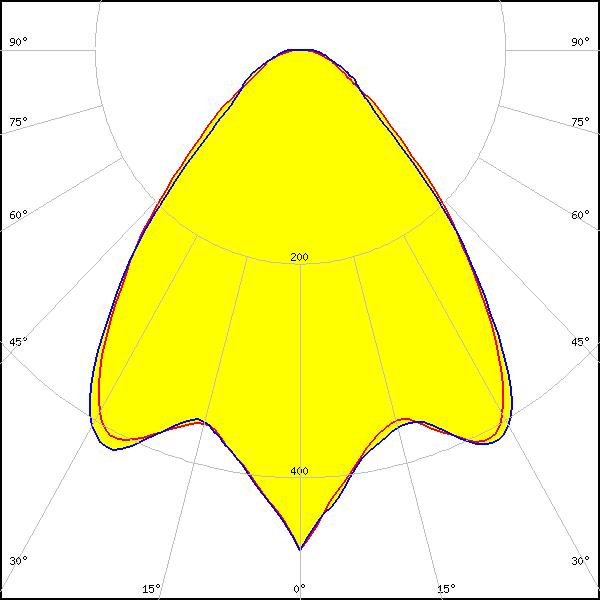

LED:
J Series 2835
FWHM:
84°
FWTM:
130°
Peak intensity:
0.468 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

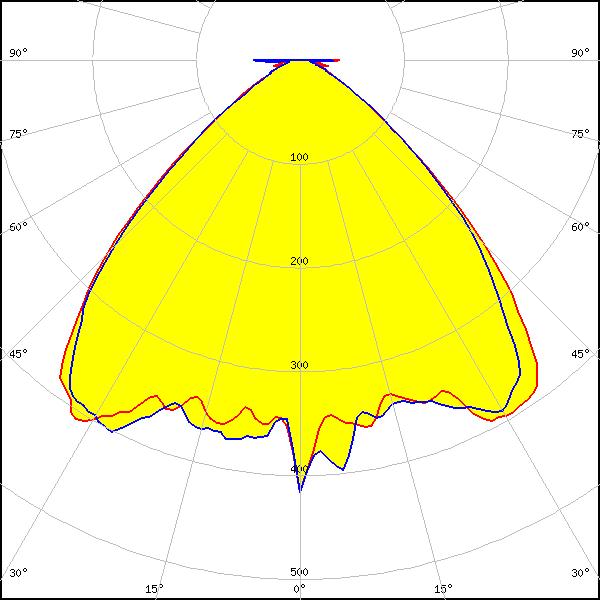

LED:

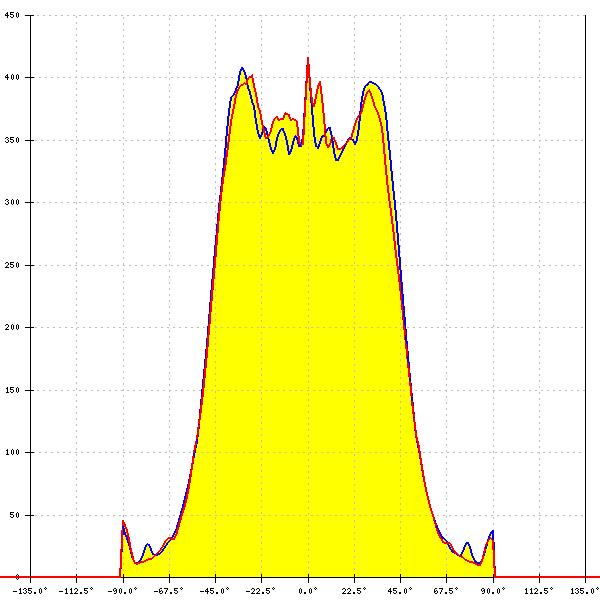

XP-G3
FWHM:
95°
FWTM:
126°
Peak intensity:
0.421 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3030 2D (Round LES)
FWHM:
91°
FWTM:
132°
Peak intensity:
0.420 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3535 2D
FWHM:
92°
FWTM:
135°
Peak intensity:
0.410 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3535L HE
FWHM:
92°
FWTM:
139°
Peak intensity:
0.420 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON XR-3535L (L202 - xxxx033C30001)
FWHM:
91°
FWTM:
134°
Peak intensity:
0.430 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MP-2016
FWHM:
90°
FWTM:
140°
Peak intensity:
0.420 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NF2x757D
FWHM:
92°
FWTM:
134°
Peak intensity:
0.430 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NF2x757G
FWHM:
90°
FWTM:
146°
Peak intensity:
0.370 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM:
90°
FWTM:
163°
Peak intensity:
0.390 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PLG2-BAR-1100-xxx-280x55-DC
FWHM:
92°
FWTM:
138°
Peak intensity:
0.420 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris E5
FWHM:
92°
FWTM:
135°
Peak intensity:
0.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S2
FWHM:
95°
FWTM:
165°
Peak intensity:
0.350 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S5 (Single chip)
FWHM:
91°
FWTM:
133°
Peak intensity:
0.410 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 2226
FWHM:
94°
FWTM:
140°
Peak intensity:
0.370 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

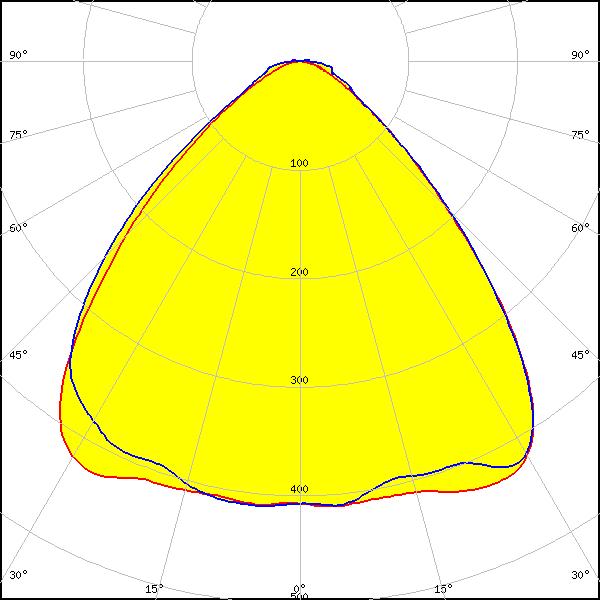

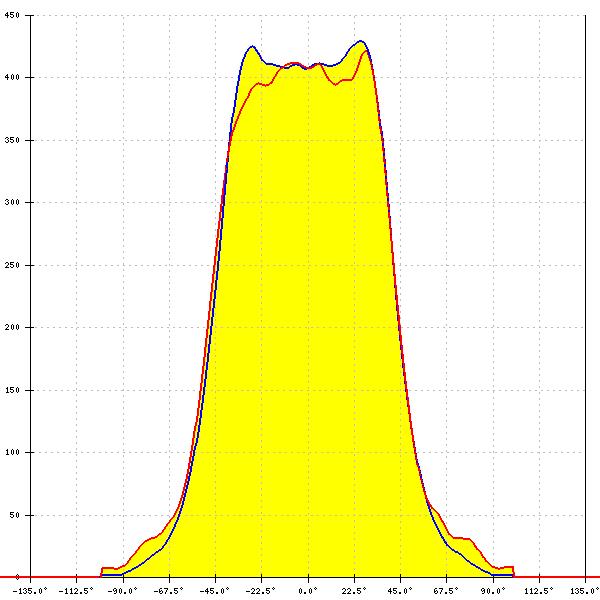

Fortimo LED Line 1ft 1100lm 3R HV4
FWHM:
91°
FWTM:
127°
Peak intensity:
0.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

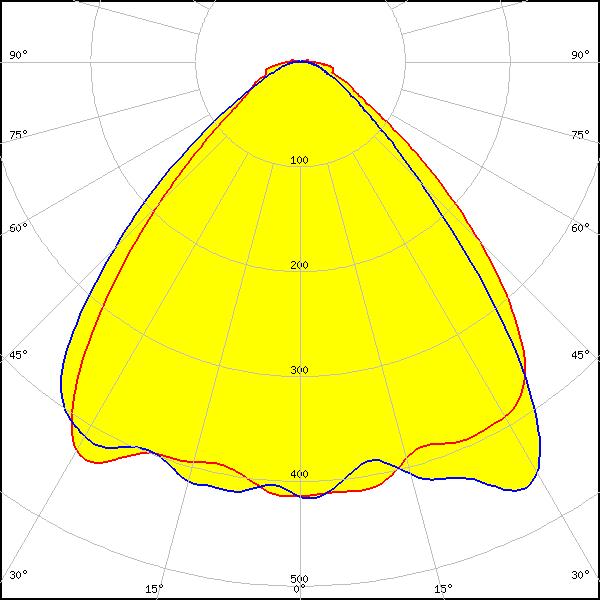

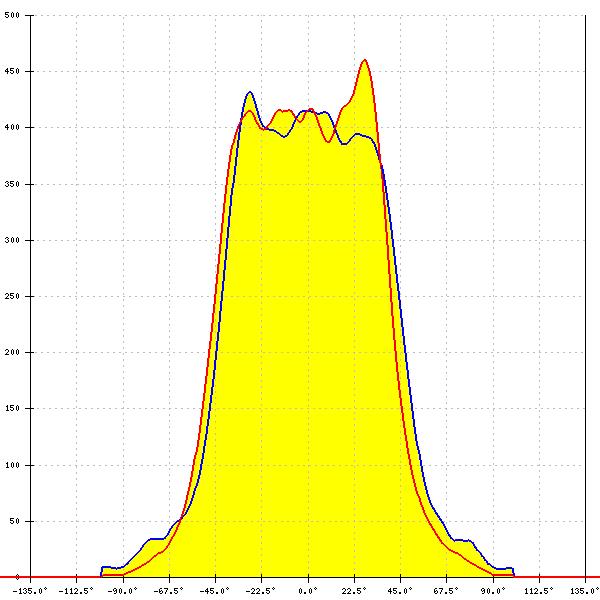

Fortimo LED Line 1ft 650lm 3R HV4 & LV4
FWHM:
87°
FWTM:
123°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM561B
FWHM:
86°
FWTM:
133°
Peak intensity:
0.420 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM561B Plus
FWHM:
92°
FWTM:
141°
Peak intensity:
0.410 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM561C
FWHM:
92°
FWTM:
140°
Peak intensity:
0.420 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LT-R286A
FWHM:
93°
FWTM:
140°
Peak intensity:
0.410 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

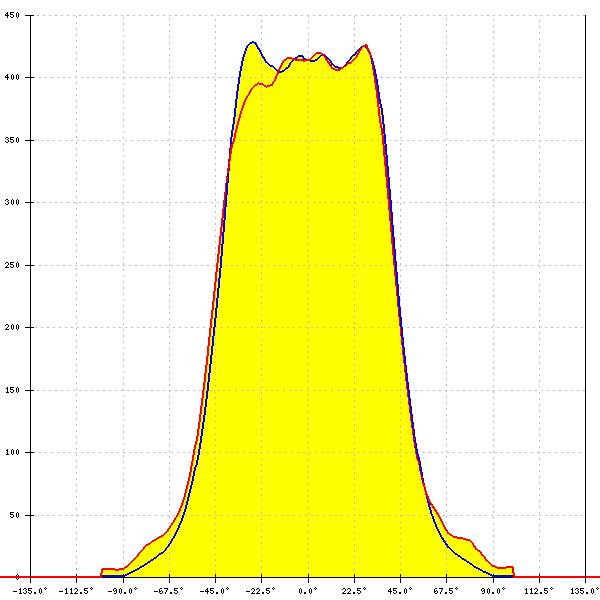

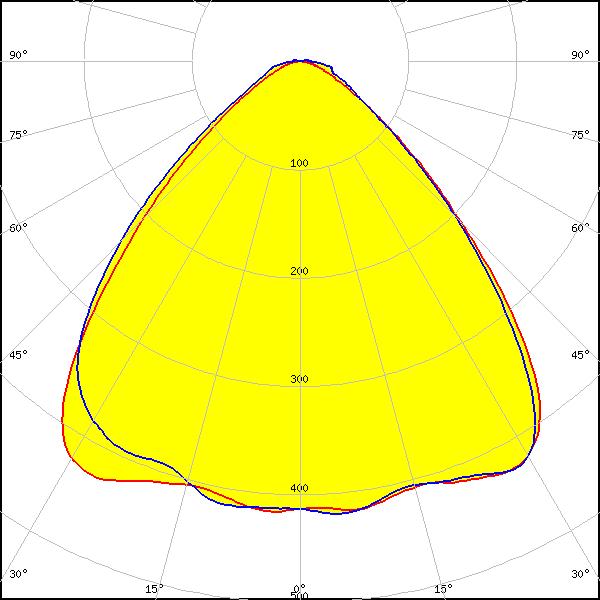

SEOUL 5630C
FWHM:
91°
FWTM:
129°
Peak intensity:
0.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030
FWHM:
91°
FWTM:
123°
Peak intensity:
0.450 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

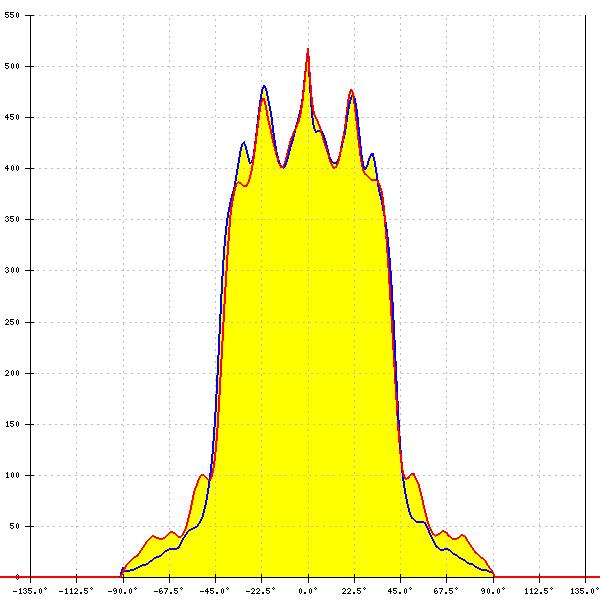

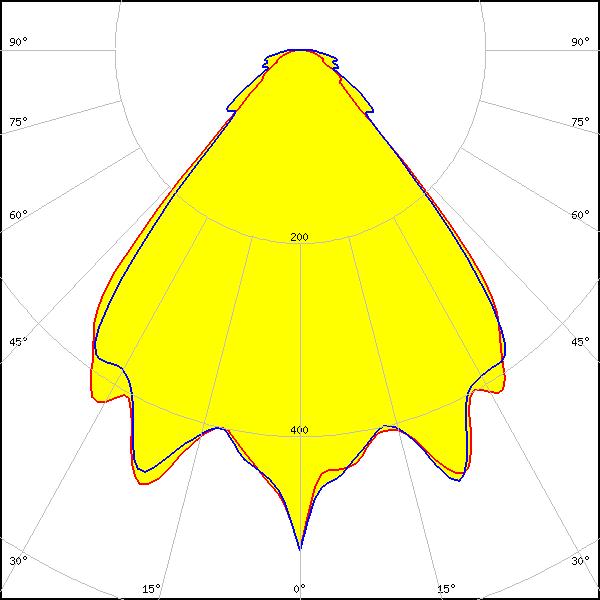

SEOUL DC 3528
FWHM:
82°
FWTM:
114°
Peak intensity:
0.520 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

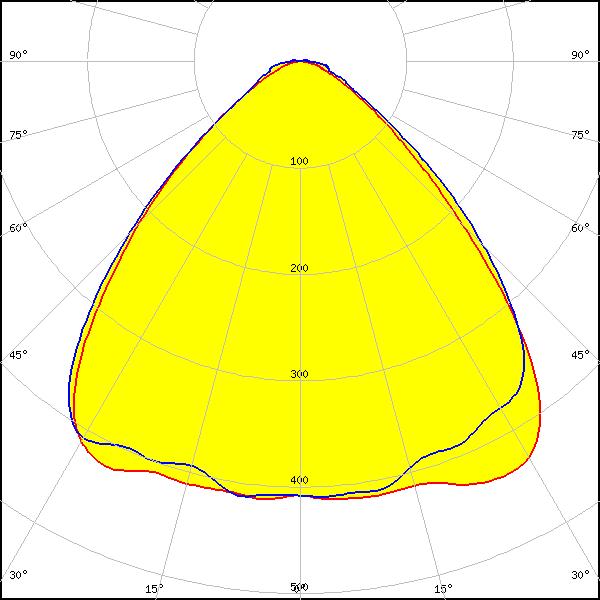

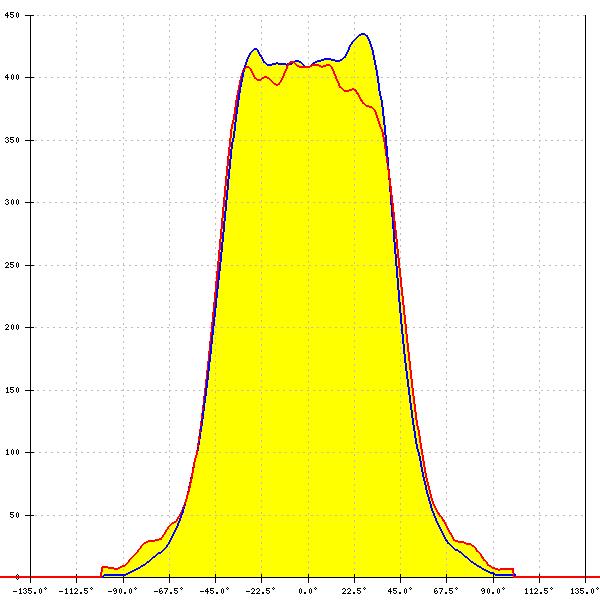

LLE G2 55x280mm 2000lm
FWHM:
92°
FWTM:
131°
Peak intensity:
0.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
