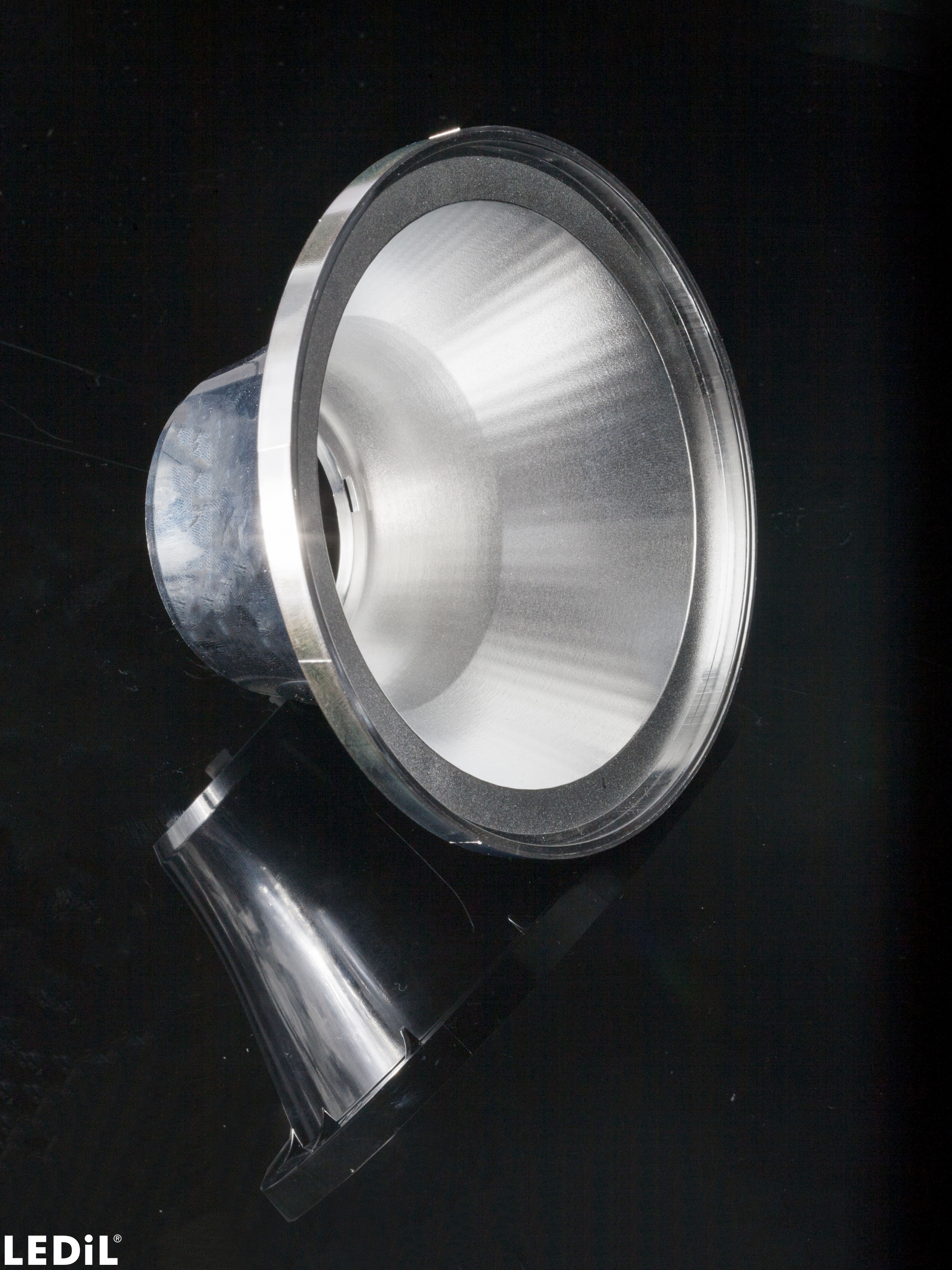

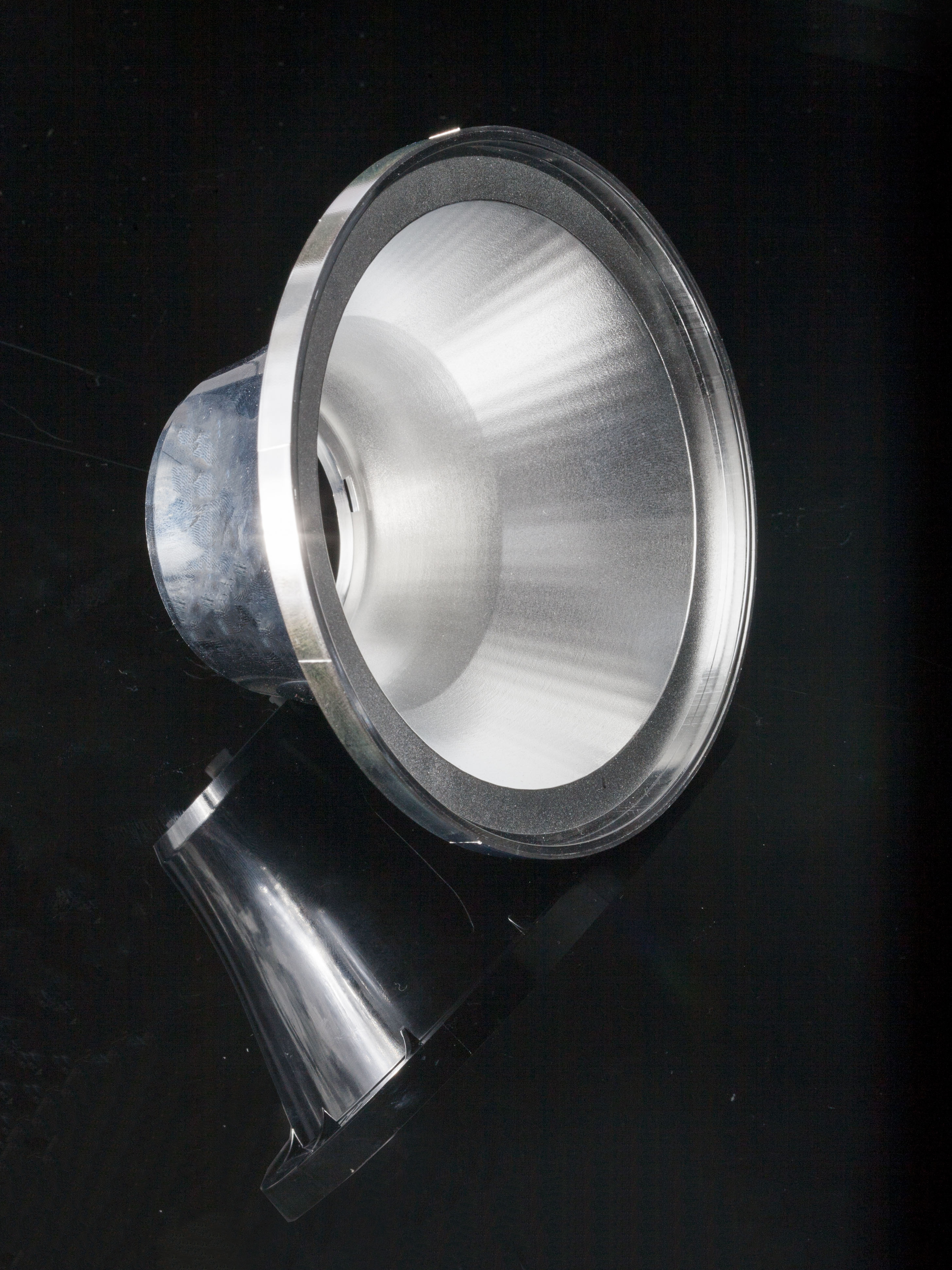

    F16011_ANGELETTE-M2-PLAIN

    Print

    ~35° medium beam. Clean appearance with no additional attachment interface

    Specification
    • Dimensions:
      110 mm
    • Height:
      57.30 mm
    • Fastening:
      socket
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      120 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      5.3 kg
    • MPQ:
      30 pcs
    • MOQ:
      90 pcs
    • MOQ size:
      480 x 280 x 150 mm
    • MOQ weight:
      4.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F16011_ANGELETTE-M2-PLAIN
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    LEDiL Guide for Retail Lighting Optics

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    News

    PRODUCT NEWS - ANGELETTE

    Application area

    Indoor Architectural Lighting

    Compatibility guide

    ANGELETTE Product Family Compatibility Guide

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    CLAMP-VERO13-18

    Basepart for reflectors and lenses with A-type interface. Compatible with Bridgelux VERO13 and VERO18.

    ANGE-RZ-LENS

    Colour mixing sublens for ANGELA, ANGELINA and ANGELETTE

    CLAMP

    Basepart for reflectors and lenses with A-type interface. Compatible with CREE CXA/B25xx and CXA/B30xx.

    CLAMP-VERO29

    Basepart for reflectors and lenses with A-type interface. Compatible with Bridgelux VERO29. Improved version.

    CLAMP-VEROSE-13-18

    Basepart for reflectors and lenses with A-type interface. Compatible with Bridgelux Vero 13 SE and Vero 18 SE COBs.

    XTM-ADAPTER-50-A

    ∅50 mm basepart for Xicato XTM/XIM modules compatible with LEDiL A-type interface.

    Optical results

    LED: Vesta TW 15mm DP
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 482 Typ L2
    FWHM: 37°
    FWTM: 80°
    Peak intensity: 1.368 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 15mm DP
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 482 Typ L2
    F13671_ANGE-RZ-LENS
    FWHM: 39°
    FWTM: 83°
    Peak intensity: 1.179 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 18mm (31W) DP
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 483 Typ L3
    FWHM: 41°
    FWTM: 82°
    Peak intensity: 1.251 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 18mm (31W) DP
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 483 Typ L3
    F13671_ANGE-RZ-LENS
    FWHM: 43°
    FWTM: 84°
    Peak intensity: 1.131 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

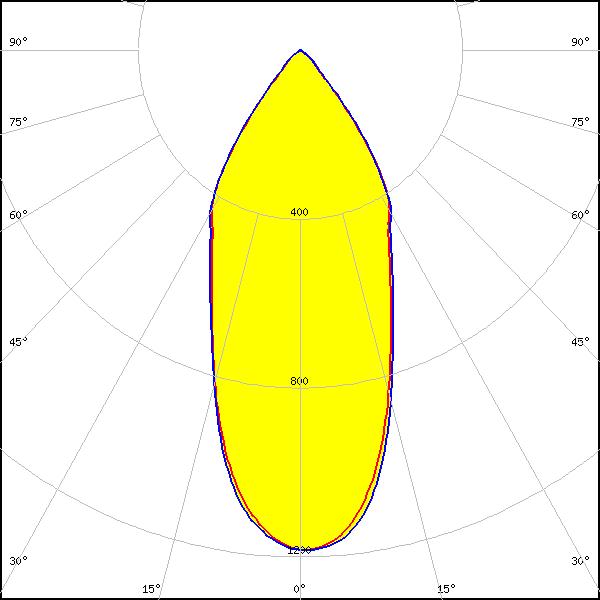

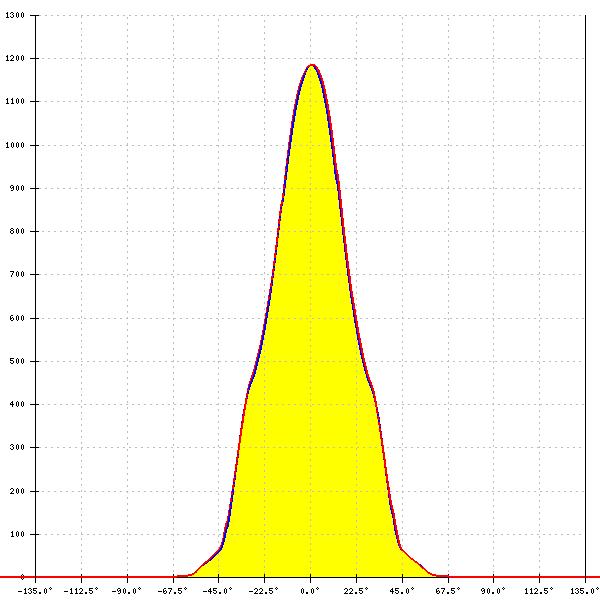

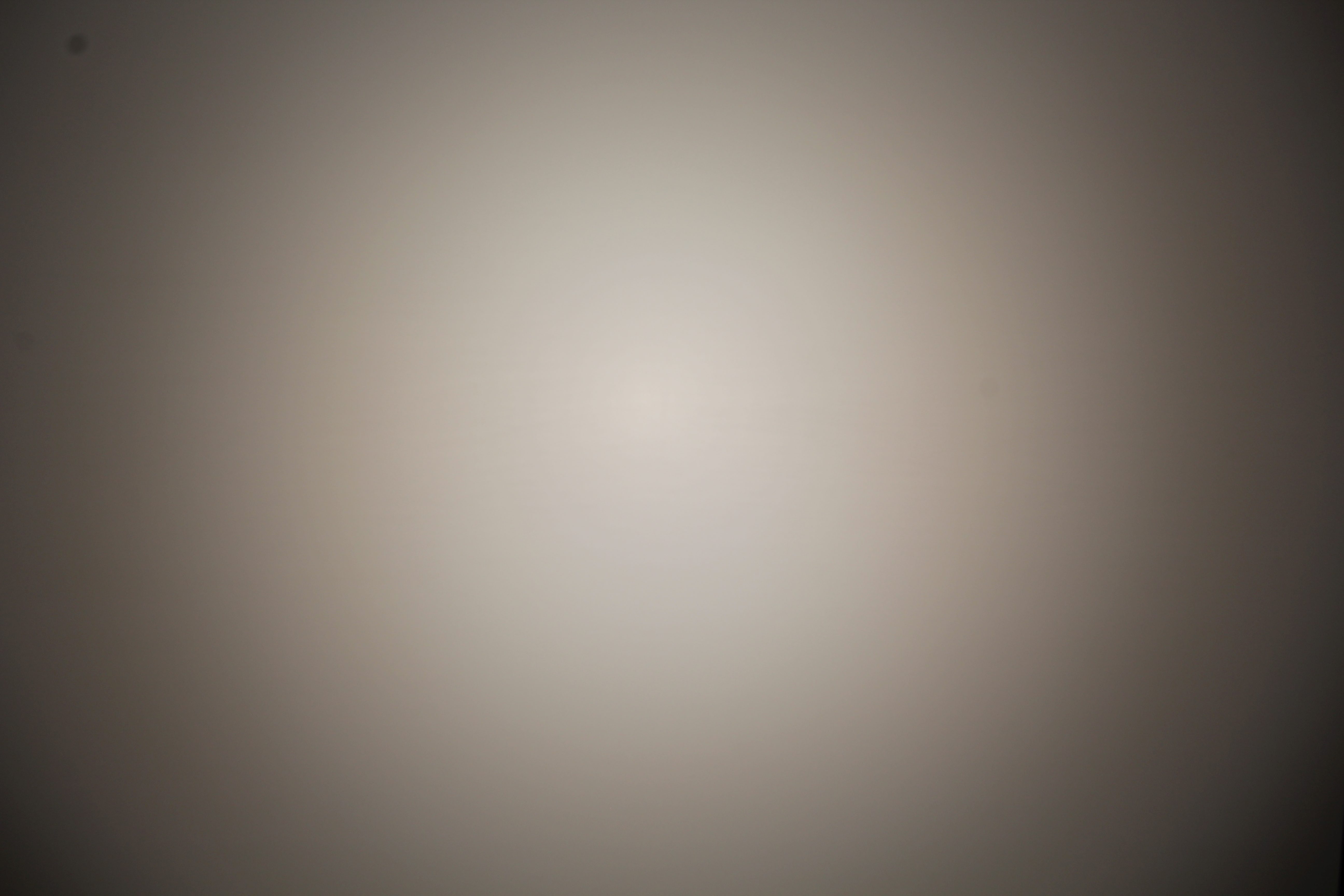

    LED: Vesta TW 22mm DP
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 494 Typ L3
    FWHM: 44°
    FWTM: 82°
    Peak intensity: 1.186 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

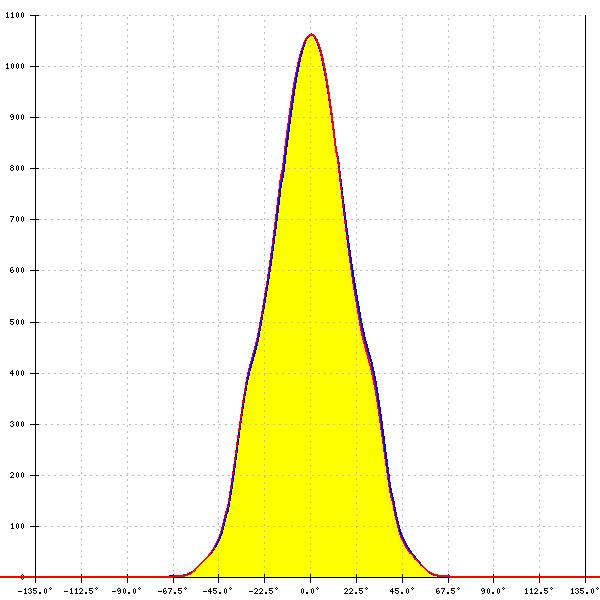

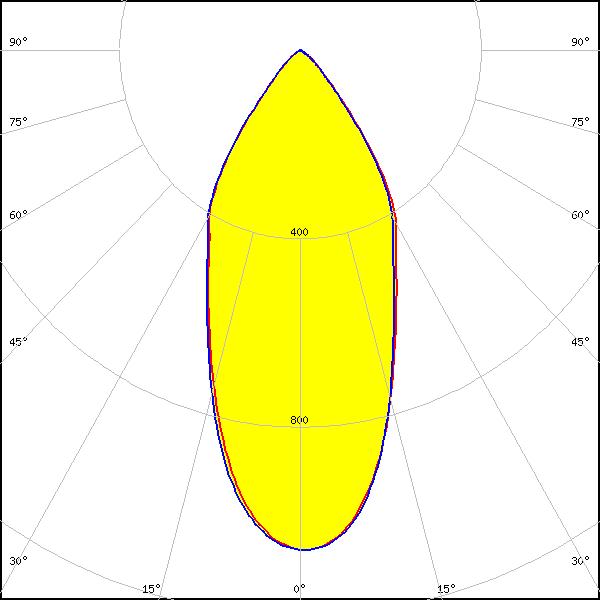

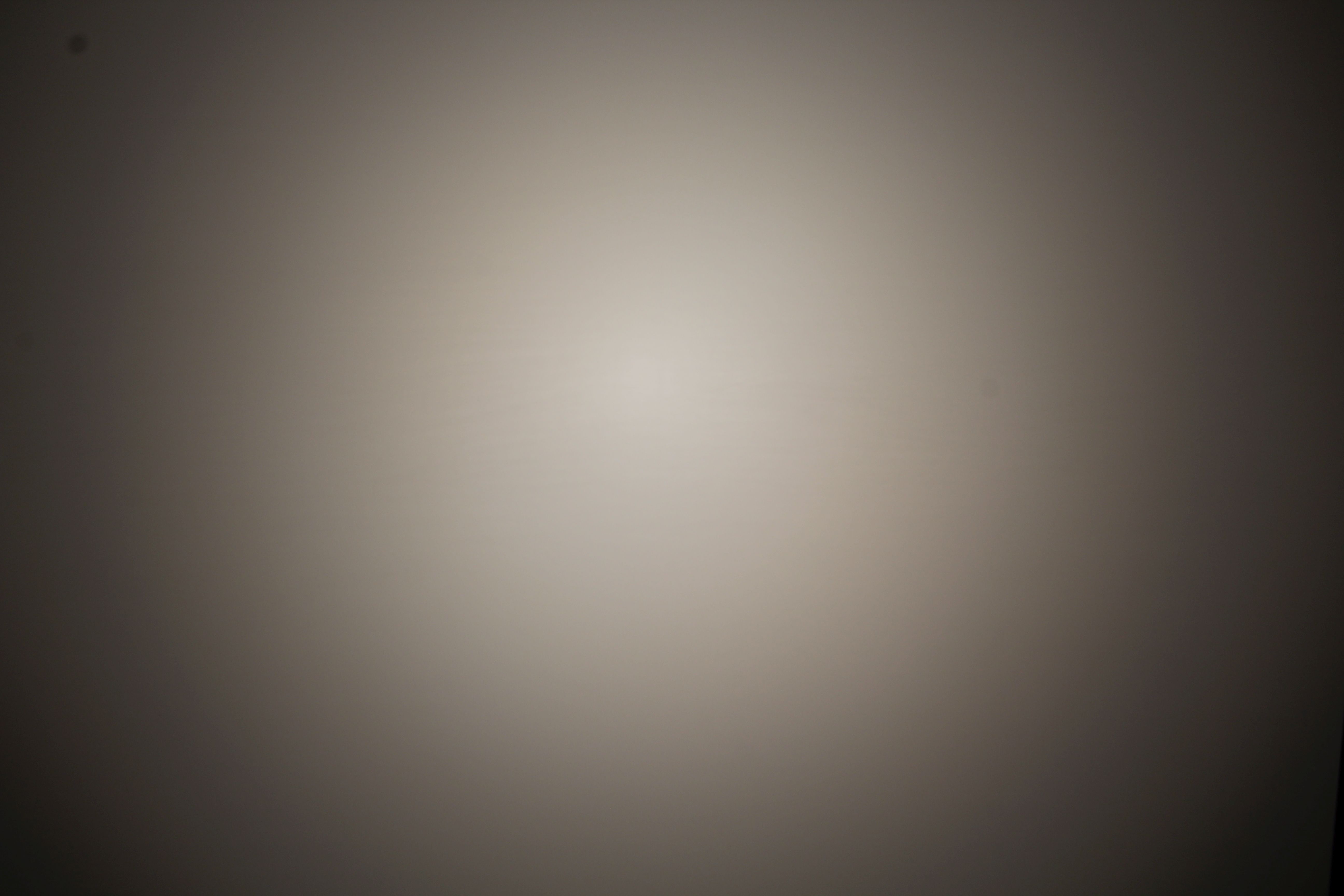

    LED: Vesta TW 22mm DP
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 494 Typ L3
    F13671_ANGE-RZ-LENS
    FWHM: 46°
    FWTM: 85°
    Peak intensity: 1.062 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

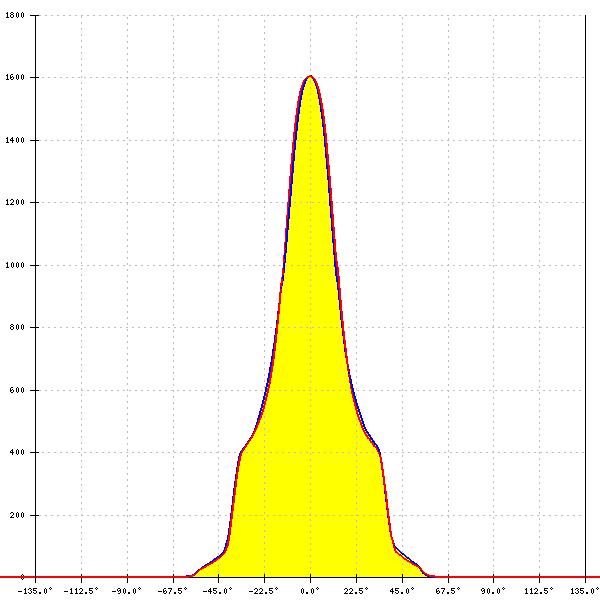

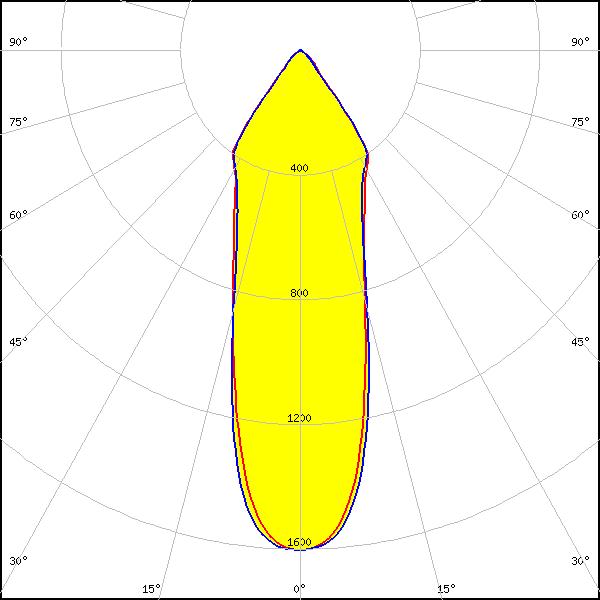

    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: 32°
    FWTM: 79°
    Peak intensity: 1.600 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

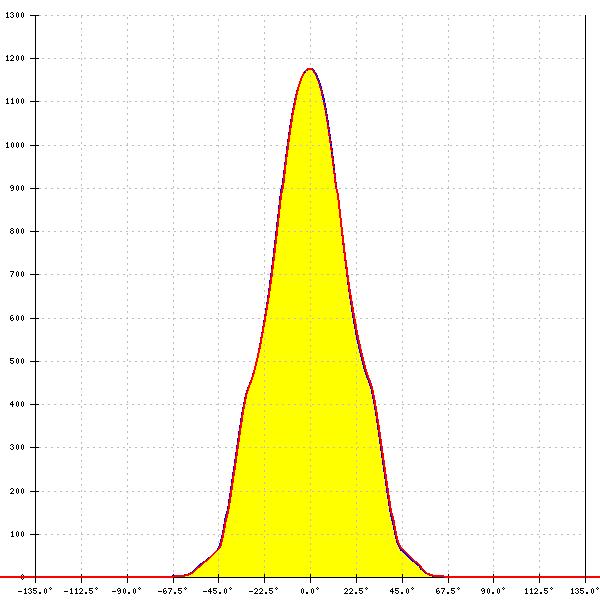

    LED: LC035T (Tunable white)
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 502 Typ L3
    FWHM: 44°
    FWTM: 83°
    Peak intensity: 1.176 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

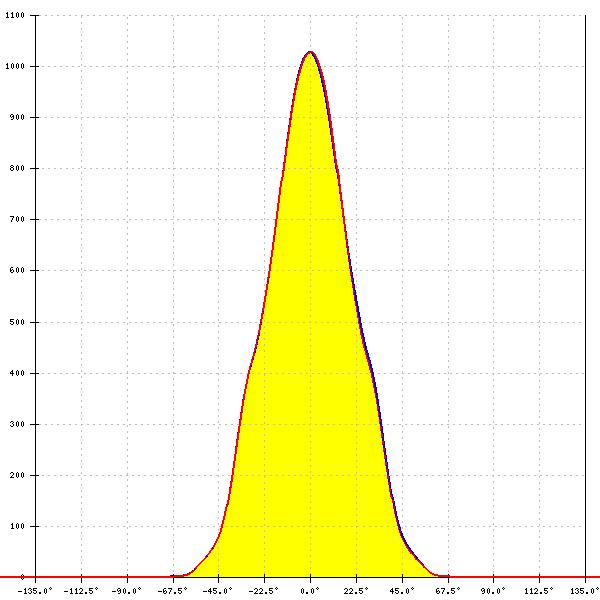

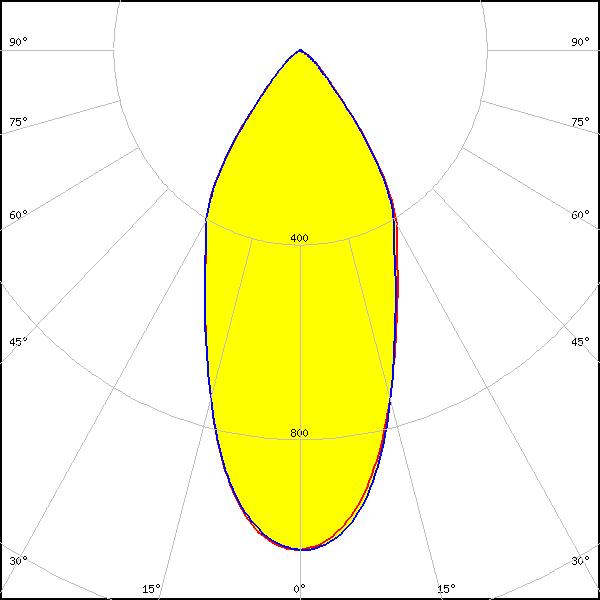

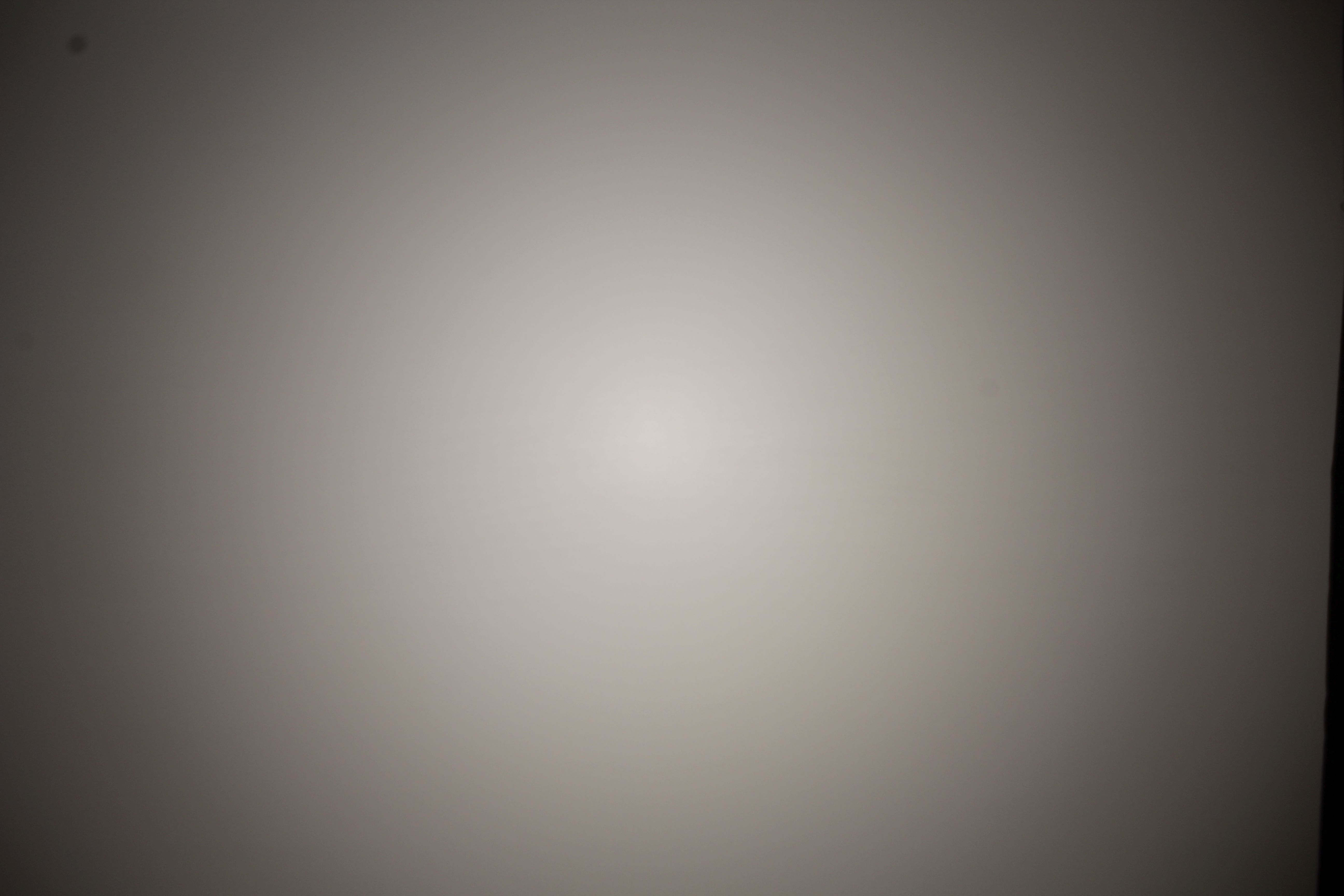

    LED: LC035T (Tunable white)
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 502 Typ L3
    F13671_ANGE-RZ-LENS
    FWHM: 48°
    FWTM: 87°
    Peak intensity: 1.028 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

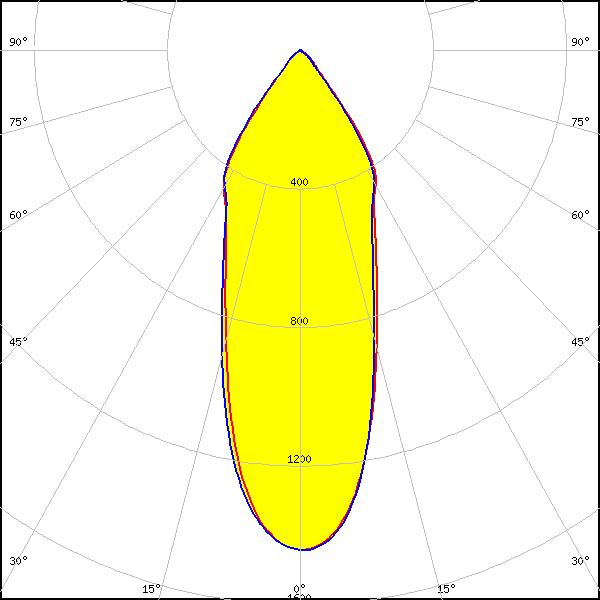

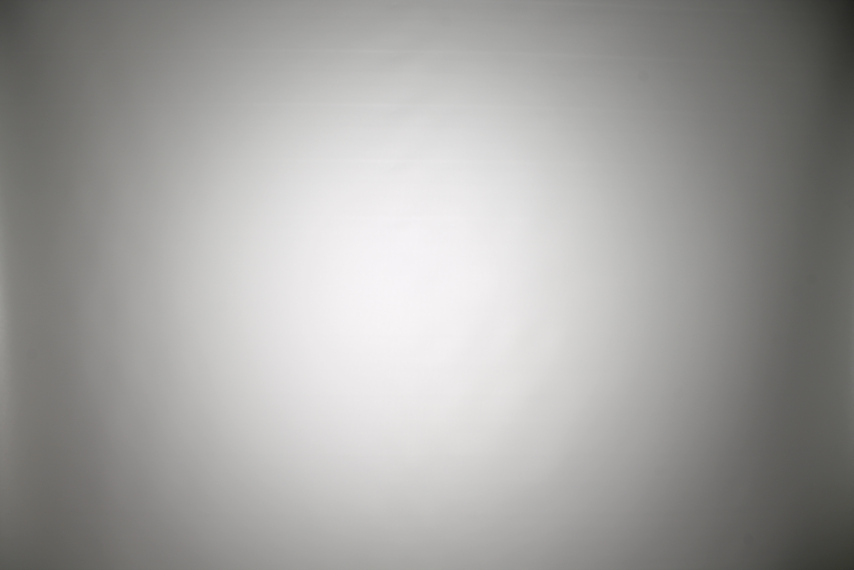

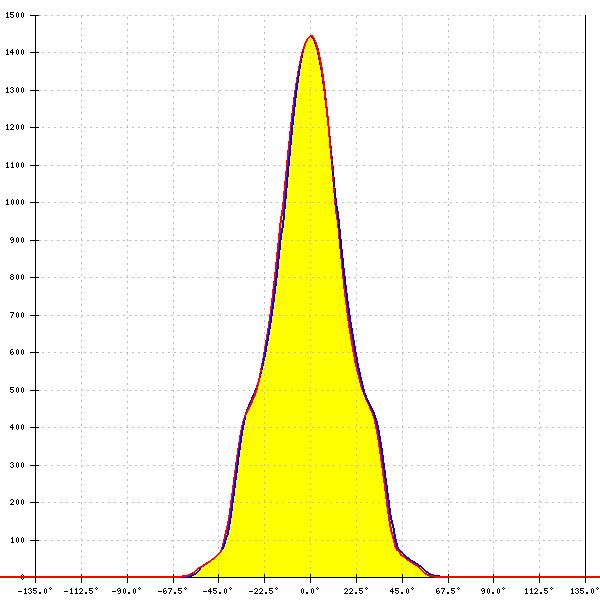

    LED: XIM - 19mm LES
    Required components:
    C16491_XTM-ADAPTER-50-A
    FWHM: 37°
    FWTM: 80°
    Peak intensity: 1.400 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
