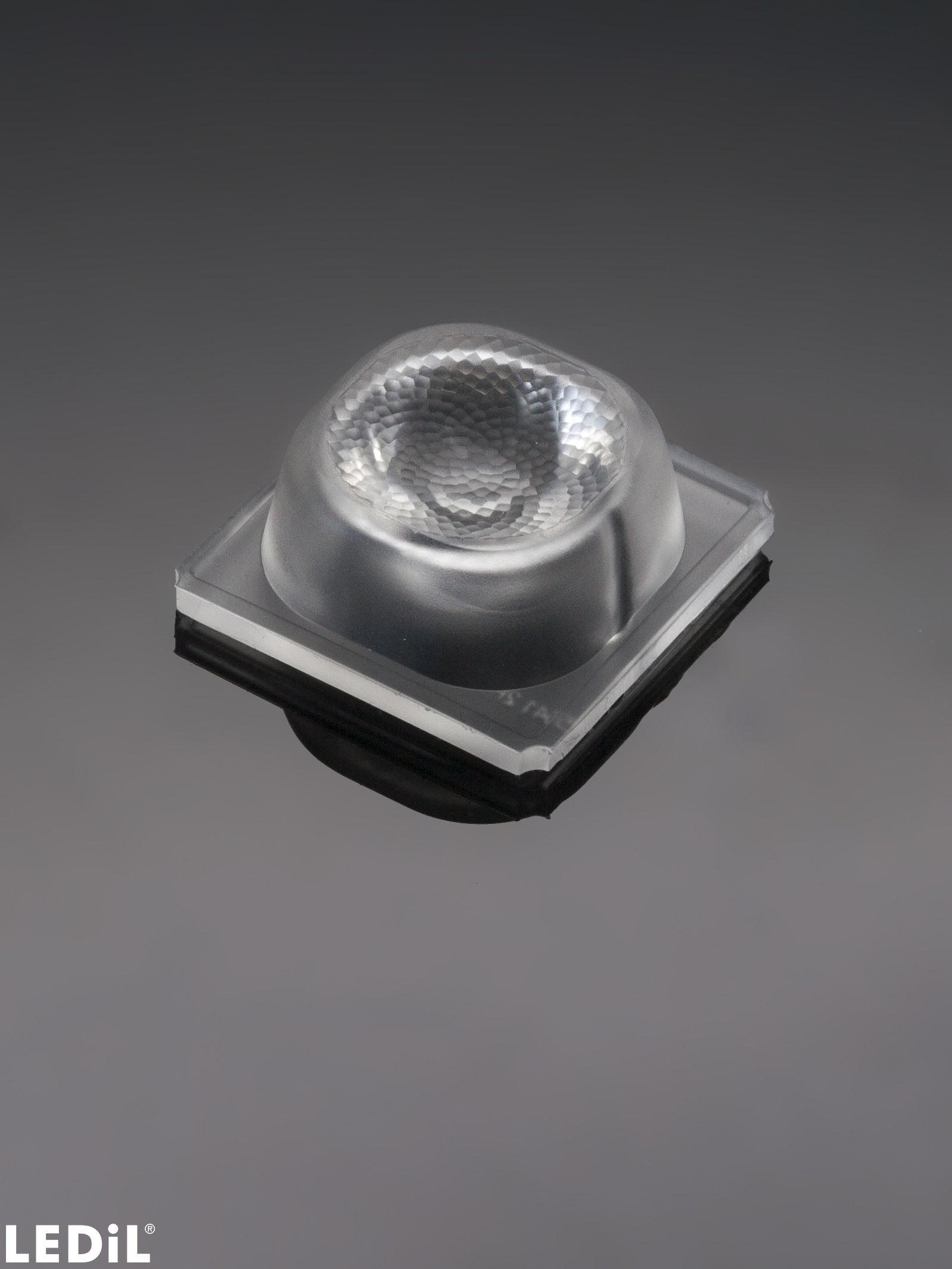

F15541_JENNY-60
Print
~60° beam
Materials
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Use C14436_JENNY-HLD-A-BLK for fastening.
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

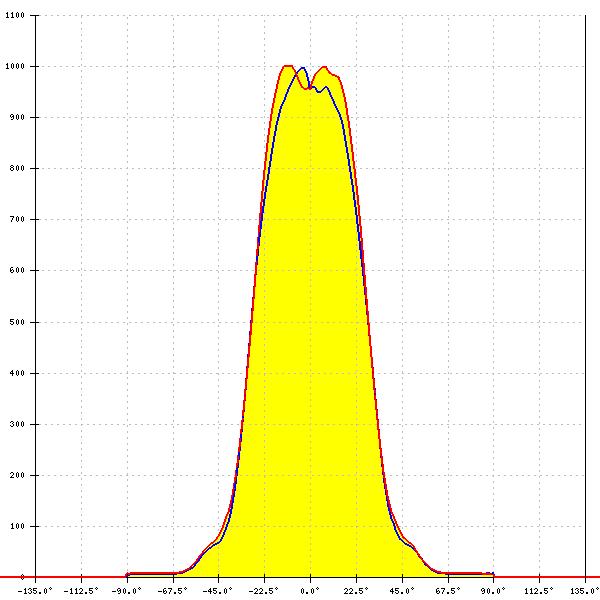

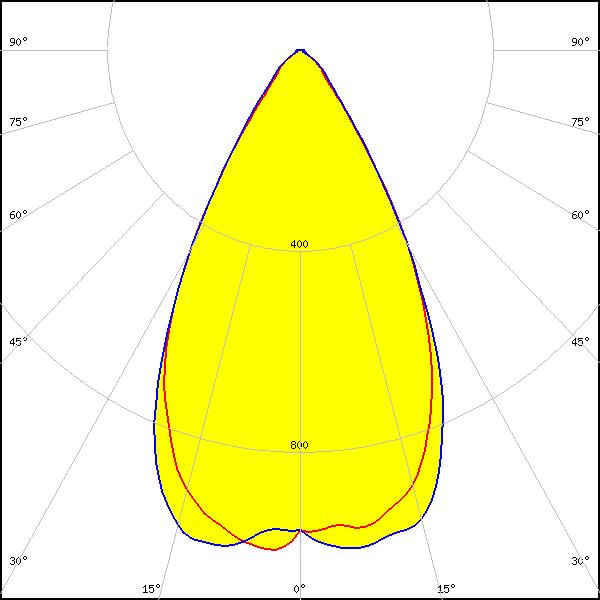

LED:
MHD-E/G
FWHM:
57°
FWTM:
84°
Peak intensity:
1.020 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

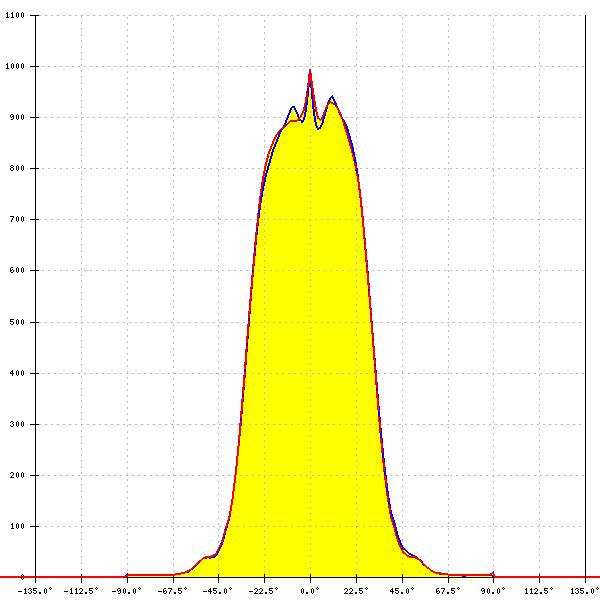

LED:
MK-R
FWHM:
57°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

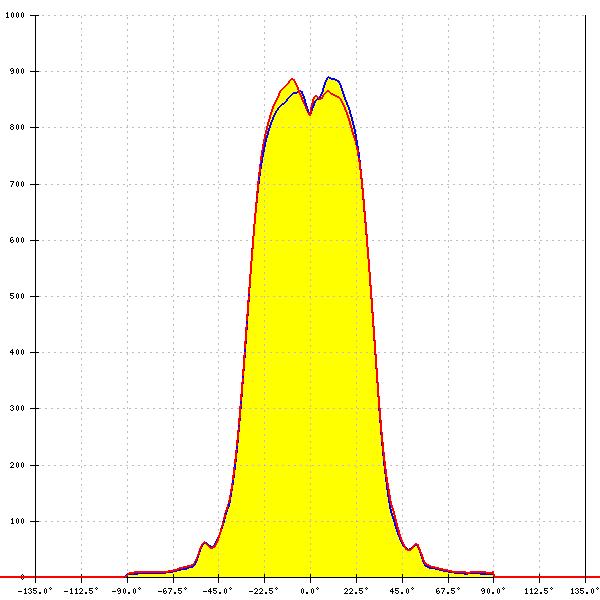

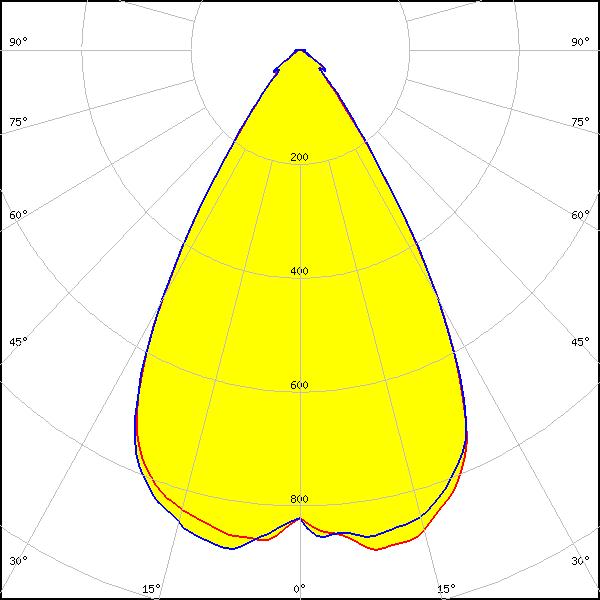

LED:
XHP50.3 HD
FWHM:
62°
FWTM:
86°
Peak intensity:
0.925 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

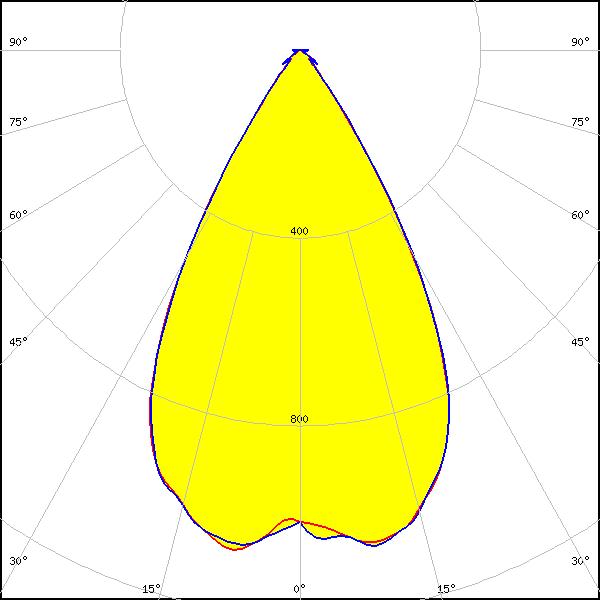

LED:

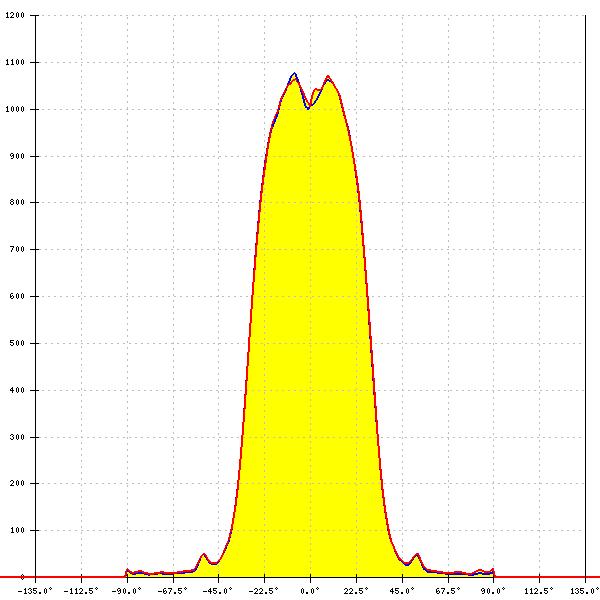

XHP50.3 HI
FWHM:
58°
FWTM:
77°
Peak intensity:
1.108 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

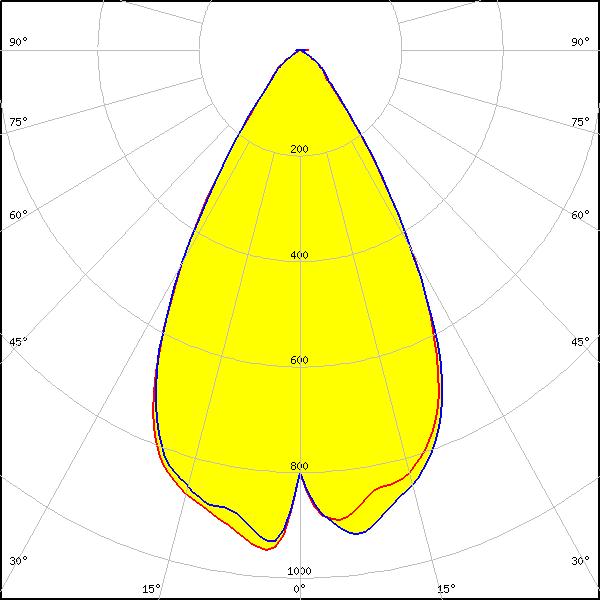

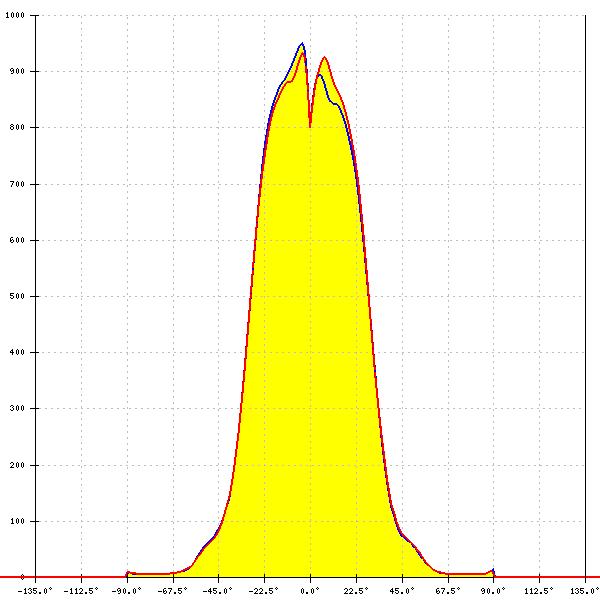

XHP70
FWHM:
59°
FWTM:
86°
Peak intensity:
0.950 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

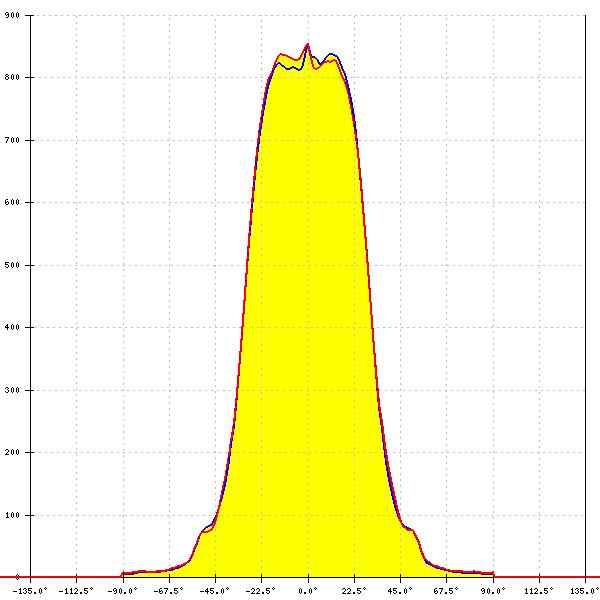

LED:

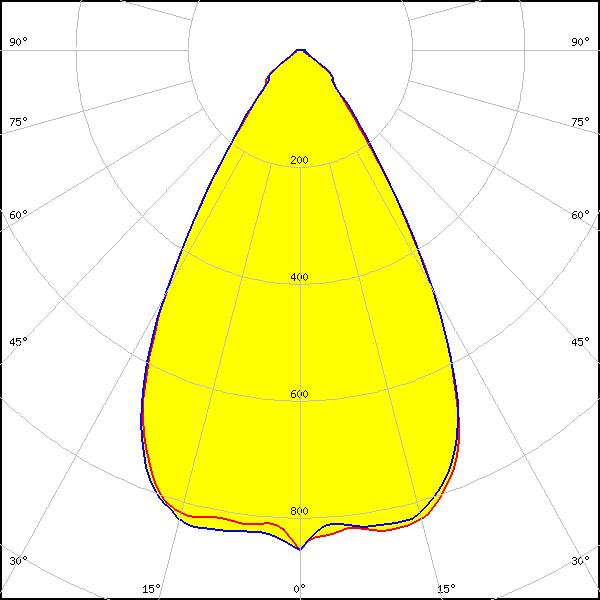

XHP70.3 HD
FWHM:
62°
FWTM:
92°
Peak intensity:
0.858 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

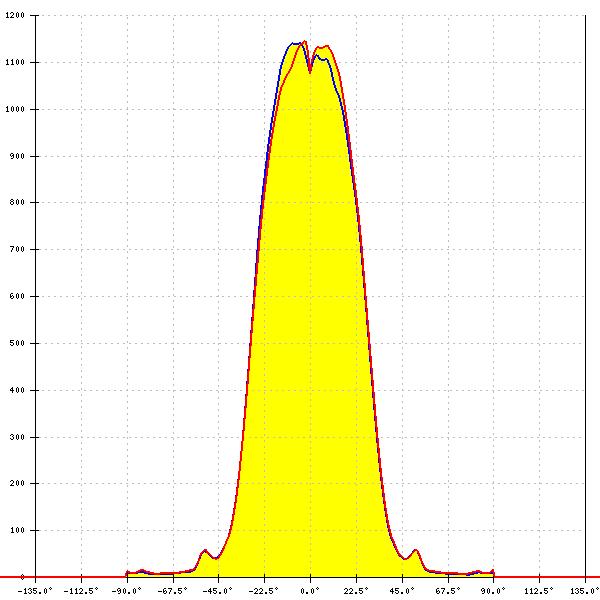

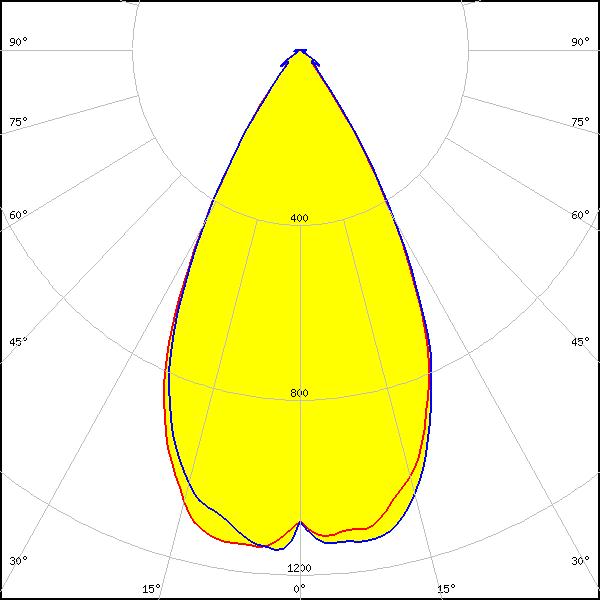

LED:
XHP70.3 HI
FWHM:
56°
FWTM:
77°
Peak intensity:
1.178 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

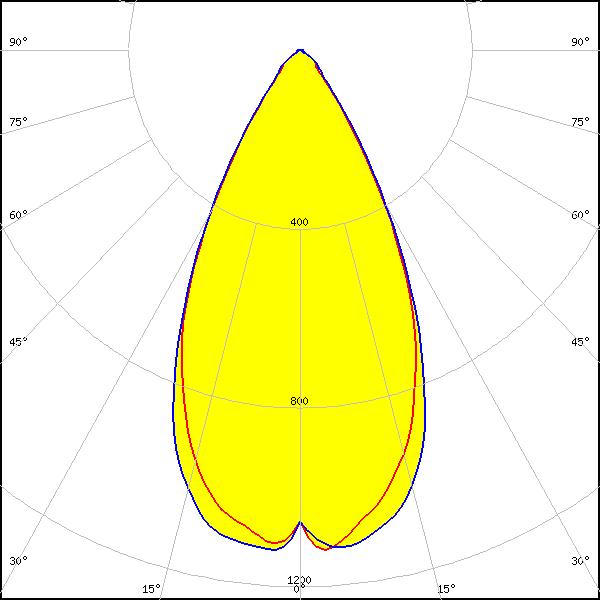

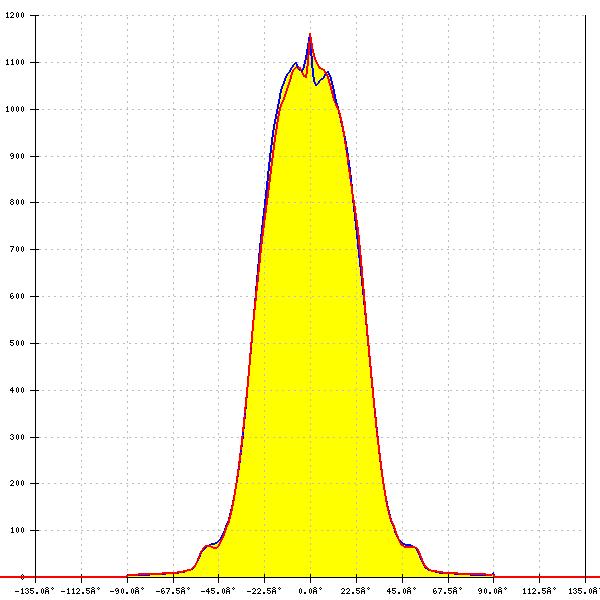

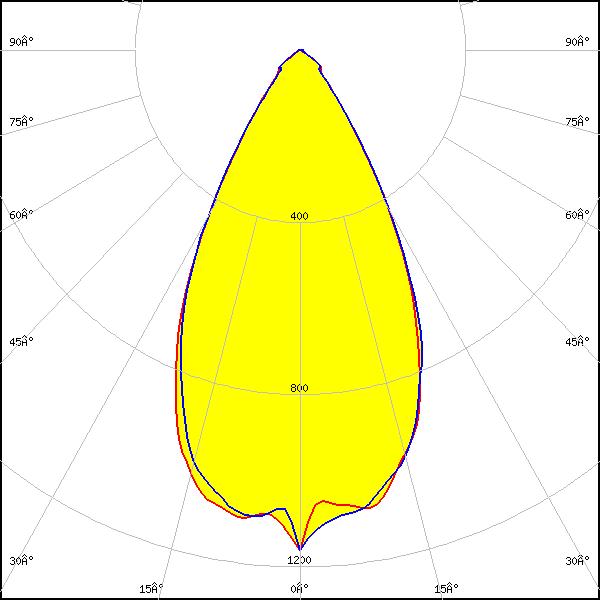

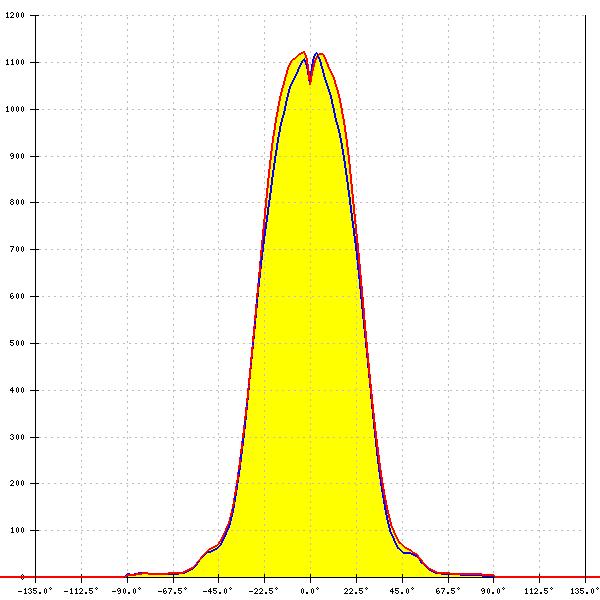

LED:
LUXEON 7070
FWHM:
54°
FWTM:
80°
Peak intensity:
1.131 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

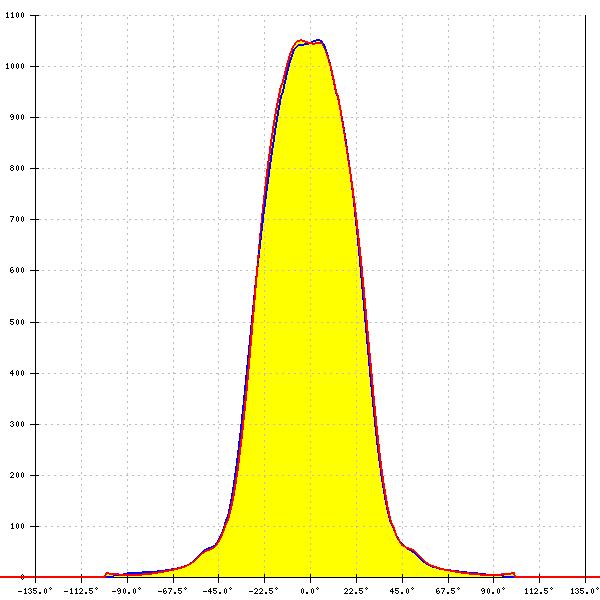

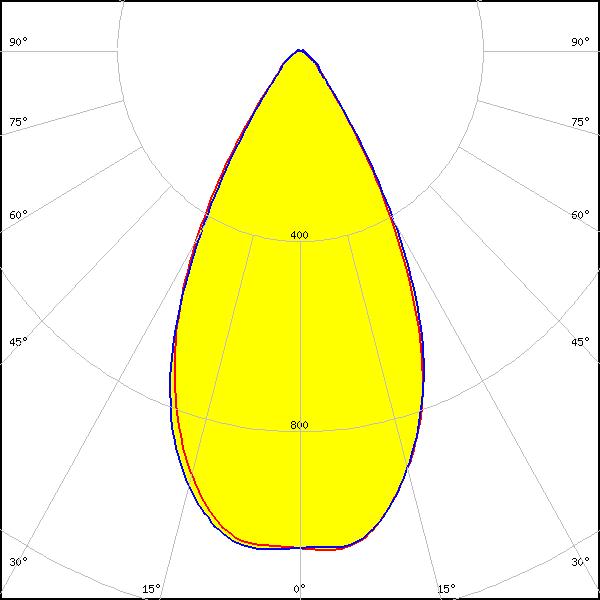

LED:
LUXEON M/MX
FWHM:
55°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

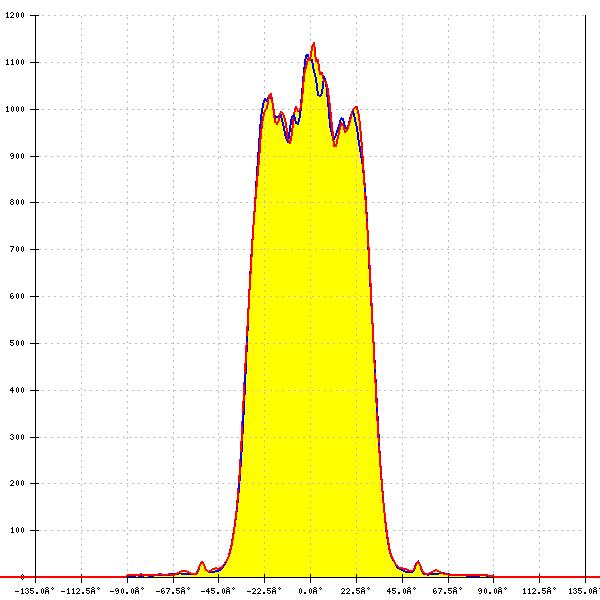

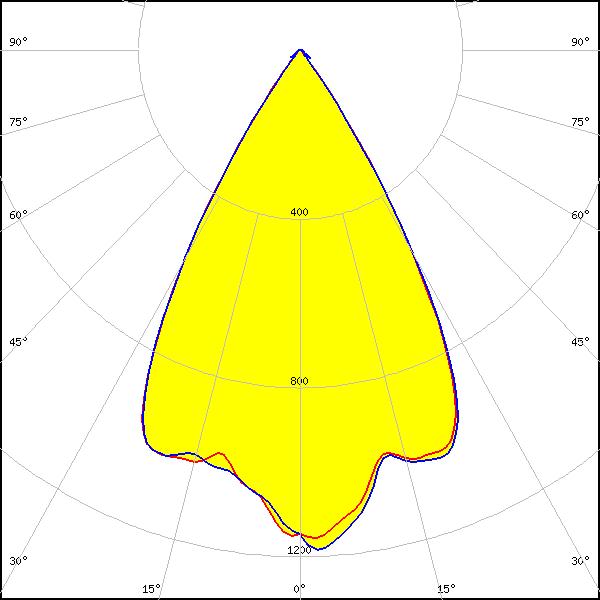

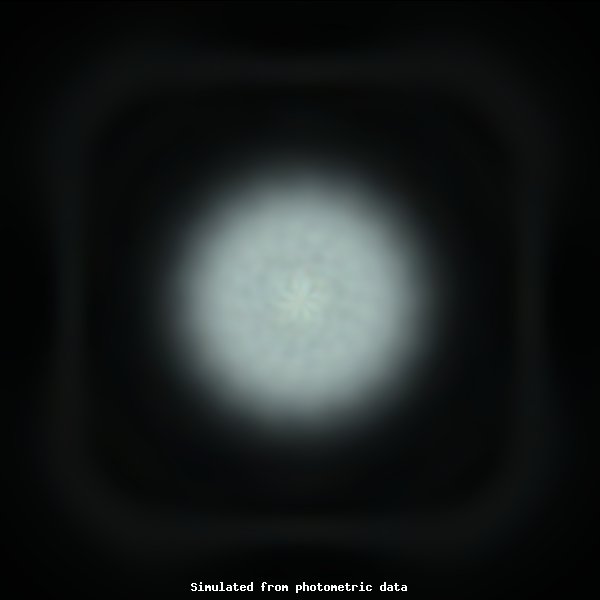

LED:

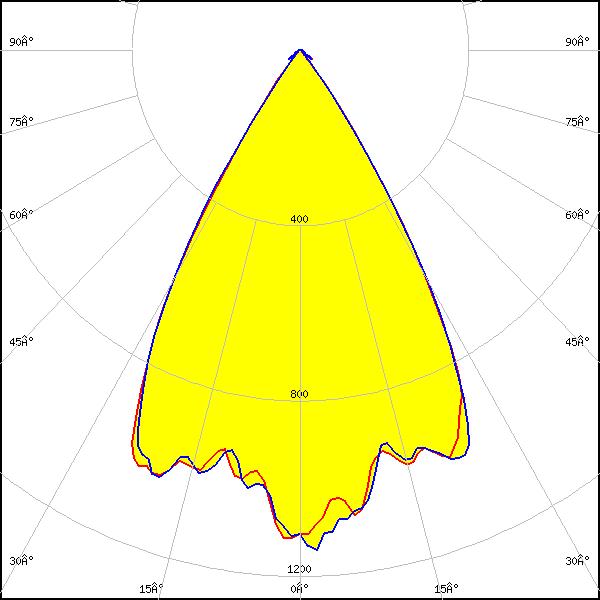

SFT-40-WCS
FWHM:
60°
FWTM:
74°
Peak intensity:
1.235 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

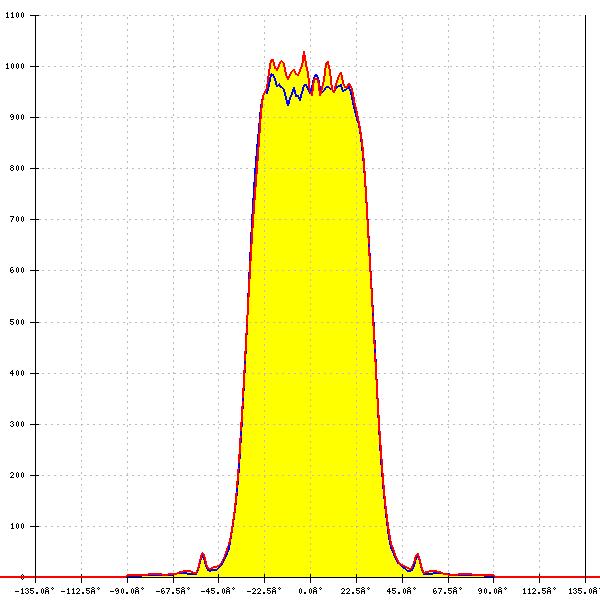

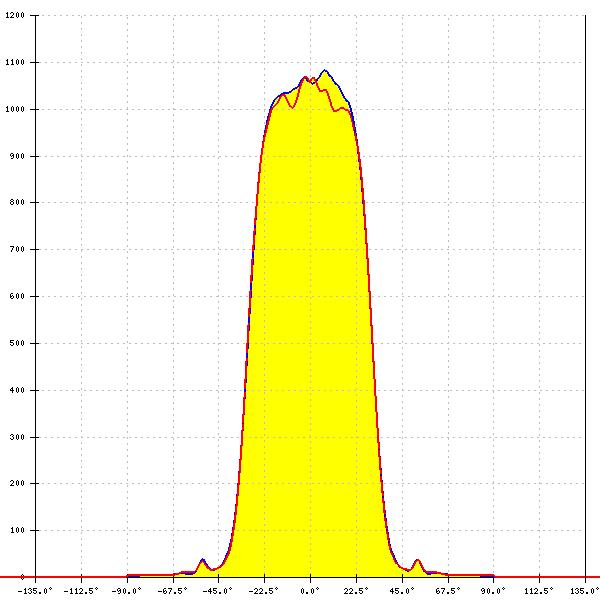

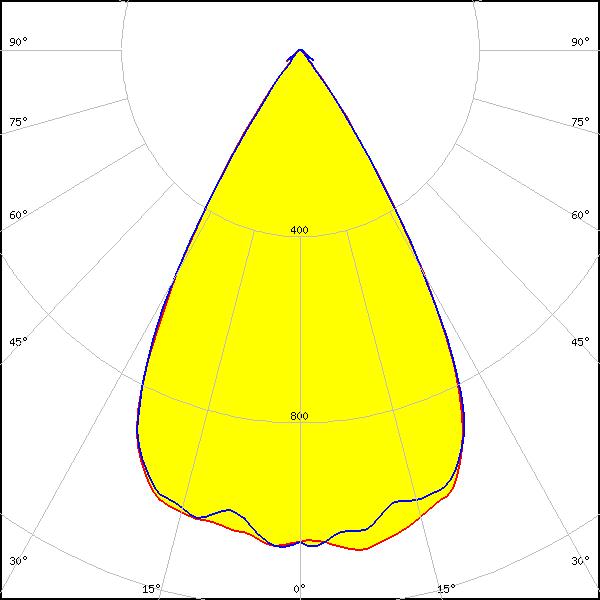

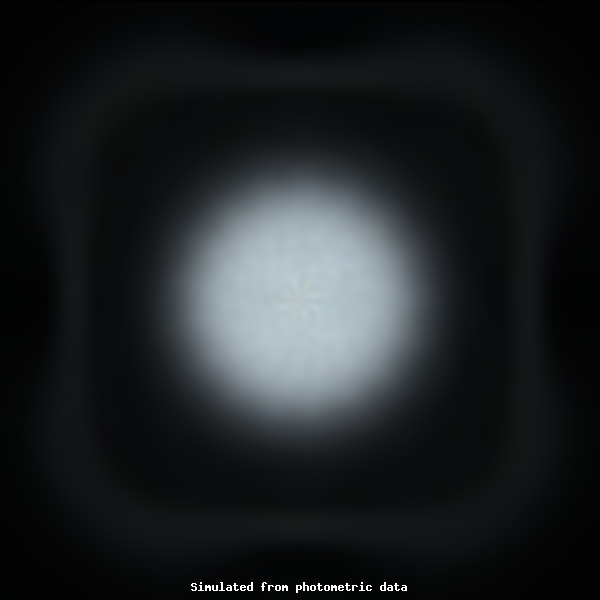

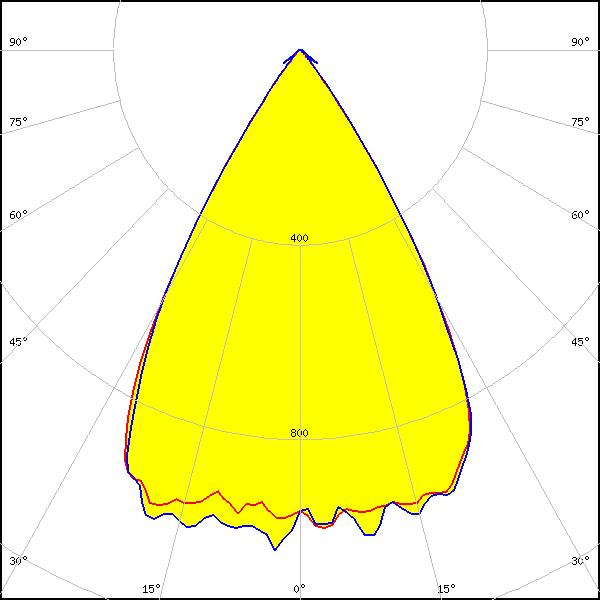

LED:
SFT-70X-WCS
FWHM:
60°
FWTM:
76°
Peak intensity:
1.129 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

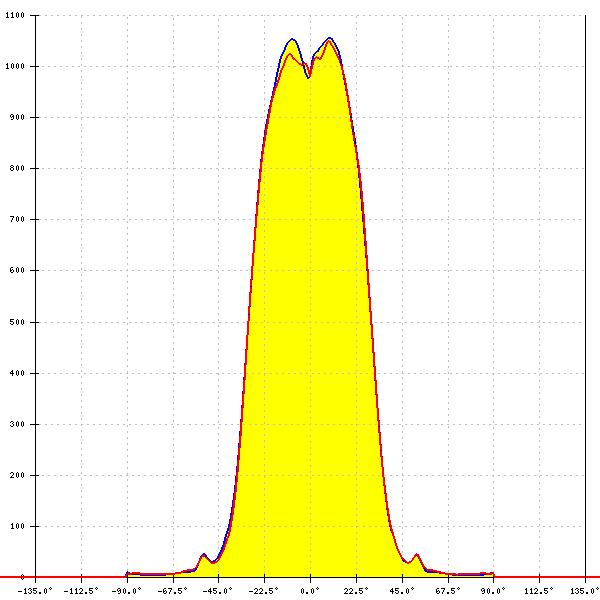

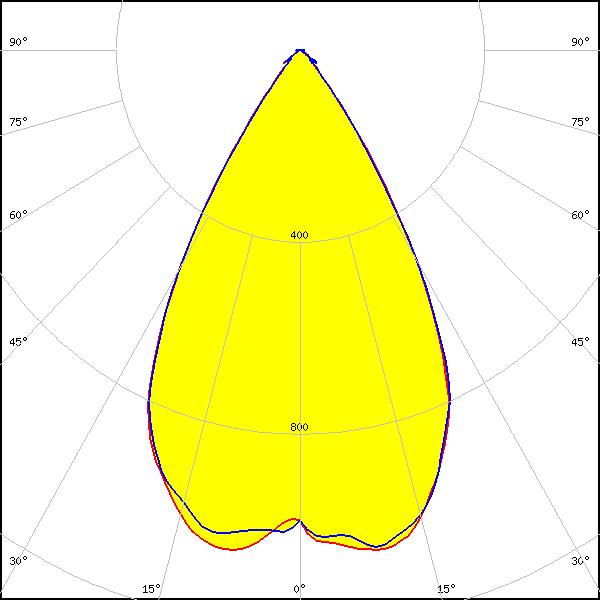

LED:
SST-70X-WCS
FWHM:
60°
FWTM:
79°
Peak intensity:
1.092 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

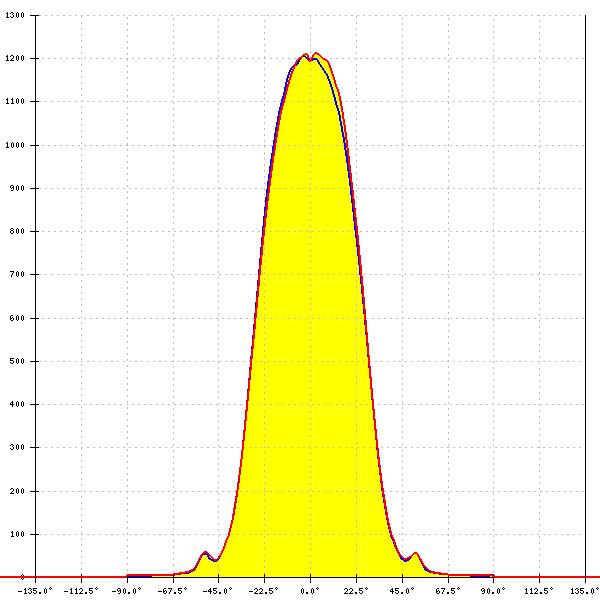

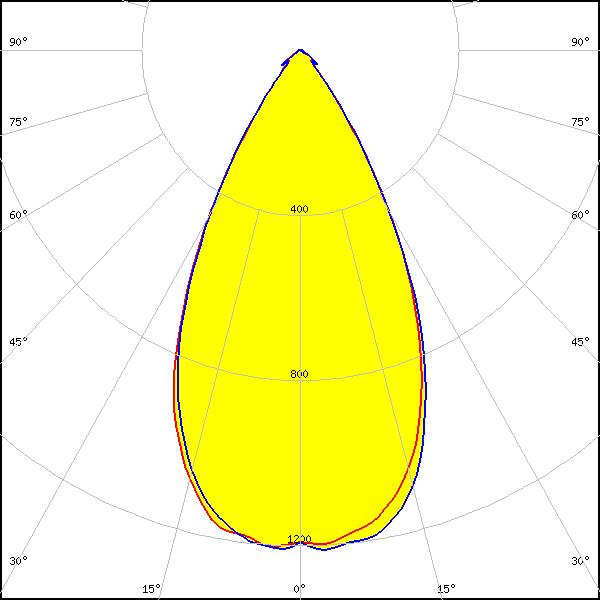

LED:
NFMW48xA
FWHM:
54°
FWTM:
78°
Peak intensity:
1.231 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

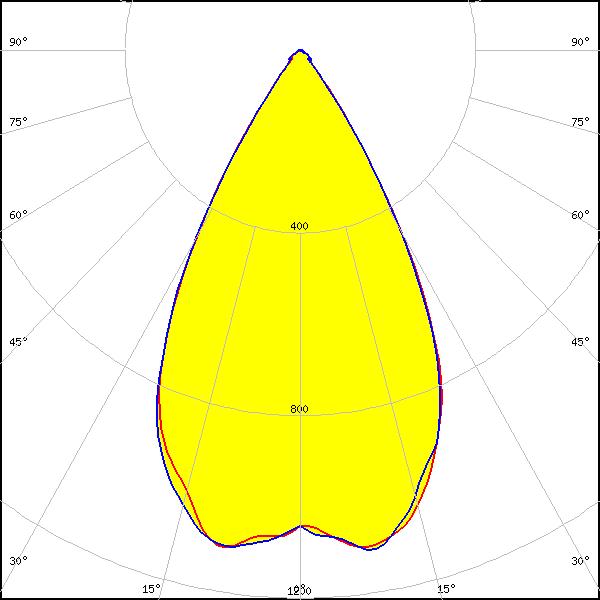

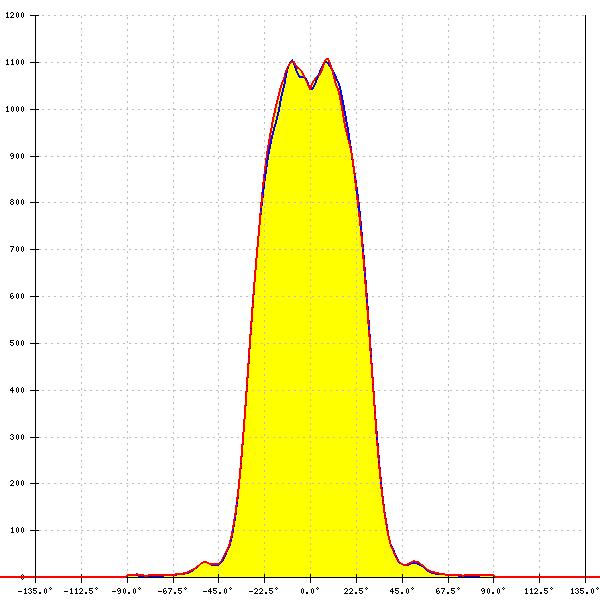

LED:
NV4WB35AM
FWHM:
58°
FWTM:
76°
Peak intensity:
1.162 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

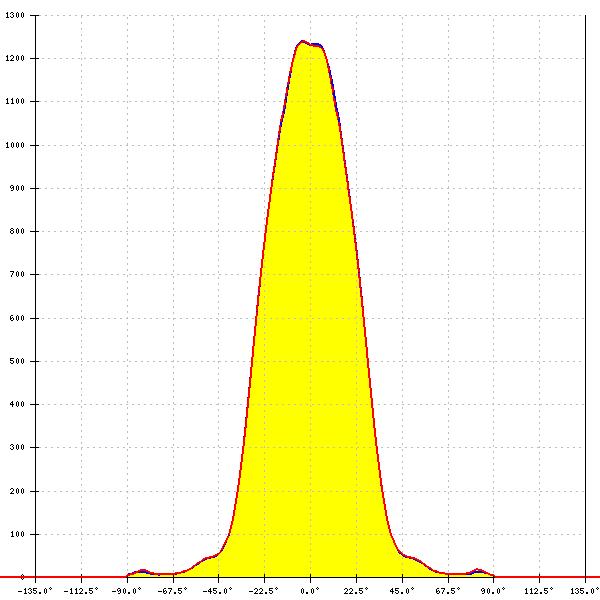

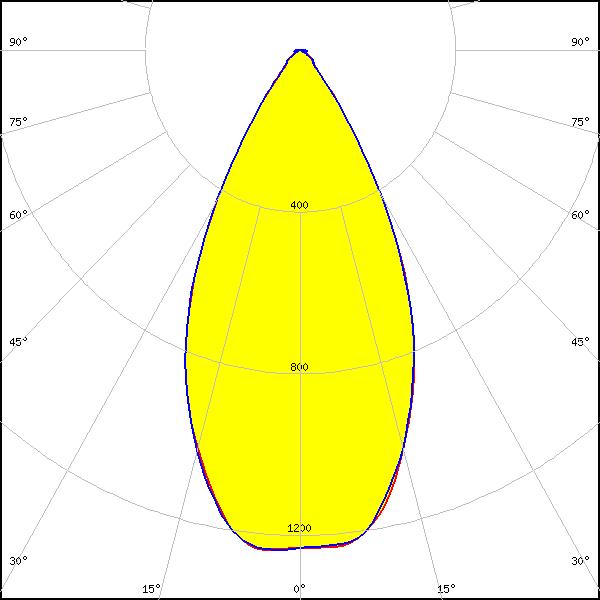

LED:
NVSxE21A
FWHM:
51°
FWTM:
77°
Peak intensity:
1.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White

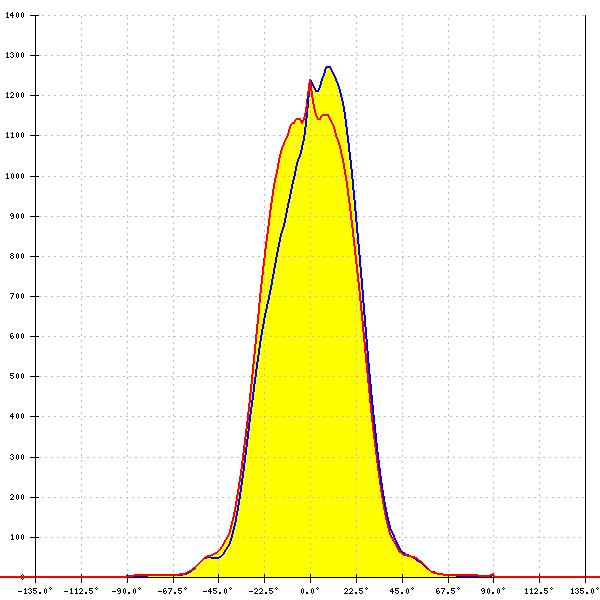

LED:

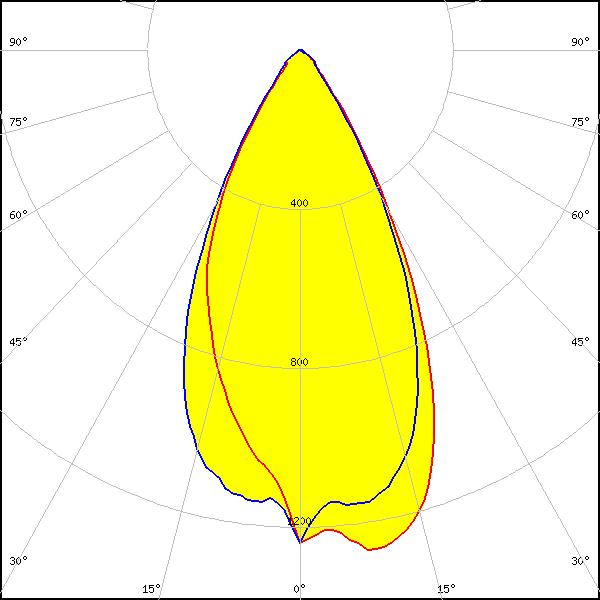

Duris S10
FWHM:
49°
FWTM:
77°
Peak intensity:
1.280 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

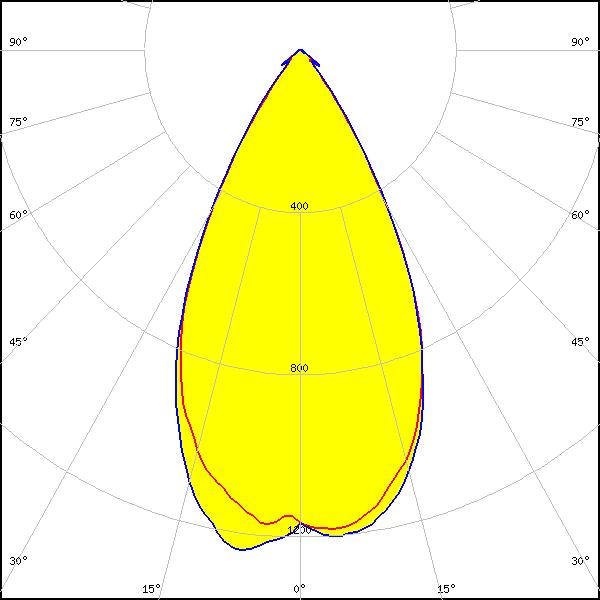

LED:

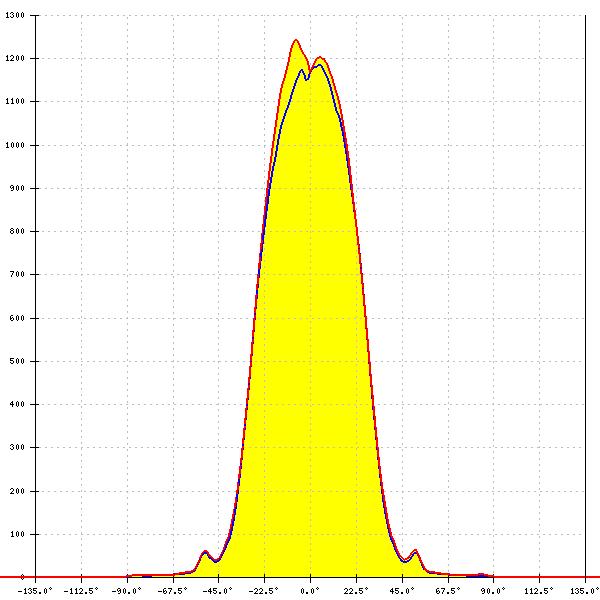

Duris S8
FWHM:
50°
FWTM:
77°
Peak intensity:
1.240 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

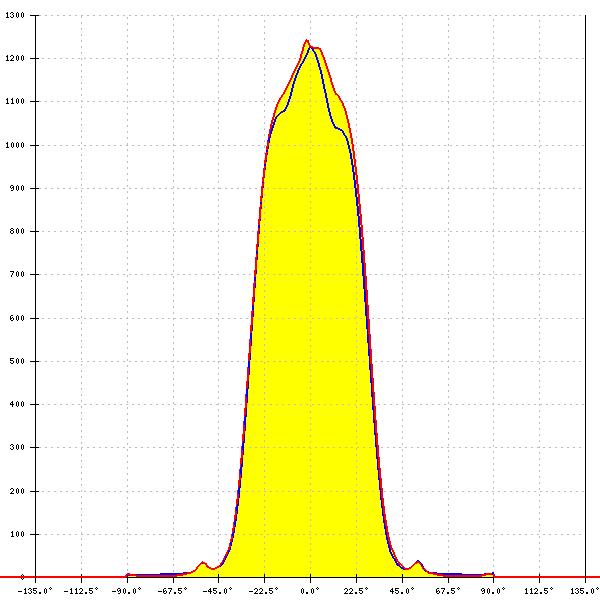

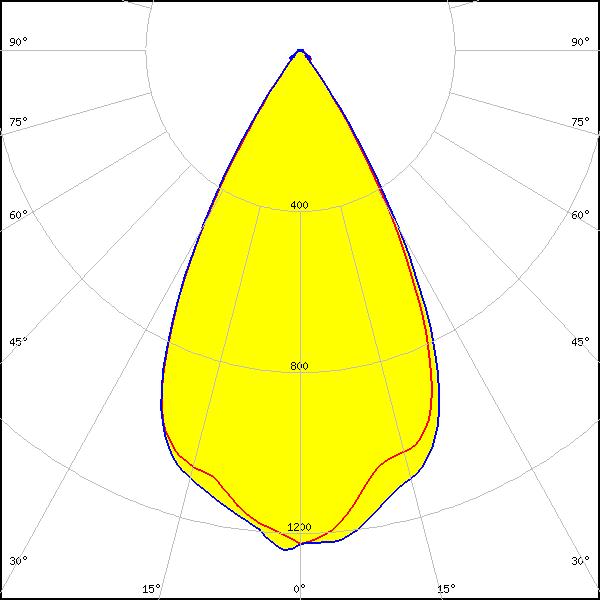

LED:
OSCONIQ P 3737 (2W version)
FWHM:
56°
FWTM:
75°
Peak intensity:
1.243 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (2W version)
FWHM:
56°
FWTM:
75°
Peak intensity:
1.240 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
55°
FWTM:
79°
Peak intensity:
1.100 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

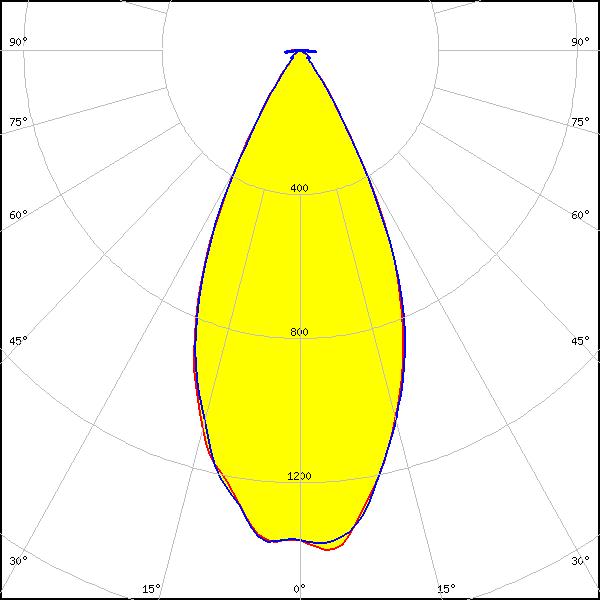

LED:

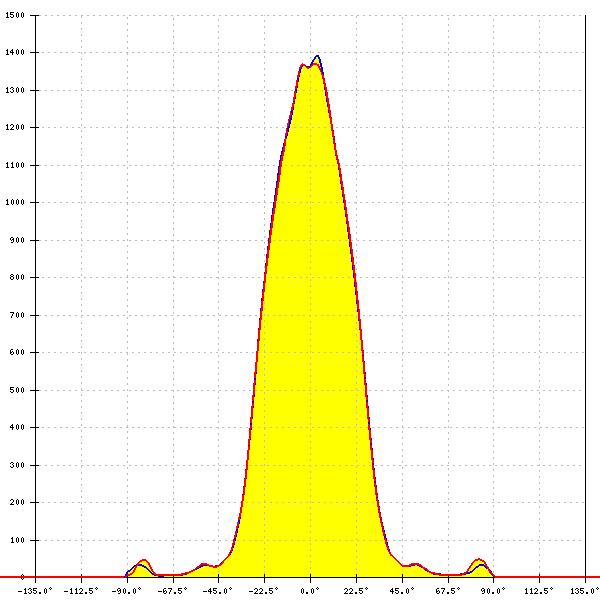

Z8Y22
FWHM:
48°
FWTM:
72°
Peak intensity:
1.418 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CUN66B1G
FWHM:
41°
FWTM:
65°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
UV-A
