F15539_JENNY-40
Print
~40° beam
Component Materials
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Use C14436_JENNY-HLD-A-BLK for fastening.
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

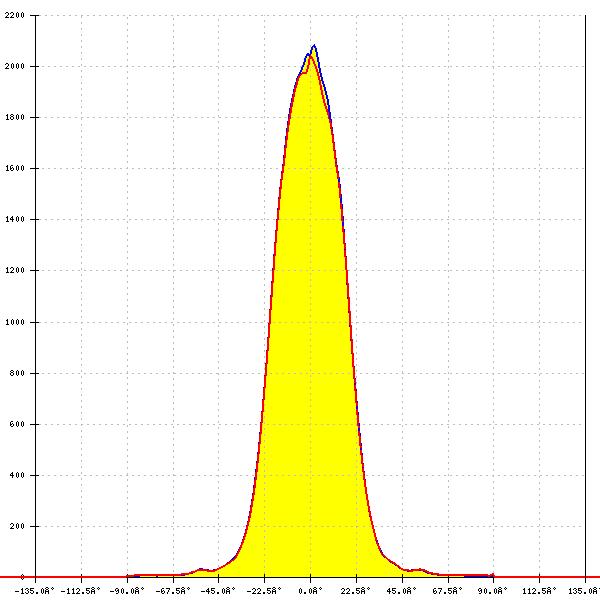

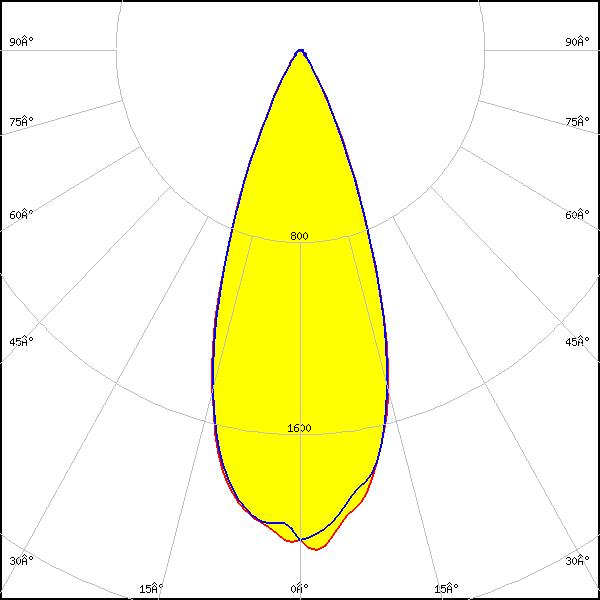

LED:
J Series 7070B K Class
FWHM:
38°
FWTM:
62°
Peak intensity:
2.083 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

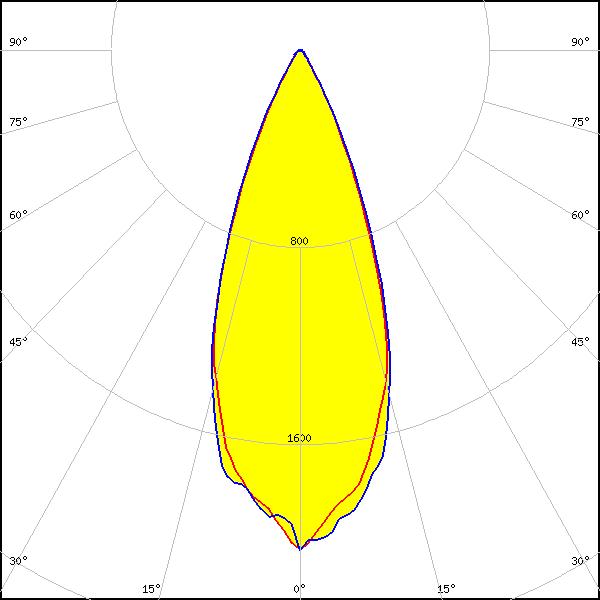

LED:
MHD-E/G
FWHM:
39°
FWTM:
62°
Peak intensity:
2.030 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

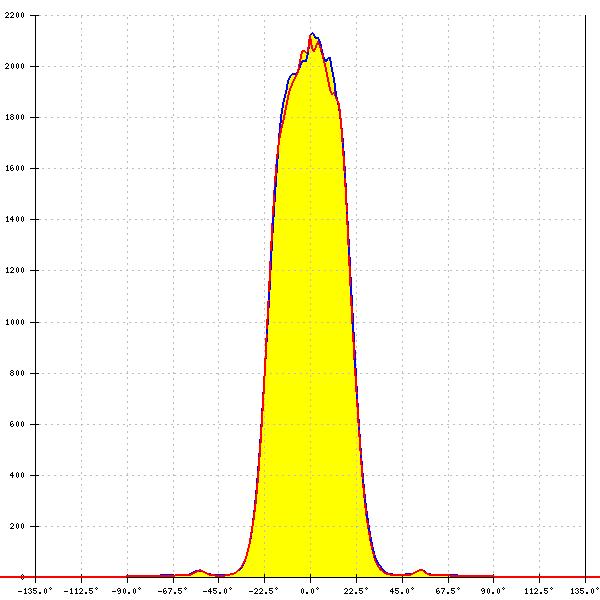

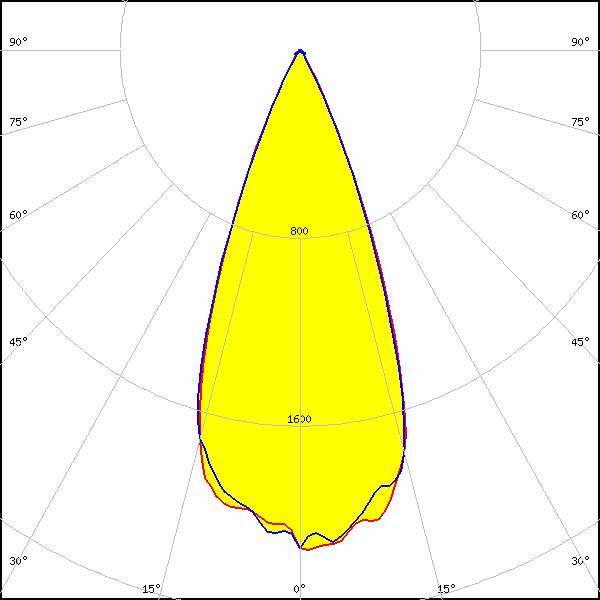

LED:
MK-R
FWHM:
40°
FWTM:
56°
Peak intensity:
2.150 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

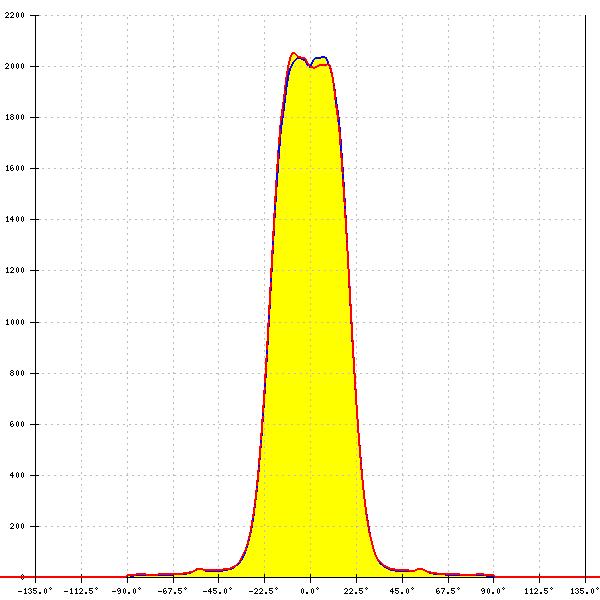

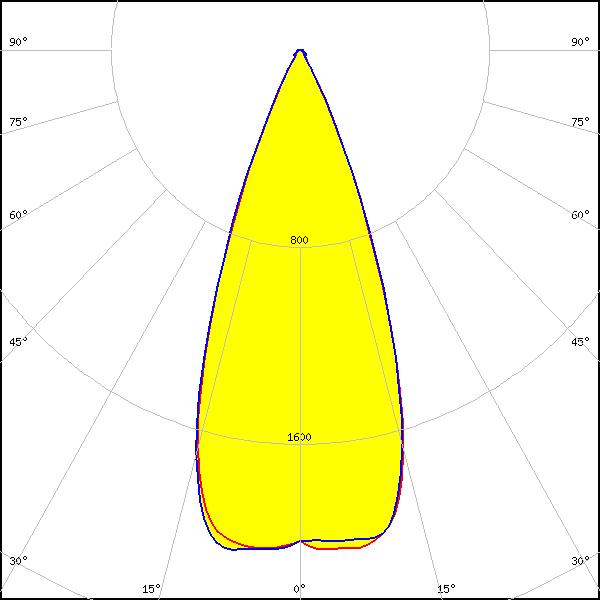

LED:
XHP50.3 HD
FWHM:
40°
FWTM:
58°
Peak intensity:
2.097 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

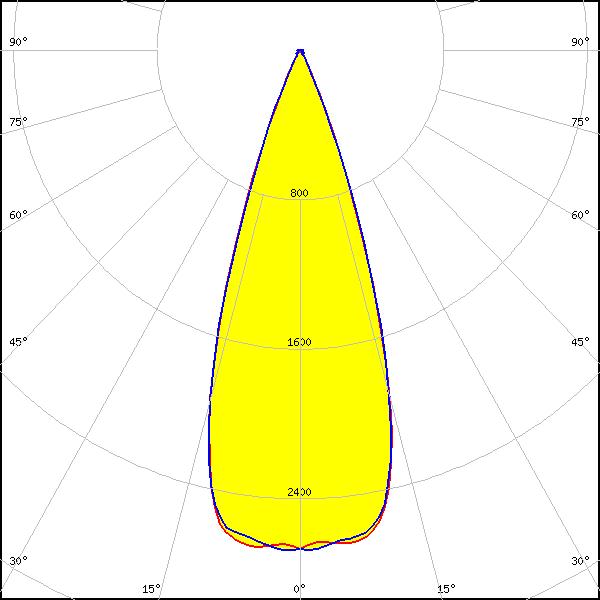

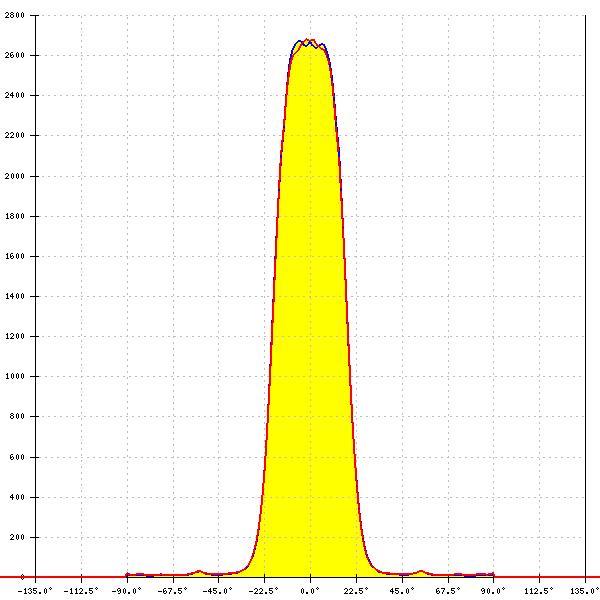

LED:
XHP50.3 HI
FWHM:
36°
FWTM:
50°
Peak intensity:
2.718 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

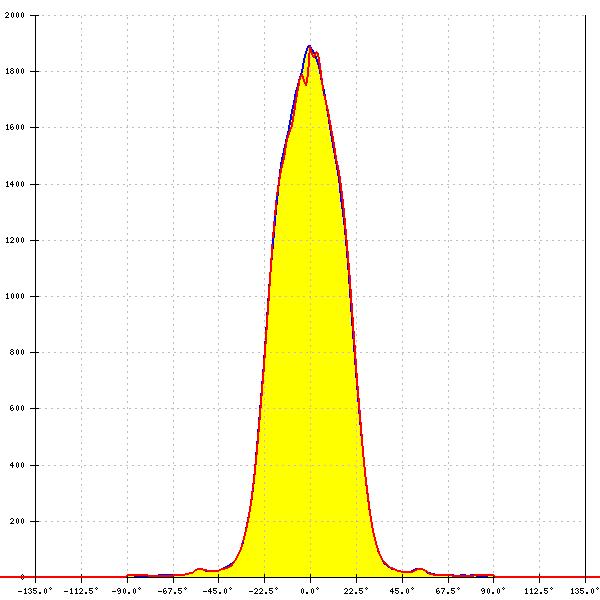

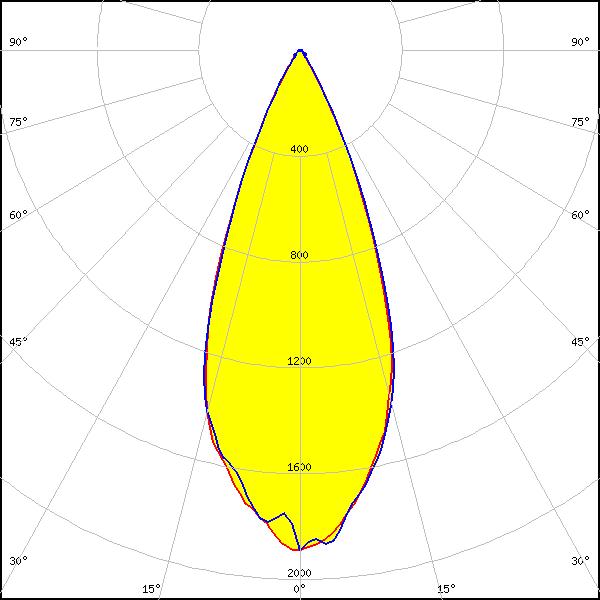

LED:
XHP70
FWHM:
40°
FWTM:
62°
Peak intensity:
1.940 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

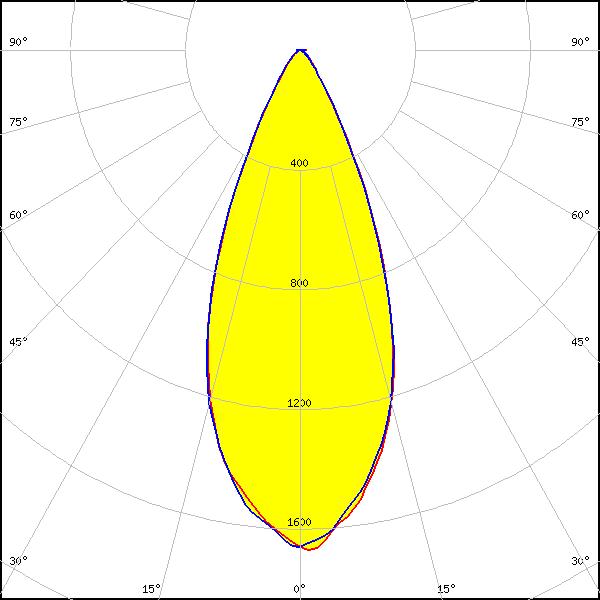

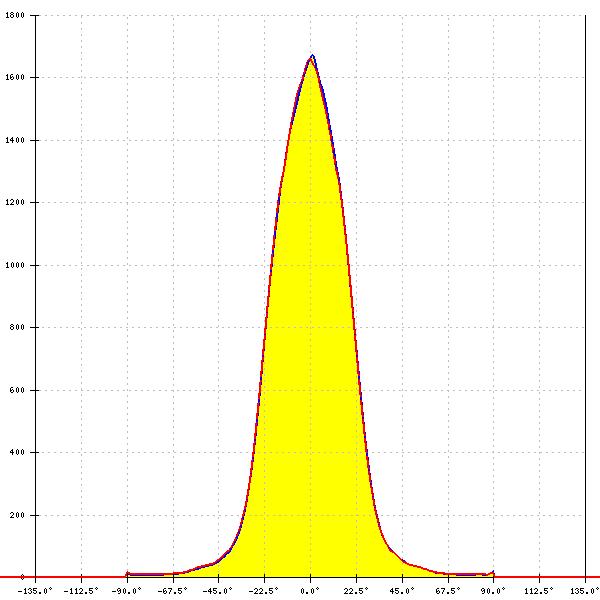

LED:
XHP70.2
FWHM:
42°
FWTM:
69°
Peak intensity:
1.680 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

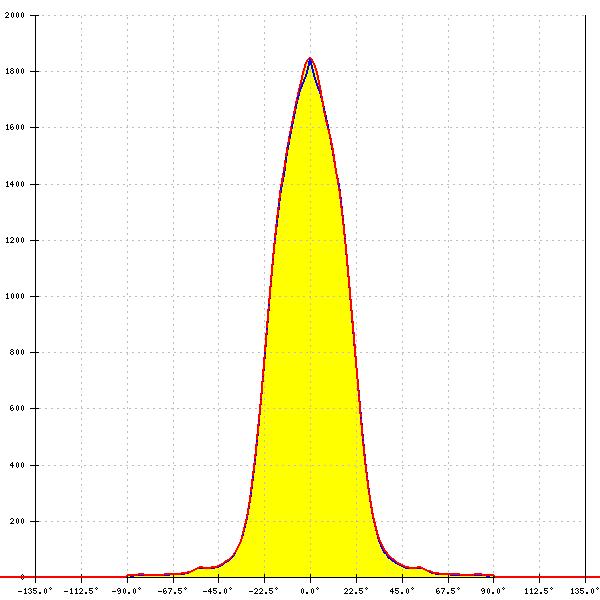

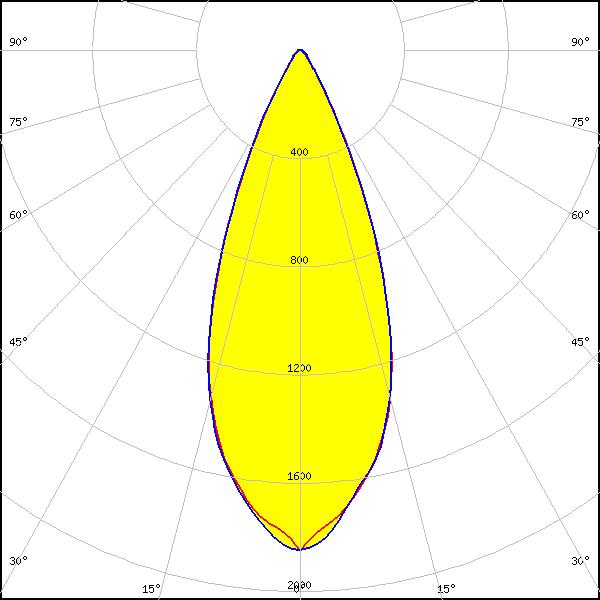

LED:
XHP70.3 HD
FWHM:
42°
FWTM:
64°
Peak intensity:
1.851 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

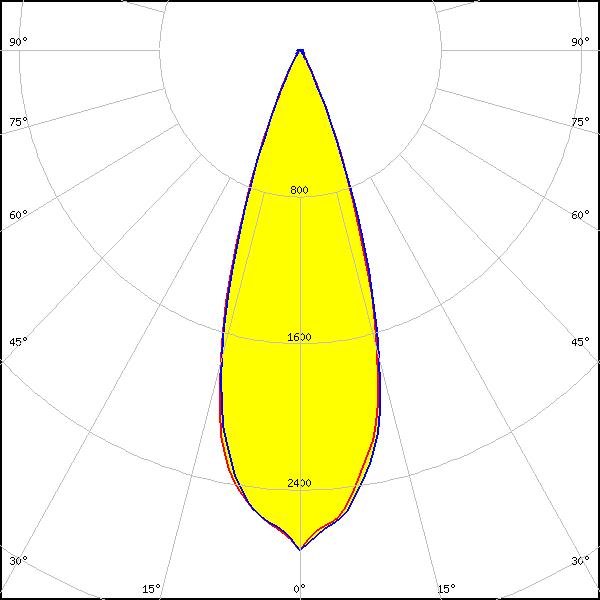

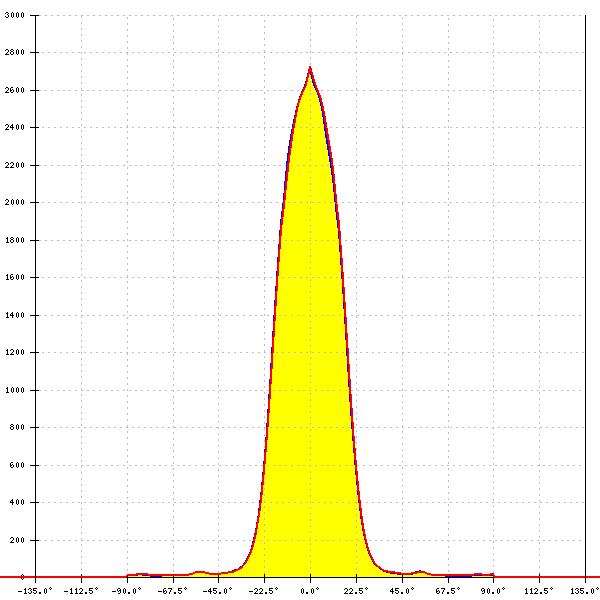

LED:
XHP70.3 HI
FWHM:
34°
FWTM:
52°
Peak intensity:
2.729 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

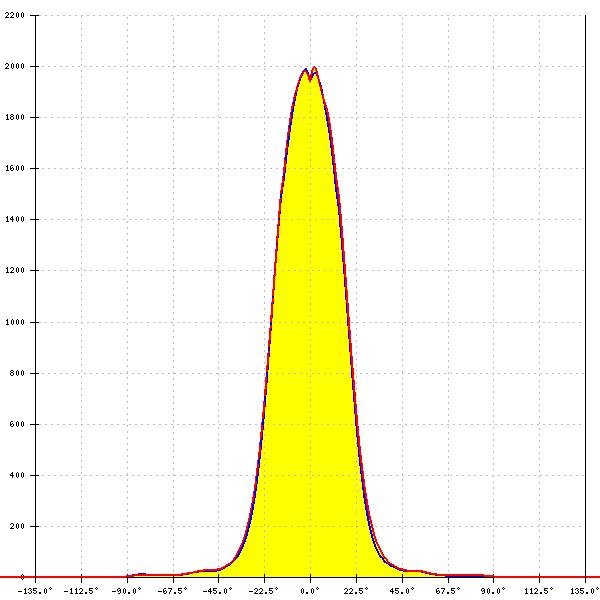

LED:

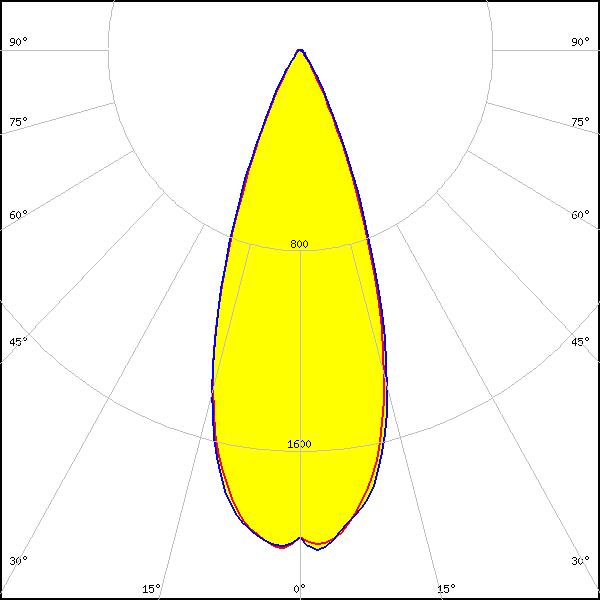

LUXEON 7070
FWHM:
38°
FWTM:
60°
Peak intensity:
2.014 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

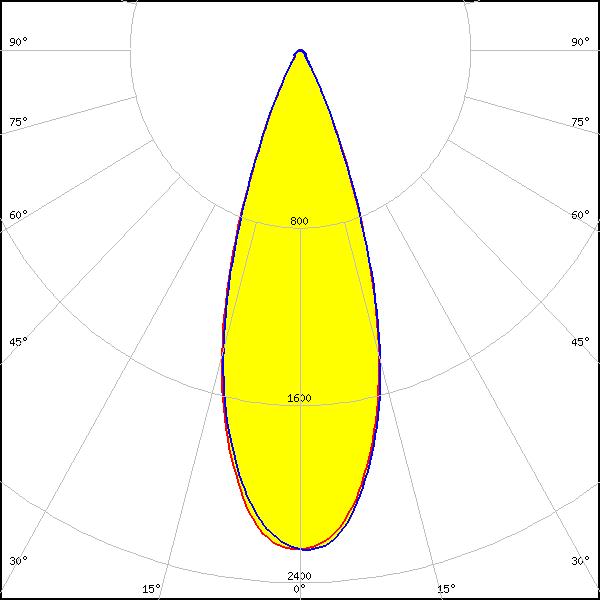

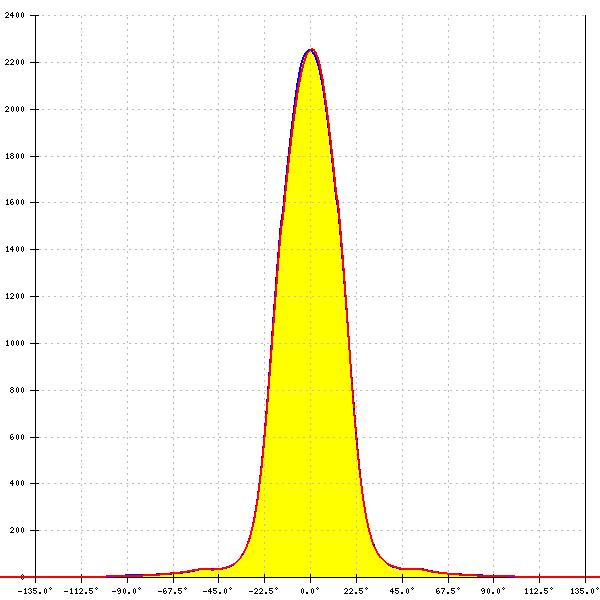

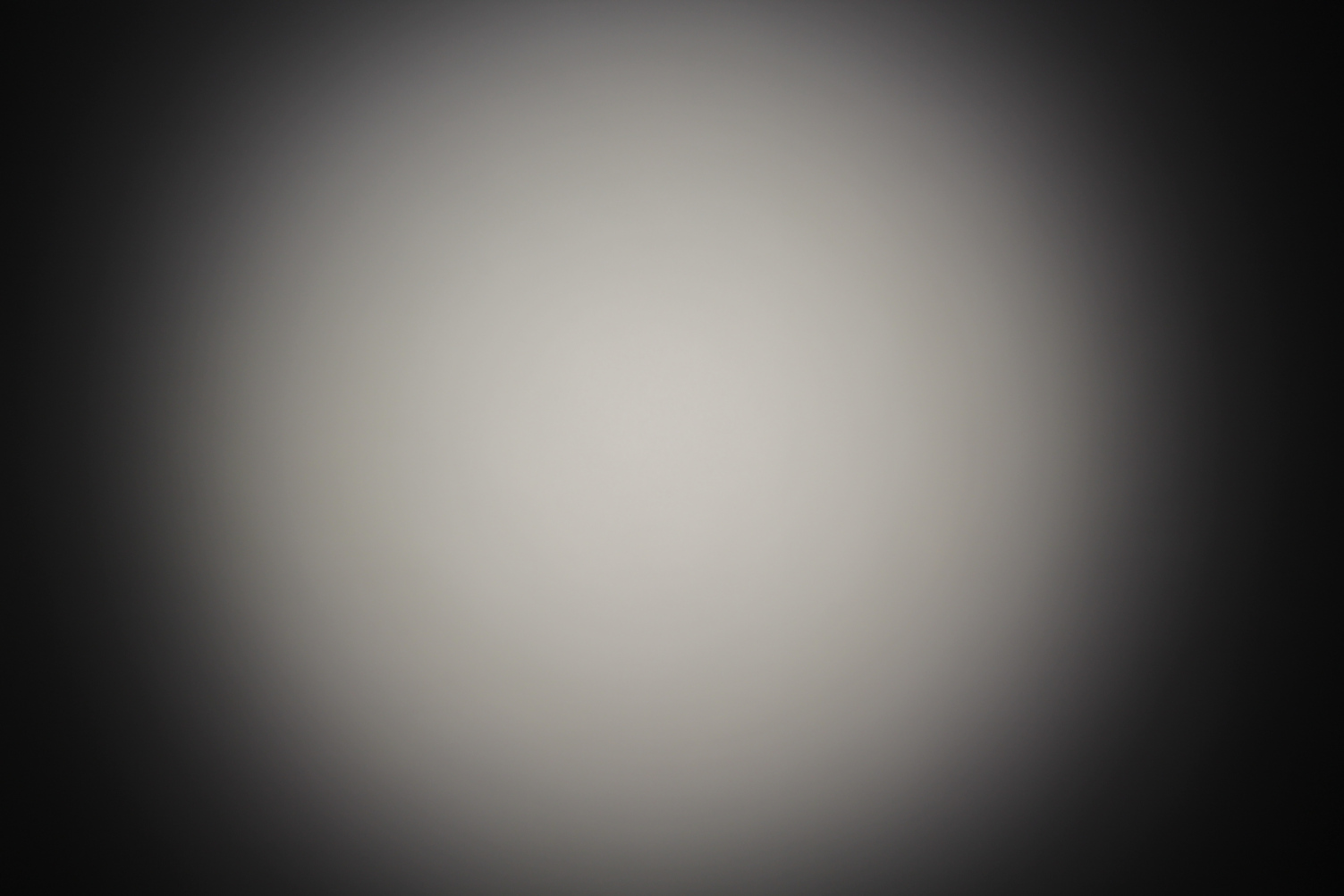

LED:
LUXEON M/MX
FWHM:
35°
FWTM:
56°
Peak intensity:
2.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

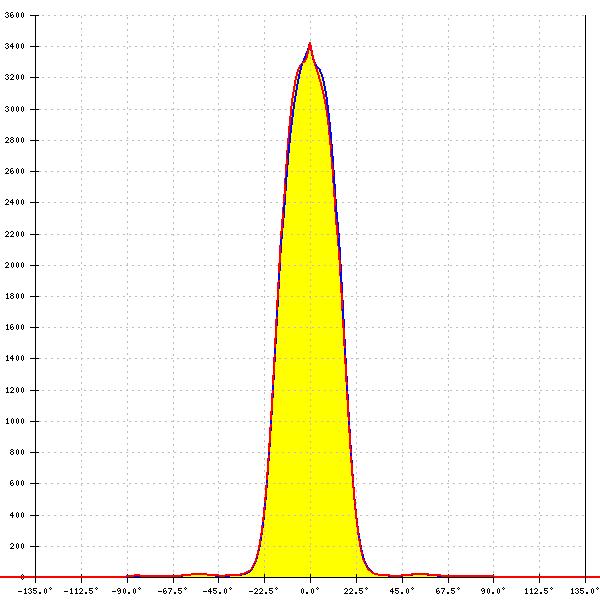

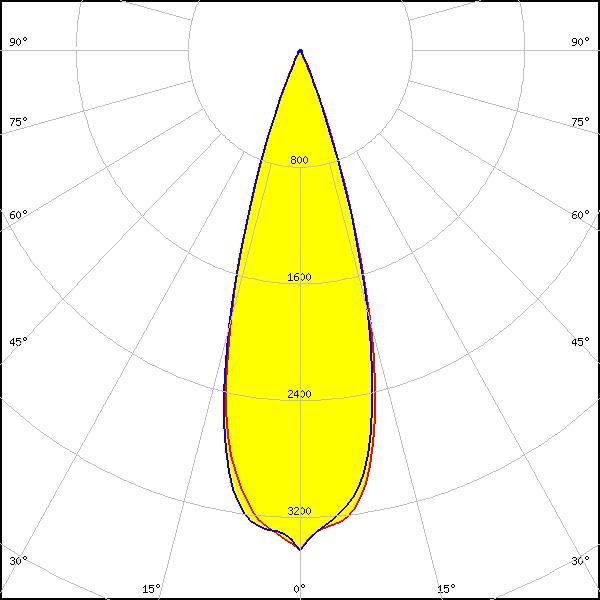

LED:
LUXEON MZ
FWHM:
32°
FWTM:
46°
Peak intensity:
3.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

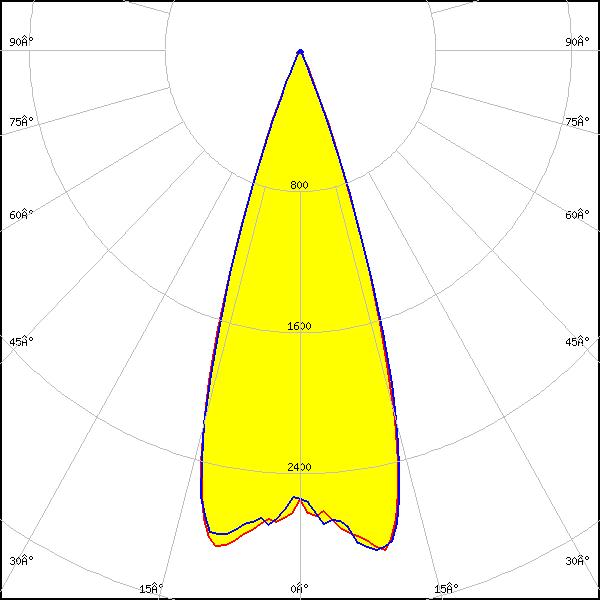

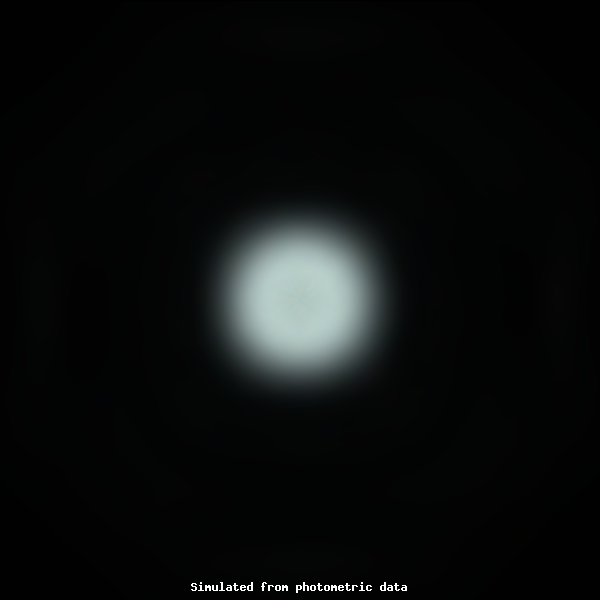

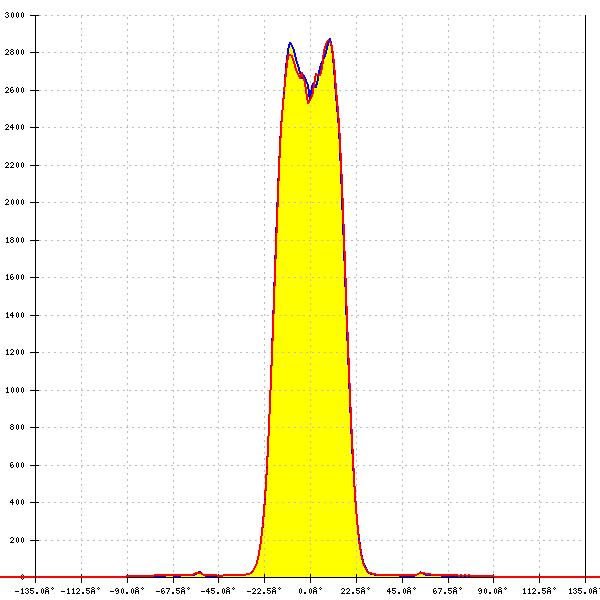

LED:
SFT-40 Gen2
FWHM:
36°
FWTM:
46°
Peak intensity:
2.946 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

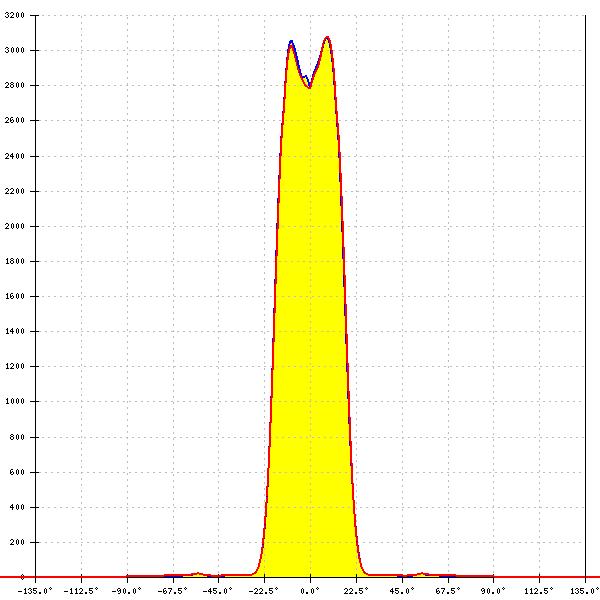

LED:
SFT-40-WCS
FWHM:
34°
FWTM:
44°
Peak intensity:
3.225 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

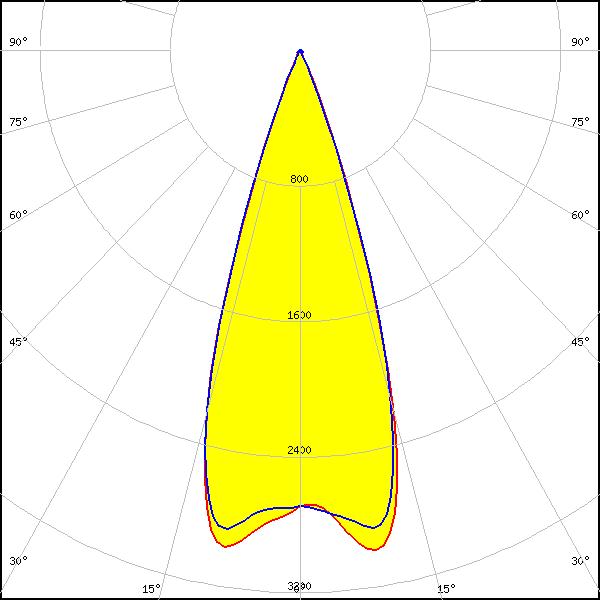

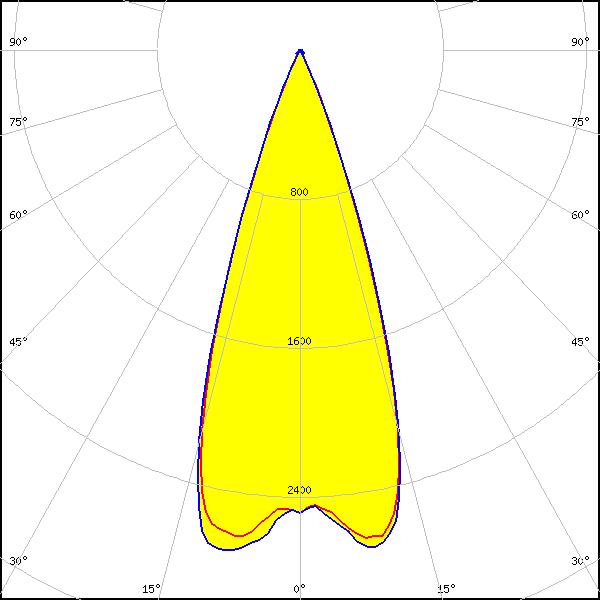

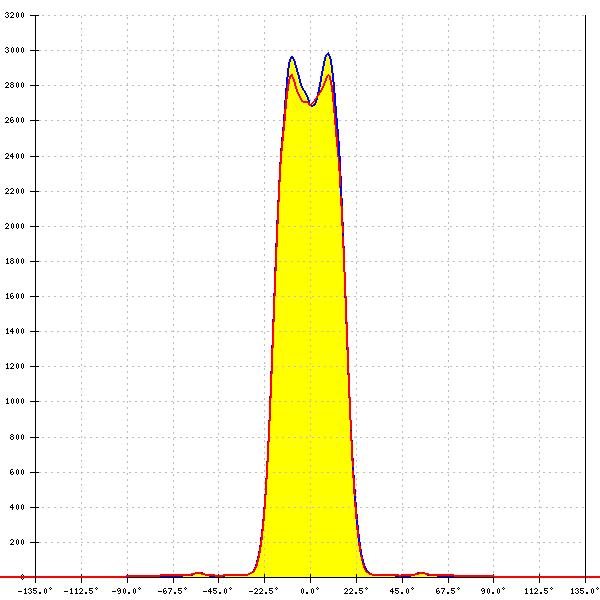

LED:
SFT-70X-WCS
FWHM:
36°
FWTM:
46°
Peak intensity:
3.049 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

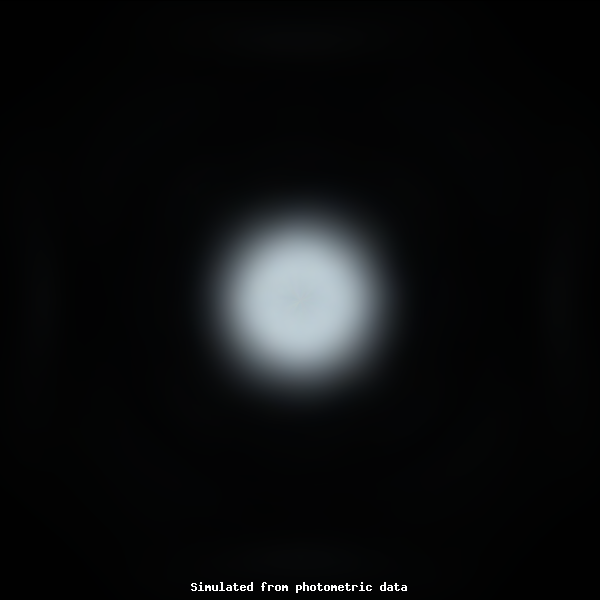

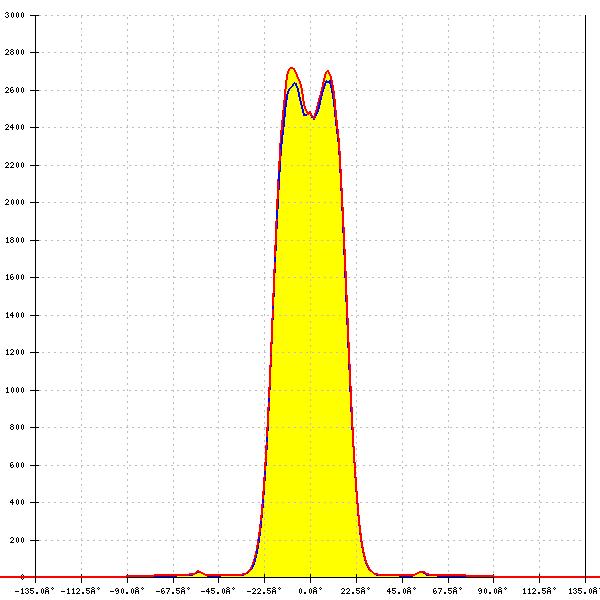

LED:
SFT-70X-WES-Gen2
FWHM:
36°
FWTM:
48°
Peak intensity:
2.762 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

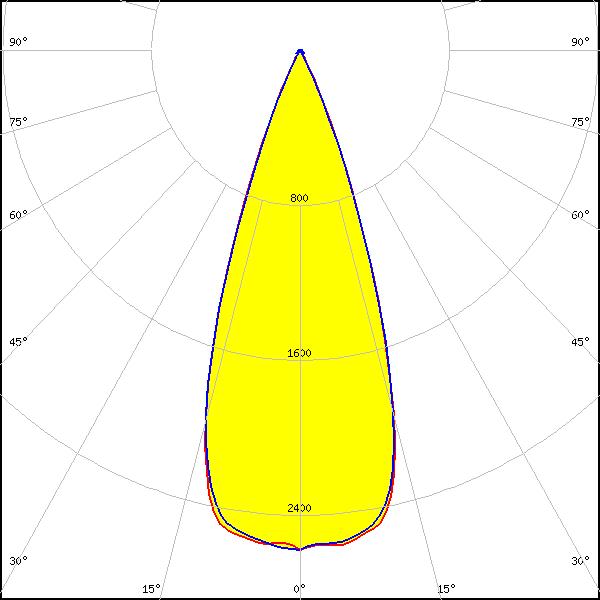

LED:
SST-70X-WCS
FWHM:
37°
FWTM:
52°
Peak intensity:
2.640 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

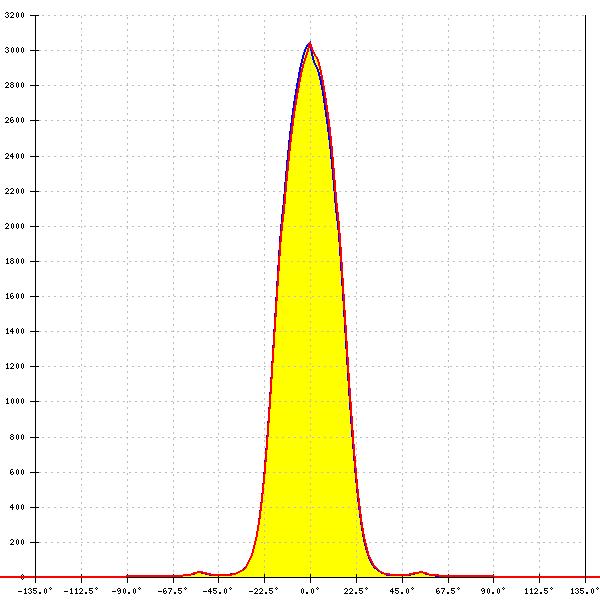

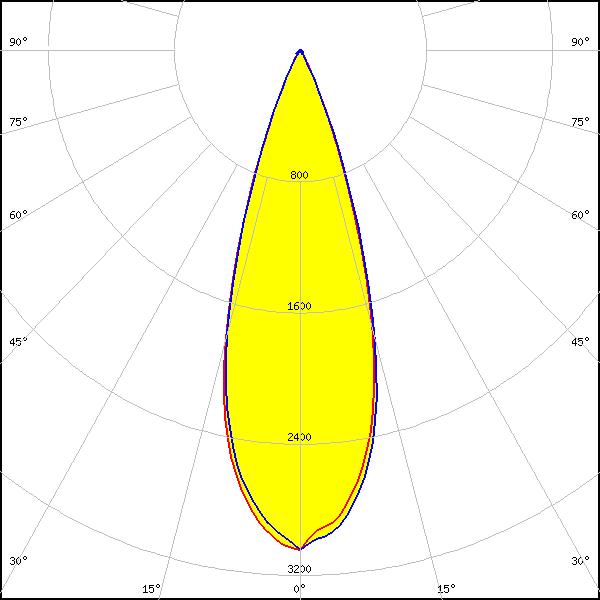

LED:
NFMW48xA
FWHM:
34°
FWTM:
50°
Peak intensity:
3.046 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

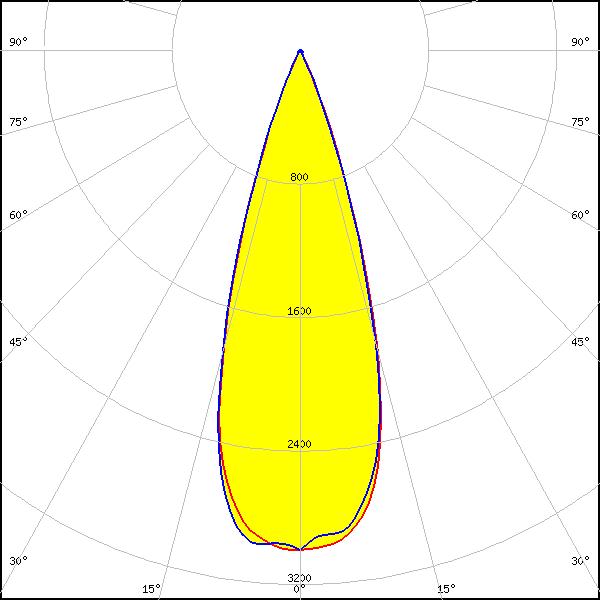

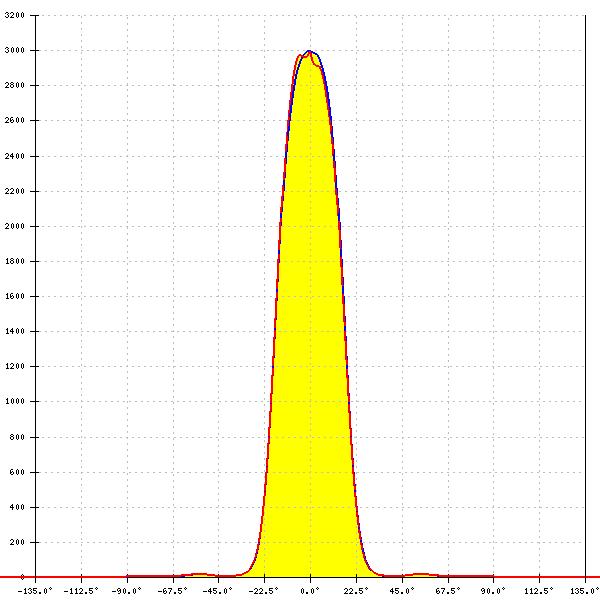

LED:
NV4WB35AM
FWHM:
34°
FWTM:
48°
Peak intensity:
2.996 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSU233B-D4
FWHM:
43°
FWTM:
66°
Peak intensity:
2.076 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
UV-A

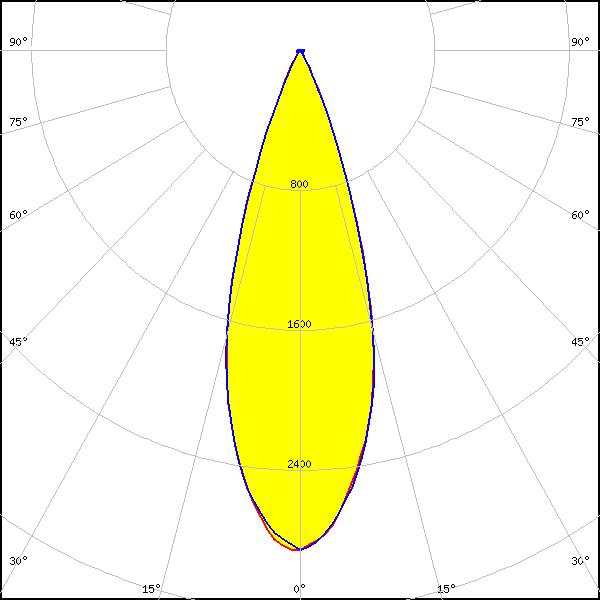

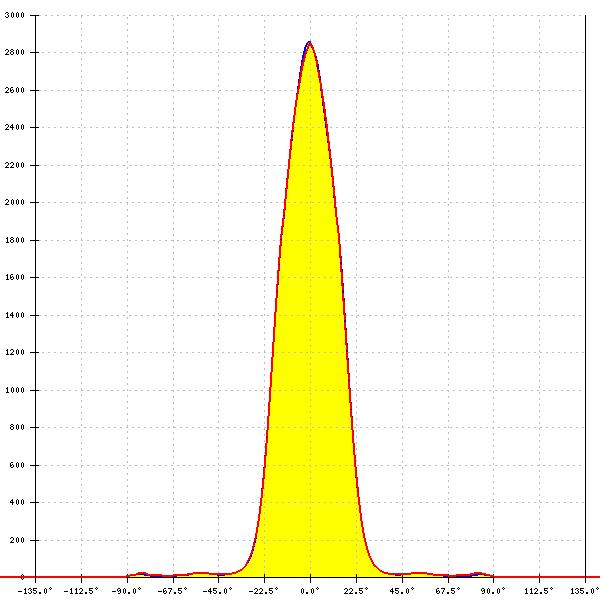

LED:
NVSxE21A
FWHM:
33°
FWTM:
51°
Peak intensity:
2.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White

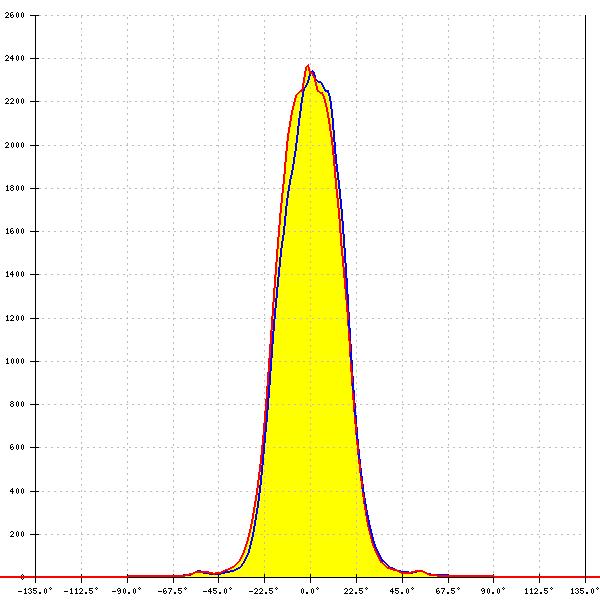

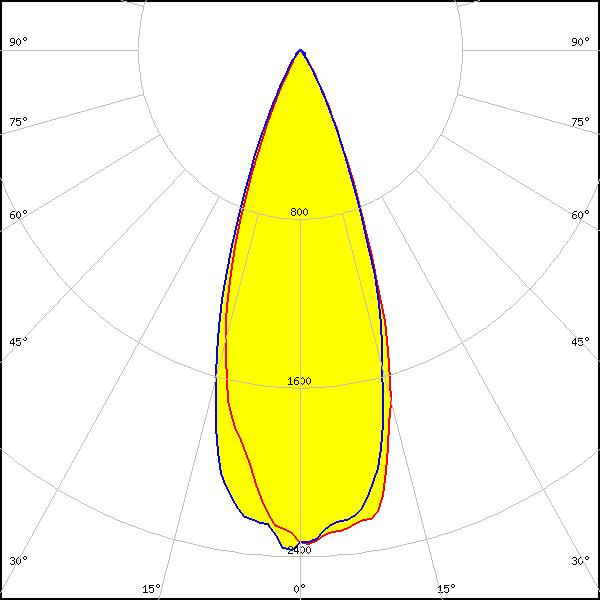

LED:
Duris S10
FWHM:
36°
FWTM:
57°
Peak intensity:
2.420 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

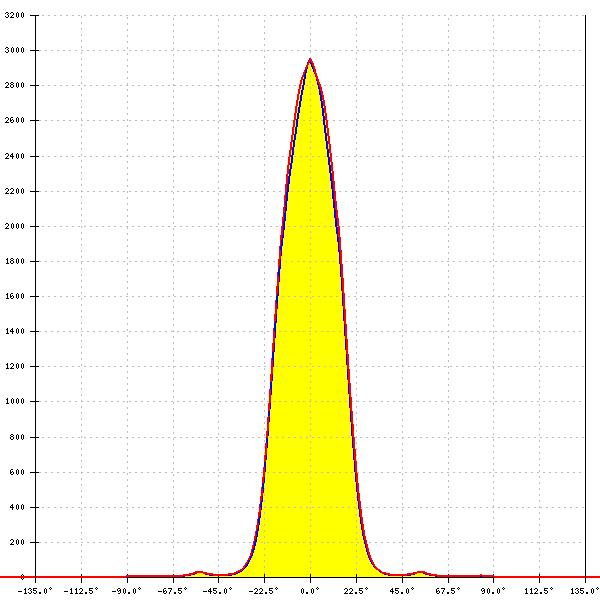

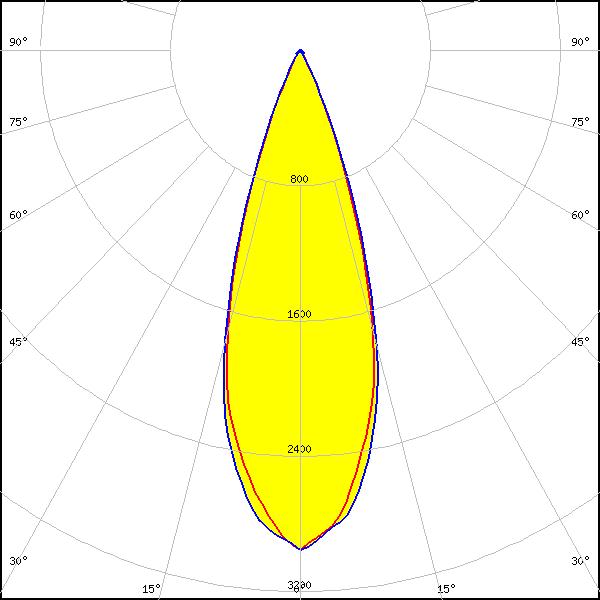

LED:
Duris S8
FWHM:
34°
FWTM:
51°
Peak intensity:
2.960 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

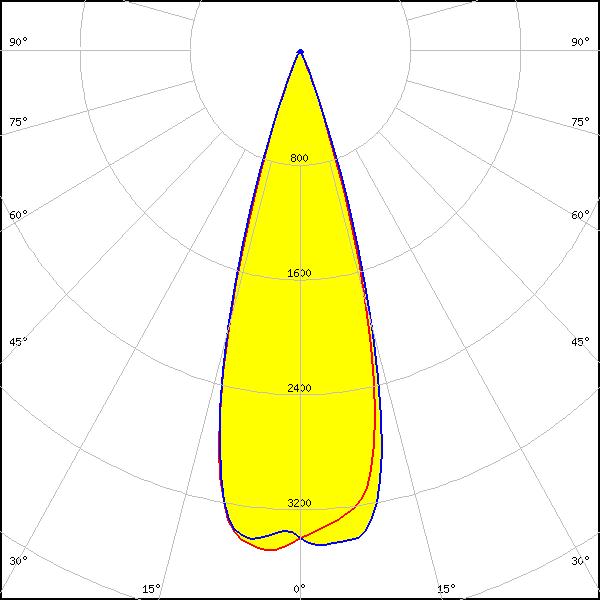

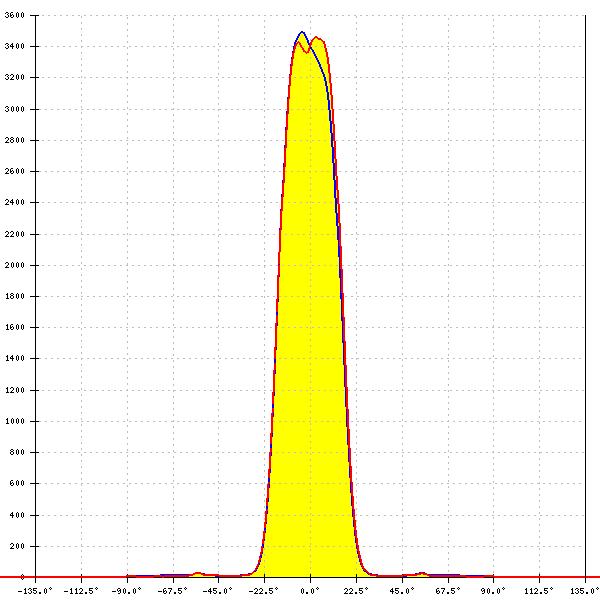

LED:
OSCONIQ P 3737 (2W version)
FWHM:
32°
FWTM:
44°
Peak intensity:
3.520 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
37°
FWTM:
54°
Peak intensity:
2.450 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CUN66B1G
FWHM:
22°
FWTM:
39°
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
UV-A
