    F15524_LINNEA-60

    Print

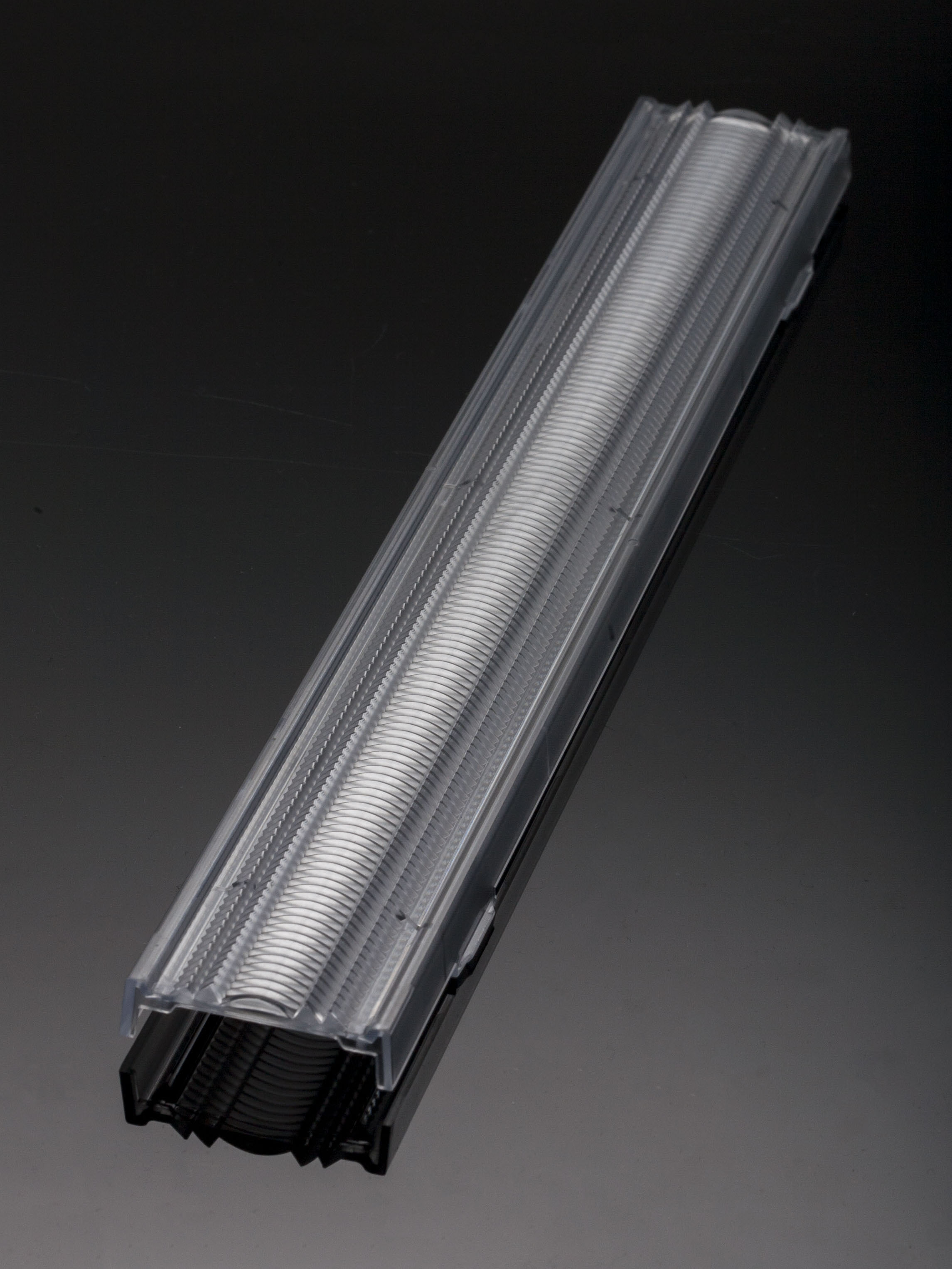

    ~60° + 90° beam optimized for 1.0 mm metal sheet or profile. Variant made from PC.

    Specification
    • Dimensions:
      285 x  40 mm
    • Height:
      9.50 mm
    • Fastening:
      clips
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      153 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      8.3 kg
    • MPQ:
      9 pcs
    • MOQ:
      36 pcs
    • MOQ size:
      400 x 300 x 70 mm
    • MOQ weight:
      1.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F15524_LINNEA-60

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR165 - Change of packaging method and packaging amounts

    PCN

    Product change notification NR158- Change of design of LINNEA family

    Article

    Are reflectors becoming redundant?

    News

    PRODUCT NEWS - LINNEA-60

    Application guide

    LEDiL guide for retail lighting optics

    PCN

    Product change notification NR180 – Update for PCN 158-Change of design in LINNEA product family

    News

    Effective fashion retail lighting

    Luminaire, example

    Linear luminaire with LINNEA

    Article

    Illuminating supermarkets with LEDiL optics

    News

    Linear lighting solutions

    Article

    Understanding the standards but aiming higher

    Article

    Stylish yet functional LED office lighting

    2D Mechanical drawing

    C16056_LINNEA-METAL-PROFILE_20161215

    3D Mechanical model

    C16056_LINNEA-METAL-PROFILE_20161215

    2D Mechanical drawing

    C16057_ALUMINIUM-EXTRUSION-PROFILE_20161215

    3D Mechanical model

    C16057_ALUMINIUM-EXTRUSION-PROFILE_20161215

    3D Mechanical model

    C16055_LINNEA-METAL-SHEET_20161215

    2D Mechanical drawing

    C16055_LINNEA-METAL-SHEET_20161215

    News

    New Products - 2018-05-09

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application area

    Office Lighting

    Customer story

    Greenled

    AVAILABLE LEDiL ACCESSORIES

    LINNEA-60-END-FL

    Long, female end cap compatible with LINNEA-60

    LINNEA-END-FS

    Short, female end cap compatible with LINNEA

    LINNEA-60-END-ML

    Long, male end cap compatible with LINNEA-60

    LINNEA-END-MS

    Short, male end cap compatible with LINNEA

    Optical results

    LED: CALOSNU405-M7W1
    FWHM: 96° + 55°
    FWTM: 141° + 87°
    Peak intensity: 0.590 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CALOSNU410-M7W1
    FWHM: 95° + 55°
    FWTM: 139° + 86°
    Peak intensity: 0.600 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Bridgelux SMD 2835
    FWHM: 90° + 58°
    FWTM: 127° + 82°
    Peak intensity: 0.610 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E
    FWHM: 96° + 54°
    FWTM: 139° + 86°
    Peak intensity: 0.590 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: L-iC-282-827-865-011A
    FWHM: 97° + 58°
    FWTM: 142° + 91°
    Peak intensity: 0.560 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LP-282-840-009A 60/300
    FWHM: 97° + 58°
    FWTM: 142° + 91°
    Peak intensity: 0.560 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LS-282-840-011A
    FWHM: 97° + 58°
    FWTM: 145° + 91°
    Peak intensity: 0.560 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LX-282-840-023A
    FWHM: 96° + 59°
    FWTM: 144° + 92°
    Peak intensity: 0.550 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 3030 2D (Round LES)
    FWHM: 89° + 60°
    FWTM: 125° + 80°
    Peak intensity: 0.620 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LinearZ 280-112 Circadian TW
    FWHM: 92° + 64°
    FWTM: 147° + 104°
    Peak intensity: 0.524 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LinearZ 280-26
    FWHM: 96° + 59°
    FWTM: 145° + 92°
    Peak intensity: 0.576 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LinearZ 280-40 TW
    FWHM: 94° + 59°
    FWTM: 142° + 92°
    Peak intensity: 0.582 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LinLED 280x24mm 1100lm 830 2C 30V LINNEA-GC G1
    FWHM: 96° + 59°
    FWTM: 143° + 89°
    Peak intensity: 0.560 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NF2x757G
    FWHM: 96° + 54°
    FWTM: 141° + 87°
    Peak intensity: 0.590 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFSW757H
    FWHM: 96° + 60°
    FWTM: 145° + 93°
    Peak intensity: 0.563 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFSx757G
    FWHM: 96° + 59°
    FWTM: 145° + 88°
    Peak intensity: 0.560 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PL-LIN-IND-Z1 2800 560x24
    FWHM: 96° + 60°
    FWTM: 144° + 96°
    Peak intensity: 0.581 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PL-LIN-Z5 1100 280x20
    FWHM: 97° + 58°
    FWTM: 143° + 91°
    Peak intensity: 0.565 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PL-LIN-Z5 2000 280x20
    FWHM: 97° + 58°
    FWTM: 143° + 91°
    Peak intensity: 0.565 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S5 (2 chip)
    FWHM: 95° + 57°
    FWTM: 140° + 88°
    Peak intensity: 0.580 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S5 (Single chip)
    FWHM: 96° + 57°
    FWTM: 143° + 91°
    Peak intensity: 0.590 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
    FWHM: 95° + 59°
    FWTM: 141° + 88°
    Peak intensity: 0.580 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Strip 1ft 1100lm FC HV5 & LV5
    FWHM: 97° + 58°
    FWTM: 145° + 95°
    Peak intensity: 0.588 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Strip 1ft 650lm FC HV4 & LV4
    FWHM: 95° + 59°
    FWTM: 139° + 89°
    Peak intensity: 0.570 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Strip 1ft 650lm FC HV5 & LV5
    FWHM: 96° + 58°
    FWTM: 143° + 94°
    Peak intensity: 0.607 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM28xB Series
    FWHM: 95° + 53°
    FWTM: 136° + 106°
    Peak intensity: 0.440 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM561B Plus
    FWHM: 96° + 59°
    FWTM: 143° + 89°
    Peak intensity: 0.560 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LT-H282C
    FWHM: 96° + 55°
    FWTM: 141° + 87°
    Peak intensity: 0.600 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LT-H562C
    FWHM: 96° + 55°
    FWTM: 141° + 87°
    Peak intensity: 0.600 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LT-Q282B
    FWHM: 95° + 54°
    FWTM: 138° + 86°
    Peak intensity: 0.610 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LT-S282H
    FWHM: 96° + 54°
    FWTM: 140° + 86°
    Peak intensity: 0.600 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LT-S562H
    FWHM: 96° + 54°
    FWTM: 140° + 86°
    Peak intensity: 0.600 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LT-V282E
    FWHM: 96° + 54°
    FWTM: 140° + 86°
    Peak intensity: 0.610 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LT-V562E
    FWHM: 96° + 54°
    FWTM: 140° + 86°
    Peak intensity: 0.610 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL 5630D
    FWHM: 73°
    FWTM: 112°
    Peak intensity: 0.560 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3030
    FWHM: 96° + 57°
    FWTM: 139° + 88°
    Peak intensity: 0.600 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3030C
    FWHM: 92° + 60°
    FWTM: 134° + 80°
    Peak intensity: 0.651 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3528
    FWHM: 92° + 59°
    FWTM: 127° + 82°
    Peak intensity: 0.564 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3528
    FWHM: 92° + 59°
    FWTM: 128° + 82°
    Peak intensity: 0.569 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3528
    FWHM: 90° + 65°
    FWTM: 131° + 87°
    Peak intensity: 0.525 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: SEOUL DC 3528
    FWHM: 90° + 60°
    FWTM: 128° + 85°
    Peak intensity: 0.544 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: SEOUL DC 3528
    FWHM: 91° + 48°
    FWTM: 122° + 77°
    Peak intensity: 0.633 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3528
    FWHM: 92° + 59°
    FWTM: 128° + 82°
    Peak intensity: 0.559 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3528
    FWHM: 90° + 60°
    FWTM: 128° + 85°
    Peak intensity: 0.542 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: SEOUL DC 3528
    FWHM: 88° + 48°
    FWTM: 122° + 76°
    Peak intensity: 0.645 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LLE G4 24x280mm 1250lm
    FWHM: 96° + 58°
    FWTM: 141° + 88°
    Peak intensity: 0.570 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LLE G4 24x280mm 2000lm ADV
    FWHM: 95° + 60°
    FWTM: 143° + 91°
    Peak intensity: 0.550 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LLE G4 24x280mm 650lm
    FWHM: 95° + 59°
    FWTM: 140° + 89°
    Peak intensity: 0.570 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
