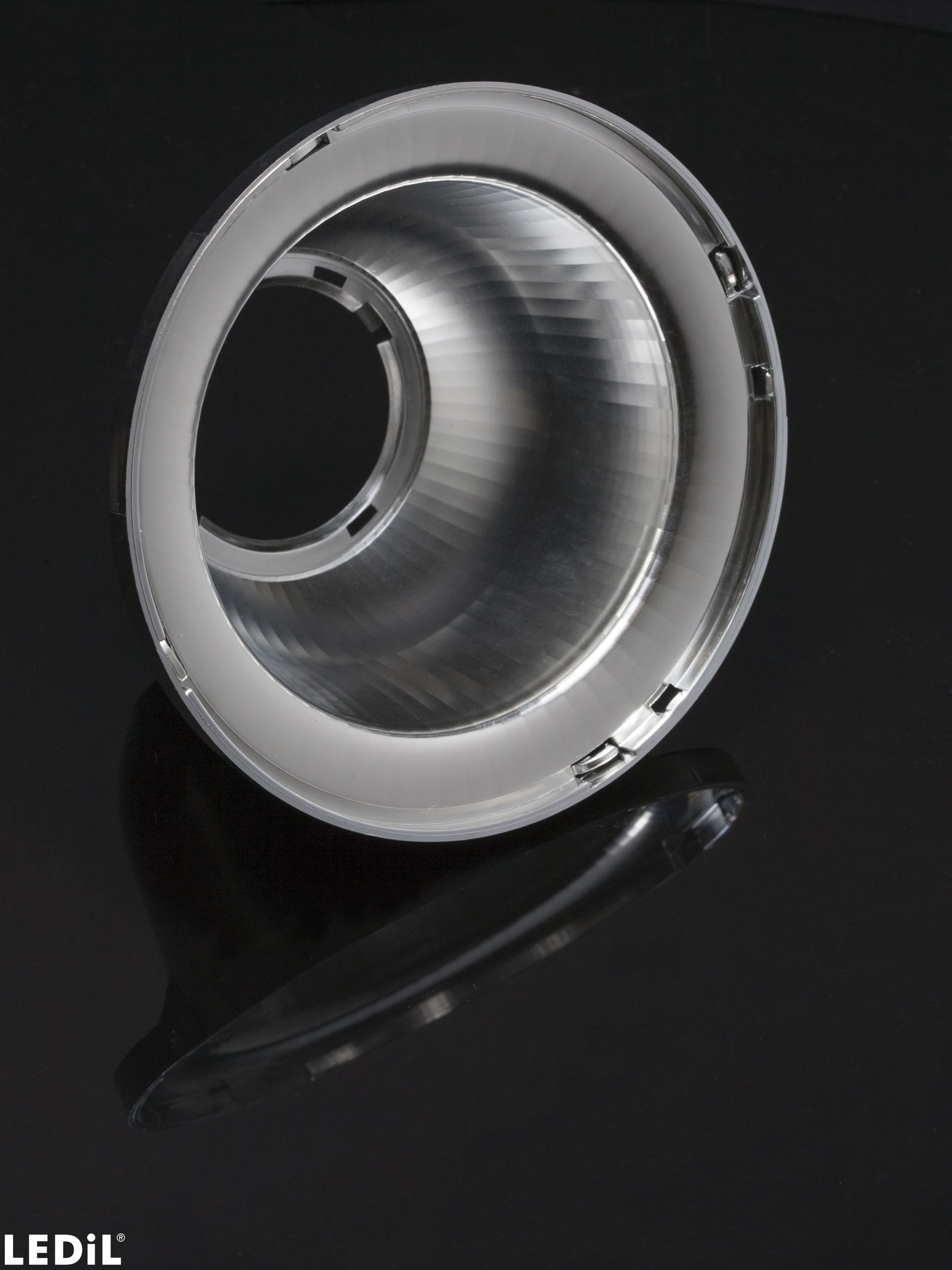

    F14618_ANGELETTE-WW-B

    Print

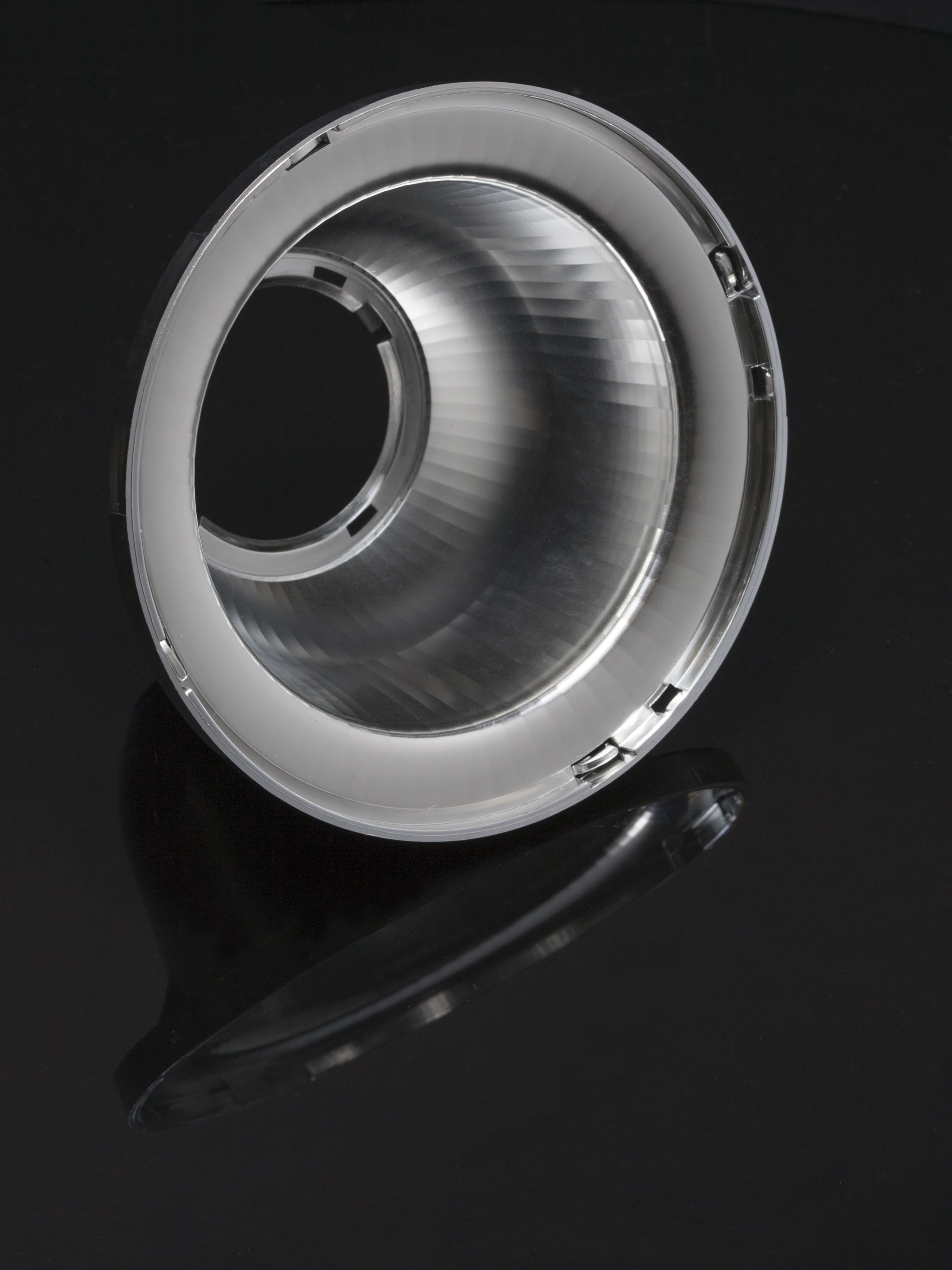

    ~60° wide beam compatible with BJB and B+W connectors

    Specification
    • Dimensions:
      110 mm
    • Height:
      57.30 mm
    • Fastening:
      socket
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      120 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      5.2 kg
    • MPQ:
      30 pcs
    • MOQ:
      90 pcs
    • MOQ size:
      480 x 280 x 260 mm
    • MOQ weight:
      4.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F14618_ANGELETTE-WW-B

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    LEDiL guide for retail lighting optics

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    News

    PRODUCT NEWS - ANGELETTE

    Application area

    Indoor Architectural Lighting

    Compatibility guide

    ANGELETTE Product Family Compatibility Guide

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    ANGELETTE-LENS

    Clear protective sublens for symmetrical ANGELETTE reflectors

    ANGELETTE-DL

    Diffusing sublens for symmetrical ANGELETTE reflectors

    ANGE-RZ-LENS

    Colour mixing sublens for ANGELA, ANGELINA and ANGELETTE

    XTM-ADAPTER-50-B

    ∅50 mm basepart for Xicato XTM/XIM modules compatible with HEKLA (∅30 mm) and B-type reflectors (∅50 mm) interfaces.

    Optical results

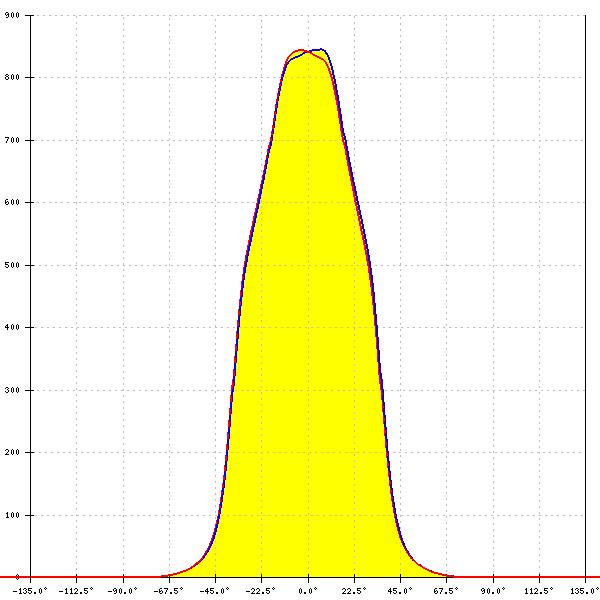

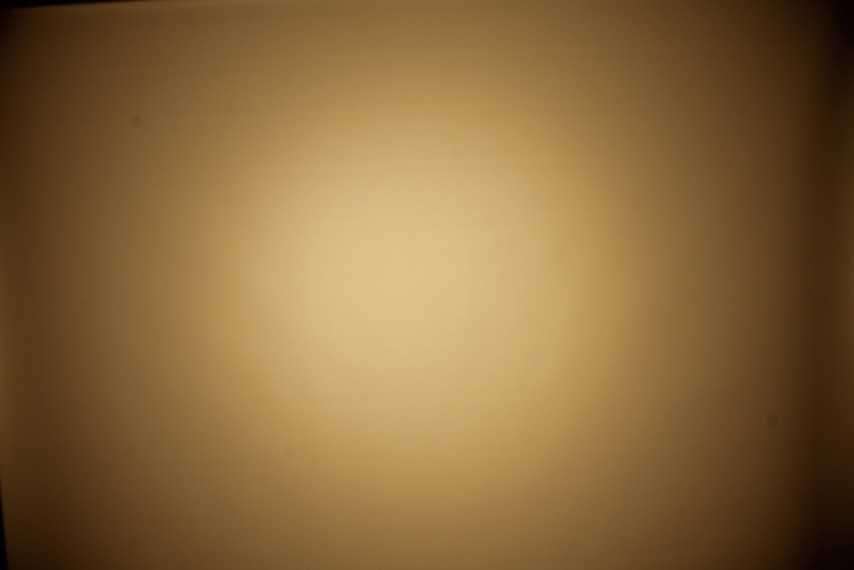

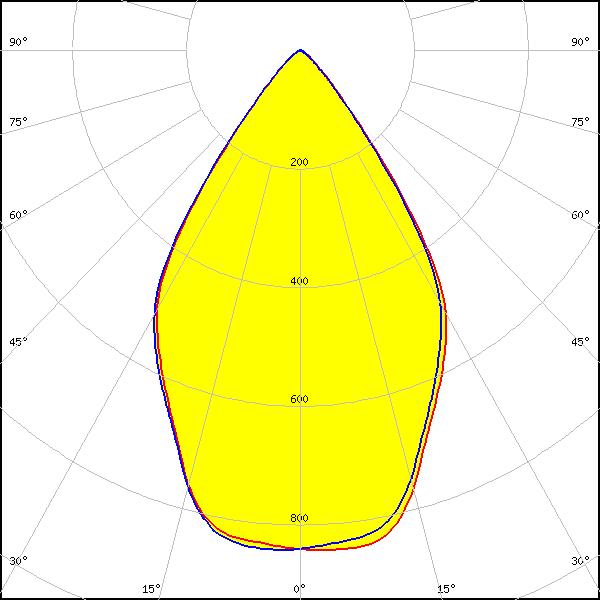

    LED: V15 Gen6
    LES size: 15.2 mm
    Required components:
    BJB: 47.319.2224
    F13671_ANGE-RZ-LENS
    FWHM: 66°
    FWTM: 88°
    Peak intensity: 0.850 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

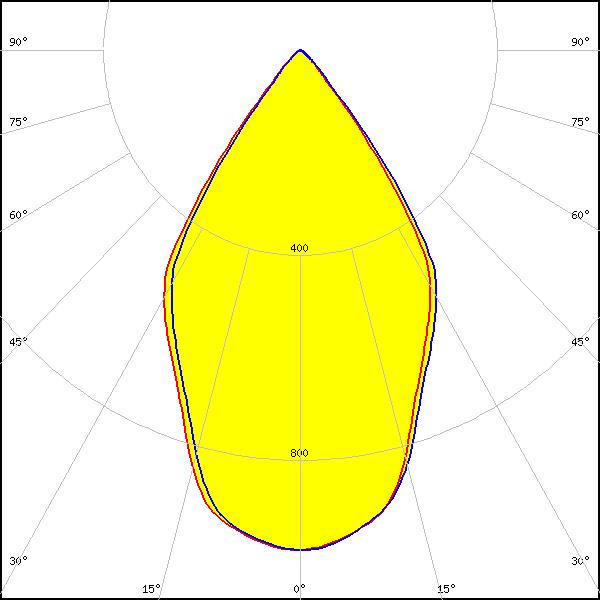

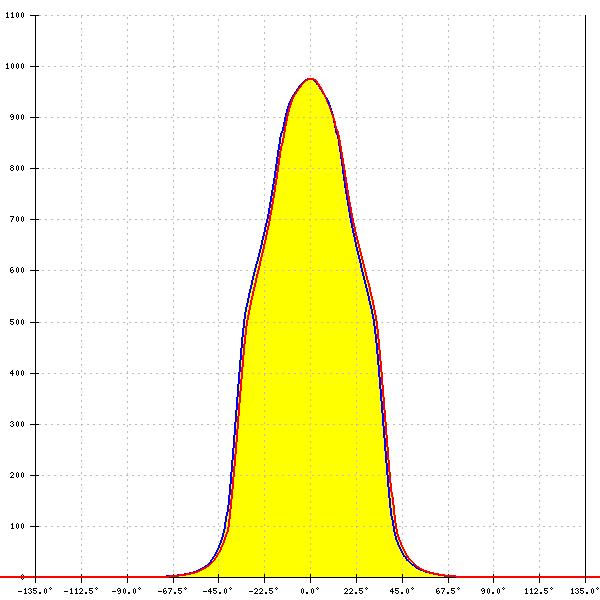

    LED: V15 Gen6
    LES size: 15.2 mm
    Required components:
    BJB: 47.319.2224
    FWHM: 65°
    FWTM: 83°
    Peak intensity: 0.980 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

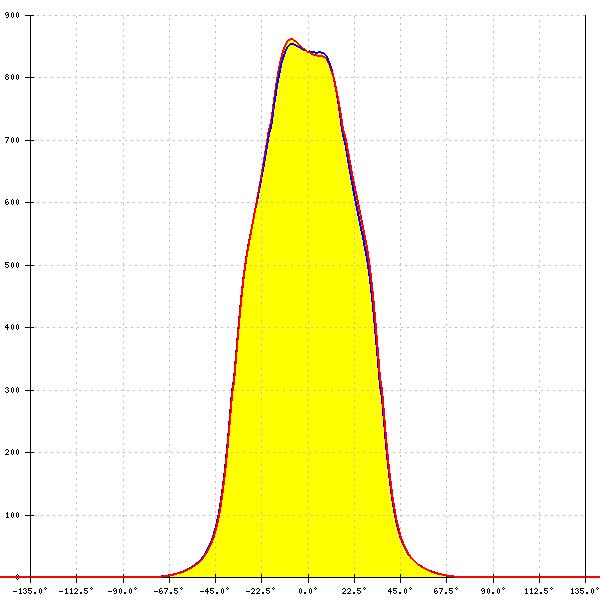

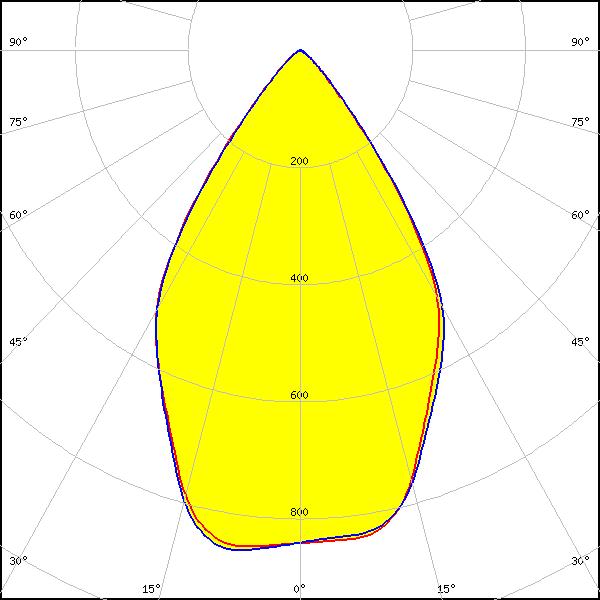

    LED: V18 Gen6
    LES size: 18.6 mm
    Required components:
    BJB: 47.319.2274
    F13671_ANGE-RZ-LENS
    FWHM: 65°
    FWTM: 88°
    Peak intensity: 0.860 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

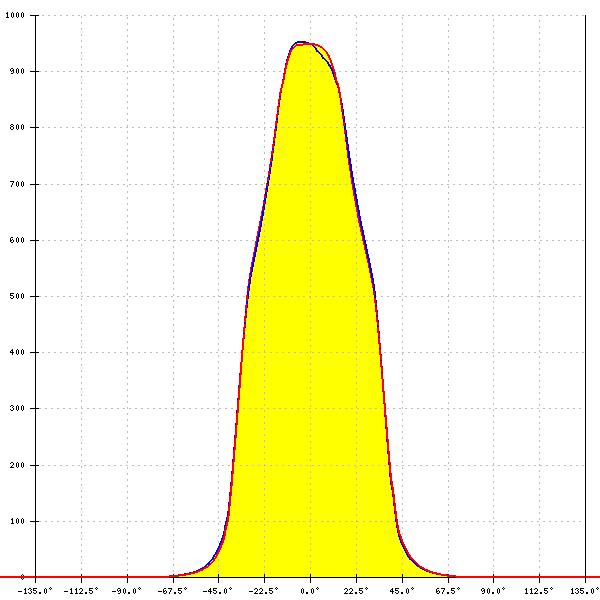

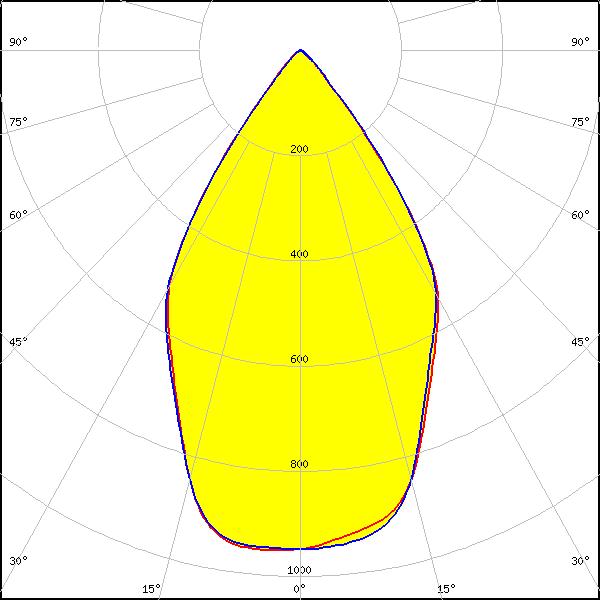

    LED: V18 Gen6
    LES size: 18.6 mm
    Required components:
    BJB: 47.319.2274
    FWHM: 64°
    FWTM: 83°
    Peak intensity: 0.950 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

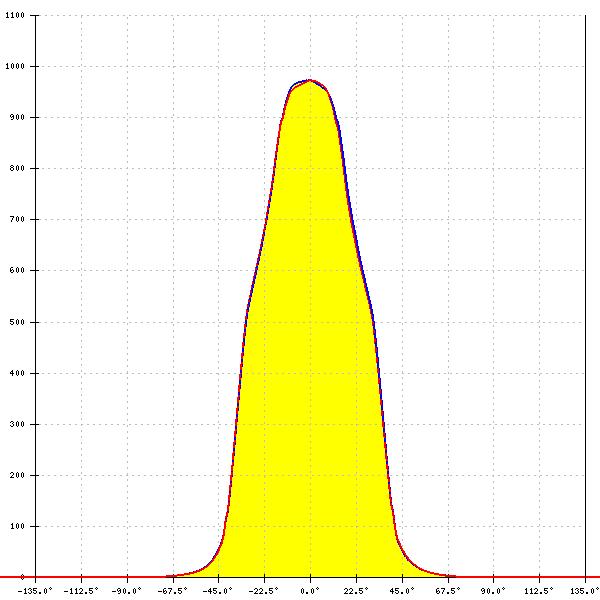

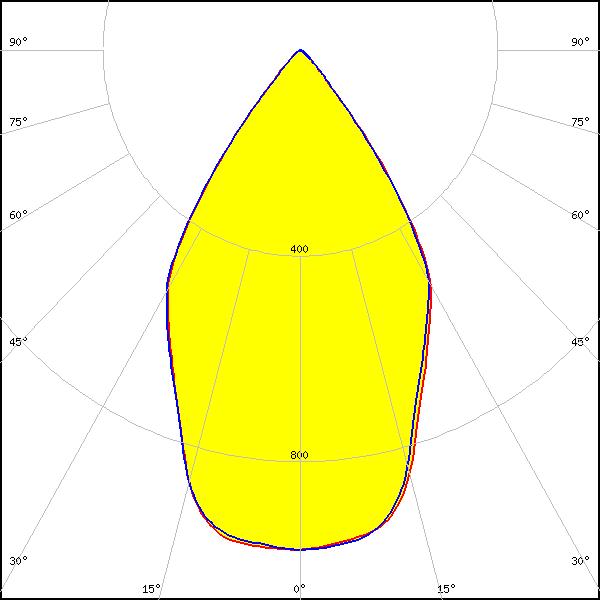

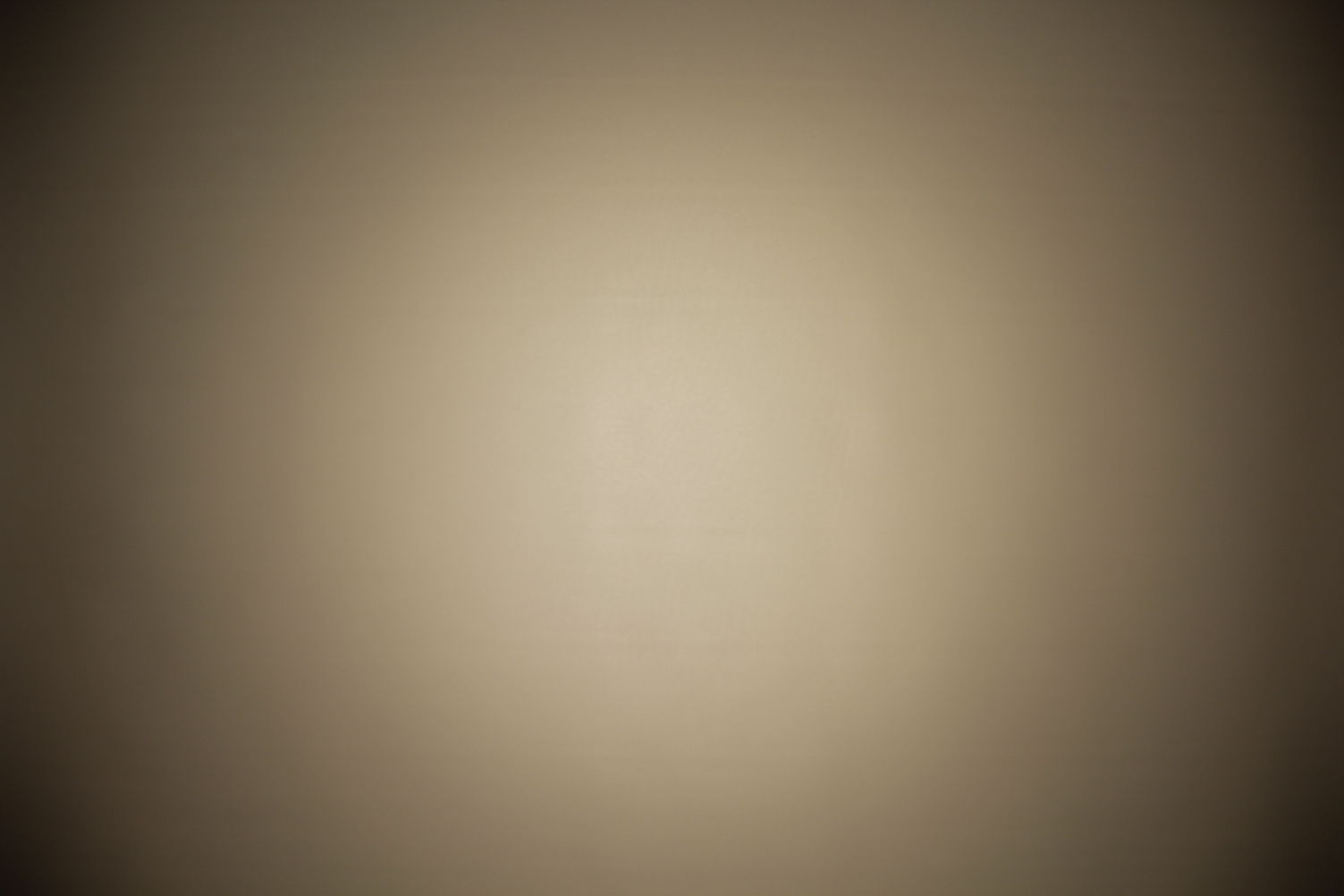

    LED: V18 Gen7
    LES size: 19.2 mm
    Required components:
    BJB: 47.319.2350
    FWHM: 64°
    FWTM: 83°
    Peak intensity: 0.970 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

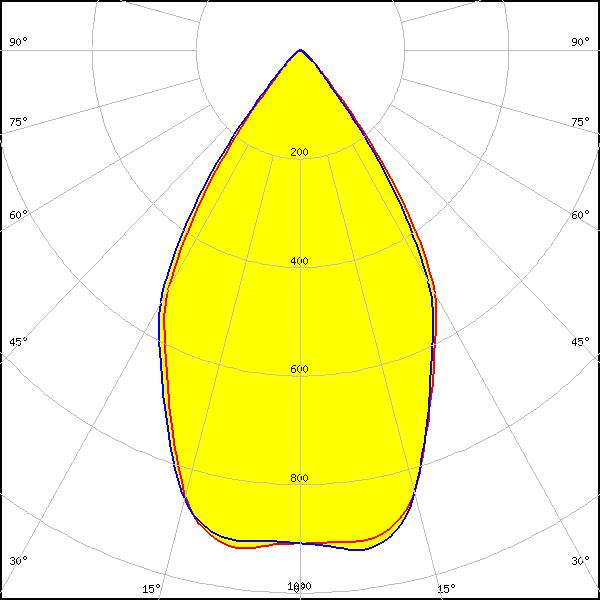

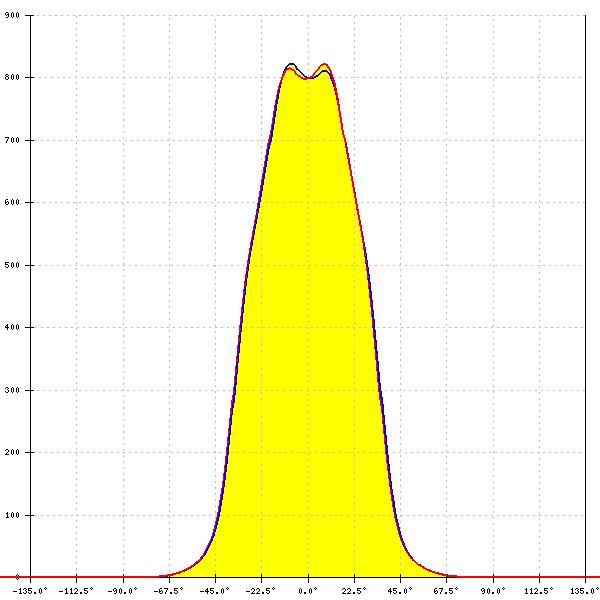

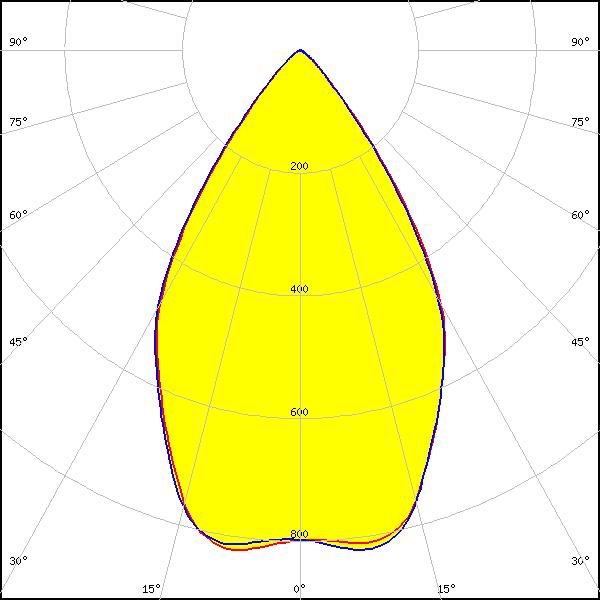

    LED: V22 Gen6
    LES size: 22.0 mm
    Required components:
    A.A.G. STUCCHI: 8102-G2
    F13671_ANGE-RZ-LENS
    FWHM: 64°
    FWTM: 88°
    Peak intensity: 0.820 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

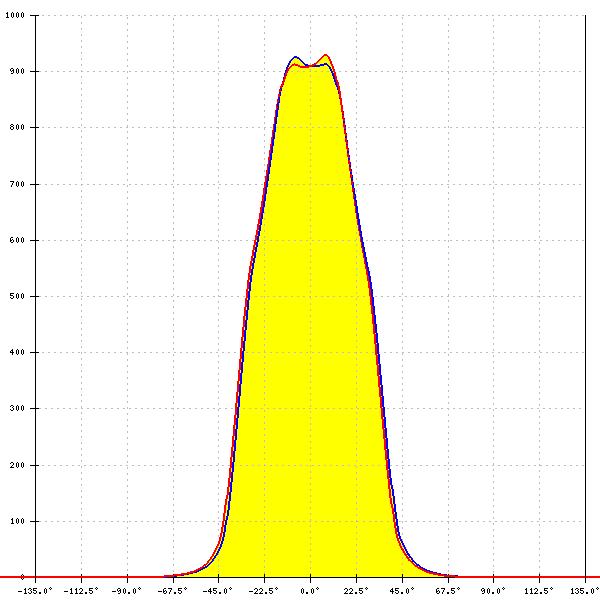

    LED: V22 Gen6
    LES size: 22.0 mm
    Required components:
    A.A.G. STUCCHI: 8102-G2
    FWHM: 63°
    FWTM: 84°
    Peak intensity: 0.930 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

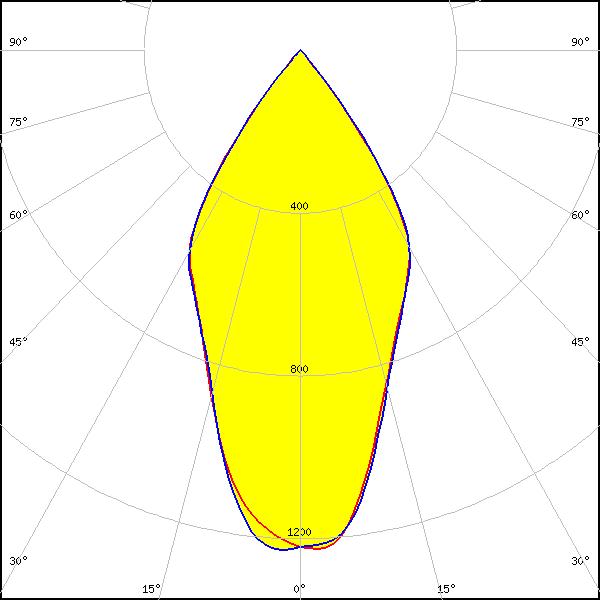

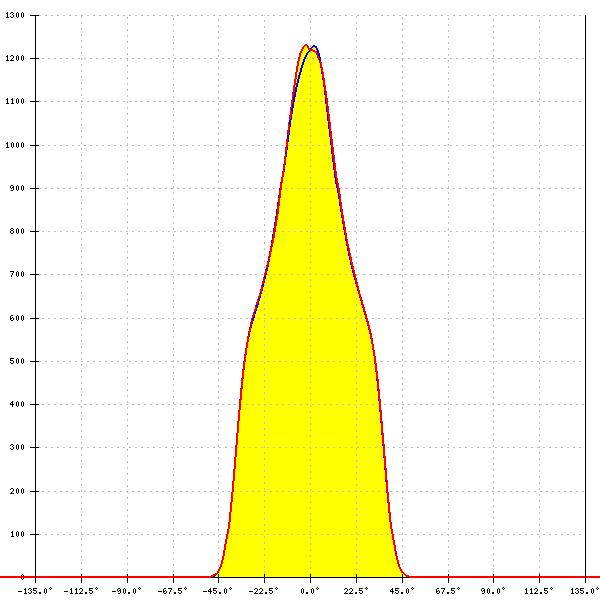

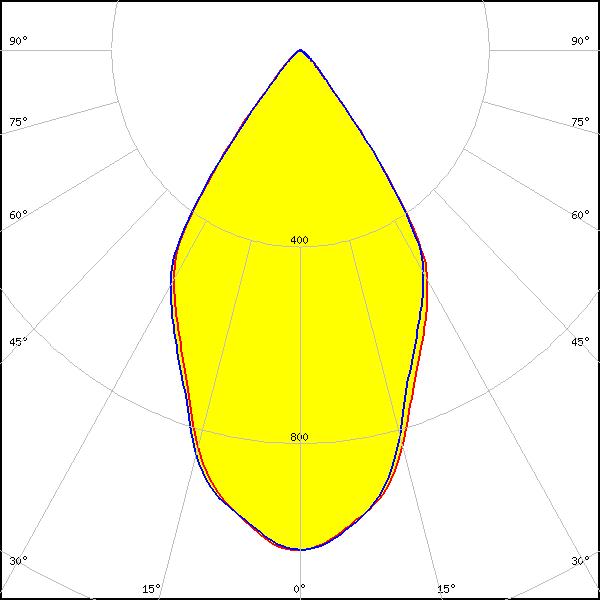

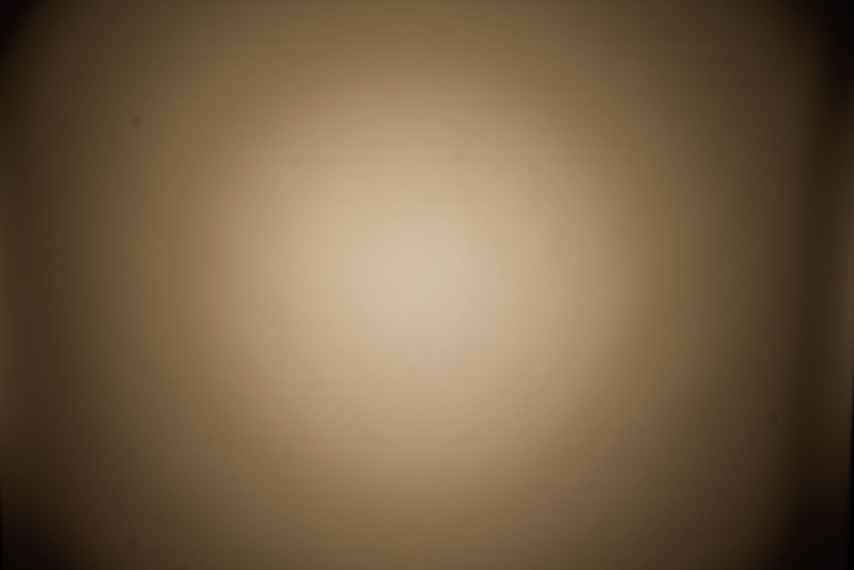

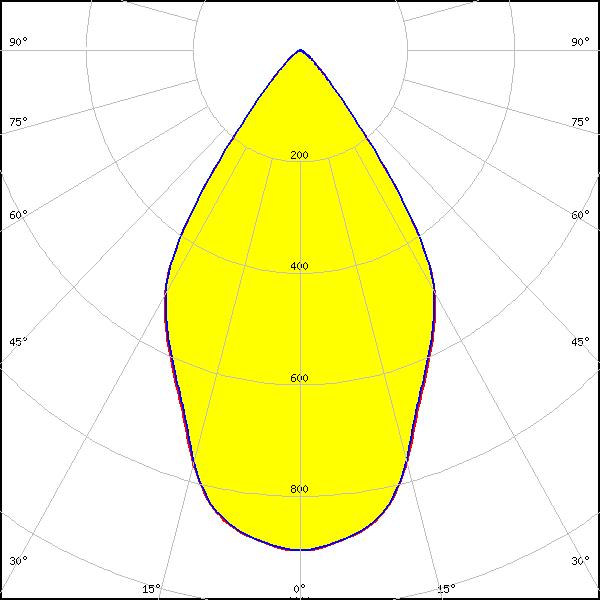

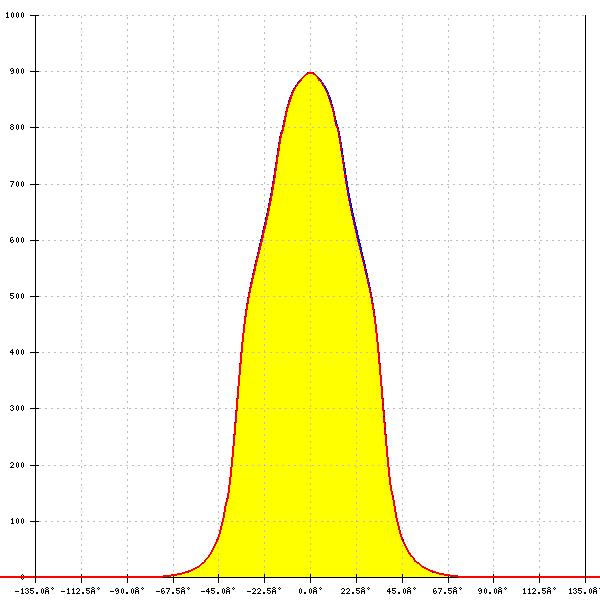

    LED: CLL03x/CLU03x
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 54°
    FWTM: 80°
    Peak intensity: 1.200 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

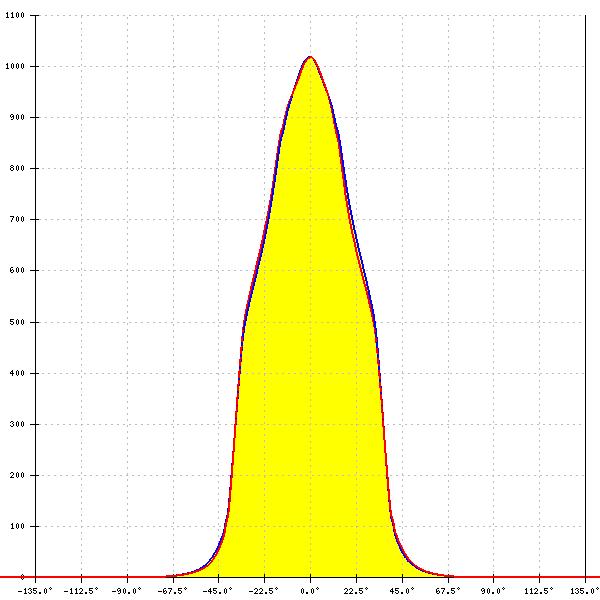

    LED: CLL03x/CLU03x
    LES size: 14.5 mm
    Required components:
    A.A.G. STUCCHI: 8101-G2
    FWHM: 63°
    FWTM: 82°
    Peak intensity: 1.000 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

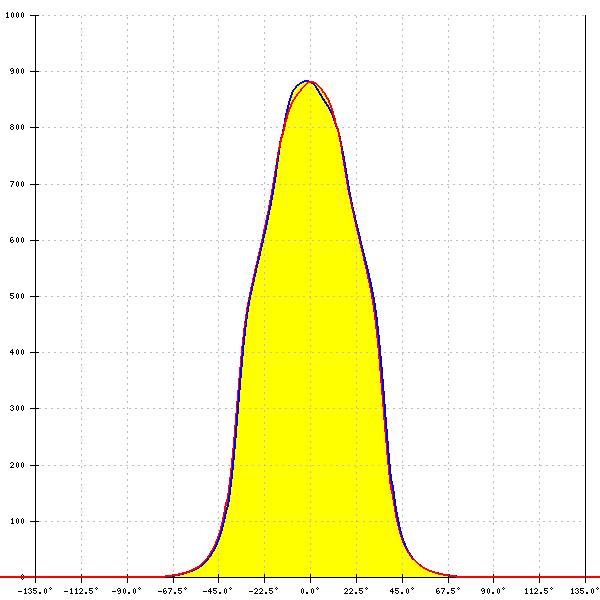

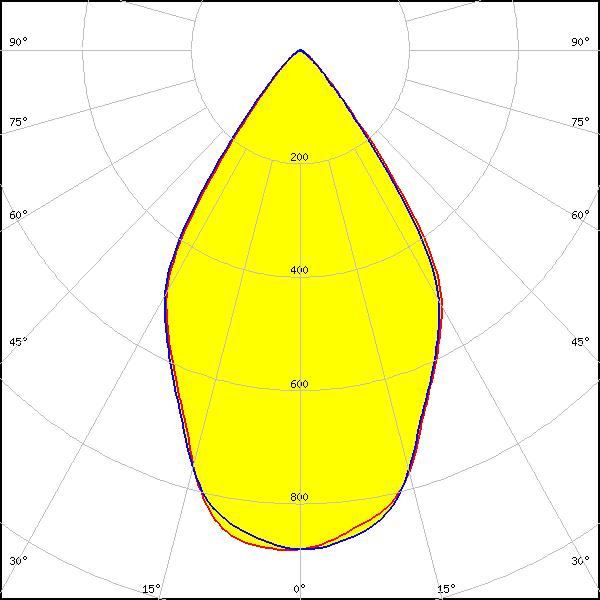

    LED: CLL03x/CLU03x
    LES size: 14.5 mm
    Required components:
    A.A.G. STUCCHI: 8101-G2
    F13671_ANGE-RZ-LENS
    FWHM: 65°
    FWTM: 87°
    Peak intensity: 0.880 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

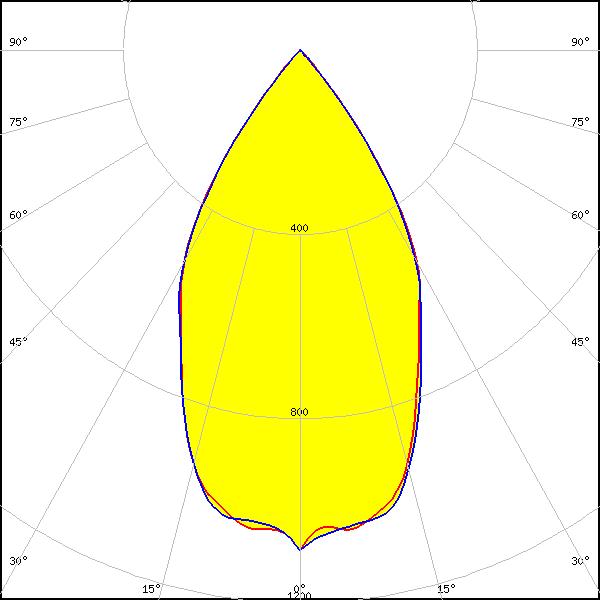

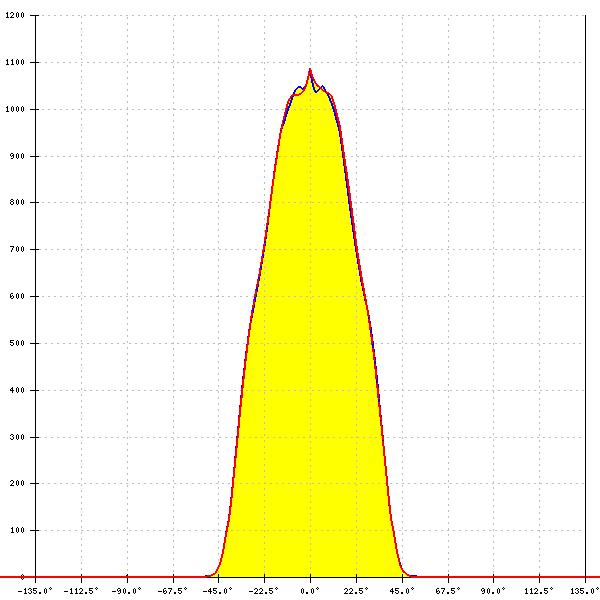

    LED: CLL04x/CLU04x
    LES size: 22.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: 58°
    FWTM: 81°
    Peak intensity: 1.100 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

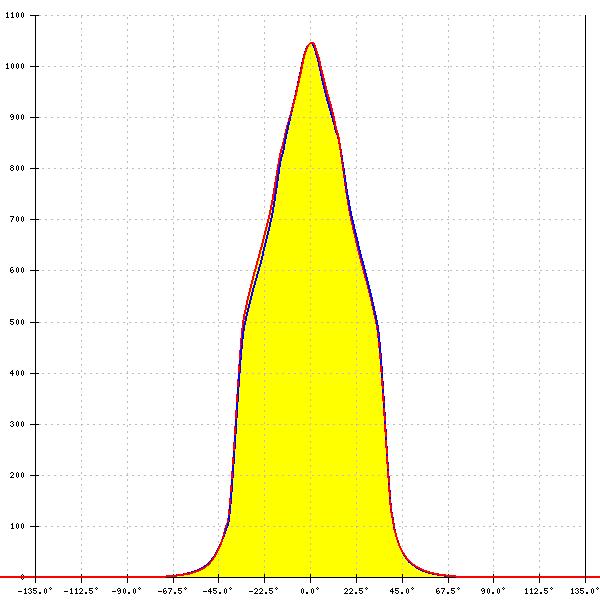

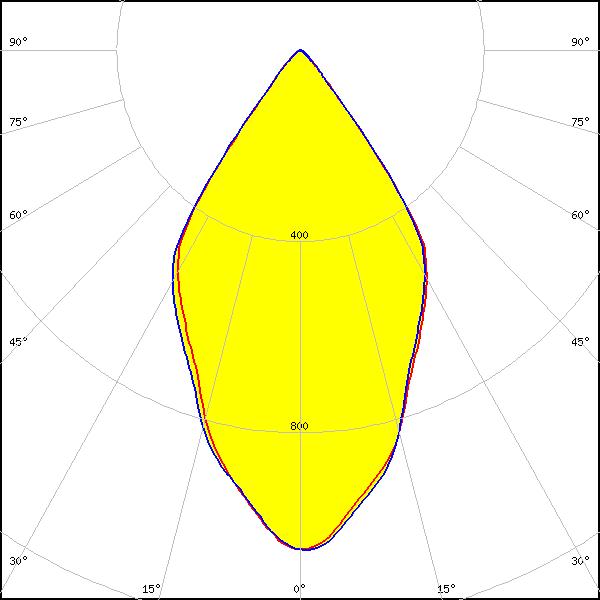

    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    A.A.G. STUCCHI: 8403/G2
    FWHM: 62°
    FWTM: 81°
    Peak intensity: 1.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

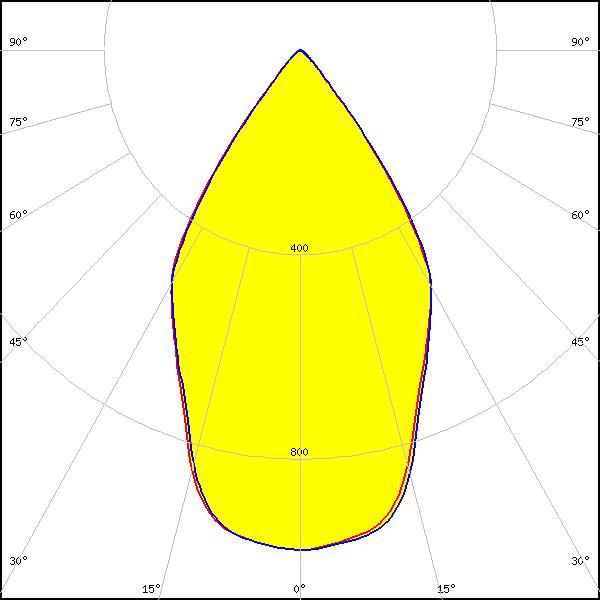

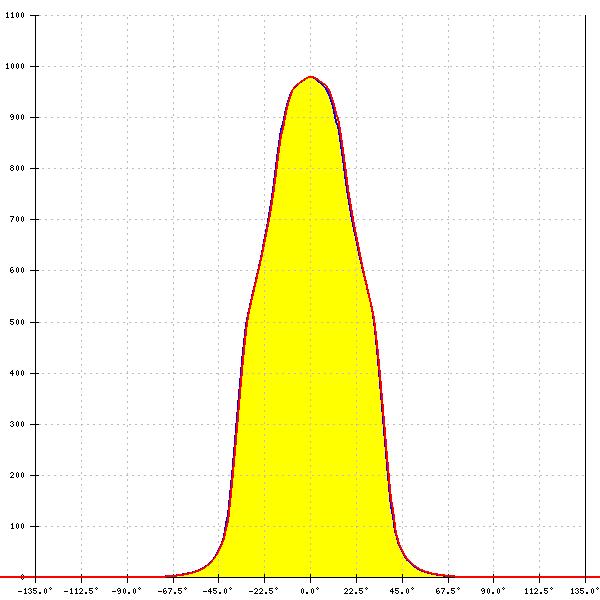

    LED: CXA/B 25xx
    LES size: 19.0 mm
    Required components:
    A.A.G. STUCCHI: 8401-G2
    FWHM: 63°
    FWTM: 83°
    Peak intensity: 0.980 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

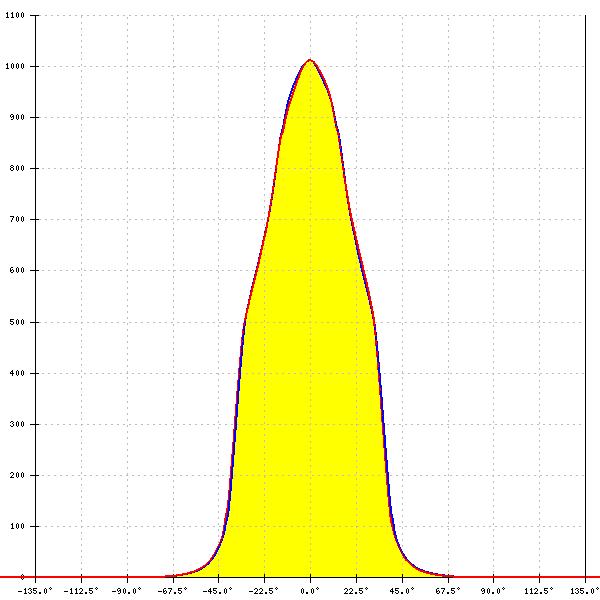

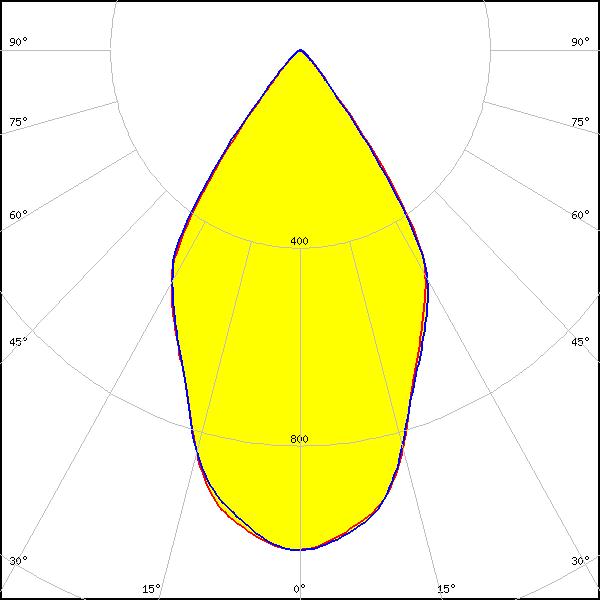

    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    Required components:
    A.A.G. STUCCHI: 8301-G2
    FWHM: 63°
    FWTM: 82°
    Peak intensity: 1.000 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

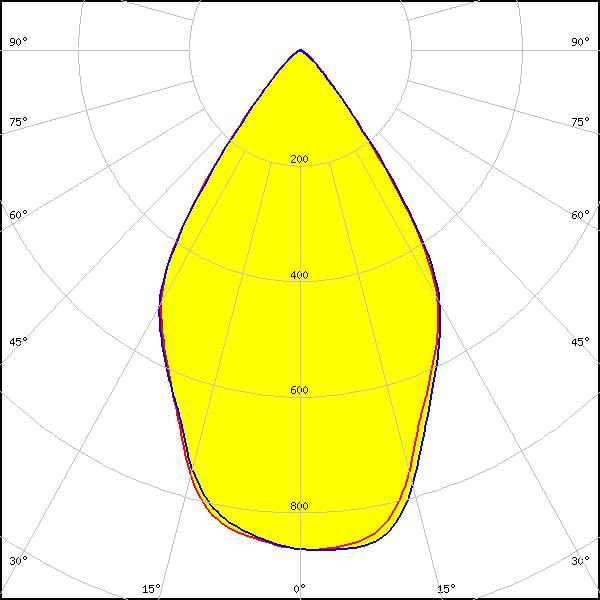

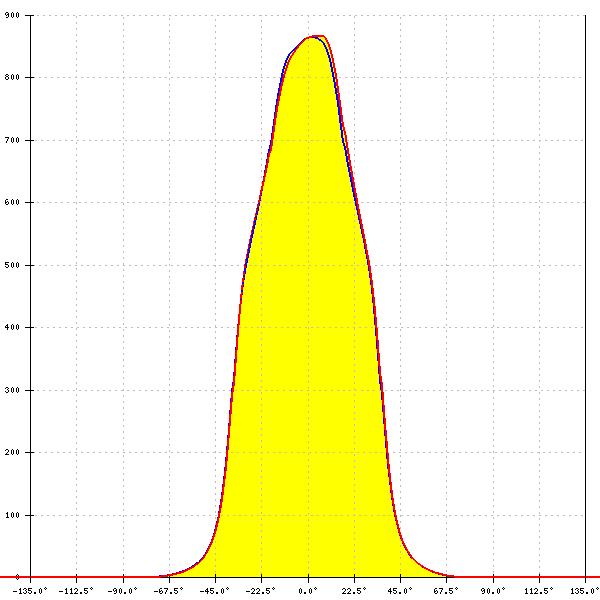

    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    Required components:
    A.A.G. STUCCHI: 8301-G2
    F13671_ANGE-RZ-LENS
    FWHM: 66°
    FWTM: 87°
    Peak intensity: 0.870 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    Required components:
    A.A.G. STUCCHI: 8301-G2
    FWHM: 63°
    FWTM: 82°
    Peak intensity: 1.000 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

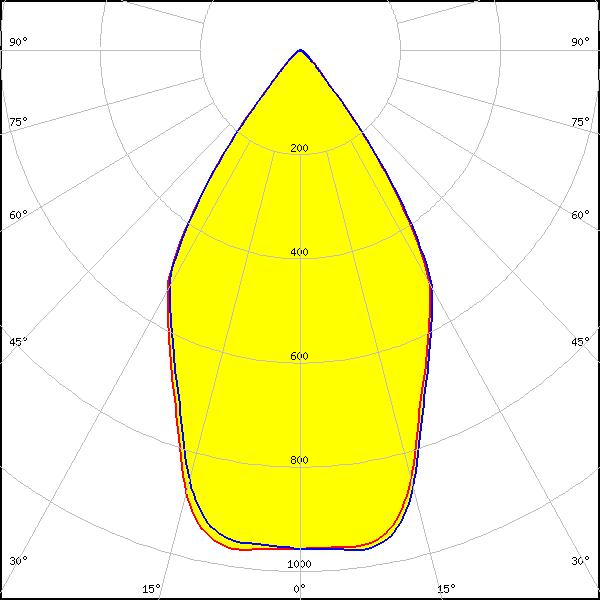

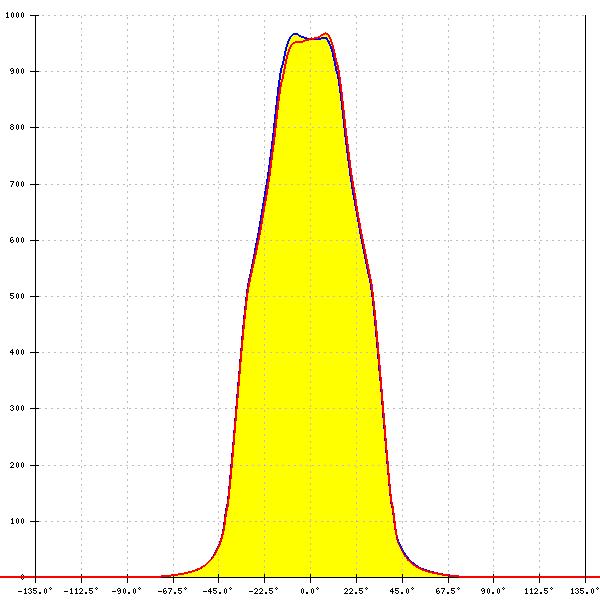

    LED: Fortimo SLM L19 CoB
    LES size: 19.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: 63°
    FWTM: 83°
    Peak intensity: 1.000 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

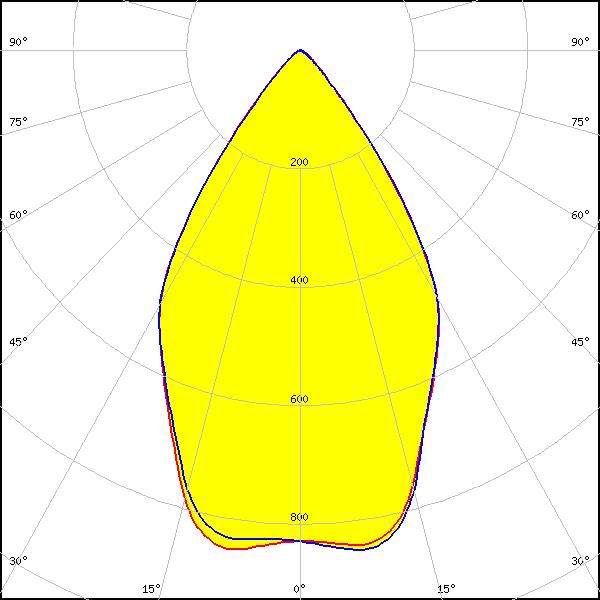

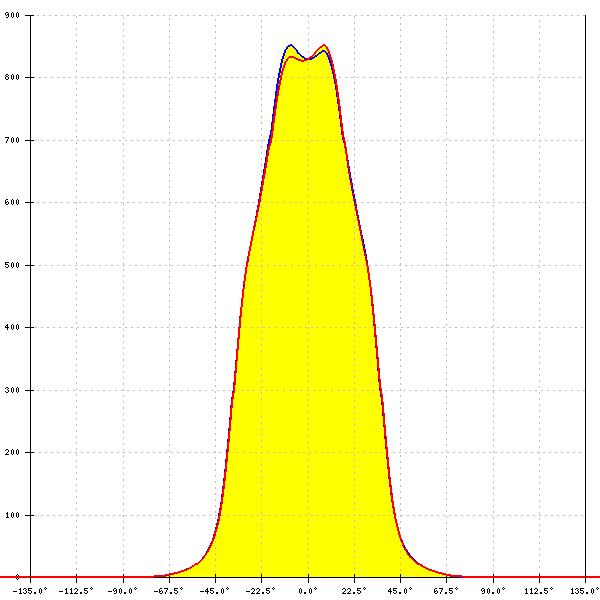

    LED: Fortimo SLM L19 CoB
    LES size: 19.0 mm
    Required components:
    BJB: 47.319.2030
    F13671_ANGE-RZ-LENS
    FWHM: 65°
    FWTM: 87°
    Peak intensity: 0.900 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

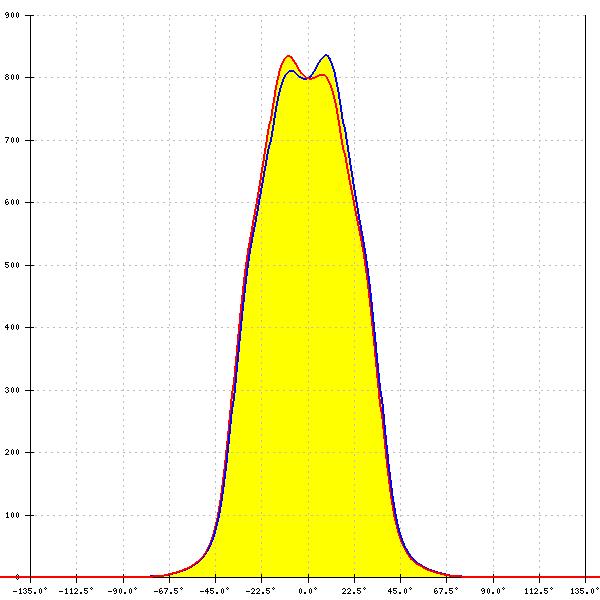

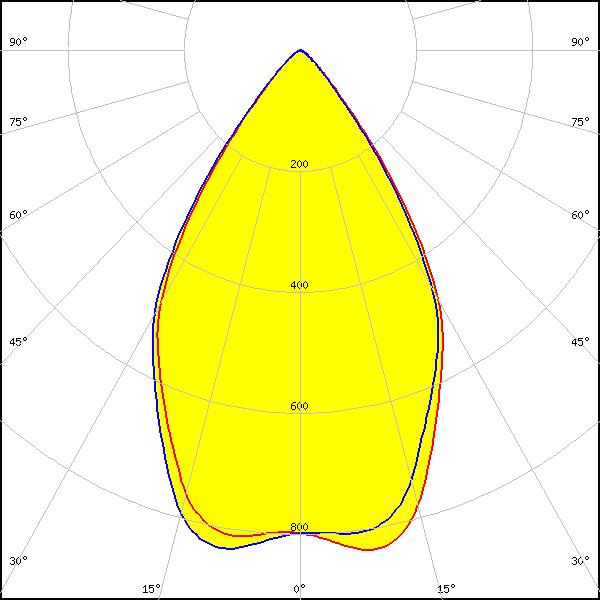

    LED: Fortimo SLM L23 CoB
    LES size: 23.0 mm
    Required components:
    BJB: 47.319.2030
    F13671_ANGE-RZ-LENS
    FWHM: 64°
    FWTM: 88°
    Peak intensity: 0.800 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

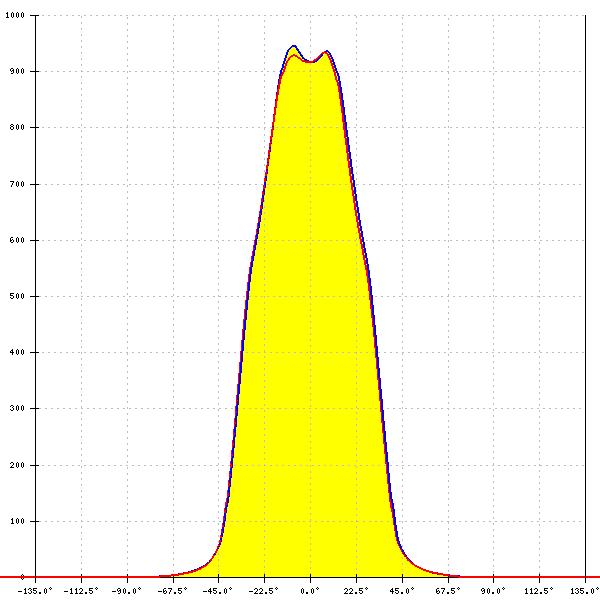

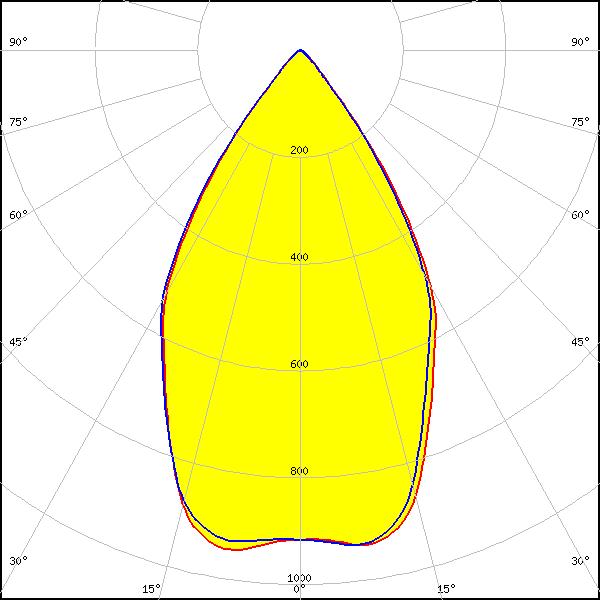

    LED: Fortimo SLM L23 CoB
    LES size: 23.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: 62°
    FWTM: 84°
    Peak intensity: 0.900 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

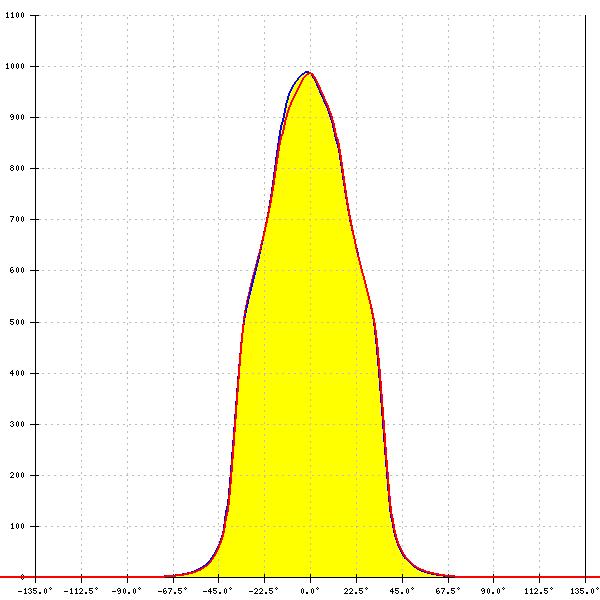

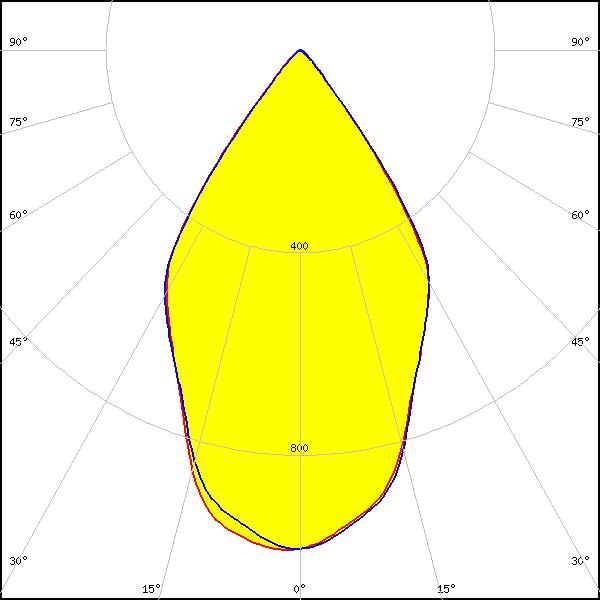

    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    Required components:
    A.A.G. STUCCHI: 8101-G2
    FWHM: 65°
    FWTM: 83°
    Peak intensity: 0.990 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 65°
    FWTM: 83°
    Peak intensity: 0.990 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

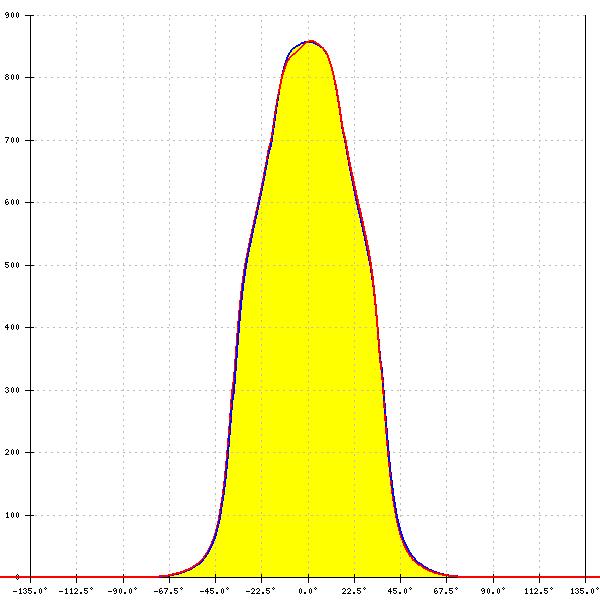

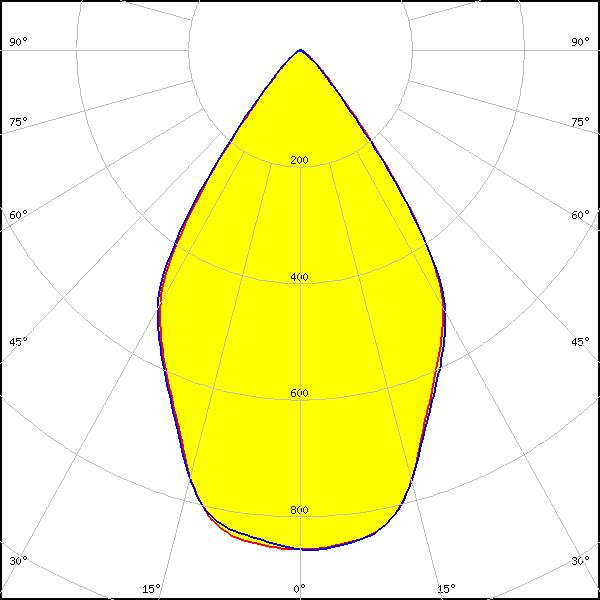

    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    Required components:
    A.A.G. STUCCHI: 8101-G2
    F13671_ANGE-RZ-LENS
    FWHM: 66°
    FWTM: 88°
    Peak intensity: 0.860 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    F13671_ANGE-RZ-LENS
    FWHM: 66°
    FWTM: 88°
    Peak intensity: 0.860 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC040D / LC060D / LC080D
    LES size: 22.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: 60°
    FWTM: 81°
    Peak intensity: 1.030 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

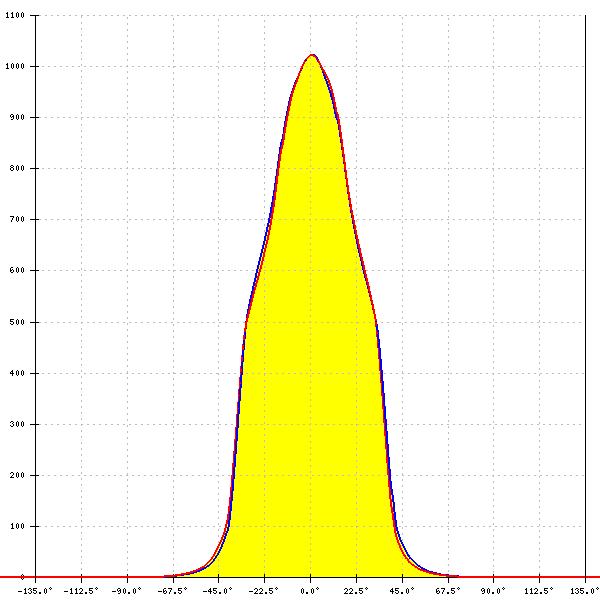

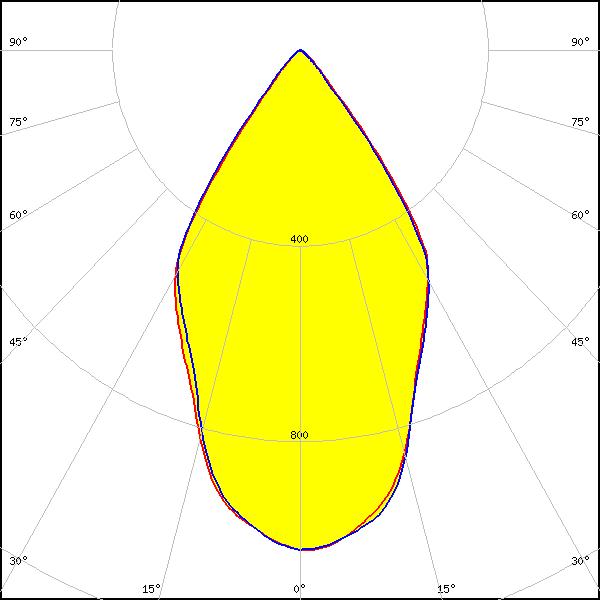

    LED: SLE G7 LES15
    LES size: 15.0 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 63°
    FWTM: 82°
    Peak intensity: 1.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

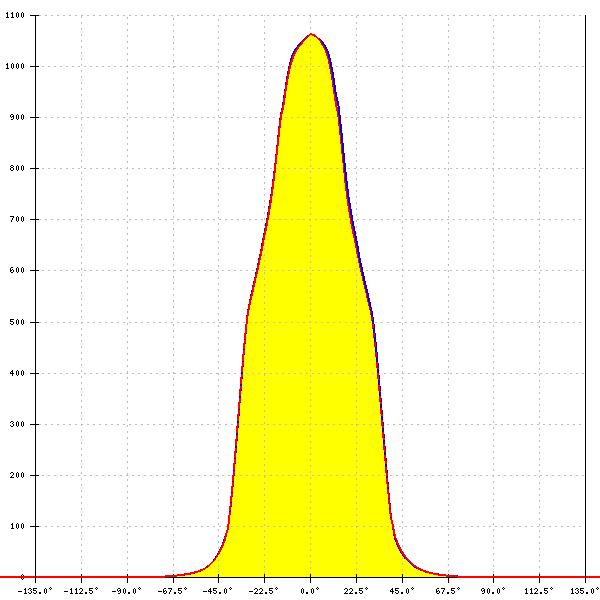

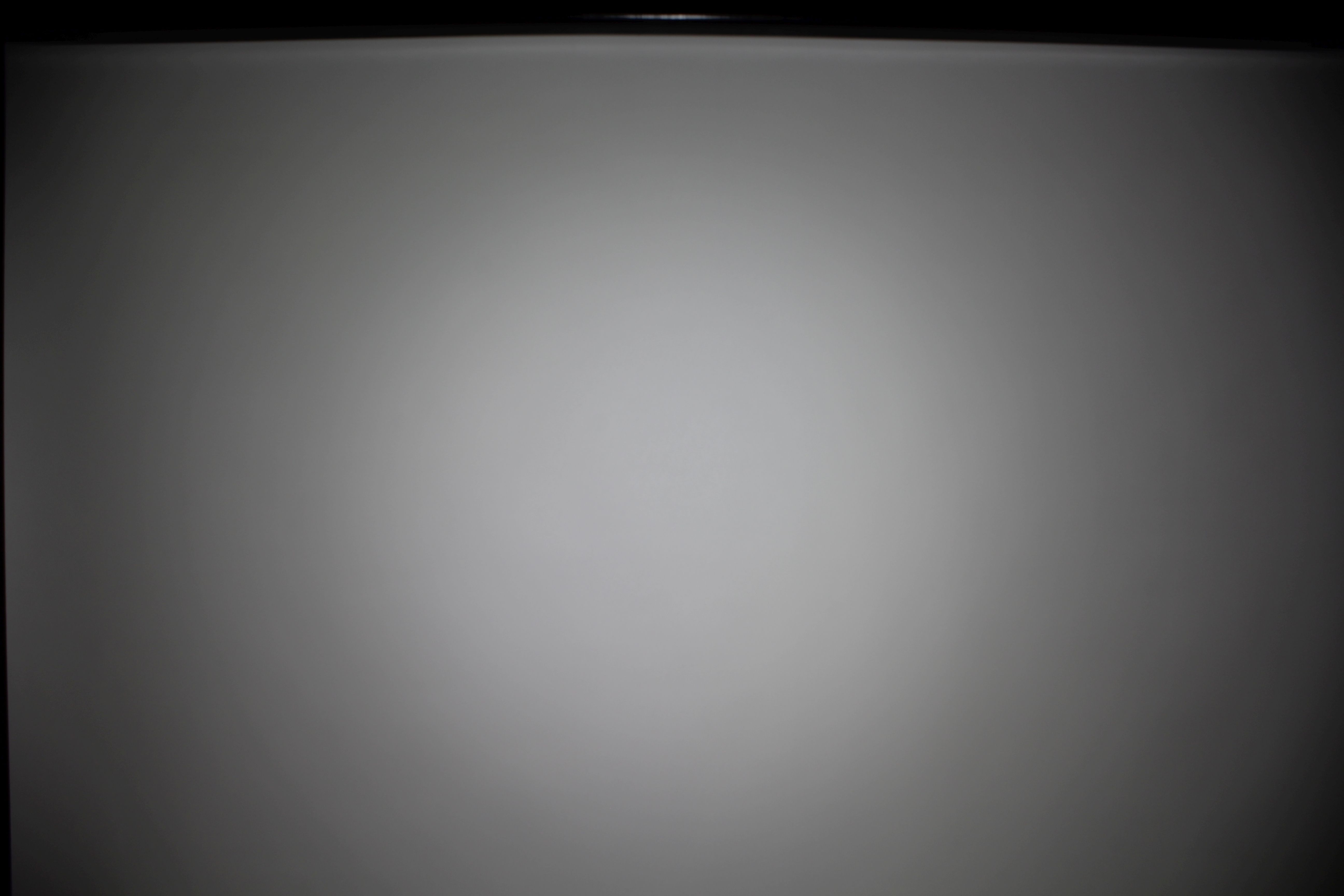

    LED: SLE G7 LES17 H
    FWHM: 59°
    FWTM: 81°
    Peak intensity: 1.100 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

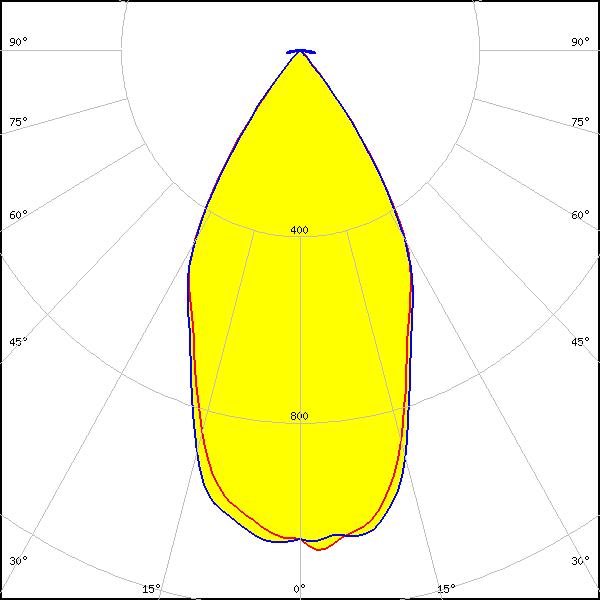

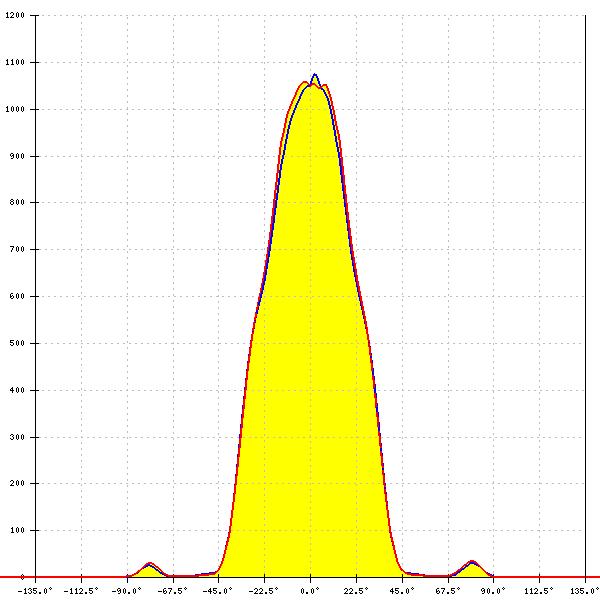

    LED: SLE G7 LES21 H
    Required components:
    F15412_ANGELETTE-DL
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.073 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

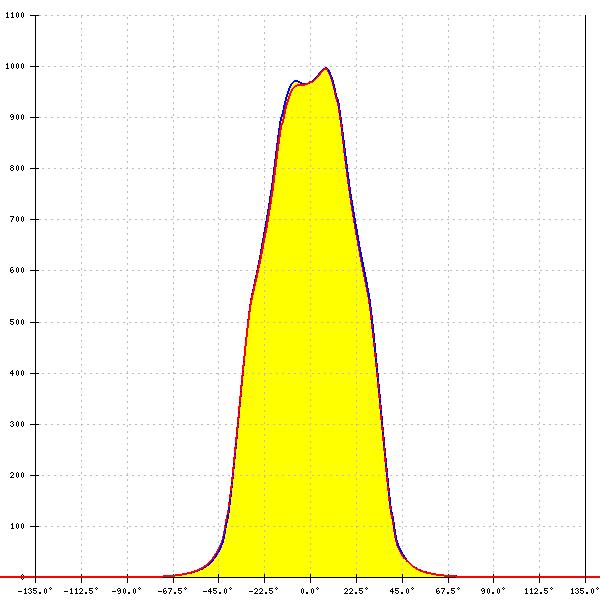

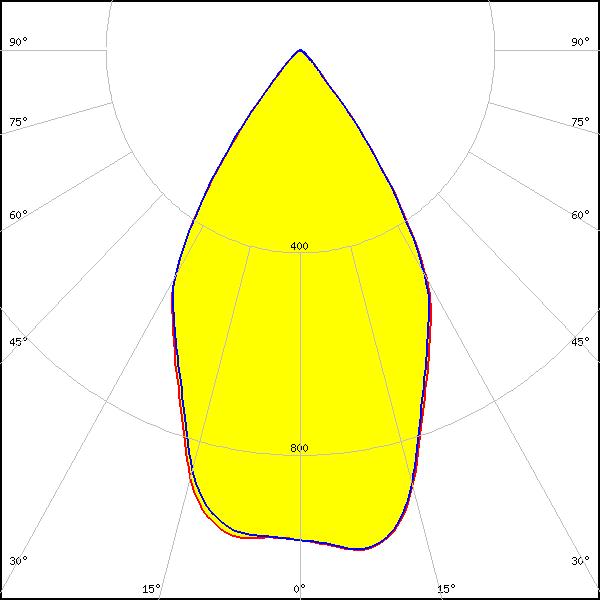

    LED: SLE G7 LES21 H
    FWHM: 61°
    FWTM: 82°
    Peak intensity: 1.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

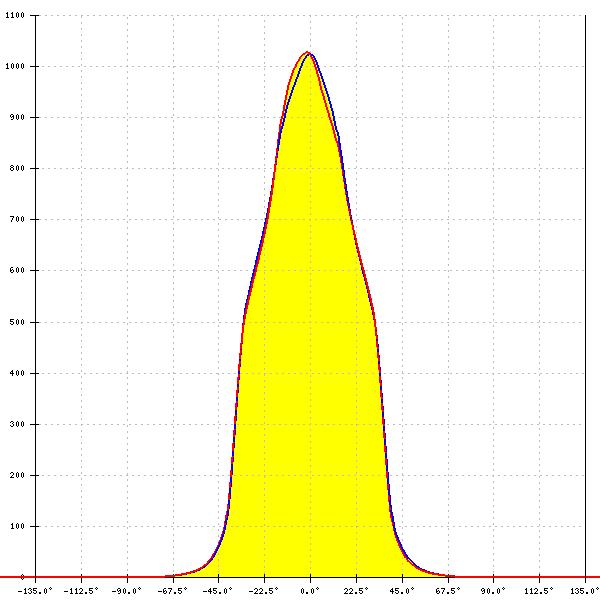

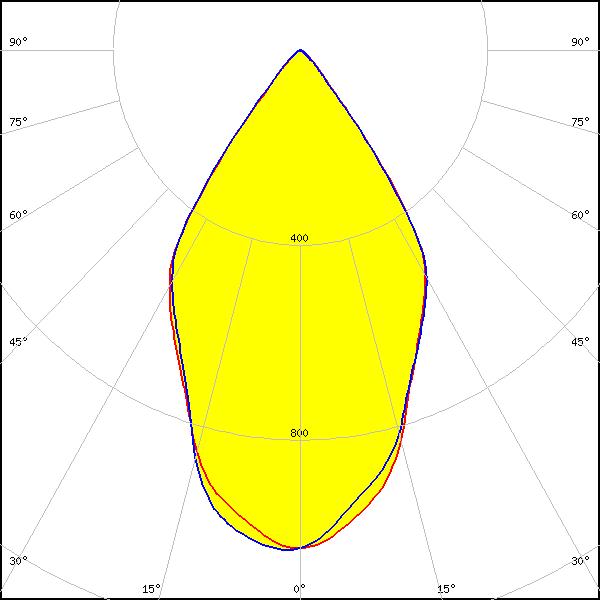

    LED: XOB 14.5 mm
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 64°
    FWTM: 82°
    Peak intensity: 1.027 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
