    F14617_ANGELETTE-M-B

    Print

    ~50° medium beam compatible with BJB and B+W connectors

    Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.

    Specification
    • Dimensions:
      110 mm
    • Height:
      57.30 mm
    • Fastening:
      socket
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      160 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      7.3 kg
    • MPQ:
      160 pcs
    • MOQ:
      1120 pcs
    • MOQ size:
      398 x 298 x 265 mm
    • MOQ weight:
      7.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F14617_ANGELETTE-M-B
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
    WHERE TO BUY

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Compatibility guide

    LEDiL connector and socket compatibility guide

    PCN

    Product change notification NR189 - EOL Notice and Change of Product status

    Application guide

    LEDiL Guide for Retail Lighting Optics

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    News

    PRODUCT NEWS - ANGELETTE

    Application area

    Indoor Architectural Lighting

    Compatibility guide

    ANGELETTE Product Family Compatibility Guide

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    ANGE-RZ-LENS

    Colour mixing sublens for ANGELA, ANGELINA and ANGELETTE

    ANGELETTE-LENS

    Clear protective sublens for symmetrical ANGELETTE reflectors

    ANGELETTE-DL

    Diffusing sublens for symmetrical ANGELETTE reflectors

    XTM-ADAPTER-50-B

    ∅50 mm basepart for Xicato XTM/XIM modules compatible with HEKLA (∅30 mm) and B-type reflectors (∅50 mm) interfaces.

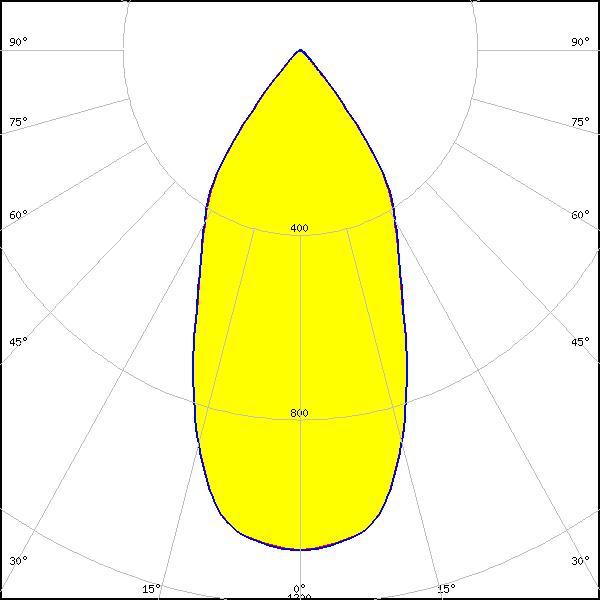

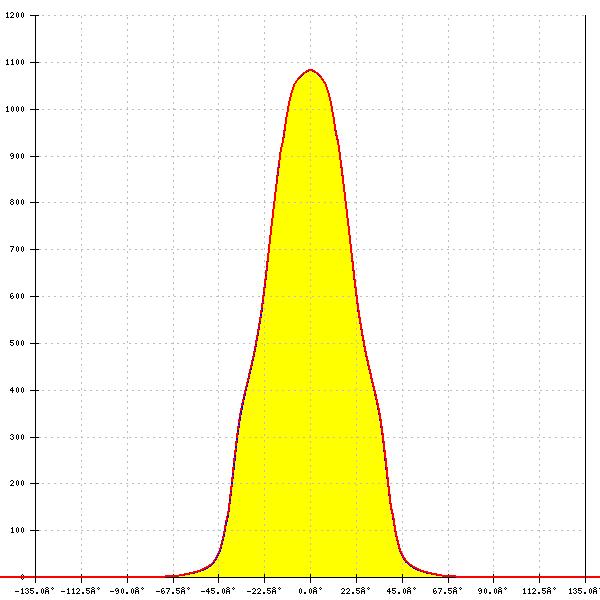

    Optical results

    LED: V15 Gen6
    LES size: 15.2 mm
    Required components:
    BJB: 47.319.2224
    FWHM: 48°
    FWTM: 81°
    Peak intensity: 1.200 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V15 Gen6
    LES size: 15.2 mm
    Required components:
    BJB: 47.319.2224
    F13671_ANGE-RZ-LENS
    FWHM: 51°
    FWTM: 83°
    Peak intensity: 1.100 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V18 Gen6
    LES size: 18.6 mm
    Required components:
    BJB: 47.319.2274
    F13671_ANGE-RZ-LENS
    FWHM: 51°
    FWTM: 83°
    Peak intensity: 1.100 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V18 Gen6
    LES size: 18.6 mm
    Required components:
    BJB: 47.319.2274
    FWHM: 48°
    FWTM: 82°
    Peak intensity: 1.200 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V18 Gen7
    LES size: 19.2 mm
    Required components:
    BJB: 47.319.2350
    FWHM: 48°
    FWTM: 82°
    Peak intensity: 1.200 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V22 Gen6
    LES size: 22.0 mm
    Required components:
    A.A.G. STUCCHI: 8102-G2
    F13671_ANGE-RZ-LENS
    FWHM: 52°
    FWTM: 84°
    Peak intensity: 1.000 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V22 Gen6
    LES size: 22.0 mm
    Required components:
    A.A.G. STUCCHI: 8102-G2
    FWHM: 49°
    FWTM: 82°
    Peak intensity: 1.200 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 47°
    FWTM: 80°
    Peak intensity: 1.200 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    F15176_ANGELETTE-LENS
    FWHM: 47°
    FWTM: 81°
    Peak intensity: 1.200 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    F15412_ANGELETTE-DL
    FWHM: 48°
    FWTM: 82°
    Peak intensity: 1.200 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    LES size: 14.5 mm
    Required components:
    A.A.G. STUCCHI: 8101-G2
    F13671_ANGE-RZ-LENS
    FWHM: 51°
    FWTM: 84°
    Peak intensity: 1.000 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2026
    F13671_ANGE-RZ-LENS
    FWHM: 49°
    FWTM: 83°
    Peak intensity: 1.087 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    LES size: 14.5 mm
    Required components:
    A.A.G. STUCCHI: 8101-G2
    FWHM: 47°
    FWTM: 81°
    Peak intensity: 1.200 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU04x
    LES size: 22.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: 47°
    FWTM: 78°
    Peak intensity: 1.400 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    A.A.G. STUCCHI: 8403/G2
    FWHM: 48°
    FWTM: 81°
    Peak intensity: 1.200 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 25xx
    LES size: 19.0 mm
    Required components:
    A.A.G. STUCCHI: 8401-G2
    FWHM: 47°
    FWTM: 82°
    Peak intensity: 1.200 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    Required components:
    A.A.G. STUCCHI: 8301-G2
    F13671_ANGE-RZ-LENS
    FWHM: 50°
    FWTM: 83°
    Peak intensity: 1.100 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    Required components:
    A.A.G. STUCCHI: 8301-G2
    FWHM: 47°
    FWTM: 81°
    Peak intensity: 1.200 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    Required components:
    A.A.G. STUCCHI: 8301-G2
    FWHM: 47°
    FWTM: 81°
    Peak intensity: 1.200 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L19 CoB
    LES size: 19.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: 47°
    FWTM: 81°
    Peak intensity: 1.300 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L19 CoB
    LES size: 19.0 mm
    Required components:
    BJB: 47.319.2030
    F13671_ANGE-RZ-LENS
    FWHM: 50°
    FWTM: 82°
    Peak intensity: 1.100 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L23 CoB
    LES size: 23.0 mm
    Required components:
    BJB: 47.319.2030
    F13671_ANGE-RZ-LENS
    FWHM: 51°
    FWTM: 83°
    Peak intensity: 1.100 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L23 CoB
    LES size: 23.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: 49°
    FWTM: 81°
    Peak intensity: 1.200 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    Required components:
    A.A.G. STUCCHI: 8101-G2
    FWHM: 48°
    FWTM: 81°
    Peak intensity: 1.200 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 48°
    FWTM: 81°
    Peak intensity: 1.200 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    Required components:
    A.A.G. STUCCHI: 8101-G2
    F13671_ANGE-RZ-LENS
    FWHM: 51°
    FWTM: 83°
    Peak intensity: 1.080 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    F13671_ANGE-RZ-LENS
    FWHM: 51°
    FWTM: 83°
    Peak intensity: 1.080 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC040C
    LES size: 11.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: 50°
    FWTM: 82°
    Peak intensity: 1.200 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC040D / LC060D / LC080D
    LES size: 22.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: 47°
    FWTM: 77°
    Peak intensity: 1.340 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES15
    LES size: 15.0 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 47°
    FWTM: 81°
    Peak intensity: 1.200 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES17 H
    FWHM: 46°
    FWTM: 80°
    Peak intensity: 1.200 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES21 H
    FWHM: 47°
    FWTM: 81°
    Peak intensity: 1.200 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XOB 14.5 mm
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 48°
    FWTM: 81°
    Peak intensity: 1.218 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
